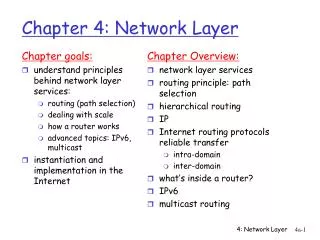

Chapter 4 network layer

Chapter goals:

understand principles behind network layer services:

routing (path selection)

dealing with scale

how a router works

advanced topics: IPv6, multicast

instantiation and implementation in the Internet

Chapter Overview:

network layer services

routing principle: path selection

hierarchical routing

IP

Internet routing protocols reliable transfer

intra-domain

inter-domain

what’s inside a router?

IPv6

multicast routing

Chapter 4: Network Layer

4: Network Layer


Network layer functions

transport packet from sending to receiving hosts

network layer protocols in every host, router

three important functions:

path determination: route taken by packets from source to dest. Routing algorithms

switching: move packets from router’s input to appropriate router output

call setup: some network architectures require router call setup along path before data flows

network

data link

physical

network

data link

physical

network

data link

physical

network

data link

physical

network

data link

physical

network

data link

physical

network

data link

physical

network

data link

physical

application

transport

network

data link

physical

application

transport

network

data link

physical

Network layer functions

4: Network Layer


Network service model

Q: What service model for “channel” transporting packets from sender to receiver?

guaranteed bandwidth?

preservation of inter-packet timing (no jitter)?

loss-free delivery?

in-order delivery?

congestion feedback to sender?

Network service model

The most important

abstraction provided

by network layer:

?

?

virtual circuit

or

datagram?

?

service abstraction

4: Network Layer


Virtual circuits

call setup, teardown for each call before data can flow

each packet carries VC identifier (not destination host OD)

every router on source-dest path s maintain “state” for each passing connection

transport-layer connection only involved two end systems

link, router resources (bandwidth, buffers) may be allocated to VC

to get circuit-like perf.

“source-to-dest path behaves much like telephone circuit”

performance-wise

network actions along source-to-dest path

Virtual circuits

4: Network Layer


Virtual circuits signaling protocols

used to setup, maintain teardown VC

used in ATM, frame-relay, X.25

not used in today’s Internet

application

transport

network

data link

physical

application

transport

network

data link

physical

Virtual circuits: signaling protocols

6. Receive data

5. Data flow begins

4. Call connected

3. Accept call

1. Initiate call

2. incoming call

4: Network Layer


Datagram networks the internet model

no call setup at network layer

routers: no state about end-to-end connections

no network-level concept of “connection”

packets typically routed using destination host ID

packets between same source-dest pair may take different paths

application

transport

network

data link

physical

application

transport

network

data link

physical

Datagram networks: the Internet model

1. Send data

2. Receive data

4: Network Layer


Network layer service models

Network layer service models:

Guarantees ?

Network

Architecture

Internet

ATM

ATM

ATM

ATM

Service

Model

best effort

CBR

VBR

ABR

UBR

Congestion

feedback

no (inferred

via loss)

no

congestion

no

congestion

yes

no

Bandwidth

none

constant

rate

guaranteed

rate

guaranteed

minimum

none

Loss

no

yes

yes

no

no

Order

no

yes

yes

yes

yes

Timing

no

yes

yes

no

no

  • Internet model being extented: Intserv, Diffserv

    • Chapter 6

4: Network Layer


Datagram or vc network why

Internet

data exchange among computers

“elastic” service, no strict timing req.

“smart” end systems (computers)

can adapt, perform control, error recovery

simple inside network, complexity at “edge”

many link types

different characteristics

uniform service difficult

ATM

evolved from telephony

human conversation:

strict timing, reliability requirements

need for guaranteed service

“dumb” end systems

telephones

complexity inside network

Datagram or VC network: why?

4: Network Layer


Routing

Graph abstraction for routing algorithms:

graph nodes are routers

graph edges are physical links

link cost: delay, $ cost, or congestion level

5

3

5

2

2

1

3

1

2

1

A

D

B

E

F

C

Routing protocol

Routing

Goal: determine “good” path

(sequence of routers) thru

network from source to dest.

  • “good” path:

    • typically means minimum cost path

    • other def’s possible

4: Network Layer


Routing algorithm classification

Global or decentralized information?

Global:

all routers have complete topology, link cost info

“link state” algorithms

Decentralized:

router knows physically-connected neighbors, link costs to neighbors

iterative process of computation, exchange of info with neighbors

“distance vector” algorithms

Static or dynamic?

Static:

routes change slowly over time

Dynamic:

routes change more quickly

periodic update

in response to link cost changes

Routing Algorithm classification

4: Network Layer


A link state routing algorithm

Dijkstra’s algorithm

net topology, link costs known to all nodes

accomplished via “link state broadcast”

all nodes have same info

computes least cost paths from one node (‘source”) to all other nodes

gives routing table for that node

iterative: after k iterations, know least cost path to k dest.’s

Notation:

c(i,j): link cost from node i to j. cost infinite if not direct neighbors

D(v): current value of cost of path from source to dest. V

p(v): predecessor node along path from source to v, that is next v

N: set of nodes whose least cost path definitively known

A Link-State Routing Algorithm

4: Network Layer


Dijsktra s algorithm

Dijsktra’s Algorithm

1 Initialization:

2 N = {A}

3 for all nodes v

4 if v adjacent to A

5 then D(v) = c(A,v)

6 else D(v) = infty

7

8 Loop

9 find w not in N such that D(w) is a minimum

10 add w to N

11 update D(v) for all v adjacent to w and not in N:

12 D(v) = min( D(v), D(w) + c(w,v) )

13 /* new cost to v is either old cost to v or known

14 shortest path cost to w plus cost from w to v */

15 until all nodes in N

4: Network Layer


Dijkstra s algorithm example

5

3

5

2

2

1

3

1

2

1

A

D

B

E

F

C

Dijkstra’s algorithm: example

D(B),p(B)

2,A

2,A

2,A

D(D),p(D)

1,A

D(C),p(C)

5,A

4,D

3,E

3,E

D(E),p(E)

infinity

2,D

Step

0

1

2

3

4

5

start N

A

AD

ADE

ADEB

ADEBC

ADEBCF

D(F),p(F)

infinity

infinity

4,E

4,E

4,E

4: Network Layer


Dijkstra s algorithm discussion

Algorithm complexity: n nodes

each iteration: need to check all nodes, w, not in N

n*(n+1)/2 comparisons: O(n**2)

more efficient implementations possible: O(nlogn)

Oscillations possible:

e.g., link cost = amount of carried traffic

A

A

A

A

D

D

D

D

B

B

B

B

C

C

C

C

2+e

2+e

0

0

1

1

1+e

1+e

0

e

0

0

Dijkstra’s algorithm, discussion

1

1+e

0

2+e

0

0

0

0

e

0

1

1+e

1

1

e

… recompute

… recompute

routing

… recompute

initially

4: Network Layer


Distance vector routing algorithm

iterative:

continues until no nodes exchange info.

self-terminating: no “signal” to stop

asynchronous:

nodes need not exchange info/iterate in lock step!

distributed:

each node communicates only with directly-attached neighbors

Distance Table data structure

each node has its own

row for each possible destination

column for each directly-attached neighbor to node

example: in node X, for dest. Y via neighbor Z:

distance from X to

Y, via Z as next hop

X

=

D (Y,Z)

Z

c(X,Z) + min {D (Y,w)}

=

w

Distance Vector Routing Algorithm

4: Network Layer


Distance table example

cost to destination via

E

D ()

A

B

C

D

A

1

7

6

4

B

14

8

9

11

D

5

5

4

2

1

7

2

8

1

destination

2

A

D

B

E

C

E

E

E

D (C,D)

D (A,D)

D (A,B)

B

D

D

c(E,B) + min {D (A,w)}

c(E,D) + min {D (A,w)}

c(E,D) + min {D (C,w)}

=

=

=

w

w

w

=

=

=

2+3 = 5

2+2 = 4

8+6 = 14

Distance Table: example

loop!

loop!

4: Network Layer


Distance table gives routing table

cost to destination via

E

D ()

A

B

C

D

A

1

7

6

4

B

14

8

9

11

D

5

5

4

2

destination

Distance table gives routing table

Outgoing link

to use, cost

A

B

C

D

A,1

D,5

D,4

D,4

destination

Routing table

Distance table

4: Network Layer


Distance vector routing overview

Iterative, asynchronous: each local iteration caused by:

local link cost change

message from neighbor: its least cost path change from neighbor

Distributed:

each node notifies neighbors only when its least cost path to any destination changes

neighbors then notify their neighbors if necessary

wait for (change in local link cost of msg from neighbor)

recompute distance table

if least cost path to any dest has changed, notify neighbors

Distance Vector Routing: overview

Each node:

4: Network Layer


Distance vector algorithm

Distance Vector Algorithm:

At all nodes, X:

1 Initialization:

2 for all adjacent nodes v:

3 D (*,v) = infty /* the * operator means "for all rows" */

4 D (v,v) = c(X,v)

5 for all destinations, y

6 send min D (y,w) to each neighbor /* w over all X's neighbors */

X

X

X

w

4: Network Layer


Distance vector algorithm cont

Distance Vector Algorithm (cont.):

8 loop

9 wait (until I see a link cost change to neighbor V

10 or until I receive update from neighbor V)

11

12 if (c(X,V) changes by d)

13 /* change cost to all dest's via neighbor v by d */

14 /* note: d could be positive or negative */

15 for all destinations y: D (y,V) = D (y,V) + d

16

17 else if (update received from V wrt destination Y)

18 /* shortest path from V to some Y has changed */

19 /* V has sent a new value for its min DV(Y,w) */

20 /* call this received new value is "newval" */

21 for the single destination y: D (Y,V) = c(X,V) + newval

22

23 if we have a new min D (Y,w)for any destination Y

24 send new value of min D (Y,w) to all neighbors

25

26 forever

X

X

w

X

X

w

X

w

4: Network Layer


Distance vector algorithm example

2

1

7

X

Z

Y

Distance Vector Algorithm: example

4: Network Layer


Distance vector algorithm example1

2

7

1

Y

Z

X

X

c(X,Y) + min {D (Z,w)}

c(X,Z) + min {D (Y,w)}

D (Y,Z)

D (Z,Y)

=

=

w

w

=

=

2+1 = 3

7+1 = 8

X

Z

Y

Distance Vector Algorithm: example

4: Network Layer


Distance vector link cost changes

1

4

1

50

X

Z

Y

Distance Vector: link cost changes

Link cost changes:

  • node detects local link cost change

  • updates distance table (line 15)

  • if cost change in least cost path, notify neighbors (lines 23,24)

algorithm

terminates

“good

news

travels

fast”

4: Network Layer


Distance vector link cost changes1

60

4

1

50

X

Z

Y

Distance Vector: link cost changes

Link cost changes:

  • good news travels fast

  • bad news travels slow - “count to infinity” problem!

algorithm

continues

on!

4: Network Layer


Distance vector poisoned reverse

60

4

1

50

X

Z

Y

Distance Vector: poisoned reverse

If Z routes through Y to get to X :

  • Z tells Y its (Z’s) distance to X is infinite (so Y won’t route to X via Z)

  • will this completely solve count to infinity problem?

algorithm

terminates

4: Network Layer


Comparison of ls and dv algorithms

Message complexity

LS: with n nodes, E links, O(nE) msgs sent each

DV: exchange between neighbors only

convergence time varies

Speed of Convergence

LS: O(n**2) algorithm requires O(nE) msgs

may have oscillations

DV: convergence time varies

may be routing loops

count-to-infinity problem

Robustness: what happens if router malfunctions?

LS:

node can advertise incorrect link cost

each node computes only its own table

DV:

DV node can advertise incorrect path cost

each node’s table used by others

error propagate thru network

Comparison of LS and DV algorithms

4: Network Layer


Hierarchical routing

scale: with 50 million destinations:

can’t store all dest’s in routing tables!

routing table exchange would swamp links!

administrative autonomy

internet = network of networks

each network admin may want to control routing in its own network

Hierarchical Routing

Our routing study thus far - idealization

  • all routers identical

  • network “flat”

    … not true in practice

4: Network Layer


Hierarchical routing1

aggregate routers into regions, “autonomous systems” (AS)

routers in same AS run same routing protocol

“inter-AS” routing protocol

routers in different AS can run different inter-AS routing protocol

special routers in AS

run inter-AS routing protocol with all other routers in AS

also responsible for routing to destinations outside AS

run intra-AS routing protocol with other gateway routers

gateway routers

Hierarchical Routing

4: Network Layer


Intra as and inter as routing

c

b

b

c

a

A.c

A.a

C.b

B.a

Intra-AS and Inter-AS routing

  • Gateways:

    • perform inter-AS routing amongst themselves

    • perform intra-AS routers with other routers in their AS

b

a

a

C

B

d

A

network layer

inter-AS, intra-AS routing in

gateway A.c

link layer

physical layer

4: Network Layer


Intra as and inter as routing1

Inter-AS

routing

between

A and B

b

c

a

a

C

b

B

b

c

a

d

Host

h1

A

A.a

A.c

C.b

B.a

Intra-AS and Inter-AS routing

Host

h2

Intra-AS routing

within AS B

Intra-AS routing

within AS A

  • We’ll examine specific inter-AS and intra-AS Internet routing protocols shortly

4: Network Layer


The internet network layer

Host, router network layer functions:

  • ICMP protocol

  • error reporting

  • router “signaling”

  • IP protocol

  • addressing conventions

  • datagram format

  • packet handling conventions

  • Routing protocols

  • path selection

  • RIP, OSPF, BGP

routing

table

The Internet Network layer

Transport layer: TCP, UDP

Network

layer

Link layer

physical layer

4: Network Layer


Ip addressing

IP address: 32-bit identifier for host, router interface

interface: connection between host, router and physical link

router’s typically have multiple interfaces

host may have multiple interfaces

IP addresses associated with interface, not host, router

223.1.1.2

223.1.2.2

223.1.2.1

223.1.3.2

223.1.3.1

223.1.3.27

IP Addressing

223.1.1.1

223.1.2.9

223.1.1.4

223.1.1.3

223.1.1.1 = 11011111 00000001 00000001 00000001

223

1

1

1

4: Network Layer


Ip addressing1

IP address:

network part (high order bits)

host part (low order bits)

What’s a network ? (from IP address perspective)

device interfaces with same network part of IP address

can physically reach each other without intervening router

IP Addressing

223.1.1.1

223.1.2.1

223.1.1.2

223.1.2.9

223.1.1.4

223.1.2.2

223.1.3.27

223.1.1.3

LAN

223.1.3.2

223.1.3.1

network consisting of 3 IP networks

(for IP addresses starting with 223,

first 24 bits are network address)

4: Network Layer


Ip addressing2

How to find the networks?

Detach each interface from router, host

create “islands of isolated networks

223.1.3.27

223.1.3.1

223.1.3.2

IP Addressing

223.1.1.2

223.1.1.1

223.1.1.4

223.1.1.3

223.1.7.0

223.1.9.2

223.1.9.1

223.1.7.1

223.1.8.1

223.1.8.0

223.1.2.6

Interconnected

system consisting

of six networks

223.1.2.1

223.1.2.2

4: Network Layer


Ip addresses

multicast address

1110

network

host

110

network

10

host

IP Addresses

class

1.0.0.0 to

127.255.255.255

A

network

0

host

128.0.0.0 to

191.255.255.255

B

192.0.0.0 to

239.255.255.255

C

240.0.0.0 to

247.255.255.255

D

32 bits

4: Network Layer


Getting a datagram from source to dest

IP datagram:

223.1.1.1

223.1.2.1

B

E

A

223.1.1.2

source

IP addr

223.1.2.9

misc

fields

dest

IP addr

223.1.1.4

data

223.1.2.2

223.1.3.27

223.1.1.3

223.1.3.2

223.1.3.1

Dest. Net. next router Nhops

223.1.1 1

223.1.2 223.1.1.4 2

223.1.3 223.1.1.4 2

Getting a datagram from source to dest.

routing table in A

  • datagram remains unchanged, as it travels source to destination

  • addr fields of interest here

4: Network Layer


Getting a datagram from source to dest1

223.1.1.1

223.1.2.1

E

B

A

223.1.1.2

223.1.2.9

223.1.1.4

223.1.2.2

223.1.3.27

223.1.1.3

223.1.3.2

223.1.3.1

Dest. Net. next router Nhops

223.1.1 1

223.1.2 223.1.1.4 2

223.1.3 223.1.1.4 2

Getting a datagram from source to dest.

misc

fields

data

223.1.1.1

223.1.1.3

Starting at A, given IP datagram addressed to B:

  • look up net. address of B

  • find B is on same net. as A

  • link layer will send datagram directly to B inside link-layer frame

    • B and A are directly connected

4: Network Layer


Getting a datagram from source to dest2

223.1.1.1

223.1.2.1

E

B

A

223.1.1.2

223.1.2.9

223.1.1.4

223.1.2.2

223.1.3.27

223.1.1.3

223.1.3.2

223.1.3.1

Dest. Net. next router Nhops

223.1.1 1

223.1.2 223.1.1.4 2

223.1.3 223.1.1.4 2

Getting a datagram from source to dest.

misc

fields

data

223.1.1.1

223.1.2.3

Starting at A, dest. E:

  • look up network address of E

  • E on different network

    • A, E not directly attached

  • routing table: next hop router to E is 223.1.1.4

  • link layer sends datagram to router 223.1.1.4 inside link-layer frame

  • datagram arrives at 223.1.1.4

  • continued…..

4: Network Layer


Getting a datagram from source to dest3

Dest. next

223.1.1.1

network router Nhops interface

223.1.2.1

E

B

A

223.1.1 - 1 223.1.1.4

223.1.1.2

223.1.2 - 1 223.1.2.9

223.1.2.9

223.1.1.4

223.1.3 - 1 223.1.3.27

223.1.2.2

223.1.3.27

223.1.1.3

223.1.3.2

223.1.3.1

Getting a datagram from source to dest.

misc

fields

data

223.1.1.1

223.1.2.3

Arriving at 223.1.4, destined for 223.1.2.2

  • look up network address of E

  • E on same network as router’s interface 223.1.2.9

    • router, E directly attached

  • link layer sends datagram to 223.1.2.2 inside link-layer frame via interface 223.1.2.9

  • datagram arrives at 223.1.2.2!!! (hooray!)

4: Network Layer


Ip datagram format

IP datagram format

IP protocol version

number

32 bits

total datagram

length (bytes)

header length

(bytes)

type of

service

head.

len

ver

length

for

fragmentation/

reassembly

fragment

offset

“type” of data

flgs

16-bit identifier

max number

remaining hops

(decremented at

each router)

upper

layer

time to

live

Internet

checksum

32 bit source IP address

32 bit destination IP address

upper layer protocol

to deliver payload to

E.g. timestamp,

record route

taken, pecify

list of routers

to visit.

Options (if any)

data

(variable length,

typically a TCP

or UDP segment)

4: Network Layer


Ip fragmentation and reassembly

network links have MTU (max.transfer size) - largest possible link-level frame.

different link types, different MTUs

large IP datagram divided (“fragmented”) within net

one datagram becomes several datagrams

“reassembled” only at final destination

IP header bits used to identify, order related fragments

IP Fragmentation and Reassembly

fragmentation:

in: one large datagram

out: 3 smaller datagrams

reassembly

4: Network Layer


Ip fragmentation and reassembly1

length

=1500

length

=1500

length

=4000

length

=1040

ID

=x

ID

=x

ID

=x

ID

=x

fragflag

=0

fragflag

=0

fragflag

=1

fragflag

=1

offset

=0

offset

=1480

offset

=0

offset

=2960

IP Fragmentation and Reassembly

One large datagram becomes

several smaller datagrams

4: Network Layer


Icmp internet control message protocol

used by hosts, routers, gateways to communication network-level information

error reporting: unreachable host, network, port, protocol

echo request/reply (used by ping)

network-layer “above” IP:

ICMP msgs carried in IP datagrams

ICMP message: type, code plus first 8 bytes of IP datagram causing error

ICMP: Internet Control Message Protocol

TypeCodedescription

0 0 echo reply (ping)

3 0 dest. network unreachable

3 1 dest host unreachable

3 2 dest protocol unreachable

3 3 dest port unreachable

3 6 dest network unknown

3 7 dest host unknown

4 0 source quench (congestion

control - not used)

8 0 echo request (ping)

9 0 route advertisement

10 0 router discovery

11 0 TTL expired

12 0 bad IP header

4: Network Layer


Routing in the internet

Routing in the Internet

  • The Global Internet consists of Autonomous Systems (AS) interconnected with eachother:

    Stub AS: small corporation

    Multihomed AS: large corporation (no transit)

    Transit AS: provider

  • Two level routing:

    Intra-AS: administrator is responsible for choice

    Inter-AS: unique standard

4: Network Layer


Internet as hierarchy

Internet AS Hierarchy

4: Network Layer


Intra as routing

Intra-AS Routing

  • Also known as Interior Gateway Protocol (IGP)

  • Most common IGPs:

    RIP: Routing Information Protocol

    OSPF: Open Shortest Path First

    IGRP: Interior Gateway Routing Protocol (Cisco propr.)

4: Network Layer


Rip routing info protocol

RIP ( Routing Info Protocol)

  • Distance vector type scheme

  • Included in BSD-UNIX Distribution in 1982

  • Distance metric: # of hops (max = 15 hops)

  • Distance vector: exchanged every 30 sec via a Response Message (also called Advertisement)

  • Each Advertisement contains up to 25 destination nets

4: Network Layer


Chapter 4 network layer

RIP

4: Network Layer


Chapter 4 network layer

RIP

destination networknext routernumber of hops to destination

1A2

20B2

30B7

10--1

….….....

4: Network Layer


Rip link failure and recovery

RIP: Link Failure and Recovery

  • If no advertisement heard after 180 sec, neighbor/link dead

  • Routes via the neighbor are invalidated; new advertisements sent to neighbors

  • Neighbors in turn send out new advertisements if their tables changed

  • Link failure info quickly propagates to entire net

  • Poison reverse used to prevent ping-pong loops (infinite distance = 16 hops)

4: Network Layer


Rip table processing

RIP Tableprocessing

  • RIP routing tables managed by an application process called route-d (demon)

  • advertisements encapsulated in UDP packets (no reliable delivery required; advertisements are periodically repeated)

4: Network Layer


Rip table processing1

RIP Tableprocessing

4: Network Layer


Rip table example

RIP Table example

Destination Gateway Flags Ref Use Interface

-------------------- -------------------- ----- ----- ------ ---------

127.0.0.1 127.0.0.1 UH 0 26492 lo0

192.168.2. 192.168.2.5 U 2 13 fa0

193.55.114. 193.55.114.6 U 3 58503 le0

192.168.3. 192.168.3.5 U 2 25 qaa0

224.0.0.0 193.55.114.6 U 3 0 le0

default 193.55.114.129 UG 0 143454

4: Network Layer


Rip table example cont

RIP Table example (cont)

RIP Table example (at router giroflee):

Three attached class C networks (LANs)

Router only knows routes to attached LANs

Default router used to “go up”

Route multicast address: 224.0.0.0

Loopback interface (for debugging)

4: Network Layer


Ospf open shortest path first

OSPF (Open Shortest Path First)

  • “open”: publicly available

  • uses the Link State algorithm (ie, LS packet dissemination; topology map at each node; route computation using Dijkstra’s alg)

  • OSPF advertisement carries one entry per neighbor router

  • advertisements disseminated to ENTIRE Autonomous System (via flooding)

4: Network Layer


Ospf advanced features not in rip

OSPF “advanced” features (not in RIP)

  • Security: all OSPF messages are authenticated (to prevent malicious intrusion); TCP connections used

  • Multiple same-cost paths allowed (only one path in RIP)

  • For each link, multiple cost metrics for different TOS (eg, satellite link cost set “low” for best effort; high for real time)

  • Integrated uni- and multicast support: Multicast OSPF (MOSPF) uses same topology data base as OSPF

  • Hierarchical OSPF in large domains

4: Network Layer


Hierarchical ospf

HierarchicalOSPF

4: Network Layer


Hierarchical ospf1

Hierarchical OSPF

  • Two level hierarchy: local area and backbone

  • Link state advertisements do not leave respective areas

  • Nodes in each area have detailed area topology; they only know direction (shortest path) to networks in other areas

  • Area Border routers“summarize” distances to networks in the area and advertise them to other Area Border routers

  • Backbone routers run an OSPF routing alg limited to the backbone

  • Boundary routers connect to other ASs

4: Network Layer


Igrp interior gateway routing protocol

IGRP (Interior Gateway Routing Protocol)

  • CISCO proprietary; successor of RIP (mid 80’s)

  • Distance Vector, like RIP

  • several cost metrics (delay, bandwidth, reliability, load etc)

  • uses TCP to exchange routing updates

  • routing tables exchanged only when costs change

  • Loop free routing achieved by using a Distributed Updating Alg. (DUAL) based on diffused computation

  • In DUAL, after a distance increase, the routing table is frozen until all affected nodes have learned of the change

4: Network Layer


Inter as routing

Inter-AS routing

4: Network Layer


Inter as routing cont

Inter-AS routing (cont)

  • BGP (Border Gateway Protocol): the de facto standard

  • Path Vector protocol: and extension of Distance Vector

  • Each Border Gateway broadcast to neighbors (peers) the entire path (ie, sequence of AS’s) to destination

  • For example, Gwy X may store the following path to destination Z:

    Path (X,Z) = X,Y1,Y2,Y3,…,Z

4: Network Layer


Inter as routing cont1

Inter-AS routing (cont)

  • Now, suppose Gwy X send its path to peer Gwy W

  • Gwy W may or may not select the path offered by Gwy X, because of cost, policy or loop prevention reasons

  • If Gwy W selects the path advertised by Gwy X, then:

    Path (W,Z) = w, Path (X,Z)

    Note: path selection based not so much on cost (eg,# of

    AS hops), but mostly on administrative and policy issues

    (eg, do not route packets through competitor’s AS)

4: Network Layer


Inter as routing cont2

Inter-AS routing (cont)

  • Peers exchange BGP messages using TCP

  • OPEN msg opens TCP connection to peer and authenticates sender

  • UPDATE msg advertises new path (or withdraws old)

  • KEEPALIVE msg keeps connection alive in absence of UPDATES; it also serves as ACK to an OPEN request

  • NOTIFICATION msg reports errors in previous msg; also used to close a connection

4: Network Layer


Address management

Address Management

  • As Internet grows, werun out of addresses

  • Solution (a): subnetting. Eg, Class B Host field (16bits) is subdivided into <subnet;host> fields

  • Solution (b): CIDR (Classless Inter Domain Routing): assign block of contiguous Class C addresses to the same organization; these addresses all share a common prefix

  • repeated “aggregation” within same provider leads to shorter and shorter prefixes

  • CIDR helps also routing table size and processing: Border Gwys keep only prefixes and find “longest prefix” match

4: Network Layer


Why different intra and inter as routing

Why different Intra- and Inter-AS routing ?

  • Policy: Inter is concerned with policies (which provider we must select/avoid, etc). Intra is contained in a single organization, so, no policy decisions necessary

  • Scale: Inter provides an extra level of routing table size and routing update traffic reduction above the Intra layer

  • Performance: Intra is focused on performance metrics; needs to keep costs low. In Inter it is difficult to propagate performance metrics efficiently (latency, privacy etc). Besides, policy related information is more meaningful.

    We need BOTH!

4: Network Layer


Router architecture overview

Router Architecture Overview

  • Router main functions: routing algorithms and protocols processing, switching datagrams from an incoming link to an outgoing link

Router Components

4: Network Layer


Input ports

Input Ports

  • Decentralized switching: perform routing table lookup using a copy of the node routing table stored in the port memory

  • Goal is to complete input port processing at ‘line speed’, ie processing time =< frame reception time (eg, with 2.5 Gbps line, 256 bytes long frame, router must perform about 1 million routing table lookups in a second)

  • Queuing occurs if datagrams arrive at rate higher than can be forwarded on switching fabric

4: Network Layer


Speeding up routing table lookup

Speeding Up Routing Table Lookup

  • Table is stored in a tree structure to facilitate binary search

  • Content Addressable Memory (associative memory), eg Cisco 8500 series routers

  • Caching of recently looked-up addresses

  • Compression of routing tables

4: Network Layer


Switching fabric

Switching Fabric

4: Network Layer


Switching via memory

Memory

Input

Port

Output

Port

System Bus

Switching Via Memory

  • First generation routers: packet is copied under system’s (single) CPU control; speed limited by Memory bandwidth. For Memory speed of B packet/sec or pps, throughput is B/2 pps

  • Modern routers: input ports with CPUs that implement output port lookup, and store packets in appropriate locations (= switch) in a shared Memory; eg Cisco Catalyst 8500 switches

4: Network Layer


Switching via bus

Switching Via Bus

  • Input port processors transfer a datagram from input port memory to output port memory via a shared bus

  • Main resource contention is over the bus; switching is limited by bus speed

  • Sufficient speed for access and enterprise routers (not regional or backbone routers) is provided by a Gbps bus; eg Cisco 1900 which has a 1 Gbps bus

4: Network Layer


Switching via an interconnection network

Switching Via An Interconnection Network

  • Used to overcome bus bandwidth limitations

  • Banyan networks and other interconnection networks were initially developed to connect processors in a multiprocessor computer system; used in Cisco 12000 switches provide up to 60 Gbps through the interconnection network

  • Advanced design incorporates fragmenting a datagram into fixed length cells and switch the cells through the fabric; + better sharing of the switching fabric resulting in higher switching speed

4: Network Layer


Output ports

Output Ports

Buffering is required to hold datagrams whenever they arrive from the switching fabric at a rate faster than the transmission rate

4: Network Layer


Queuing at input and output ports

Queuing At Input and Output Ports

  • Queues build up whenever there is a rate mismatch or blocking. Consider the following scenarios:

    • Fabric speed is faster than all input ports combined; more datagrams are destined to an output port than other output ports; queuing occurs at output port

    • Fabric bandwidth is not as fast as all input ports combined; queuing may occur at input queues;

    • HOL blocking: fabric can deliver datagrams from input ports in parallel, except if datagrams are destined to same output port; in this case datagrams are queued at input queues; there may be queued datagrams that are held behind HOL conflict, even when their output port is available

4: Network Layer


Chapter 4 network layer

IPv6

  • Initial motivation is32 bit address space is estimated to get used up either by 2008 or 2018; opportunity for changes to achieve faster processing and provision of differentiated services

  • Packet Format: fixed header of 40 bytes + option; Fixed header fields:

  • Version: indicates IPv6

  • Priority: 4 bits, to give priority to certain packets within a flow; values 0 to 7 for congestion-controlled traffic, while values 8 to 15 is for other traffic (eg constant bit rate)

  • Flow Label: intended to help with differentiating services based on flows, a flow is not strictly defined in IPv6 proposal, it can be traffic from a user who paid more, traffic that is real-time, etc.

  • Payload Length: 16 bit value identifying the number of bytes following the 40 bytes of the fixed IPv6 header

  • Next Header: same as Protocol field in IPv4, identifies higher layer protocol to process the contents (TCP or UDP, or?)

4: Network Layer


Ipv6 header cont

IPv6 Header (Cont)

  • Hop Limit: same as TTL, still one byte!

  • Source and Destination Addresses: 128 bits, with a new hierarchical structure (address can imply geographical location, not in IPv4); includes new type of address: anycast, delivery is to one of a number of destinations

4: Network Layer


Other changes from ipv4

Other Changes from IPv4

  • Fragmentation: none provided, router which has a packet longer than the maximum allowed on a the next hop drops the packet, and sends an ICMP message “Packet Too Big” to the packet source; reduces processing time of packets

  • Checksum:removed entirely to reduce processing time at each hop

  • Options: Options are allowed and indicated by the header field “Next Header”, the content of this field indicates the higher level protocol or the existence of an option after the 40 bytes IPv6 header

  • ICMPv6: new version of ICMP, with additional message types, eg “Packet Too Big”; and group management function for multicast groups (Under IPv4 done by the protocol Internet Group Management Protocol IGMP to be discussed shortly)

4: Network Layer


Transition from ipv4 to ipv6

Transition From IPv4 To IPv6

  • During the transition, not all routers will be upgraded to IPv6; How will the network operate?

  • Two proposed approaches: Dual Stack and Tunneling

  • Dual Stack:

    • Some routers with dual stack (v6, v4); others are only v4 routers

    • Dual stack routers translate the packet to v4 packet if the next router is v4 only

    • DNS can be used to determine whether a router is dual stack or not

    • Some info and v6 features will be lost if a packet has to go through any v4 only router; eg Flow Identification

4: Network Layer


Dual stack approach

Dual Stack Approach

4: Network Layer


Tunneling

Tunneling

  • Routers are as before v4/v6 or v4 only

  • A v4/v6 router “encapsulates” the IPv6 packet inside an IPv4 envelop before communication to a v4 only router

  • A v4/v6 router receiving an encapsulated packet from a “tunnel”, remove the envelop and forwards the IPv6 to next router if the next router is v4/v6 capable

4: Network Layer


Multicast routing

Multicast Routing

  • Multicast: delivery of same packet to a group of receivers

  • Multicasting is becoming increasingly popular in the Internet (video on demand; whiteboard; interactive games)

  • Multiple unicast vs multicast

4: Network Layer


Multicast group address

Multicast Group Address

  • M-cast group address “delivered” to all receivers in the group

  • Internet uses Class D for m-cast

  • M-cast address distribution etc. managed by IGMP Protocol

4: Network Layer


Igmp protocol

IGMP Protocol

  • IGMP (Internet Group Management Protocol) operates between Router and local Hosts, typically attached via a LAN (e.g., Ethernet)

  • Router queries the local Hosts for m-cast group membership info

  • Router “connects” active Hosts to m-cast tree via m-cast protocol

  • Hosts respond with membership reports: actually, the first Host which responds (at random) speaks for all

  • Host issues “leave-group” mssg to leave; this is optional since router periodically polls anyway (soft state concept)

4: Network Layer


Igmp message types

IGMP message types

GMP Message type Sent by Purpose

membership query: general router query for current active multicast groups

membership query: specific router query for specific m-cast group

membership report host host wants to join goup

leave group host host leaves the group

4: Network Layer


The multicast tree problem

The Multicast Tree problem

  • Problem: find the best (e.g., min cost) tree which interconnects all the members

4: Network Layer


Multicast tree options

Multicast Tree options

  • GROUP SHARED TREE: single tree; the root is the “CORE” or the “Rendez Vous” point; all messages go through the CORE

  • SOURCE BASED TREE: each source is the root of its own tree connecting to all the members; thus N separate trees

4: Network Layer


Group shared tree

Group Shared Tree

  • Predefined CORE for given m-cast group (eg, posted on web page)

  • New members “join” and “leave” the tree with explicit join and leave control messages

  • Tree grows as new branches are “grafted” onto the tree

  • CBT (Core Based Tree) and PIM Sparse-Mode are Internet m-cast protocols based on GSTree

  • All packets go through the CORE

4: Network Layer


Source based tree

Source Based Tree

  • Each source is the root of its own tree: the tree of shortest paths

  • Packets delivered on the tree using “reverse path forwarding” (RPF); i.e., a router accepts a packet originated by source S only if such packet is forwarded by the neighbor on the shortest path to S

  • In other words, m-cast packets are “forwarded” on paths which are the “reverse” of “shortest paths” to S

4: Network Layer


Source based tree dvmrp

Source-Based tree: DVMRP

  • DVMRP was the first m-cast protocol deployed on the Internet; used in Mbone (Multicast Backbone)

  • Initially, the source broadcasts the packet to ALL routers (using RPF)

  • Routers with no active Hosts (in this m-cast group) “prune” the tree; i.e., they disconnect themselves from the tree

  • Recursively, interior routers with no active descendents self-prune After timeout (2 hours in Internet) pruned branches “grow back”

  • Problems: only few routers are mcast-able; solution: tunnels

4: Network Layer


Pim protocol independent multicast

PIM (Protocol Independent Multicast)

  • PIM (Protocol Independent Multicast) is becoming the de facto intra AS m-cast protocol standard

  • “Protocol Independent” because it can operate on different routing infrastructures (as a difference of DVMRP)

  • PIM can operate in two modes: PIM Sparse and PIM dense Mode.

  • Initially, members join the “Shared Tree” centered around a Randez Vous Point

  • Later, once the “connection” to the shared treee has been established, opportunities to connet DIRECTLY to the source are explored (thus establishing a partial Source Based tree

4: Network Layer
