  1. Con Edison Demonstration ProjectDE-OE0000197 Customer Sited Resource Management Tools

  2. DERMS DRMS • Distributed Energy Resource Management System – Siemens/TIBCO • Demand Response & Distributed Generation resources integrated with distributed system • Near real time status of DR and DG resources • Control Capability: Demonstrated control of DR Resources via secure messages through NOC or directly to buildings (disabled initially) • User Group – Distribution Engineering • Demand Response Management System • Alstom Grid • Demand Response Program Management • Enroll • Event notification • CBL performance • Reporting • Settlement • Near real time DR performance • User Group – Energy Efficiency

  3. Distributed Energy Resource Management System (DERMS) Smart Grid Data Store Complex Event Processing Load Flow SOA Adapter SOA Adapter SOA Adapter SOA Adapter SOA Adapter SOA Adapter SOA Adapter SOA Adapter SOA Adapter SOA Adapter SGDP Secure Interoperable Services Logging Alerts Management/Monitoring Notification Interval Meters Smart Meters Substation/Feeders/ Transformer Status Impact Analysis Demand Response Meter Data Processing One Line Displays Distributed Energy Resources/ Demand Response Participants Con Edison Tabular Displays DERMS Others

  4. Distributed Energy Resource Management System • Con Edison Distributed System Status integrated with Customer Resources • Targeted Demand Response from the following: • Building Management System (BMS) • Controller Connected to Standby Diesel Generator • Controller Connected to Electric Vehicle Charger with Standby Battery and PV Generation • ThinkEcoModlets DR resource mapping

  5. DERMS Resource Information • Resource type • Available Demand Response • Current Generation • Current Load Drawn • Date / time of last status

  6. PVL Decision Aid Integration into DERMSPrioritizes DR resources to alleviate overloaded Feeder Sections or Network Transformers • Enables Targeted curtailment to alleviate overload on feeder or transformer • Recommends DR resources to alleviate overload condition

  7. SGDP Demand Response Diagram SGDP Demand Response protocols provide better visibility and real-time dispatch of customer resources Demand response Lexington AveDR:100 kW Status Status Software Distributed generation 28 Facilities with 20 MW of DG Curtailment Action Start CurtailmentMessage Distribution Control Center

  8. DERMS DRMS • Distributed Energy Resource Management System – Siemens/TIBCO • Demand Response & Distributed Generation resources integrated with distributed system • Near real time status of DR and DG resources • Control Capability: Demonstrated control of DR Resources via secure messages through NOC or directly to buildings (disabled initially) • User Group – Distribution Engineering • Demand Response Management System • Alstom Grid • Demand Response Program Management • Enroll • Event notification • CBL performance • Reporting • Settlement • Near real time DR performance • User Group – Energy Efficiency

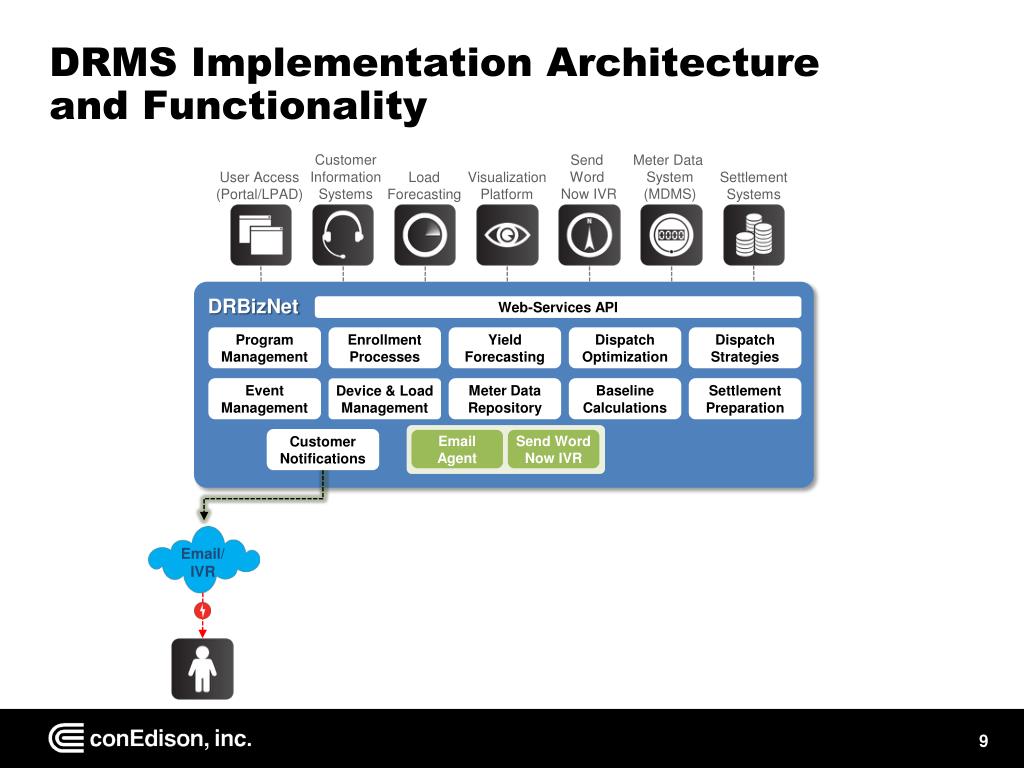

  9. DRMS Implementation Architecture and Functionality Customer Information Systems Send Word Now IVR Meter Data System (MDMS) User Access (Portal/LPAD) Load Forecasting Settlement Systems Visualization Platform DRBizNet Web-Services API Program Management Enrollment Processes Yield Forecasting Dispatch Optimization Dispatch Strategies Event Management Meter Data Repository Baseline Calculations Settlement Preparation Device & Load Management Customer Notifications Email Agent Send Word Now IVR Email/ IVR

  10. Baseline Calculations • Baseline Calculations Engine • Calculates recent historical usage to determine average usage prior to an event • Calculates the actual performance during a DR event • Settlements Preparations Engine • Calculates the payment due to a customer based upon their performance and the Program payment rules • Calculates each hour / time segment separately • Submits the credit/payment as a billing determinant to the Billing system

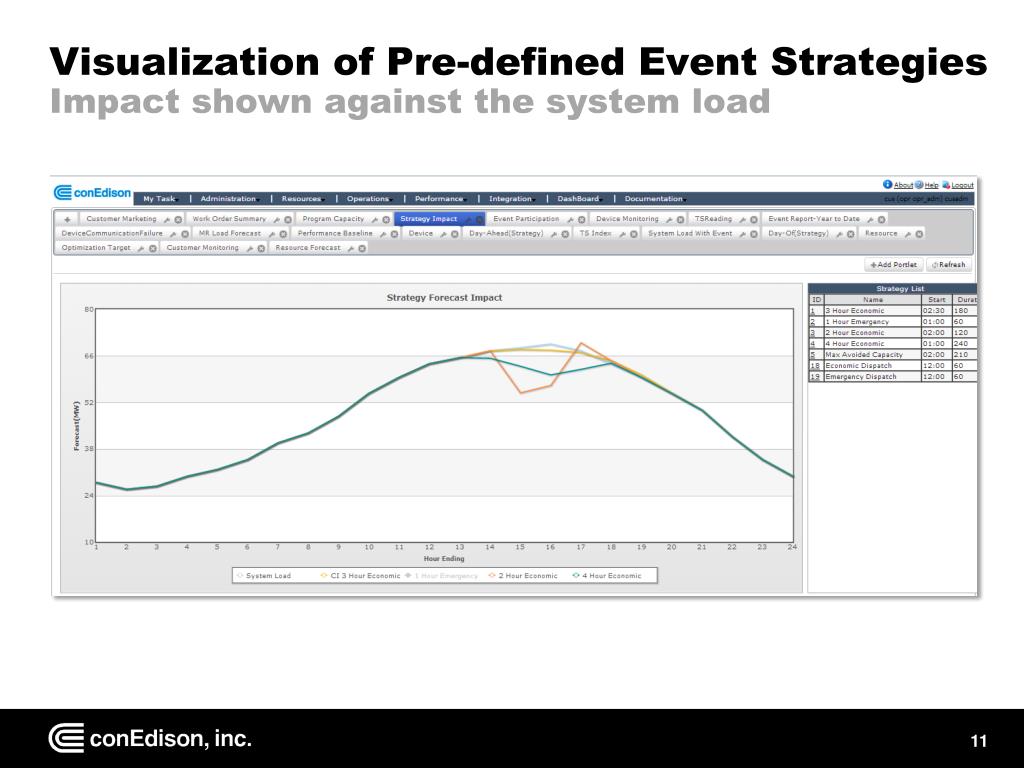

  11. Visualization of Pre-defined Event StrategiesImpact shown against the system load

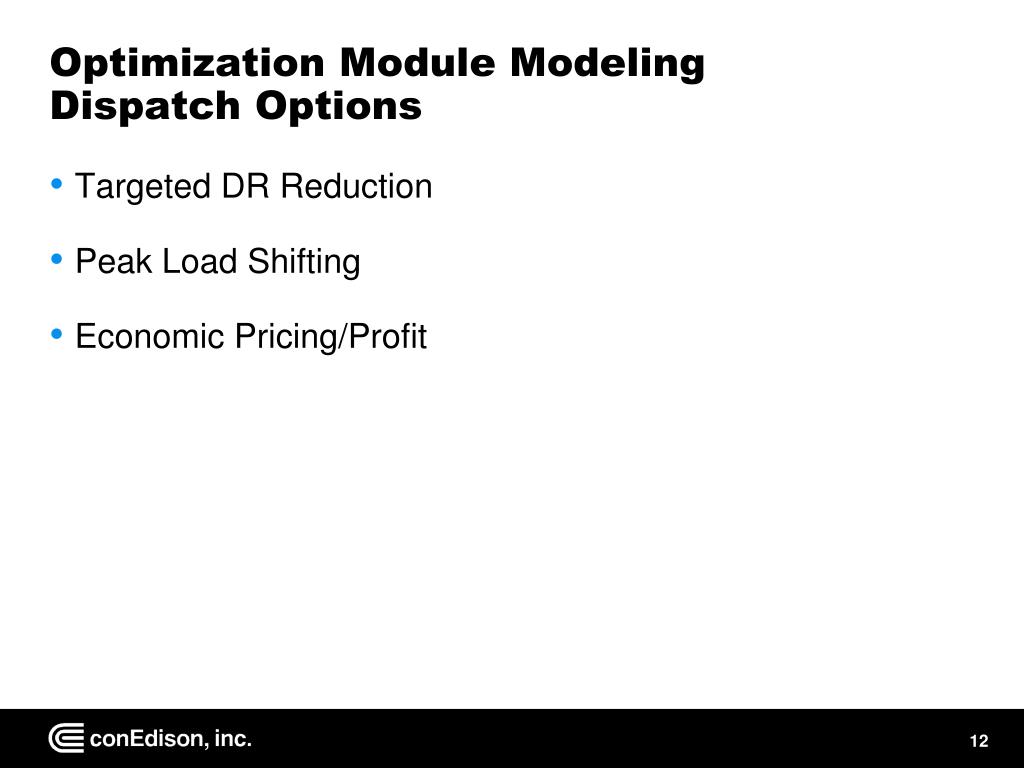

  12. Optimization Module Modeling Dispatch Options • Targeted DR Reduction • Peak Load Shifting • Economic Pricing/Profit

  13. Con Edison Demonstration ProjectDE-OE0000197 Customer Sited Resource Management Tools
