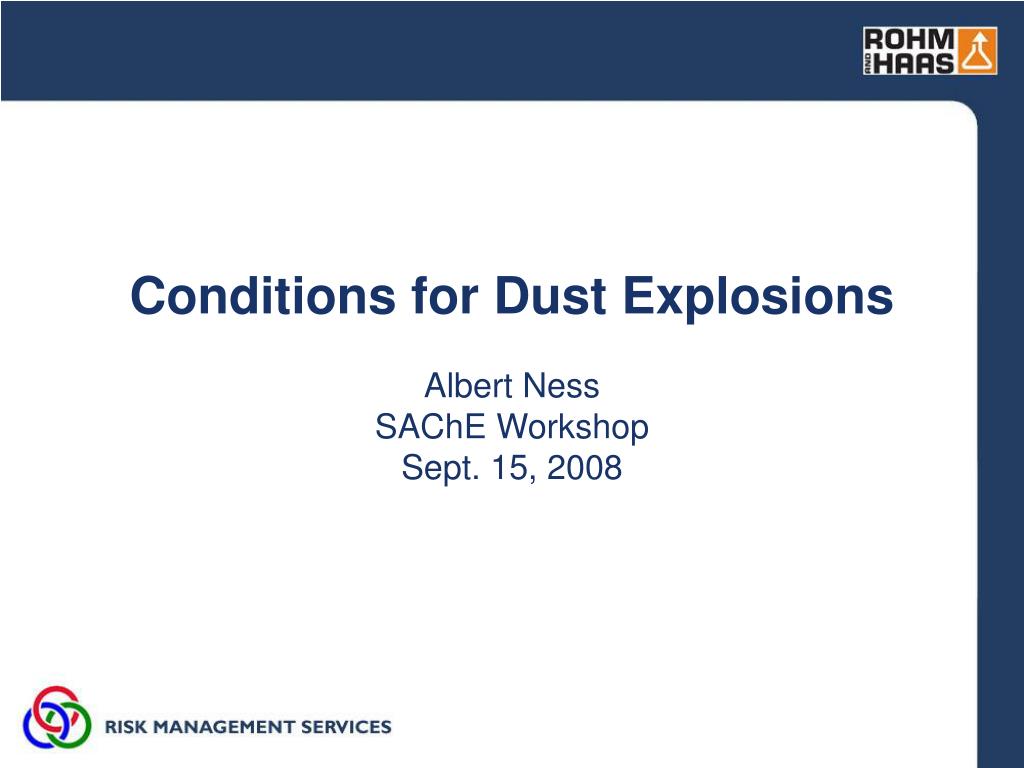

Conditions for Dust Explosions

Albert Ness

SAChE Workshop

Sept. 15, 2008


Dust explosion pentagon l.jpg

Dust Explosion Pentagon

Combustible Dust

Confinement

(< 420 microns)

Turbulence (dispersed with

[C] > MEC)

Oxidant

Ignition Source


Questions l.jpg

Questions

  • Is this a dust explosion?

  • Why or why not?


Venting l.jpg

Venting


Mental visual exercise l.jpg

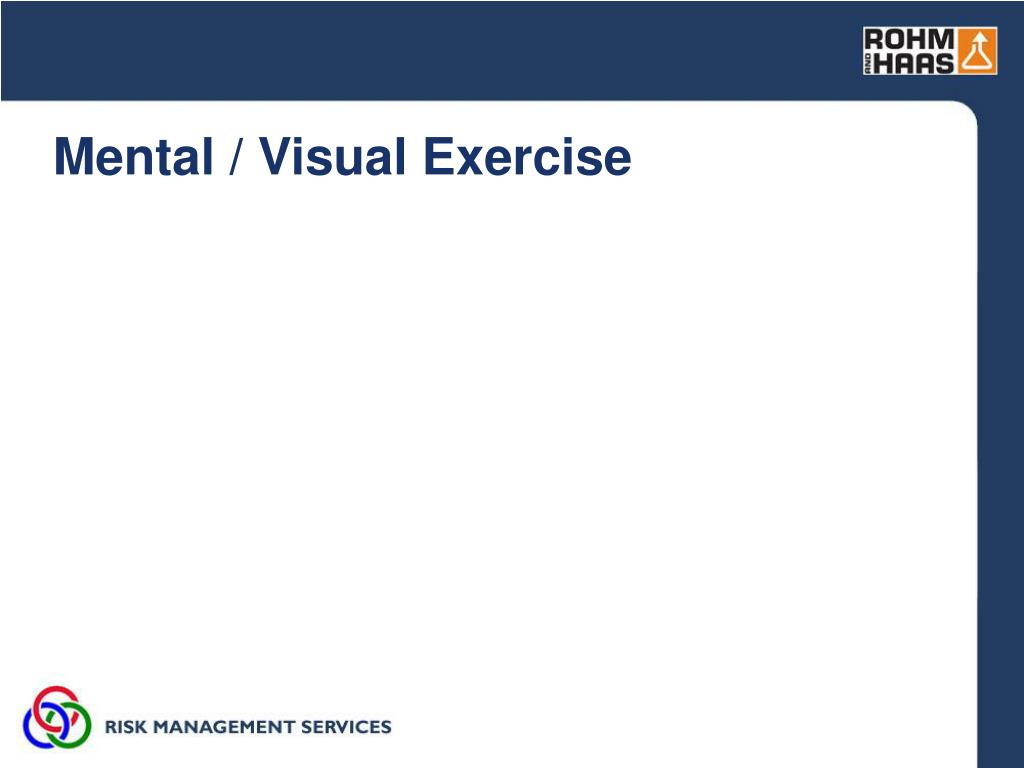

Mental / Visual Exercise


Remember dispersion limits l.jpg

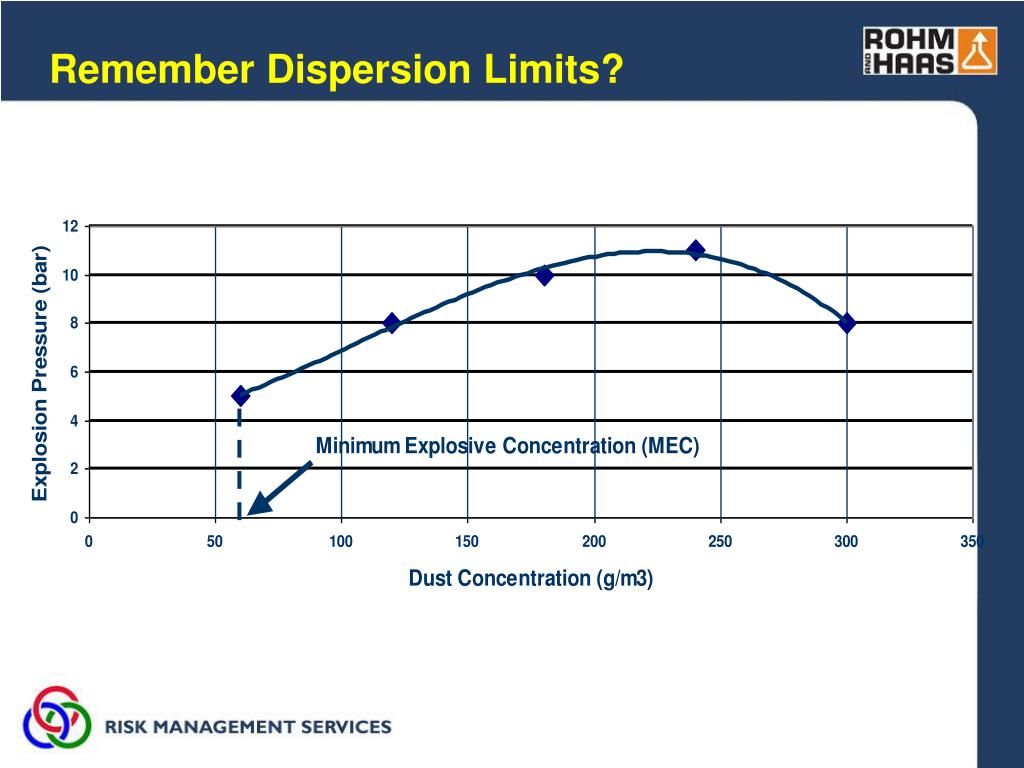

Remember Dispersion Limits?


Minimum explosible concentration l.jpg

Minimum Explosible Concentration

  • Lower limit  10 – 30 g/M3

    • Polymethylacrylate  15 g/M3

    • Ground Dextrose  20 g/M3

    • Flour  60 g/M3


Questions9 l.jpg

Questions

18,000

  • Given a 10M x 10M x 3M room

  • How many grams of flour are needed to be above the MEC?

  • How many 2.2 kg (~ 5 lb) bags of flour are needed to exceed the MEC?

  • How many bags of flour are needed to exceed the MEC in this room?

  • Does that seem like a lot of flour on the floor?

8


Secondary explosions l.jpg

Why do we care?

Secondary Explosions


What is the effect l.jpg

What is the effect?

  • Poor housekeeping, and secondary explosions, heighten the damage potential

    • Larger portion of facility, and more people, potentially involved

    • Longer duration events è greater impulse è more damage to structures and equipment


Housekeeping l.jpg

Housekeeping

  • Importance stressed and guidance provided in NFPA 654

    • Dust layers >1/32 inch deep are a concern

    • Can be hazardous if >5% of floor area covered

    • Beams, ductwork, cabling, piping, walls all gather dust and should also be considered

    • Construct buildings and equipment for ease of cleaning


2008 imperial sugar ga l.jpg

Want Proof?

2008 - Imperial Sugar, GA

13 Dead, > 40 injured


Slide14 l.jpg

Q; Are these layers > 1/32 in?


West pharmaceuticals nc l.jpg

2003 - West Pharmaceutical, NC

6 Dead

37 Injured

West Pharmaceuticals, NC


Cta acoustics ky l.jpg

2003 – CTA Acoustics, KY

CTA Acoustics, KY

7 Dead

37 Injured


Case study mill cyclone baghouse l.jpg

Case Study – Mill / Cyclone / Baghouse

Organic chips ground to 10  (Kst = 150) Conveyed to cyclone and baghouse for collection


Questions18 l.jpg

Questions

  • Do the conditions exist for a dust explosion?

  • Where?

  • What are potential the ignition sources?

  • If yes, how would you protect the system?

  • If there were 10 of these units in a building, how would you protect them?


Our answer l.jpg

Our Answer
