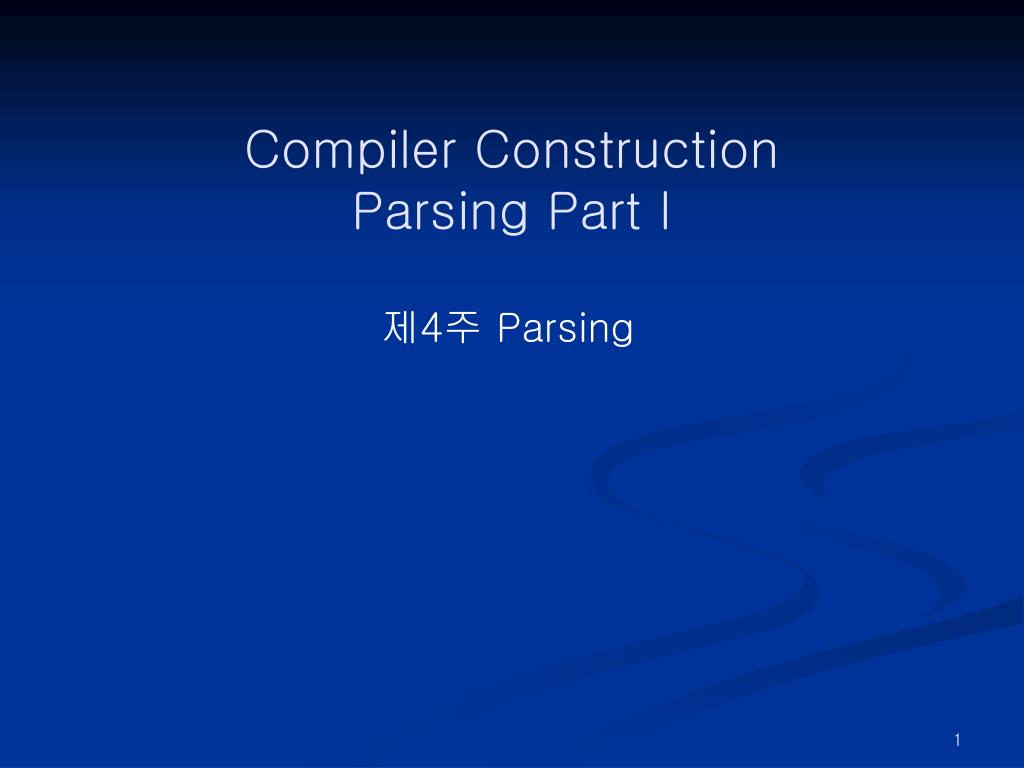

  1. Compiler ConstructionParsing Part I 제4주 Parsing

  2. What We Did Last Time • The cycle in lexical analysis • RE → NFA • NFA → DFA • DFA → Minimal DFA • DFA → RE • Engineering issues in building scanners

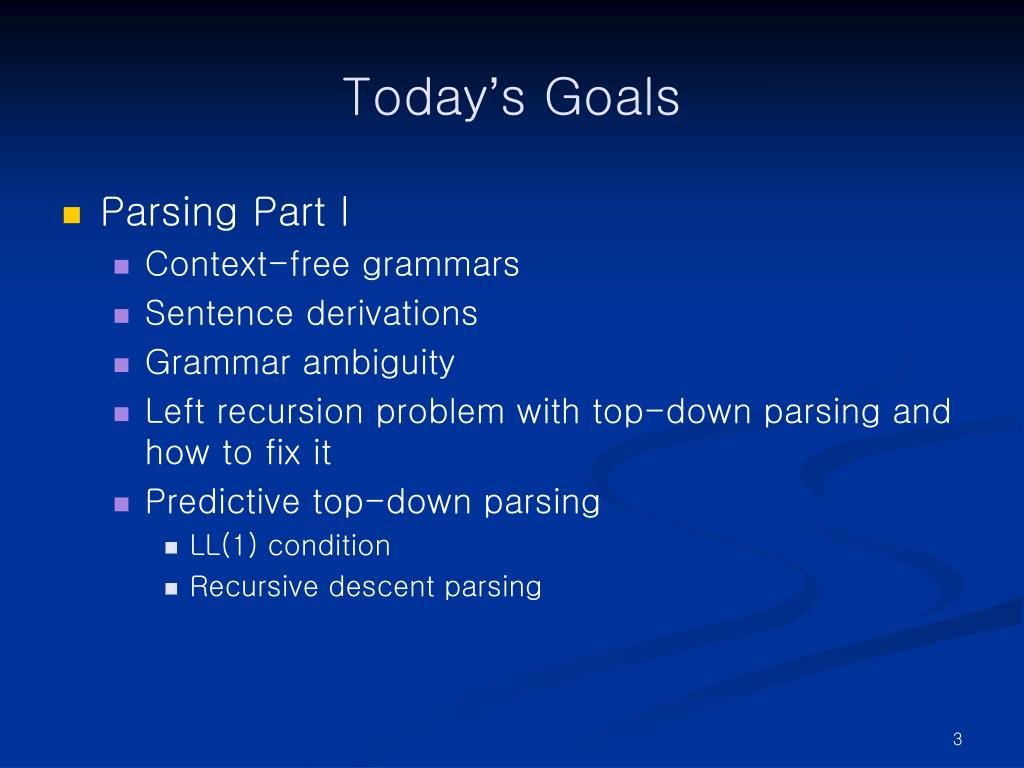

  3. Today’s Goals • Parsing Part I • Context-free grammars • Sentence derivations • Grammar ambiguity • Left recursion problem with top-down parsing and how to fix it • Predictive top-down parsing • LL(1) condition • Recursive descent parsing

  4. Compilers

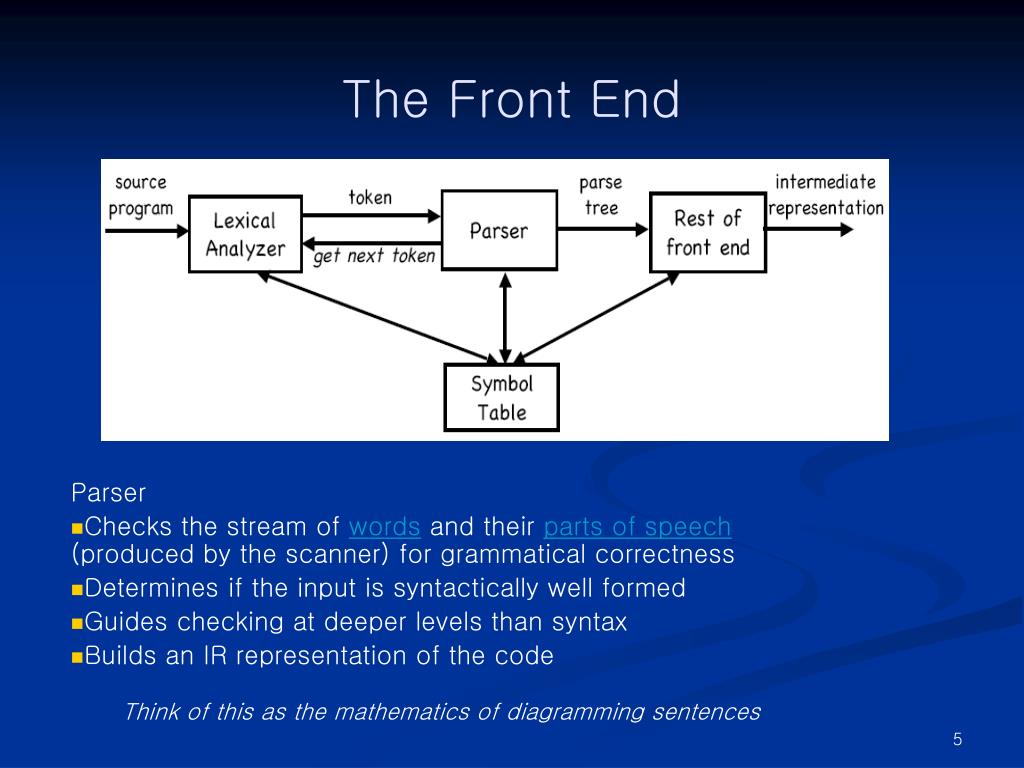

  5. The Front End Parser • Checks the stream of words and their parts of speech(produced by the scanner) for grammatical correctness • Determines if the input is syntactically well formed • Guides checking at deeper levels than syntax • Builds an IR representation of the codeThink of this as the mathematics of diagramming sentences

  6. The Study of Parsing (syntax analysis) The process of discovering a derivation for some sentence • Need a mathematical model of syntax — a grammar G • Need an algorithm for testing membership in L(G) • Need to keep in mind that our goal is building parsers, not studying the mathematics of arbitrary languages Roadmap • Context-free grammars and derivations • Top-down parsing • Hand-coded recursive descent parsers • LL(1) parsersLL(1) parsed top-down, left to right scan, leftmost derivation, 1 symbol lookahead • Bottom-up parsing • Operator precedence parsing • LR(1) parsersLR(1) parsed bottom-up, left to right scan, reverse rightmost derivation, 1 symbol lookahead

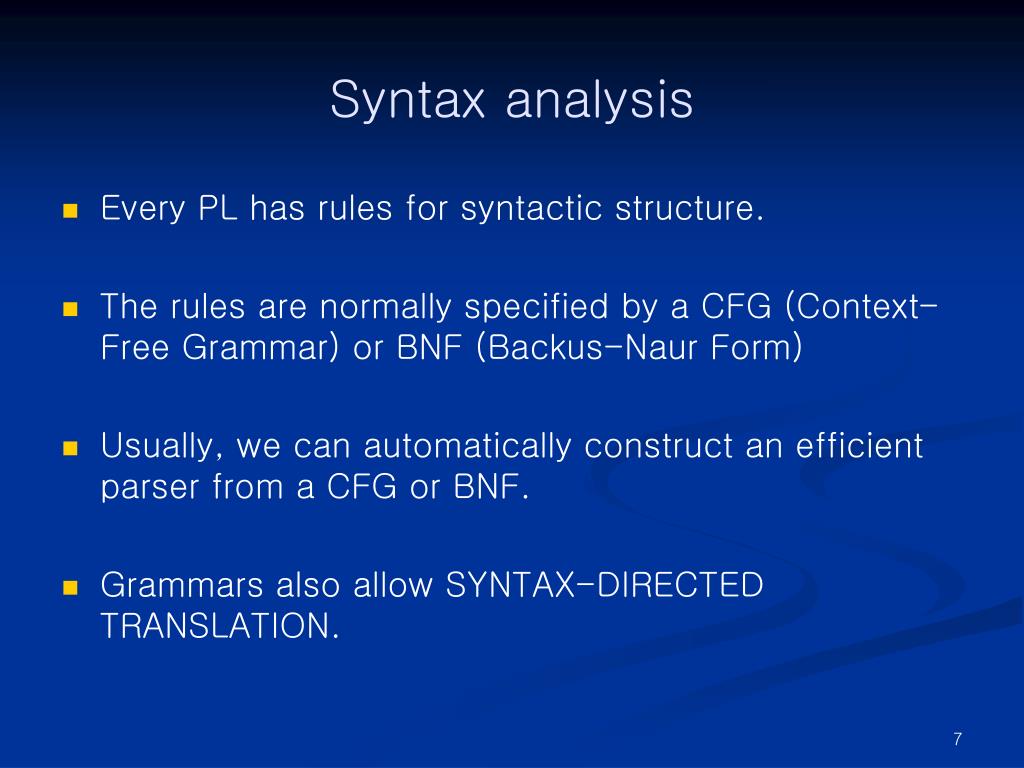

  7. Syntax analysis • Every PL has rules for syntactic structure. • The rules are normally specified by a CFG (Context-Free Grammar) or BNF (Backus-Naur Form) • Usually, we can automatically construct an efficient parser from a CFG or BNF. • Grammars also allow SYNTAX-DIRECTED TRANSLATION.

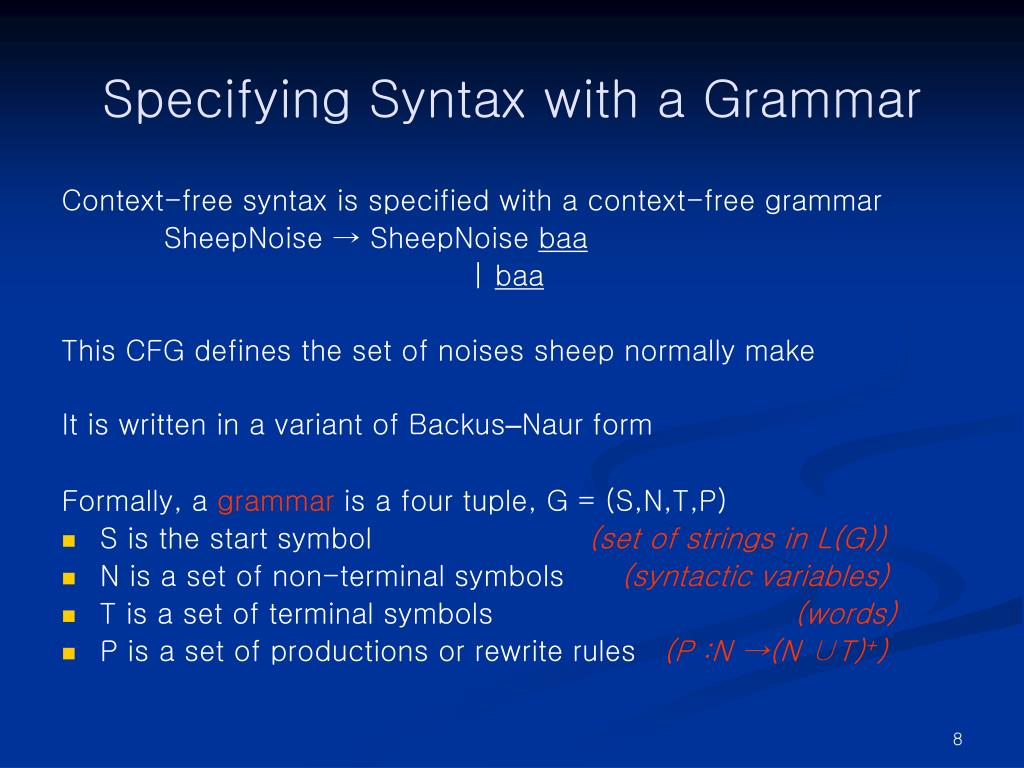

  8. Specifying Syntax with a Grammar Context-free syntax is specified with a context-free grammar SheepNoise → SheepNoise baa | baa This CFG defines the set of noises sheep normally make It is written in a variant of Backus–Naur form Formally, a grammar is a four tuple, G = (S,N,T,P) • S is the start symbol (set of strings in L(G)) • N is a set of non-terminal symbols (syntactic variables) • T is a set of terminal symbols (words) • P is a set of productions or rewrite rules (P :N →(N ∪T)+)

  9. The Big Picture Chomsky Hierarchy of Language Grammars (1956)

  10. Deriving Syntax We can use the SheepNoise grammar to create sentences • use the productions as rewriting rules While it is cute, this example quickly runs out of intellectual steam ...

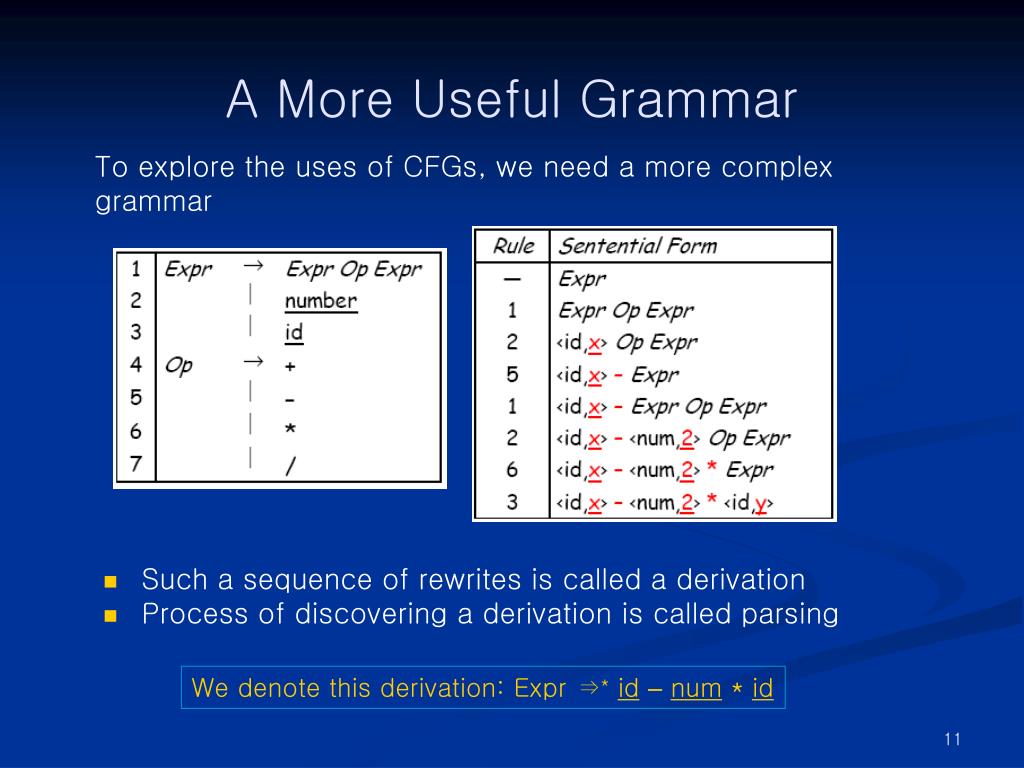

  11. A More Useful Grammar To explore the uses of CFGs, we need a more complex grammar • Such a sequence of rewrites is called a derivation • Process of discovering a derivation is called parsing We denote this derivation: Expr ⇒*id–num * id

  12. Derivations • At each step, we choose a non-terminal to replace • Different choices can lead to different derivations Two derivations are of interest • Leftmost derivation— replace leftmost NT at each step • Rightmost derivation— replace rightmost NT at each step These are the two systematic derivations (We don’t care about randomly-ordered derivations!) The example on the preceding slide was a leftmost derivation • Of course, there is also a rightmost derivation • Interestingly, it turns out to be different

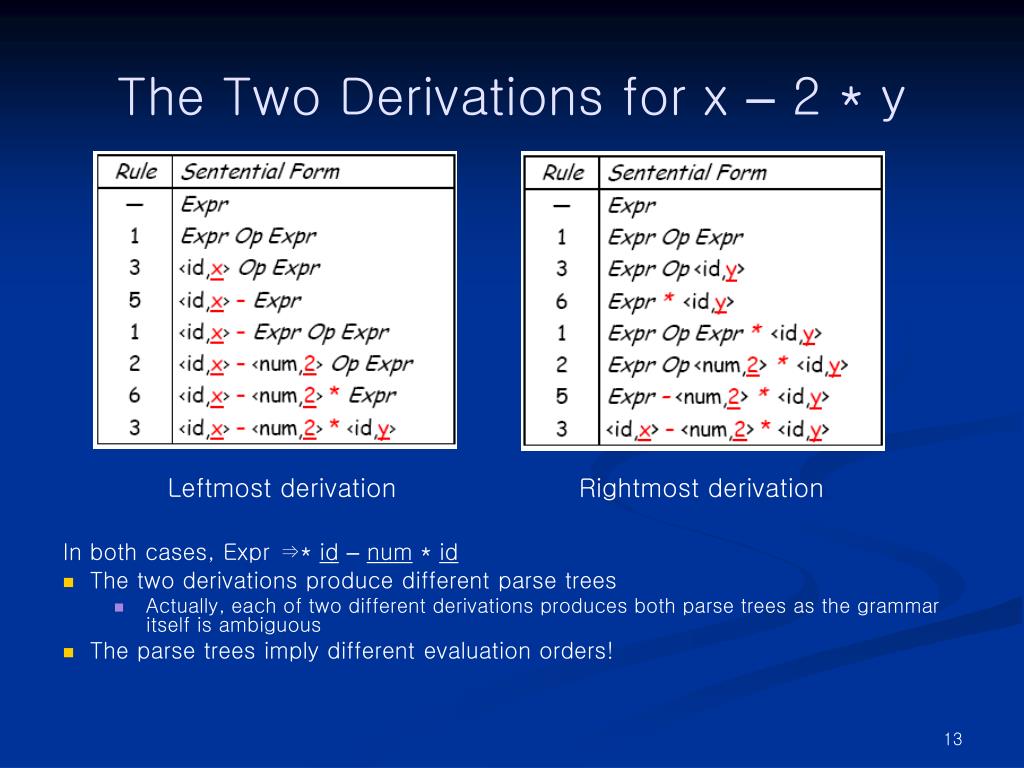

  13. The Two Derivations for x – 2 * y In both cases, Expr ⇒* id–num * id • The two derivations produce different parse trees • Actually, each of two different derivations produces both parse trees as the grammar itself is ambiguous • The parse trees imply different evaluation orders! Leftmost derivation Rightmost derivation

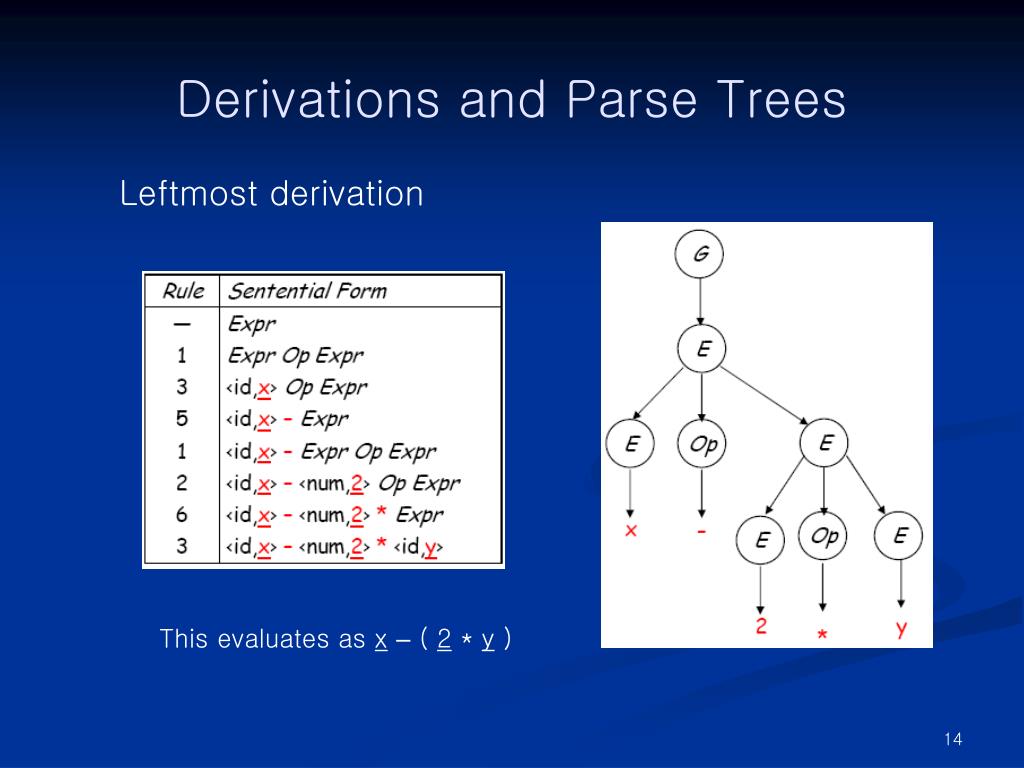

  14. Derivations and Parse Trees Leftmost derivation This evaluates as x– ( 2 * y )

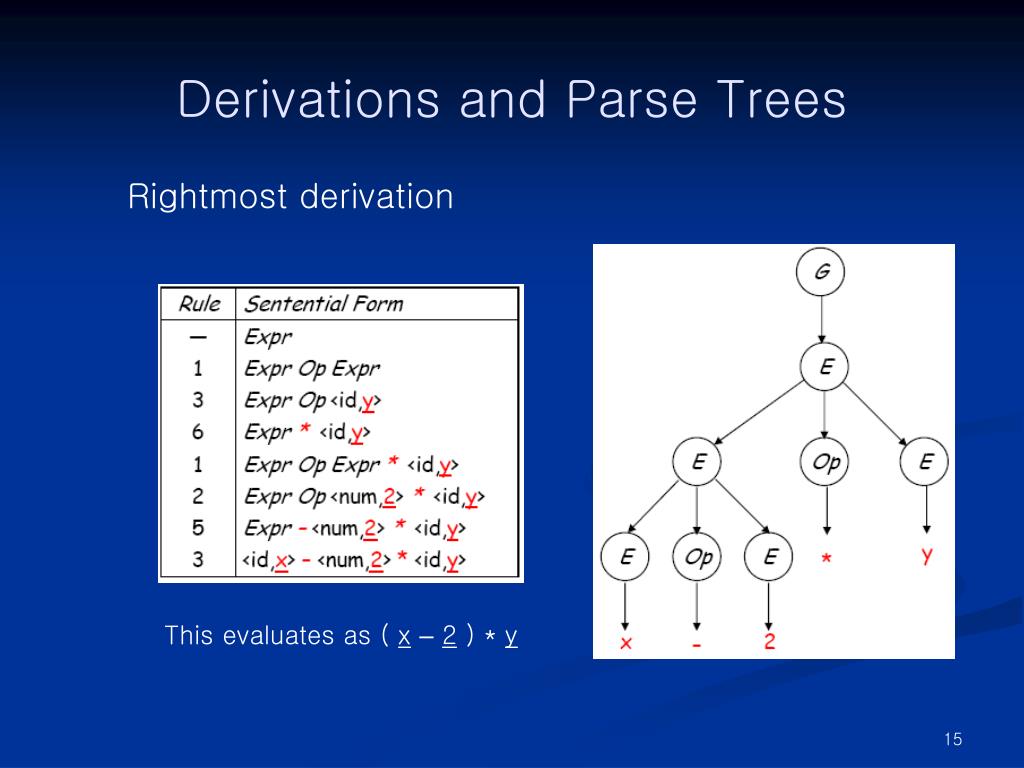

  15. Derivations and Parse Trees Rightmost derivation This evaluates as ( x–2 ) * y

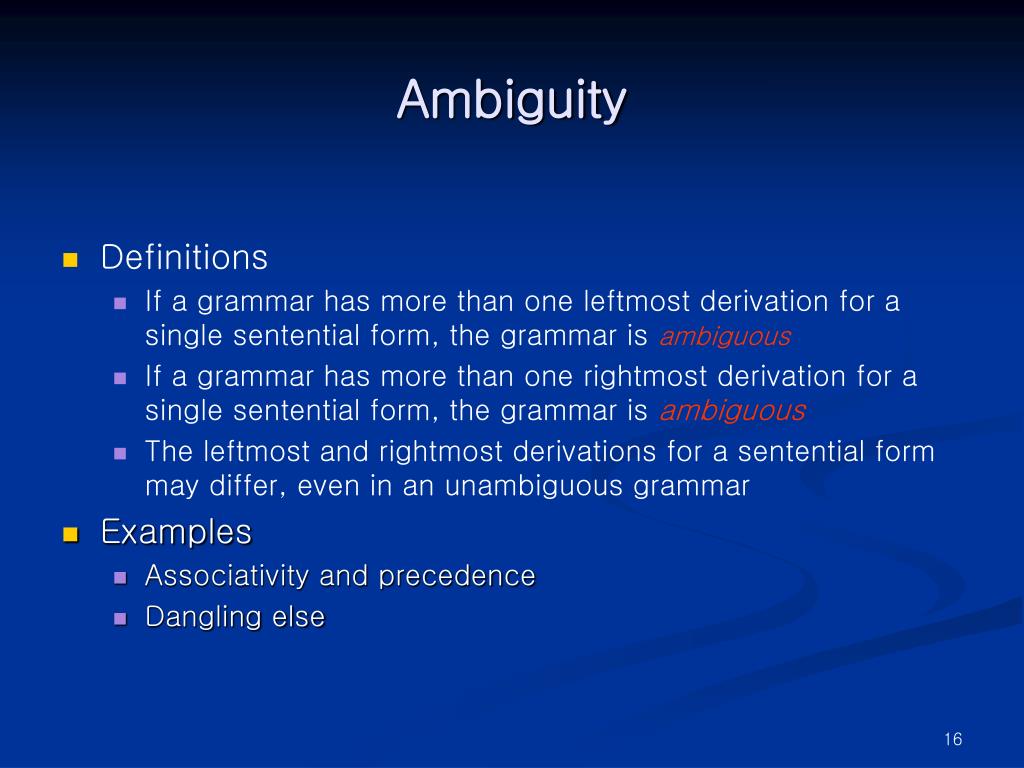

  16. Ambiguity • Definitions • If a grammar has more than one leftmost derivation for a single sentential form, the grammar is ambiguous • If a grammar has more than one rightmost derivation for a single sentential form, the grammar is ambiguous • The leftmost and rightmost derivations for a sentential form may differ, even in an unambiguous grammar • Examples • Associativity and precedence • Dangling else

  17. different choice than the first time Ambiguous Grammars • This grammar allows multiple leftmost derivations for x - 2 * y • Hard to automate derivation if > 1 choice • The grammar is ambiguous

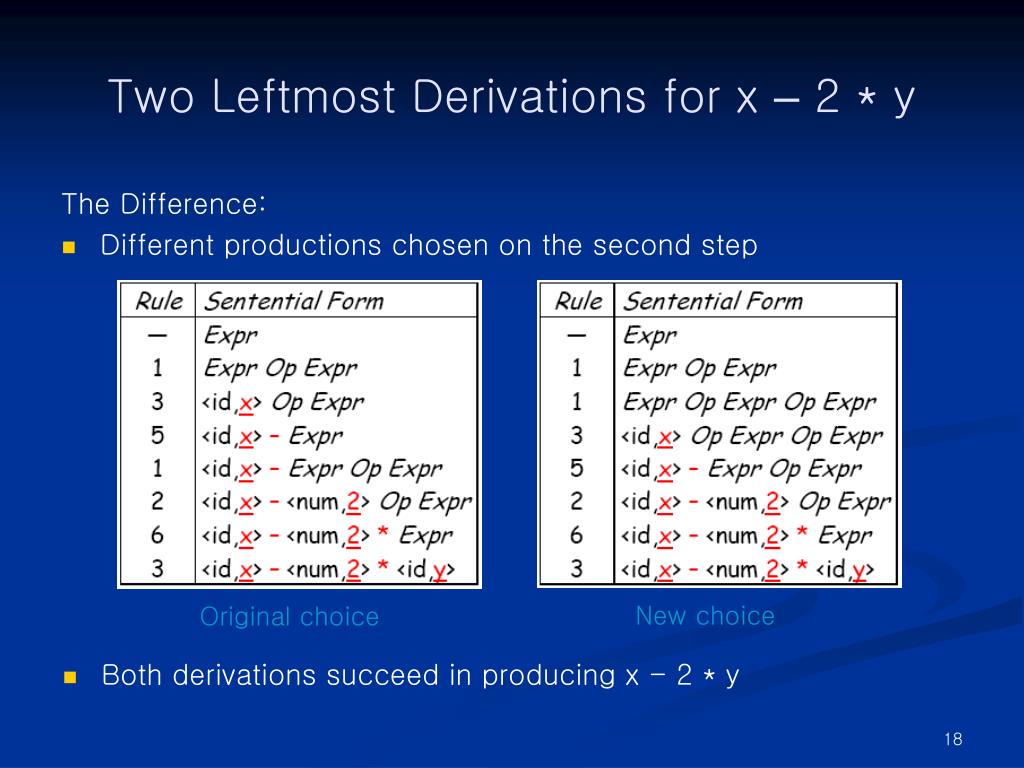

  18. Two Leftmost Derivations for x – 2 * y The Difference: • Different productions chosen on the second step New choice Original choice • Both derivations succeed in producing x - 2 * y

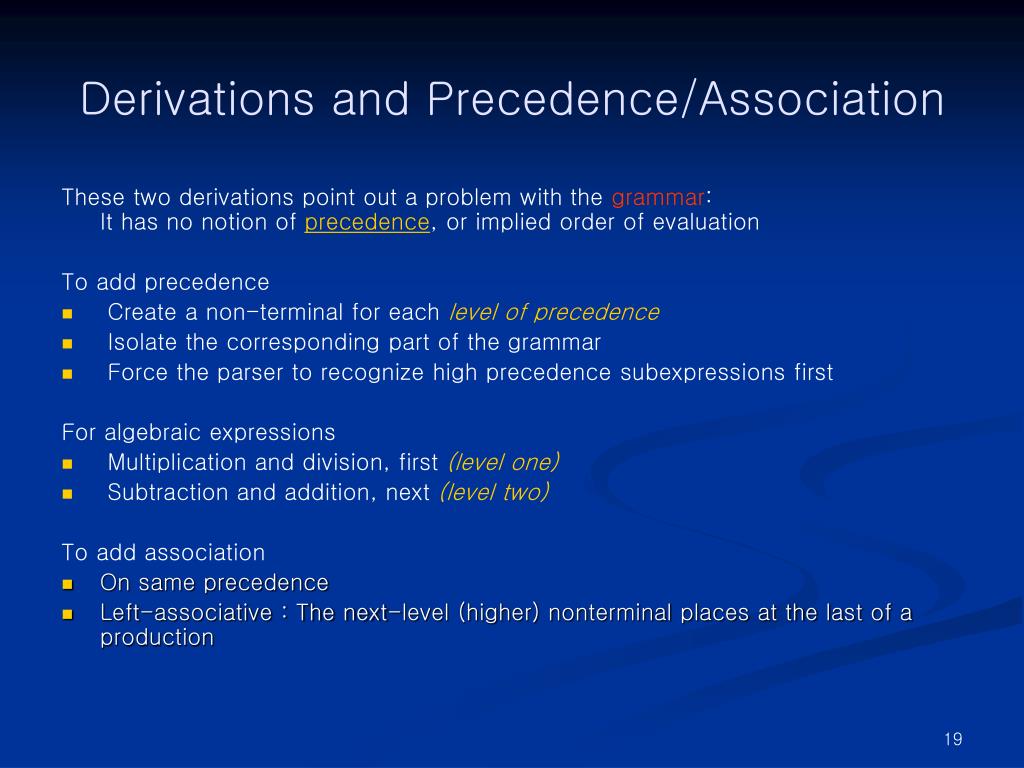

  19. Derivations and Precedence/Association These two derivations point out a problem with the grammar:It has no notion of precedence, or implied order of evaluation To add precedence • Create a non-terminal for each level of precedence • Isolate the corresponding part of the grammar • Force the parser to recognize high precedence subexpressions first For algebraic expressions • Multiplication and division, first (level one) • Subtraction and addition, next (level two) To add association • On same precedence • Left-associative : The next-level (higher) nonterminal places at the last of a production

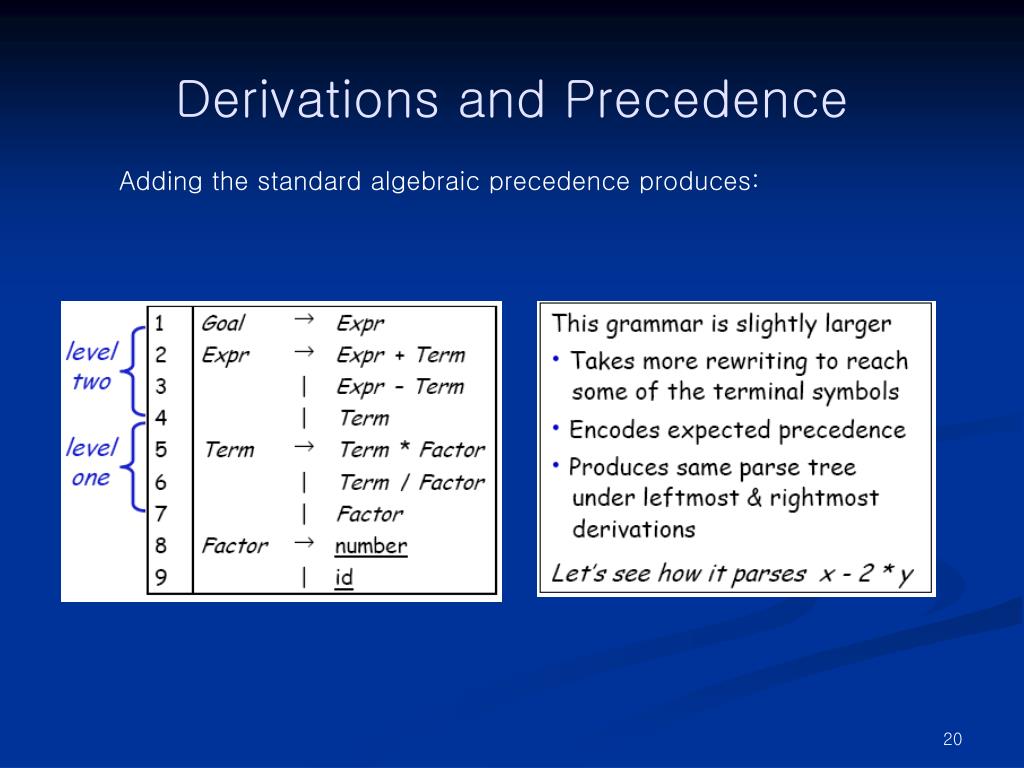

  20. Derivations and Precedence Adding the standard algebraic precedence produces:

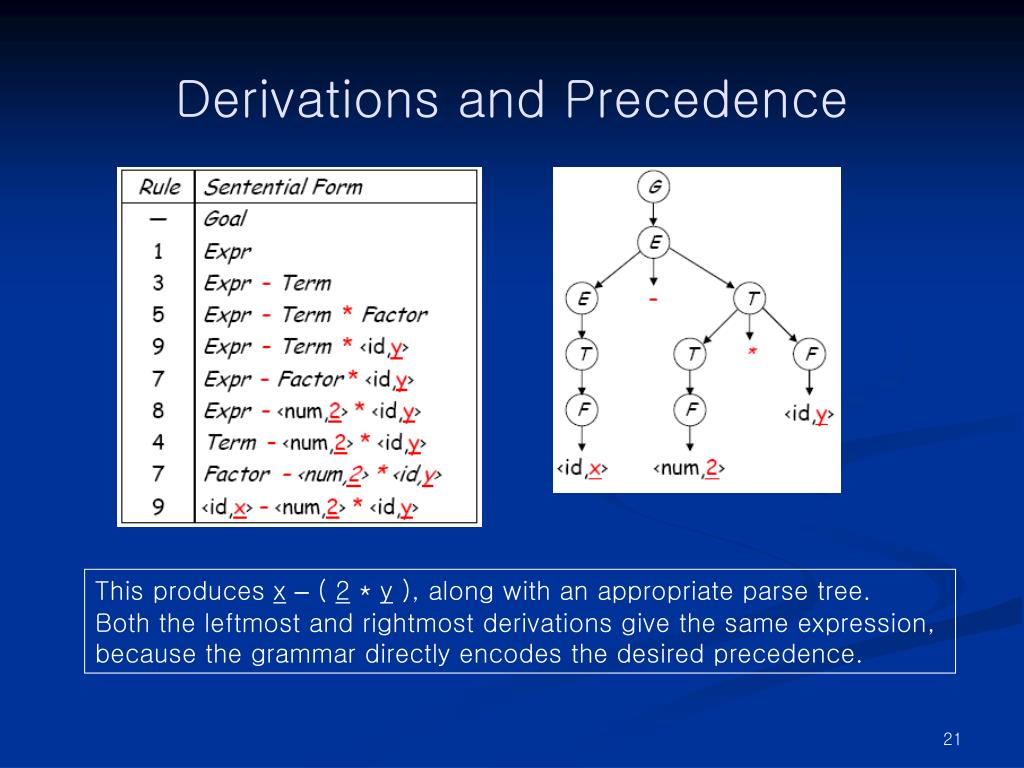

  21. Derivations and Precedence This produces x– ( 2 * y ), along with an appropriate parse tree. Both the leftmost and rightmost derivations give the same expression, because the grammar directly encodes the desired precedence.

  22. Ambiguous Grammars by dangling else Classic example — the if-then-else problem Stmt → ifExprthenStmt | ifExprthenStmtelseStmt | …other stmts… This ambiguity is entirely grammatical in nature

  23. Ambiguity This sentential form has two derivations ifExpr1thenifExpr2thenStmt1elseStmt2 production 1, then production 2 production 2, then production 1

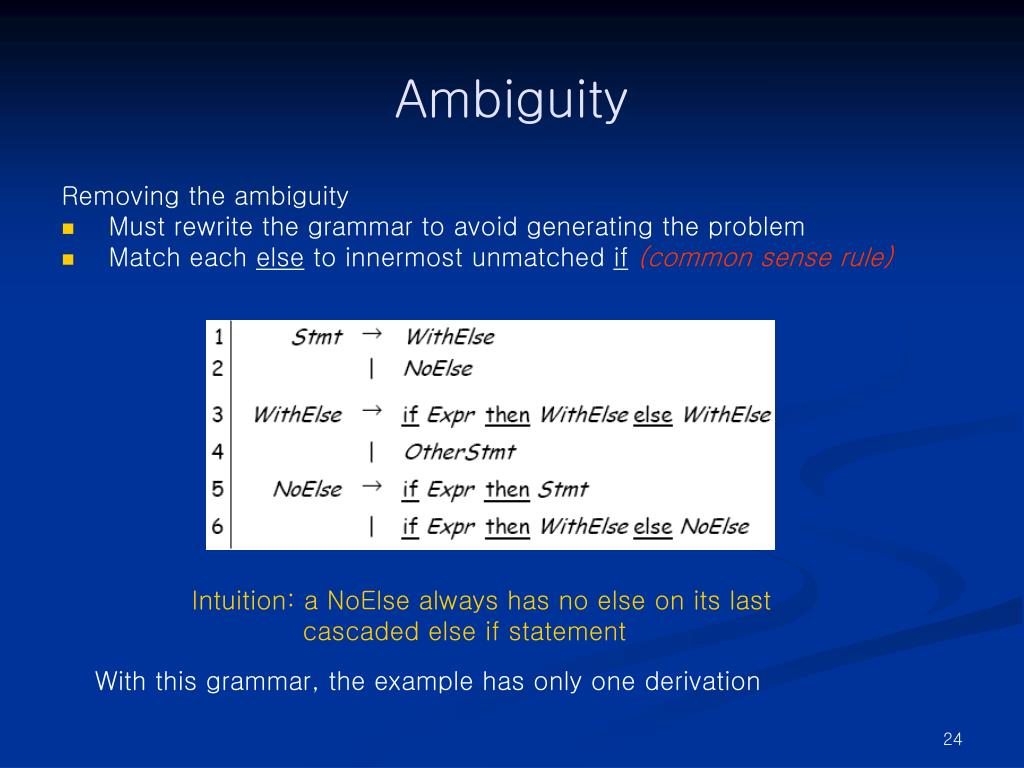

  24. Ambiguity Removing the ambiguity • Must rewrite the grammar to avoid generating the problem • Match each else to innermost unmatched if(common sense rule) Intuition: a NoElse always has no else on its last cascaded else if statement With this grammar, the example has only one derivation

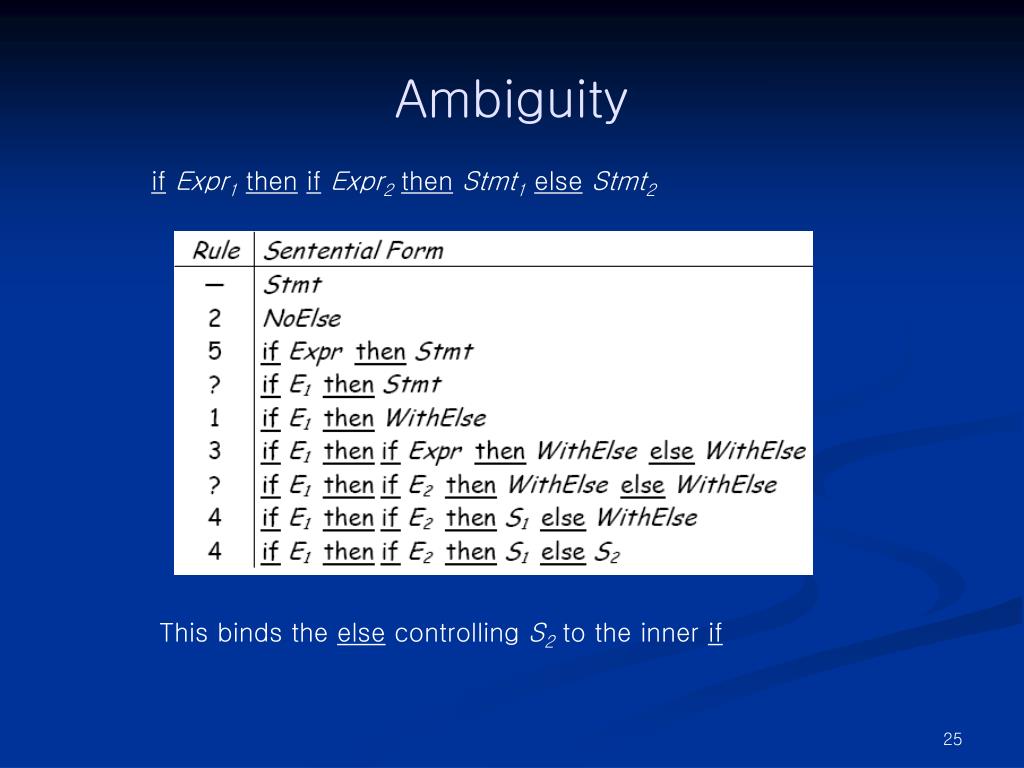

  25. Ambiguity ifExpr1thenifExpr2thenStmt1elseStmt2 This binds the else controlling S2 to the inner if

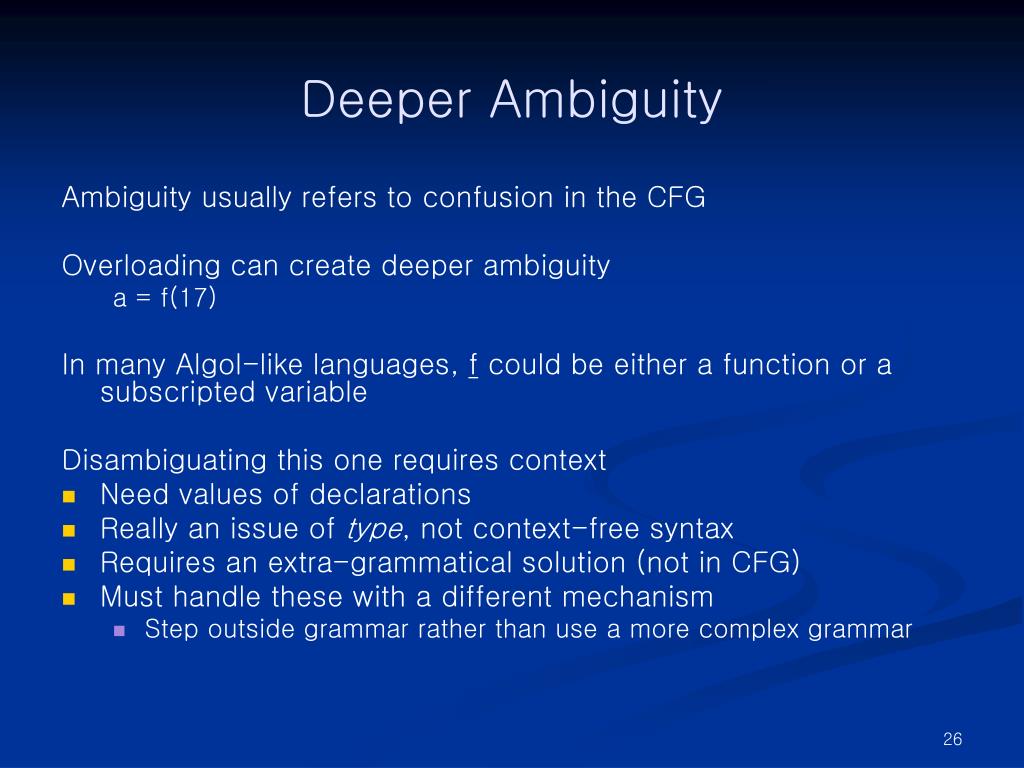

  26. Deeper Ambiguity Ambiguity usually refers to confusion in the CFG Overloading can create deeper ambiguity a = f(17) In many Algol-like languages, f could be either a function or a subscripted variable Disambiguating this one requires context • Need values of declarations • Really an issue of type, not context-free syntax • Requires an extra-grammatical solution (not in CFG) • Must handle these with a different mechanism • Step outside grammar rather than use a more complex grammar

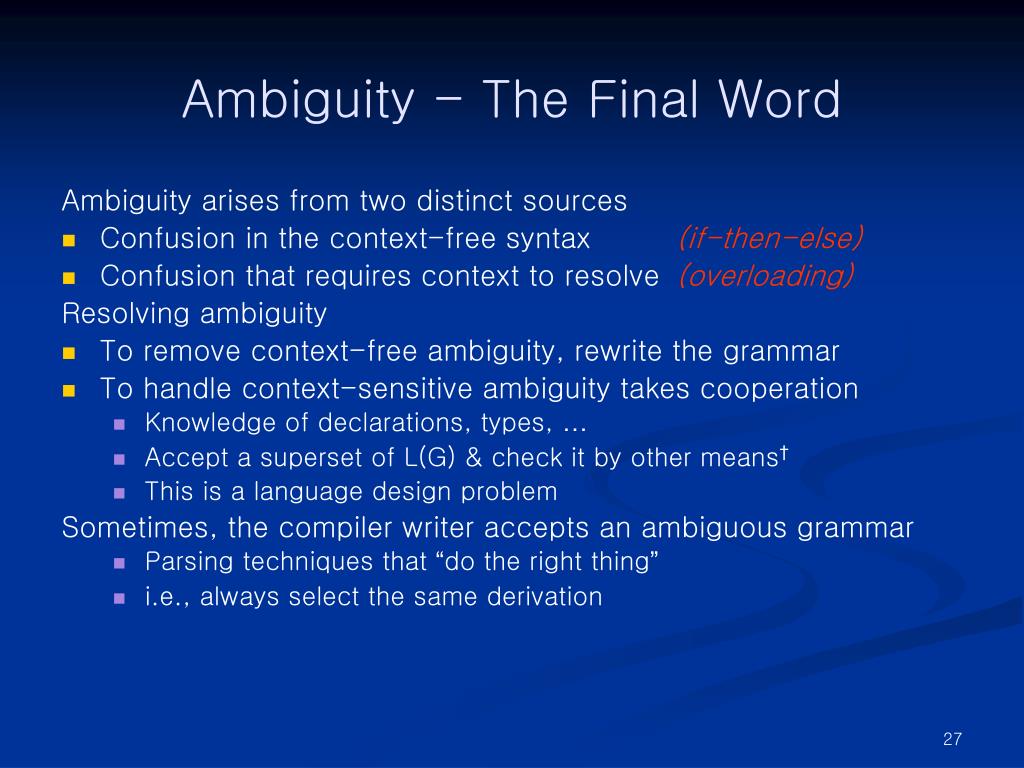

  27. Ambiguity - The Final Word Ambiguity arises from two distinct sources • Confusion in the context-free syntax (if-then-else) • Confusion that requires context to resolve (overloading) Resolving ambiguity • To remove context-free ambiguity, rewrite the grammar • To handle context-sensitive ambiguity takes cooperation • Knowledge of declarations, types, … • Accept a superset of L(G) & check it by other means† • This is a language design problem Sometimes, the compiler writer accepts an ambiguous grammar • Parsing techniques that “do the right thing” • i.e., always select the same derivation

  28. Parsing Techniques Top-down parsers (LL(1), recursive descent) • Start at the root of the parse tree and grow toward leaves • Pick a production & try to match the input • Bad “pick” ⇒ may need to backtrack • Some grammars are backtrack-free (predictive parsing) Bottom-up parsers (LR(1), operator precedence) • Start at the leaves and grow toward root • As input is consumed, encode possibilities in an internal state • Start in a state valid for legal first tokens • Bottom-up parsers handle a large class of grammars

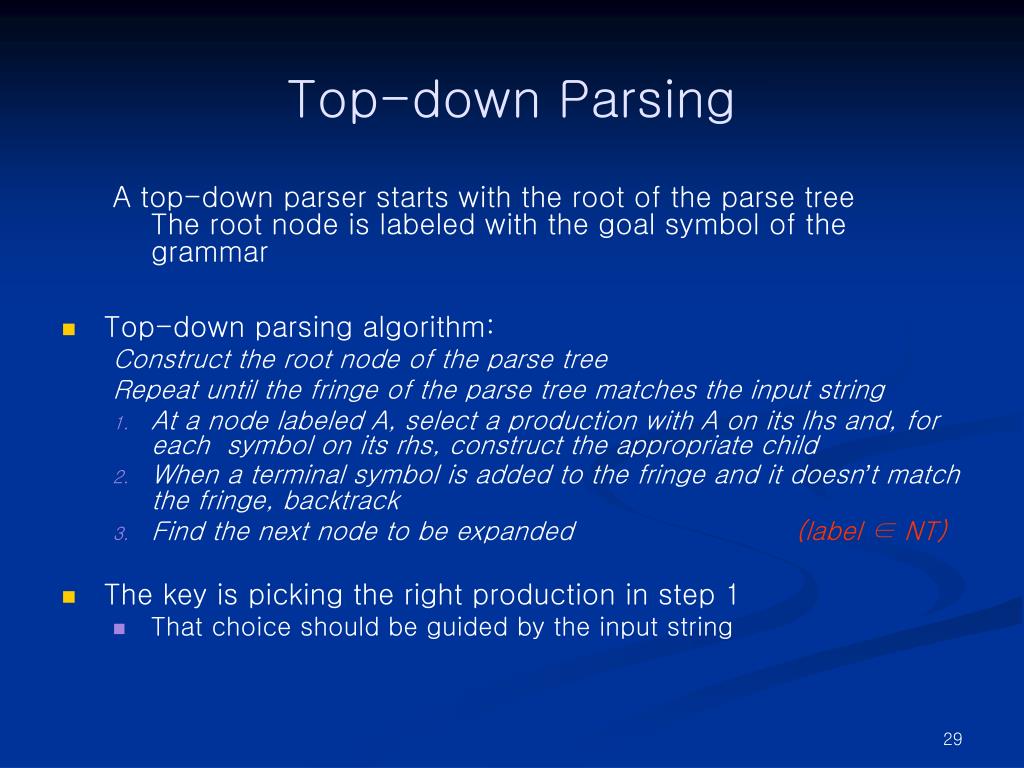

  29. Top-down Parsing A top-down parser starts with the root of the parse tree The root node is labeled with the goal symbol of thegrammar • Top-down parsing algorithm: Construct the root node of the parse tree Repeat until the fringe of the parse tree matches the input string • At a node labeled A, select a production with A on its lhs and, for each symbol on its rhs, construct the appropriate child • When a terminal symbol is added to the fringe and it doesn’t match the fringe, backtrack • Find the next node to be expanded (label ∈ NT) • The key is picking the right production in step 1 • That choice should be guided by the input string

  30. The Expression Grammar Version with precedence derived last lecture And the input x–2 * y

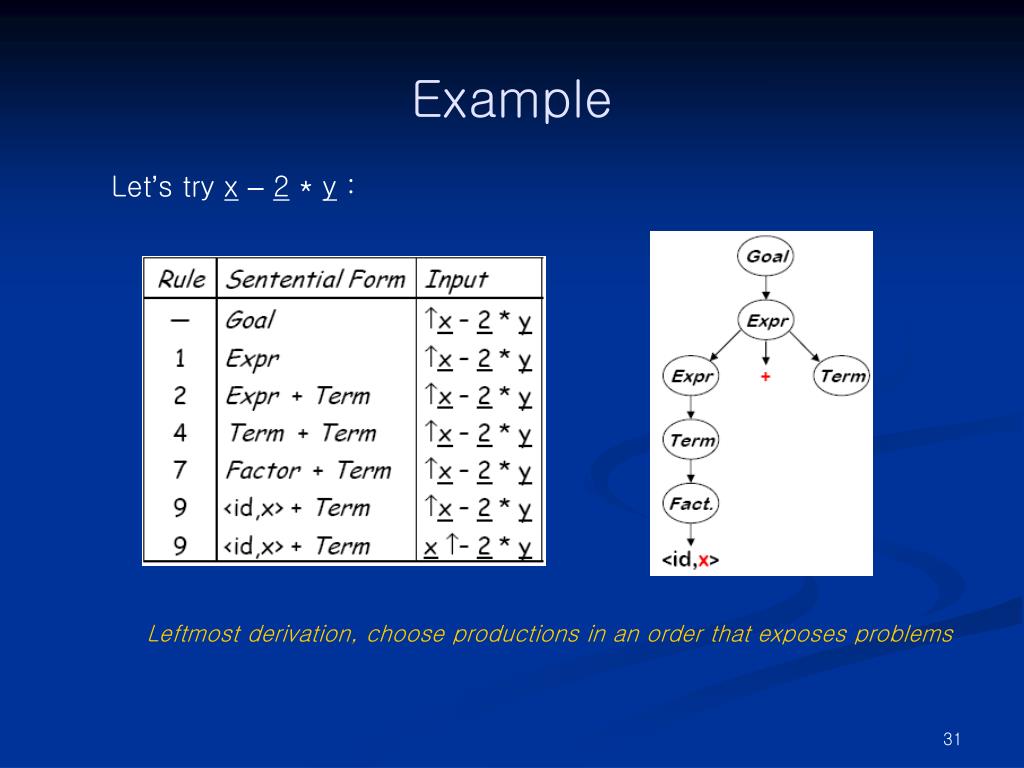

  31. Example Let’s try x–2 * y : Leftmost derivation, choose productions in an order that exposes problems

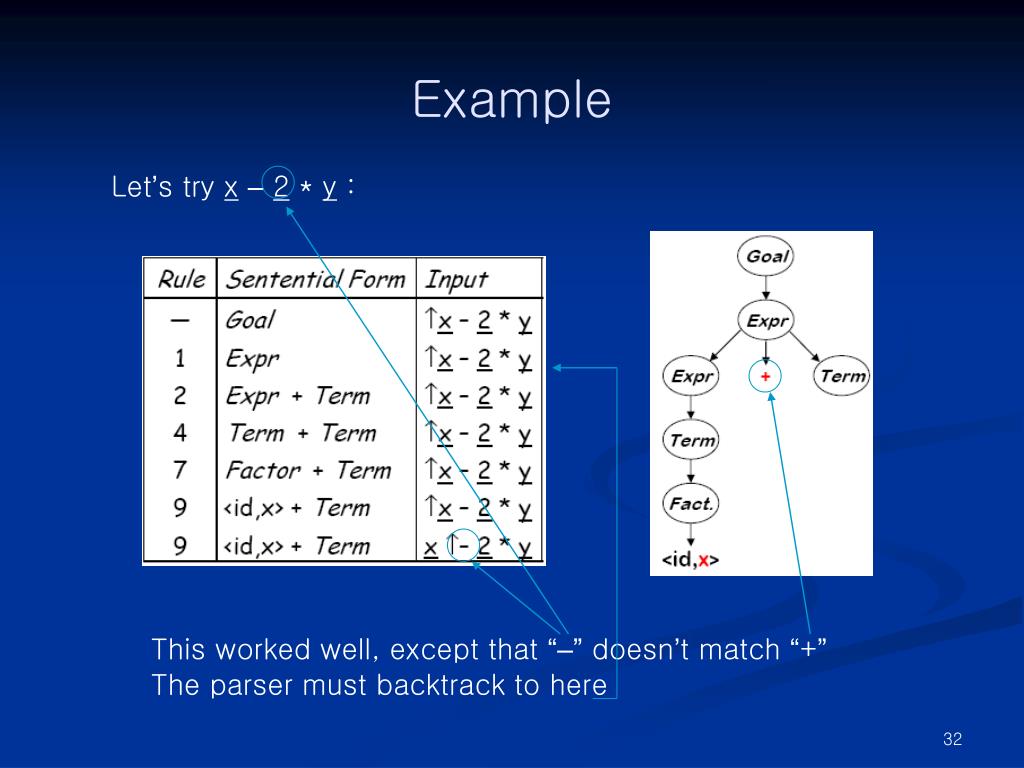

  32. Example Let’s try x–2 * y : This worked well, except that “–” doesn’t match “+” The parser must backtrack to here

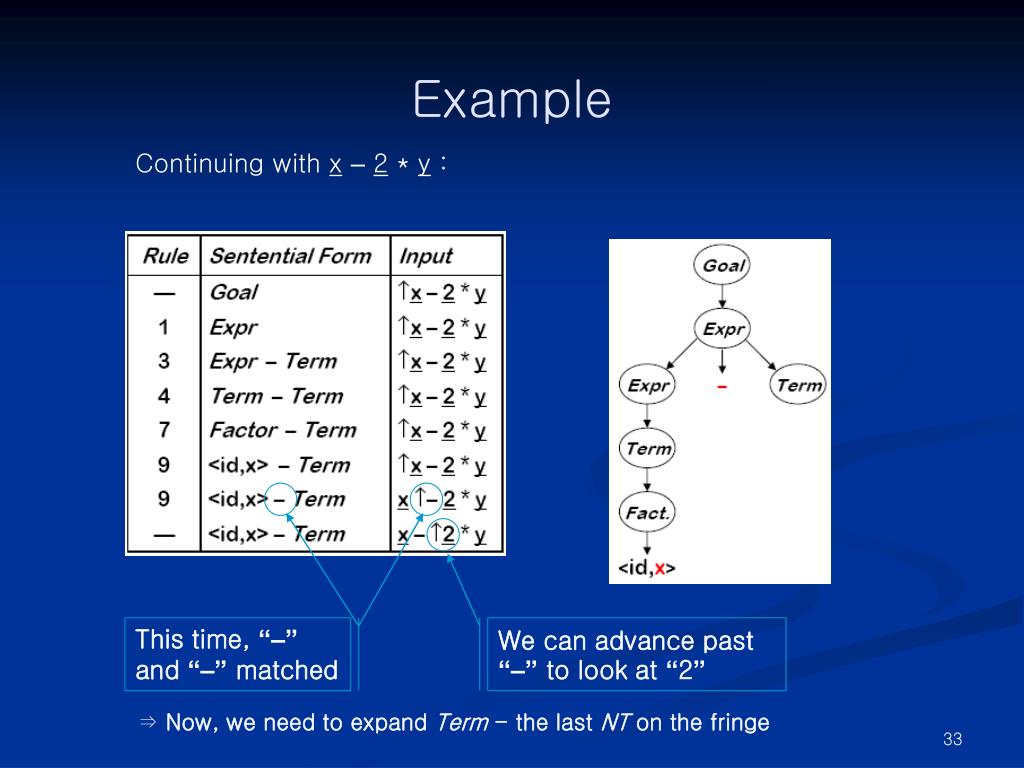

  33. This time, “–” and “–” matched We can advance past “–” to look at “2” ⇒ Now, we need to expand Term - the last NT on the fringe Example Continuing with x–2 * y :

  34. Example Trying to match the “2” in x–2 * y : Where are we? • “2” matches “2” • We have more input, but no NTs left to expand • The expansion terminated too soon ⇒ Need to backtrack

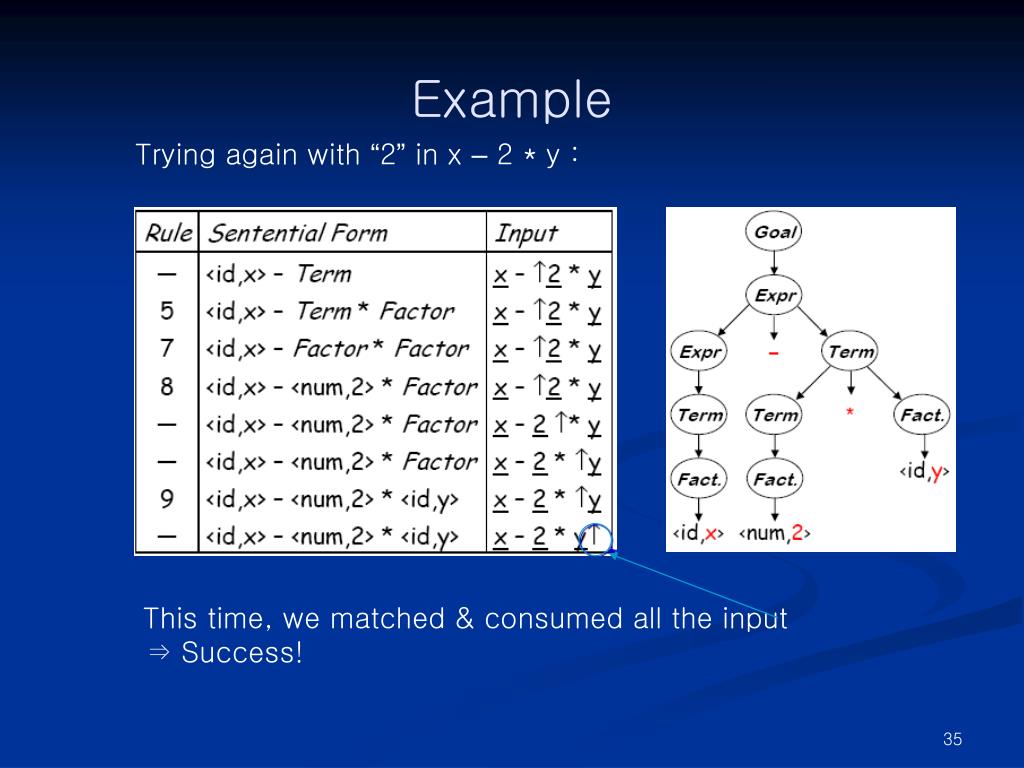

  35. Example Trying again with “2” in x – 2 * y : This time, we matched & consumed all the input ⇒ Success!

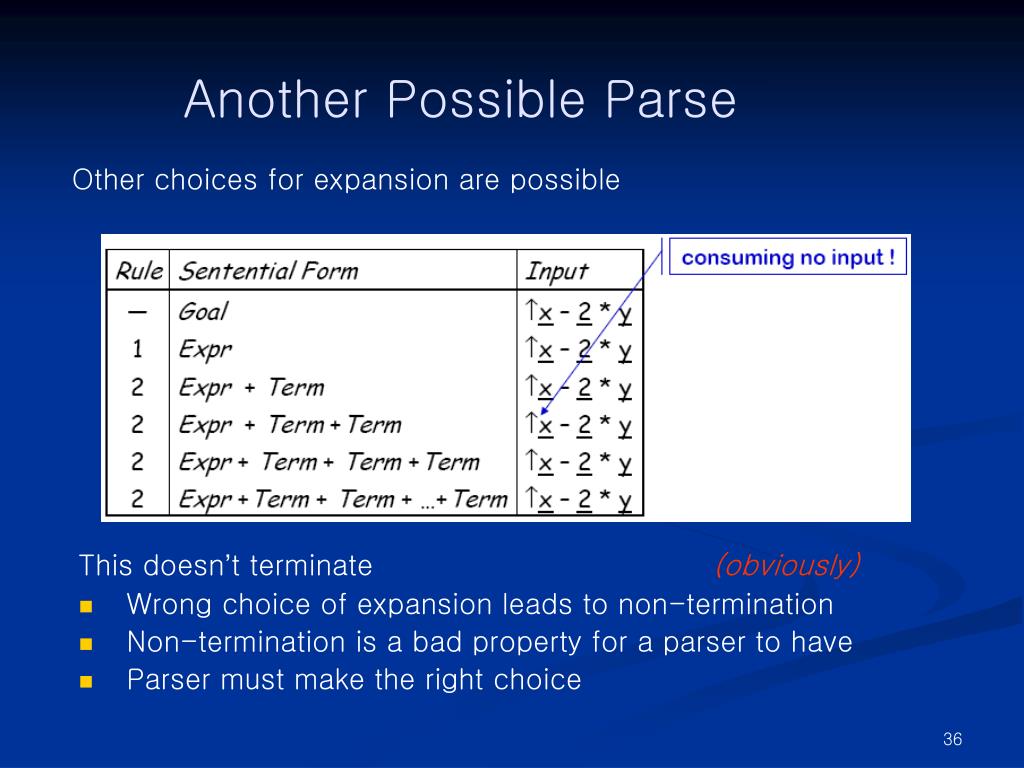

  36. Another Possible Parse This doesn’t terminate (obviously) Wrong choice of expansion leads to non-termination Non-termination is a bad property for a parser to have Parser must make the right choice Other choices for expansion are possible

  37. Left Recursion Top-down parsers cannot handle left-recursive grammars Formally, A grammar is left recursive if ∃ A ∈ NT such that ∃ a derivation A ⇒+ Aα, for some string α ∈ (NT ∪ T )+ Our expression grammar is left recursive • This can lead to non-termination in a top-down parser • For a top-down parser, any recursion must be right recursion • We would like to convert the left recursion to right recursion Non-termination is a bad property in any part of a compiler

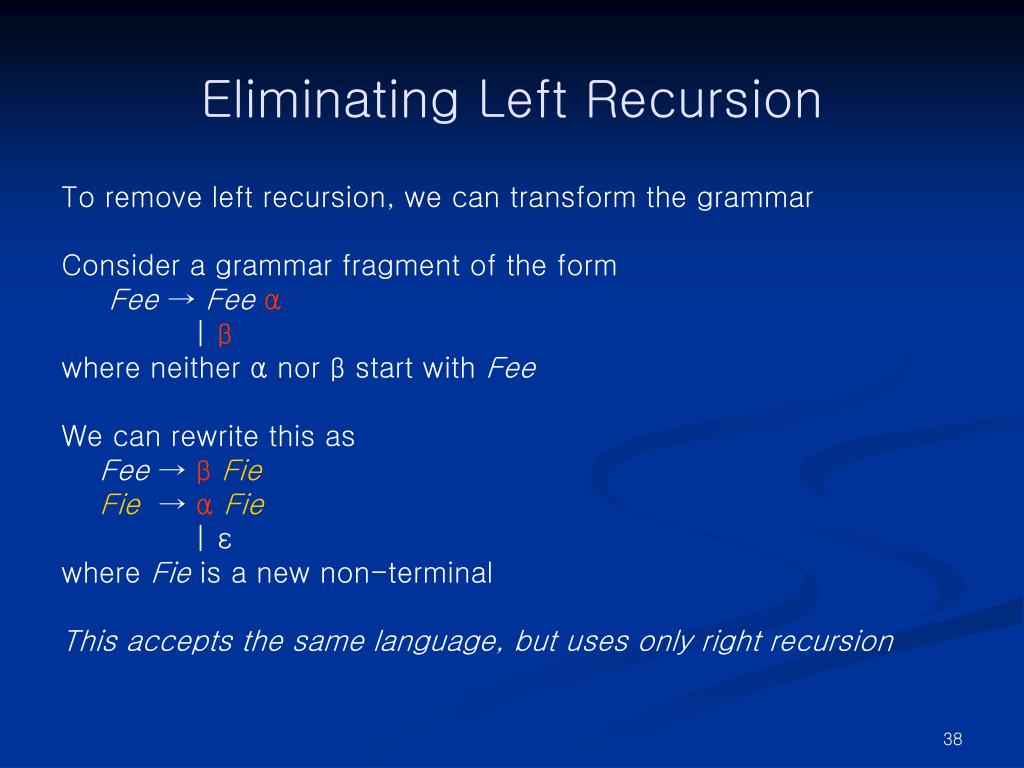

  38. Eliminating Left Recursion To remove left recursion, we can transform the grammar Consider a grammar fragment of the form Fee → Feeα | β where neither α nor β start with Fee We can rewrite this as Fee → βFie Fie → αFie | ε where Fie is a new non-terminal This accepts the same language, but uses only right recursion

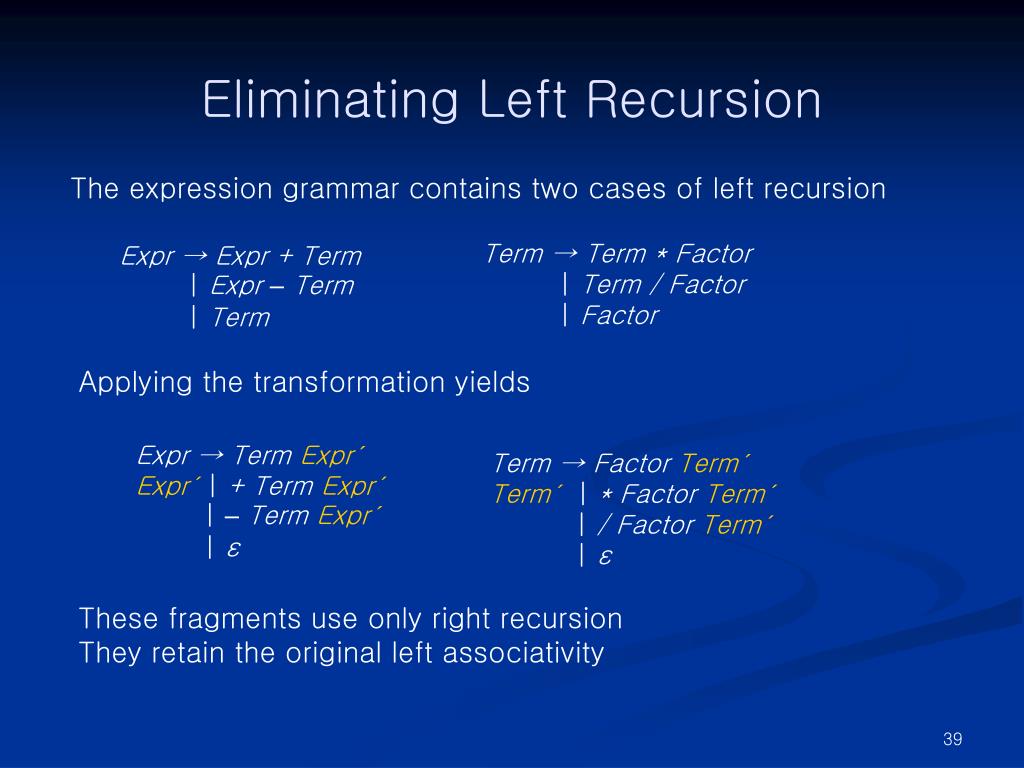

  39. Eliminating Left Recursion The expression grammar contains two cases of left recursion Term → Term * Factor | Term / Factor | Factor Expr → Expr + Term | Expr – Term | Term Applying the transformation yields Expr → Term Expr′ Expr′| + Term Expr′ |– Term Expr′ | ε Term → Factor Term′ Term′| * Factor Term′ | / Factor Term′ | ε These fragments use only right recursion They retain the original left associativity

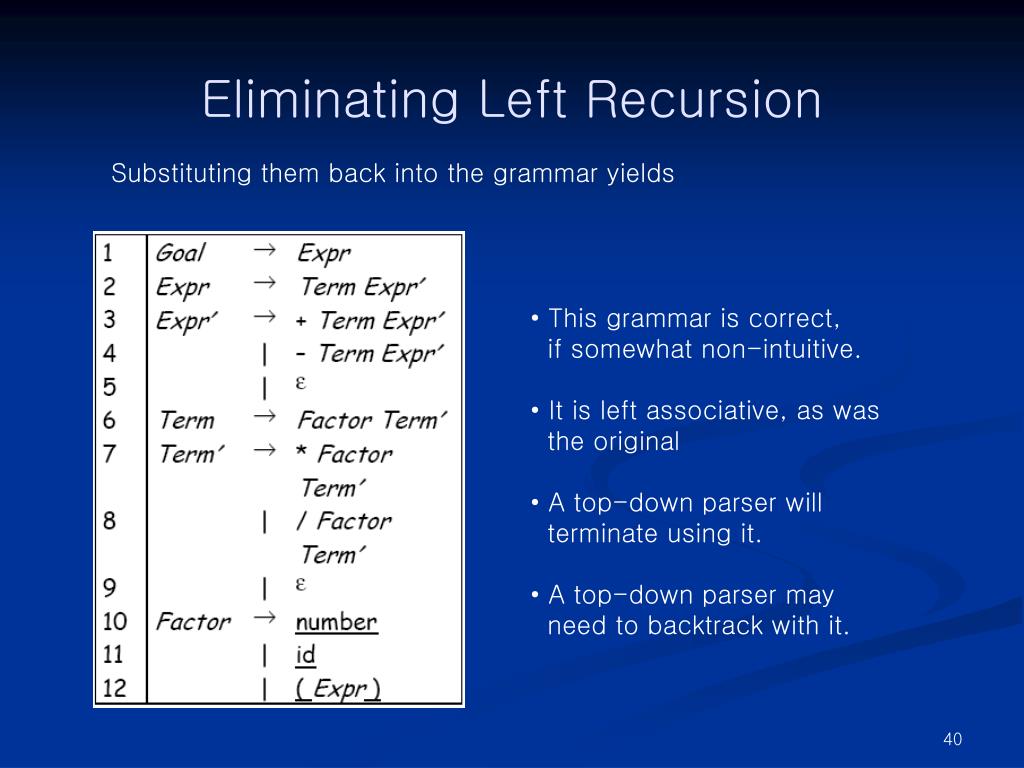

  40. Eliminating Left Recursion Substituting them back into the grammar yields • This grammar is correct, if somewhat non-intuitive. • It is left associative, as was the original • A top-down parser will terminate using it. • A top-down parser may need to backtrack with it.

  41. Must start with 1 to ensure that A1 → A1 β is transformed Eliminating Left Recursion The transformation eliminates immediate left recursion What about more general, indirect left recursion ? The general algorithm: arrange the NTs into some order A1, A2, …, An for i ← 1 to n for s ← 1 to i – 1 replace each production Ai → Asγ with Ai→ δ1γ |δ2γ|…|δkγ, where As→ δ1|δ2|…|δk are all the current productions for As eliminate any immediate left recursion on Ai using the direct transformation This assumes that the initial grammar has no cycles (Ai ⇒+ Ai ), and no epsilon productions And back

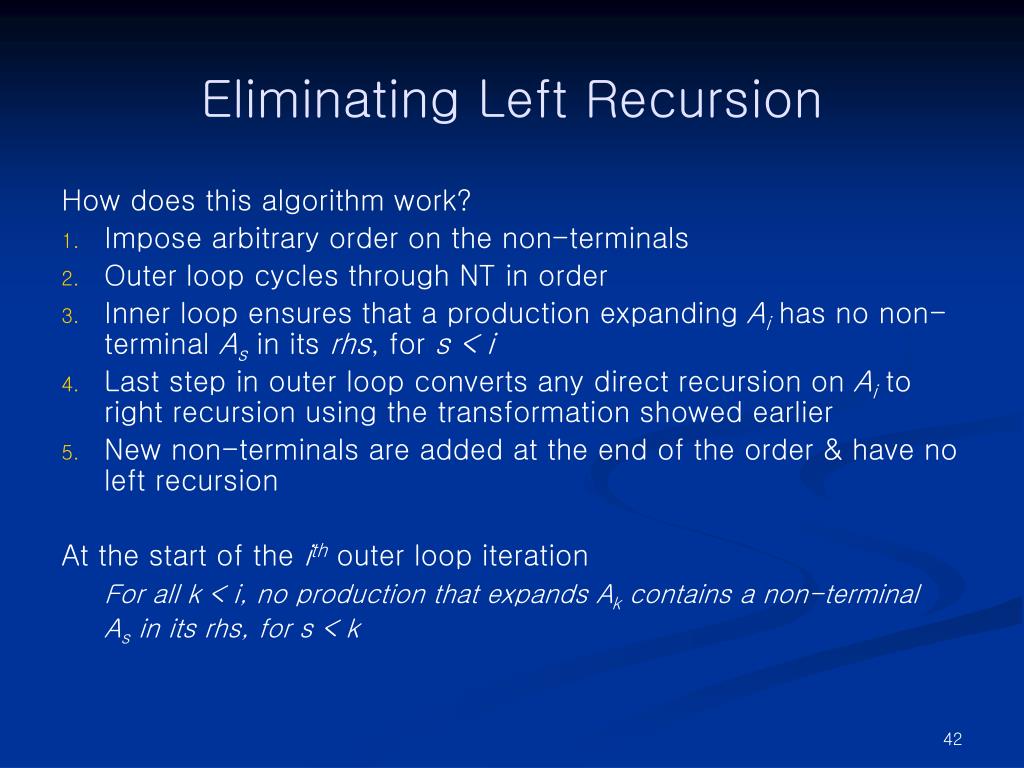

  42. Eliminating Left Recursion How does this algorithm work? • Impose arbitrary order on the non-terminals • Outer loop cycles through NT in order • Inner loop ensures that a production expanding Ai has no non-terminal As in its rhs, for s < i • Last step in outer loop converts any direct recursion on Ai to right recursion using the transformation showed earlier • New non-terminals are added at the end of the order & have no left recursion At the start of the ith outer loop iteration For all k < i, no production that expands Ak contains a non-terminal As in its rhs, for s < k

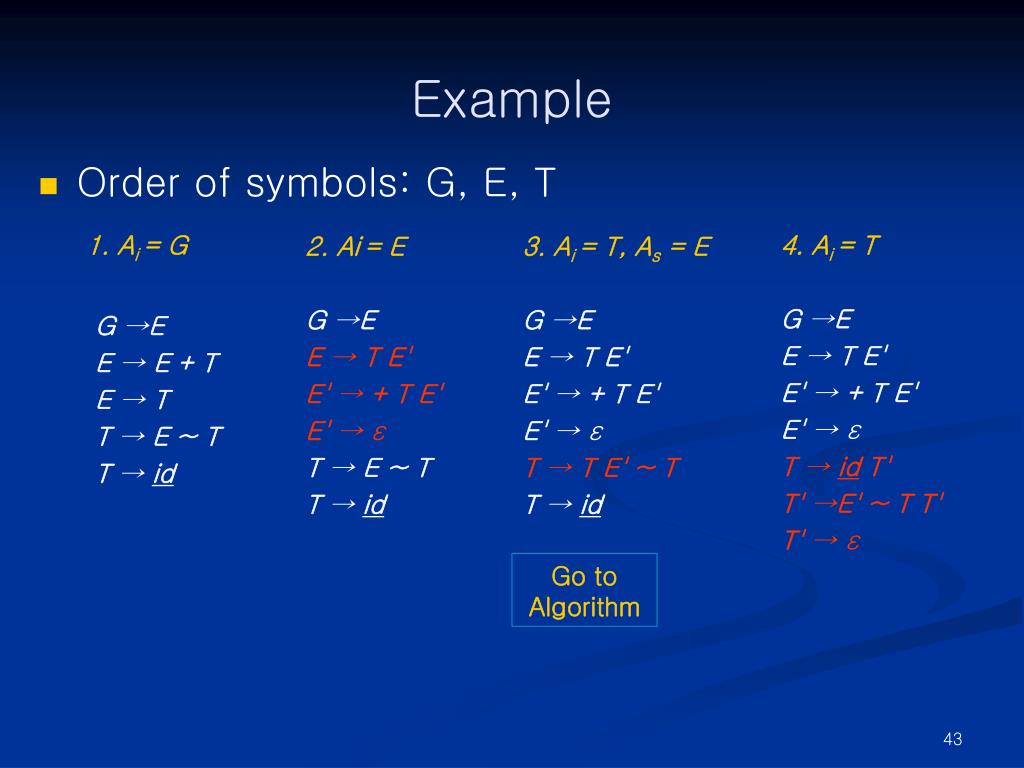

  43. 1. Ai = G 3. Ai = T, As = E G →E E → T E' E' → + T E' E' → ε T → T E' ~ T T → id Example • Order of symbols: G, E, T 4. Ai = T G →E E → T E' E' → + T E' E' → ε T → id T' T' →E' ~ T T' T' → ε 2. Ai= E G →E E → T E' E' → + T E' E' → ε T → E ~ T T → id G →E E → E + T E → T T → E ~ T T → id Go to Algorithm

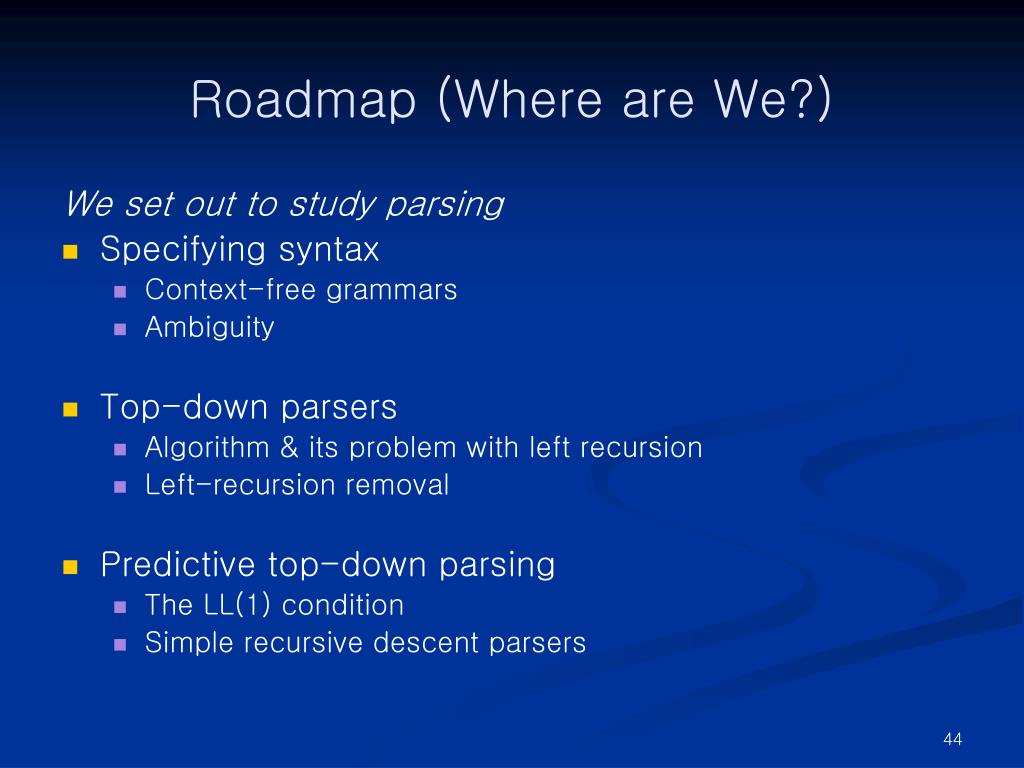

  44. Roadmap (Where are We?) We set out to study parsing • Specifying syntax • Context-free grammars • Ambiguity • Top-down parsers • Algorithm & its problem with left recursion • Left-recursion removal • Predictive top-down parsing • The LL(1) condition • Simple recursive descent parsers

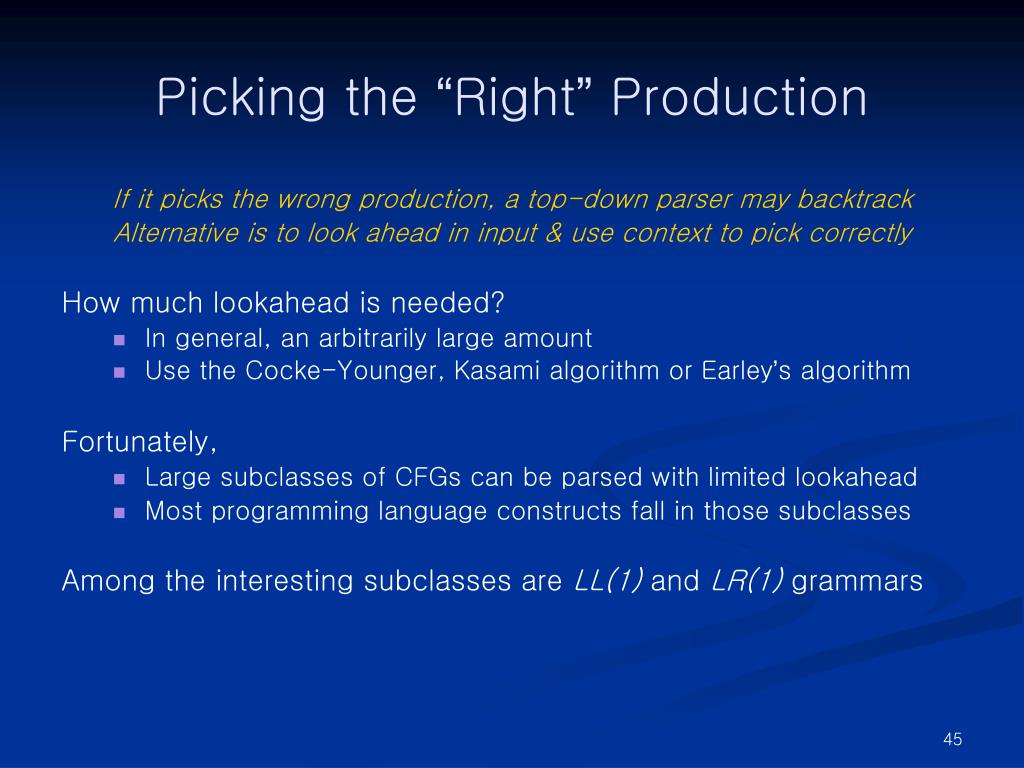

  45. Picking the “Right” Production If it picks the wrong production, a top-down parser may backtrack Alternative is to look ahead in input & use context to pick correctly How much lookahead is needed? • In general, an arbitrarily large amount • Use the Cocke-Younger, Kasami algorithm or Earley’s algorithm Fortunately, • Large subclasses of CFGs can be parsed with limited lookahead • Most programming language constructs fall in those subclasses Among the interesting subclasses are LL(1) and LR(1) grammars

  46. Predictive Parsing Basic idea Given A → α | β, the parser should be able to choose between α & β FIRST sets For some rhs α∈G, define FIRST(α) as the set of tokens that appear as the first symbol in some string that derives from α That is, x ∈ FIRST(α) iff α ⇒*x γ, for some γ We will defer the problem of how to compute FIRST sets until we look at the LR(1) table construction algorithm

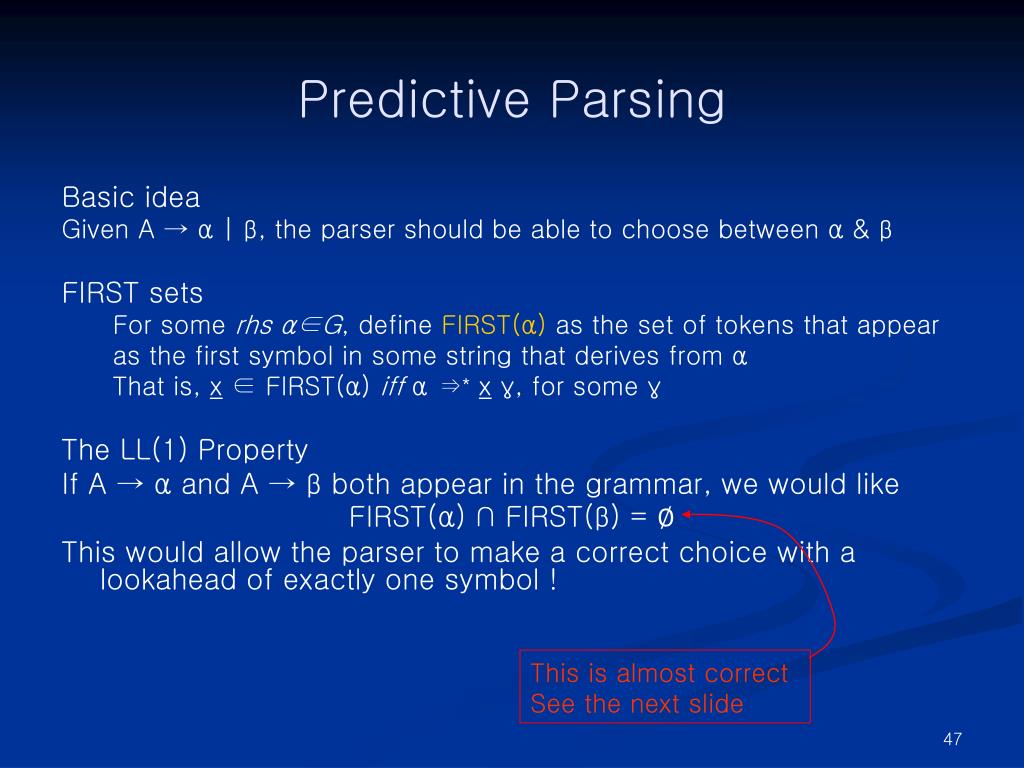

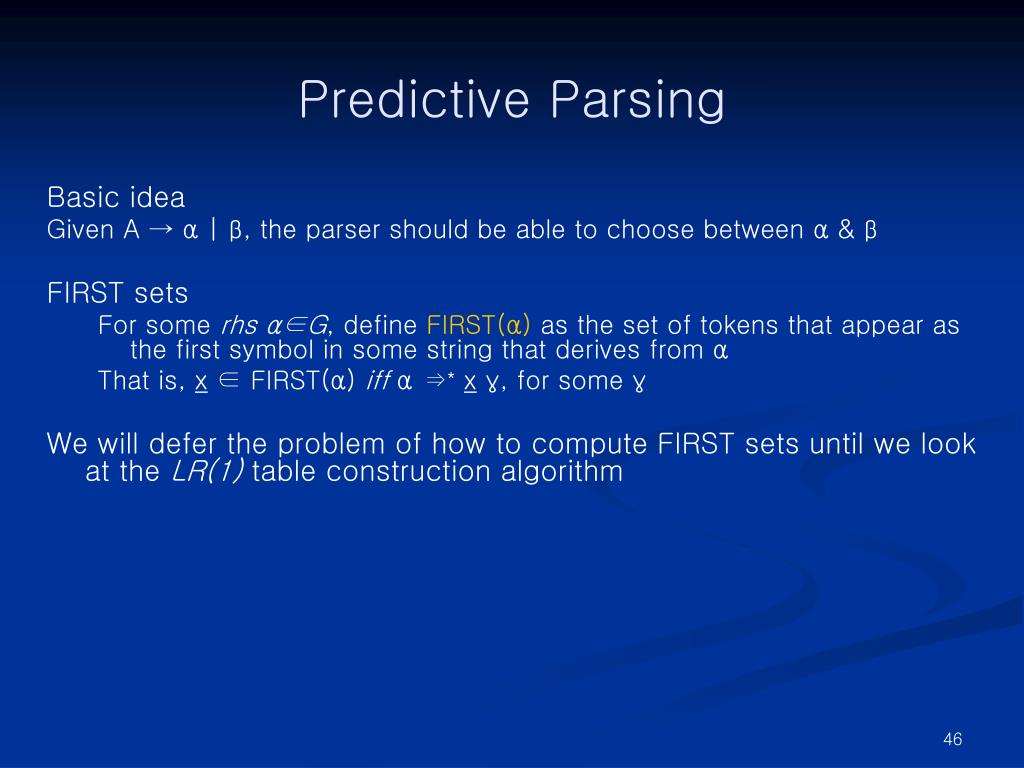

  47. Predictive Parsing Basic idea Given A → α | β, the parser should be able to choose between α & β FIRST sets For some rhs α∈G, define FIRST(α) as the set of tokens that appear as the first symbol in some string that derives from α That is, x ∈ FIRST(α) iff α ⇒*x γ, for some γ The LL(1) Property If A → α and A → β both appear in the grammar, we would like FIRST(α) ∩ FIRST(β) = ∅ This would allow the parser to make a correct choice with a lookahead of exactly one symbol ! This is almost correct See the next slide

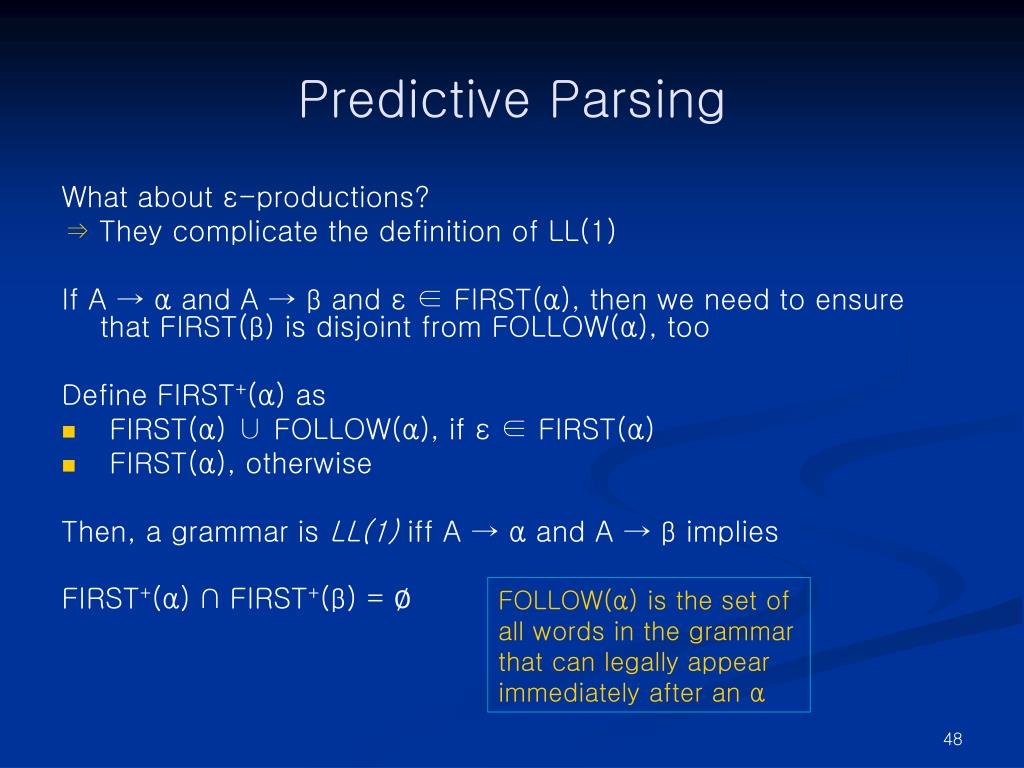

  48. Predictive Parsing What about ε-productions? ⇒ They complicate the definition of LL(1) If A → α and A → β and ε ∈ FIRST(α), then we need to ensure that FIRST(β) is disjoint from FOLLOW(α), too Define FIRST+(α) as • FIRST(α) ∪ FOLLOW(α), if ε ∈ FIRST(α) • FIRST(α), otherwise Then, a grammar is LL(1) iff A → α and A → β implies FIRST+(α) ∩ FIRST+(β) = ∅ FOLLOW(α) is the set of all words in the grammar that can legally appear immediately after an α

  49. Grammars with the LL(1) property are called predictive grammars because the parser can “predict” the correct expansion at each point in the parse. Parsers that capitalize on the LL(1) property are called predictive parsers. One kind of predictive parser is the recursive descent parser. /* find an A */ if (current_word ∈ FIRST(β1)) find a β1 and return true else if (current_word ∈ FIRST(β2)) find a β2 and return true else if (current_word ∈ FIRST(β3)) find a β3 and return true else report an error and return false Of course, there is more detail to “find a βi” (§ 3.3.4 in EAC) Predictive Parsing Given a grammar that has the LL(1) property • Can write a simple routine to recognize each lhs • Code is both simple & fast Consider A → β1 | β2 | β3, with FIRST+(β1) ∩ FIRST+ (β2) ∩ FIRST+ (β3) = ∅

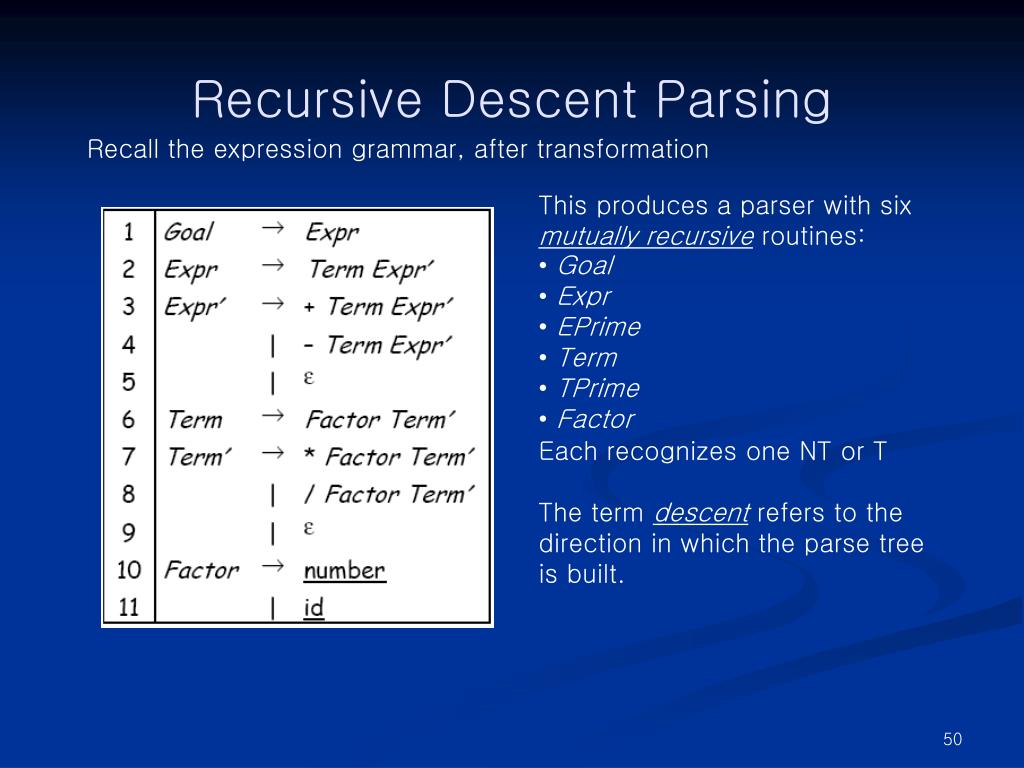

  50. Recursive Descent Parsing Recall the expression grammar, after transformation This produces a parser with six mutually recursive routines: •Goal • Expr • EPrime • Term • TPrime • Factor Each recognizes one NT or T The term descent refers to the direction in which the parse tree is built.
