Ganesh Machinery

GANESH MACHINERY


About us l.jpg

About Us

It began with a dream in 1985 to deliver to the market machine tools that provided the highest value and productivity available. We are still driven by this same commitment to you.

  • Ganesh Machinery was established in March of 1985 as a small family business. In just three short years the company blossomed into a 4,000 sq. ft. operation, and the growth didn’t stop there. By focusing on great customer support and building customer loyality, Ganesh has expanded into a thriving 15,000 sq. ft. state-of-the-art business, backed by a 40,000 sq. ft. machine warehouse. We have sold and serviced machines in over 12,000 machine shops, manufacturing businesses, technical schools, and distributors across all industries.

  • All of our machines are manufactured in our ISO-9001 facilities in Taiwan.

  • Many of the critical component s that go into our machines are manufactured in Japan.

  • Headquarters are in Southern California at 20869 Plummer St Chatsworth, CA 91311.


Tech centers l.jpg

Tech Centers

16,000 Sq.ft Technical Center opened in 2013. Specialists in Machining, Robotics & Automated Solutions.

Ganesh Technical Center Cuyahoga Falls, OH

Ganesh Technical Center Blaine, MN Ganesh Technical Center Houston, TX


Service l.jpg

Service

For customers looking for exceptional service, Ganesh Machinery has developed a 3-tier after sale service program.

Our 3 step service program includes a no-charge technical phone support, exceptionally well trained field service technicians and a preventative maintenance program to maximize the productive output of your Ganesh machines.


Phone support l.jpg

Phone Support

Technically expert service staff is available to answer your questions.

Between the hours of 8:00 AM to 12:00 PM and 1:00 PM to 4:00 PM, we have technicians available to answer all your service questions and provide technical support to help keep your Ganesh machines running.

All you need to do is call 1.888.542.6374. If the technicians are busy, all you need to do is a leave a message and a qualified technician will call you back very quickly.


Field service l.jpg

Field Service

If it is determined that field service is necessary our technician can schedule a field service call. A factory trained and professional field service technician will get your machine repaired quickly.

He will have the entire Ganesh parts, application and service team behind him to make sure he completes the service and gets you up and running as fast as possible.

  We value you as a customer and will always have one goal in mind: to give you the best service possible.


Preventative maintenance l.jpg

Preventative Maintenance

Ganesh Machinery has a preventative maintenance plan for all Ganesh Machines. You have the option to purchase monthly, semi-annual or annual preventative maintenance plans.

We can even add your non-Ganesh machine to your plan. We give you the ability to customize the date according to your priorities and schedule.

We can also assist you in doing your own preventative maintenance by providing you the manufacturer’s suggested time table of maintenance, thereby saving you money as well as giving you complete control over your maintenance scheduling.


Time study l.jpg

Time Study

Ganesh applications engineers can perform a production analysis of your parts and do a complete time study showing speeds and feeds for every cut, and also make suggestions for the most efficient machine to process your work.

Knowing the production yield

can be very helpful in the

justification process when

acquiring a new machine tool.

Providing Profitable Solutions, Not just Machines!


Turnkeys l.jpg

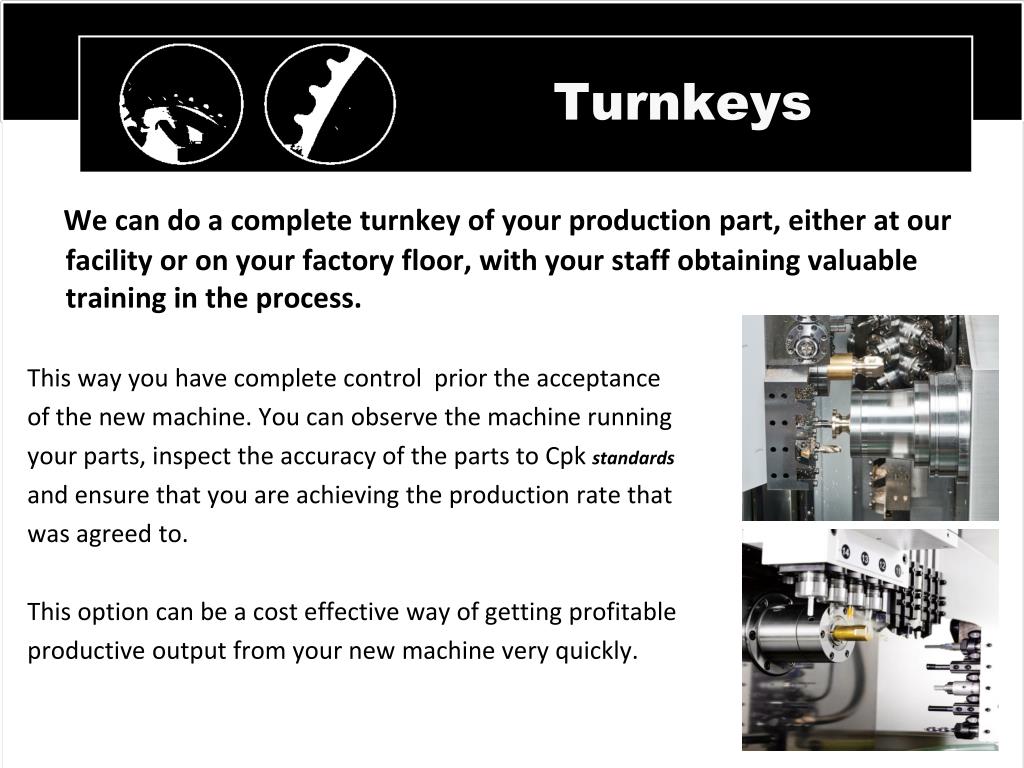

Turnkeys

We can do a complete turnkey of your production part, either at our facility or on your factory floor, with your staff obtaining valuable training in the process.

This way you have complete control prior the acceptance

of the new machine. You can observe the machine running

your parts, inspect the accuracy of the parts to Cpkstandards

and ensure that you are achieving the production rate that

was agreed to.

This option can be a cost effective way of getting profitable

productive output from your new machine very quickly.


Automation l.jpg

Automation

Ganesh Machinery can automate your machine with automatic load/unload robotics with high-density part storage systems. Unmanned operation can greatly increase your profitability and help you be more successful in this globally competitive world.


Training l.jpg

Training

Ganesh Machinery has fully developed training program for each machine and has extensive classroom training facility at our Chatsworth, CA campus to accommodate the needs of our customers. Ganesh also has training centers in Cleveland, OH and Houston, TX to better serve our customers.

Computers and projection equipment is used to

facilitate the efficient transfer of the knowledge

necessary to make Ganesh machines as productive

as possible.

Ganesh Machinery has stated that “our business

model relies on the satisfaction of our customers

and their ability to get the highest level of

productivity out of their Ganesh machines.”


Parts l.jpg

Parts

  • At Ganesh Machinery our quest to ensure you get the most performance from your machine tool investment is integral to our corporate culture and a key component of our business model.

  • Our parts department is staffed by dedicated professionals that utilized advanced parts stocking strategies to ensure that you get your parts on time, every time. This provides you with optimal machine availability with the best response time in the industry to help you maintain your competitive edge. The parts manager at Ganesh works with the service manager to ensure that the right parts are stocked, even before a new machine model is introduced. Ganesh ships 100% of stocked replacement parts the same day when orders are received by 2pm (PST). Ganesh Machinery has over $1.3 million dollars parts inventory in its stock.

  • Ganesh Machinery provides needed parts by expedited delivery. If you

    need urgent part to repair a machine, the Ganesh parts department will

    ship in-stock parts overnight directly to your location. Getting your

    machine up and running as soon as possible is our priority.

  • We ship via FedEx, UPS, USPS directly to you.

  • If the part is not in-stock, shipment will be arranged as soon as

    it becomes available.


Industry solutions l.jpg

Industry Solutions


Gang tool lathe cyclone 32 gt l.jpg

Gang Tool Lathe Cyclone-32 GT

  • GANG TOOL LATHE ADVANTAGES

  • Fastest Chip-to-Chip Time (No Turret index time)

  • High Machine Reliability, no troublesome turret

  • More Tooling Flexibility, eg. Long Boring Bars

  • Multiple Insert Boring Bars for tooling density

  • 8-Position Quick-Change tooling plates

  • Hardinge, SNK, Omni Turn tool plates available

  • Hydraulic Clamping for a secure no-slip grip

  • Rigid tapping & Polygon turning

  • High-Performance “C”-axis with 0.001 resolution

The Ganesh Cyclone GT 3-Axis Heavy Duty Gang Tool Lathe.The Cyclone GT-32 is stronger, heavier, and more powerful than competitive machines in its class!

Standard Features Include:

Full “ C”- Axis with 360,000 Rotary Positions, Polygon Turning, Parts Catcher, Traub “Dead-Length” Collet Chuck, Hydraulic Clamping and Rigid Tapping. 1-3/8” (37 mm) Bar Capacity.

Optional : Up to 4 Live Tools, 8 station tool turret.


Cyclone 32 42 gts twin spindle twin gang slide turning center l.jpg

Cyclone-32/42 GTSTwin Spindle, Twin-Gang Slide Turning Center

  • 1-5/8” Bar, 5”Chucking Capacity, 6,000 RPM, 10-HP

  • Simultaneously Machine on the Main and Sub Spindle

  • “C”-Axis on both spindles for Live Tool Applications

  • Dual Parallel Gang-Tooled Slides for Fast Production

  • Fastest Chip-To-Chip Time in This Machine Class

  • Rigid Tapping on both spindles

  • Integral Lathe Motor Spindles

  • Parts Conveyor

  • Parts Catcher

  • Chip Conveyor

The Ganesh Cyclone GTS 6-Axis Twin-Spindle, Twin-Gang Slide Turning Center.The Cyclone 32 GTS Simultaneous Machine on the main and subspindle. The GTS production turning center CNC machine with a fully synchronized C -axis on both the main and subspindle.

The GTS configuration produces shorter cycle-times because the Counter Spindle works simultaneously with the Main Spindle.

The GTS has integral built-in integral 6,000 RPM spindles on the main and the sub allowing extremely fast acceleration and deceleration times.


Twin spindle twin turret three turret l.jpg

Twin Spindle Twin Turret / Three Turret

Models Available:

Twin Spindle / Twin Turret

Cyclone-52 TTMY : 51mm (2” Bar Capacity)

Cyclone-70 TTMY : 71mm (2-3/4” Bar Capacity)

Models Available:

Twin Spindle / Three Turret

Cyclone-52 3TMY : 51mm (2” Bar Capacity)

Cyclone-70 3TMY : 71mm (2-3/4” Bar Capacity)

  • Up To 2.75” Bar Capacity

  • 10” 3 Jaw Chucks Available

  • Mitsubishi Integral Motors

  • (True “Y”- Axis With 4”-travel)

  • (High-performance “C” – Axis)

  • Mitsubishi 700 Series CNC Control

  • Up To Three 16 Station Live Tool Turrets

  • From 32 To 48 Tools

The Ganesh Cyclone TTMY and 3TMY series Multi-axis / Multi-tasking CNC lathe having up to

11-axis featuring up to 3-turrets. Each turret has 16 live tools.

The machine can turn from 1/8” to 2.75” diameters. Workhandling automation can be added to optimize the productivity of any machine to meet your specific needs.


Cyclone 52 by2 b axis cnc turn mill center l.jpg

Cyclone -52 BY2 B Axis CNC Turn / Mill Center

Cyclone -52 BY2

  • 2” Bar Capacity

  • 15-Hp Main Spindle and Sub – Spindle

  • 12 tool B – Axis Rotating Unit

  • 36 Cutting Tools

  • 18 Driven Tools

  • Y – Axis On Main and Sub - Spindle

  • 6,000-Rpm Spindle Motors

The Ganesh Cyclone 52-BY2, 9-Axis Mill / Turn Lathe is a 52mm (2”) bar capacity CNC Mill / Turn lathe designed for machining complicated parts.

The machine has 36 tool positions and 18-driven tools. The B-axis rotating tooling unit holds

12-driven tools.


Cyclone multi axis ncy cs machines l.jpg

Cyclone Multi-Axis NCY & CS Machines

  • 7-Axis

  • 10-HP Main Spindle

  • 6000 RPM Main and Sub Spindles

  • 1/8 To 1-3/8” Bar Capacity

  • 27-Tools, 11-Driven Tools

  • Y-Axis Travel of 11”

  • Main and Counter Spindle C-Axis

  • Ground Bar Stock Not Required

The Ganesh Multi-Axis Cyclone NCY and CS CNC lathe series are available in versions from 4 to 7 axis with Y-axis for off centerline machining with up to 27 live tools with 1/8” to 1.375” barstock diameters.


Geared head box way vmc l.jpg

Geared Head Box Way VMC

Models Available:

VFM-4024 B 39.37” X 23.62” Travel, 50 Taper, Geared Head

VFM-6327 B 63.00” X 27.56” Travel, 50 Taper, Geared Head

VFM-7035 B 70.86” X 35.43” Travel, 50 Taper, Geared Head

VFM-8635 B 86.81” X 35.43” Travel, 50 Taper, Geared Head

The large worktable allows the placement of a 4th axis indexer and two vises on the table simultaneously, allowing for operational flexibility and ease of setup.

The 8,000 RPM spindle features a 2-Stage Geared-Head with 1:1 & 4:1 gearing, providing increased torque for heavy cuts for high metal removal rates and improved production efficiency.

The speed and power of the spindle allows ideal for cutting performance in materials like aluminum, steel and for efficient machining of Inconell and stainless. Through-The-Spindle coolant, 50 Taper Spindle, ZF Gear Box and 4th & 5th Axis wiring are all standard.


Vfm high speed machining centers l.jpg

VFM HIGH SPEED MACHINING CENTERS

Models Available:

VFM-2818 Express 27.95” X 17.71” Travel, CAT-40, 12,000 RPM

VFM-4024 Express 39.37” X 23.62” Travel, CAT-40, 12,000 RPM

VFM-5127 Express 51.27” X 27.56” Travel, CAT-40, 12,000 RPM

VFM-2818 Express 63.00” X 27.56” Travel, CAT-40, 12,000 RPM

12,000 RPM Inline Direct-Drive Spindle

30-HP Peak Spindle Motor

Synchronous Rigid Tapping Capability

24 -Station Twin-Arm Tool Changer

1,417 IPM rapid rates

300 PSI “Through-the-Tool” coolant

Ganesh VFM Express Machining Centers start at 28” X 18” in X & Y axis and go up to 63” X 27” in X & Y and give you true High Speed CNC Machining. 4th and 5th axis wiring standard.


Cnc mill turn centers with y axis l.jpg

CNC Mill - Turn Centers With Y-Axis

Models Available:

KSL-5212 TMY: 2” Bar Capacity, 8” Chuck

KSL-7612 TMY: 3” Bar Capacity, 10” Chuck

  • 4-Axis CNC Mill / Turn Center

  • C Axis Spindle

  • Y-Axis with 4” of Travel

  • Up To 3” Bar Capacity

  • AC-digital Spindle Motor

  • 4,500 rpm Spindle Speed

  • 12-Station VDI-30 / VDI 40 Tool Turret

  • Up To 7.5 HP Milling

The Ganesh KSL 5212 TMY/7612 TMY Mill-Turn CNC lathes feature 4-axis with Y-axis for off centerline machining with up to 12 live tools.


Heavy duty box way cnc turning center l.jpg

Heavy Duty Box-Way CNC Turning Center

Models Available:

KSL-5210 T: CNC Turning Center, 2” Bar Capacity, 8” Chuck

KSL-7610 T: CNC turning Center, 3” Bar Capacity, 10” Chuck

  • 2-Axis CNC Turning Center

  • Up To 3” Bar Capacity

  • AC-digital Spindle Motor

  • Up To 4,500 rpm Spindle Speed

  • 10-ID/OD Tool Stations

The Ganesh KSL 5210 T/7610 T CNC Turning Centers use a heavy meehanite ribbed cast iron traveling column construction Turcite-B coated box ways provide optimum vibration absorption and rigidity with a minimum of stick/slip for enhanced accuracy.


Manual big bore oil country lathes l.jpg

Manual Big-Bore Oil Country Lathes

  • Models Available:

  • GTW 22”-30”: 22”-30” Swing, 4-1/8” Bore

  • GTW 34”-42”: 34”-42” Swing, 6 5/8” & 10” Bores

  • GTW 44”-63”: 44”-63” Swing, 6”, 9” & 12” Bores

Ganesh Heavy Duty Lathes are built for larger work and offer spindle bores up to 12” inch diameter. The machines are built with fine grain and high-density meehanite processed cat iron which yields superior Vibration dampening for enhanced surface finish and tool life to handle heavy – duty turning.

Alloy steel Hardened & precision ground gears provide for smooth power transmission to the spindle which is supported by precision taper roller bearings.

Bed lengths range up to 315” and rear chuck mounts are available on larger models. A safety gated spindle control lever is used to protect against accidental engagement.


Cnc big bore oil country lathes l.jpg

CNC-Big Bore Oil Country Lathes

  • Models Available:

  • GTK 24 CNC: 24” Swing, 4-1/8” Bore

  • GTK 30 CNC: 30” Swing, 6-5/8”, 10” Bore

  • GTK 34-38-42 CNC: 34”-42” Swing, 6-5/8”, 10 or 13.97” Bore

  • GTK 44-63 CNC: 44”-63” Swing, 6”,9”, or 12” Bore

  • GTK 5240 CNC: 52” Swing, 10” or 13.97” Bore

Ganesh Heavy Duty CNC Lathes feature both Front and Rear Chuck Mounts and are built for large heavy work including Threading Oil-Pipes. The machines are built with fine grain and high density Meehanite processed cast iron which yields superior vibration dampening for enhanced surface finish and tool life to handle heavy – duty turning.

The saddle and cross slide are Turcite-B anti-friction coated to minimize stick/slip and improve accuracy. Alloy steel Hardened & Precision Ground Gears provide for smooth power transmission to the spindle which is supported by precision taper roller bearings.

The Tag-Along style tailstock automatically couples to saddle for positioning when needed.


Toolroom manual cnc machines l.jpg

Toolroom Manual & CNC Machines

  • Small to Large Diameter CNC and Conventional Lathes

  • CNC and Conventional Knee Mills

  • CNC Bed Mills

Quality Machines For Every Day Needs.


Slide27 l.jpg

www.ganeshmachinery.com

20869 Plummer St, Chatsworth, CA 91311 USA

Toll Free: 1-888-542-6374 (US Only) - Int. Tel: 1-818-349-9166 – Fax: 1-818-349-7286

Ganesh logo is registered trade mark of Ganesh Industrial Supply, Inc. Specifications, features, standard options, colors and other elements shown are subjects to change without notice. Some machines are shown with optional equipment. Please contact your regional sales manager or authorized Ganesh Machinery dealer for further information. ©2013 Ganesh Machinery.
