On numerical solving the complex eikonal equation using ray tracing methods

On numerical solving the complex eikonal equation using ray tracing methods

Václav Vavryčuk

Institute of Geophysics, Czech Acad. Sci., Prague


Wave propagation in dissipative media

Wave propagation in dissipative media


On numerical solving the complex eikonal equation using ray tracing methods

Description of dissipative media

Tensor of viscoelastic parameters

– elastic parameters

– viscous parameters

Quality matrix (Q-matrix)

all quantities

and

equations

are complex

Christoffel tensor and the eikonal

equation


On numerical solving the complex eikonal equation using ray tracing methods

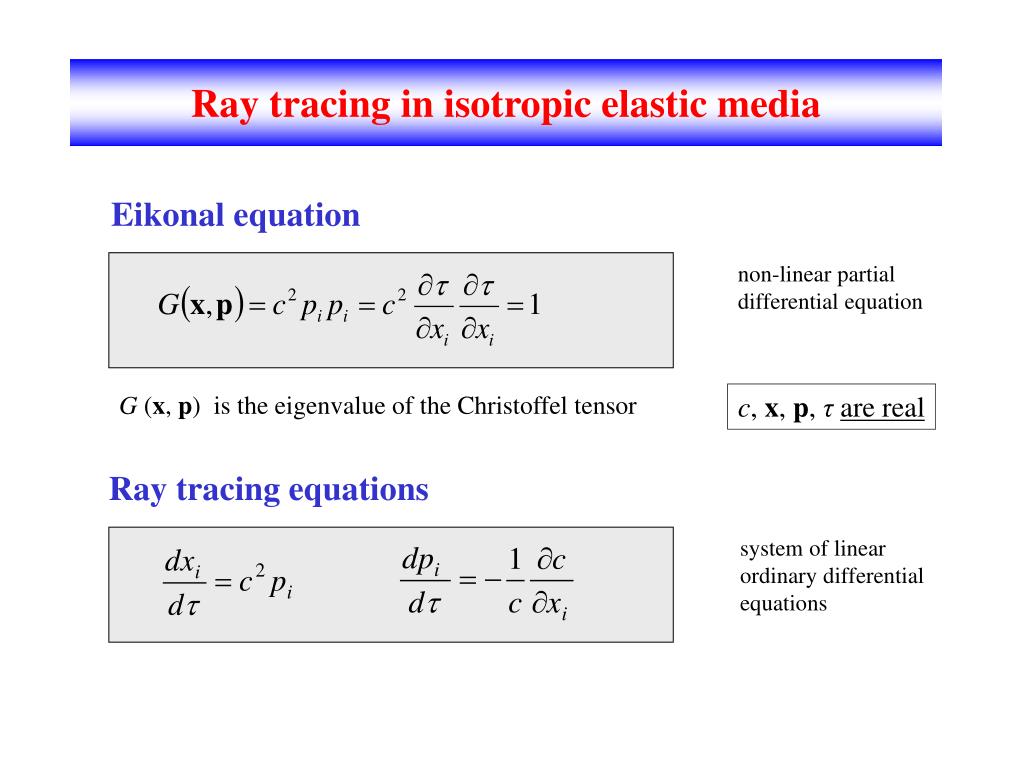

Ray tracing in isotropic elastic media

Eikonal equation

non-linear partial differential equation

G (x, p) is the eigenvalue of the Christoffel tensor

c, x, p, τare real

Ray tracing equations

system of linear ordinary differential equations


On numerical solving the complex eikonal equation using ray tracing methods

Ray tracing in isotropic viscoelastic media

Eikonal equation

non-linear partial differential equation

G (x, p) is the eigenvalue of the Christoffel tensor

c, x, p, τ are complex

Ray tracing equations

system of linear partial differential equations

Solution of complex ray tracing equations are complex rays !


On numerical solving the complex eikonal equation using ray tracing methods

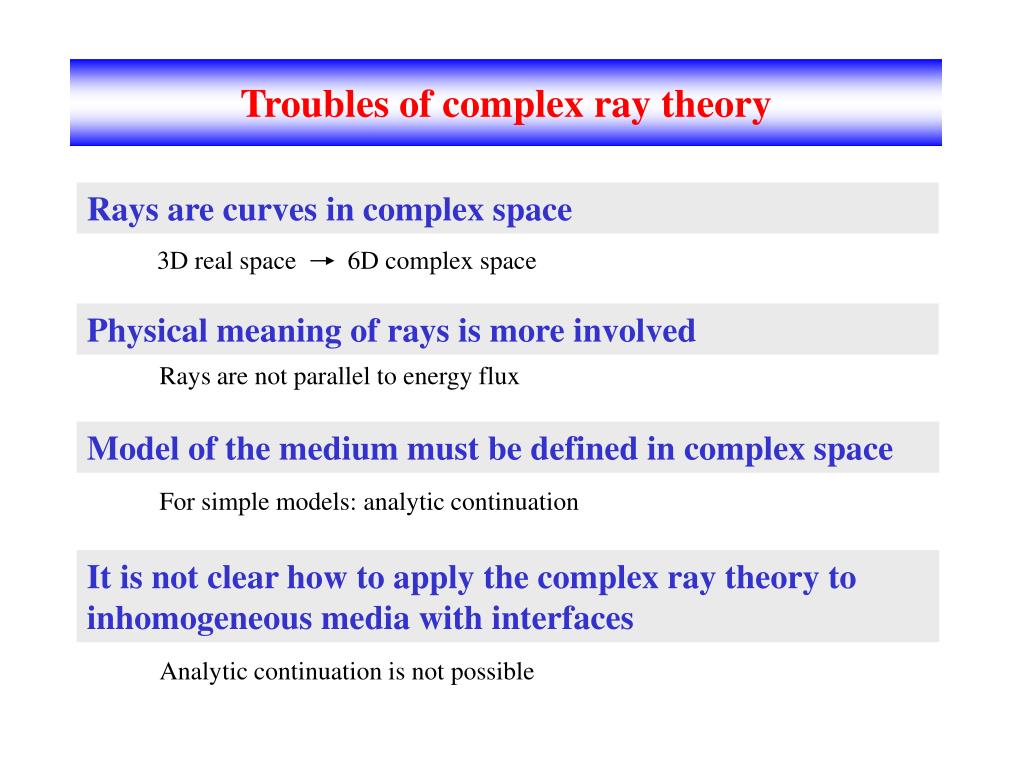

Troubles of complex ray theory

Rays are curves in complex space

3D real space 6D complex space

Physical meaning of rays is more involved

Rays are not parallel to energy flux

Model of the medium must be defined in complex space

For simple models: analytic continuation

It is not clear how to apply the complex ray theory to inhomogeneous media with interfaces

Analytic continuation is not possible


Real ray tracing in dissipative media

Real ray tracing in dissipative media


On numerical solving the complex eikonal equation using ray tracing methods

Approximate ray tracing equations

Approximate approaches:

1. Perturbation approach of elastic ray theory

(Gajewski & Pšenčík, 1992)

  • rays are calculated in an elastic reference medium

  • dissipation effects are included by perturbations

  • weak attenuation

2. Real ray approach

(Vavryčuk, 2008, 2010, 2012)

  • complex rays are approximated by real rays

  • no perturbations are used

  • includes strong attenuation


On numerical solving the complex eikonal equation using ray tracing methods

Approximate ray tracing equations

Ray tracing equations

same equations as for elastic medium

Perturbation approach

Real ray approach


Numerical examples

Numerical examples


On numerical solving the complex eikonal equation using ray tracing methods

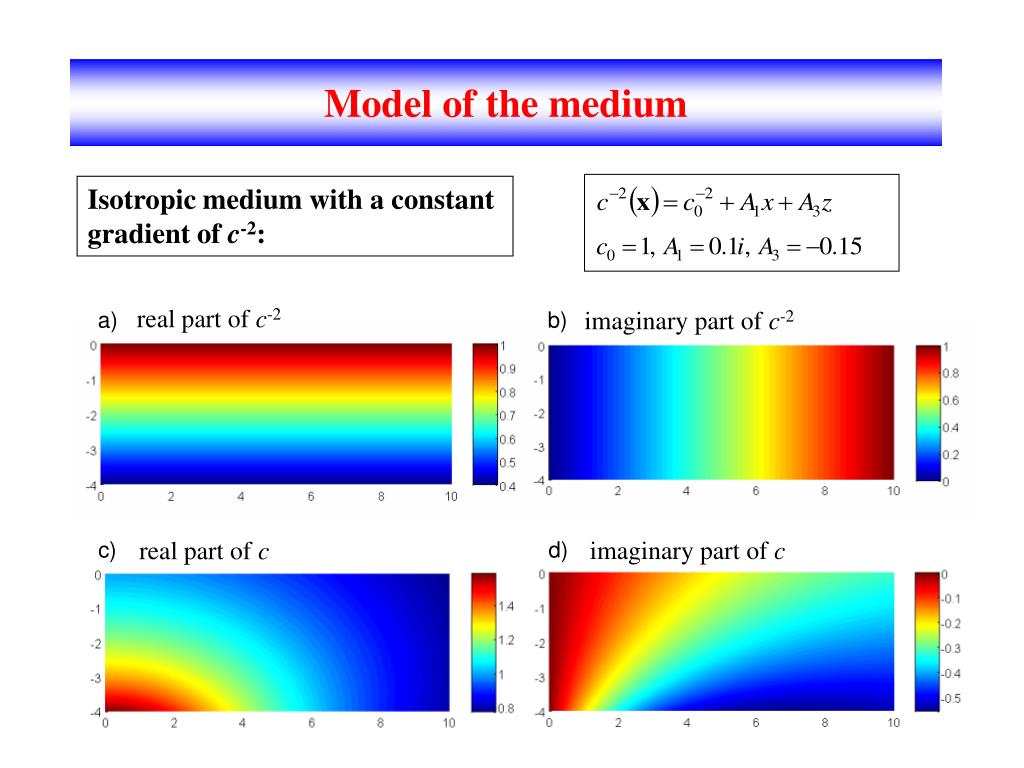

Model of the medium

Isotropic medium with a constant

gradient of c-2:

real part of c-2

imaginary part of c-2

imaginary part of c

real part of c


On numerical solving the complex eikonal equation using ray tracing methods

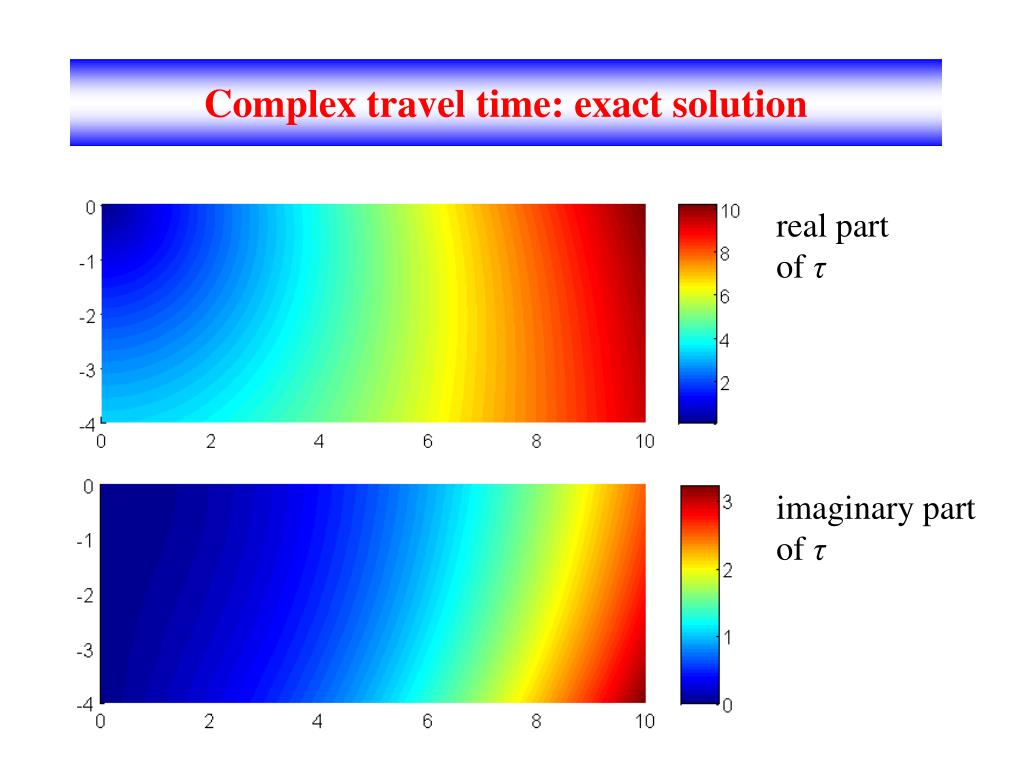

Complex travel time: exact solution

real part

of τ

imaginary part

of τ


On numerical solving the complex eikonal equation using ray tracing methods

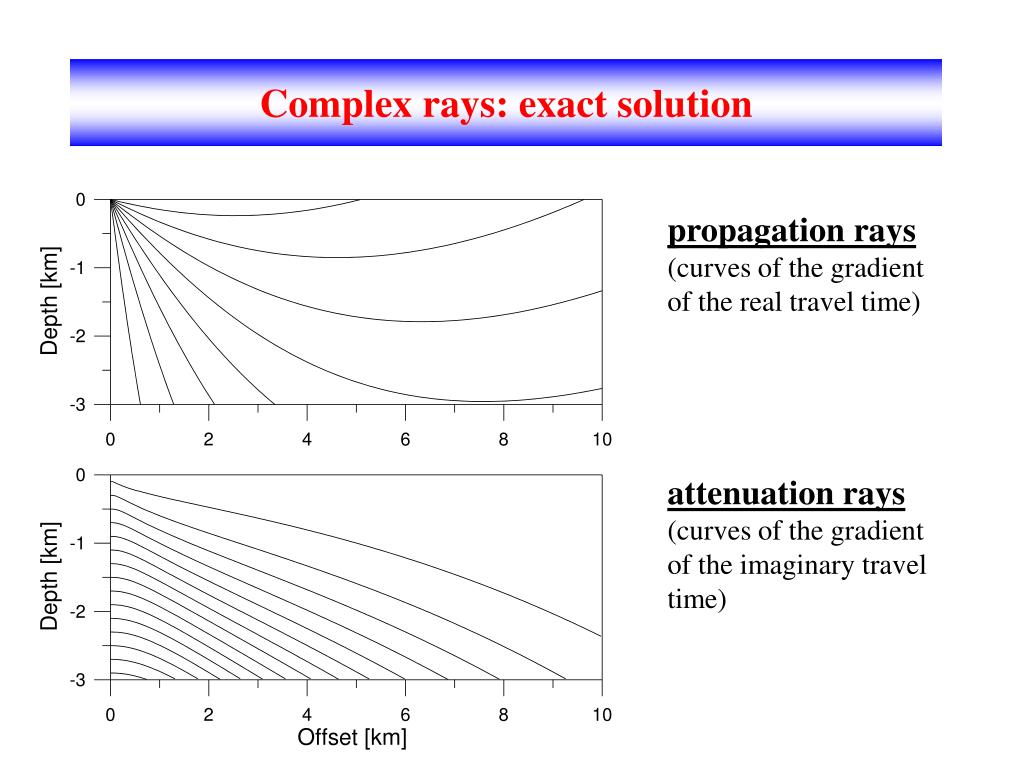

Complex rays: exact solution

propagation rays

(curves of the gradient of the real travel time)

attenuation rays

(curves of the gradient of the imaginary travel time)


On numerical solving the complex eikonal equation using ray tracing methods

Errors of approximate travel time

Perturbation approach

errors of real travel time

errors of imaginary travel time

(%)

(%)

Real ray approach

errors of real travel time

errors of imaginary travel time

(%)

(%)


On numerical solving the complex eikonal equation using ray tracing methods

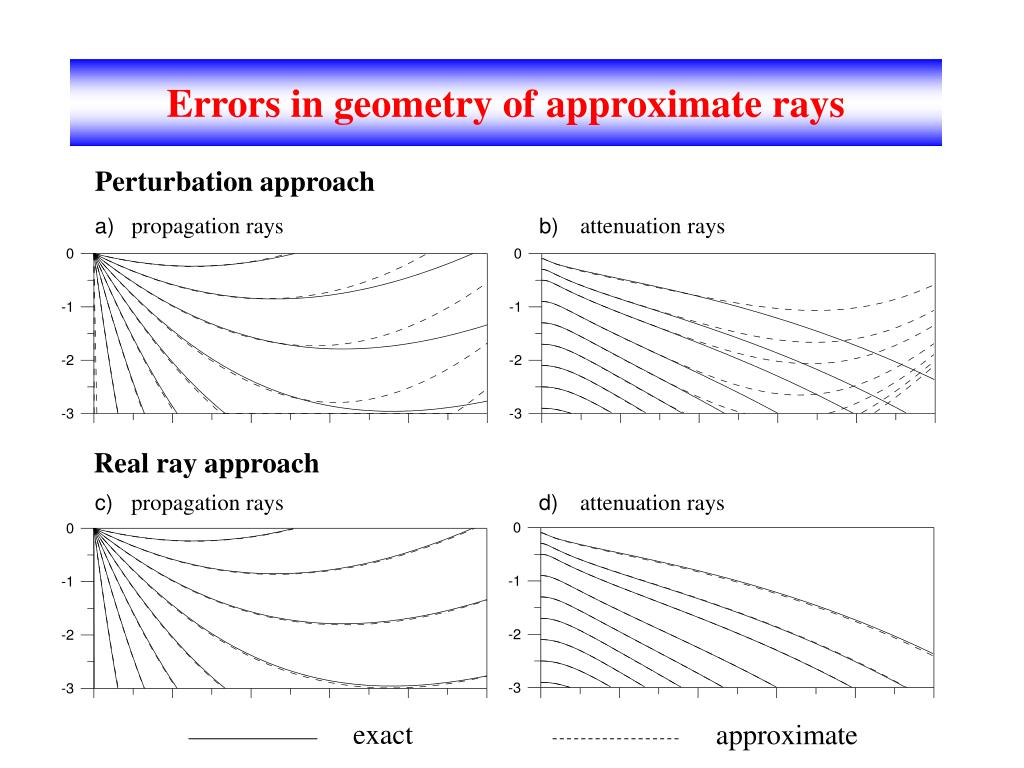

Errors in geometry of approximate rays

Perturbation approach

propagation rays

attenuation rays

Real ray approach

propagation rays

attenuation rays

exact

approximate


On numerical solving the complex eikonal equation using ray tracing methods

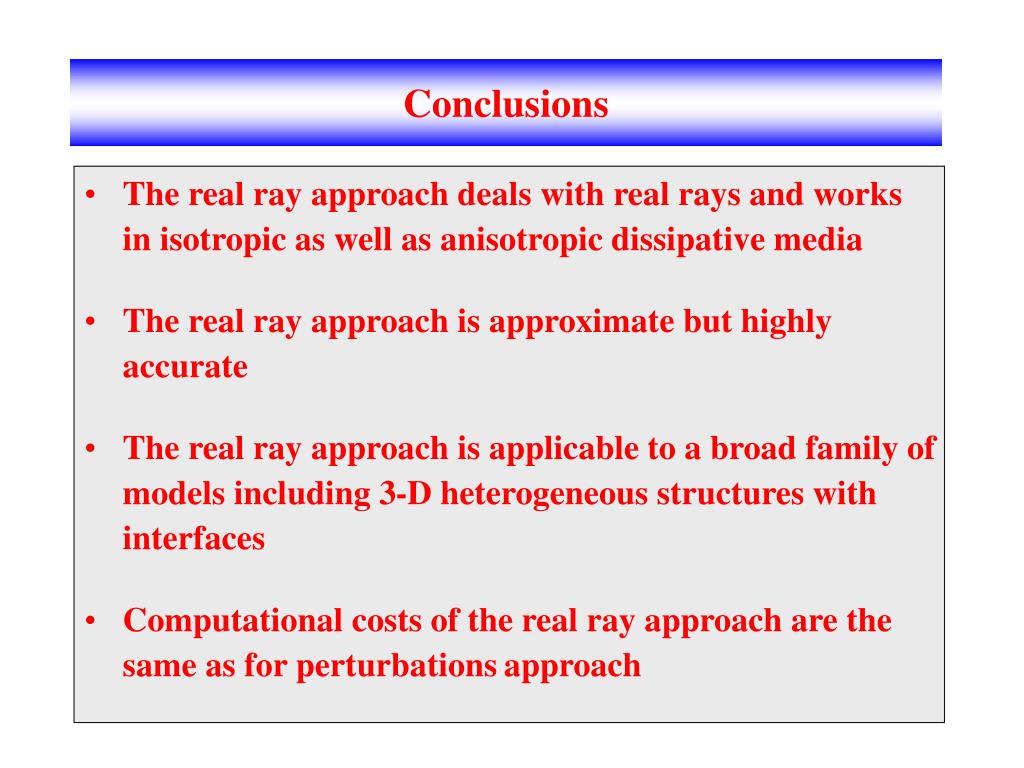

Conclusions

  • The real ray approach deals with real rays and works in isotropic as well as anisotropic dissipative media

  • The real ray approach is approximate but highly accurate

  • The real ray approach is applicable to a broad family of models including 3-D heterogeneous structures with interfaces

  • Computational costs of the real ray approach are the same as for perturbationsapproach
