Asymptotically good binary code with efficient encoding justesen code

Asymptotically good binary code with efficient encoding& Justesen code

Tomer Levinboim

Error Correcting Codes Seminar (2008)


Outline

Outline

  • Intro

    • codes

    • Singleton Bound

  • Linear Codes

  • Bounds

    • Gilbert-Varshamov

    • Hamming

  • RS codes

  • Code Concatention

    • Examples

  • Wozencraft Ensemble

  • Justesen Codes


Hamming distance

Hamming Distance

  • Hamming Distance between

  • The Hamming Distance is a metric

    • Non negative

    • Symmetric

    • Triangle inequality

=


Weight

Weight

  • The weight (wt) of

  • Example (on board)


Asymptotically good binary code with efficient encoding justesen code

Code

  • An (n,k,d)q code C is a function such that:

    • For every


Code parameters

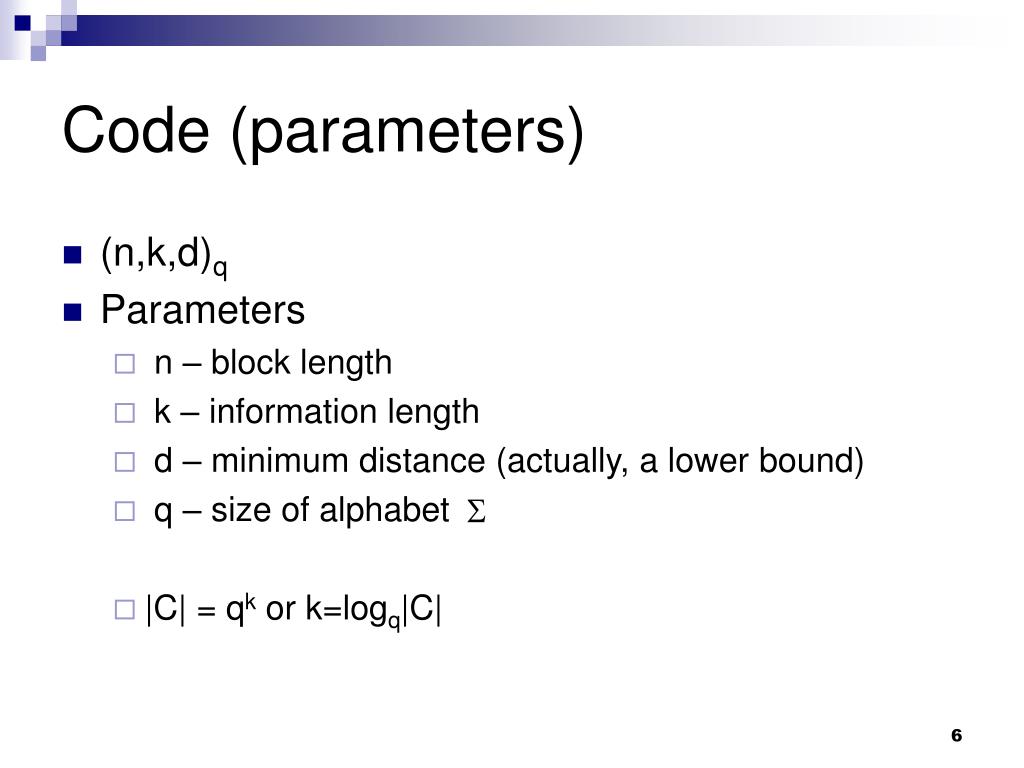

Code (parameters)

  • (n,k,d)q

  • Parameters

    • n – block length

    • k – information length

    • d – minimum distance (actually, a lower bound)

    • q – size of alphabet

    • |C| = qk or k=logq|C|

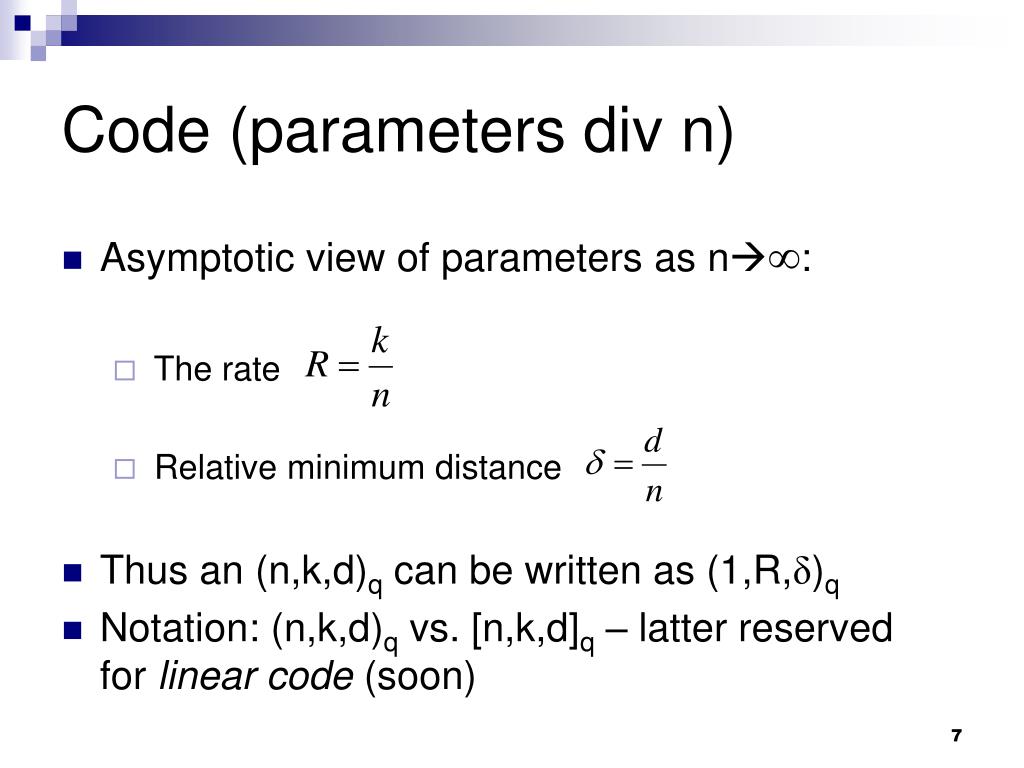

Code parameters div n

Code (parameters div n)

  • Asymptotic view of parameters as n∞:

    • The rate

    • Relative minimum distance

  • Thus an (n,k,d)q can be written as (1,R,δ)q

  • Notation: (n,k,d)q vs. [n,k,d]q – latter reserved for linear code (soon)


Trivial code example

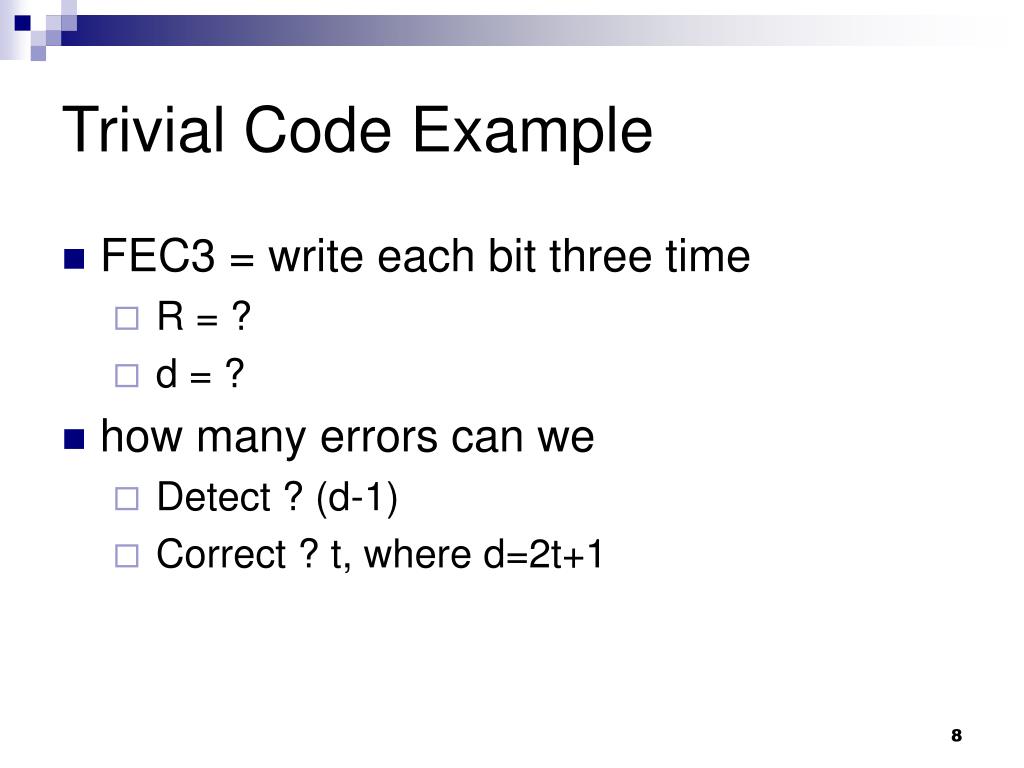

Trivial Code Example

  • FEC3 = write each bit three time

    • R = ?

    • d = ?

  • how many errors can we

    • Detect ? (d-1)

    • Correct ? t, where d=2t+1


Asymptotically good binary code with efficient encoding justesen code

Goal

  • Would like to:

    • Maximize δ – correct more

    • Maximize R – send more information

      * conflicting goals - would like to be able to construct an [n,k,d]q code s.t. δ>0, R>0 and both are constant.

    • Minimize q – for practical reasons

    • Maximize number of codewords while minimizing n and keeping d large.


Singleton bound

Singleton Bound

  • Let C be an [n,k,d]q code then

    • k ≤ n – d + 1

      equivalently

    • R ≤ 1 – δ + o(1)

  • Proof: project C to first k-1 coordinates

    • On Board


Visual intuition

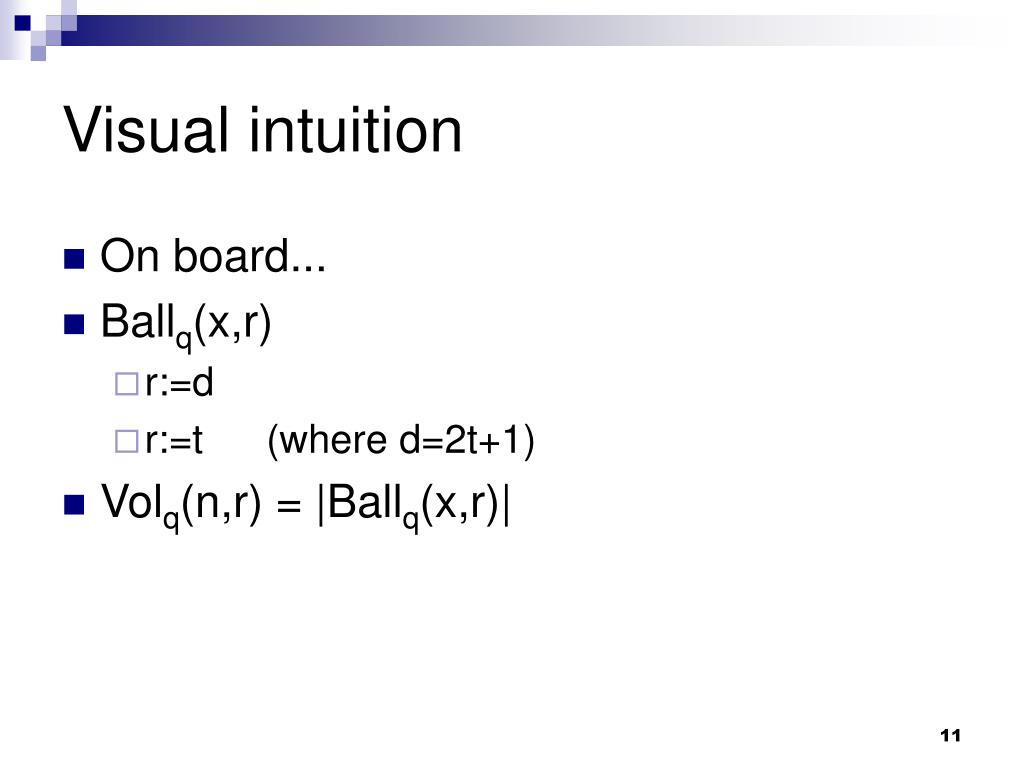

Visual intuition

  • On board...

  • Ballq(x,r)

    • r:=d

    • r:=t (where d=2t+1)

  • Volq(n,r) = |Ballq(x,r)|


Linear codes

Linear Codes


Linear codes1

Linear Codes

  • An [n,k,d]q code C:FqKFqn is linear when:

    • Fq is a field

    • C is linear function (e.g., matrix)

  • Linearity implies:

    • C(ax+by) = aC(x) + bC(y)

    • 0n member of C


Linear codes example

Linear Codes (example)

  • FEC3

    • [3,1,3]2

  • Hadamard – longest linear code

    • [n,logn, n/2]2

    • e.g., - [8,3,4]2

    • (H - Matrix representation on board)

      • Dimensions

  • Asymptotic behavior


Linear codes minimum distance

Linear Codes – minimum distance

  • Lemma: if C:FqKFqn is linear then

    Note: for clarity Cx means C(x)

  • Proof:

    • ≤ - trivial

    • ≥ - follows from linearity (on board)


Reed solomon code

Reed-Solomon code

  • Idea: oversample a polynomial

  • Let q be prime power and Fq a finite field of size q.

  • Let k<n and fix n elements of Fq,

    • x1,x2,..xn

  • Given a message m=(c0..ck-1) interpret it has the coefficients of the polynomial p


Rs codes

RS Codes

  • Thus (c0..ck-1) is mapped to (p(x1),..p(xn))

    • Linear mapping (Vandermonde)

  • Using linearity, can show for x≠0

     RS meet the Singleton bound

  • Proof: on board

    • (# of roots of a k-1 degree poly)

  • Encoding time


Asymptotically good binary code with efficient encoding justesen code

Bounds


Gilbert varshamov bound preliminaries

Gilbert-Varshamov Bound Preliminaries

  • Binary Entropy

  • Stirling

    Implying that:


Gilbert varshamov bound preliminaries1

Gilbert-Varshamov Bound Preliminaries

  • Using the binary entropy we obtain

  • On board


Gilbert varshamov bound bound statement

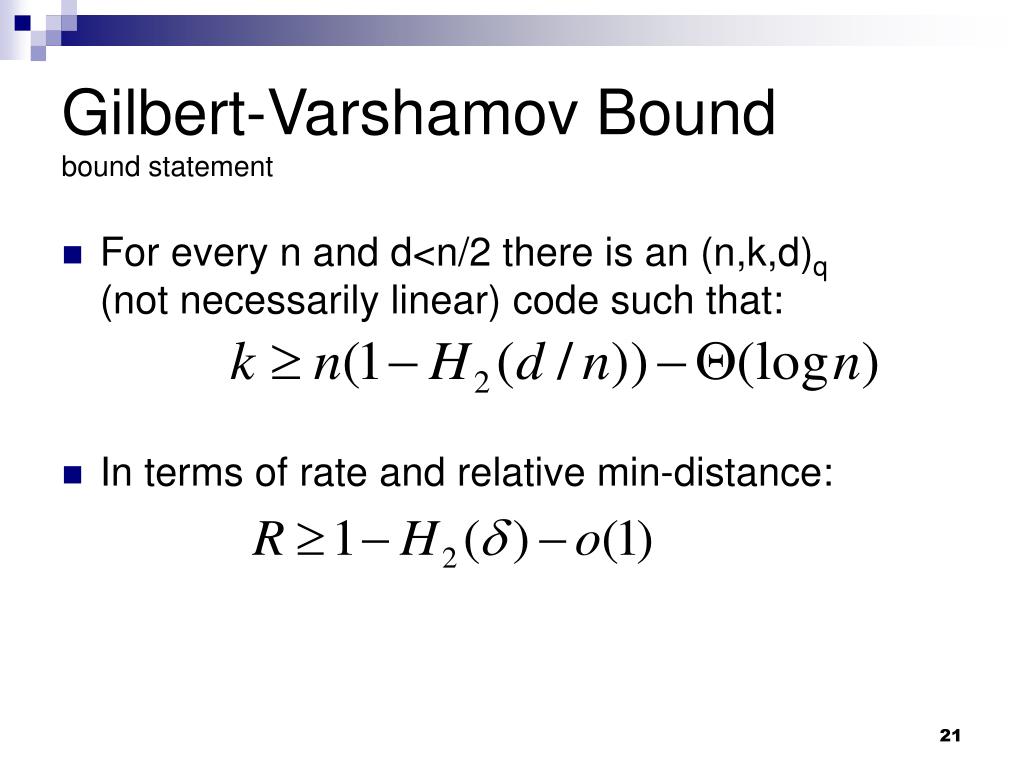

Gilbert-Varshamov Boundbound statement

  • For every n and d<n/2 there is an (n,k,d)q (not necessarily linear) code such that:

  • In terms of rate and relative min-distance:


Gilbert varshamov bound proof

Gilbert-Varshamov Bound Proof

  • On Board

  • Sketch of proof:

    • if C is maximal then:

    • And

    • Now use union bound and entropy to obtain result (we show for q=2, using binary entropy)


Gv bound

GV-Bound

  • Gilbert proved this with a greedy construction

  • Varshamov proved for linear codes

    • proved using random generator matrices – most matrices are good error correcting codes


Singleton gv plot

Singleton / GV Plot

1

Singleton (upper)

Gilbert-Varshamov (lower)

0.5

1


Hamming bound upper

Hamming Bound (Upper)

  • With similar reasoning to GV bound but using

  • For q=2 can show that


Bounds plot

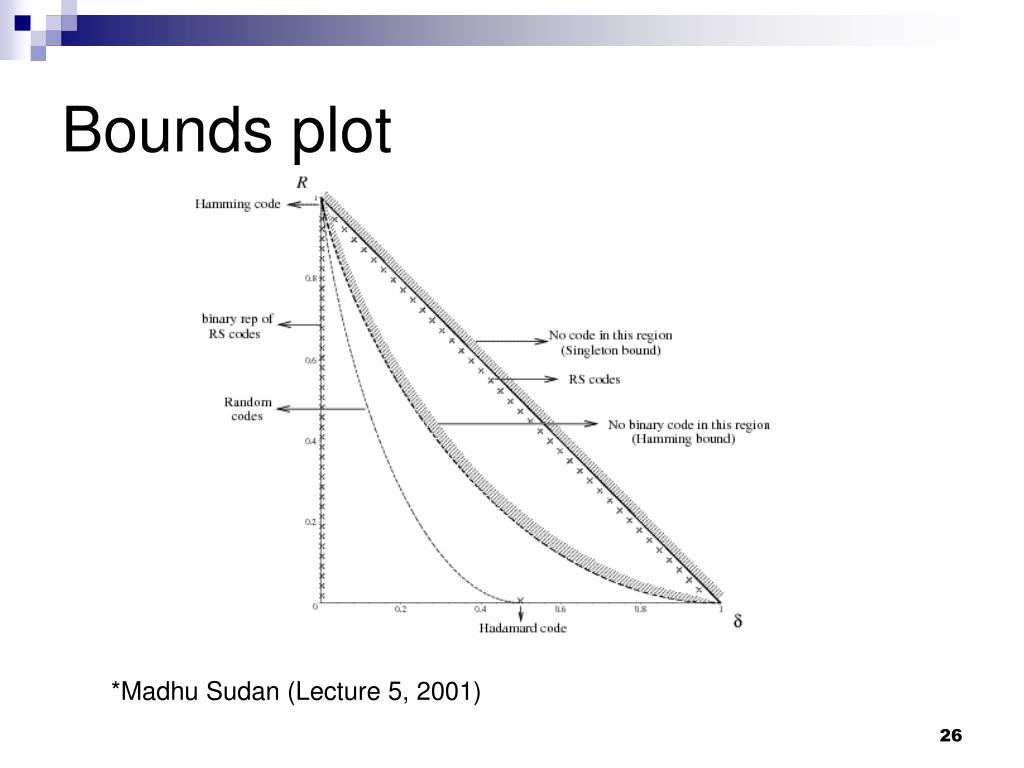

Bounds plot

*Madhu Sudan (Lecture 5, 2001)


Asymptotically good binary code with efficient encoding justesen code

Code Concatenation


Code concatenation motivation

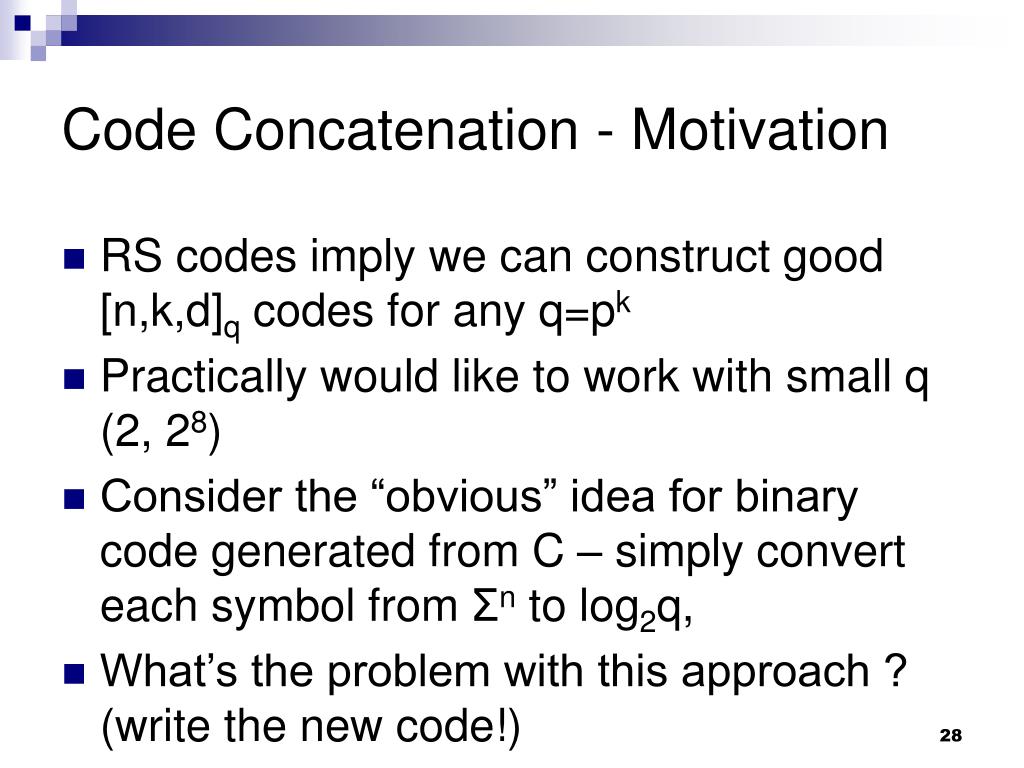

Code Concatenation - Motivation

  • RS codes imply we can construct good [n,k,d]q codes for any q=pk

  • Practically would like to work with small q (2, 28)

  • Consider the “obvious” idea for binary code generated from C – simply convert each symbol from Σn to log2q,

  • What’s the problem with this approach ? (write the new code!)


Code concatenation

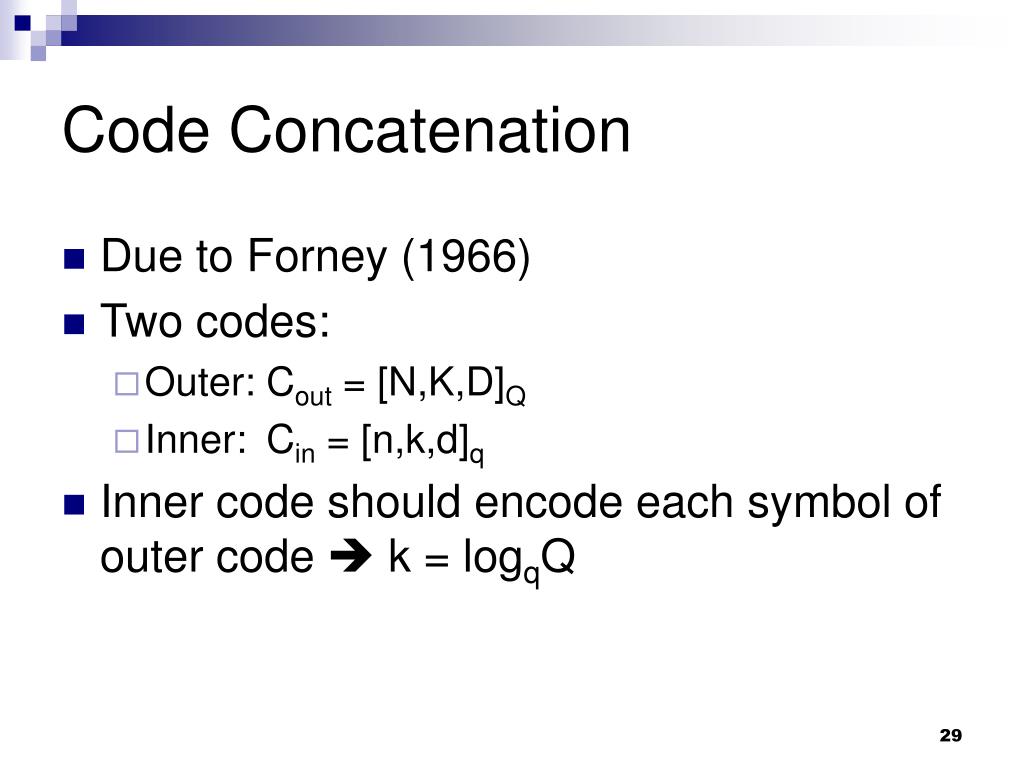

Code Concatenation

  • Due to Forney (1966)

  • Two codes:

    • Outer:Cout = [N,K,D]Q

    • Inner: Cin = [n,k,d]q

  • Inner code should encode each symbol of outer code  k = logqQ


Code concatenation1

Code Concatenation

  • How does it work ?

* Luca Trevisan (Lecture 2)


Code concatenation2

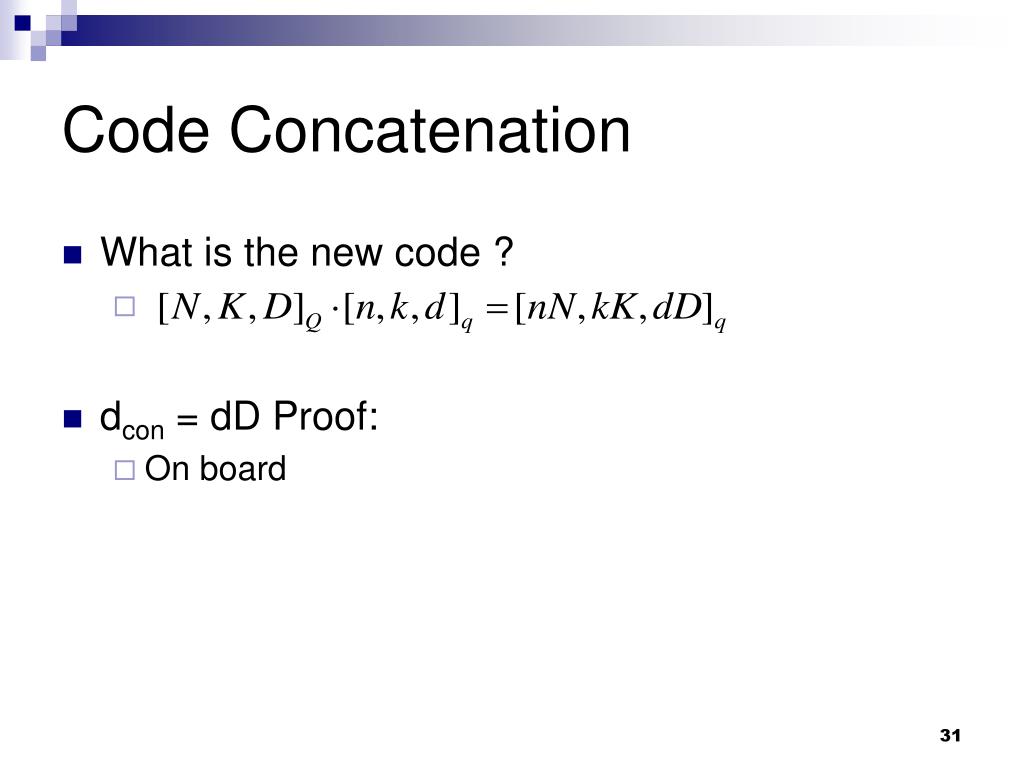

Code Concatenation

  • What is the new code ?

  • dcon = dD Proof:

    • On board


Code concatenation examples

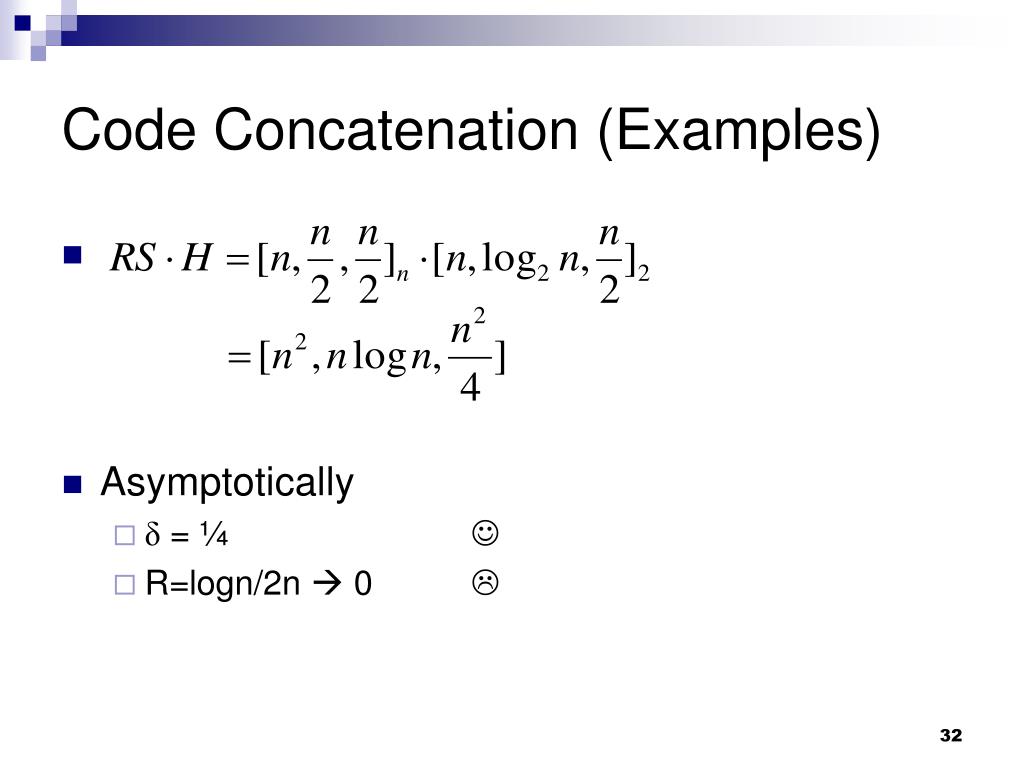

Code Concatenation (Examples)

  • Asymptotically

    • δ = ¼ 

    • R=logn/2n  0 


Good codes

Good Codes

  • Can we “explicitly” build asymptotically good (linear) codes ?

    • asymptotically good = constant R, δ> 0 as n∞

    • Explicit = polytime constructable / logspace constructible


Asymptotically good codes

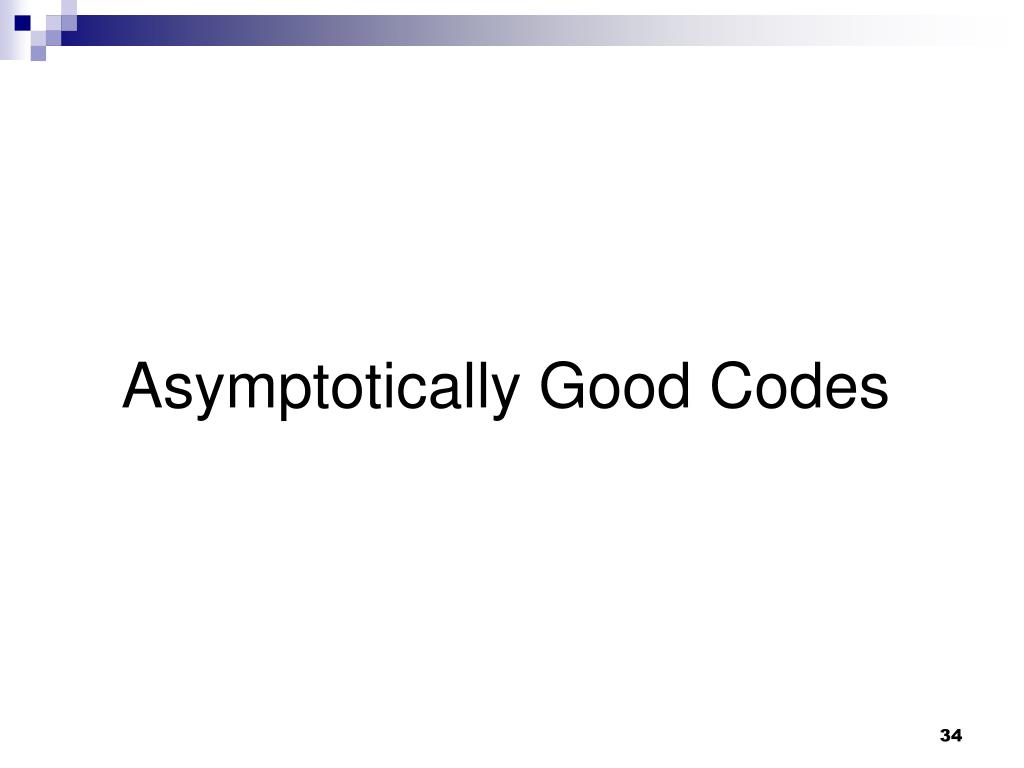

Asymptotically Good Codes


Asymptotically good codes1

Asymptotically Good Codes

  • GV tells us that most linear functions of a certain size are good error-correcting codes

    • Can find a good code in brute-force

      • Use brute force on inner-code, where the alphabet is exponentially smaller!

      • Do we really need to search ?


Wozencraft ensemble

Wozencraft Ensemble

  • Consider the following set of codes:

    such that (R=1/2) (

  • Notice that (on board)


Wozencraft ensemble1

Wozencraft Ensemble

  • Lemma: There exists an ensemble of codes c1,..cN of rate ½ where N = qk-1 such that for at least (1-ε)N value of i, the code Ci has distance dis.t.

  • Proof (on board), outline:

    • Different codes have only 0n in common

    • Let y=Cα(x), then, If wt(y)<d

       y in Ball(0n, d)

       there are at most Vol(n,d) “bad” codes

    • For large enough n=2k, we have Vol(n,d) ≤ εN

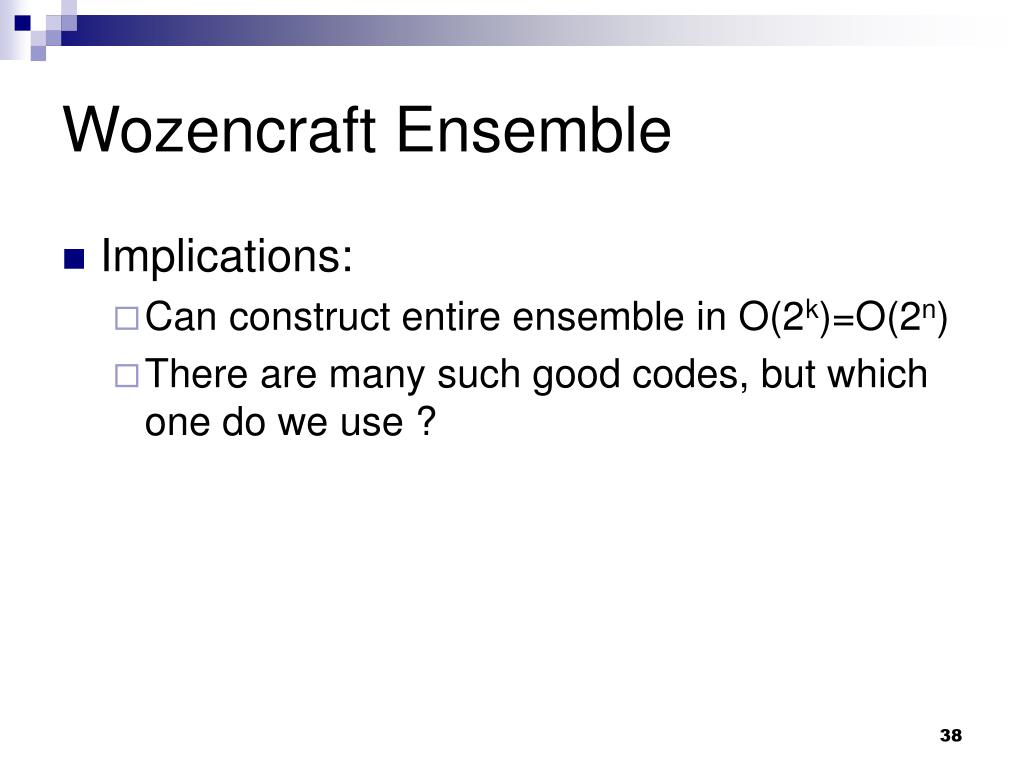

Wozencraft ensemble2

Wozencraft Ensemble

  • Implications:

    • Can construct entire ensemble in O(2k)=O(2n)

    • There are many such good codes, but which one do we use ?


Justesen code

Justesen Code

  • Concatenation of:

    • Cout - RS code over

    • a set of inner codes

  • Justesen Code: C* = Cout(C1, C2, .. CN)

    • Each symbol of Cout is encoded using a different inner code Cj

    • If RS has rate R C* has rate R/2


Justesen code1

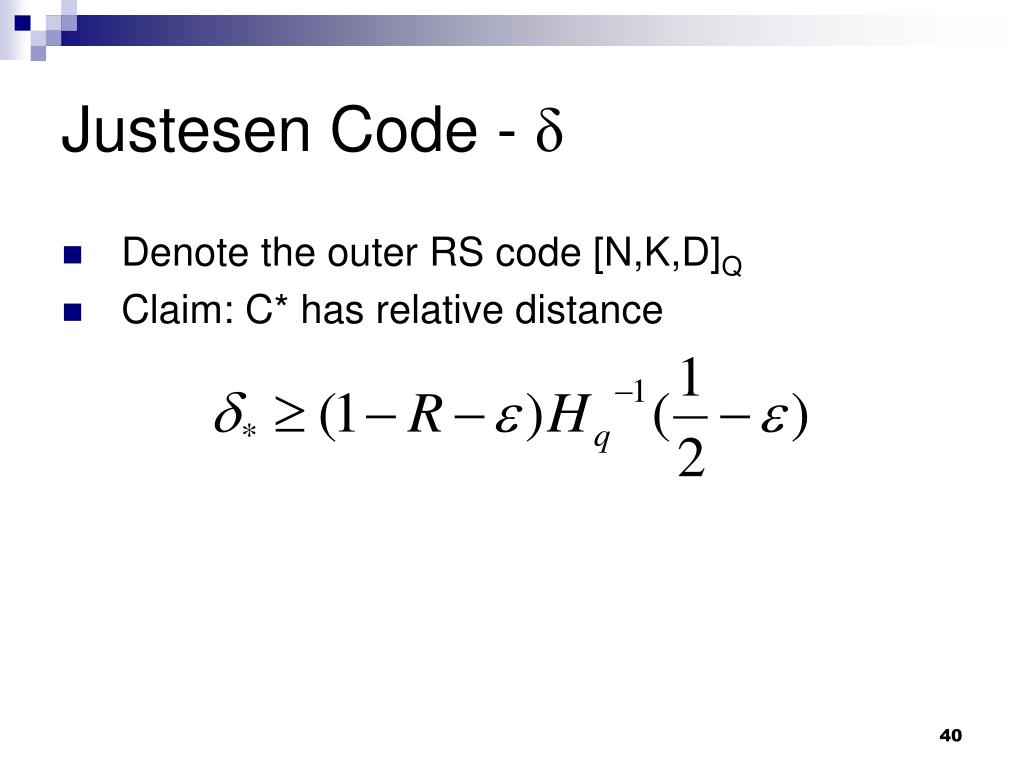

Justesen Code - δ

  • Denote the outer RS code [N,K,D]Q

  • Claim: C* has relative distance


Justesen code proof

Justesen Code Proof

  • Intuition: like regular concatenation, but εN bad codes.

  • for x≠y, the outer code induces S={j | xj≠yj},

    • |S| ≥D

  • There are at most εN j’s such that Cj is bad and therefore at least |S|- εN ≥ D- εN ≥ (1-R- ε)N good codes

    • since RS implies D=N-(K-1)

  • Each good code has relative distance ≥ d

  • d* ≥ (1-R- ε)Nd


Justesen code2

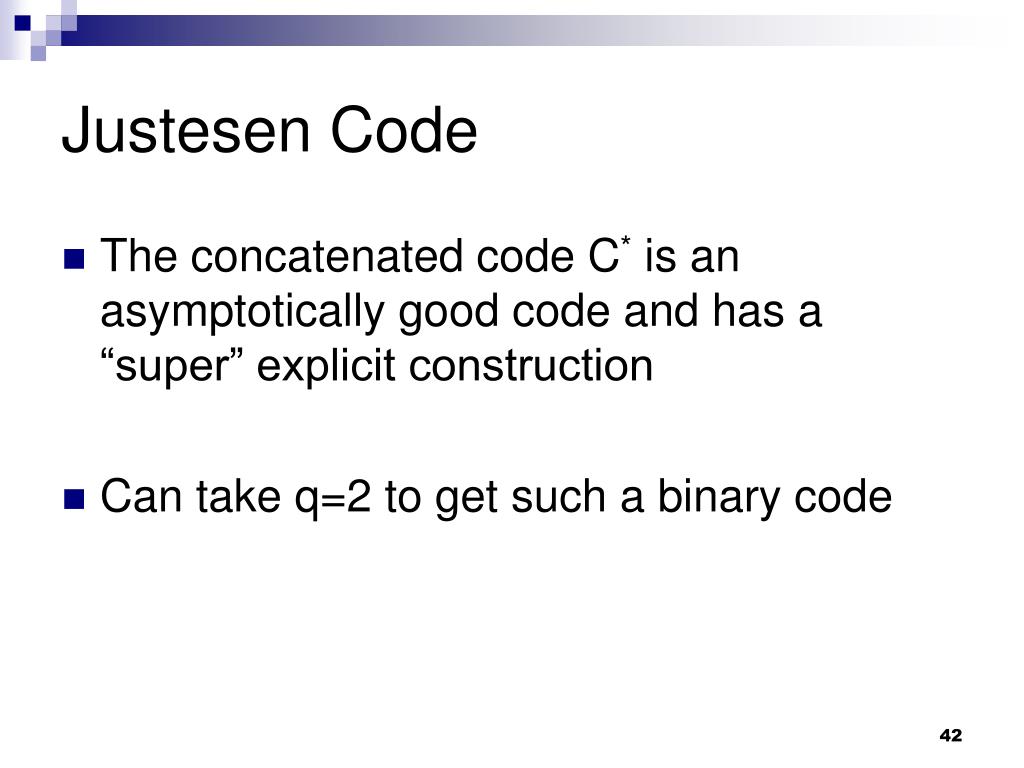

Justesen Code

  • The concatenated code C* is an asymptotically good code and has a “super” explicit construction

  • Can take q=2 to get such a binary code
