Public a decision tree classifier that integrates building and pruning

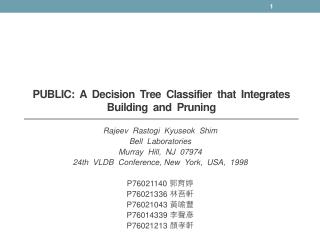

PUBLIC: A Decision Tree Classifier that Integrates Building and Pruning

Rajeev RastogiKyuseok Shim

Bell Laboratories

Murray Hill, NJ 07974

24th VLDB Conference, New York, USA, 1998

P76021140 郭育婷

P76021336 林吾軒

P76021043 黃喻豐

P76014339 李聲彥

P76021213 顏孝軒


Outline

Outline

  • Introduction

  • Related Work

  • Preliminaries

  • The PUBLIC Integrated Algorithm

  • Computation of Lower Bound on Subtree Cost

  • Experimental Results

  • Conclusion

  • Discussion


Introduction

Introduction

  • Classification is an important problem in data mining.

  • Solution to the knowledge acquisition or knowledge extraction problem.

  • Techniques developed for classification :

    • Bayesian classification

    • Neural networks

    • Genetic algorithms

    • Decision trees


Decision tree

Decision Tree

Decision Tree

Training Data

Record

Attribute

Class


Decision tree1

Decision Tree

  • Building phase

    • training data set is recursively partitioned until all the records in a partition have the same class.

  • Pruning phase

    • nodes are iteratively pruned to prevent “overfitting”

    • Minimum Description Length(MDL) principle


Minimum description length mdl

Minimum Description Length(MDL)

  • The “best” decision tree can be the one that can communicate the classes of the records with the “fewest” number of bits.

  • A subtree S is pruned if:

    cost(S) < cost(each leaf of S)

A,B,C,D,E,F

E,F

A

B,C,D

B,C

F

D

E

If cost(B,C) < cost(B)+cost(C)

=> prune!!!

B

C


Public a decision tree classifier that integrates building and pruning

  • Disadvantage in two phases of decision tree

    • An entire subtree constructed in the building phase may later be pruned in the pruning phase.

  • PUBLIC

    (PrUningand BuiLdingIntegrated in Classification)

    • Integrates the pruning phase into the building phase instead of performing them one after the other.

    • Compute a lower bound on the minimum cost subtree rooted at the node, and identify the nodes that are certain to be pruned.


Related work

Related Work

  • Decision tree classifiers

    • CLS、ID3、C4.5、CART、SLIQ

    • SPRINT:can handle largetraining sets by maintaining separate lists for each attribute and pre-sorting the lists for numericattributes.

  • Pruning algorithm

    • MDL

    • cost complexity pruning

    • pessimistic pruning


Outline1

Outline

  • Introduction

  • Related Work

  • Preliminaries

  • The PUBLIC Integrated Algorithm

  • Computation of Lower Bound on SubtreeCost

  • Experimental Results

  • Conclusion

  • Discussion


Preliminaries

Preliminaries

  • In this section :

    • Tree Building Pahse

      • SPRINT

    • Tree Pruning Phase

      • MDL


Tree building phase

Tree Building Phase

  • The tree is built breadth-first

  • The Splitting condition form :

  • Thus, each split is binary.

A < vi

A ∈ V = {v1, v2, v3, … vm}

N

Y


Tree building phase1

Tree Building Phase

  • Data Structure :

    • Z = X + Y

    • Each attribute list contains a single entry for every record

    • A record contains three fields

      • Value

      • Class label

      • Record identifier

Root Attribute lists : Z

Attribute lists : Y

Attribute lists : X


Tree building phase2

Tree Building Phase

  • Selecting Splitting Attritube :

    • For a set of records S, the entropy E(S) :

      • pj is the relative frequency of class j in S

  • Scanned from the beginning and for each split points  To find the best split point (least entropy)

S : n records

S1 : n1 records

S2: n2records


Tree building phase3

Tree Building Phase

  • Splitting Attribute Lists :

    • Once the best split for a node has been found, it is used to split the attribute list for the splitting attribute amongst the two child nodes.

    • Each record identifier along with information about the child node that it is assignedto(left or right)

Lelt

Right


Tree building phase4

Tree Building Phase

Init & breadth-first

Compute entropy

split


The pruning phase

The Pruning Phase

  • To prevent overfitting :

    • The MDL principle is applied to prune the tree build in the growing phase and make it more general.

      • Best tree : using the fewest number of bits.

  • Challenge :

    • To find the subtree of the tree that can be encoded with the least number of bits.


The pruning phase1

The Pruning Phase

  • Cost of Encoding Data Records :

    • The cost of encoding the class for n records.

    • Use this property later in the paper when computing a lower bound on the cost of encoding the records in a leaf.


The pruning phase2

The Pruning Phase

  • Cost of Encoding Tree :

    • The cost of encoding the structure of the tree

    • The cost of encoding for each split, the attribute and the value for the split.

    • The cost of encoding the classes of data records in each leaf of the tree.

    • For an internal node N, denote the cost of describing the split by Csplit(N).


The pruning phase3

The Pruning Phase

leaf

node

prune


Outline2

Outline

  • Introduction

  • Related Work

  • Preliminaries

  • The PUBLIC Integrated Algorithm

  • Computation of Lower Bound on SubtreeCost

  • Experimental Results

  • Conclusion

  • Discussion


The public integrated algorithm

The PUBLIC Integrated Algorithm

  • Most algorithms for inducing decision trees

    • Building phase → Pruning phase

  • Real-life data sets

    • In some cases, this can be as high as 90% of the nodes in the tree.

  • These smaller trees

    • more general

    • smaller classification error for records whose classes are unknown


Public a decision tree classifier that integrates building and pruning

Cont.

  • A substantial effort is “wasted” in the building phase.

  • If during the building phase, it were possible to “know” that a certain node is definitely going to be pruned .

    • Computational

    • I/O overhead involved in processing the node.

  • As a result, by incorporating the pruning “knowledge” into the building phase.


Public a decision tree classifier that integrates building and pruning

Cont.

  • The PUBLIC algorithm is similar to the build procedure.

  • The only difference

    • that periodically

    • after a certain number of nodes are split

  • The pruning algorithm cannot be used to prune the partial tree.


Public a decision tree classifier that integrates building and pruning

Cont.

  • This could resulting in over-pruning.

C(S)+1

Less then CS(S)+1

  • Identical to the one constructed by a traditional classifier.


Public a decision tree classifier that integrates building and pruning

Cont.

  • under-estimation strategy

  • Three kinds of leaf nodes

  • Q ensures not expanded


Public a decision tree classifier that integrates building and pruning

Cont.

  • Has the same effect as applying the original pruning algorithm

  • Results in the same pruned tree as would have resulted due to the previous pruning algorithm.


Outline3

Outline

  • Introduction

  • Related Work

  • Preliminaries

  • The PUBLIC Integrated Algorithm

  • Computation of Lower Bound on SubtreeCost

  • Experimental Results

  • Conclusion

  • Discussion


Computation of lower bound on subtree cost

Computation of Lower Bound on Subtree Cost

  • PUBLIC(1): a cost at least 1

  • PUBLIC(S): the cost of splits

  • PUBLIC(V): cost of values

  • They are identical except for the value “lower bound on subtree cost at N”.

  • They use increasingly accurate cost estimates for “yet to be expanded” leaf nodes, and result in fewer nodes being expanded during the building phase.


Estimating split costs

Estimating Split Costs

  • S: the set of records at node N

  • K: the number of classes for the records in S

  • ni be the number of records belonging to class i in S, ni ≥ ni+1for 1 ≤ i < k

  • A: the number of attributes.

  • In case node N is not split, that is, s = 0, then the minimum cost for a subtree at N is C(S) + 1.

  • For s > 0, the cost of any subtree with s splits and rooted at node N is at feast:


Algorithm for computing lower bound on subtree cost public s

Algorithm for Computing Lower Bound on SubtreeCost – PUBLIC(S)

  • procedurecomputeMinCostS(Node N):

    /*n1,…,nkare sorted in decreasing order*/

  • if k = 1 return (C(S)+1)

  • S <= 1

  • tmpCost <=

  • while s + 1 < k and ns+2 > 2 + do {

  • tmpCost <= tmpCost + 2 + - ns+2

  • s++

  • }time complexity: O(klogk)

  • return min{C(S)+1, tmpCost}


Incorporating costs of split values

Incorporating Costs of Split Values

  • This is to specify the distributionof records amongst the children of the splitnode.

  • time complexity of PUBLIC(V): O(k*(logk+a))


Outline4

Outline

  • Introduction

  • Related Work

  • Preliminaries

  • The PUBLIC Integrated Algorithm

  • Computation of Lower Bound on SubtreeCost

  • Experimental Results

  • Conclusion

  • Discussion


Experimental results

Experimental Results

  • We conducted experiments on real-life as well as synthetic data sets.

  • The purpose of the synthetic data sets is primarily to examine the PUBLIC’s sensitivity to parameters such as noise, number of classes and number of attributes.


Public a decision tree classifier that integrates building and pruning

  • The goal is not to demonstrate the scalability of PUBLIC.

  • Instead, we are interested in measuring the improvements in execution time


Public a decision tree classifier that integrates building and pruning

  • All of our experiments were performed by

    • Sun Ultra-2/200 machine

    • 512 MB of RAM

    • Solaris 2.5


Algorithms

Algorithms

  • SPRINT

  • PUBLIC(l)

  • PUBLIC(S)

  • PUBLIC(V)


Real life data sets

Real-life Data Sets

  • Randomly choosing 2/3 of the data and used it as the training data set.

  • The rest of the data is used as the test data set.


Results on real life data sets

Results on Real-life Data Sets

  • The final row of Table 2 (labeled“Max Ratio”) indicates how much worse SPRINT is compared to the best PUBLIC algorithm.


Synthetic data set

Synthetic Data Set

  • In order to study the sensitivity of PUBLIC to parameters such as noise.

  • Every record in data sets has 9 attributes and a class label which takes one of two values.


Public a decision tree classifier that integrates building and pruning

  • Different data distributions are generated by using one of ten distinct classification functions to assign class labels to records.

  • In experiments

    • perturbation factor of 5%

    • noise factor from 2 to 10%


Public a decision tree classifier that integrates building and pruning

  • The number of records for each data set is set to 10000.


Results on synthetic data sets

Results on Synthetic Data Sets

  • In Table 4, we present the execution times for the data sets generated by func.1 to func.10.

  • For each data set, the noise factor was set to 10%.


Public a decision tree classifier that integrates building and pruning

  • This paper performed experiments to study the effects of noise on the performance of PUBLIC.

  • This experiment varied noise from 2% to 10% for every function.


Public a decision tree classifier that integrates building and pruning

  • The execution times for SPRINT increase at a faster rate than those for PUBLIC, as the noise factor is increased.

  • Thus, PUBLIC results in better performance improvements at higher noise values.


Outline5

Outline

  • Introduction

  • Related Work

  • Preliminaries

  • The PUBLIC Integrated Algorithm

  • Computation of Lower Bound on SubtreeCost

  • Experimental Results

  • Conclusion

  • Discussion


Conclusion

Conclusion

  • Both Experimental results with real-life and synthetic data sets show that PUBLIC can result in good performance improvements compared to SPRINT.

  • PUBLIC(l), results in most of the realized gains in performance, PUBLIC(S) and PUBLIC(V) are not as high.


Discussion

Discussion

  • How to set the period of PUBLIC’s pruning algorithm?

  • Why is the improvement of real-life data set much more than synthetic data set?


Public a decision tree classifier that integrates building and pruning

Thanks for your attention!


  • Login
