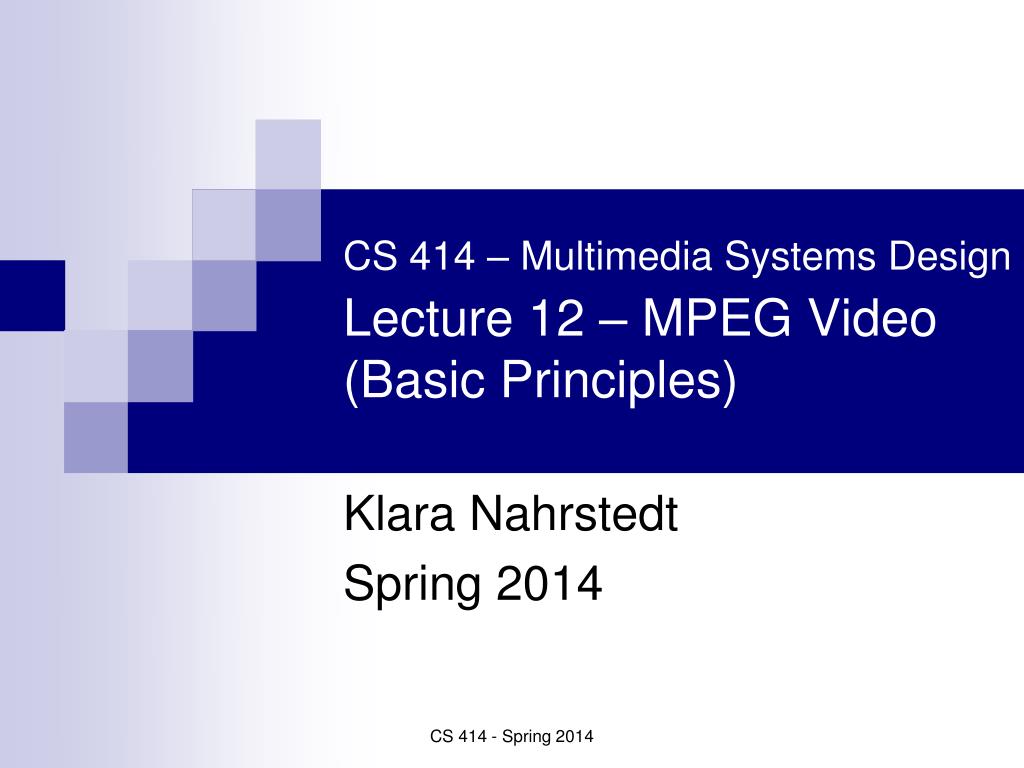

CS 414 – Multimedia Systems DesignLecture 12 – MPEG Video (Basic Principles)

Klara Nahrstedt

Spring 2014

CS 414 - Spring 2014

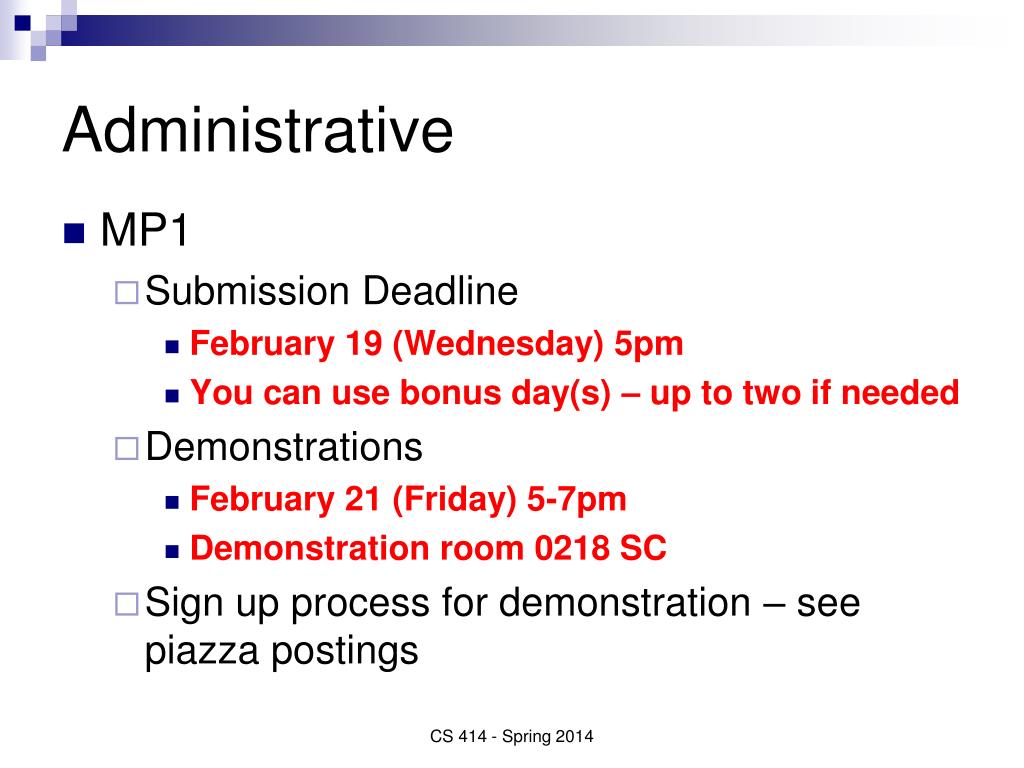

Administrative

Administrative

  • MP1

    • Submission Deadline

      • February 19 (Wednesday) 5pm

      • You can use bonus day(s) – up to two if needed

    • Demonstrations

      • February 21 (Friday) 5-7pm

      • Demonstration room 0218 SC

    • Sign up process for demonstration – see piazza postings

CS 414 - Spring 2014


Administrative1

Administrative

  • ¼ Unit Project

    • Proposal submission deadline

      • February 28 (Friday) 11:59pm

    • Proposal topics and writeup requirements

      • See cs414 class website

  • Homework 1

    • Posted on February 24 (Monday)

    • Deadline on March 3 (Monday), 5pm (no bonus days)

  • Midterm

    • March 7 (Friday) in class (closed book)

    • 1 site of cheat-sheet allowed and bring calculator!!


  • Outline

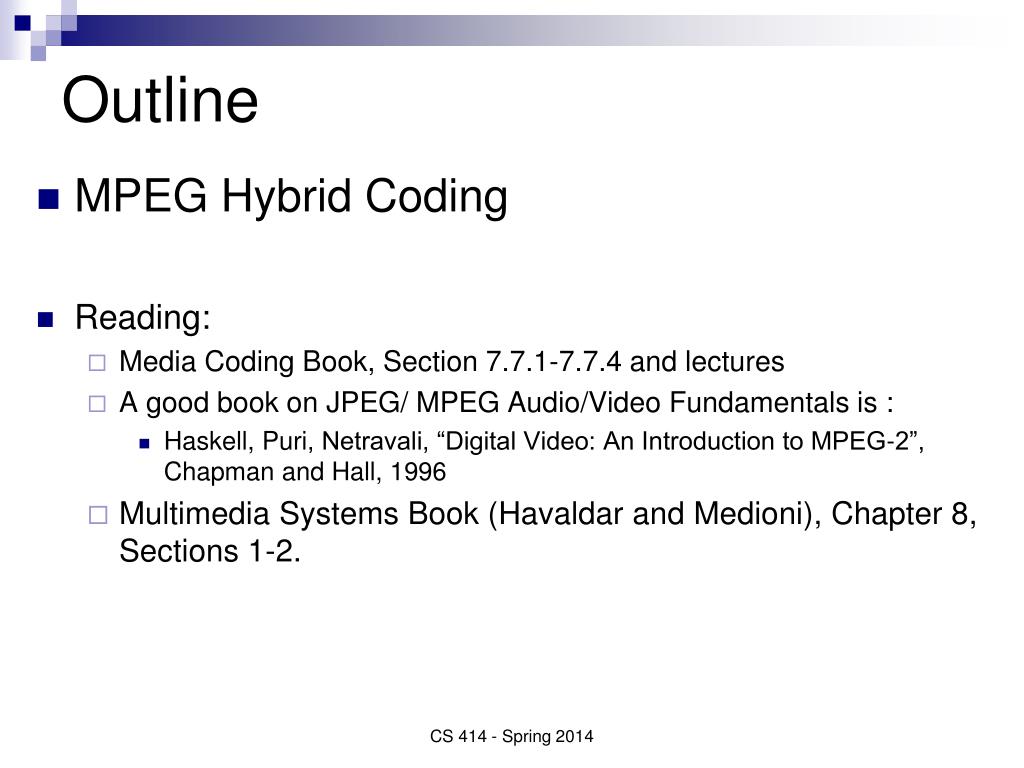

    Outline

    • MPEG Hybrid Coding

    • Reading:

      • Media Coding Book, Section 7.7.1-7.7.4 and lectures

      • A good book on JPEG/ MPEG Audio/Video Fundamentals is :

        • Haskell, Puri, Netravali, “Digital Video: An Introduction to MPEG-2”, Chapman and Hall, 1996

      • Multimedia Systems Book (Havaldar and Medioni), Chapter 8, Sections 1-2.

    CS 414 - Spring 2014


    Comment on jpeg losses

    Comment on JPEG Losses

    Losses in JPEG compression occur because S(u,v)’ = Round(S(u,v)/Q(u,v)).

    Image Preparation =>

    DCT Transform S(u,v) = DCT(S(x,y)) =>

    Quantization with S(u,v)’ = Round(S(u,v)/Q(u,v) =>

    Entropy Encoding =>

    Transmission of compressed Image =>

    Entropy Decoding =>

    De-quantization S(u,v)’’ = S(u,v)’*Q(u,v) Compression Loss since S(u,v)” ≠ S(u,v) =>

    Apply Inverse DCT =>

    Display Image

    CS 414 - Spring 2014


    Motion picture expert group mpeg

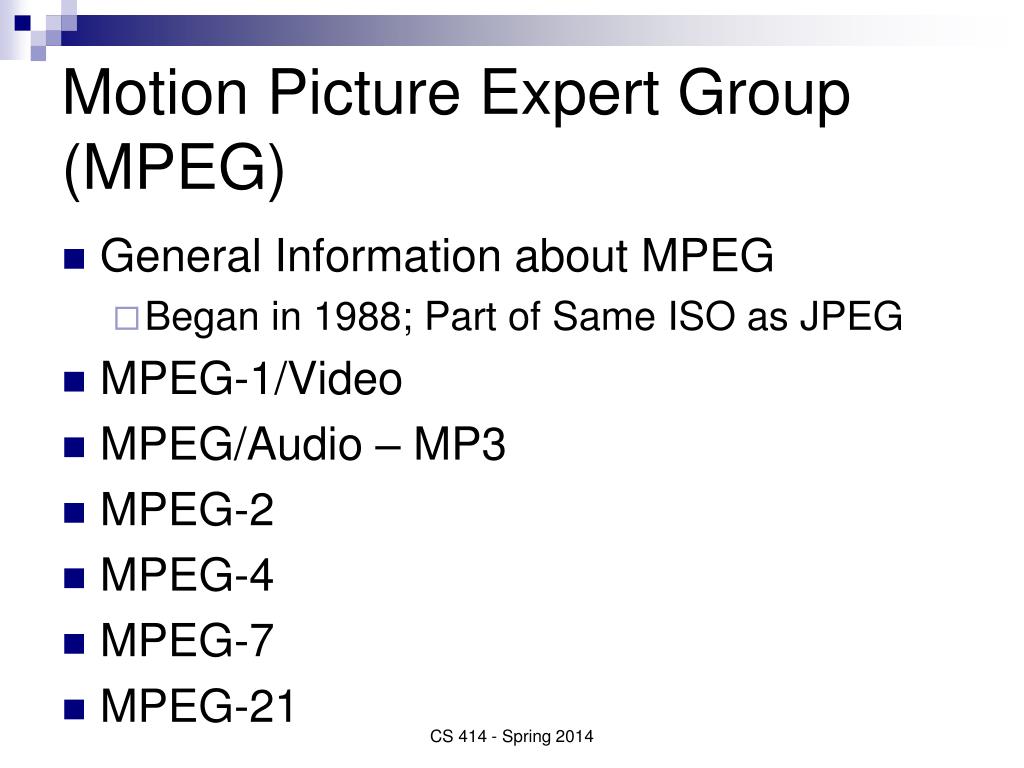

    Motion Picture Expert Group (MPEG)

    • General Information about MPEG

      • Began in 1988; Part of Same ISO as JPEG

    • MPEG-1/Video

    • MPEG/Audio – MP3

    • MPEG-2

    • MPEG-4

    • MPEG-7

    • MPEG-21

    CS 414 - Spring 2014


    Mpeg general information

    MPEG General Information

    • Goal: data compression 1.5 Mbps

    • MPEG defines video, audio coding and system data streams with synchronization

    • MPEG information

      • Aspect ratios: 1:1 (CRT), 4:3 (NTSC), 16:9 (HDTV)

      • Refresh frequencies: 23.975, 24, 25, 29.97, 50, 59.94, 60 Hz

    CS 414 - Spring 2014


    Mpeg image preparation resolution and dimension

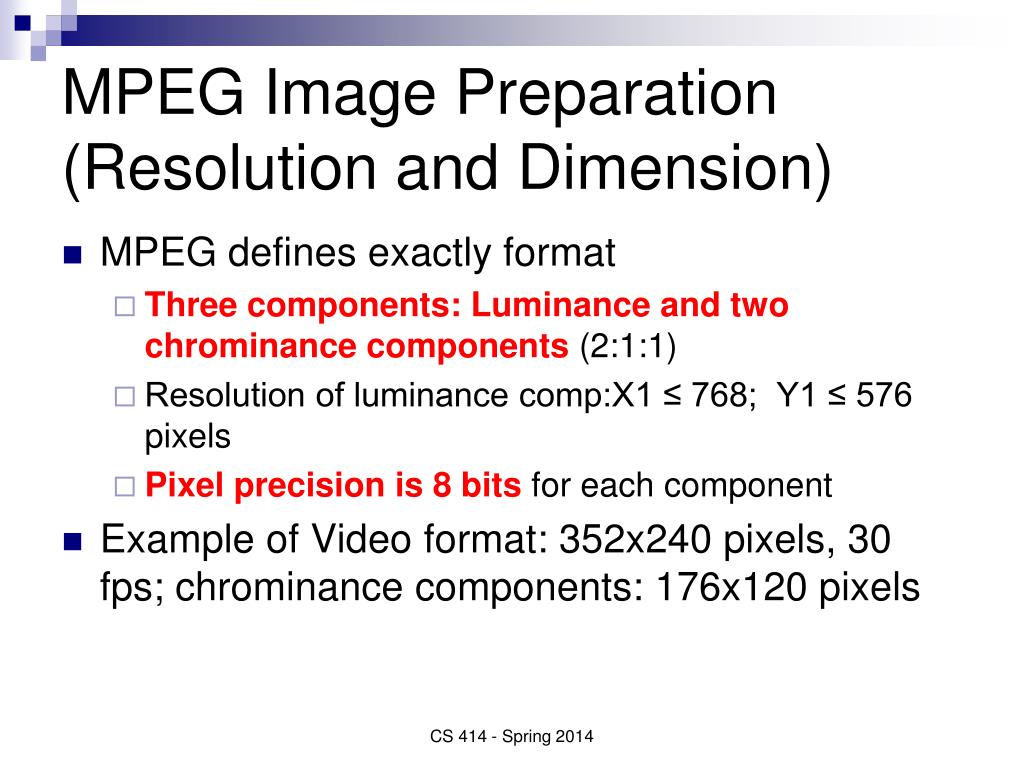

    MPEG Image Preparation (Resolution and Dimension)

    • MPEG defines exactly format

      • Three components: Luminance and two chrominance components (2:1:1)

      • Resolution of luminance comp:X1 ≤ 768; Y1 ≤ 576 pixels

      • Pixel precision is 8 bits for each component

    • Example of Video format: 352x240 pixels, 30 fps; chrominance components: 176x120 pixels

    CS 414 - Spring 2014


    Mpeg image preparation blocks

    MPEG Image Preparation - Blocks

    Each image is divided into macro-blocks

    Macro-block: 16x16 pixels for luminance; 8x8 for each chrominance component

    Macro-blocks are useful for Motion Estimation

    No MCUs which implies sequential non-interleaving order of pixels values

    CS 414 - Spring 2014


    Mpeg video processing

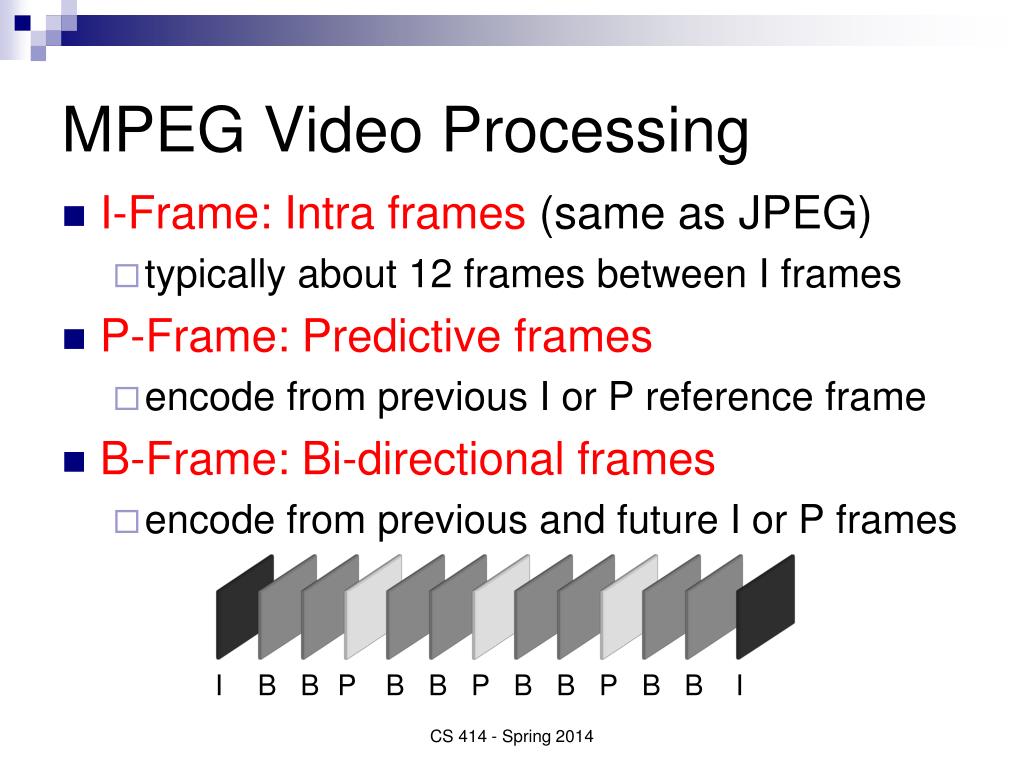

    MPEG Video Processing

    I

    B

    B

    P

    B

    B

    P

    B

    B

    P

    B

    B

    I

    • I-Frame: Intra frames (same as JPEG)

      • typically about 12 frames between I frames

    • P-Frame: Predictive frames

      • encode from previous I or P reference frame

    • B-Frame: Bi-directional frames

      • encode from previous and future I or P frames

    CS 414 - Spring 2014


    Selecting i p or b frames

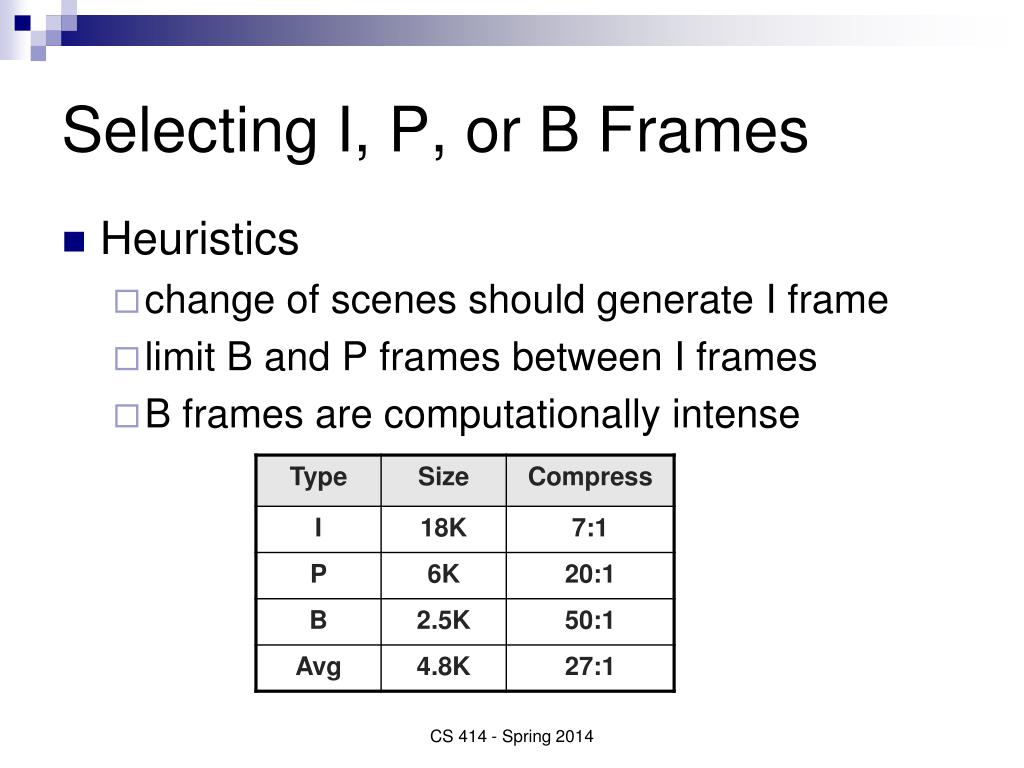

    Selecting I, P, or B Frames

    • Heuristics

      • change of scenes should generate I frame

      • limit B and P frames between I frames

      • B frames are computationally intense

    CS 414 - Spring 2014


    Mpeg video i frames

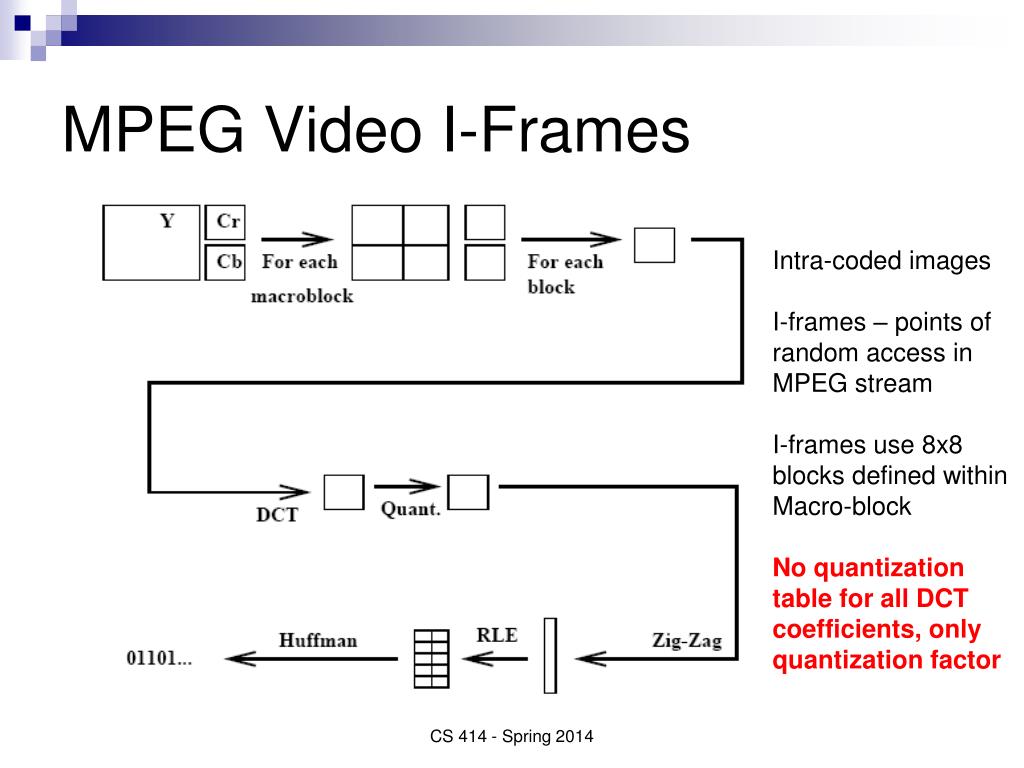

    MPEG Video I-Frames

    Intra-coded images

    I-frames – points of

    random access in

    MPEG stream

    I-frames use 8x8

    blocks defined within

    Macro-block

    No quantization

    table for all DCT

    coefficients, only

    quantization factor

    CS 414 - Spring 2014


    Mpeg video p frames

    MPEG Video P-Frames

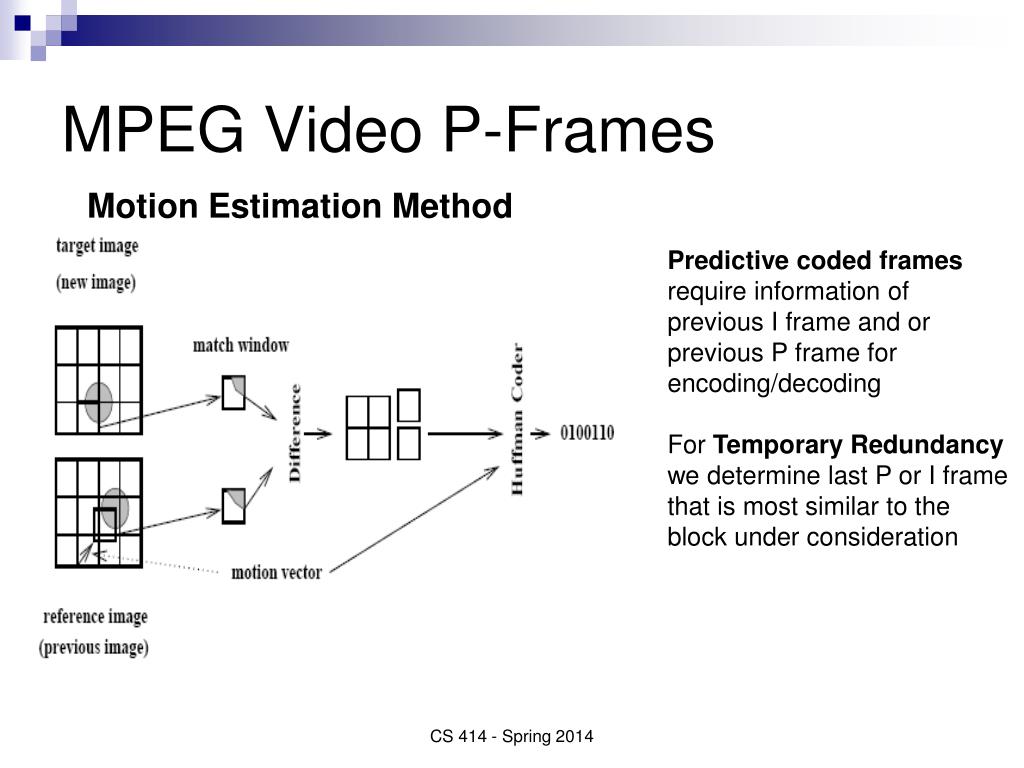

    Motion Estimation Method

    Predictive coded frames

    require information of

    previous I frame and or

    previous P frame for

    encoding/decoding

    For Temporary Redundancy

    we determine last P or I frame

    that is most similar to the

    block under consideration

    CS 414 - Spring 2014


    Motion computation for p frames

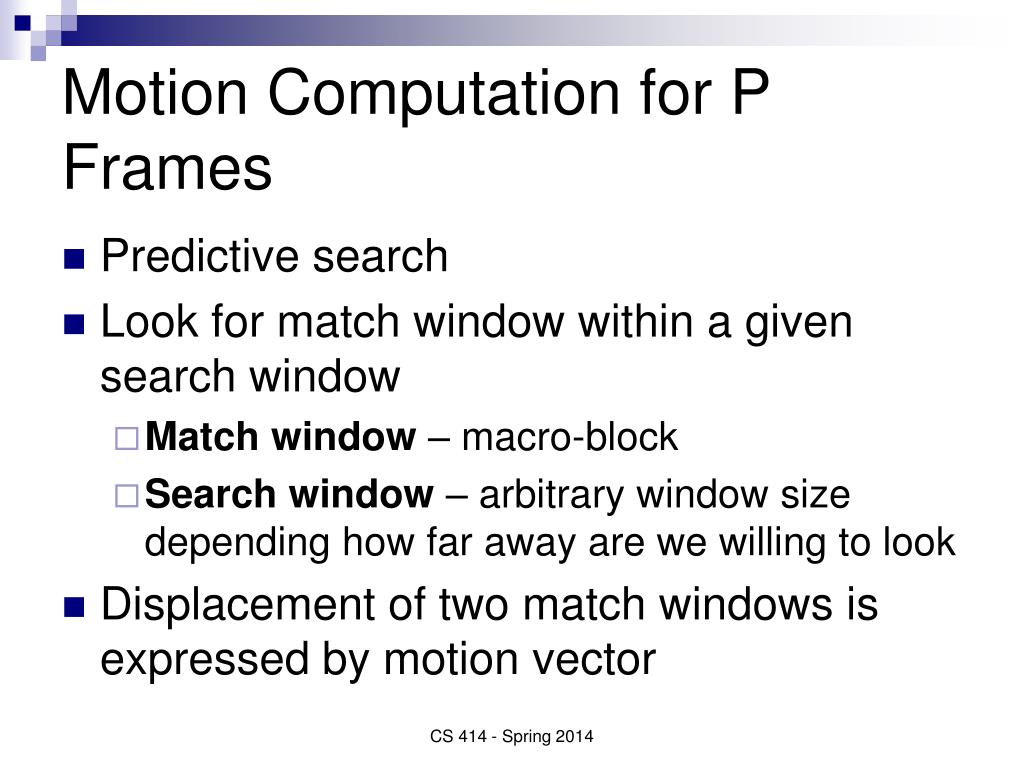

    Motion Computation for P Frames

    • Predictive search

    • Look for match window within a given search window

      • Match window – macro-block

      • Search window – arbitrary window size depending how far away are we willing to look

    • Displacement of two match windows is expressed by motion vector

    CS 414 - Spring 2014


    Matching methods

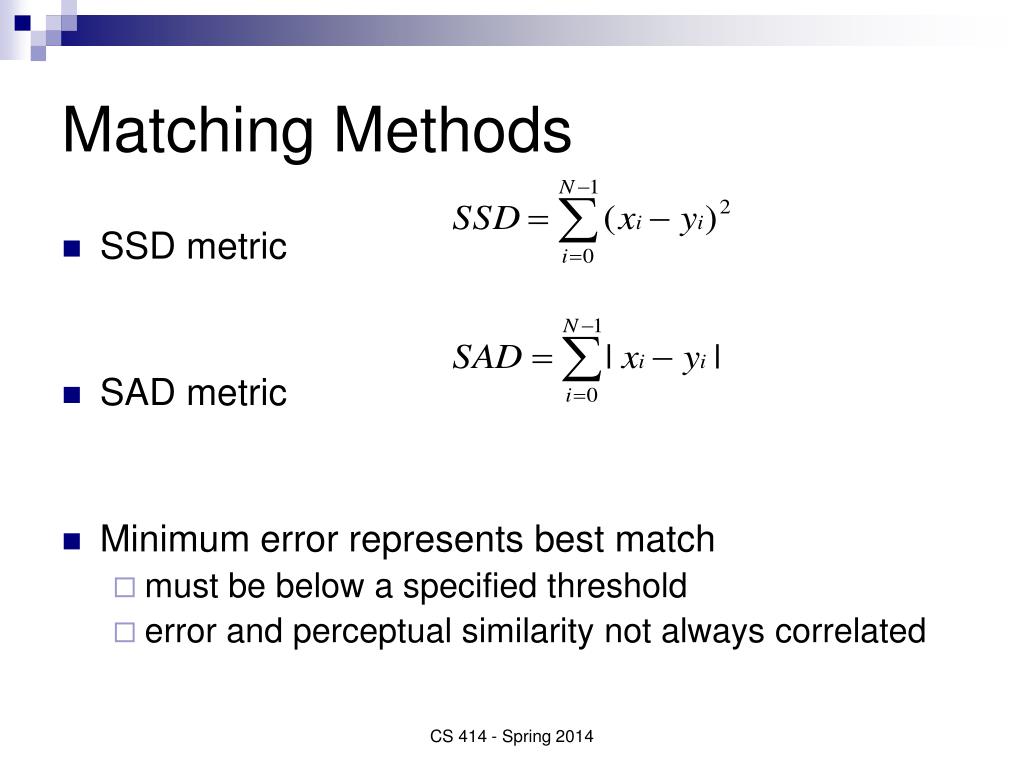

    Matching Methods

    • SSD metric

    • SAD metric

    • Minimum error represents best match

      • must be below a specified threshold

      • error and perceptual similarity not always correlated

    CS 414 - Spring 2014


    Cs 414 multimedia systems design lecture 12 mpeg video basic principles

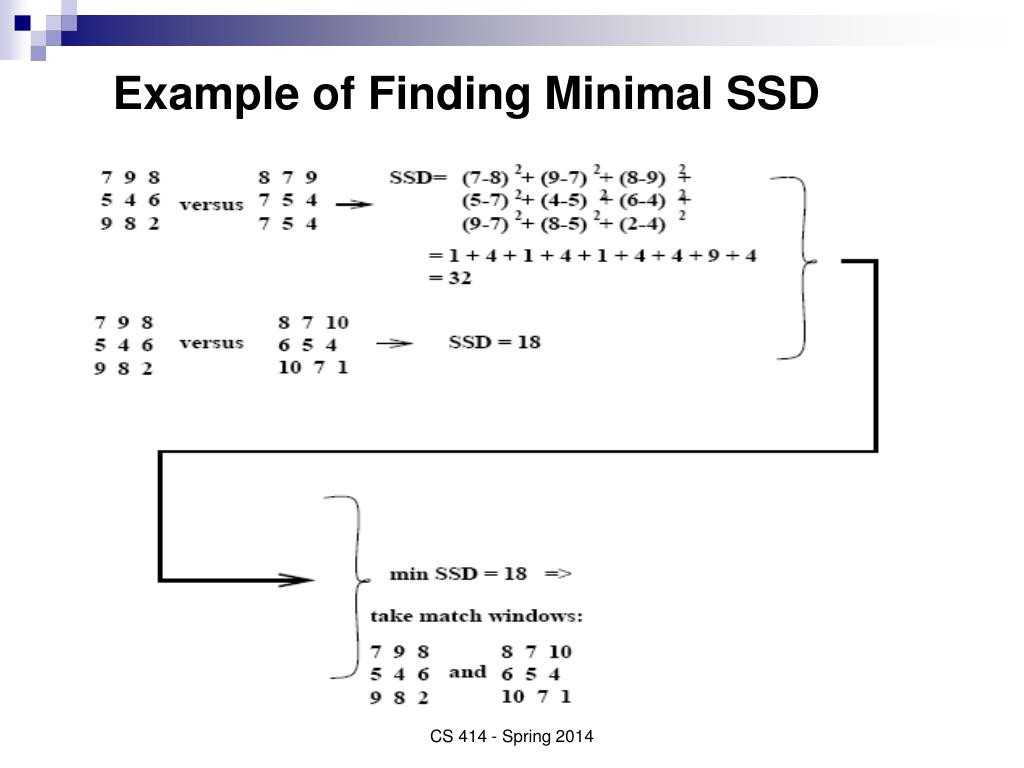

    Example of Finding Minimal SSD

    CS 414 - Spring 2014


    Cs 414 multimedia systems design lecture 12 mpeg video basic principles

    Example of Comparing Minimal SSD and

    SAD

    CS 414 - Spring 2014


    Syntax of p frame

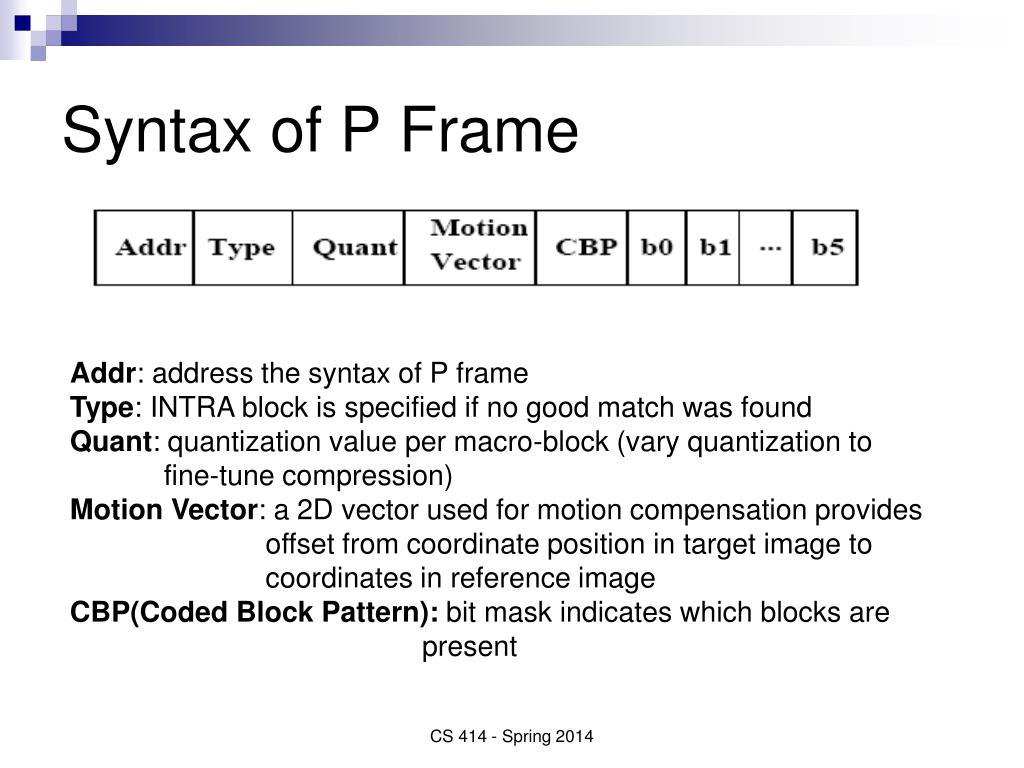

    Syntax of P Frame

    Addr: address the syntax of P frame

    Type: INTRA block is specified if no good match was found

    Quant: quantization value per macro-block (vary quantization to

    fine-tune compression)

    Motion Vector: a 2D vector used for motion compensation provides

    offset from coordinate position in target image to

    coordinates in reference image

    CBP(Coded Block Pattern): bit mask indicates which blocks are

    present

    CS 414 - Spring 2014


    Mpeg video b frames

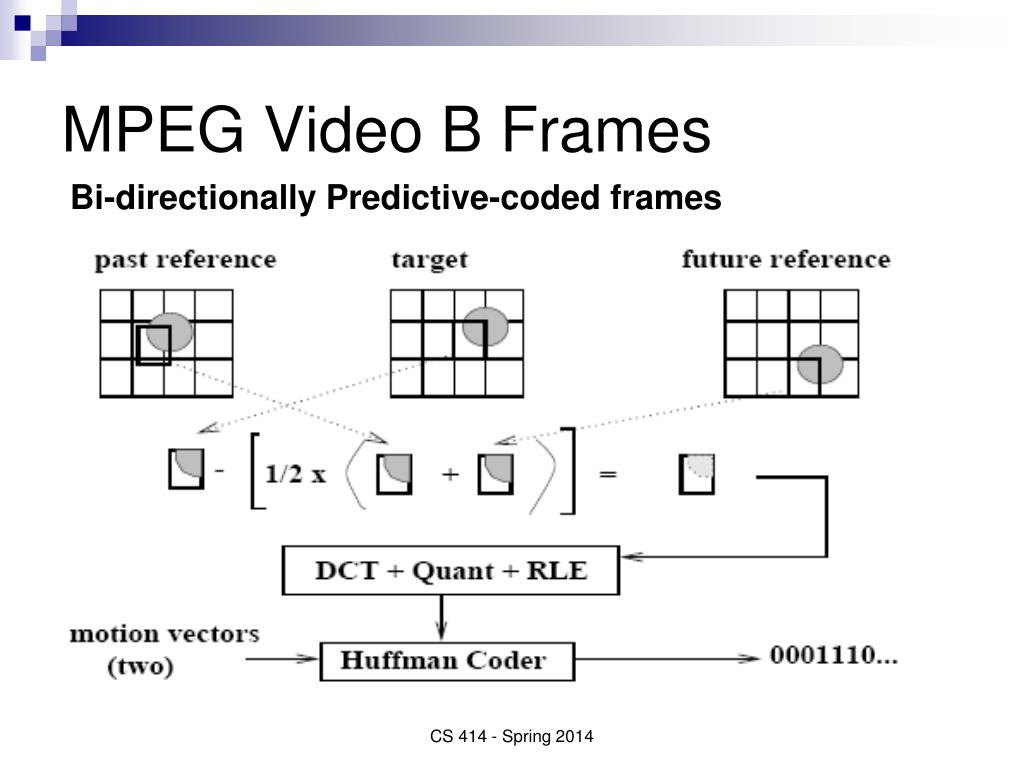

    MPEG Video B Frames

    Bi-directionally Predictive-coded frames

    CS 414 - Spring 2014


    Mpeg video decoding

    MPEG Video Decoding

    Display Order

    Decoding Order

    I1

    B1

    B2

    P1

    B3

    B4

    P2

    B5

    B6

    P3

    B7

    B8

    I2

    I1

    P1

    B1

    B2

    P2

    B3

    B4

    P3

    B5

    B6

    I2

    B8

    B7

    CS 414 - Spring 2014


    Mpeg video quantization

    MPEG Video Quantization

    • AC coefficients of B/P frames are usually large values, I frames have smaller values

      • Adjust quantization

    • If data rate increases over threshold, then quantization enlarges step size (increase quantization factor Q)

    • If data rate decreases below threshold, then quantization decreases Q

    CS 414 - Spring 2014


    Mpeg 1 interchange format

    MPEG-1 Interchange Format

    Sequence Layer

    Seq

    Seq

    Seq

    Seq

    SeqSC

    QT,

    misc

    Video

    Param

    Bitstream

    Param

    ...

    GOP Layer

    GOP

    GOP

    GOPSC

    Time

    Code

    GOP

    Param

    ...

    Picture Layer

    Pict

    Pict

    PSC

    Type

    Buffer

    Param

    Encode

    Param

    ...

    Slice Layer

    Slice

    Slice

    Vert

    Pos

    ...

    Macro-block Layer

    SSC

    QScale

    MB

    MB

    Addr

    QScale

    Type

    Motion

    Vector

    ...

    Block Layer

    CBP

    b0

    b5

    CS 414 - Spring 2014


    Conclusion

    Conclusion

    • MPEG system data stream

      • Interchange format for audio and video streams

      • Interleave audio and video packets; insert time stamps into each “frame” of data

    • Synchronization

      • SRC – system clock reference; DTS – decoding time stamp; PTS – presentation time stamp

    • During encoding

      • Insert SCR values into system stream

      • Stamp each frame with PTS and DTS

      • Use encode time to approximate decode time

    • During decoding

      • Initialize local decoder clock with start values

      • Compare PTS to the value of local clock

      • Periodically synchronize local clock to SCR

    CS 414 - Spring 2014
