Chapter 10 work and energy

Chapter 10: Work and Energy

10.1 Machines and Mechanical Advantage

10.2 Work

10.3 Energy and Conservation of Energy


Chapter 10 objectives

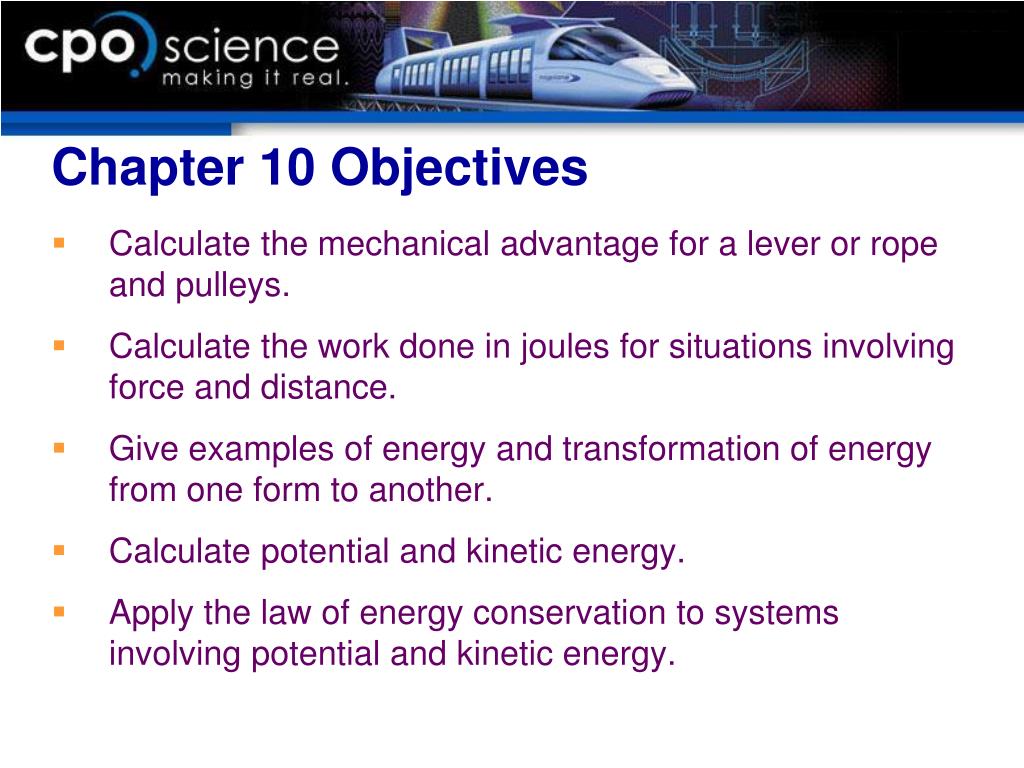

Chapter 10 Objectives

Calculate the mechanical advantage for a lever or rope and pulleys.

Calculate the work done in joules for situations involving force and distance.

Give examples of energy and transformation of energy from one form to another.

Calculate potential and kinetic energy.

Apply the law of energy conservation to systems involving potential and kinetic energy.

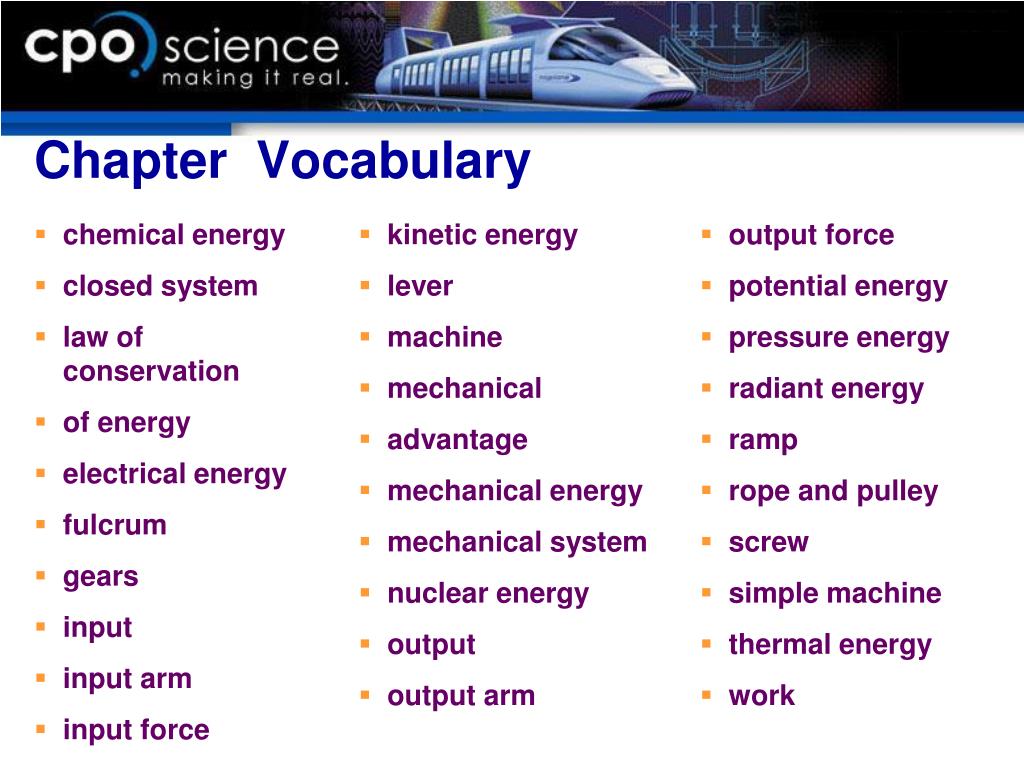

Chapter vocabulary

Chapter Vocabulary

  • chemical energy

  • closed system

  • law of conservation

  • of energy

  • electrical energy

  • fulcrum

  • gears

  • input

  • input arm

  • input force

  • joule

  • kinetic energy

  • lever

  • machine

  • mechanical

  • advantage

  • mechanical energy

  • mechanical system

  • nuclear energy

  • output

  • output arm

  • output force

  • potential energy

  • pressure energy

  • radiant energy

  • ramp

  • rope and pulley

  • screw

  • simple machine

  • thermal energy

  • work

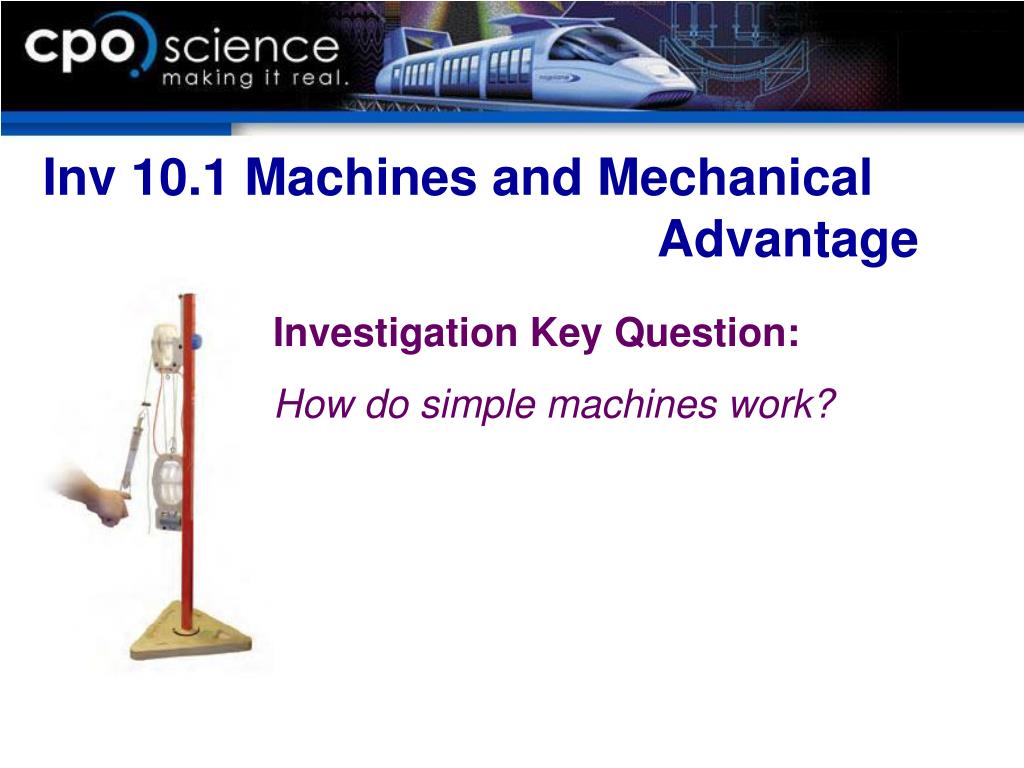

Inv 10 1 machines and mechanical advantage

Inv 10.1 Machines and Mechanical Advantage

Investigation Key Question:

How do simple machines work?


10 1 machines and mechanical advantage

10.1 Machines and Mechanical Advantage

The ability of humans to build buildings and move mountains began with our invention of machines.

In physics the term “simple machine” means a machine that uses only the forces directly applied and accomplishes its task with a single motion.

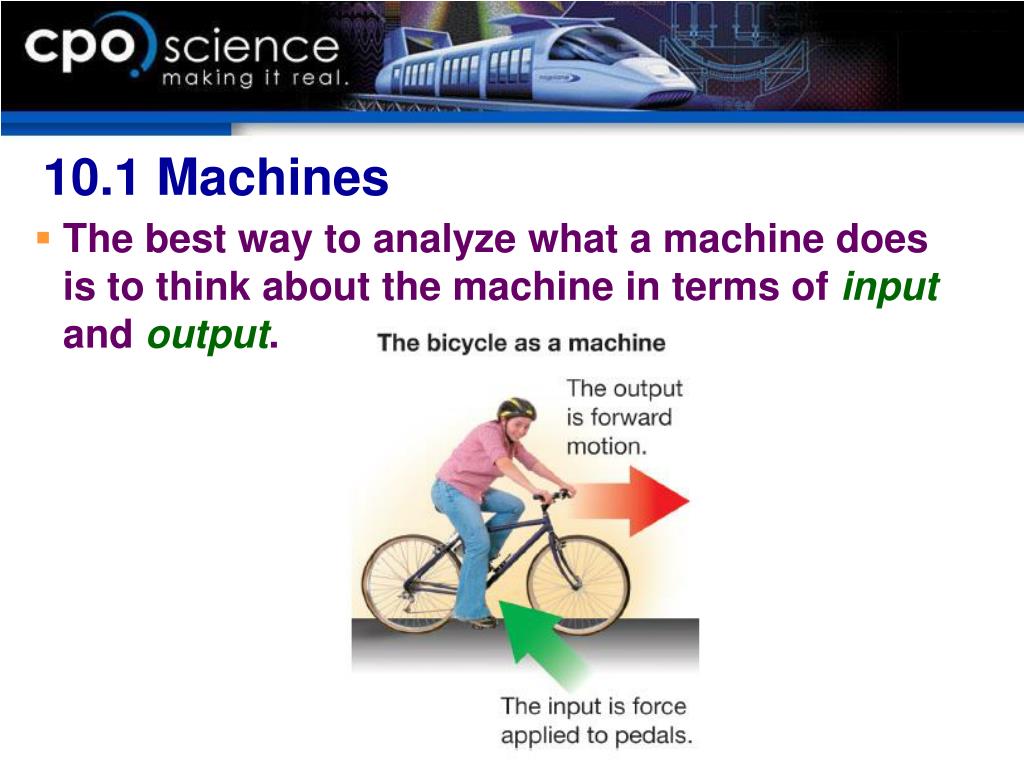

10 1 machines

10.1 Machines

The best way to analyze what a machine does is to think about the machine in terms of input and output.


10 1 mechanical advantage

10.1 Mechanical Advantage

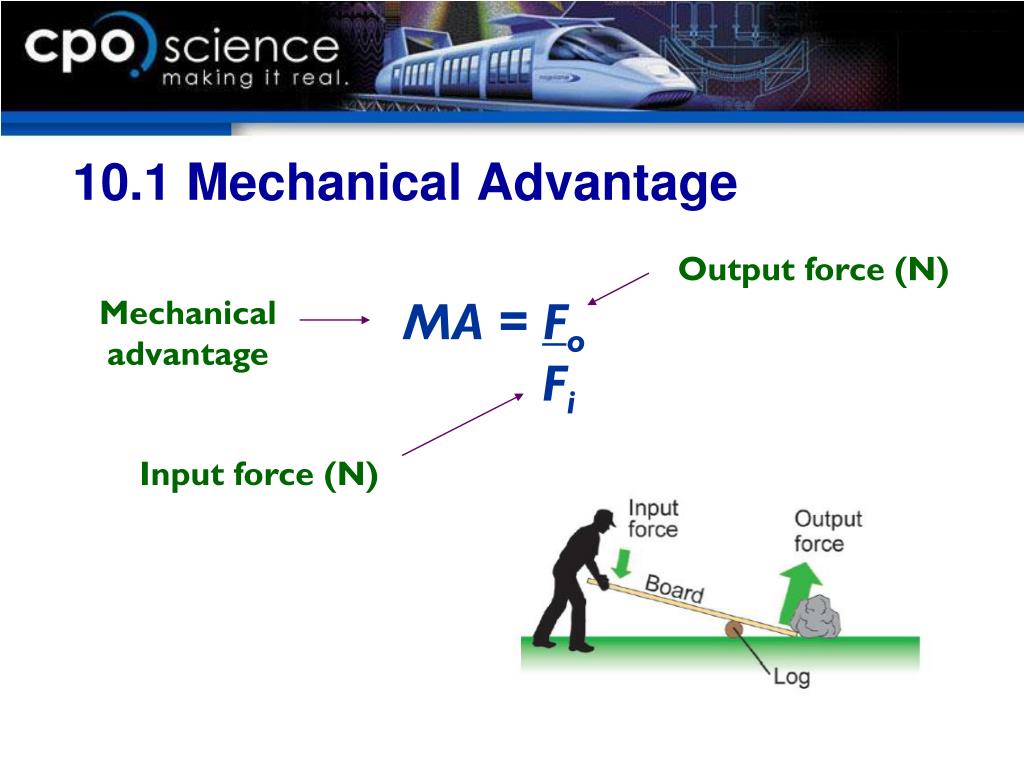

Mechanical advantage is the ratio of output force to input force.

For a typical automotive jack the mechanical advantage is 30 or more.

A force of 100 newtons (22.5 pounds) applied to the input arm of the jack produces an output force of 3,000 newtons (675 pounds)— enough to lift one corner of an automobile.


10 1 mechanical advantage1

10.1 Mechanical Advantage

Output force (N)

MA = Fo

Fi

Mechanical

advantage

Input force (N)


10 1 types of simple machines

10.1 Types of simple machines

  • The lever, wheel and axle, rope and pulleys, screw, ramp, and gears are the most common simple machines.

  • Complex machines, combine many simple machines into mechanical systems.

  • A mechanical system is an assembly of simple machines that work together to accomplish a task.

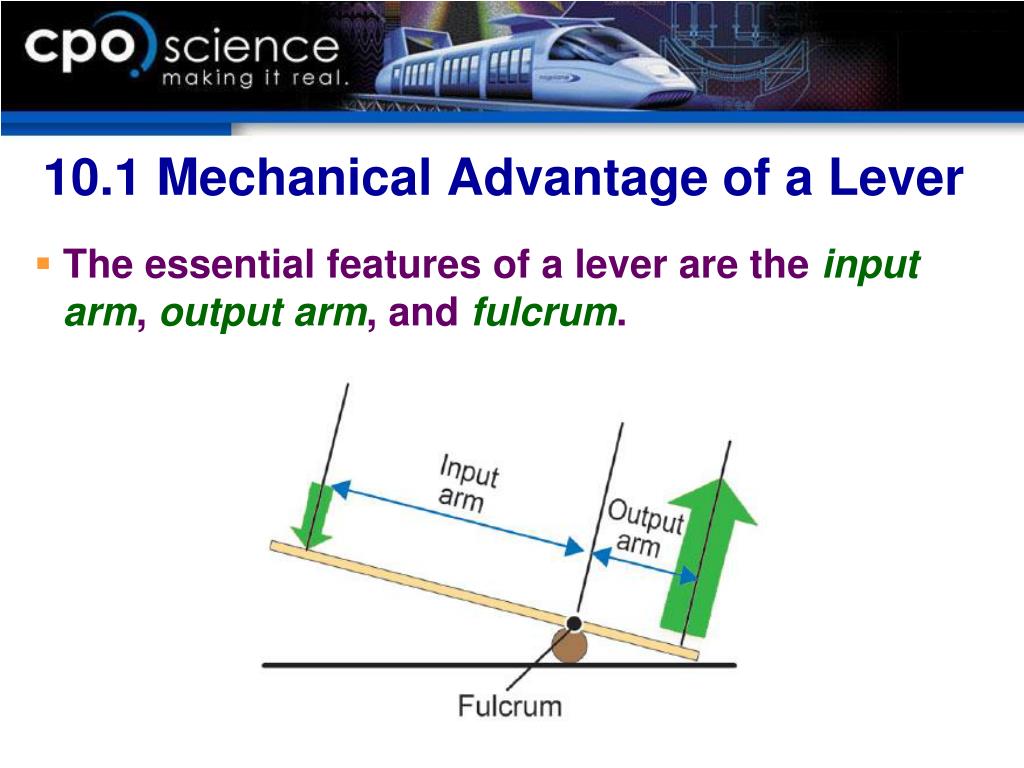

10 1 mechanical advantage of a lever

10.1 Mechanical Advantage of a Lever

  • The essential features of a lever are the input arm, output arm, and fulcrum.


10 1 three types of levers

10.1 Three types of levers

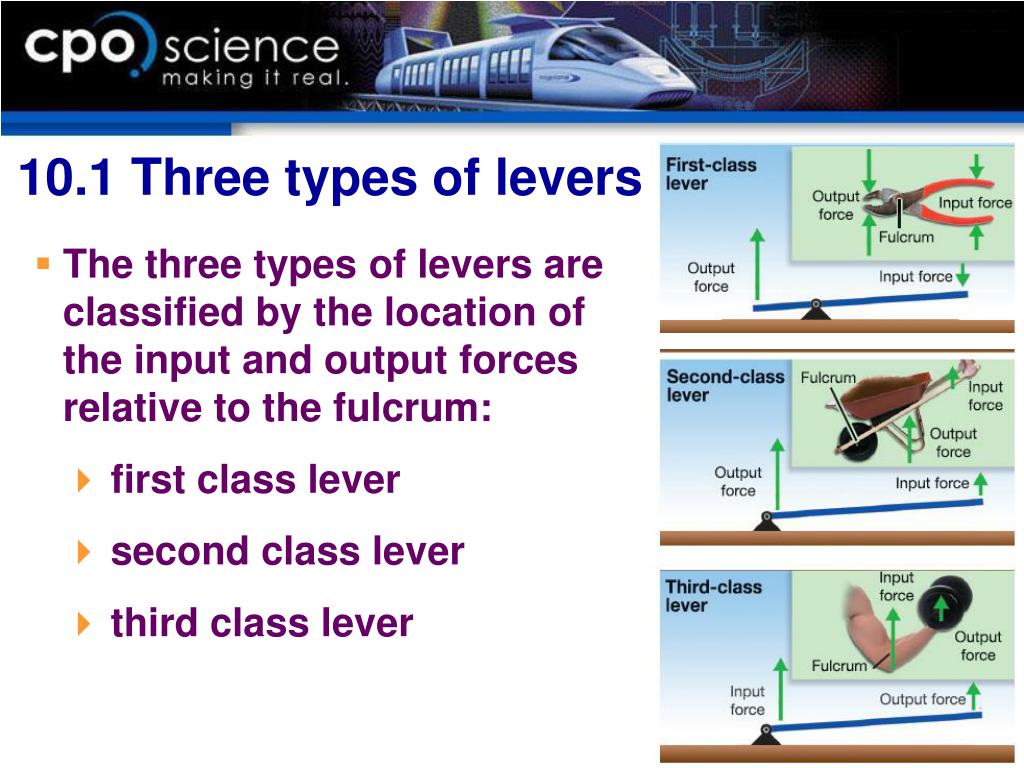

  • The three types of levers are classified by the location of the input and output forces relative to the fulcrum:

    • first class lever

    • second class lever

    • third class lever


10 1 how a lever works

10.1 How a lever works

  • A lever works by rotating about its fulcrum.

  • The mechanical advantage can be deduced by calculating the torques created by the input and output forces.

  • The input force creates a (positive) counterclockwise torque.

  • The torque created by the reaction force is clockwise (negative).

  • When the lever is in equilibrium the net torque must be zero.

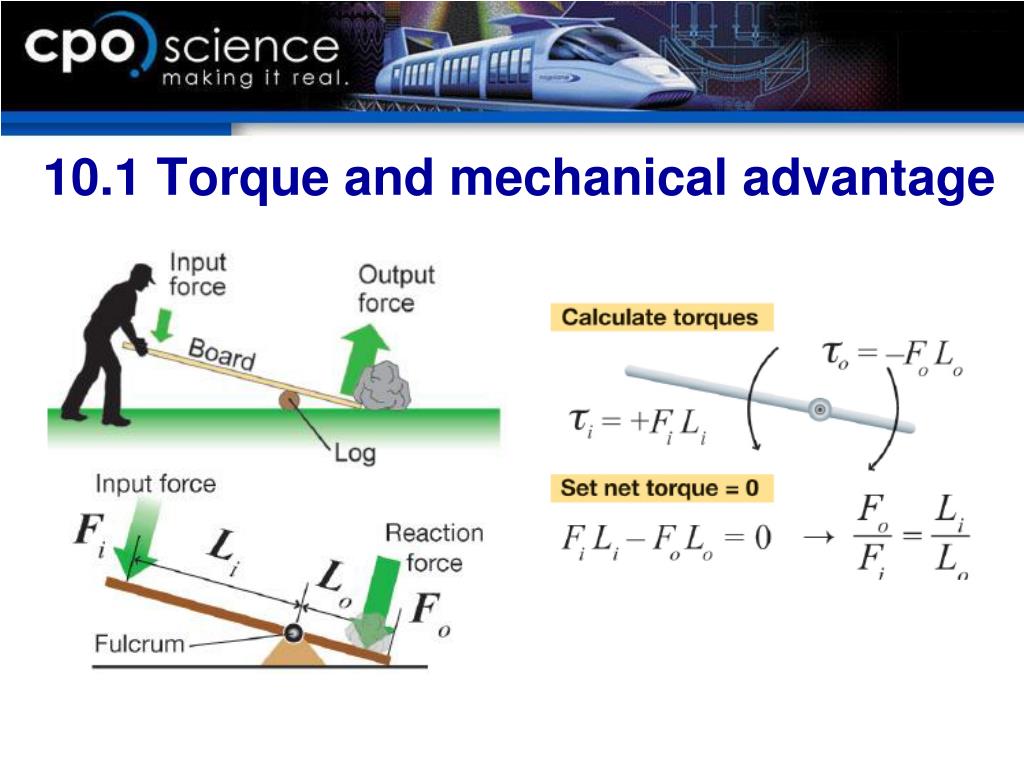

10 1 torque and mechanical advantage

10.1 Torque and mechanical advantage


Calculating the position of the fulcrum

Calculating the position of the fulcrum

  • You are asked for the location of the fulcrum

  • You are given input force, lever length, mass to be lifted

  • Since you are told to assume Fo = ½ Fw , use:

    • Fw = mg, MA = Fo ÷ Fi , MA = Li÷ Lo

  • Solve for Fo = (.5) (500 kg) (9.8 N/kg) = 2,450 N

  • Solve for MA = 2,450 N ÷ 700 N = 3.5

  • Since Li = 3.5 Lo , and Li + Lo = 3m, then Lo = .67m

Where should the fulcrum of a lever be placed so one person weighing 700N can lift the edge of a stone block with a mass of 500 kg? The lever is a steel bar three meters long. Assume a person can produce an input force equal to their own weight. Assume that the output force of the lever must equal half the weight of the block to lift one edge.


10 1 mechanical advantage of ropes and pulleys

10.1 Mechanical advantage of ropes and pulleys

  • A tension force is a pulling force acting along the direction of a rope or string.

  • Ropes and strings carry tension forces throughout their length.

  • If friction is small, the tension force in a rope is the same everywhere.

  • If you were to cut a rope in tension and insert a force scale, the scale would measure the same force at any point along the rope.


10 1 rope pulleys

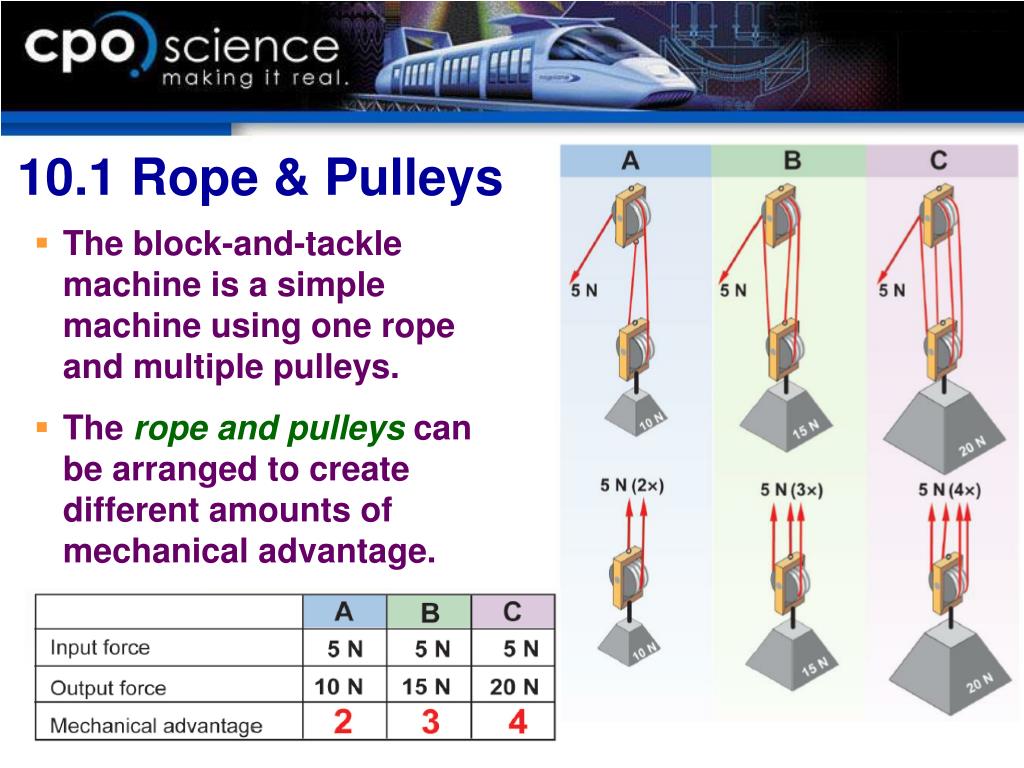

The block-and-tackle machine is a simple machine using one rope and multiple pulleys.

The rope and pulleys can be arranged to create different amounts of mechanical advantage.

10.1 Rope & Pulleys


10 1 wheels gears rotating machines

10.1 Wheels, gears, & rotating machines

Wheels and axles provide advantages.

Friction occurs where the wheel and axle touch or where the wheel touches a surface.

Rolling motion creates less wearing away of material compared with two surfaces sliding over each other.

  • With gears the trade-off is made between torque and rotation speed.

  • An output gear will turn with more torque when it rotates slower than the input gear.

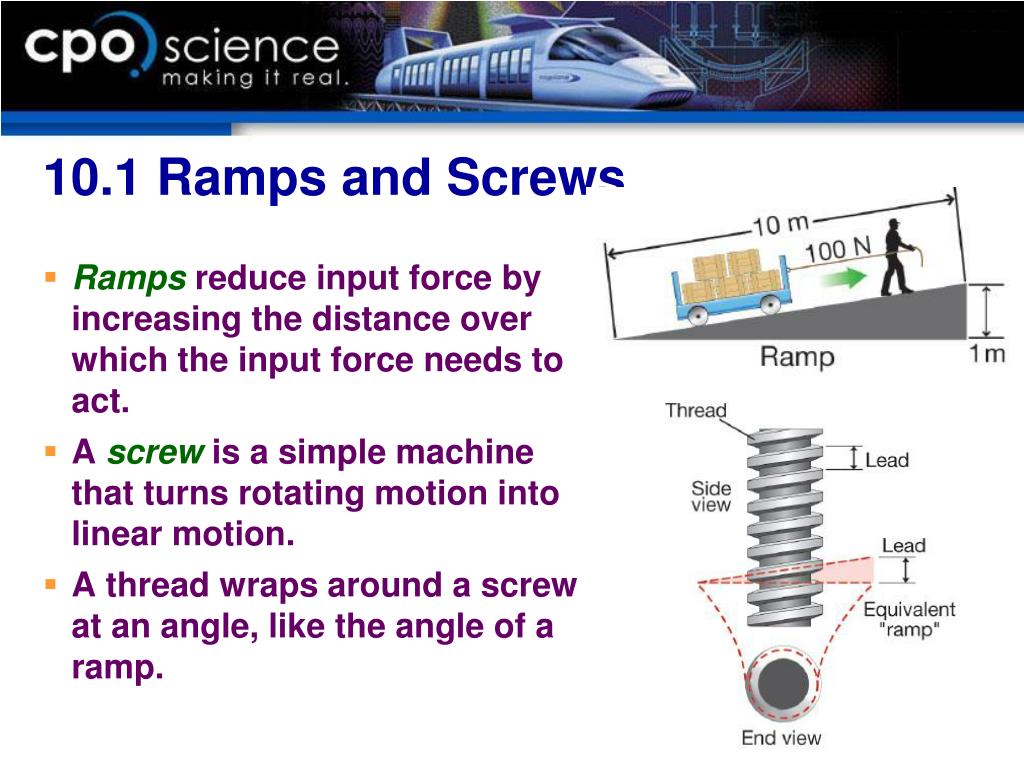

10 1 ramps and screws

10.1 Ramps and Screws

Ramps reduce input force by increasing the distance over which the input force needs to act.

A screw is a simple machine that turns rotating motion into linear motion.

A thread wraps around a screw at an angle, like the angle of a ramp.

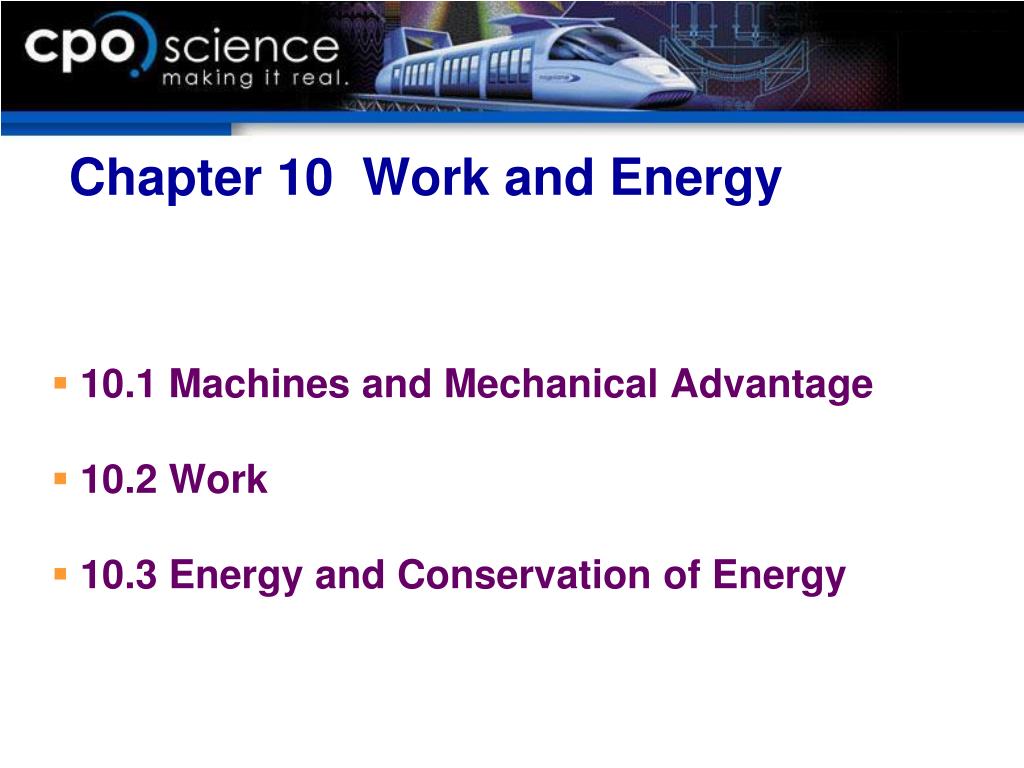

Chapter 10 work and energy1

Chapter 10 Work and Energy

10.1 Machines and Mechanical Advantage

10.2 Work

10.3 Energy and Conservation of Energy

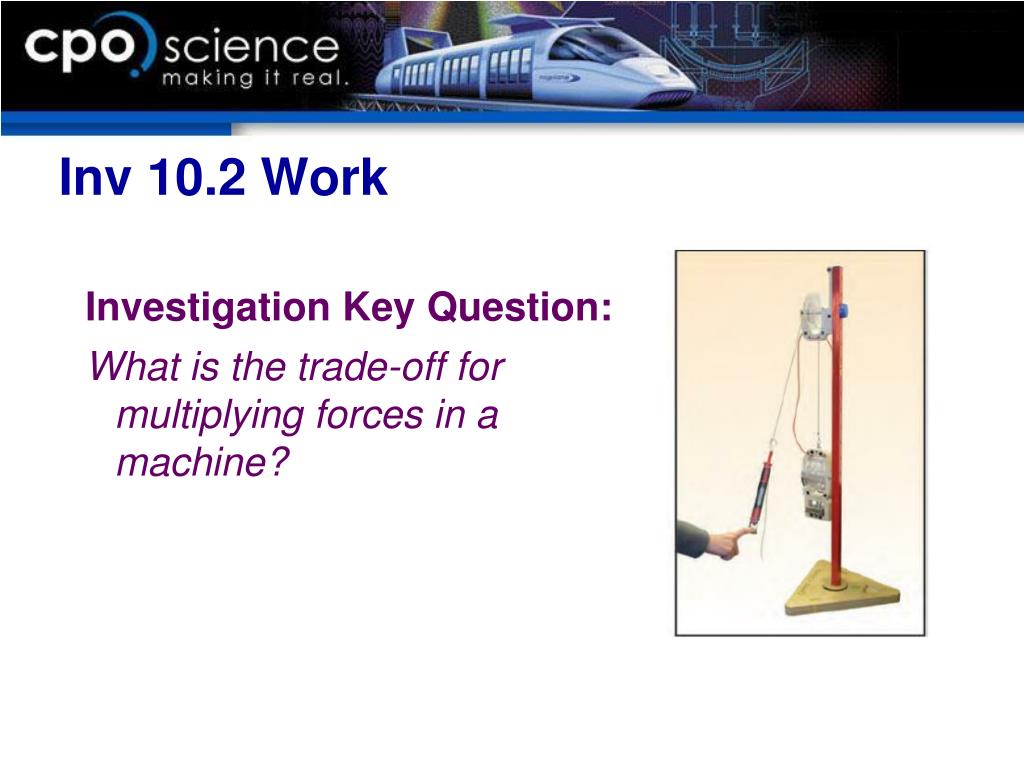

Inv 10 2 work

Inv 10.2 Work

Investigation Key Question:

What is the trade-off for multiplying forces in a machine?


10 2 work

10.2 Work

In physics, work has a very specific meaning.

In physics, work represents a measurable change in a system, caused by a force.


10 2 work1

10.2 Work

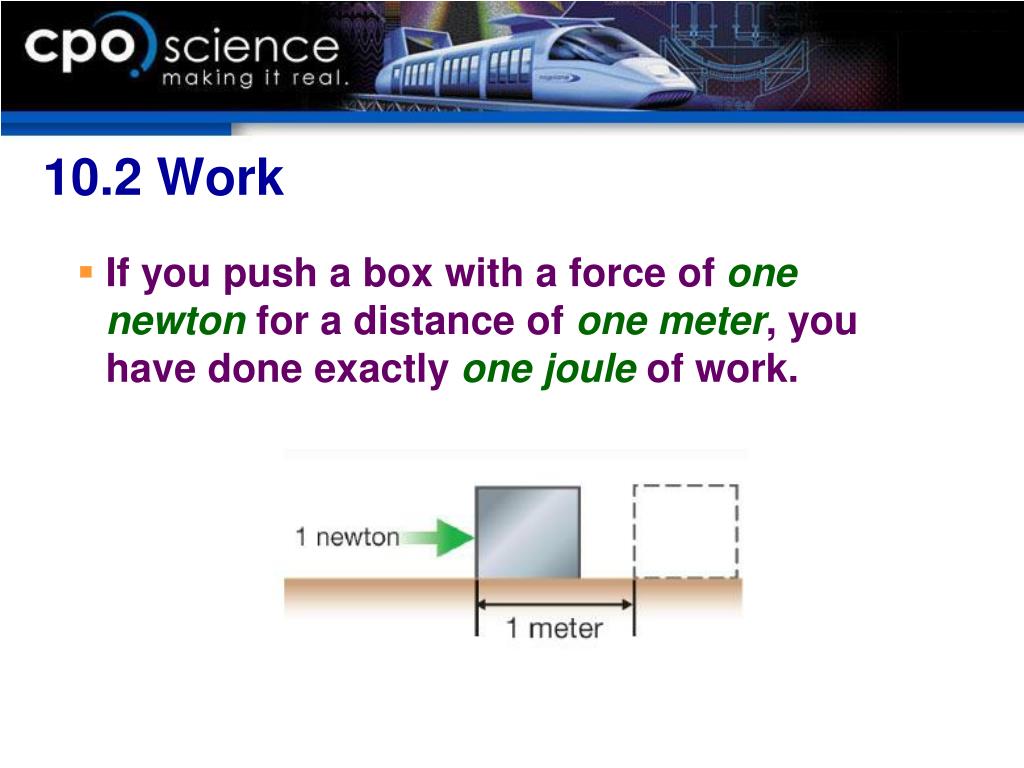

If you push a box with a force of one newton for a distance of one meter, you have done exactly one joule of work.


10 2 work force is parallel to distance

10.2 Work (force is parallel to distance)

Force (N)

W = F x d

Work (joules)

Distance (m)


10 2 work force at angle to distance

10.2 Work (force at angle to distance)

Force (N)

Work (joules)

W = Fd cos (q)

Angle

Distance (m)

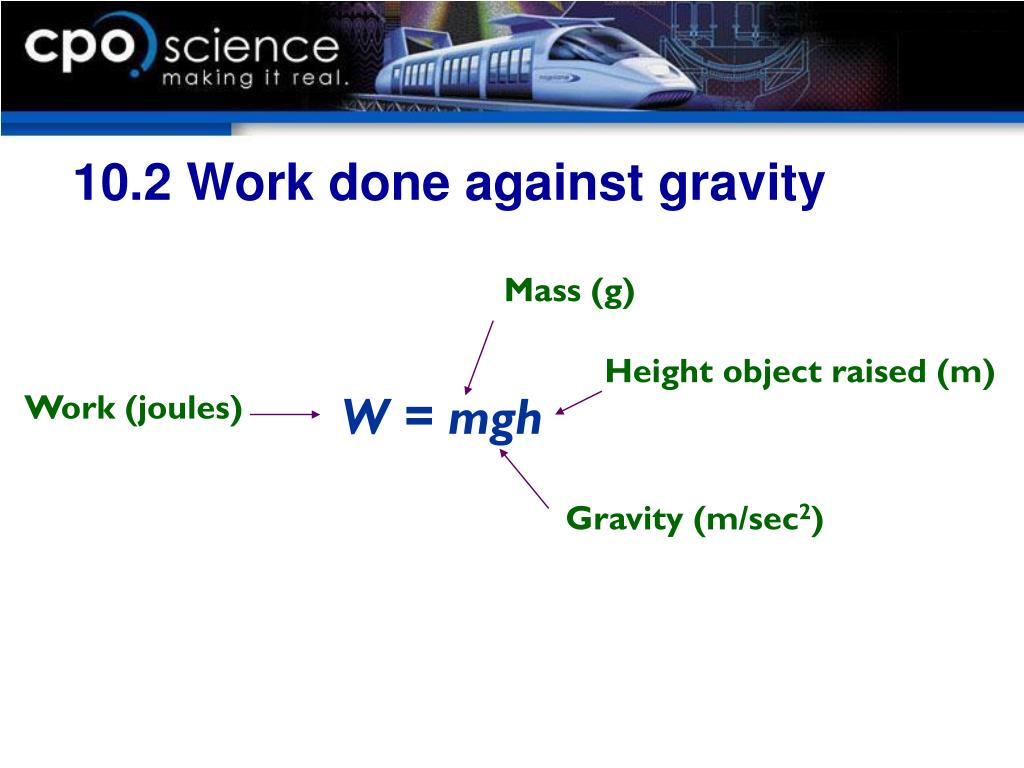

10 2 work done against gravity

10.2 Work done against gravity

Mass (g)

Height object raised (m)

W = mgh

Work (joules)

Gravity (m/sec2)


Calculate work done against gravity

Calculate work done against gravity

A crane lifts a steel beam with a mass of 1,500 kg. Calculate how much work is done against gravity if the beam is lifted 50 meters in the air.

How much time does it take to lift the beam if the motor of the crane can do 10,000 joules of work per second?

  • You are asked for the work and time it takes to do work.

  • You are given mass, height, and work done per second.

  • Use: W = mgh.

  • Solve: W = (1,500 kg) ( 9.8 N/kg) (50 m) = 735,000 J

  • At a rate of 10,000 J/s, it takes 73.5 s to lift the beam.


10 2 work done by a machine

10.2 Work done by a machine

  • Work is usually done when a force is applied to a simple machine.

  • All machines can be described in terms of input work and output work.

  • In any machine, some of the input work goes to overcoming friction.

  • The output work is always less than the input work because of the energy lost to friction.


Chapter 10 work and energy2

Chapter 10 Work and Energy

10.1 Machines and Mechanical Advantage

10.2 Work

10.3 Energy and Conservation of Energy


Inv 10 3 energy and conservation of energy

Inv 10.3 Energy and Conservation of Energy

Investigation Key Question:

How is motion on a track related to energy?


10 3 energy and conservation of energy

10.3 Energy and Conservation of Energy

Energy describes a system’s ability to cause change.

A system that has energy has the ability to do work.

Energy is measured in the same units as work because energy is transferred during the action of work.


10 3 different forms of energy

10.3 Different forms of energy

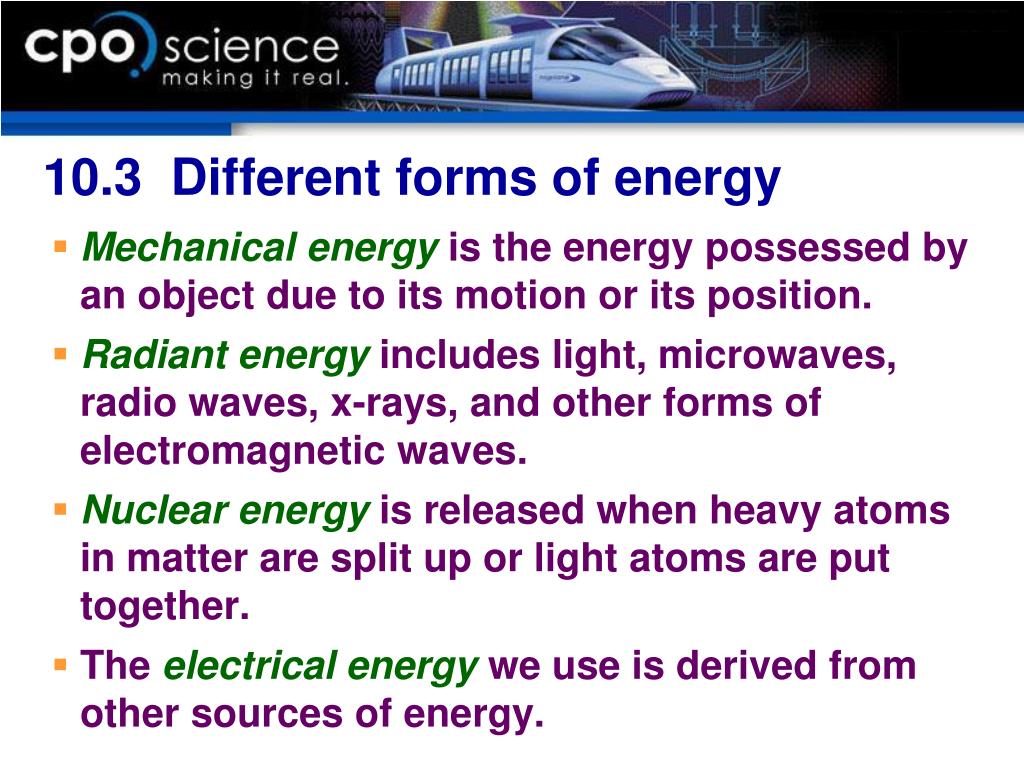

Mechanical energy is the energy possessed by an object due to its motion or its position.

Radiant energy includes light, microwaves, radio waves, x-rays, and other forms of electromagnetic waves.

Nuclear energy is released when heavy atoms in matter are split up or light atoms are put together.

The electrical energy we use is derived from other sources of energy.

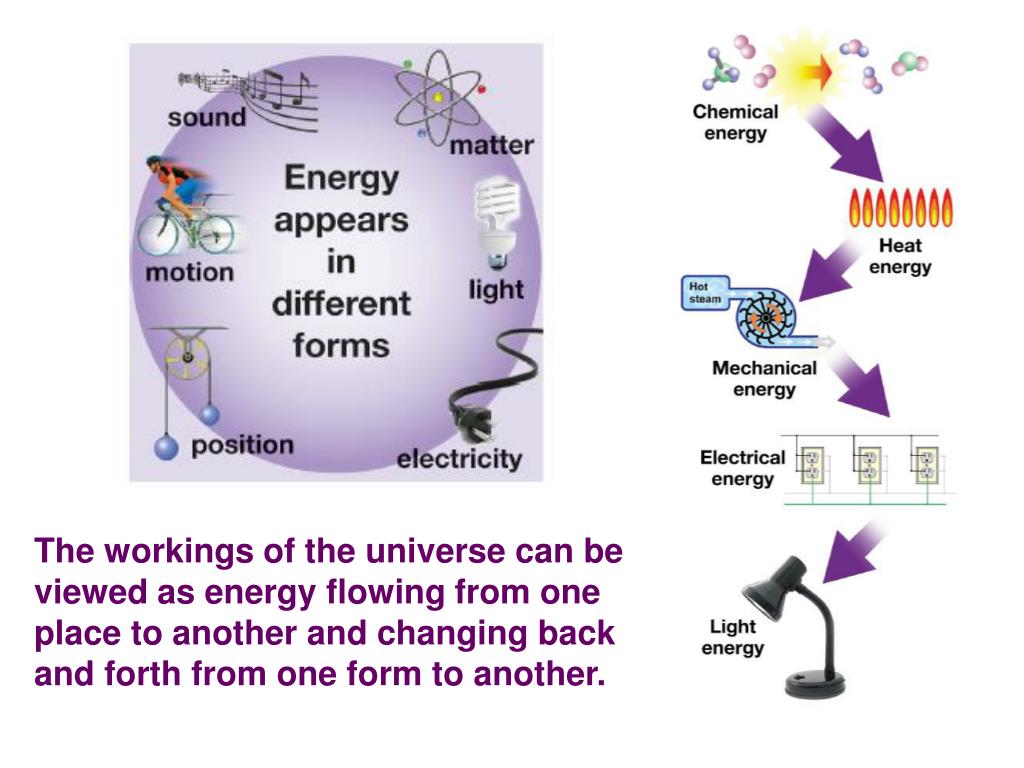

Chapter 10 work and energy

The workings of the universe can be viewed as energy flowing from one place to another and changing back and forth from one form to another.

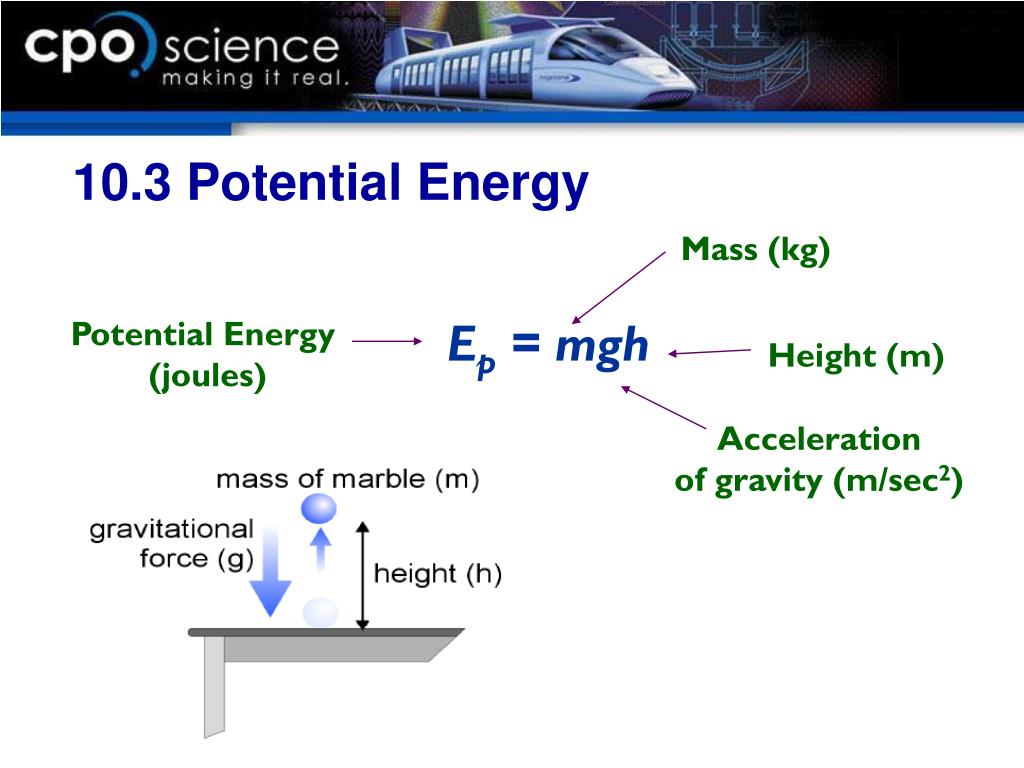

10 3 potential energy

10.3 Potential Energy

  • Objects that have potential energy do not use the energy until they move.

  • An object’s potential energy comes from the gravity of Earth.

  • Technically, energy from height is called gravitational potential energy.

  • Other forms of potential energy also exist, such as potential energy stored in springs.


10 3 potential energy1

10.3 Potential Energy

Mass (kg)

Ep = mgh

Potential Energy

(joules)

Height (m)

Acceleration

of gravity (m/sec2)


Calculating potential energy

Calculating potential energy

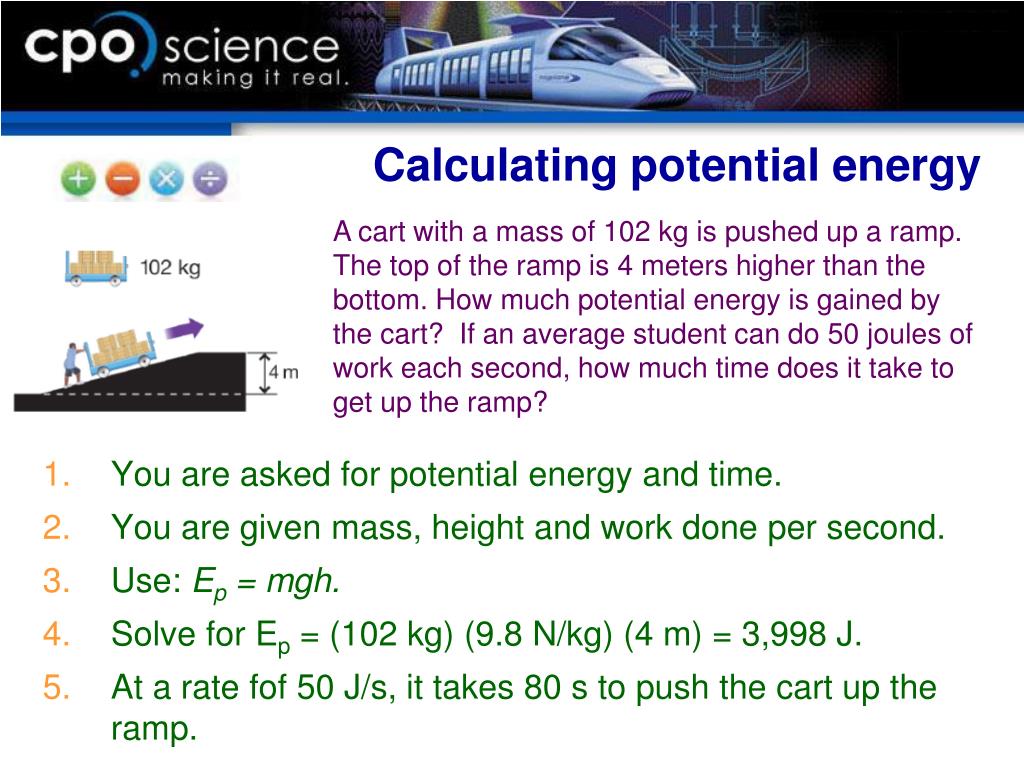

A cart with a mass of 102 kg is pushed up a ramp. The top of the ramp is 4 meters higher than the bottom. How much potential energy is gained by the cart? If an average student can do 50 joules of work each second, how much time does it take to get up the ramp?

  • You are asked for potential energy and time.

  • You are given mass, height and work done per second.

  • Use: Ep = mgh.

  • Solve for Ep = (102 kg) (9.8 N/kg) (4 m) = 3,998 J.

  • At a rate fof 50 J/s, it takes 80 s to push the cart up the ramp.


10 3 kinetic energy

10.3 Kinetic Energy

Energy of motion is called kinetic energy.

The kinetic energy of a moving object depends on two things: mass and speed.

Kinetic energy is proportional to mass.

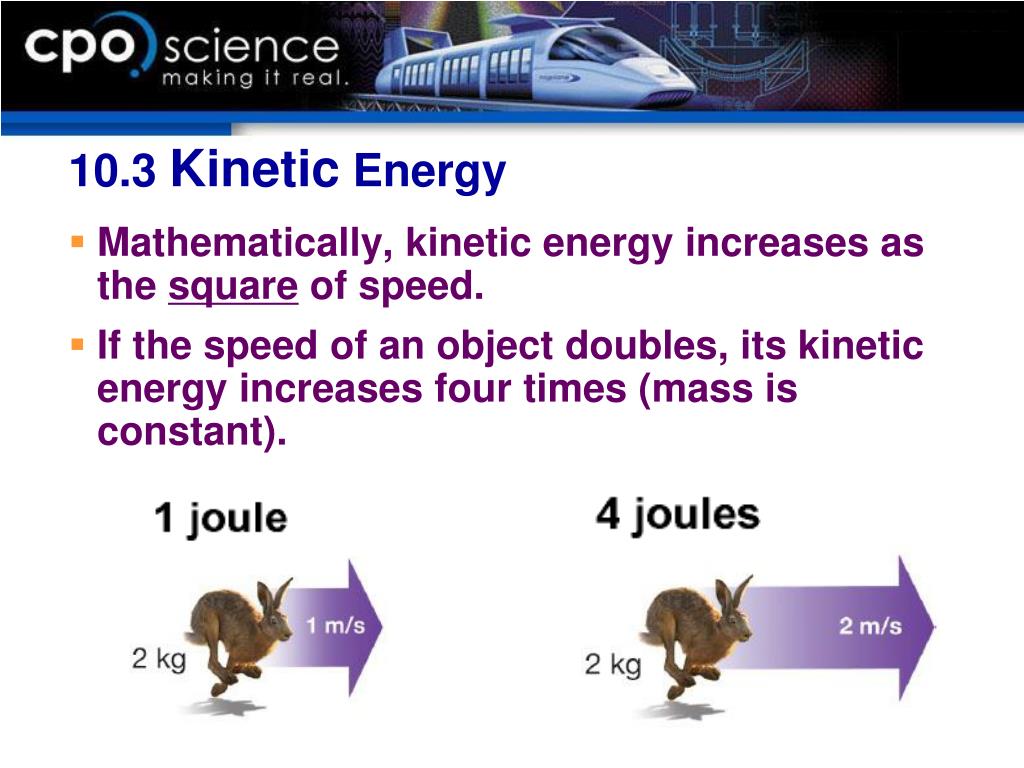

10 3 kinetic energy1

10.3 Kinetic Energy

Mathematically, kinetic energy increases as the square of speed.

If the speed of an object doubles, its kinetic energy increases four times (mass is constant).


10 3 kinetic energy2

10.3 Kinetic Energy

Mass (kg)

Ek = 1 mv2

2

Kinetic Energy

(joules)

Speed (m/sec)


10 3 kinetic energy3

10.3 Kinetic Energy

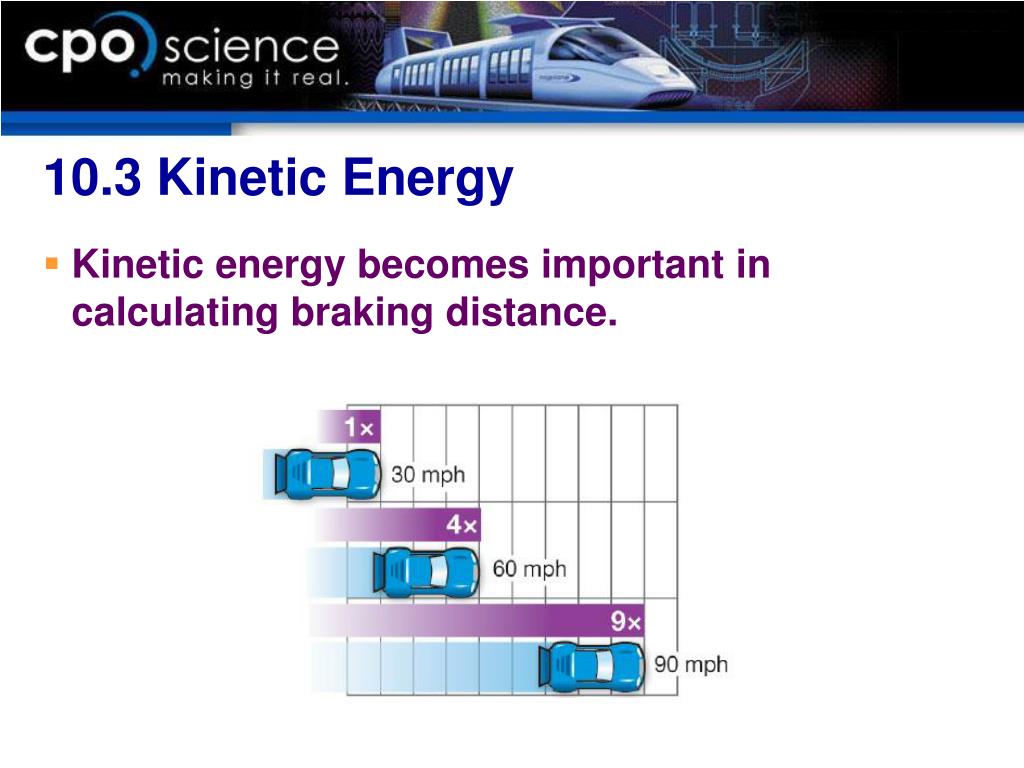

Kinetic energy becomes important in calculating braking distance.

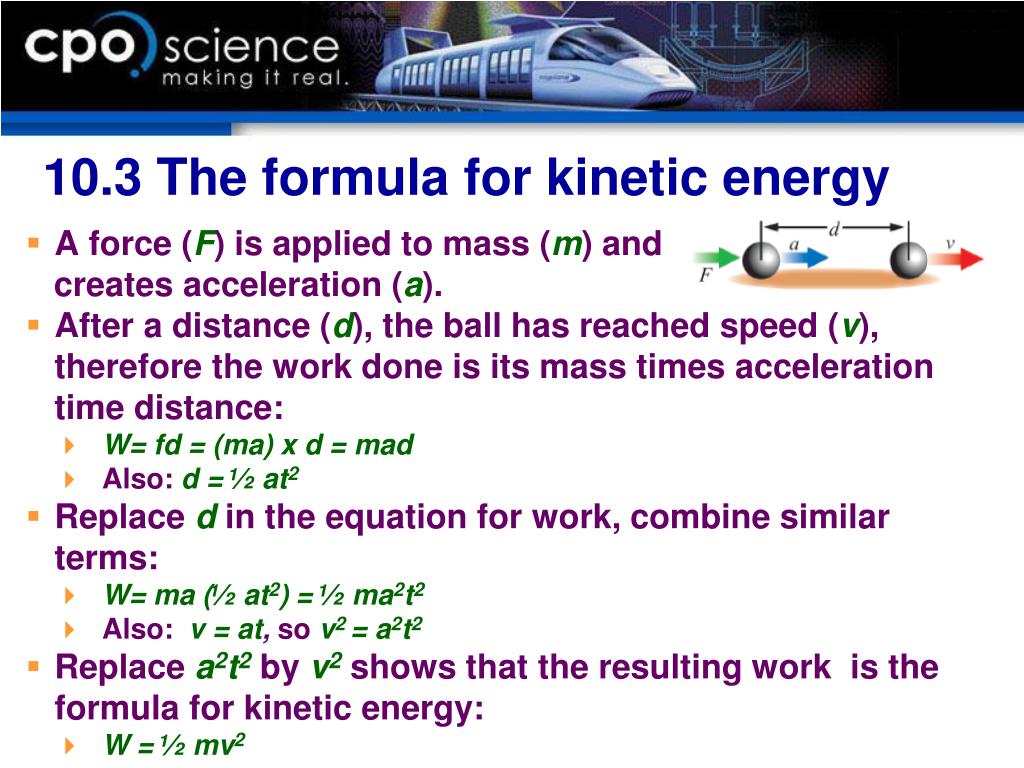

10 3 the formula for kinetic energy

10.3 The formula for kinetic energy

  • A force (F) is applied to mass (m) and

    creates acceleration (a).

  • After a distance (d), the ball has reached speed (v), therefore the work done is its mass times acceleration time distance:

    • W= fd = (ma) x d = mad

    • Also: d = ½ at2

  • Replace d in the equation for work, combine similar terms:

    • W= ma (½ at2) = ½ ma2t2

    • Also: v = at, so v2 = a2t2

  • Replace a2t2 by v2 shows that the resulting work is the formula for kinetic energy:

    • W = ½ mv2

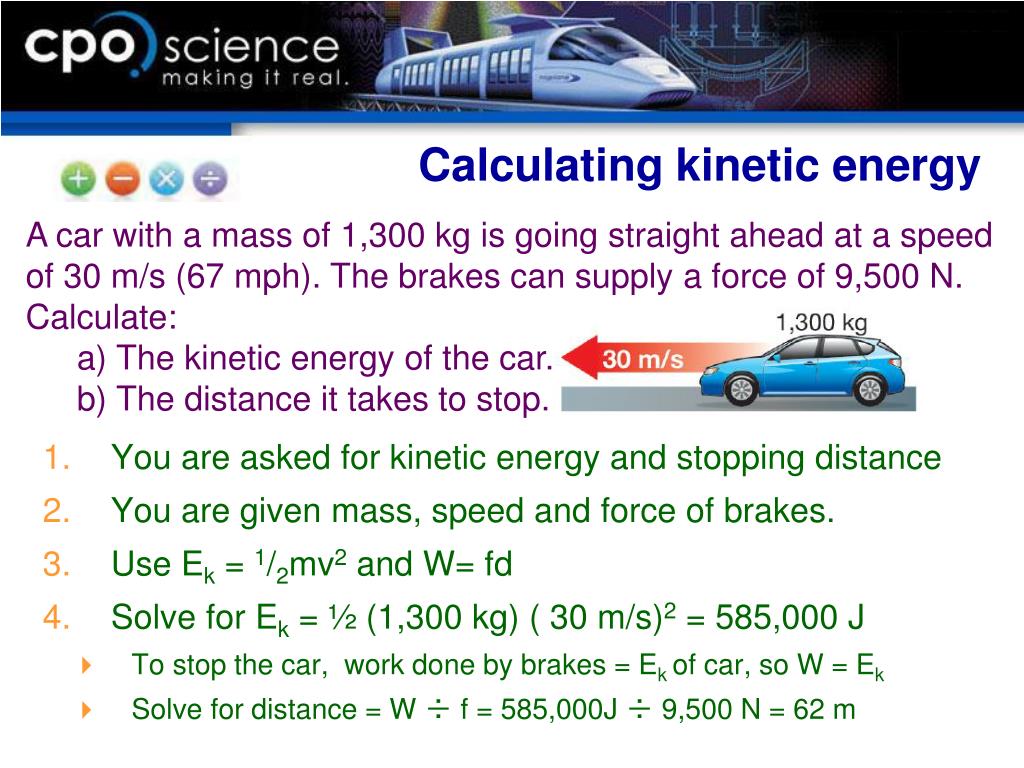

Calculating kinetic energy

Calculating kinetic energy

  • A car with a mass of 1,300 kg is going straight ahead at a speed of 30 m/s (67 mph). The brakes can supply a force of 9,500 N.

  • Calculate:

    • a) The kinetic energy of the car.

    • b) The distance it takes to stop.

  • You are asked for kinetic energy and stopping distance

  • You are given mass, speed and force of brakes.

  • Use Ek = 1/2mv2 and W= fd

  • Solve for Ek = ½ (1,300 kg) ( 30 m/s)2 = 585,000 J

    • To stop the car, work done by brakes = Ek of car, so W = Ek

    • Solve for distance = W ÷ f = 585,000J ÷ 9,500 N = 62 m

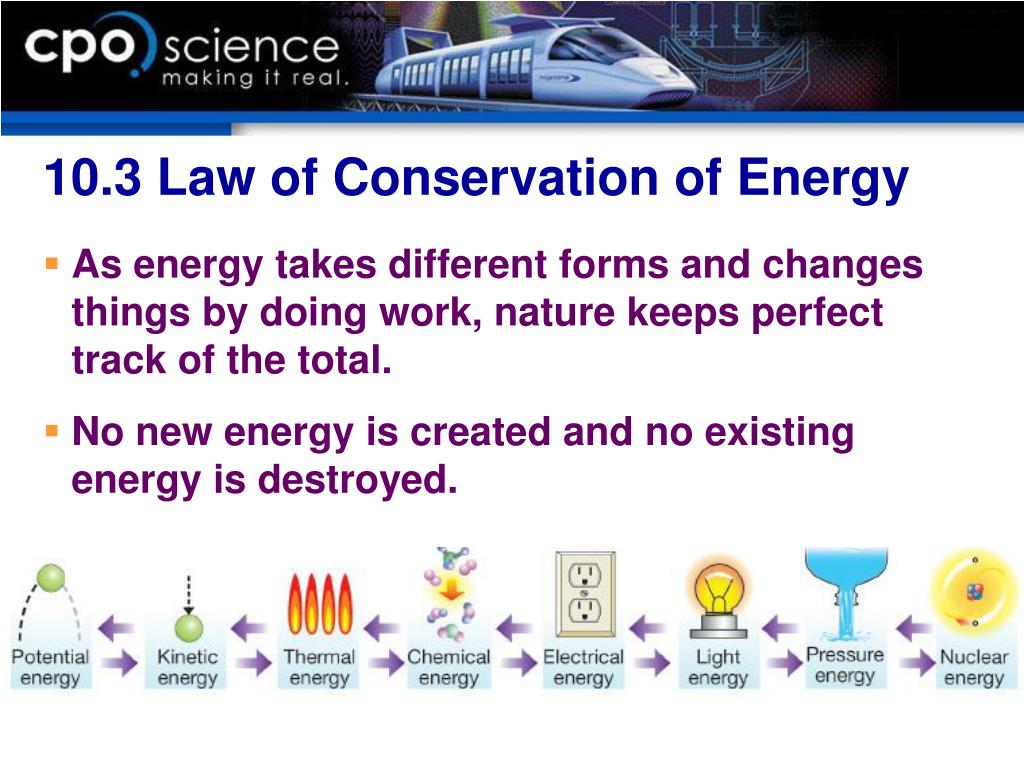

10 3 law of conservation of energy

10.3 Law of Conservation of Energy

As energy takes different forms and changes things by doing work, nature keeps perfect track of the total.

No new energy is created and no existing energy is destroyed.

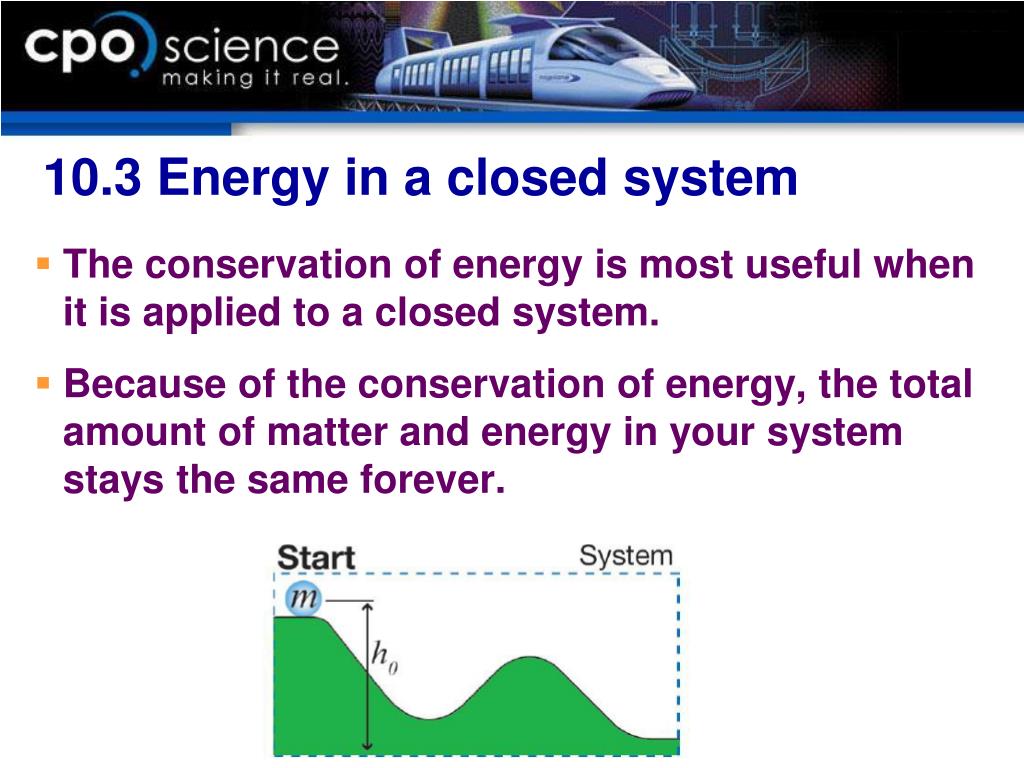

10 3 energy in a closed system

10.3 Energy in a closed system

  • The conservation of energy is most useful when it is applied to a closed system.

  • Because of the conservation of energy, the total amount of matter and energy in your system stays the same forever.

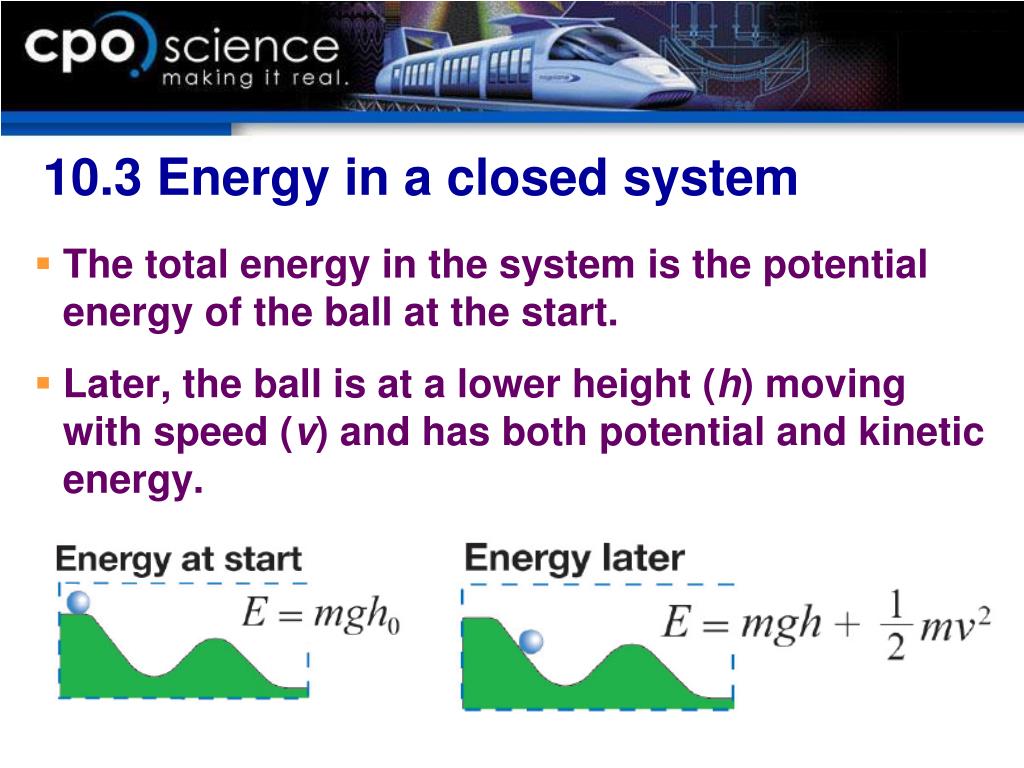

10 3 energy in a closed system1

10.3 Energy in a closed system

  • The total energy in the system is the potential energy of the ball at the start.

  • Later, the ball is at a lower height (h) moving with speed (v) and has both potential and kinetic energy.


Chapter 10 work and energy

Hydroelectric Power

  • Every day in the United States the average person uses about 90 million joules of electrical energy.

  • This energy comes from many sources, including burning coal, gas and oil, nuclear power, and hydroelectric power.

  • In hydroelectric power, the potential energy of falling water is converted to electricity.

  • No air pollution is produced, nor hazardous wastes created.


  • Login
