  1. Extension of Asynchronous Design Automation Tools Michael Boyer Advisor: Cherrice Traver Steinmetz Symposium 2005

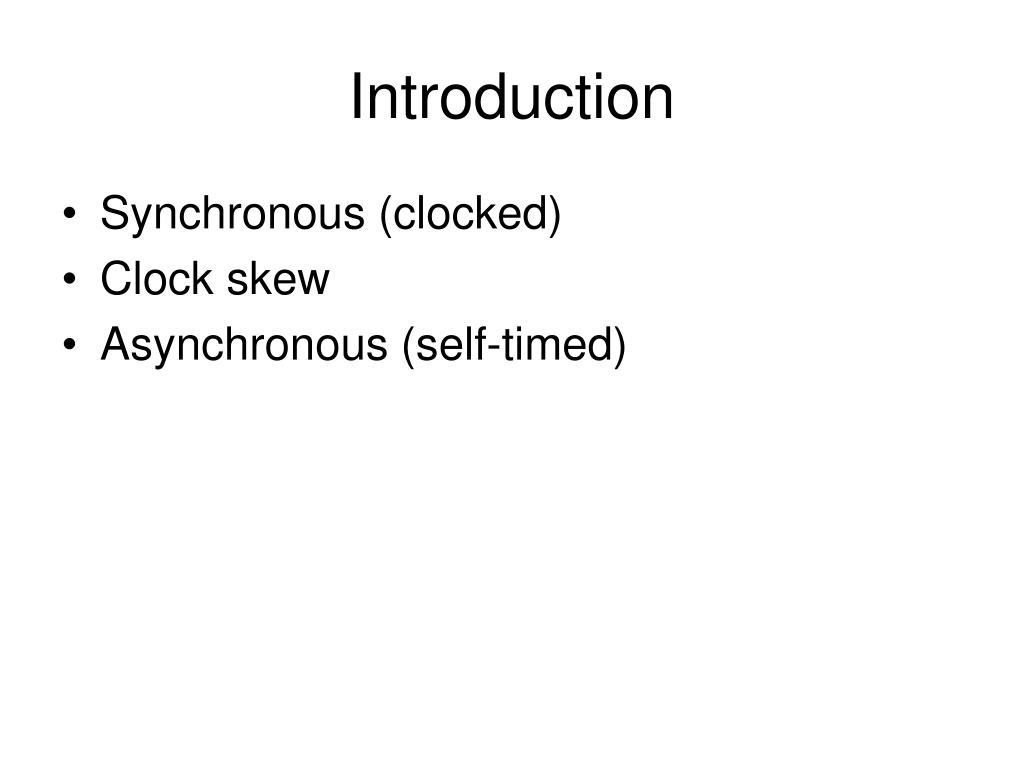

  2. Introduction • Synchronous (clocked) • Clock skew • Asynchronous (self-timed)

  3. Advantages of Asynchronous • No clock skew problem • Increased power efficiency • Increased performance • Greater tolerance of variation in operating conditions • Greater frequency distribution of electromagnetic noise • Component modularity

  4. Real-World Examples • Amulet 1, 2e, 3, 3i • Oticon DigiFocus hearing aid • Philips 80C51 microcontroller • Intel RAPPID Project

  5. E E O E O O Phased Logic (PL) • Automated translation • Two phase LEDR signaling E

  6. Liveness and Safety • PL synthesis algorithm • Guarantees liveness and safety • Token abstraction

  7. Coarse-Grained PL • Wrap logic blocks with PL circuitry • Logic blocks: • Barrier blocks • Through blocks • Speed-up techniques: • Time borrowing • Early evaluation

  8. Wrapper Circuit

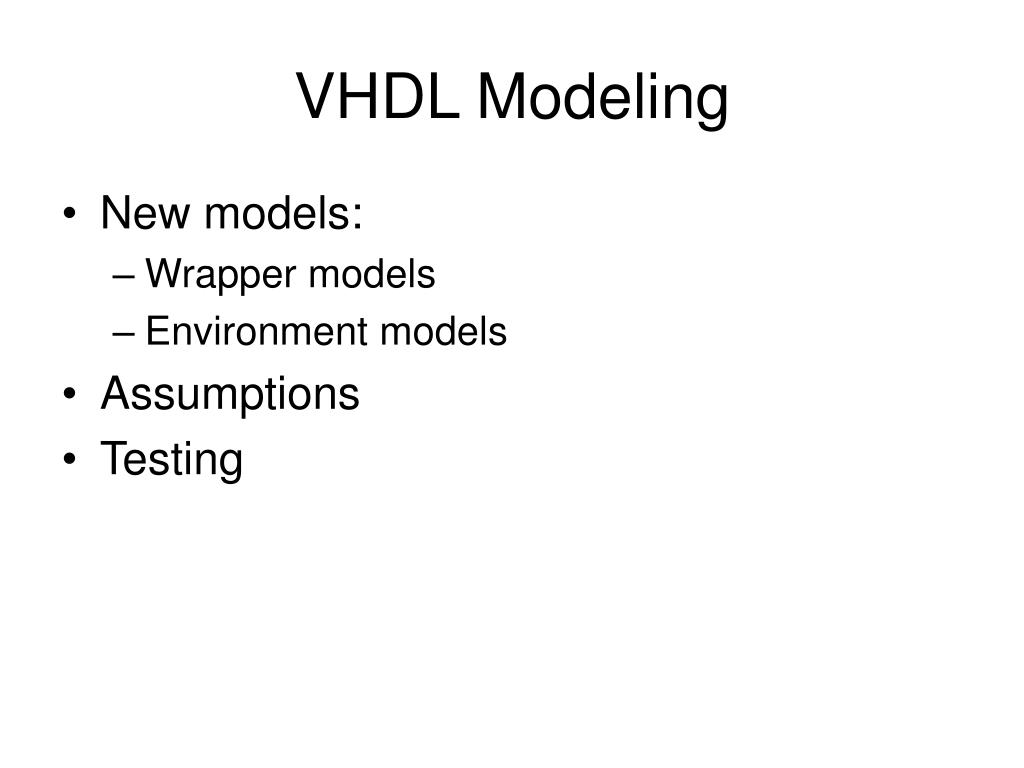

  9. VHDL Modeling • New models: • Wrapper models • Environment models • Assumptions • Testing

  10. ATACS • Automatic Timed Asynchronous Circuit Synthesis (ATACS) • Automated verification: • Hazard checking

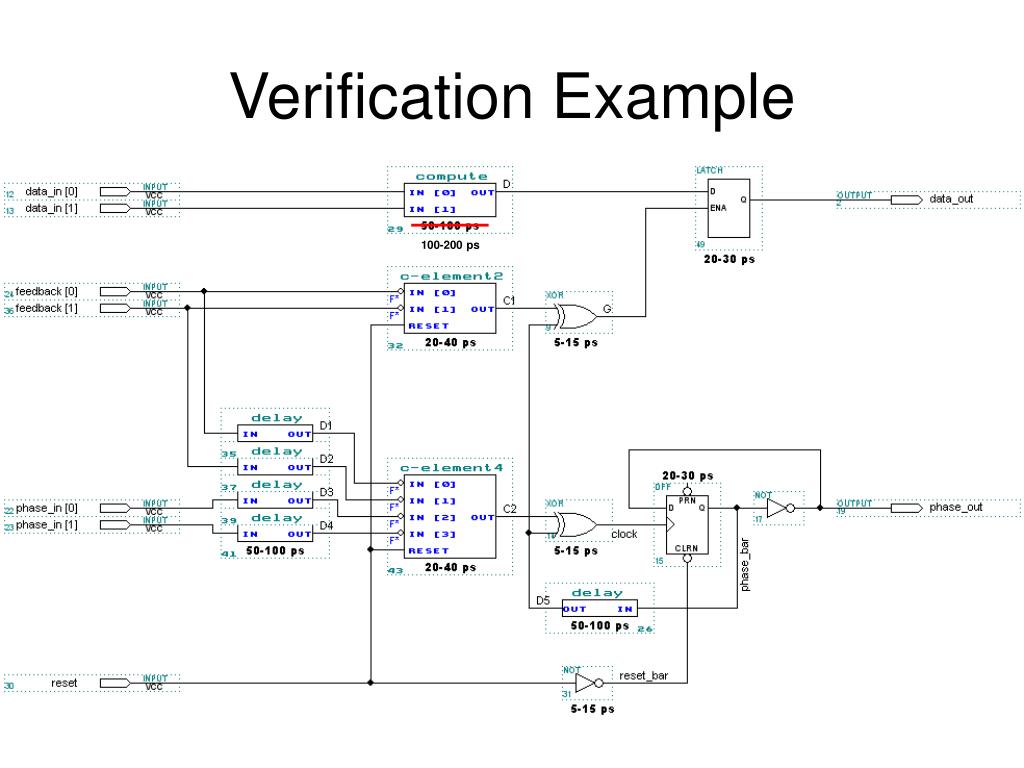

  11. 100-200 ps Verification Example

  12. Results Wrapper for Through Blocks with Time Borrowing: min(D1, D2, D3, D4) + min(D5) ≥ max(C1) + max(xorG) + max(D-latch) – min(C2) – min(xorC) – min(DFF) min(D1, D2, D3, D4) + min(D5) ≥ max(compute) + max(D-latch) – min(C2) – min(xorC) – min(DFF) Wrapper for Through Blocks without Time Borrowing: min(D1, D2, D3, D4) ≥ max(compute) + max(D-latch) – min(nC2) – min(DFF) – min(nC1) Wrapper for Barrier Blocks without Early Evaluation: min(D1, D2, D3, D4) ≥ max(compute) + max(Data DFF setup time) – min(nC)

  13. Future Work • Include results in mapping tool • Use mapping tool to compare PL to synchronous • Implement PL in hardware

  14. Acknowledgements • Cherrice Traver, Union College • Chris Myers, University of Utah • Bob Reese, Mississippi State University • IBM/SRC

  15. Questions?
