Prime Indicants: A Synthesis Method for Indicating Combinational Logic BlocksWill TomsSchool of Computer ScienceUniversity of Manchester


Process variation
Process Variation

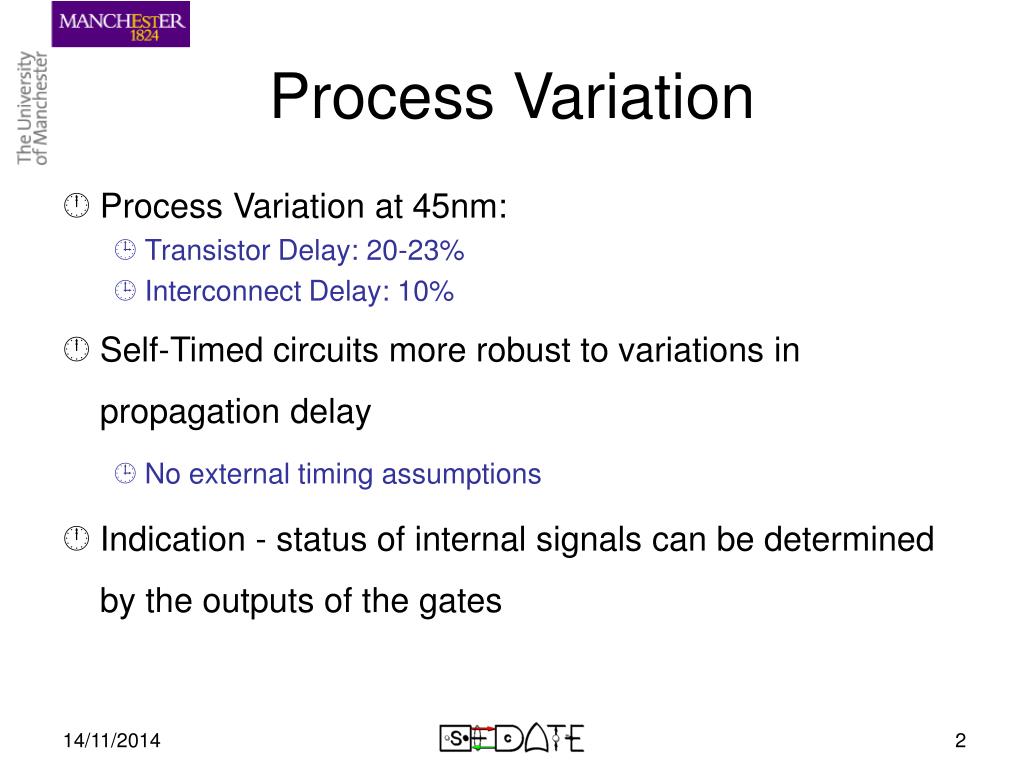

  • Process Variation at 45nm:

    • Transistor Delay: 20-23%

    • Interconnect Delay: 10%

  • Self-Timed circuits more robust to variations in propagation delay

    • No external timing assumptions

  • Indication - status of internal signals can be determined by the outputs of the gates


Indicating combinational logic
Indicating Combinational Logic

  • Validity must be encoded into the datapath

    • DI (unordered) encoding (dual-rail/m-of-n)

    • Each data word transmitted explicitly

    • Need to return to known state (Four-phase/RTZ)

  • Functions difficult to specify:

    • Functions completely specified

    • All minterms must be enumerated

  • Impractical for large datapath operations


Desynchronisation
Desynchronisation

  • Can construct large indicating datapaths from synchronous circuits by expanding gates into dual-rail equivalents


Desynchronisation1
Desynchronisation

  • Desynchronised networks can be optimised by reducing indication:

    • Relaxation (Jeong, Zhou):

      • Removing redundant indication (fanout of gates)

    • Relative-Timing (Chelcea):

      • Applying timing constraints to avoid indication

    • Validity (NCL-X):

      • Adding additional signals for indication


Desynchronisation2
Desynchronisation

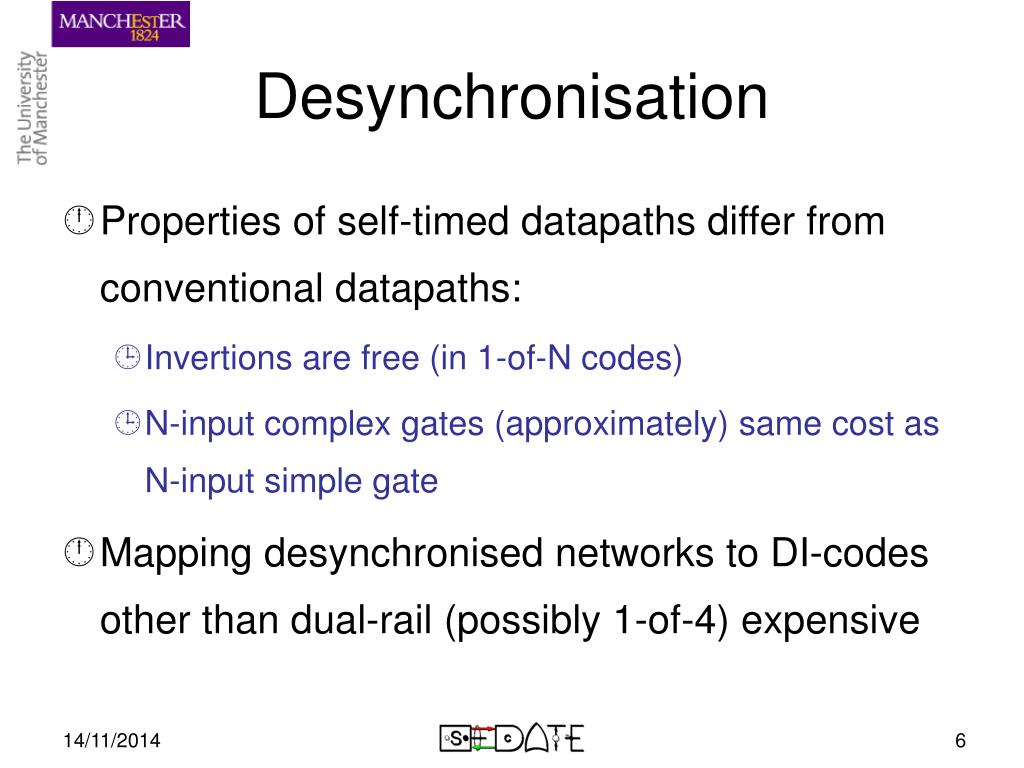

  • Properties of self-timed datapaths differ from conventional datapaths:

    • Invertions are free (in 1-of-N codes)

    • N-input complex gates (approximately) same cost as N-input simple gate

  • Mapping desynchronised networks to DI-codes other than dual-rail (possibly 1-of-4) expensive


Block level approach
Block-Level Approach

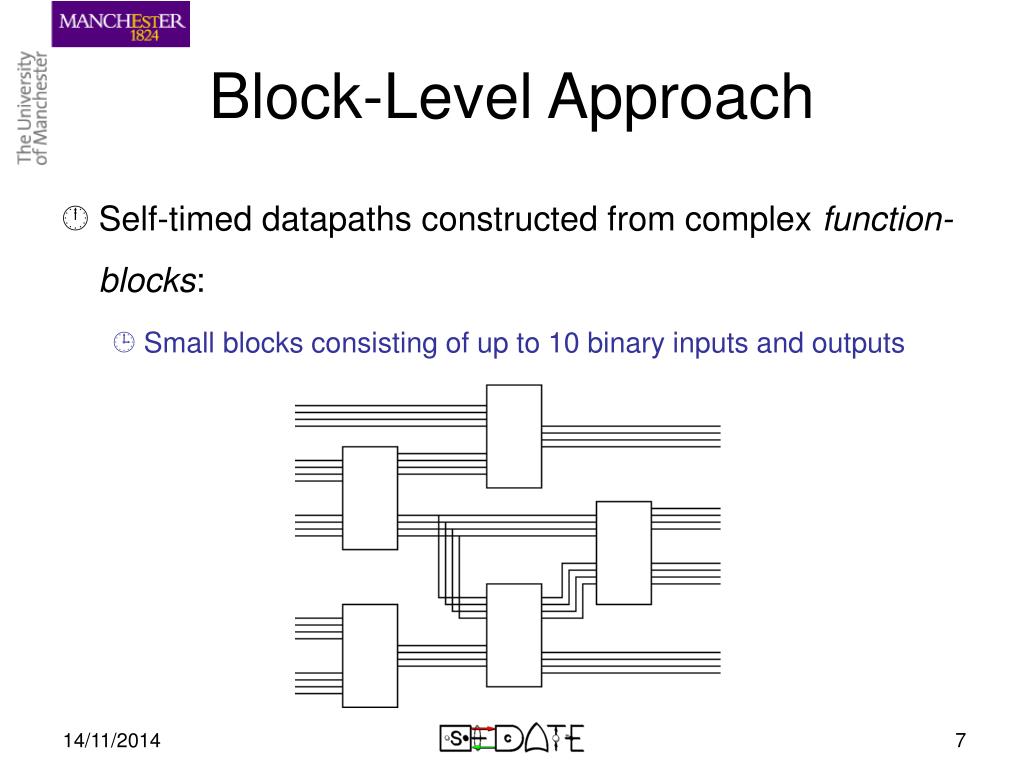

  • Self-timed datapaths constructed from complex function-blocks:

    • Small blocks consisting of up to 10 binary inputs and outputs


Block level approach1
Block-Level Approach

  • Existing optimisations applied between function blocks

  • Distribute indication between the outputs of function blocks

  • Can use any encoding between function blocks


Block level approach2
Block-Level Approach

  • How to synthesise arbitrary indicating function blocks?


Indication
Indication

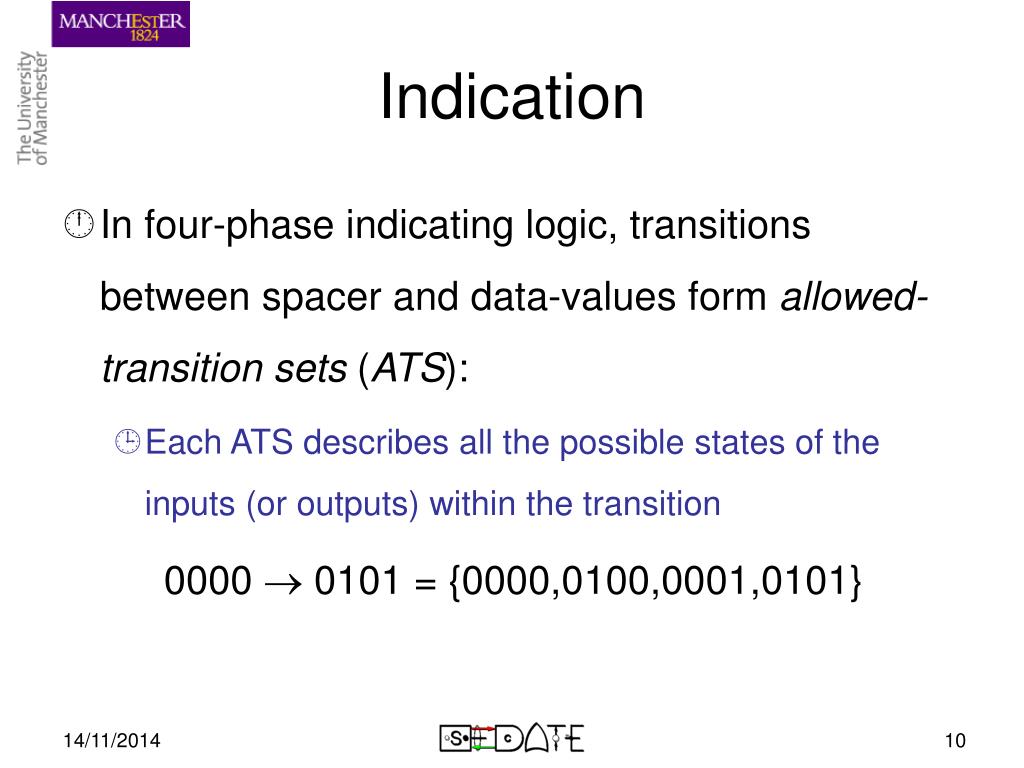

  • In four-phase indicating logic, transitions between spacer and data-values form allowed-transition sets (ATS):

    • Each ATS describes all the possible states of the inputs (or outputs) within the transition

      0000  0101 = {0000,0100,0001,0101}


Indication1
Indication

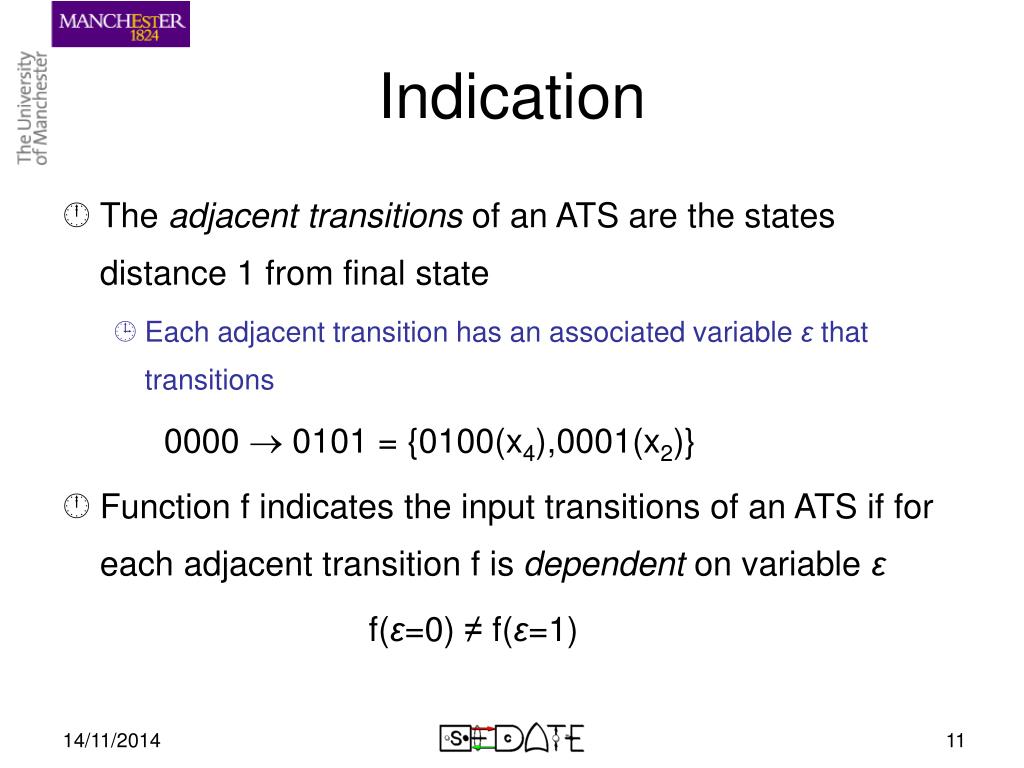

  • The adjacent transitions of an ATS are the states distance 1 from final state

    • Each adjacent transition has an associated variable ε that transitions

      0000  0101 = {0100(x4),0001(x2)}

  • Function f indicates the input transitions of an ATS if for each adjacent transition f is dependent on variable ε

    f(ε=0) ≠ f(ε=1)


Indication2
Indication

  • In order for a function block to be indicating for each adjacent transition in each ATS, at least one output function must be dependent on variable ε

  • Checking Indication is expensive:

    • 8 input/8 output-function block has 256 ATS each with 8 adjacent transitions = 16,384 (256*8*8) dependency checks to verify an implementation


Indication architecture

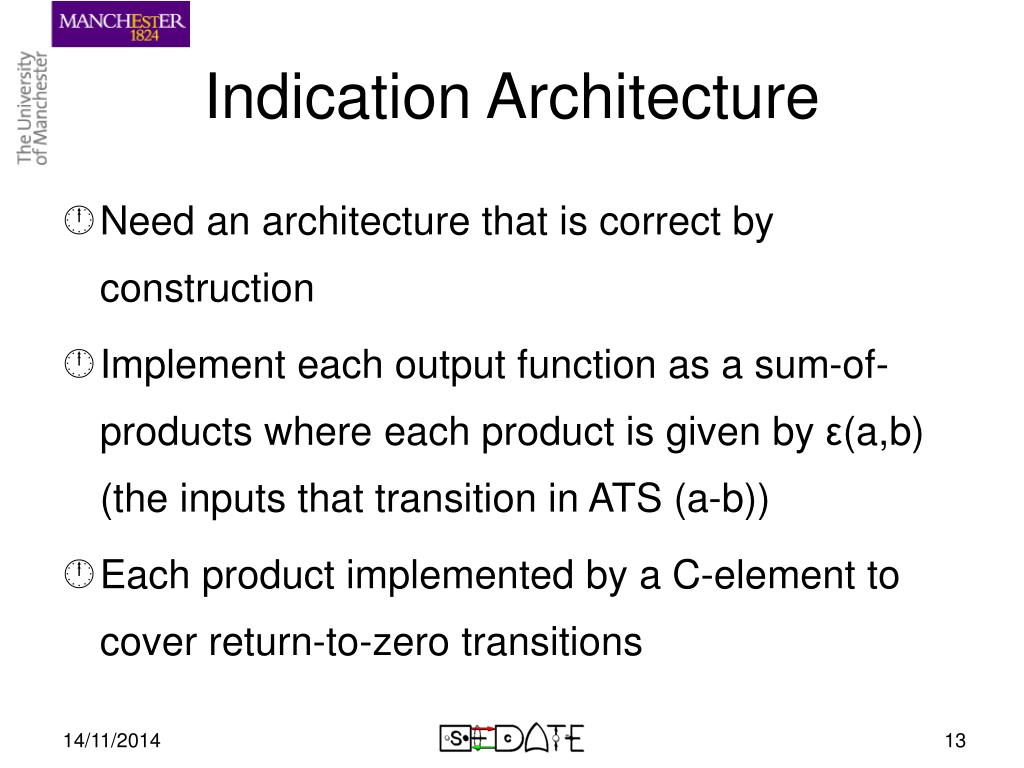

Indication Architecture

  • Need an architecture that is correct by construction

  • Implement each output function as a sum-of-products where each product is given by ε(a,b) (the inputs that transition in ATS (a-b))

  • Each product implemented by a C-element to cover return-to-zero transitions


Indication architecture1
Indication Architecture

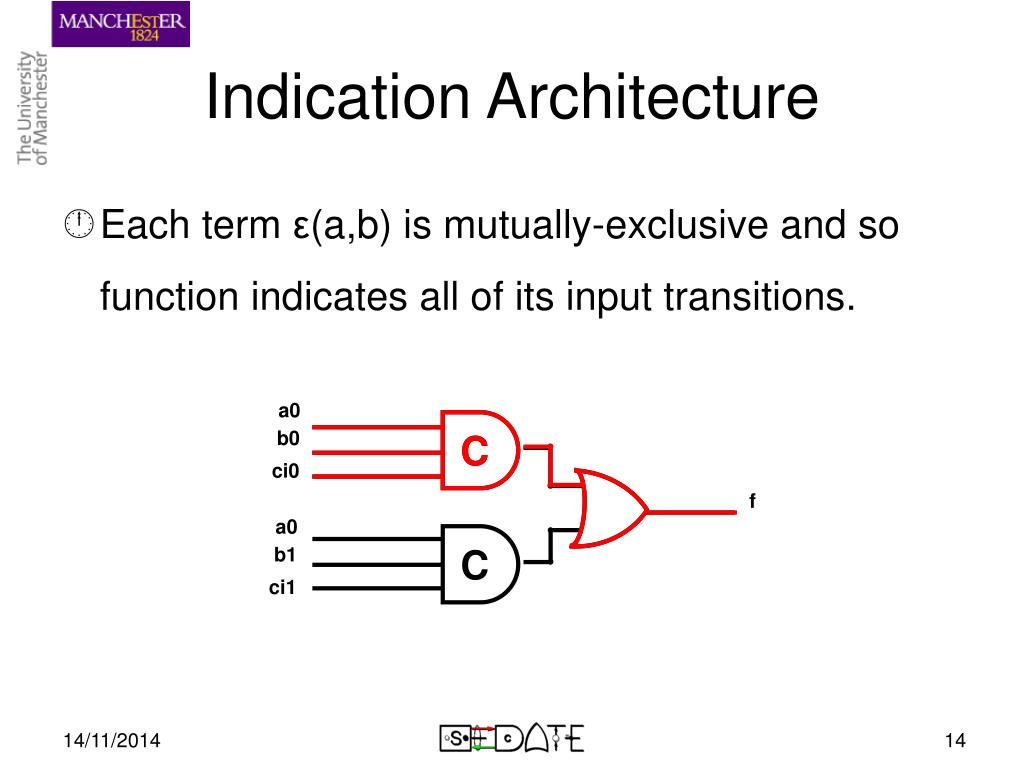

  • Each term ε(a,b) is mutually-exclusive and so function indicates all of its input transitions.

a0

C

C

b0

ci0

f

a0

C

b1

ci1


Indication architecture2
Indication Architecture

  • Large

  • Slow

  • As function block has several outputs, the number of outputs that indicate each transition is often >1

  • Can optimise architecture by reducing the number of outputs that indicate each input transition


Prime implicants
Prime Implicants

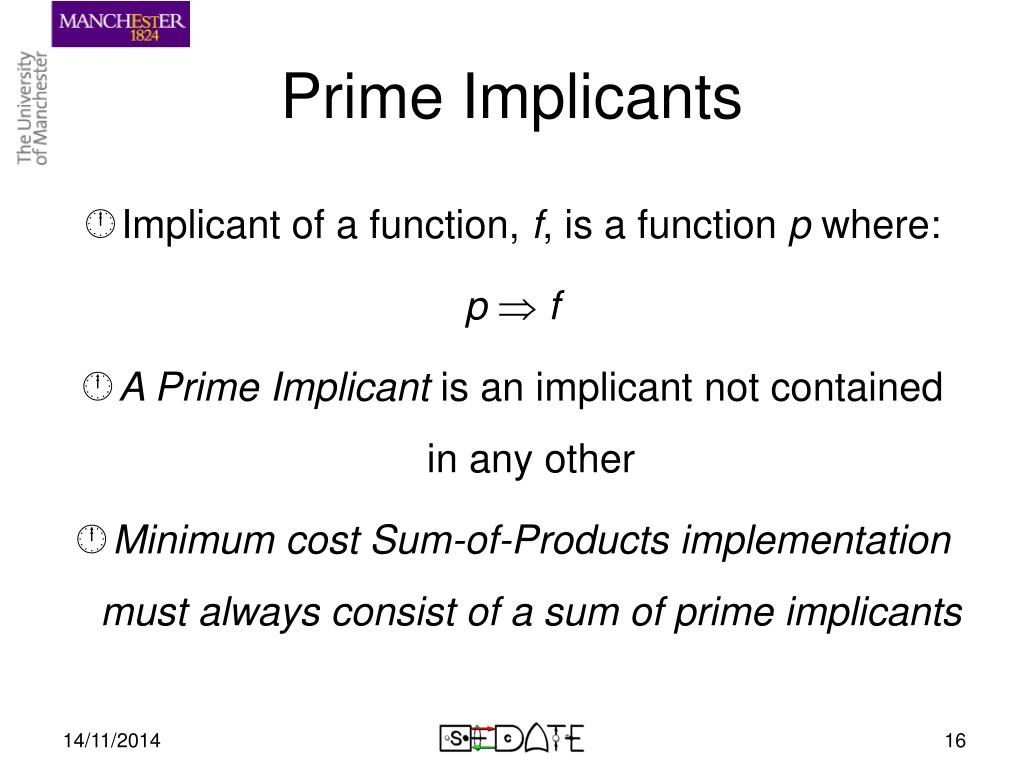

  • Implicant of a function, f, is a function p where:

    p f

  • A Prime Implicant is an implicant not contained in any other

  • Minimum cost Sum-of-Products implementation must always consist of a sum of prime implicants


Prime implicants1

1

0

1

0

100

110

0

010

0

0

0

000

0

0

101

1

1

111

001

1

1

0

011

0

_

_

f = x1x2x3 + x1x2x3 + x1x2x3

Prime Implicants

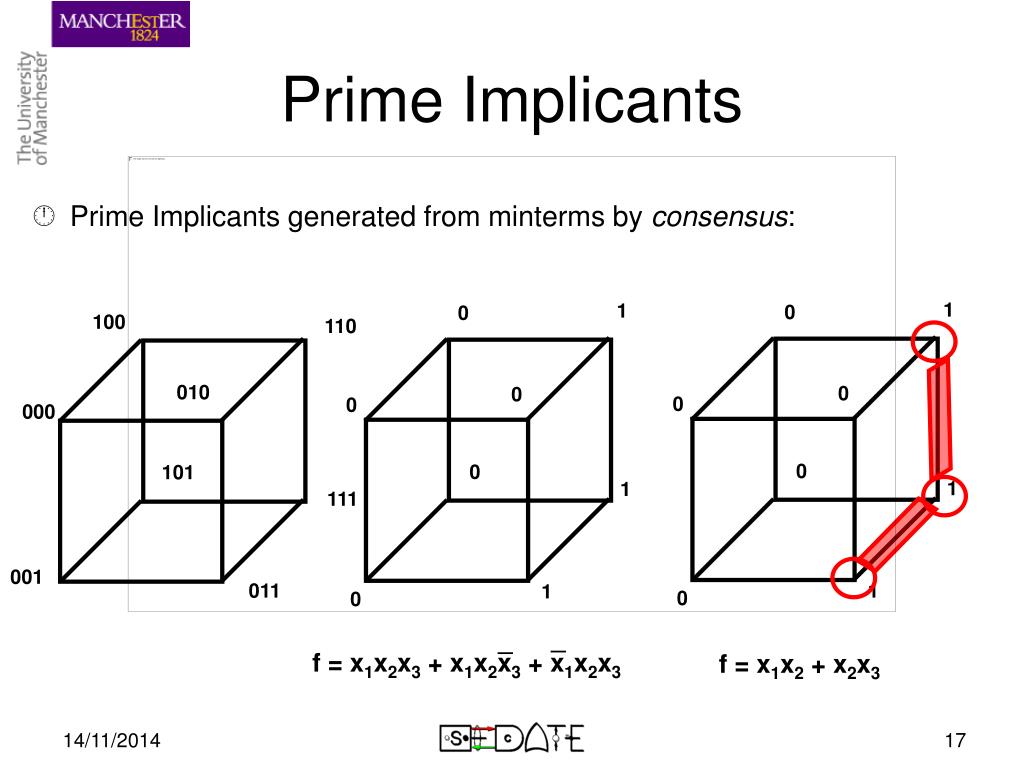

  • Prime Implicants generated from minterms by consensus:

f = x1x2 + x2x3


Prime implicants2
Prime Implicants

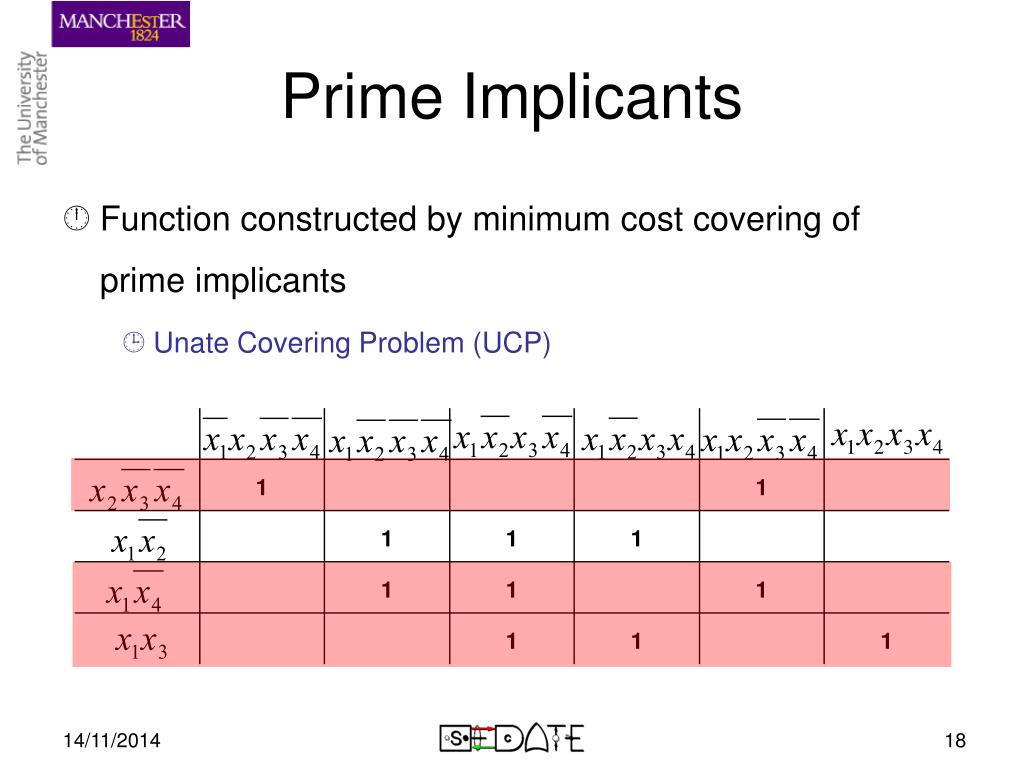

  • Function constructed by minimum cost covering of prime implicants

    • Unate Covering Problem (UCP)


Optimisation of indicating logic

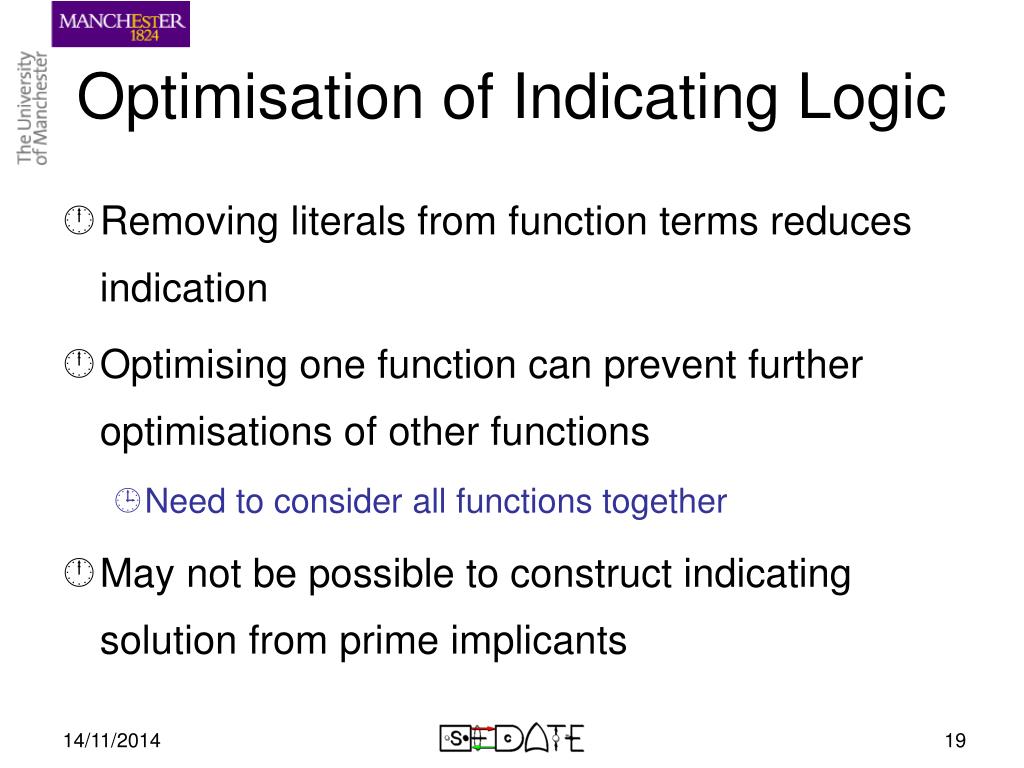

Optimisation of Indicating Logic

  • Removing literals from function terms reduces indication

  • Optimising one function can prevent further optimisations of other functions

    • Need to consider all functions together

  • May not be possible to construct indicating solution from prime implicants


Optimisation of indicating logic1
Optimisation of Indicating Logic

  • Two phase approach:

  • Construct minimum cost indicating cover for each function

  • Determine un-indicated input transitions and reduce existing function terms to cover them


Indicant
Indicant

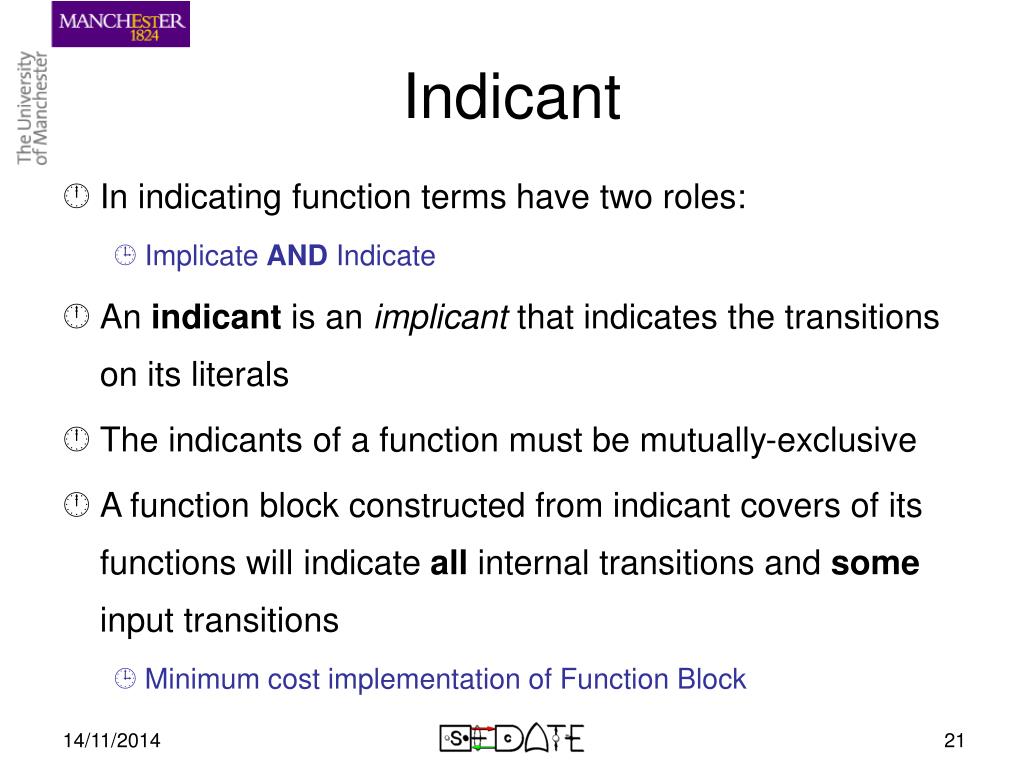

  • In indicating function terms have two roles:

    • Implicate AND Indicate

  • An indicant is an implicant that indicates the transitions on its literals

  • The indicants of a function must be mutually-exclusive

  • A function block constructed from indicant covers of its functions will indicate all internal transitions and some input transitions

    • Minimum cost implementation of Function Block


Indicant cover
Indicant Cover

  • Construct the lowest cost mutually-exclusive cover for each function

  • Unate Covering Problem:

    • Determine prime implicants of each function

    • Enumerate all the expanded implicants

    • Determine non-overlapping cover


Unindicated inputs

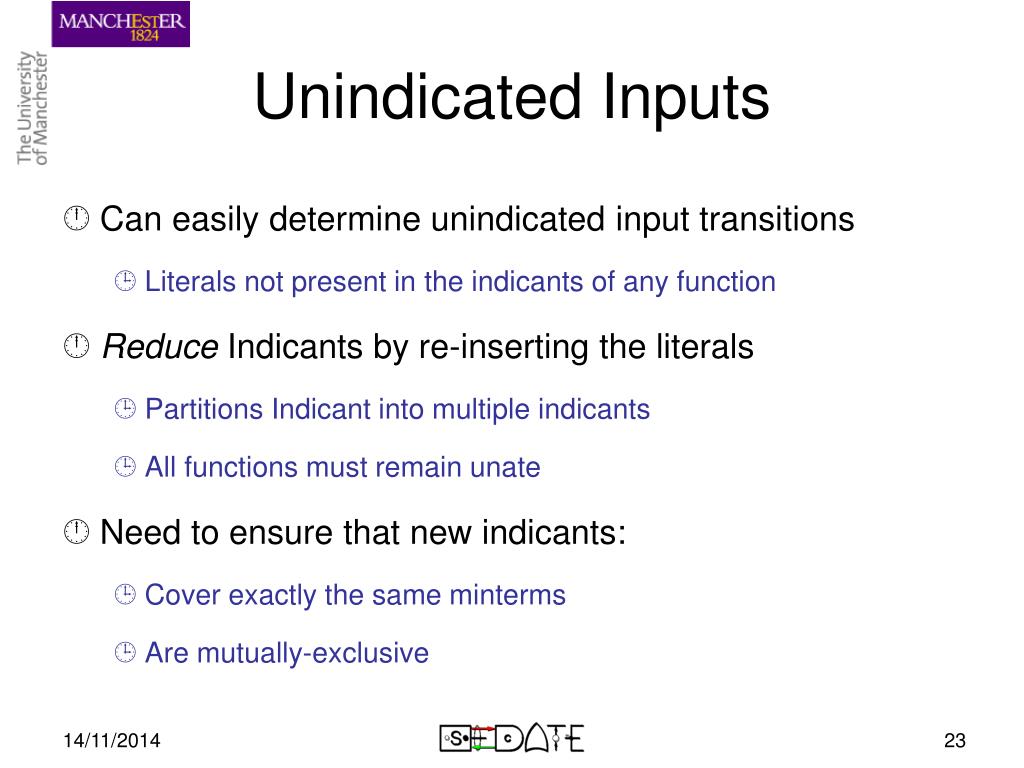

Unindicated Inputs

  • Can easily determine unindicated input transitions

    • Literals not present in the indicants of any function

  • Reduce Indicants by re-inserting the literals

    • Partitions Indicant into multiple indicants

    • All functions must remain unate

  • Need to ensure that new indicants:

    • Cover exactly the same minterms

    • Are mutually-exclusive


Unindicated literals
Unindicated Literals

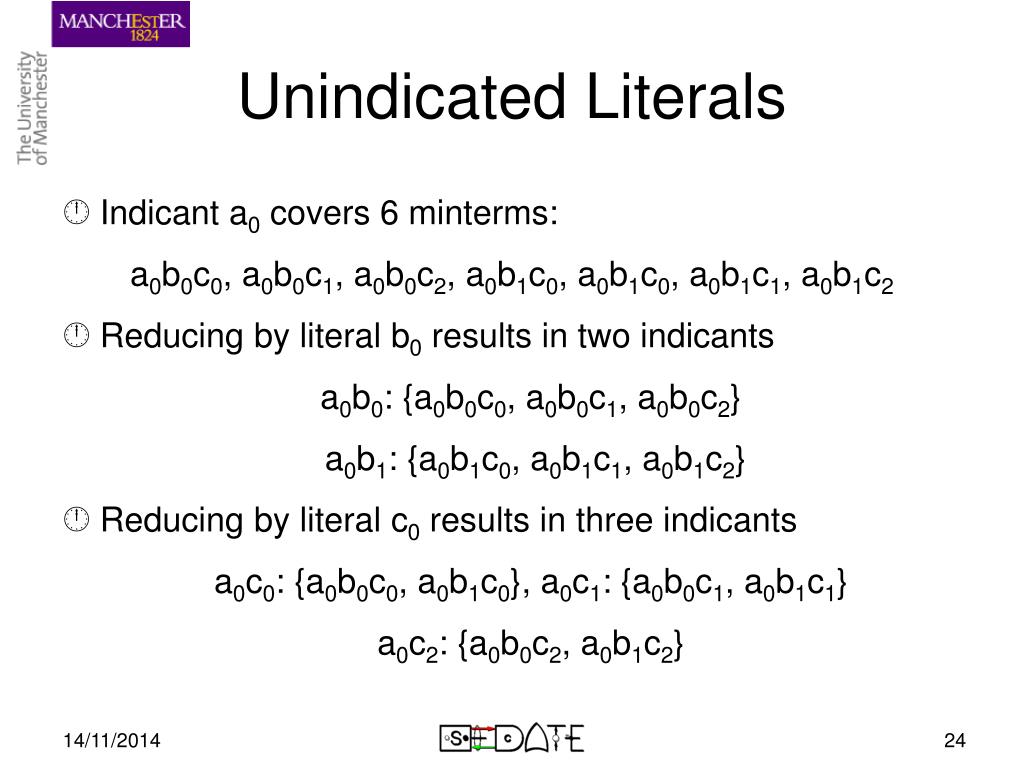

  • Indicant a0 covers 6 minterms:

    a0b0c0, a0b0c1, a0b0c2, a0b1c0, a0b1c0, a0b1c1, a0b1c2

  • Reducing by literal b0 results in two indicants

    a0b0: {a0b0c0, a0b0c1, a0b0c2}

    a0b1: {a0b1c0, a0b1c1, a0b1c2}

  • Reducing by literal c0 results in three indicants

    a0c0: {a0b0c0, a0b1c0}, a0c1: {a0b0c1, a0b1c1}

    a0c2: {a0b0c2, a0b1c2}


Unindicated literals1
Unindicated Literals

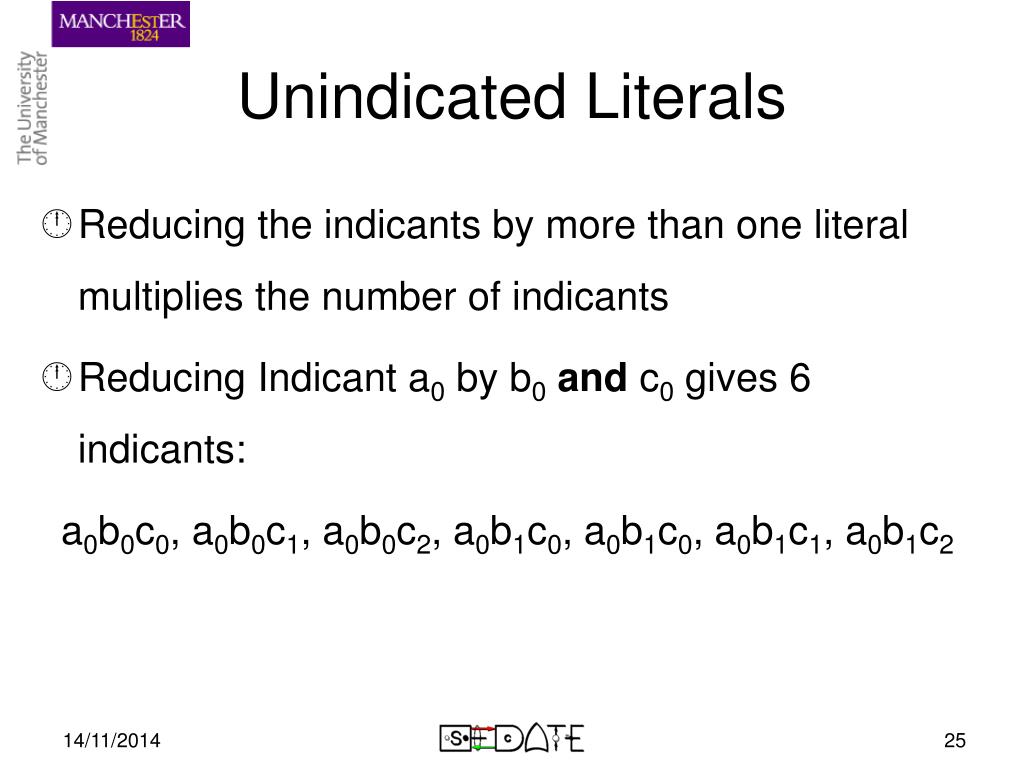

  • Reducing the indicants by more than one literal multiplies the number of indicants

  • Reducing Indicant a0 by b0and c0 gives 6 indicants:

    a0b0c0, a0b0c1, a0b0c2, a0b1c0, a0b1c0, a0b1c1, a0b1c2


Unindicated literals2
Unindicated Literals

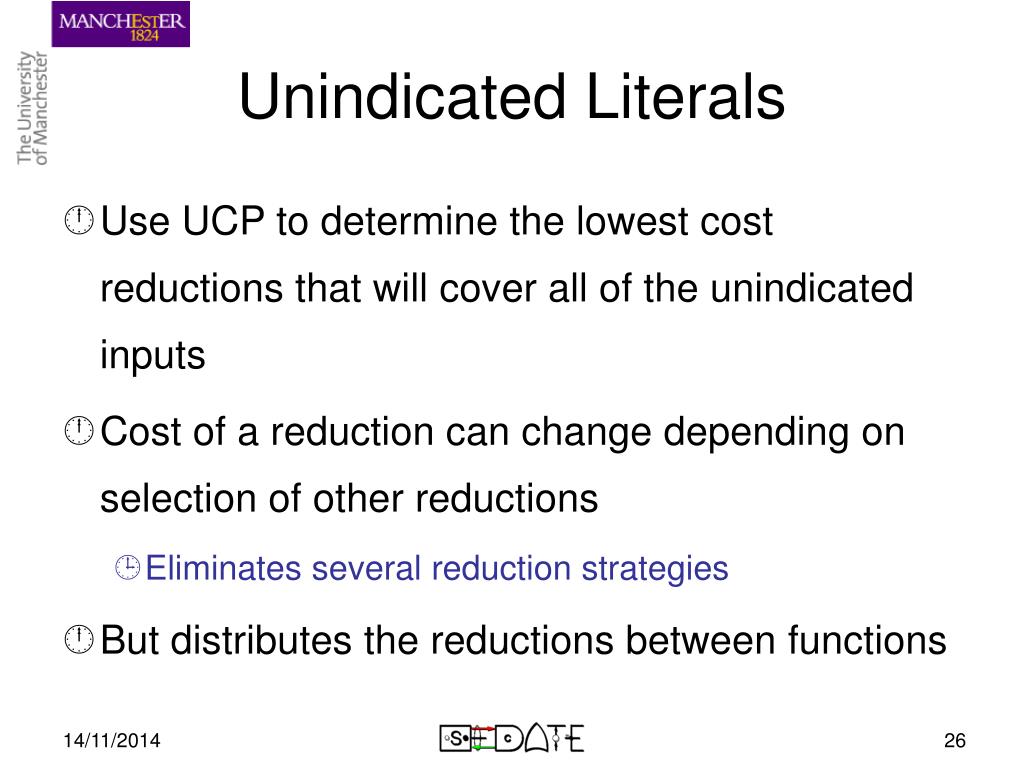

  • Use UCP to determine the lowest cost reductions that will cover all of the unindicated inputs

  • Cost of a reduction can change depending on selection of other reductions

    • Eliminates several reduction strategies

  • But distributes the reductions between functions


Offset optimisation

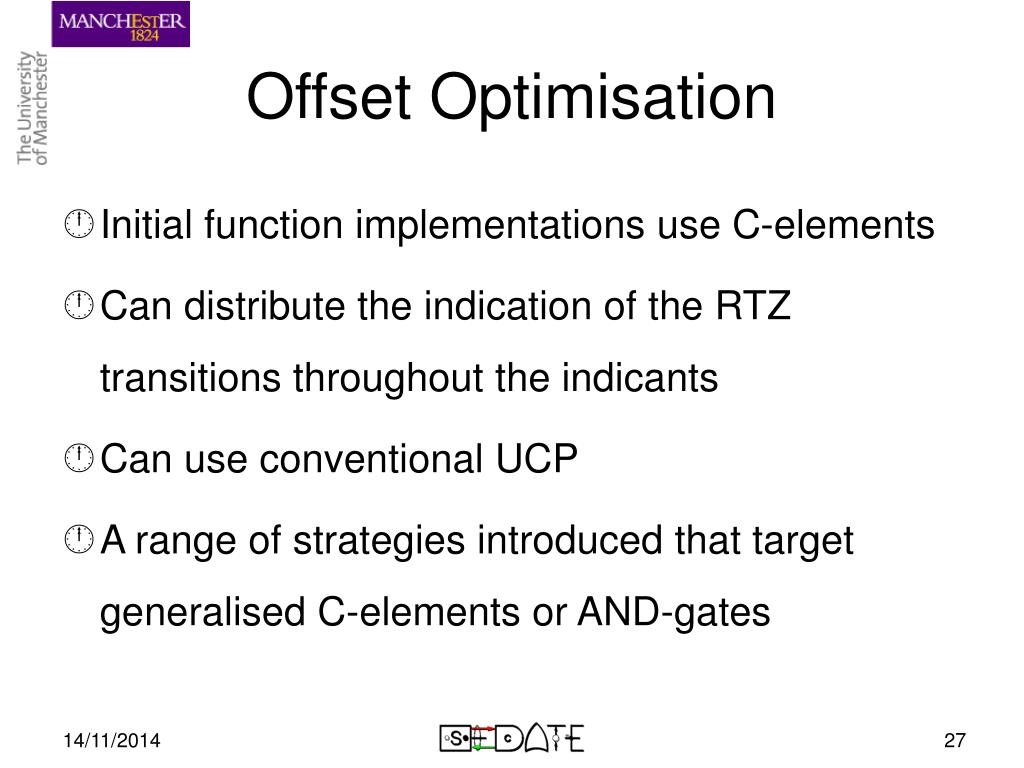

Offset Optimisation

  • Initial function implementations use C-elements

  • Can distribute the indication of the RTZ transitions throughout the indicants

  • Can use conventional UCP

  • A range of strategies introduced that target generalised C-elements or AND-gates


Results
Results

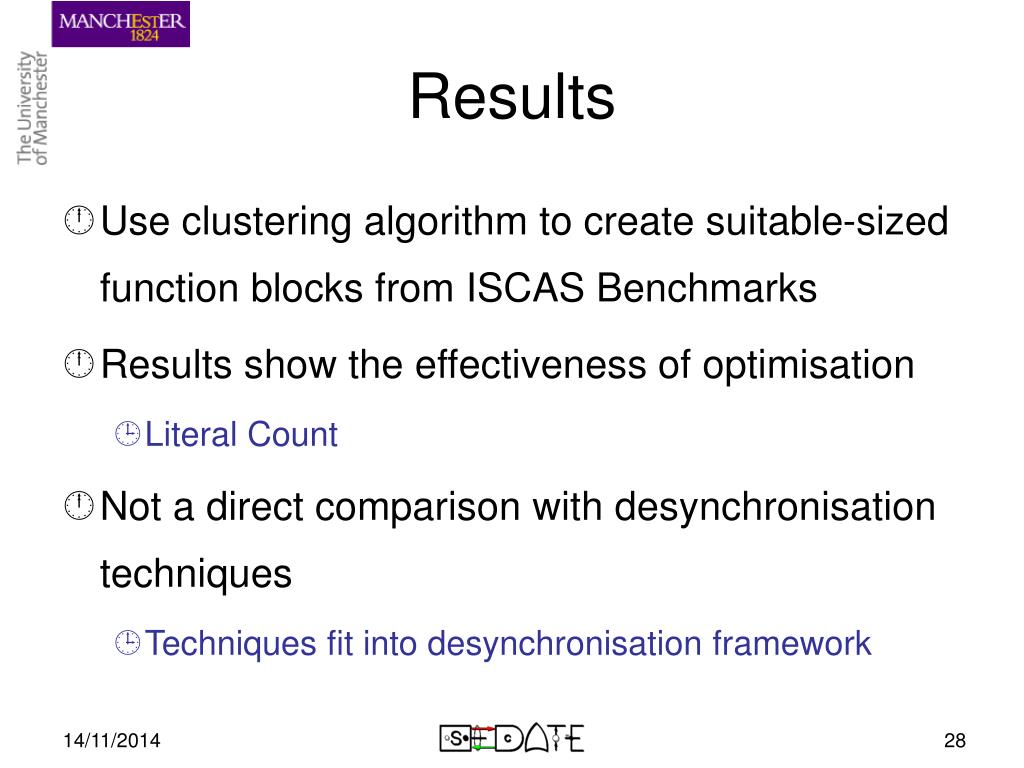

  • Use clustering algorithm to create suitable-sized function blocks from ISCAS Benchmarks

  • Results show the effectiveness of optimisation

    • Literal Count

  • Not a direct comparison with desynchronisation techniques

    • Techniques fit into desynchronisation framework


Results1

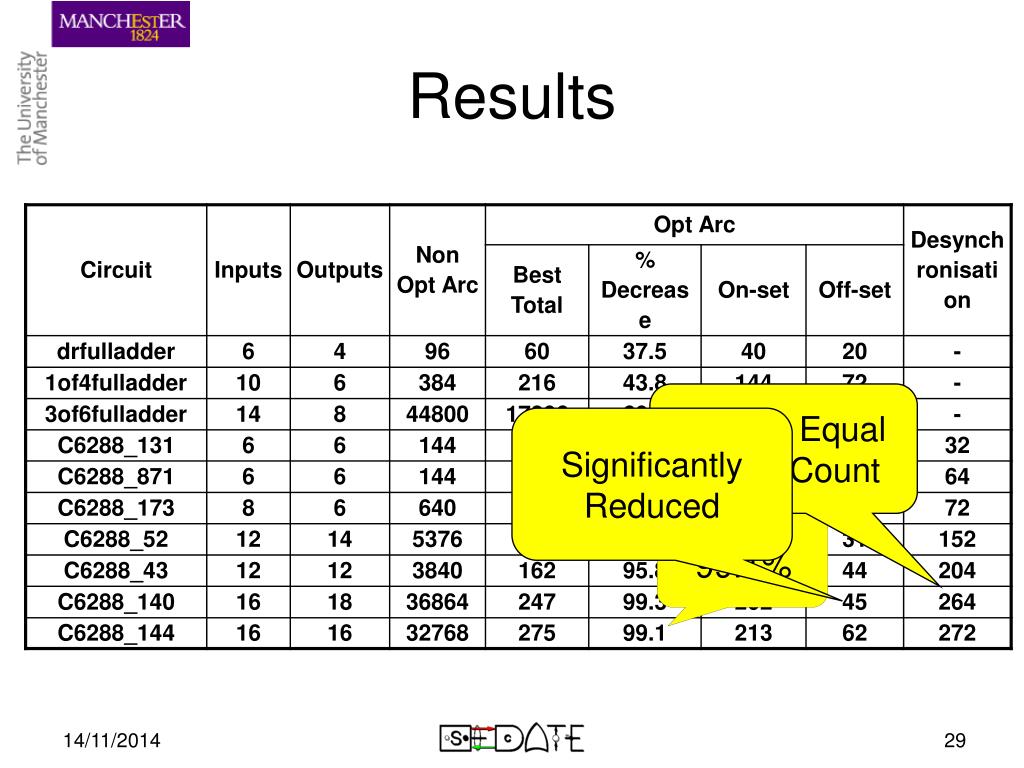

99.1%

Results

Approx Equal Literal Count

Significantly Reduced


Summary
Summary

  • Developed new technique to synthesis arbitrarily encoded indicating function blocks

  • Large reduction in literal count over initial specification

  • Can be employed within desynchronisation framework


Verdad
VERDAD

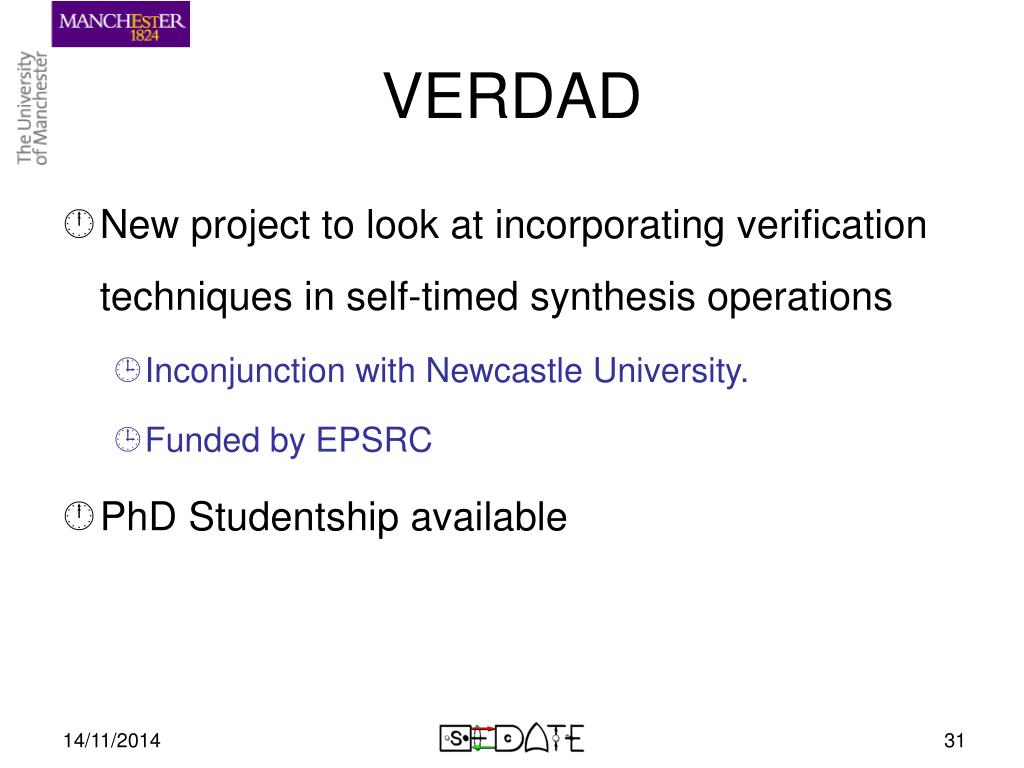

  • New project to look at incorporating verification techniques in self-timed synthesis operations

    • Inconjunction with Newcastle University.

    • Funded by EPSRC

  • PhD Studentship available
