IPhone Accessory By: Michael Wiener

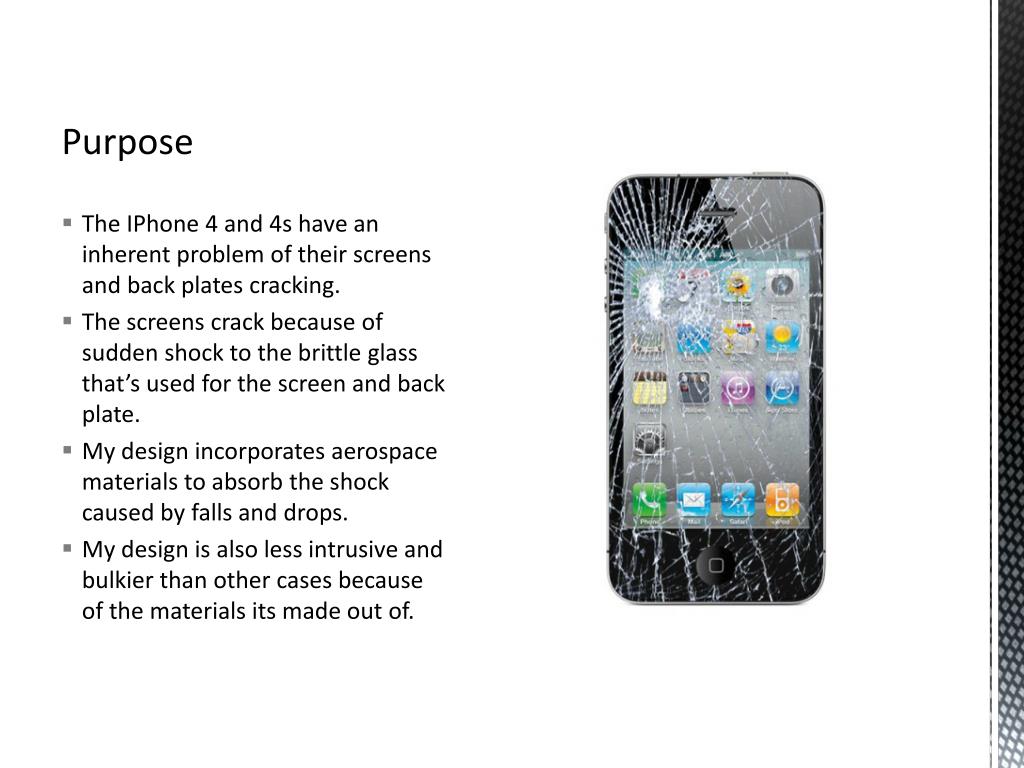

Purpose • The IPhone 4 and 4s have an inherent problem of their screens and back plates cracking. • The screens crack because of sudden shock to the brittle glass that’s used for the screen and back plate. • My design incorporates aerospace materials to absorb the shock caused by falls and drops. • My design is also less intrusive and bulkier than other cases because of the materials its made out of.
Design • The design of my case is meant to be as intrusive as possible. Adding only 4 ± 2 thousandths of an inch to the overall thickness of the iPhone. • This design is accomplished by the use of aerospace materials and a lamination process to the phone.
Materials • The main material of the case is carbon fiber that has been cured into very thin sheets. • A very thin sheet of Lexan is also added to cover the screen to protect it from scratches and sudden shock that may cause cracking. • A rubber adhesive is applied between the carbon fiber plates that cover the glass to attach them and still be removable.

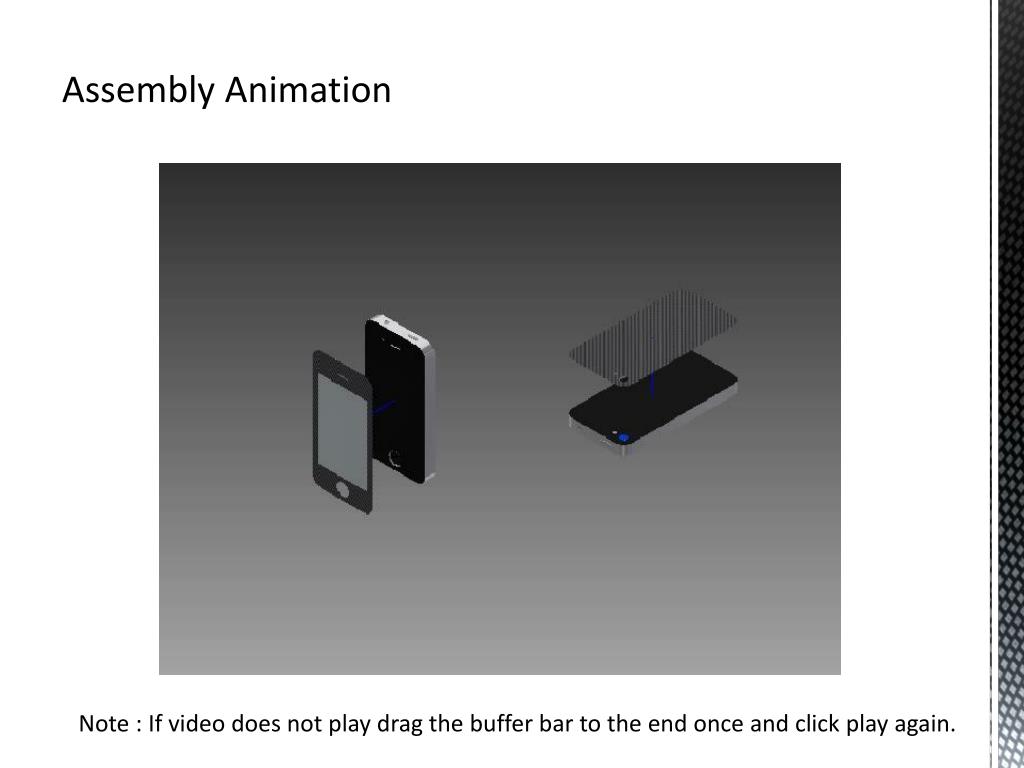

Assembly Animation Note : If video does not play drag the buffer bar to the end once and click play again.
