Presentation Transcript






  • Definition
  • WHO in 1986
    • Rehabilitation implies the restoration of patients to the highest level of physical, psychological and social adaptation attainable. It includes all measures aimed at reducing the impact of disabling and handicapping conditions and a enabling disables people to achieve optimum social integration
physical rehabilitation
Physical Rehabilitation
  • Aim
    • restore the patients function by all measures and to reduce the impact of physical diseases
what guide the physical treatment

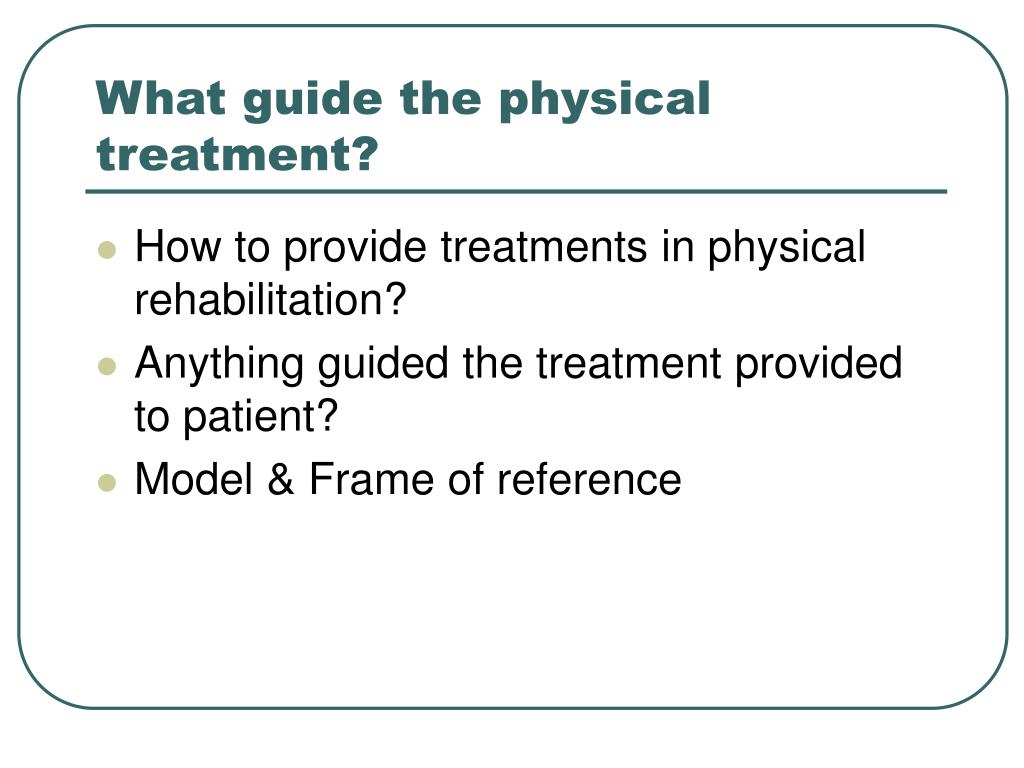

What guide the physical treatment?
  • How to provide treatments in physical rehabilitation?
  • Anything guided the treatment provided to patient?
  • Model & Frame of reference

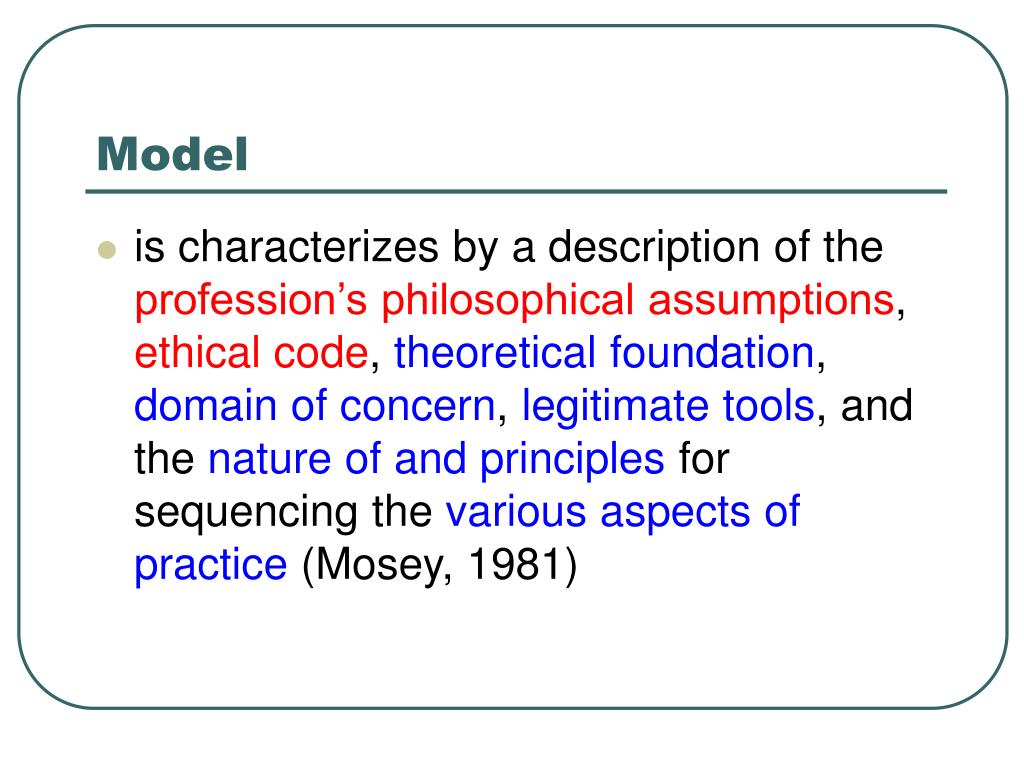

  • is characterizes by a description of the profession’s philosophical assumptions, ethical code, theoretical foundation, domain of concern, legitimate tools, and the nature of and principles for sequencing the various aspects of practice (Mosey, 1981)
frame of reference

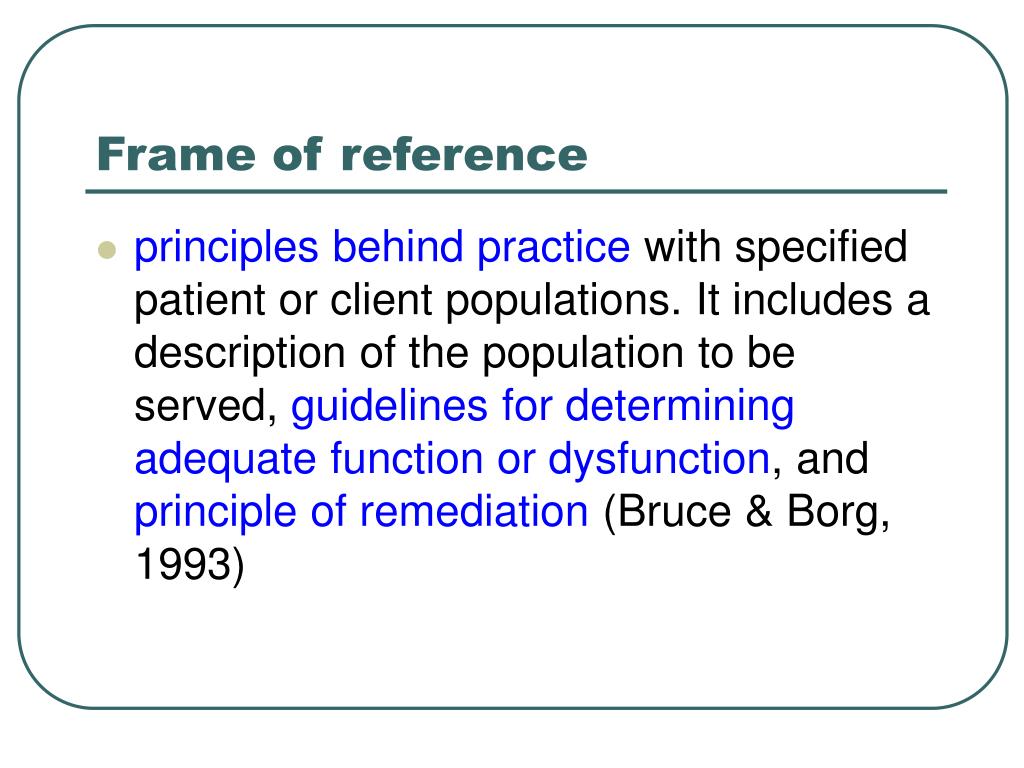

Frame of reference
  • principles behind practice with specified patient or client populations. It includes a description of the population to be served, guidelines for determining adequate function or dysfunction, and principle of remediation (Bruce & Borg, 1993)
model frame of reference and approaches

A profession model

e.g. Medical model, Model of Occupational Performance, etc

Frame of Reference

e.g. Behavior frame of reference, Cognitive-behavioral frame of reference, Biomechanical frame of reference, etc.


e.g. Biomechanical approach,

Rood approach, NDT approach, etc.

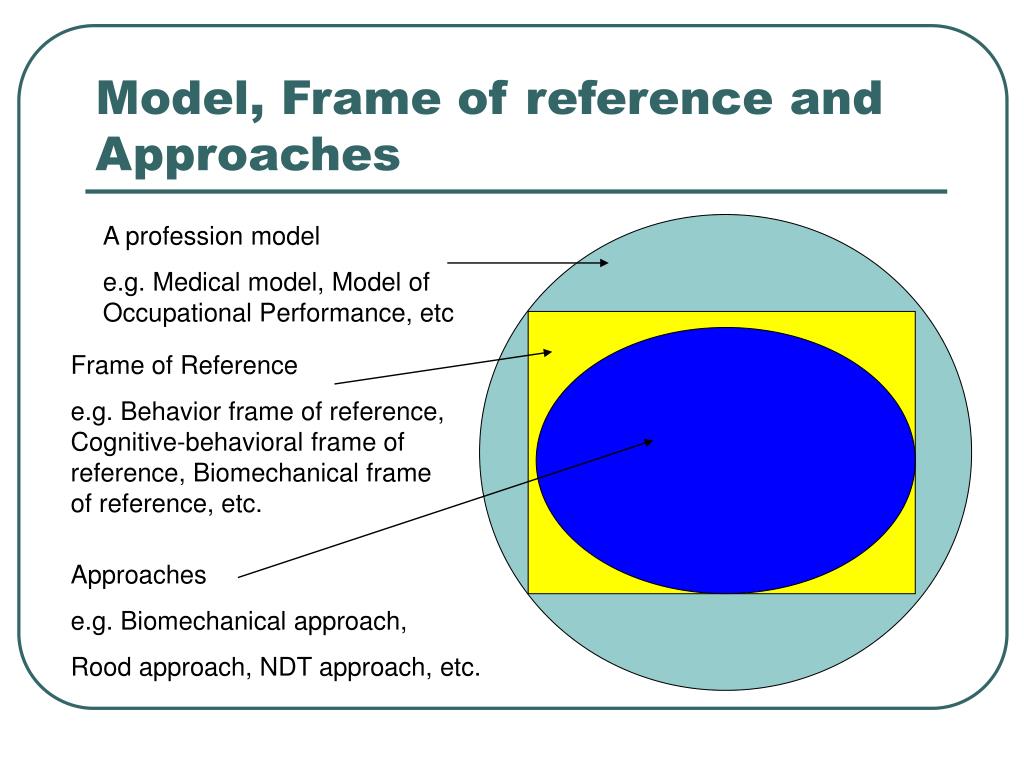

Model, Frame of reference and Approaches
model of occupational performance

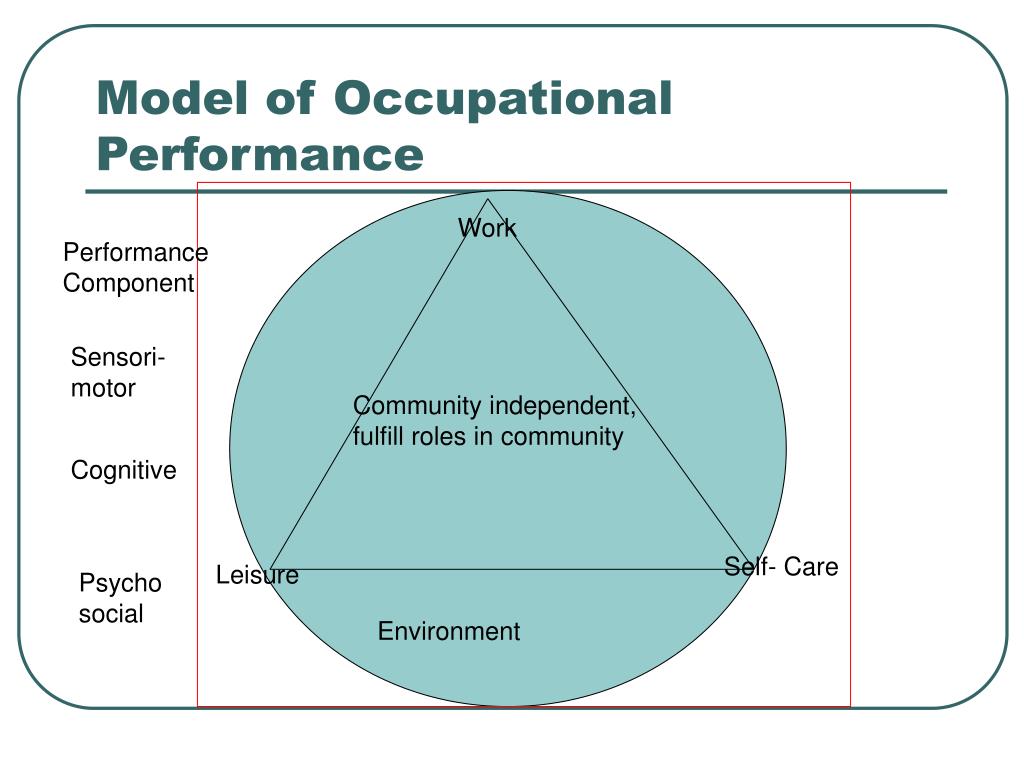

Model of Occupational Performance


Performance Component


Community independent, fulfill roles in community


Self- Care




treatment process
Treatment Process
  • Treatment provided to patients depends on:
    • What problems did the patients suffer?
    • What assets did patient have?

To obtain the answers, we need to conduct assessments

treatment process1
Treatment Process


Problem Identification

Goals Setting


Treatment Intervention

treatment continuum
Treatment Continuum



Leisure activities


Cognitive function

Psychosocial component

Occupational Performance

Purposeful Activities

Enabling Activities

Adjunctive methods

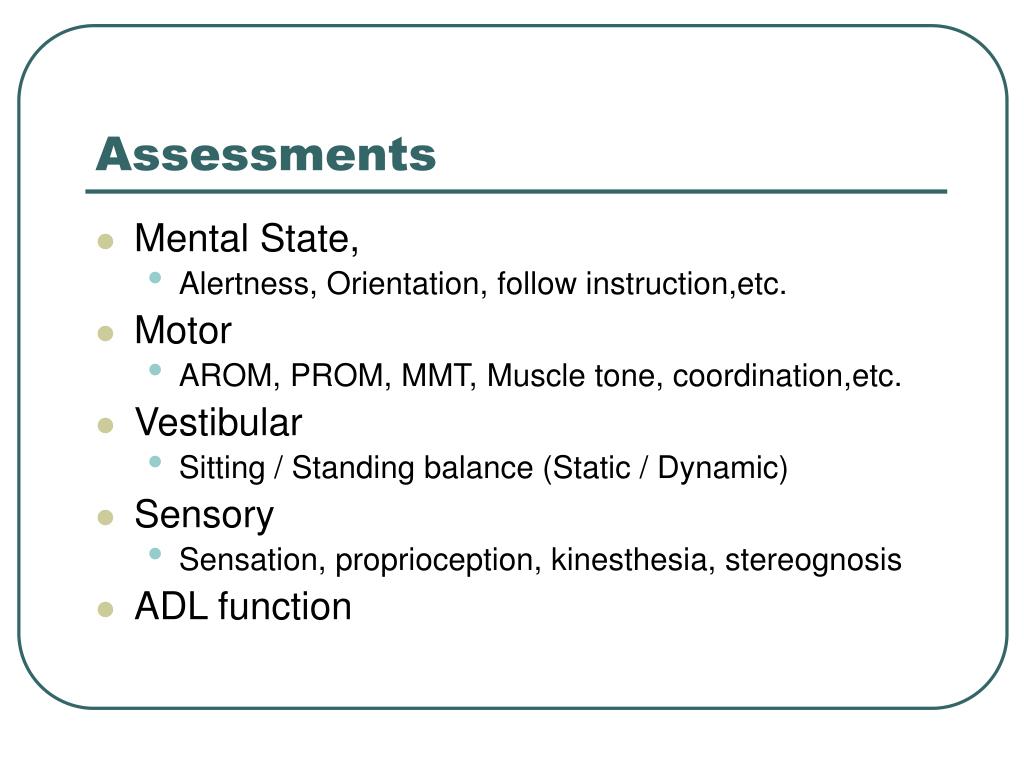

  • Mental State,
    • Alertness, Orientation, follow instruction,etc.
  • Motor
    • AROM, PROM, MMT, Muscle tone, coordination,etc.
  • Vestibular
    • Sitting / Standing balance (Static / Dynamic)
  • Sensory
    • Sensation, proprioception, kinesthesia, stereognosis
  • ADL function
treatment approaches
Treatment Approaches
  • Biomechanical approach
  • Sensory-motor approach
  • Rehabilitative approach
biomechanical approach

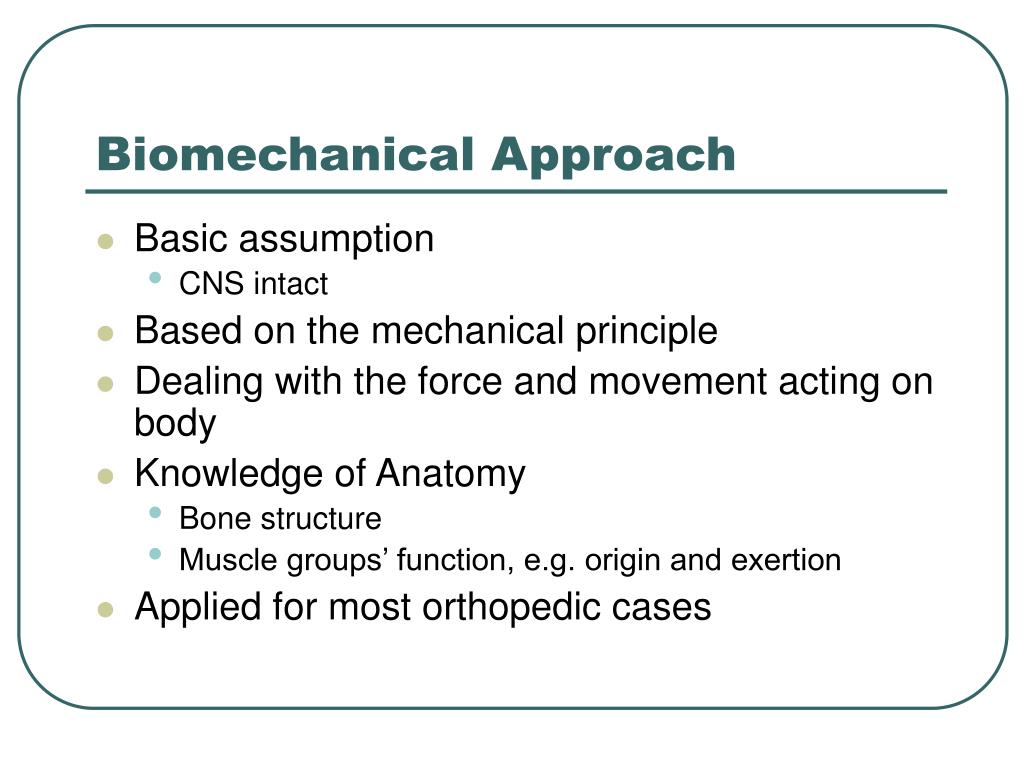

Biomechanical Approach
  • Basic assumption
    • CNS intact
  • Based on the mechanical principle
  • Dealing with the force and movement acting on body
  • Knowledge of Anatomy
    • Bone structure
    • Muscle groups’ function, e.g. origin and exertion
  • Applied for most orthopedic cases
sensory motor approach

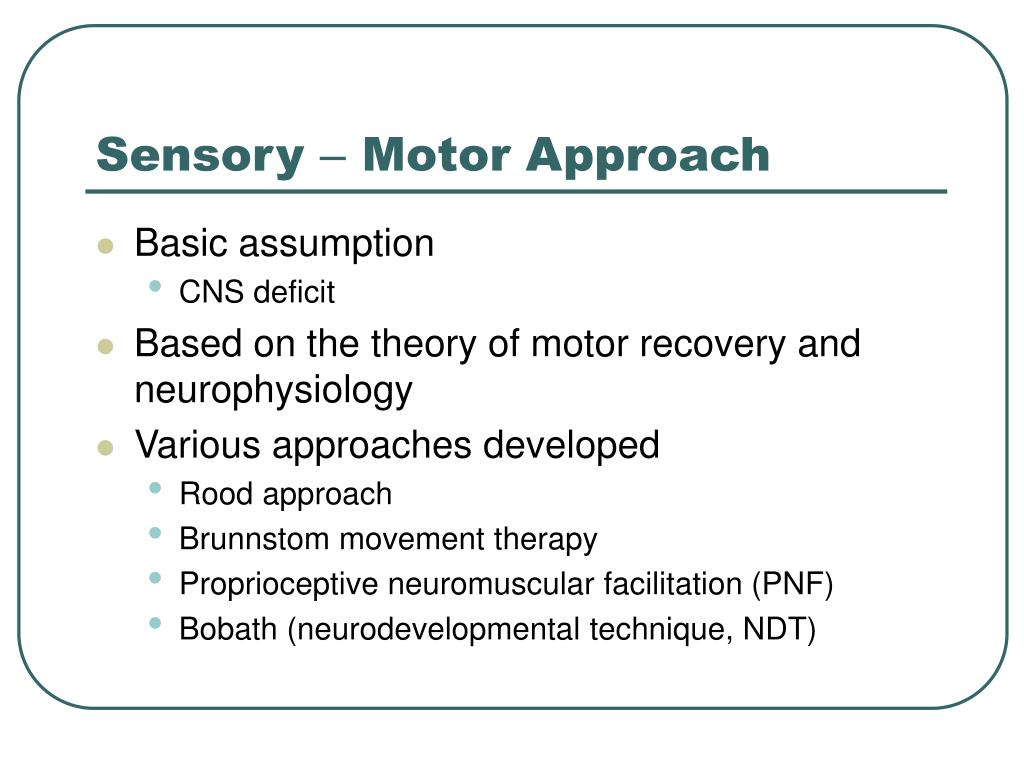

Sensory – Motor Approach
  • Basic assumption
    • CNS deficit
  • Based on the theory of motor recovery and neurophysiology
  • Various approaches developed
    • Rood approach
    • Brunnstom movement therapy
    • Proprioceptive neuromuscular facilitation (PNF)
    • Bobath (neurodevelopmental technique, NDT)
rood approach principle of treatment rood 1956

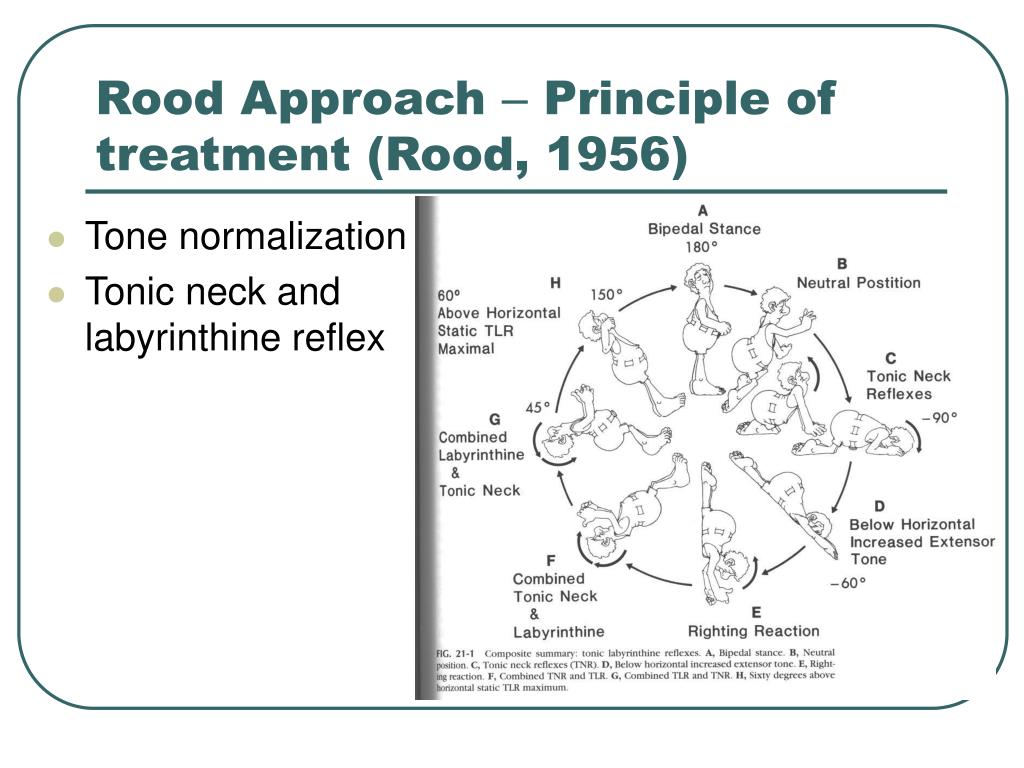

Rood Approach – Principle of treatment (Rood, 1956)
  • Tone normalization
  • Tonic neck and labyrinthine reflex
rood approach principle of treatment
Rood Approach – Principle of treatment
  • Ontogenetic motor pattern
    • Supine withdrawal (Supine Flexion)
    • Rollover (Side lying)
    • Pivot Prone (Prone extension)
    • Neck co-contraction (Co-innervations)
    • On elbow (Prone on elbow)
    • All Fours (Prone on 4 limbs)
    • Static Standing
rood approach special techniques used in treatment
Rood Approach – Special Techniques used in treatment
  • Light moving touch
  • Important for normal growth
    • Send input to limbic structure and increase the corticosteroid, which increase resistance against disease, tissue repair and fluid and electrolyte balance
rood approach special techniques used in treatment1

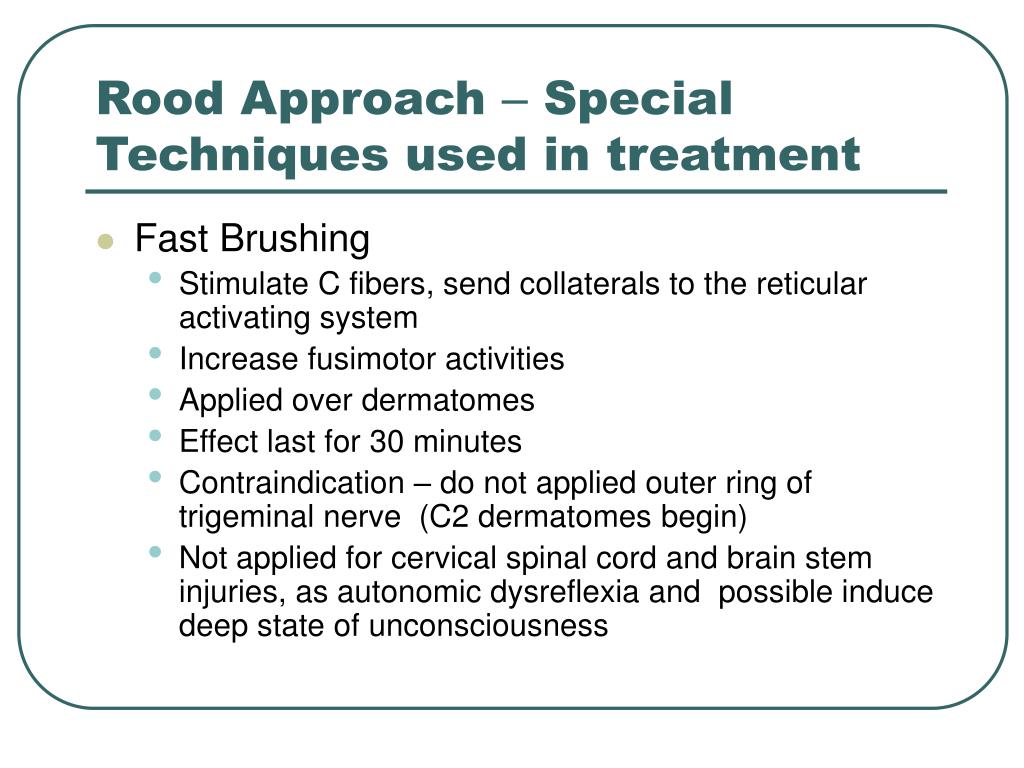

Rood Approach – Special Techniques used in treatment
  • Fast Brushing
    • Stimulate C fibers, send collaterals to the reticular activating system
    • Increase fusimotor activities
    • Applied over dermatomes
    • Effect last for 30 minutes
    • Contraindication – do not applied outer ring of trigeminal nerve (C2 dermatomes begin)
    • Not applied for cervical spinal cord and brain stem injuries, as autonomic dysreflexia and possible induce deep state of unconsciousness
rood approach special techniques used in treatment2

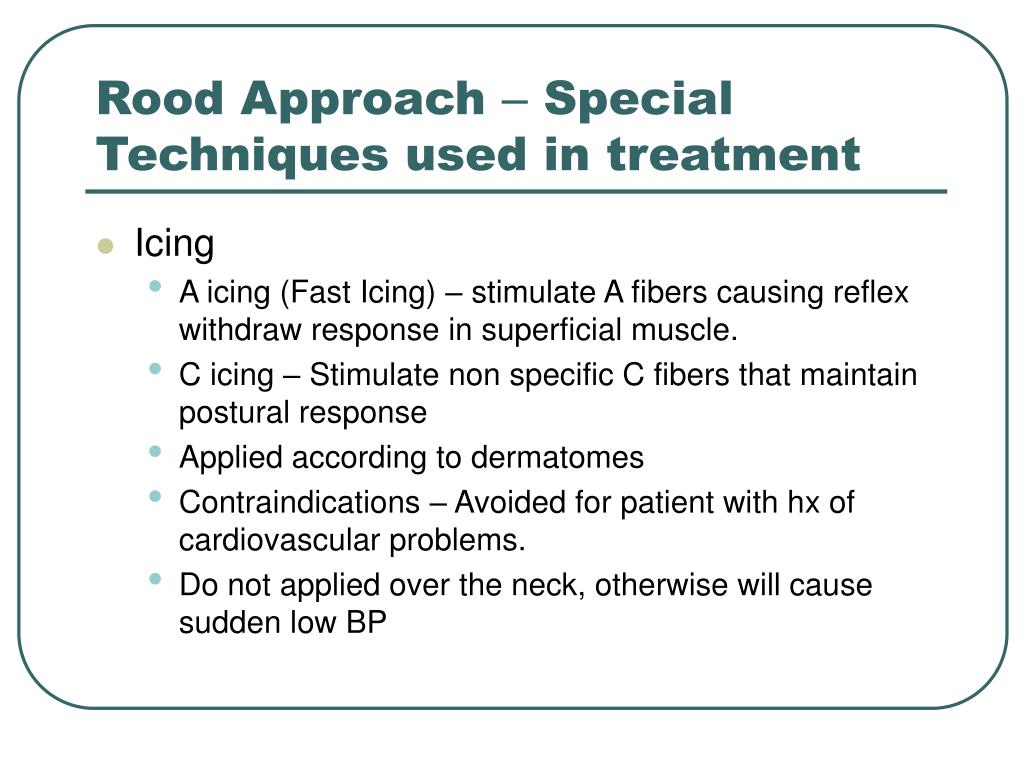

Rood Approach – Special Techniques used in treatment
  • Icing
    • A icing (Fast Icing) – stimulate A fibers causing reflex withdraw response in superficial muscle.
    • C icing – Stimulate non specific C fibers that maintain postural response
    • Applied according to dermatomes
    • Contraindications – Avoided for patient with hx of cardiovascular problems.
    • Do not applied over the neck, otherwise will cause sudden low BP
brunnstom movement therapy
Brunnstom movement therapy
  • By Signe Brunnstrom in 1970
  • Described stages of motor recovery
    • Flaccidity
    • Begin develop of spasticity
    • Spasticity increase, synergy pattern
    • Spasticity decrease, movement deviated from synergy pattern
    • Synergy no longer dominant
    • Spasticity absent except rapid movement, isolated joint movement
proprioceptive neuromuscular facilitation pnf
Proprioceptive neuromuscular facilitation (PNF)
  • All Human beings have potentials that are not fully developed
  • Normal motor development proceeds in a cervico-caudal and proximal –distal direction
  • Early motor behavior is dominated by reflex activity. Mature motor behavior is reinforced or supported by postural reflex
  • The growth of motor behavior has cyclic trends as evidenced by shifts between flexor and extensor
proprioceptive neuromuscular facilitation pnf1
Proprioceptive neuromuscular facilitation (PNF)
  • Goal-directed activity is made up of reversing movement
  • Normal movement and postural depend on synergism and a balance interaction of antagonists
  • Develop motor behavior is expressed in orderly sequence of total pattern of movement and postural
  • Normal of motor development has an orderly sequence but lacks a step by step quality
proprioceptive neuromuscular facilitation pnf2
Proprioceptive neuromuscular facilitation (PNF)
  • Improvement of motor ability depends on motor learning
  • Frequency of stimulation and repetition of activity are used for promotion and retention of motor learning and for development of strength and endurance
  • Goal-directed activities, coupled with facilitation are used to hasten learning of total pattern of walking and self-care
bobath neurodevelopmental technique ndt

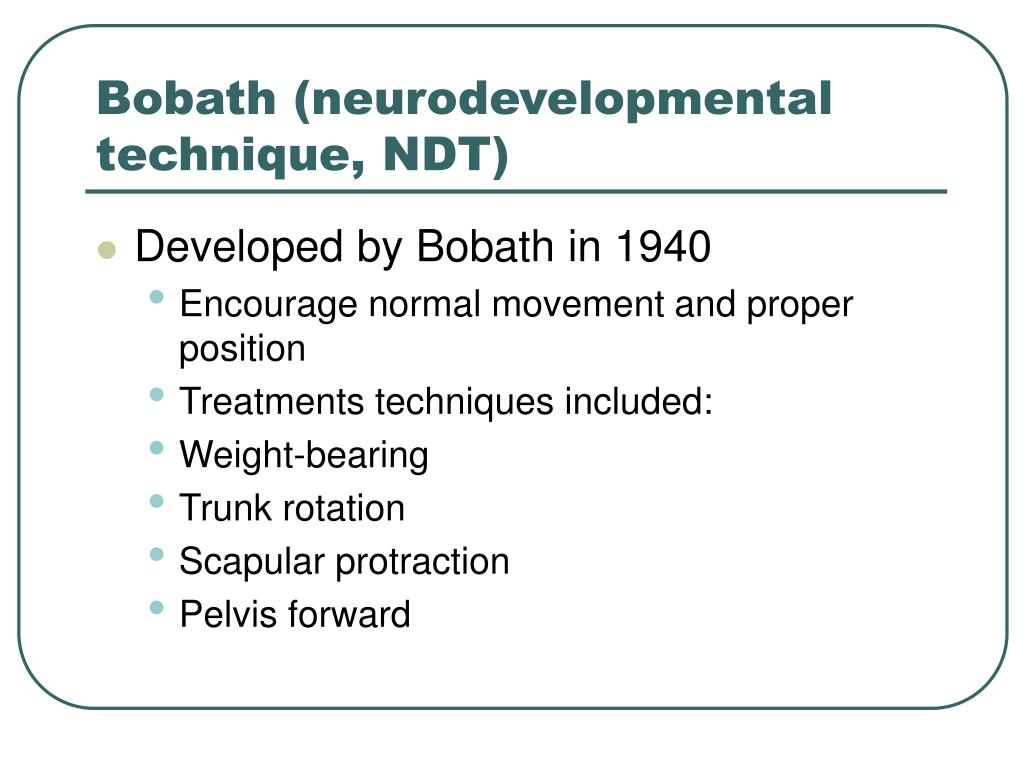

Bobath (neurodevelopmental technique, NDT)
  • Developed by Bobath in 1940
    • Encourage normal movement and proper position
    • Treatments techniques included:
    • Weight-bearing
    • Trunk rotation
    • Scapular protraction
    • Pelvis forward
rehabilitative approach
Rehabilitative Approach
  • Also know as compensation approach
  • Fully use of patient’s assets
  • By providing of aids to enhance function

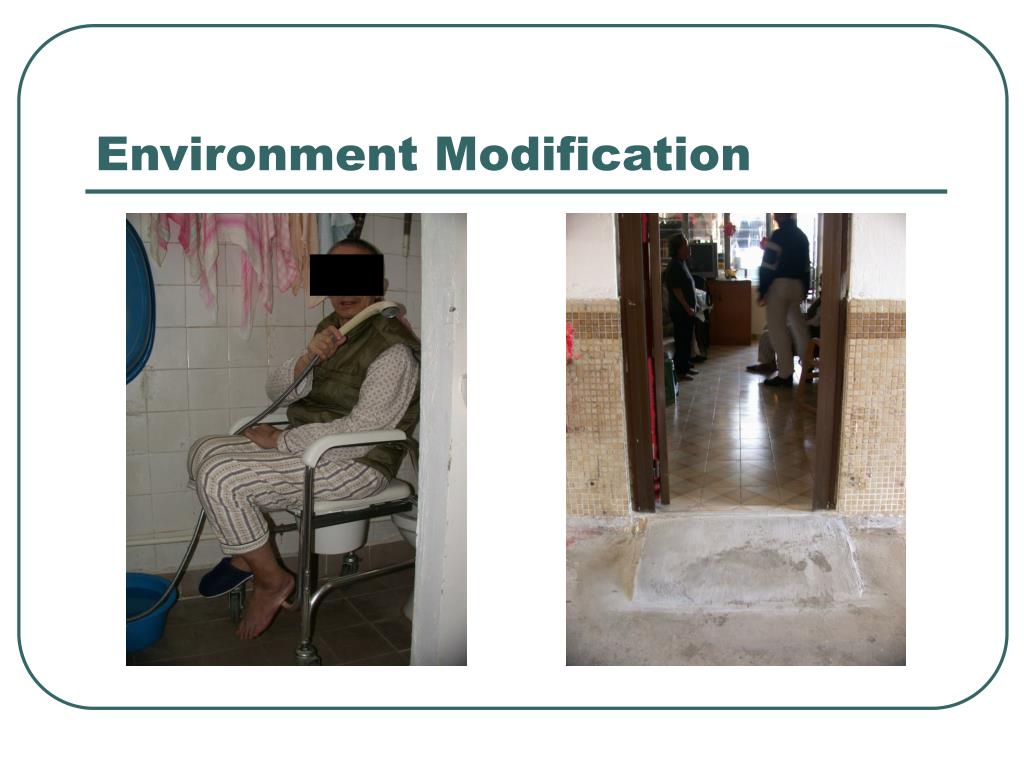

  • Adaptation of environments
treatment skills
Treatment skills
  • Remedial and Functional activities
  • Physical agent

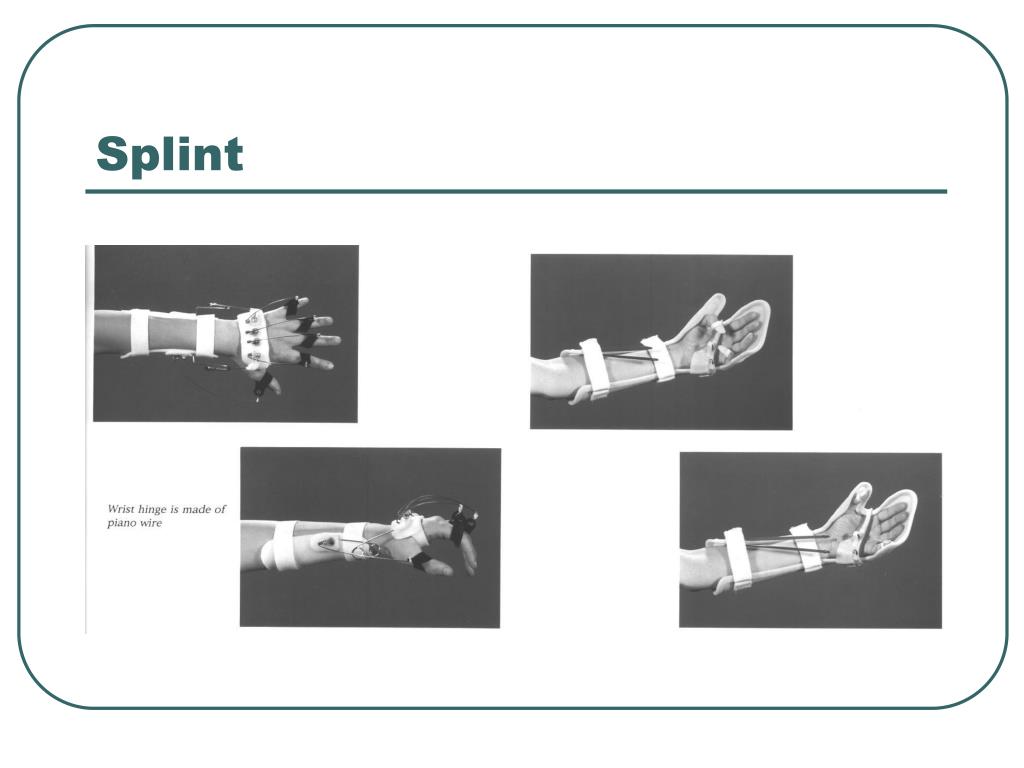

  • Splinting and pressure garment

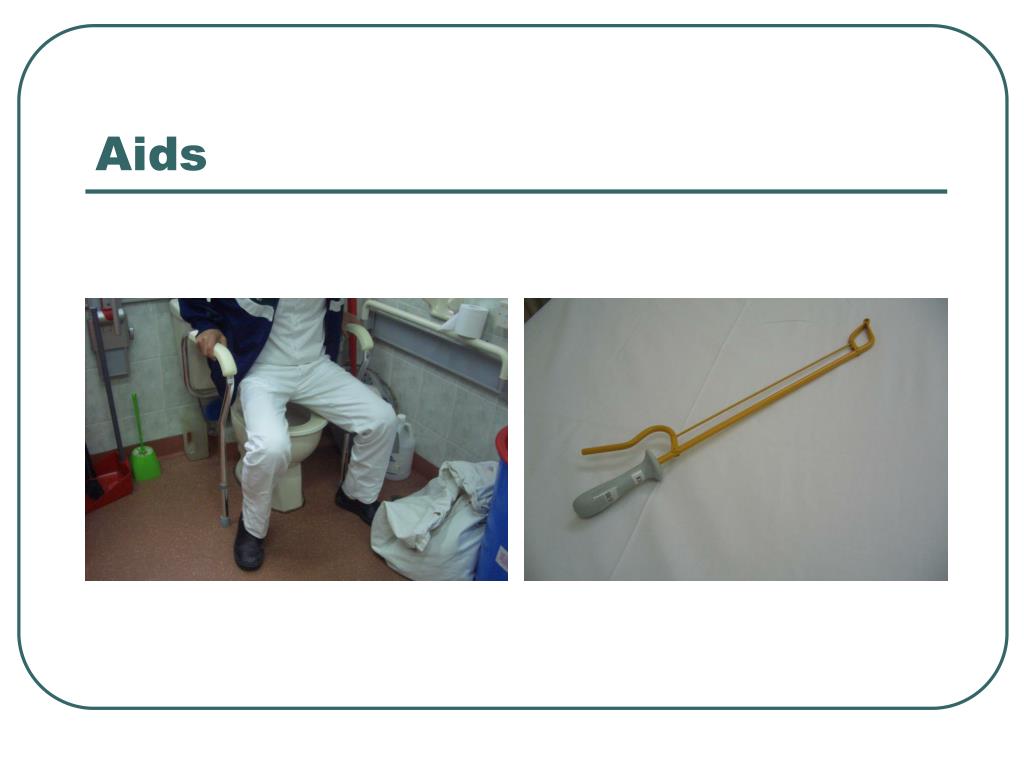

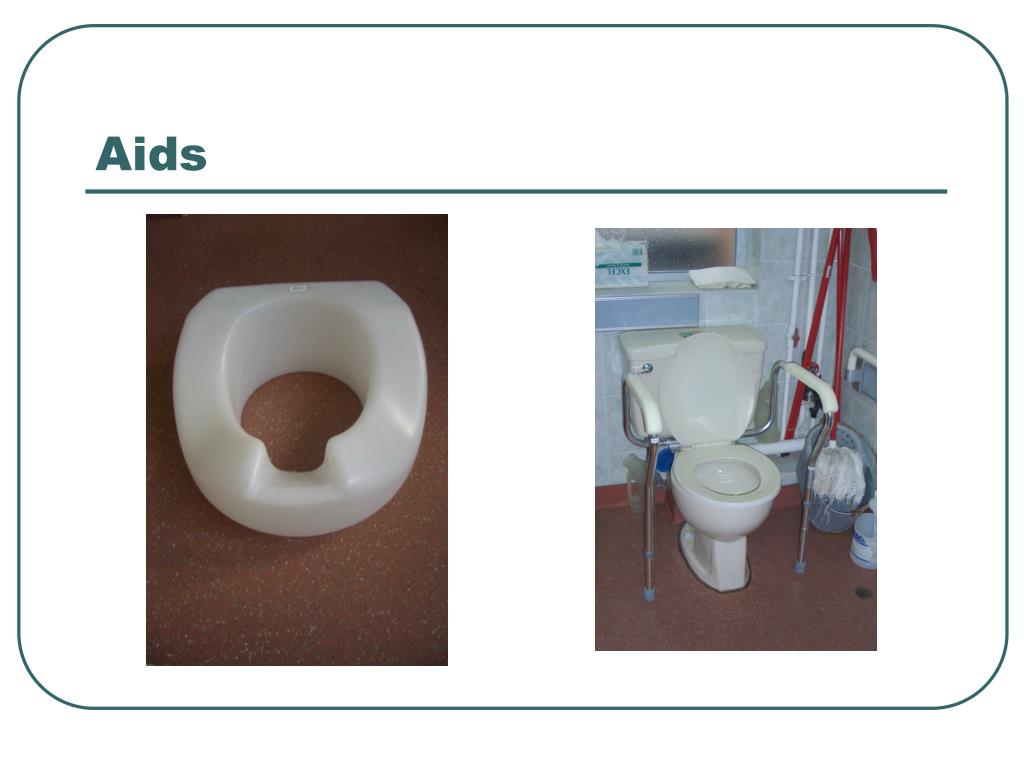

  • Aids and Environment adaptation
remedial activities

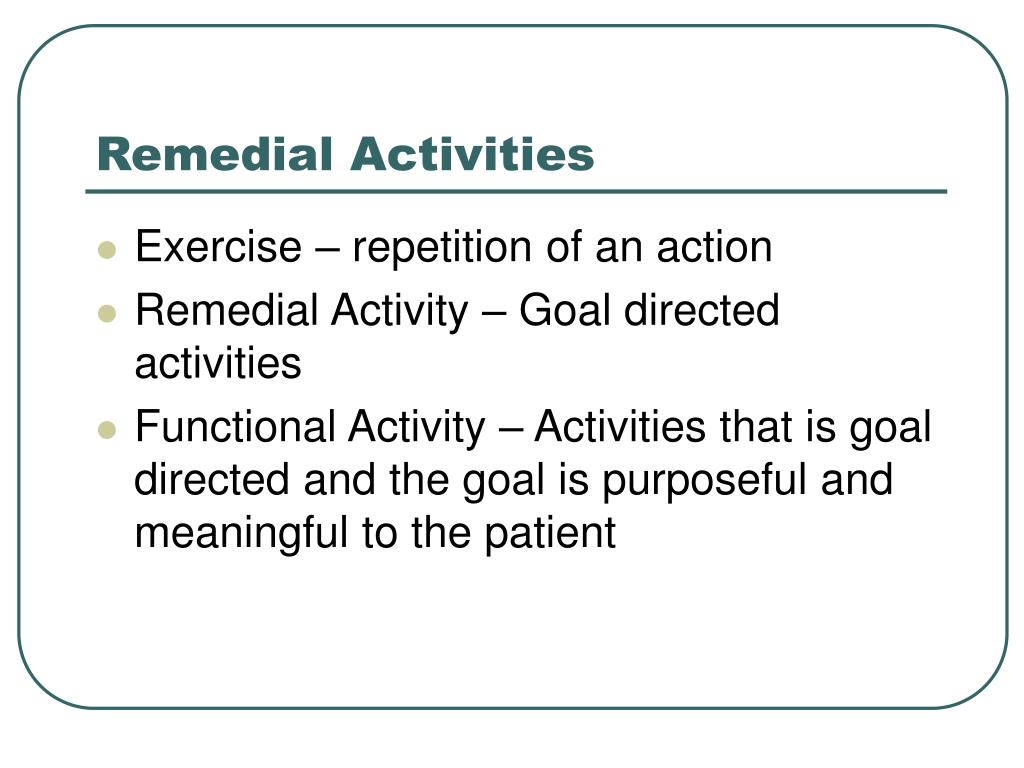

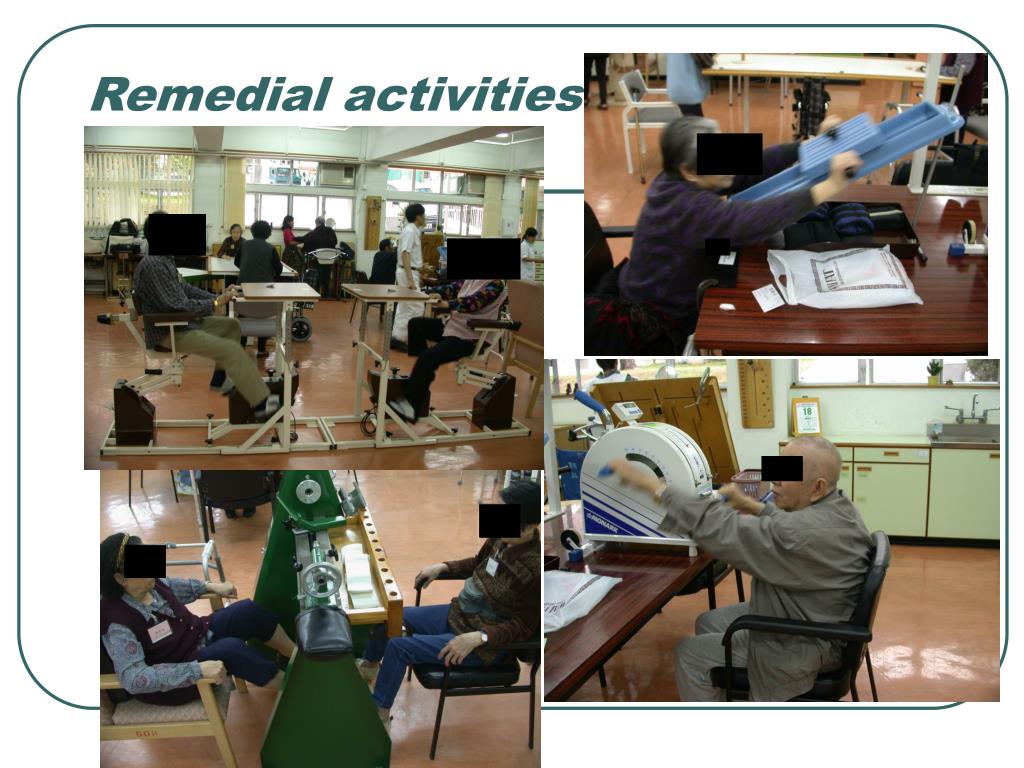

Remedial Activities
  • Exercise – repetition of an action
  • Remedial Activity – Goal directed activities

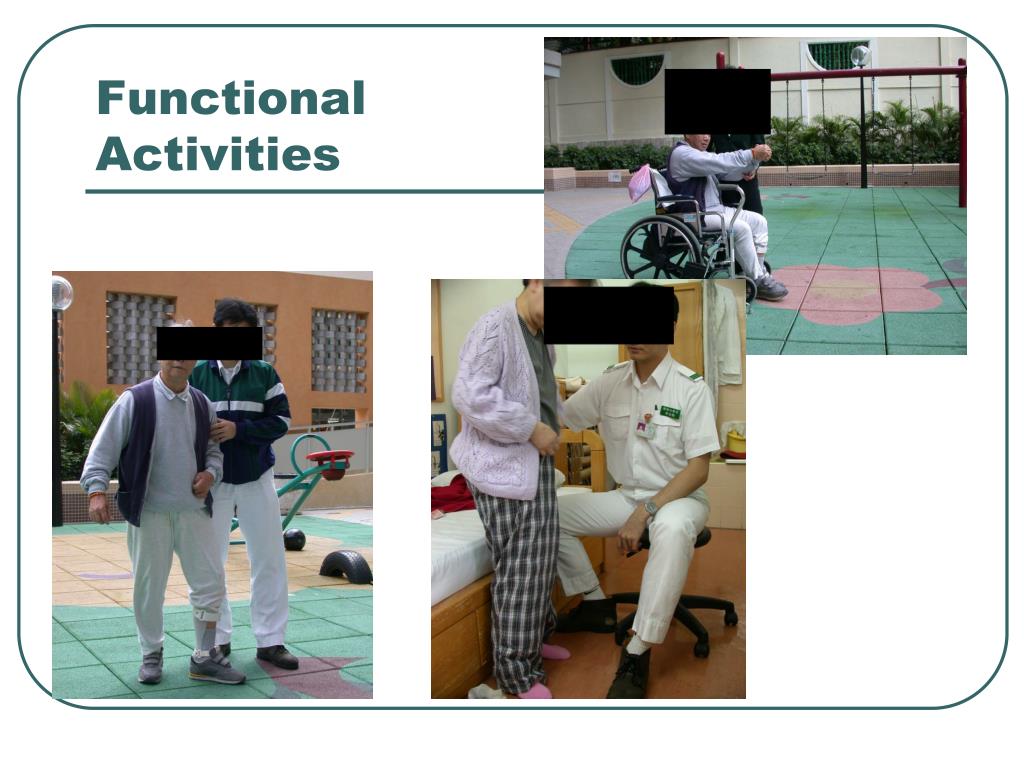

  • Functional Activity – Activities that is goal directed and the goal is purposeful and meaningful to the patient
physical agent

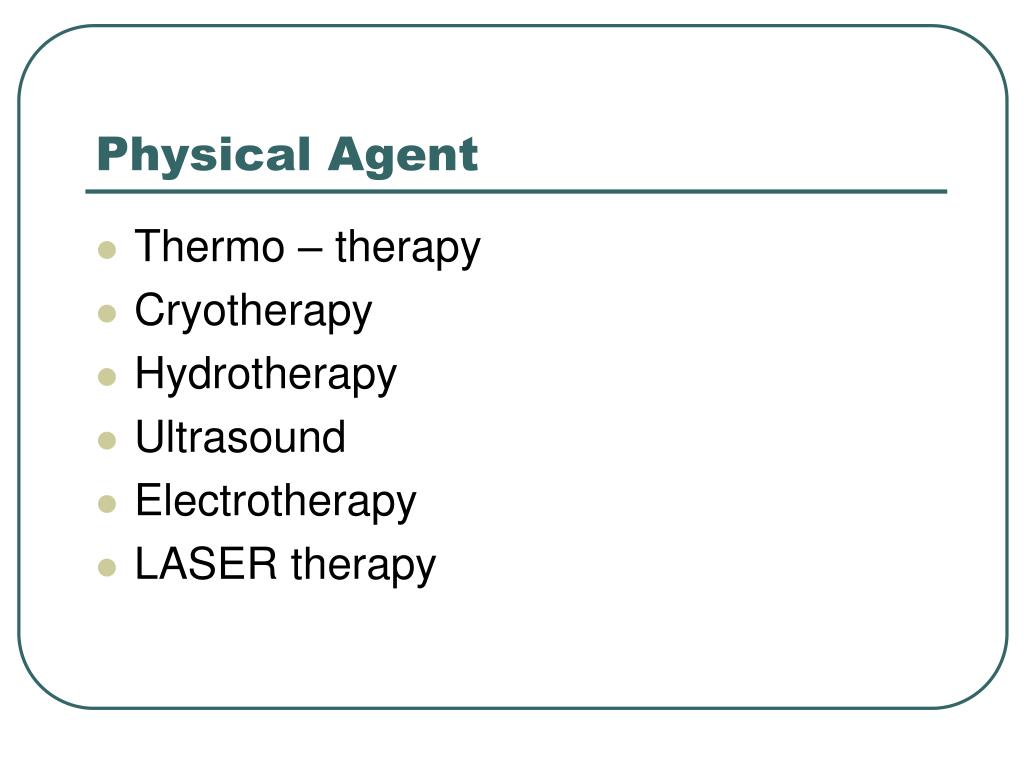

Physical Agent
  • Thermo – therapy
  • Cryotherapy
  • Hydrotherapy
  • Ultrasound
  • Electrotherapy
  • LASER therapy


Thank You
