LAN/WAN Optimization TechniquesChp.1~Chp.4

Harrell J. Van Norman

Presented by Shaun Chang


Outline l.jpg

Outline

  • Networks

    • Local-Area Networks (LANs)

    • Wide-Area Networks (WANs)

  • Network Design

  • Network Engineering Process

  • Network Design Tools


Networks l.jpg

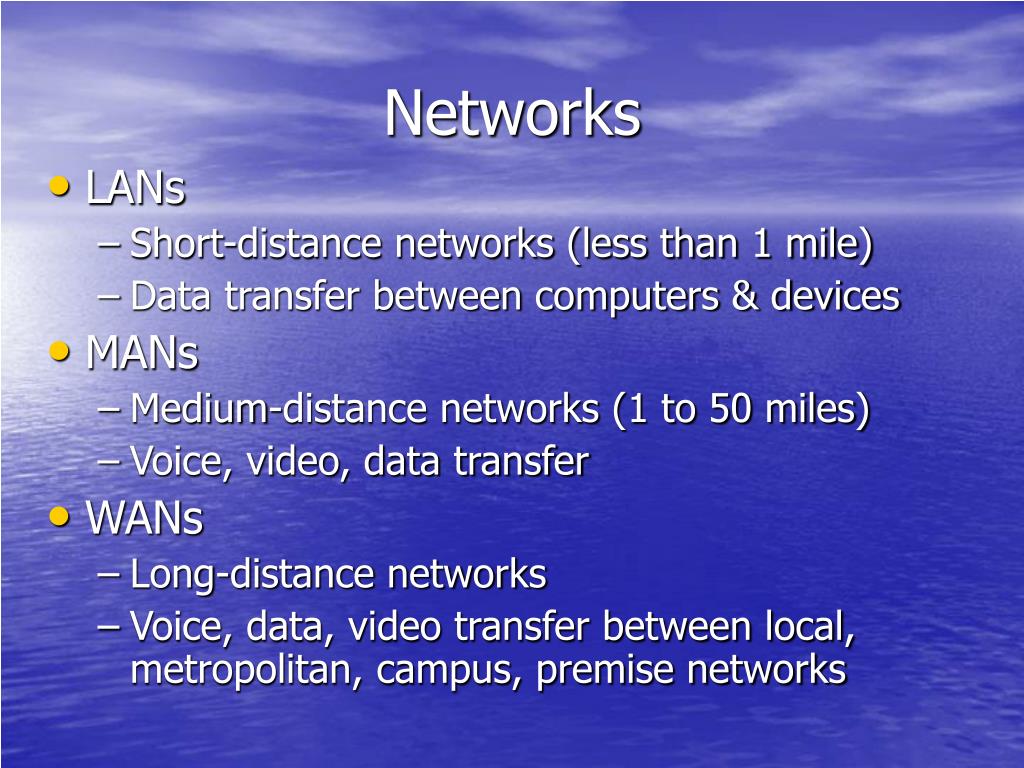

Networks

  • LANs

    • Short-distance networks (less than 1 mile)

    • Data transfer between computers & devices

  • MANs

    • Medium-distance networks (1 to 50 miles)

    • Voice, video, data transfer

  • WANs

    • Long-distance networks

    • Voice, data, video transfer between local, metropolitan, campus, premise networks


Slide4 l.jpg

LANs

  • Standards

    • Ethernet

    • Token Bus

    • Token Ring

    • FDDI


Internetworking l.jpg

Internetworking

  • Communications Hardware

    • Bridges

    • Brouters

    • Routers

    • Gateways


Wan access l.jpg

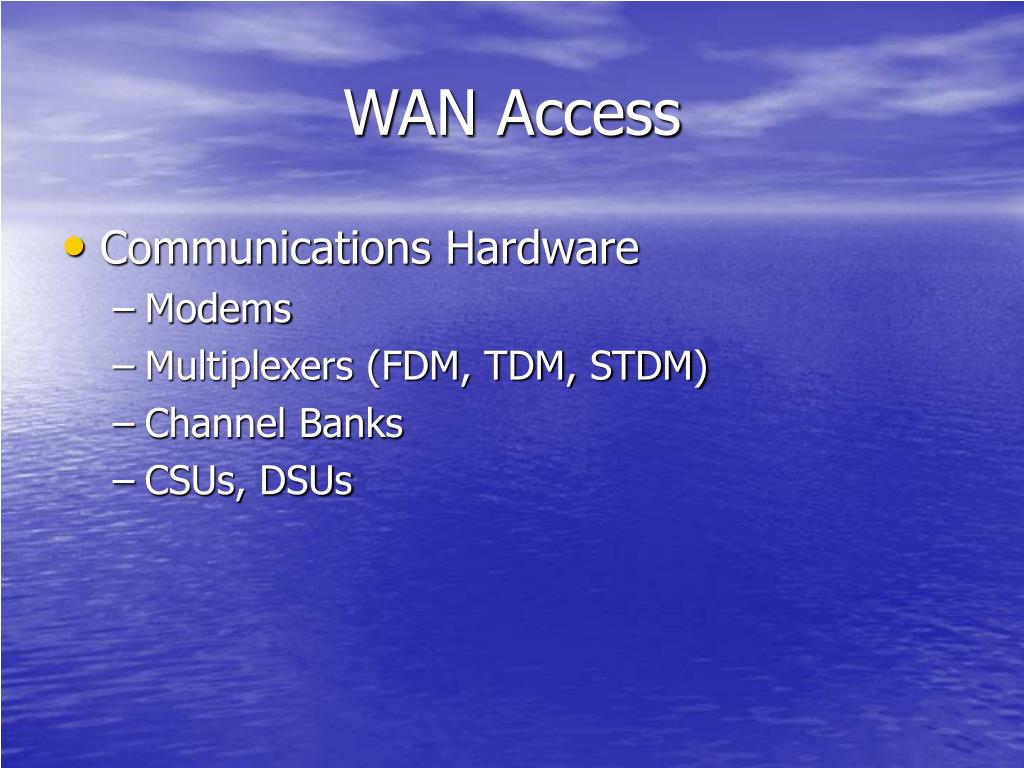

WAN Access

  • Communications Hardware

    • Modems

    • Multiplexers (FDM, TDM, STDM)

    • Channel Banks

    • CSUs, DSUs


Wan transport l.jpg

WAN Transport

  • Private

    • Twisted Pair

    • T1

    • Fractional T-1

    • T3

    • Fractional T-3

    • DDS

    • NHD

    • SONET

    • Satellite

    • Microwave


Wan transport8 l.jpg

WAN Transport

  • Public

    • Circuit Switching

      • dial-up lines

      • ISDN

    • Packet Switching

      • X.25

      • Frame Relay

      • ATM

      • SMDS

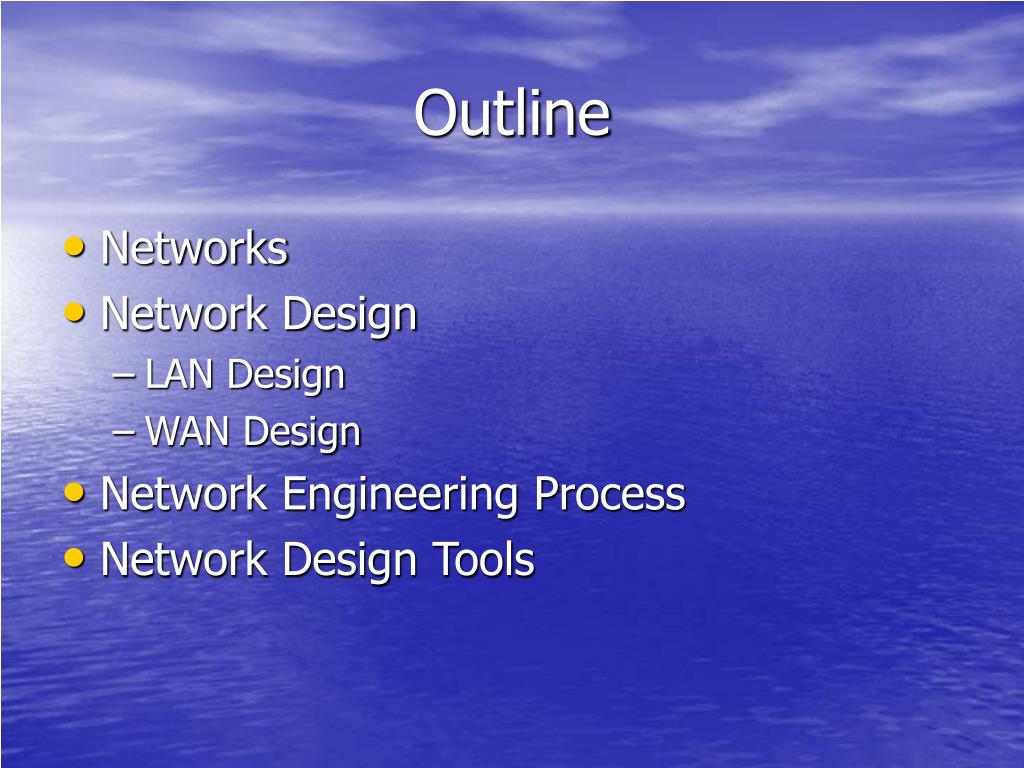

Outline9 l.jpg

Outline

  • Networks

  • Network Design

    • LAN Design

    • WAN Design

  • Network Engineering Process

  • Network Design Tools


Network design l.jpg

Network Design

  • Cost-performance trade-offs

    • Prices of the hardware

    • Reliability

    • Response time

    • Availability

    • serviceability


Lan design l.jpg

LAN Design

  • Media choices

    • Twisted-pair

    • Coaxial cable

    • Fiber optics

    • Wireless systems

  • Media access protocol

    • Token ring, token bus, Ethernet CSMA/CD

  • Cabling strategies

    • Intelligent hub wiring

    • Distributed cabling system

    • Centralized proprietary cabling


Lan simulation tools l.jpg

LAN simulation tools

  • LAN simulation tools provide measures of

    • Utilization

    • Conflicts

    • Delays

    • Response times

  • Identify cost-performance-reliability trade-offs

  • Find the bottlenecks in network performance


Wan design l.jpg

WAN Design

  • Designs based on various routing, multiplexing, and bridging approaches

  • More complex

    • Tariff data changes frequently

    • Many new service offerings

    • Numerous networking options


Outline14 l.jpg

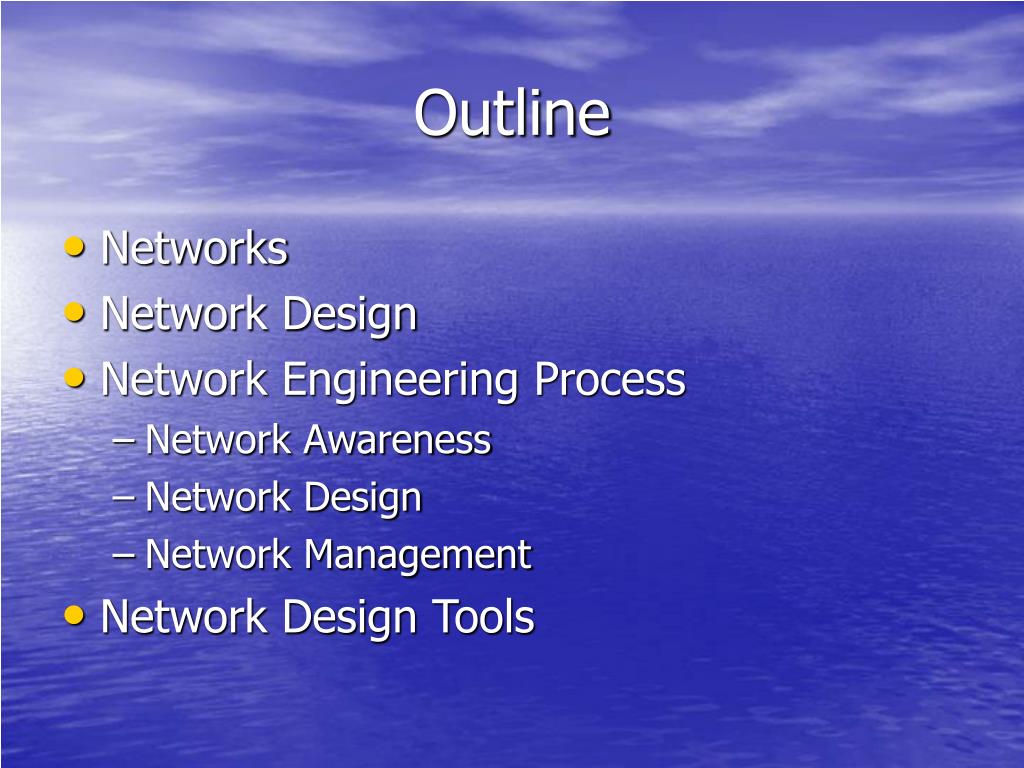

Outline

  • Networks

  • Network Design

  • Network Engineering Process

    • Network Awareness

    • Network Design

    • Network Management

  • Network Design Tools


Network engineering process l.jpg

Network Engineering Process

Network awareness

Network design

Network management


Network awareness l.jpg

Network awareness

  • Technology assessment

  • Current traffic

  • Equipment inventory

  • Forecasted growth

  • Operational evaluation criteria


Network design17 l.jpg

Network design

  • Network design tool

  • Cost/performance breakeven analysis

  • Equipment acquisition


Network management l.jpg

Network management

  • Configuration

  • Fault management

  • Performance management

  • Maintenance and administration


Total network engineering decision approach l.jpg

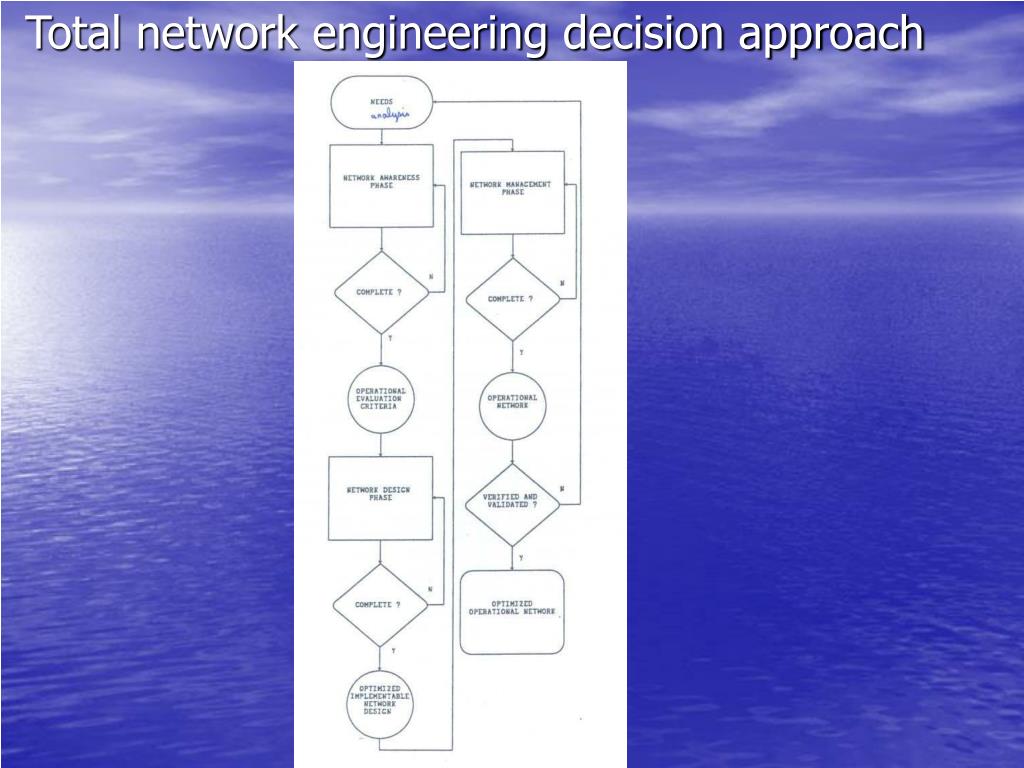

Total network engineering decision approach


Outline20 l.jpg

Outline

  • Networks

  • Network Design

  • Network Engineering Process

  • Network Design Tools

    • Simulation

    • Analytic Models

    • Benefits

    • Limitations


Experimental measurements prototyping l.jpg

Experimental measurements Prototyping

  • Quality measurement & monitoring tools

  • Cumbersome

  • Expensive

  • Time-consuming

  • Relatively inflexible


Simulation l.jpg

Simulation

  • Is driven by a stream of pseudorandom numbers

  • Time-consuming, but more accurate

  • Overcome problems caused by simplifying assumptions


Analytic models l.jpg

Analytic Models

  • Require a high degree of abstraction

  • Difficult to evaluate the performance of a complex communication system

  • Queuing theory plays a major role

  • Calculate answers in near real-time


Benefits l.jpg

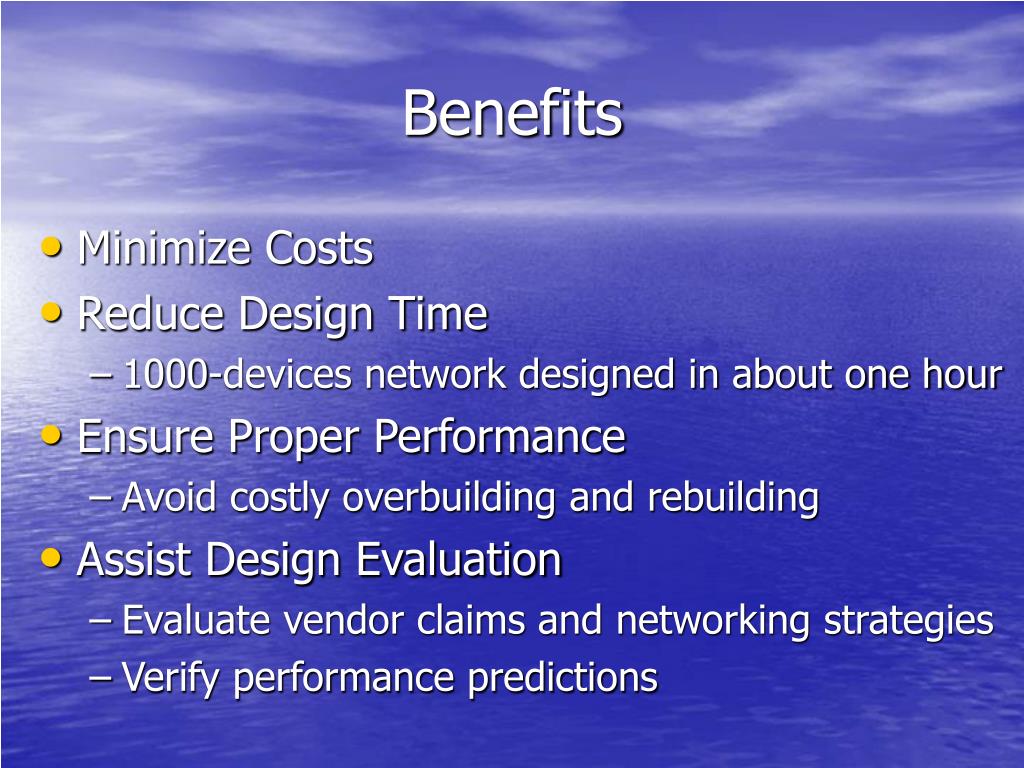

Benefits

  • Minimize Costs

  • Reduce Design Time

    • 1000-devices network designed in about one hour

  • Ensure Proper Performance

    • Avoid costly overbuilding and rebuilding

  • Assist Design Evaluation

    • Evaluate vendor claims and networking strategies

    • Verify performance predictions


Benefits minimize costs l.jpg

Benefits--Minimize Costs

  • Low-speed access WAN lines are consolidated

  • The best transmission services are obtained

  • Unnecessary facilities are eliminated

  • Communications equipment configurations are optimized

  • Save 20 to 45 percent


Overbuilding and rebuilding l.jpg

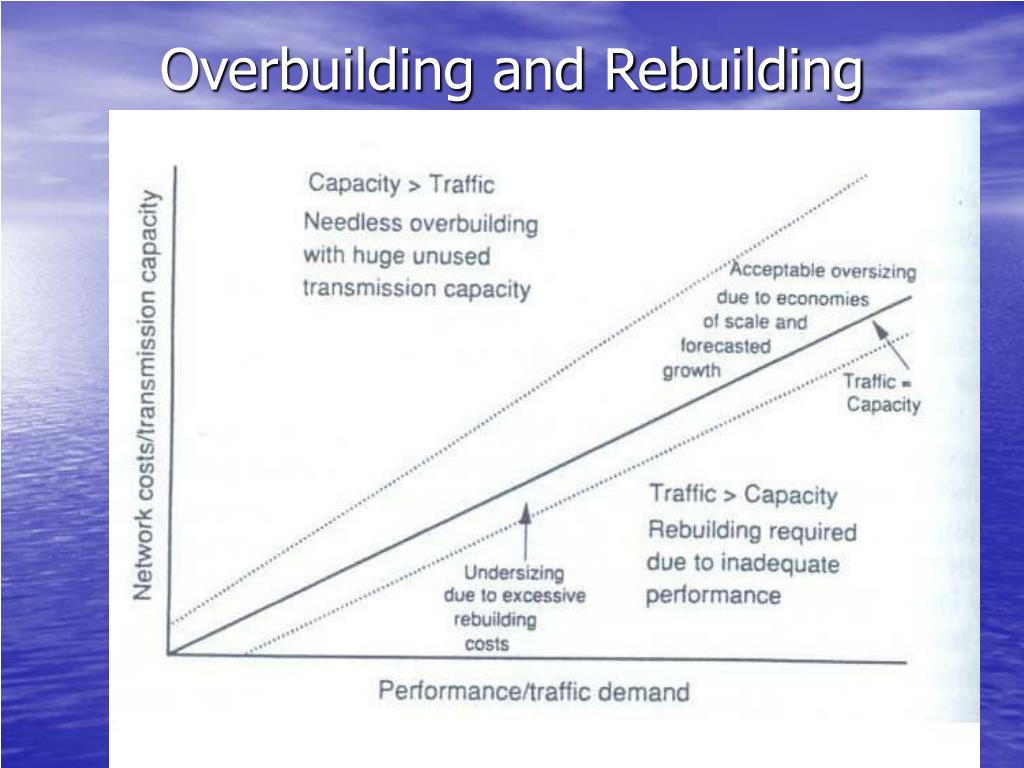

Overbuilding and Rebuilding


Limitations l.jpg

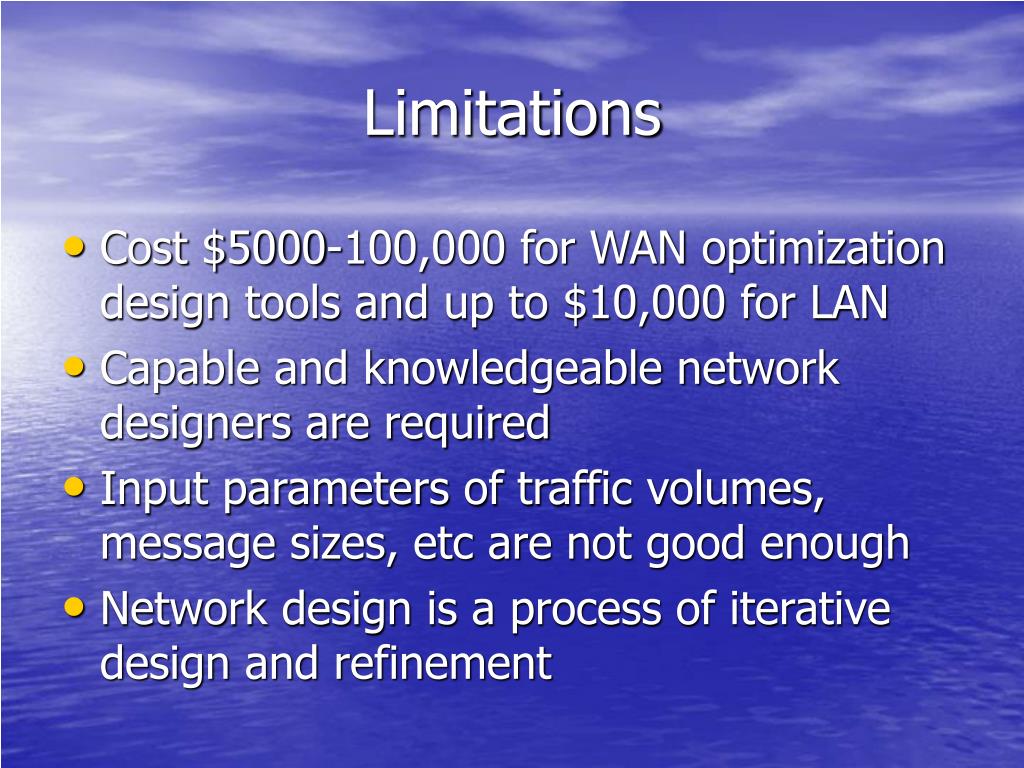

Limitations

  • Cost $5000-100,000 for WAN optimization design tools and up to $10,000 for LAN

  • Capable and knowledgeable network designers are required

  • Input parameters of traffic volumes, message sizes, etc are not good enough

  • Network design is a process of iterative design and refinement


Feedback control mechanisms l.jpg

Feedback control mechanisms


Overall gain of a sfg l.jpg

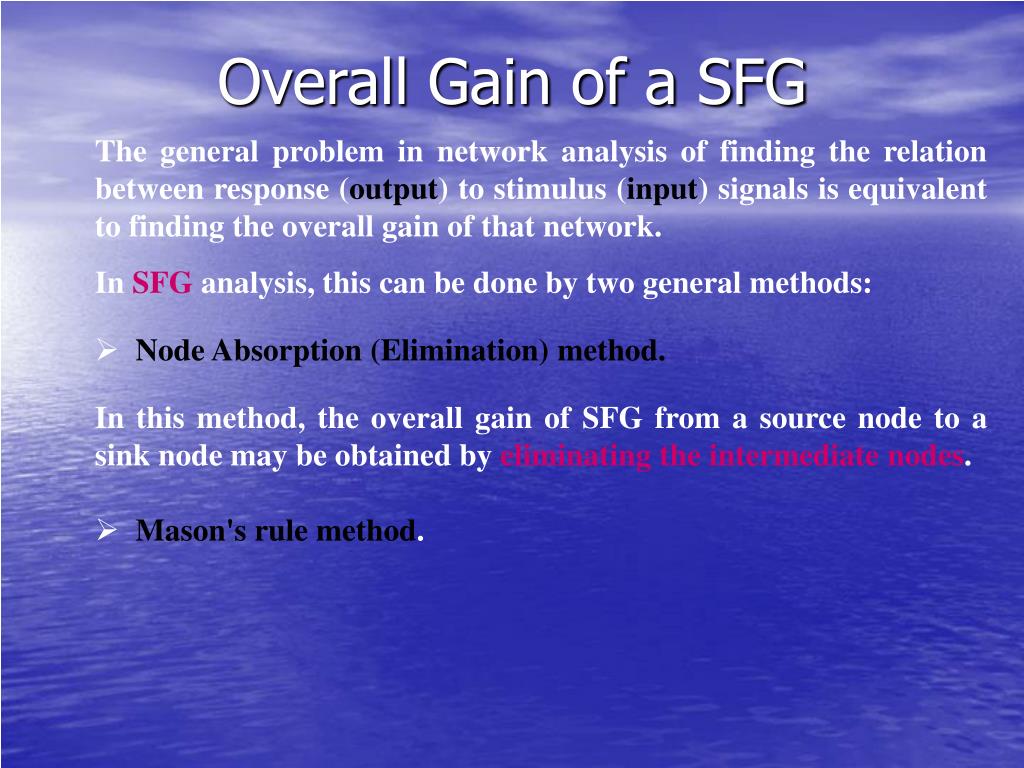

Overall Gain of a SFG

  • The general problem in network analysis of finding the relation between response (output) to stimulus (input) signals is equivalent to finding the overall gain of that network.

  • In SFG analysis, this can be done by two general methods:

  • Node Absorption (Elimination) method.

    In this method, the overall gain of SFG from a source node to a sink node may be obtained by eliminating the intermediate nodes.

  • Mason's rule method.


Mason s rule l.jpg

Mason's Rule

Mason's rule is a general gain formula can be used to determine the transfer functions directly. (i.e., relates the output to the input for a SFG. )

Thus the general formula for any SFG is given by :

Where,

Pi : the total gains of the ith forward path

D = 1 - (  of all individual loop gains) + (  of loop gains of all possible non-touching loops taken two at a time) - (  of loop gains of all possible non-touching loops taken three at a time) + …

Di = the value of D evaluated with all gain loops touching Piare eliminated.

Notice: In case, all loops are touching with forward paths (Pi) , Di = 1


Slide31 l.jpg

V5(s)

Touching loops: Loops with one or more nodes in common are called touching.

A loop and a path are touching when they have a common node.

Non-touching loops : Loops that do not have any nodes in common

Non-touching loop gain : The product of loop gains from non-touching loops.

Example :Find C/R for the attached SFG.

Forward Path gain: (Only one path, So, i =1) P1 = G1.G2.G3.G4.G5 ……………. (1)

Loop gains:

L1: G2.H1

L2: G4.H2

L3: G7.H4

L4:G2.G3.G4.G5.G6.G6.G7.G8

Non-touching loops taken two at a time:

L1&L2 : G2.H1.G4.H2

L1&L3 : G2.H1.G7.H4

L2&L3 : G4.H2.G7.H4

Non-touching loops taken three at a time:

L1,L2&L3: G2.H1.G4.H2.G7.H4


Slide32 l.jpg

sum of all individual loop gains

According to Mason’s rule:

sum of gain products of all possible non-touching loops taken two at a time

 = 1 - (G2.H1 + G4.H2 + G7.H4 + G2.G3.G4.G5.G6.G7) +

[G2.H1.G4.H2 + G2.H1.G7.H4 + G4.H2.G7.H4] – [G2.H1.G4.H2.G7.H4] ……. ……. ……… (2)

Then, we form ibyeliminating from  the loop gains that touch the forward path (Pi).

 1=  - loop gains touching the forward path (Pi).

sum of gain products of all possible non-touching loops taken three at a time

  • 1= 1 - G7.H4 …..……. ……… (3)

    Now Substituting equations (1) , (2) & (3) into the Mason’s Rule as :


Using of mason s rule to solve sfg l.jpg

Using of Mason's Rule to solve SFG

The following procedure is used to solve any SFG using Mason's rule.

1) Identify the no. of forward paths and their gains (Pi).

2) Identify the number of the loops and determine their gains (Lj).

3) Identify the non-touching loops taken two at a time, a three at a time, … etc.

4)Determine D .

5)Determine i .

6) Substitute all of the above information in the Mason's formula.
