Presentation Transcript


The free energy surface

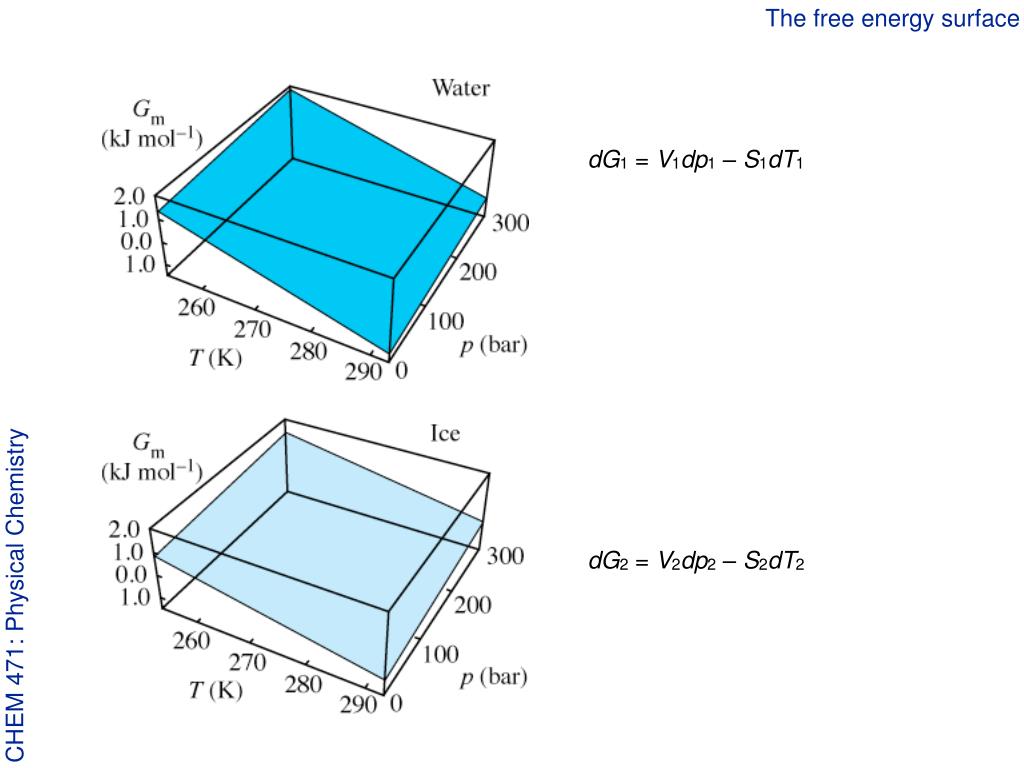

The free energy surface

dG1 = V1dp1 – S1dT1

dG2 = V2dp2 – S2dT2

CHEM 471: Physical Chemistry


Chapter 4 the exact clapeyron equation

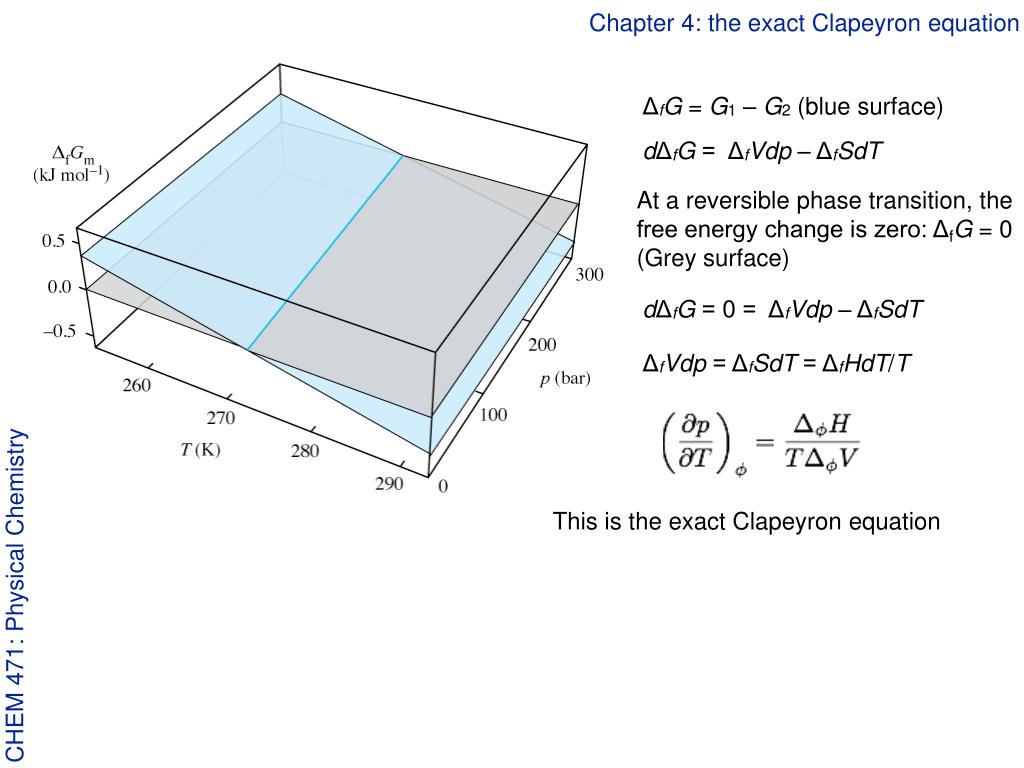

Chapter 4: the exact Clapeyron equation

ΔfG = G1 – G2 (blue surface)

dΔfG = ΔfVdp – ΔfSdT

At a reversible phase transition, the free energy change is zero: ΔfG = 0 (Grey surface)

dΔfG = 0 = ΔfVdp – ΔfSdT

ΔfVdp = ΔfSdT = ΔfHdT/T

This is the exact Clapeyron equation

CHEM 471: Physical Chemistry


The clausius clapeyron equation

The Clausius-Clapeyron equation

Assumption 3: ΔvH is constant:

We can do either a definite or an indefinite integral: first, definite

Now, indefinite:

At some standard pressure p° (usually 1 bar), ln p° = 0. We call the boiling point at this standard pressure Tband the molar enthalpy of vaporization ΔvH°

CHEM 471: Physical Chemistry


Chapter 4 phase transitions

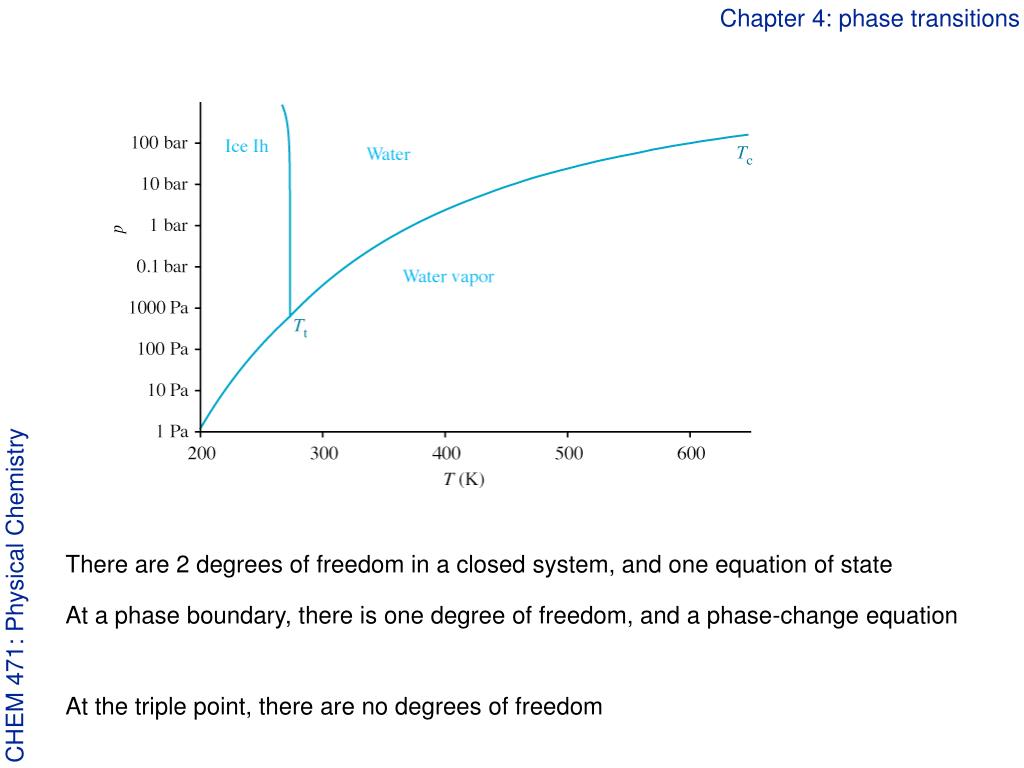

Chapter 4: phase transitions

There are 2 degrees of freedom in a closed system, and one equation of state

CHEM 471: Physical Chemistry

At a phase boundary, there is one degree of freedom, and a phase-change equation

At the triple point, there are no degrees of freedom


Inexact clapeyron

Inexact Clapeyron

We make three assumptions for liquid-gas phase transitions:

(1) The volume change of vaporization is just the volume of the vapor

At 1 bar and 298 K, Vm, water = Mwater/ρwater = (18.017 g/mol)/(0.9984 g/mL) = 18.045 mL/mol

Vm, water vap. = RT/p = 24.79 L/mol >> Vm, water

(2) The vapor is an ideal gas

(3) The enthalpy of vaporization is temperature independent

This is the weakest of the three, but we can remove it later

Let’s take the exact Clapeyron equation, and work on the volume

CHEM 471: Physical Chemistry


The clausius clapeyron equation1

The Clausius-Clapeyron equation

Assumption 3: ΔvH is constant:

We can do either a definite or an indefinite integral: first, definite

Now, indefinite:

At some standard pressure p° (usually 1 bar), ln p° = 0. We call the boiling point at this standard pressure Tband the molar enthalpy of vaporization ΔvH°

CHEM 471: Physical Chemistry


Clausius clapeyron equation example

Clausius-Clapeyron equation:example

Original

Improved

CHEM 471: Physical Chemistry

Improved version


Clausius clapeyron equation example1

Clausius-Clapeyron equation:example

Fit to Clausius-Clapeyron equation gives ΔvH° = 41.300 kJ/mol

ΔvS° = 109.0 J mol–1 K–1

CHEM 471: Physical Chemistry
