Investigation #4

Stretching the Limits

Investigating Elastic Energy & Earthquakes


Springs
Springs

  • Different sizes

  • Different materials

  • Different uses


Energy is all around us. Sometimes it is stored in elastic materials as Elastic Potential Energy (EPE)


Opening questions
Opening questions materials as Elastic Potential Energy (EPE)

1) What makes some materials better able to store EPE?

2) How do materials store EPE?

3) Are all materials elastic? Do elastic materials always stay elastic?


Definition of epe
Definition of EPE materials as Elastic Potential Energy (EPE)

  • The energy stored in the temporary change in shape of an object

  • EPE is Stored Energy

  • EPE is a source of mechanical energy

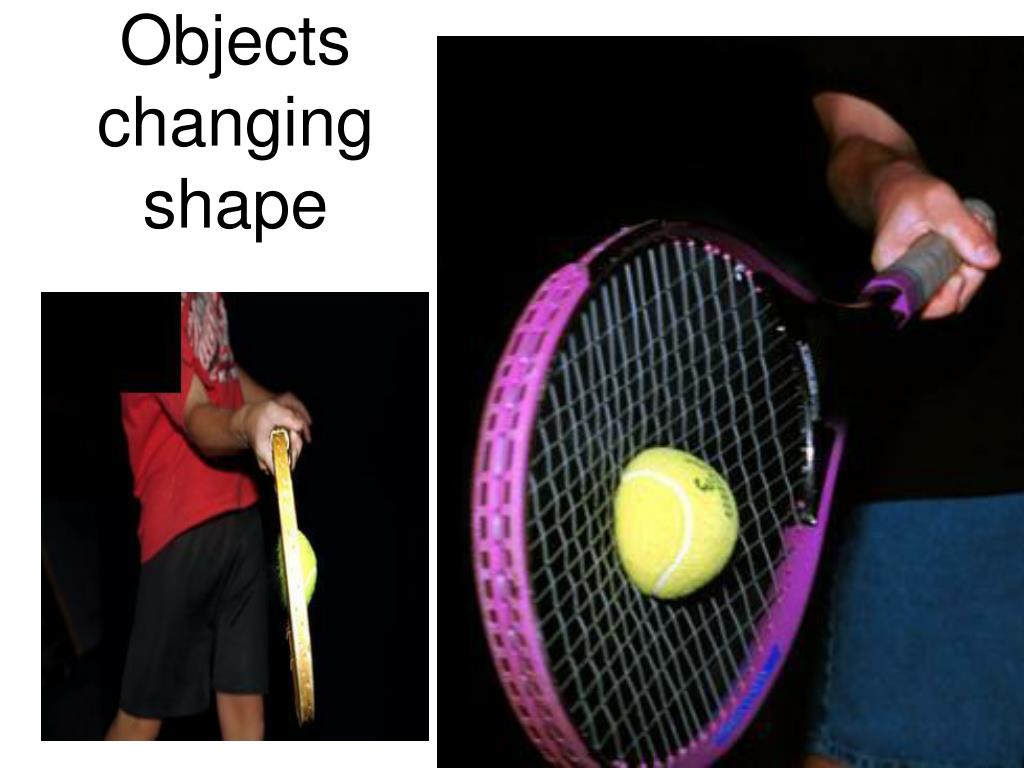

Objects changing shape
Objects changing shape materials as Elastic Potential Energy (EPE)

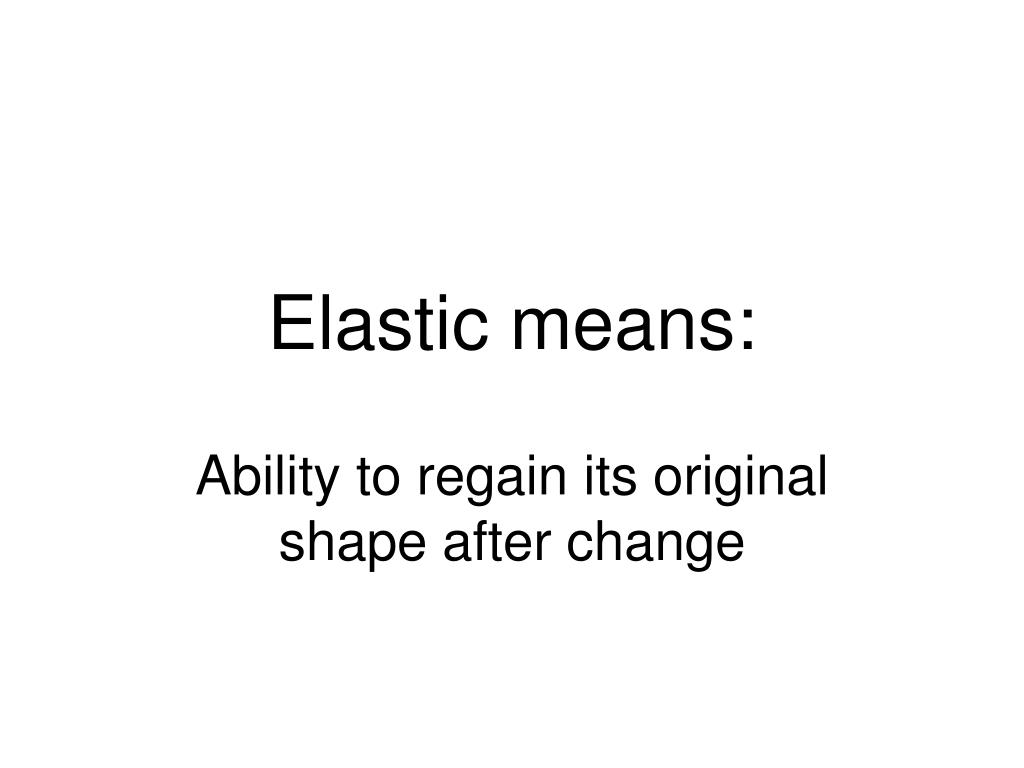

Elastic means

Elastic means: materials as Elastic Potential Energy (EPE)

Ability to regain its original shape after change


Epe and forces
EPE and Forces materials as Elastic Potential Energy (EPE)

  • To transfer EPE requires application of forces

  • This force physically moves the particles of objects closer or farther apart

  • but still preserves the connections between particles


Energy from forces
Energy from forces materials as Elastic Potential Energy (EPE)

  • EPE Energy is stored within the connections between particles, all particles

  • The more stress placed on the connections, the more energy stored

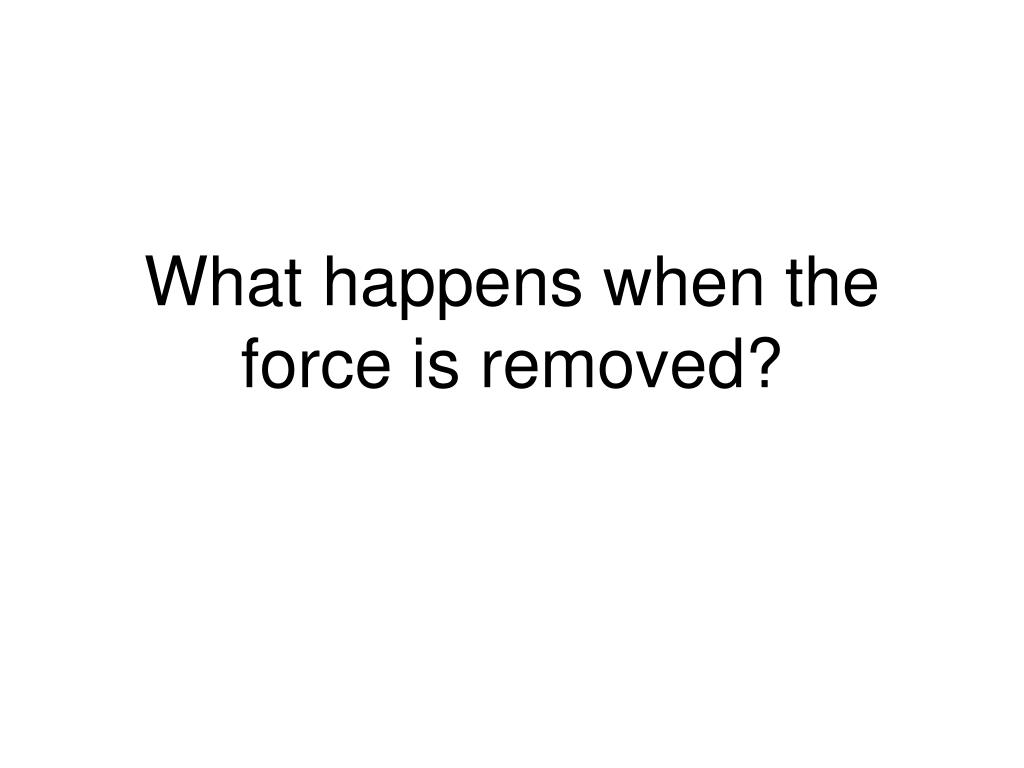

What happens when the force is removed

What happens when the force is removed? materials as Elastic Potential Energy (EPE)

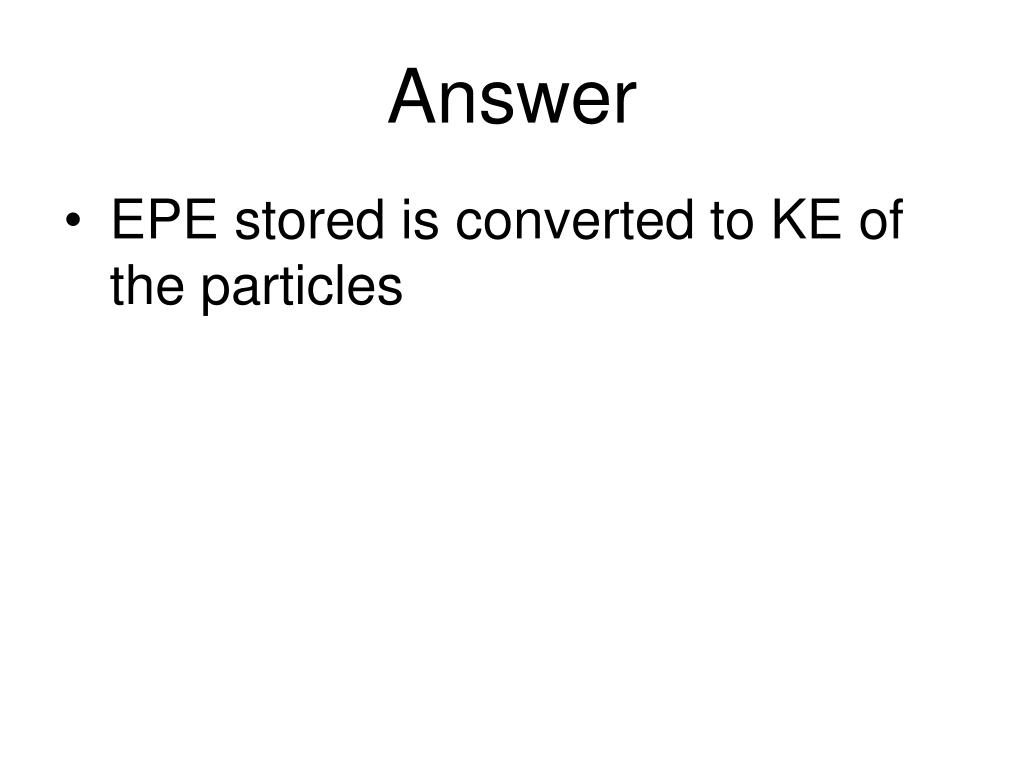

Answer
Answer materials as Elastic Potential Energy (EPE)

  • EPE stored is converted to KE of the particles

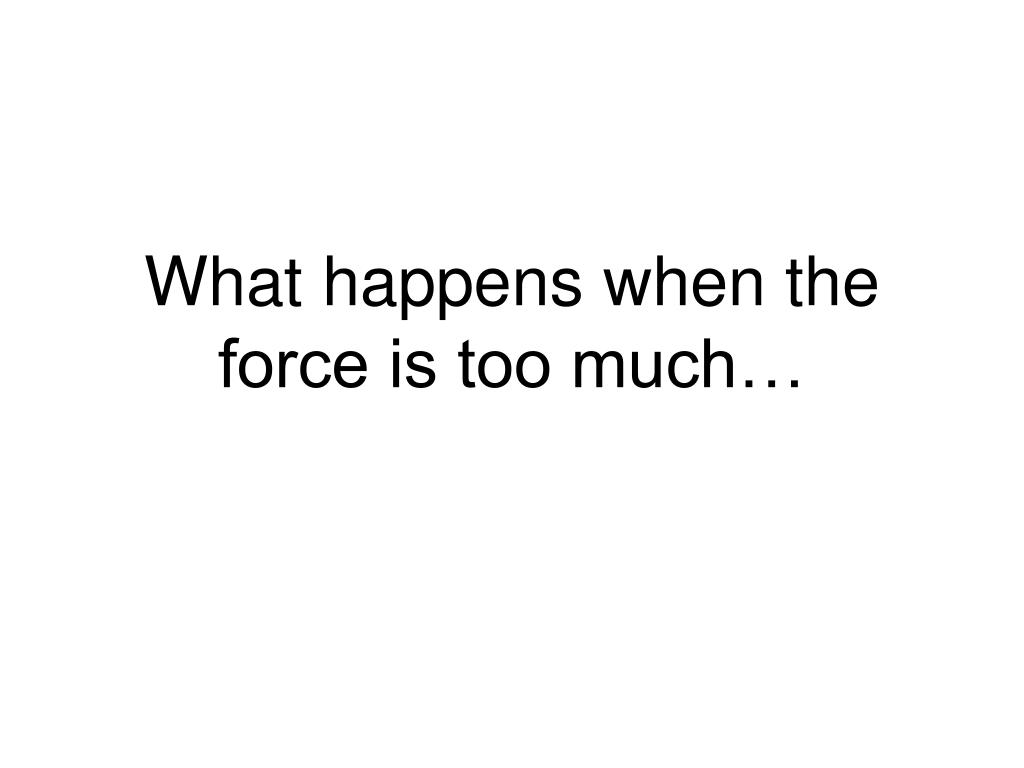

What happens when the force is too much

What happens when the force is too much… materials as Elastic Potential Energy (EPE)


The answer
The answer materials as Elastic Potential Energy (EPE)

  • The connections break

  • EPE energy stored in the parts is converted to KE

  • By 2nd law, parts accelerate


Inelastic
Inelastic materials as Elastic Potential Energy (EPE)

  • Since the object can no longer go back to its original form, object is not longer elastic in nature


Elastic forces epe

Elastic Forces & EPE materials as Elastic Potential Energy (EPE)

What are elastic properties and how do they help predict how an elastic material will behave?


Investigating Elastic Materials materials as Elastic Potential Energy (EPE)

Focus Question: How are elastic forces and their stretch related?

Use the force probe to explore the relationship between the elastic force and the stretch distance for several elastic materials.

Be sure to click on the KEEP icon each time you collect a data point!


Lab materials as Elastic Potential Energy (EPE)

  • Record force and distance data for 3 elastic objects

  • Create a graph the relates forces (N) to distance stretched (m)

  • All points on one graph


Investigation reflection
Investigation Reflection materials as Elastic Potential Energy (EPE)

  • When scientists interpret their data after an investigation, they look for patterns that emerge. What patterns emerge from your data?

  • The slope of the line in a linear graph tells the reader about the relationship between the dependent variable (the force) and the independent variable (the stretch distance).

    Are the slope values the same for all trials? If they are different, what may have caused any differences you observe? Are these differences significant? Explain.

  • Predict the force needed to extend each spring 2 cm farther than your last data point for each object. On what do you base this prediction?


More questions

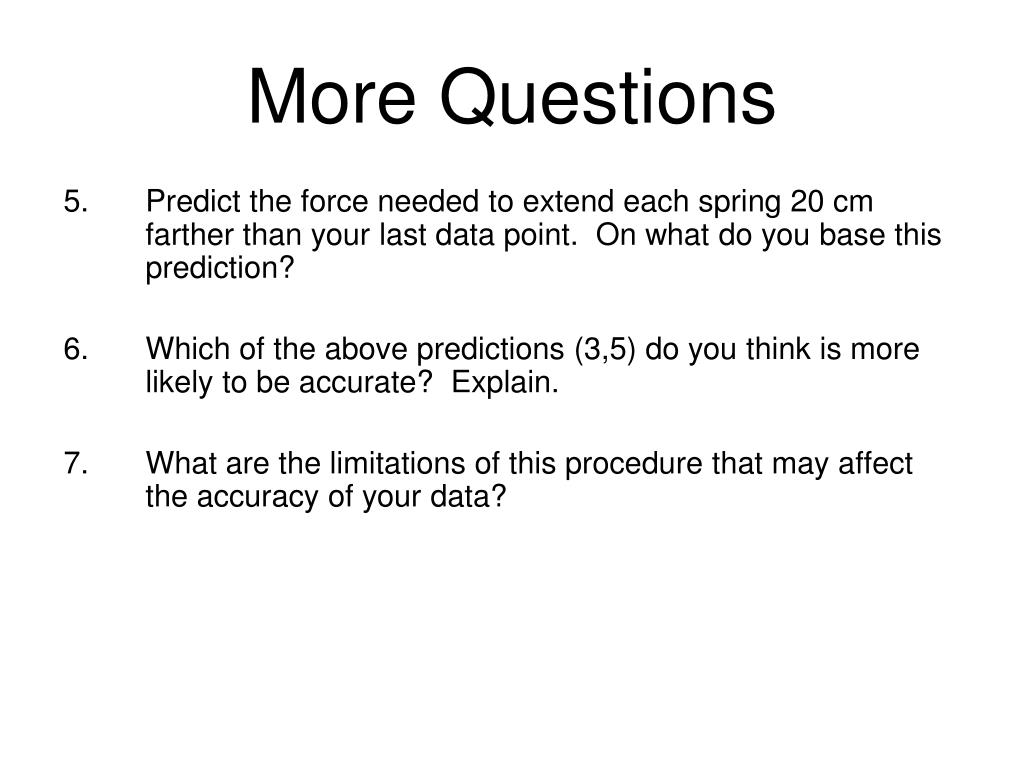

More Questions materials as Elastic Potential Energy (EPE)

  • Predict the force needed to extend each spring 20 cm farther than your last data point. On what do you base this prediction?

  • Which of the above predictions (3,5) do you think is more likely to be accurate? Explain.

  • What are the limitations of this procedure that may affect the accuracy of your data?

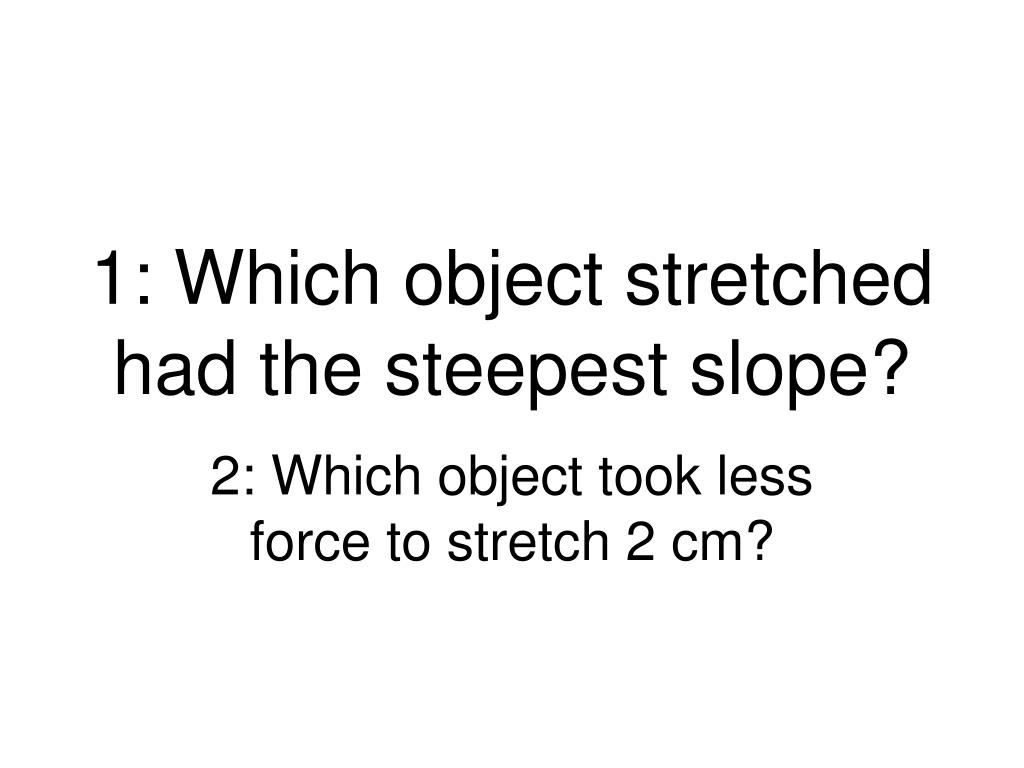

1 which object stretched had the steepest slope

1: Which object stretched had the steepest slope? materials as Elastic Potential Energy (EPE)

2: Which object took less force to stretch 2 cm?


What does the slope mean
What does the slope mean materials as Elastic Potential Energy (EPE)

  • The slope of line connecting force to distance stretched defined as elastic constant (k) (units = N/m)

  • F = kx


EC materials as Elastic Potential Energy (EPE)

  • The elastic constant can be different for every elastic material.

  • Higher the k value, the tougher it is to stretch the object





5: Using the line of best fit, how would you determine the amount of force needed to stretch a rubberband 5 cm? 25 cm? 100 cm?

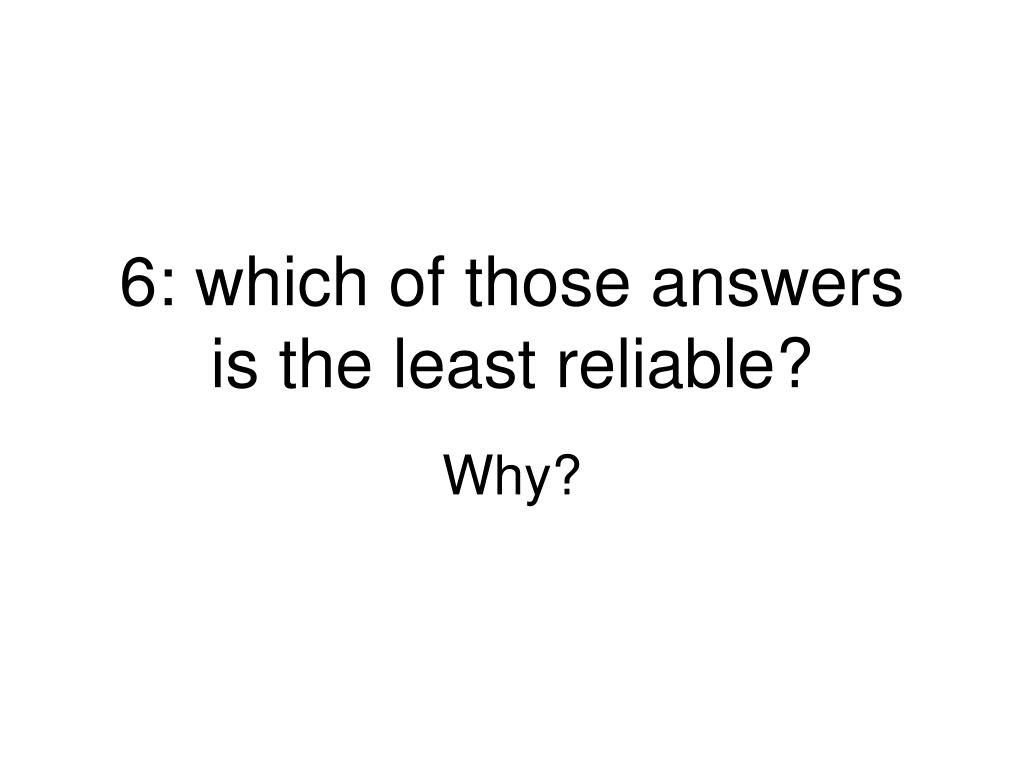

6 which of those answers is the least reliable

6: which of those answers is the least reliable? amount of force needed to stretch a rubberband 5 cm? 25 cm? 100 cm?

Why?

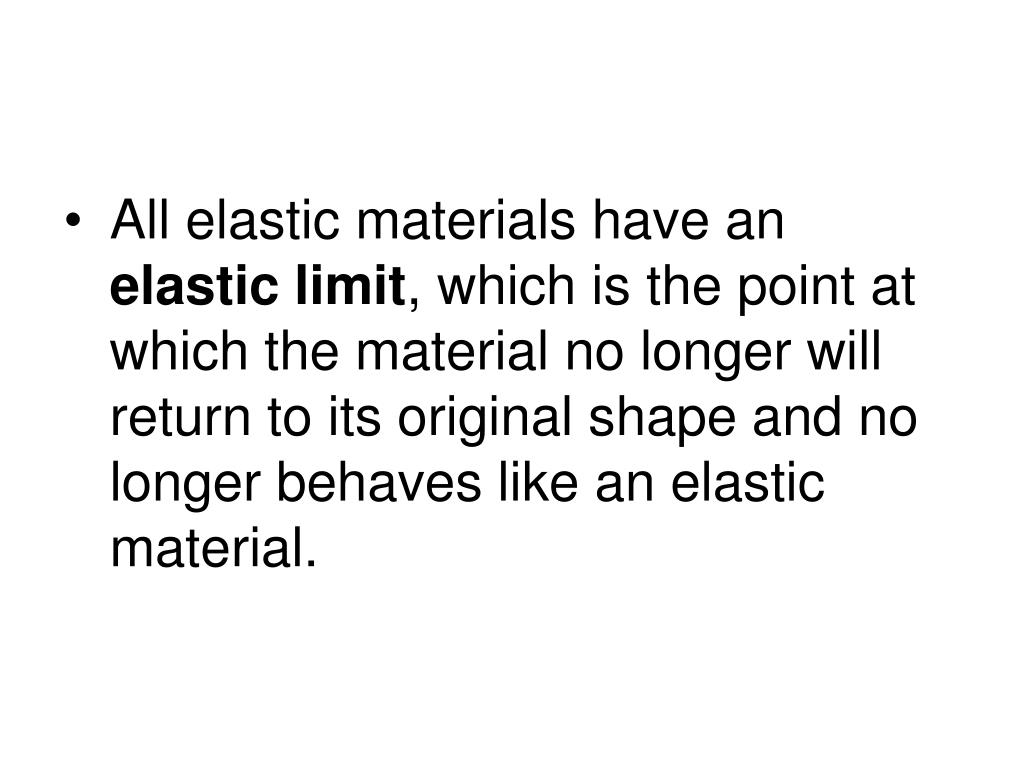

  • All elastic materials have an amount of force needed to stretch a rubberband 5 cm? 25 cm? 100 cm?elastic limit, which is the point at which the material no longer will return to its original shape and no longer behaves like an elastic material.

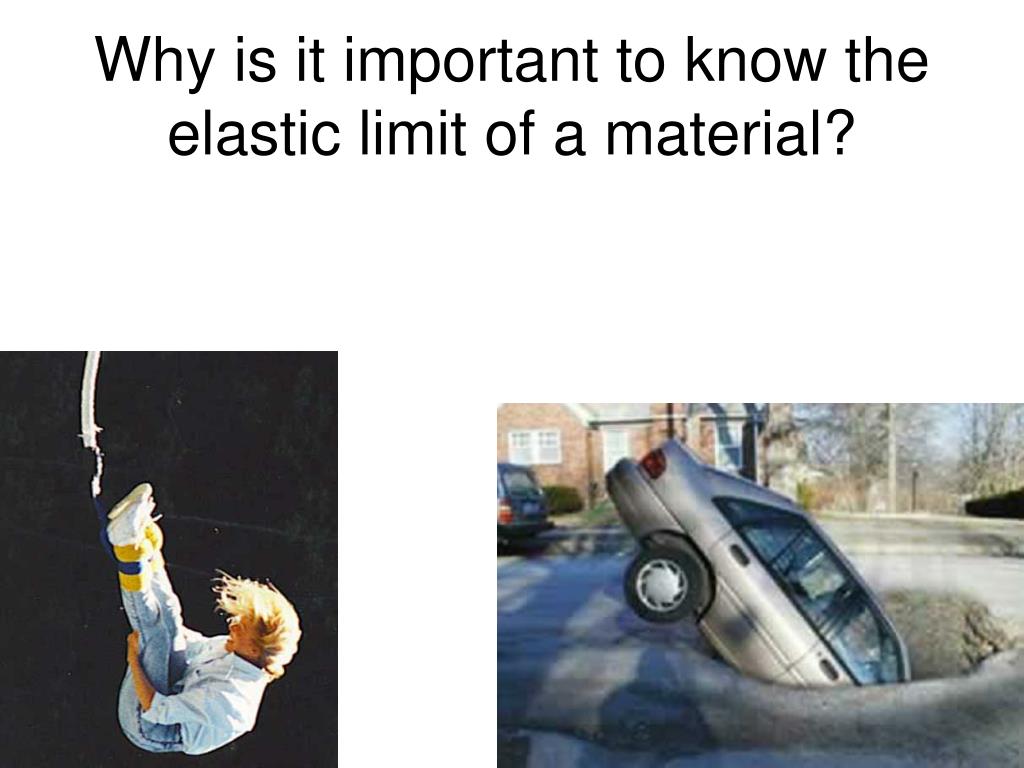

Why is it important to know the elastic limit of a material
Why is it important to know the elastic limit of a material? amount of force needed to stretch a rubberband 5 cm? 25 cm? 100 cm?


Why important
Why important amount of force needed to stretch a rubberband 5 cm? 25 cm? 100 cm?

  • rocks can compress or stretch along a fault line only so far before that they “readjust”


Epe distance

EPE & Distance amount of force needed to stretch a rubberband 5 cm? 25 cm? 100 cm?

How are the EPE and the distance that an elastic material is stretched or compressed related?


Rubber bands
Rubber bands amount of force needed to stretch a rubberband 5 cm? 25 cm? 100 cm?

  • Does it take the same force to stretch a rubber band at all times?

  • The greater the distance stretched, the greater the energy transferred

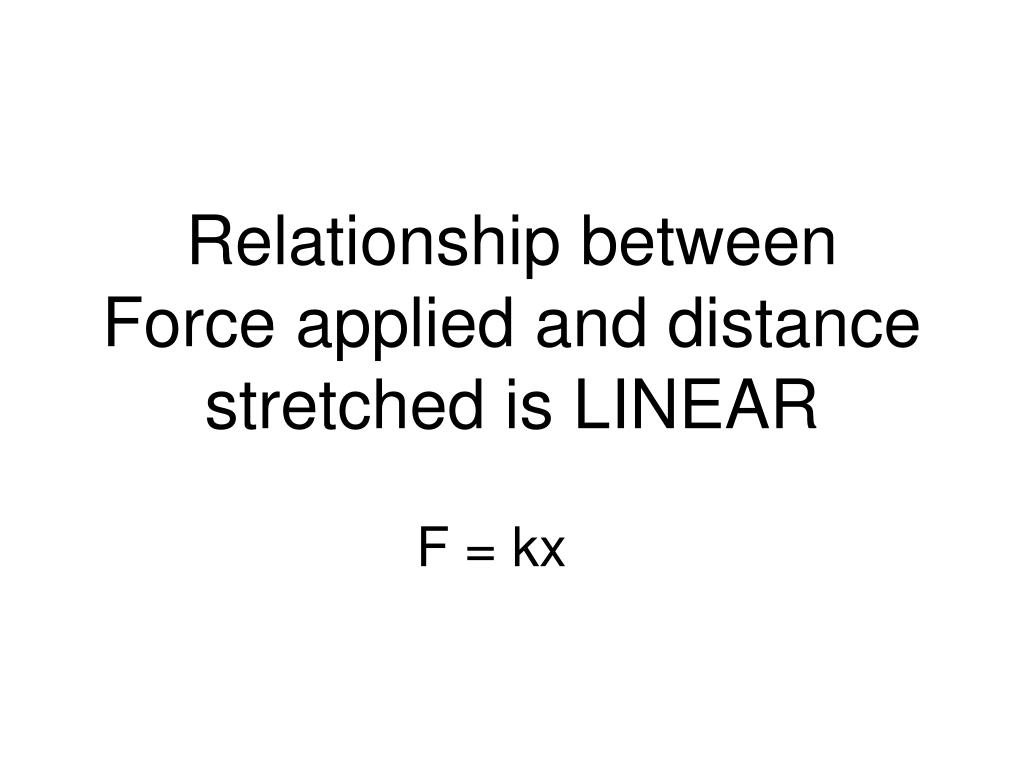

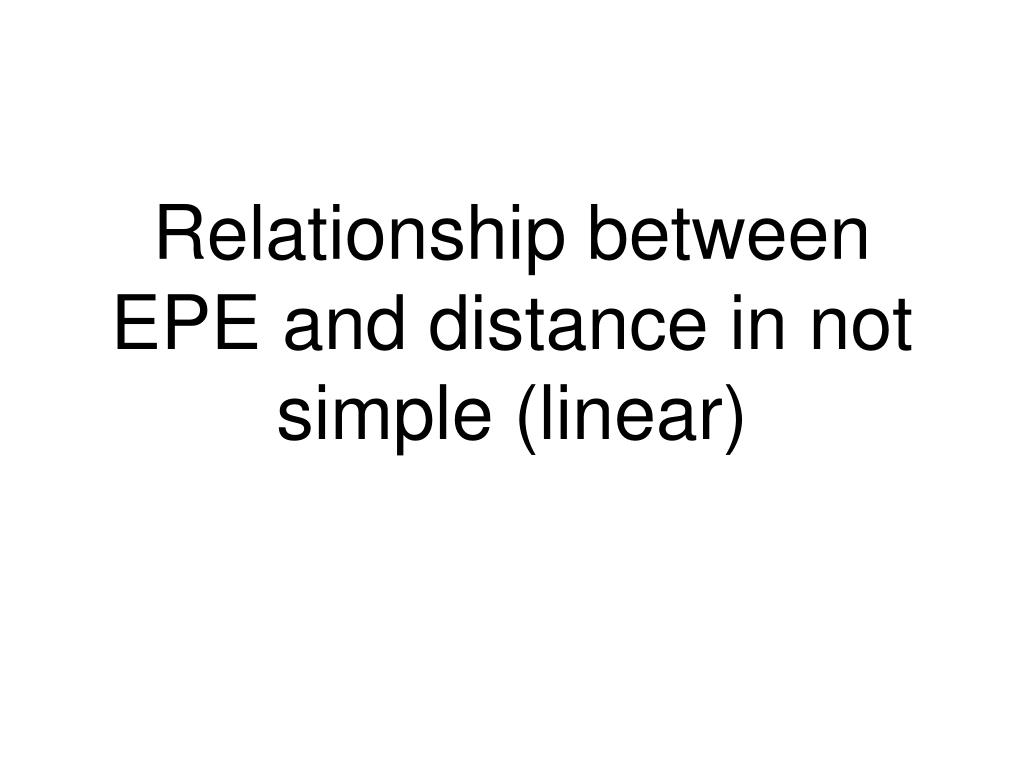

To our other information learned now we can add

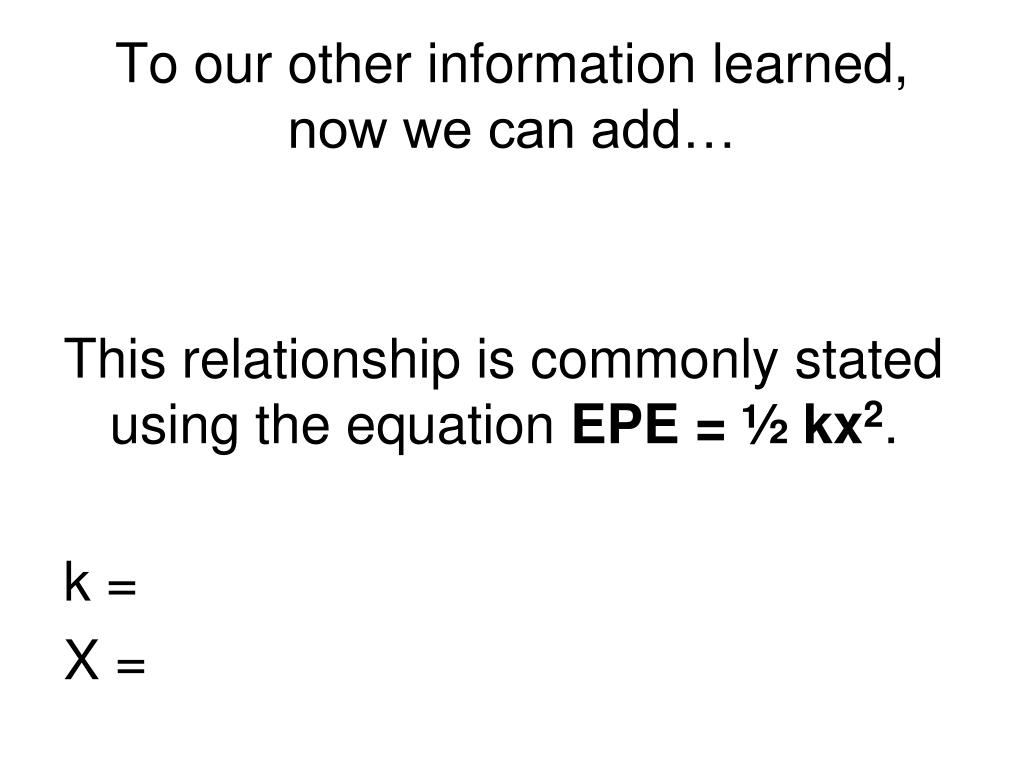

To our other information learned, now we can add… LINEAR

This relationship is commonly stated using the equation EPE = ½ kx2.

k =

X =


Example problems
Example problems LINEAR

  • If a spring has an elastic constant of 1300 N/m. How much EPE does it possess if it is stretched 43 cm?

    2) How much force does it take to press a finger into your skin 1.2 cm if it has a elastic constant of 8 N/m? How much energy does your skin have when pressed?


Epe earthquakes

EPE & Earthquakes LINEAR

How does EPE relate to the study of earthquakes?


Earthquakes
Earthquakes LINEAR

  • Every year approximately 3,000,000 earthquakes occur worldwide. 98% percent of them are less than a magnitude 3.

  • Fewer than 20 earthquakes occur each year, that are considered major (7.0 – 7.9) or great (8 and greater).

  • Between 2000 and 2009, the United States experienced approximately 32,000 earthquakes; 6 were considered major and occurred in either Alaska or California


Earthquakes in delaware
Earthquakes in Delaware LINEAR

  • The largest event in Delaware occurred in 1871 and had an estimated magnitude 4.1.

  • The largest recorded event in Delaware occurred in 1973 and had an estimated magnitude of 3.8.

  • The last recorded earthquake in De was recorded on July 1st, 2009 with an estimated magnitude of 2.8.

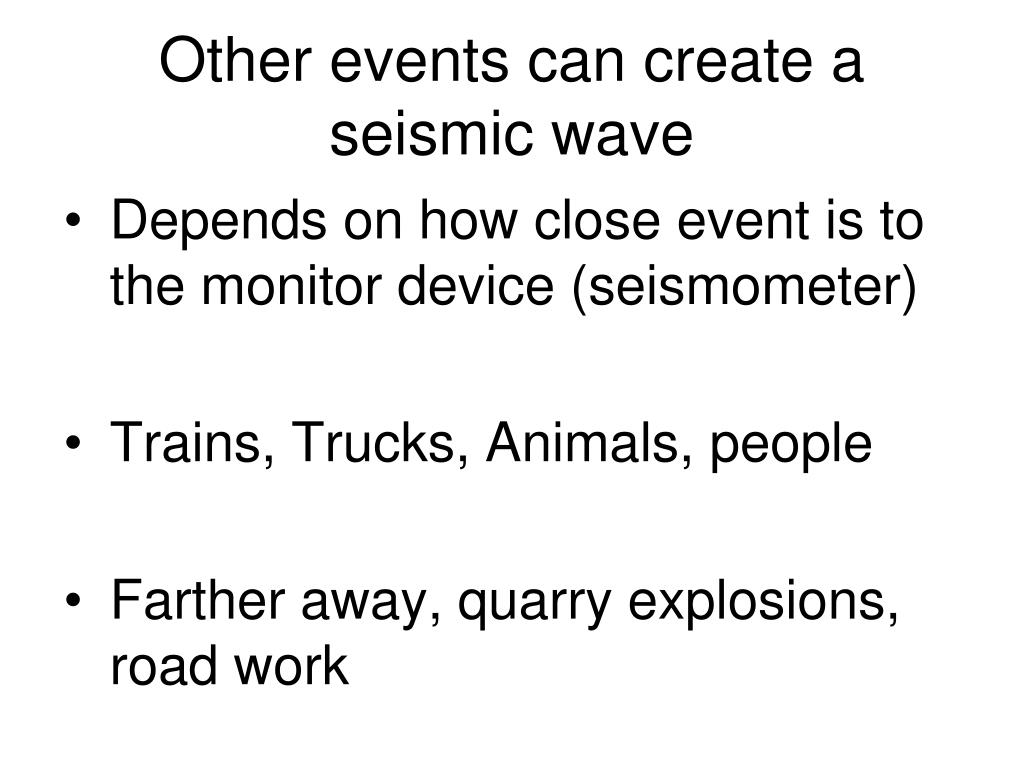

Other events can create a seismic wave
Other events can create a seismic wave LINEAR

  • Depends on how close event is to the monitor device (seismometer)

  • Trains, Trucks, Animals, people

  • Farther away, quarry explosions, road work

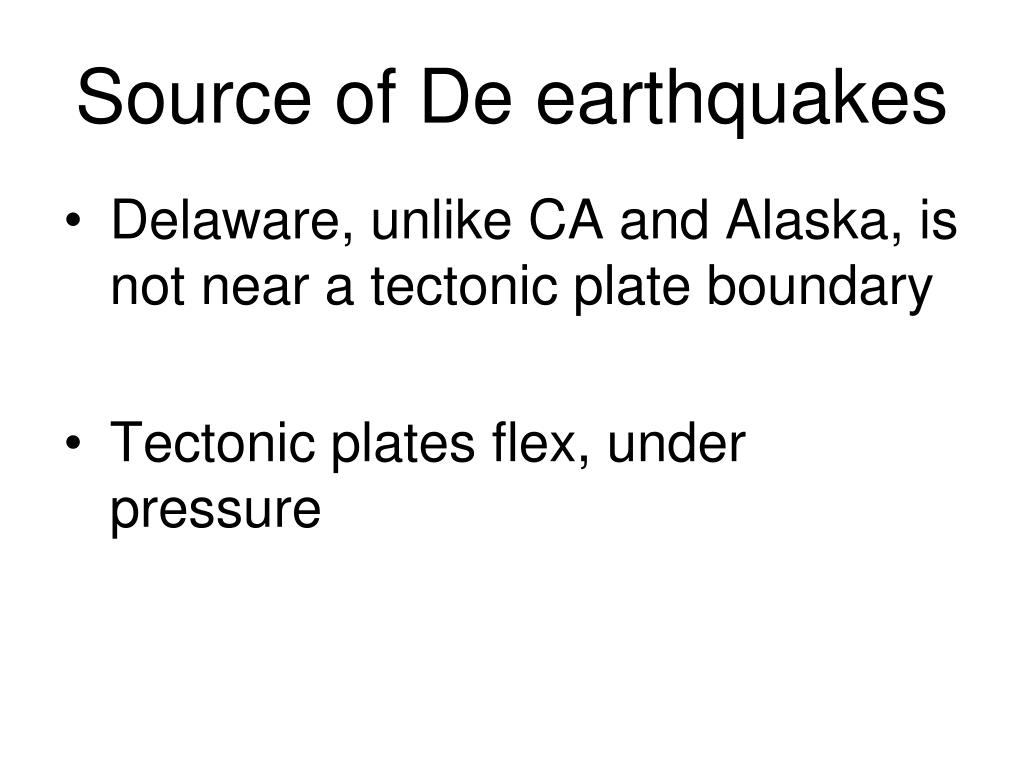

Source of de earthquakes
Source of De earthquakes LINEAR

  • Delaware, unlike CA and Alaska, is not near a tectonic plate boundary

  • Tectonic plates flex, under pressure


Earthquakes and energy
Earthquakes and Energy LINEAR

  • In earthquakes, a lot of EPE is turned into KE

  • Think about how many objects move as a result of the earthquake

  • During the 1906 earthquake, the earth moved up to 20 feet in seconds


Conservation of energy
Conservation of Energy LINEAR

  • Does all of the rocks EPE transform into KE?

  • If not where does it go?


Where does it go
Where does it go? LINEAR

  • Seismic waves that travel around the world through the earth


Where does it go1
Where does it go? LINEAR

  • Melting, bending of rock at plate boundaries

  • Serpentine Rock


Where does it go2
Where does it go? LINEAR

  • A small amount may be converted into sound that reaches the atmosphere


Investigating Earthquakes LINEAR

Focus Question: How are elastic forces and their stretch related?

Your task is to explore how earthquakes occur because of a transformation of EPE to KE by using a model.


Motion of plates
Motion of plates LINEAR

  • Pressure builds up, Rock changes shape, EPE increases, Rock held by friction

  • Friction overcome, Rock moves to release built up energy, earthquake occurs

  • Cycle repeats itself


Summary questions
Summary questions LINEAR

  • Be sure to address the following questions and use your data to support your responses.

  • Is the relationship between stretch/compression and EPE linear or not?

  • What is meant by the terms “elastic constant” and “elastic limit”?

  • Where does the EPE go after an earthquake (an energy chain or an energy diagram may help in answering this question)?
