Finite state automata

Finite State Automata

Lecture 4


Finite state automata fsa

Finite State Automata FSA

  • Abstract machines that recognizes strings

  • Can mechanically construct FSA that accepts strings from RE

  • Easy to simulate FSA in Computer program

  • Basis for scanners

Yes

FSA for L

No

FSA for R

RE R

RE NDFSA

NDFSA DFSA


What is fsa

What is FSA?

  • Set of States

  • Set of Transitions between States

  • Start State

  • Set of Final States

  • Operation

    • Start in Start State

    • While input remains do

      read a character

      if transition on current state and character then

      set current state to new state

      else reject input

      if current state is a final state then accept state

      else reject state


Fsa diagrams

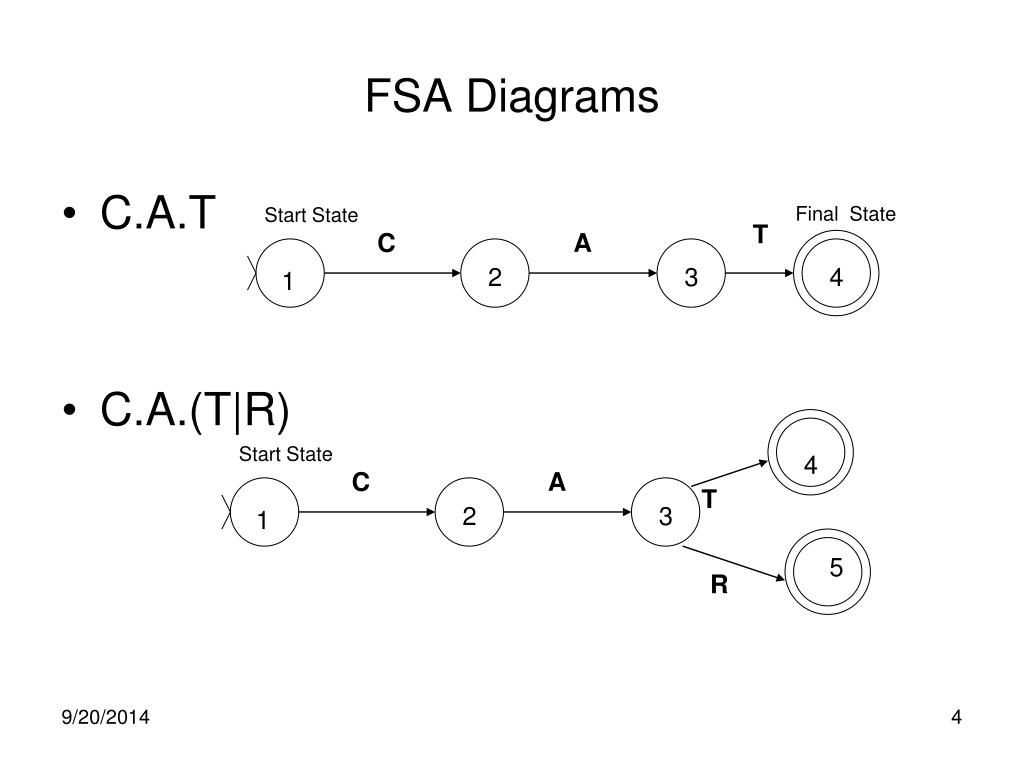

FSA Diagrams

  • C.A.T

  • C.A.(T|R)

Final State

Start State

T

C

A

2

3

4

1

Start State

4

C

A

T

2

3

1

5

R


Fsa examples

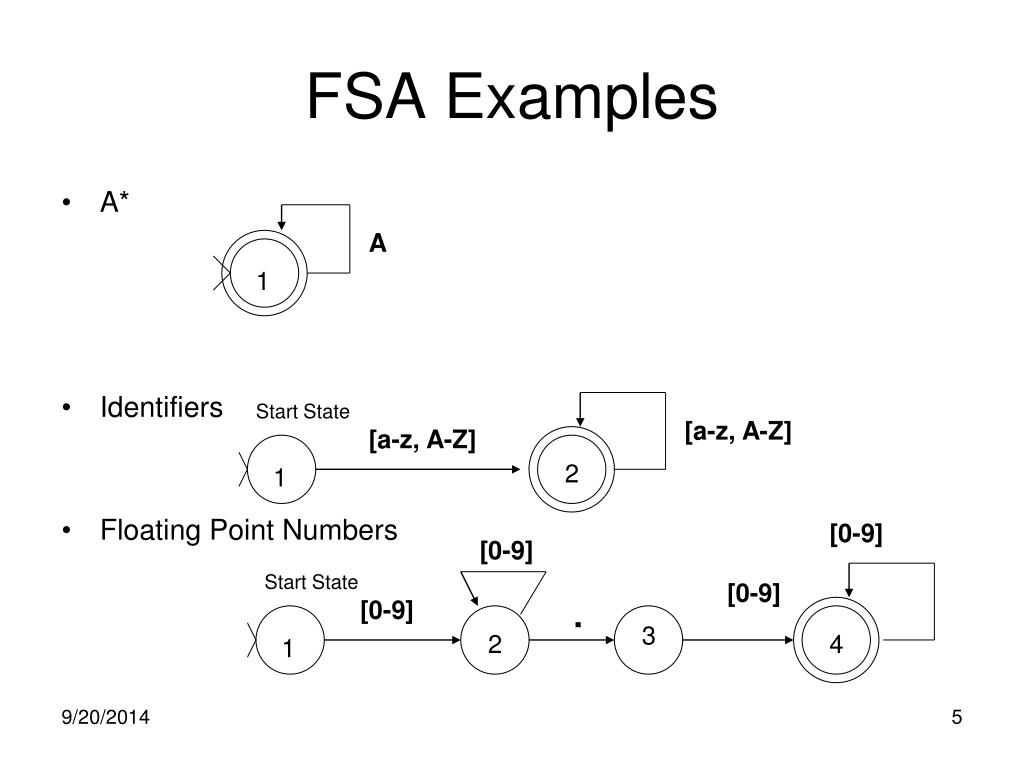

FSA Examples

  • A*

  • Identifiers

  • Floating Point Numbers

A

1

Start State

[a-z, A-Z]

[a-z, A-Z]

2

1

[0-9]

[0-9]

Start State

[0-9]

[0-9]

.

3

2

4

1


Non deterministic fsa

Non-Deterministic FSA

  • Two Types of FSA

    • Deterministic FSA or DFSA

      • Every transition is labeled with a character

      • NO duplicate labels on transition from a state

    • Non-deterministic (NDSFSA)

      • Transitions can be labeled with empty string

      • Duplicate labels allowed

  • TWO Types are equivalent in Power

    • NDFSA are typically easier to write

    • Can convert one to another

l

A

4

1

5

A


Ndfsa example

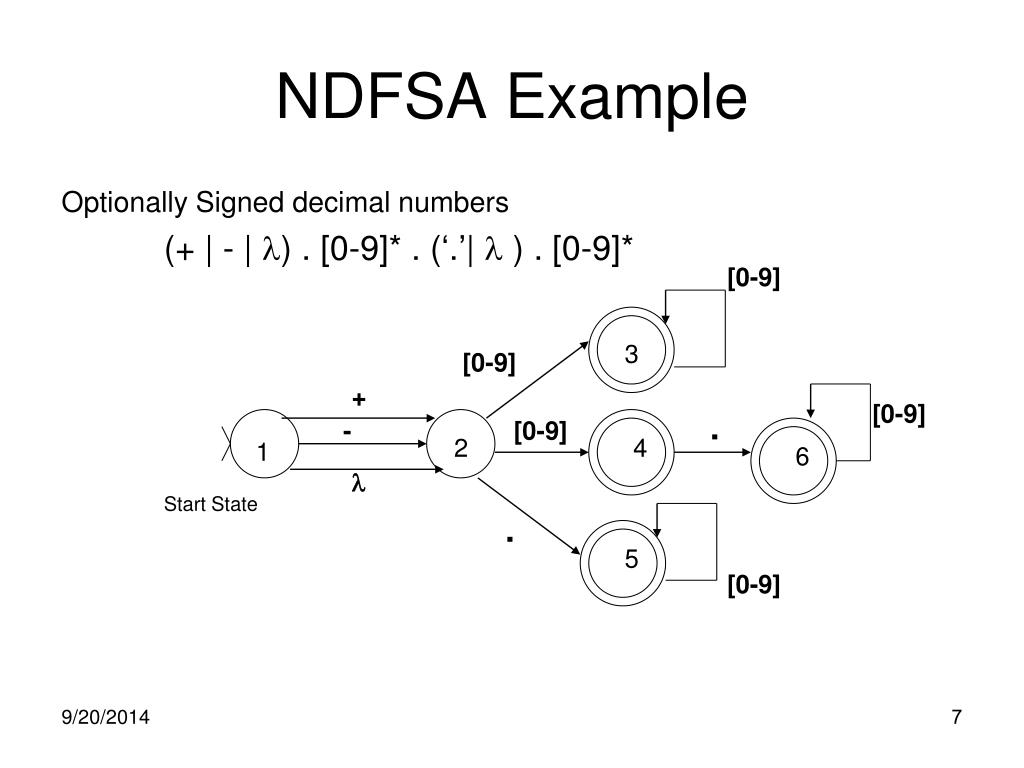

NDFSA Example

Optionally Signed decimal numbers

(+ | - | l) . [0-9]* . (‘.’| l ) . [0-9]*

[0-9]

3

[0-9]

+

[0-9]

.

-

[0-9]

2

4

1

6

l

Start State

.

5

[0-9]


Two theorems

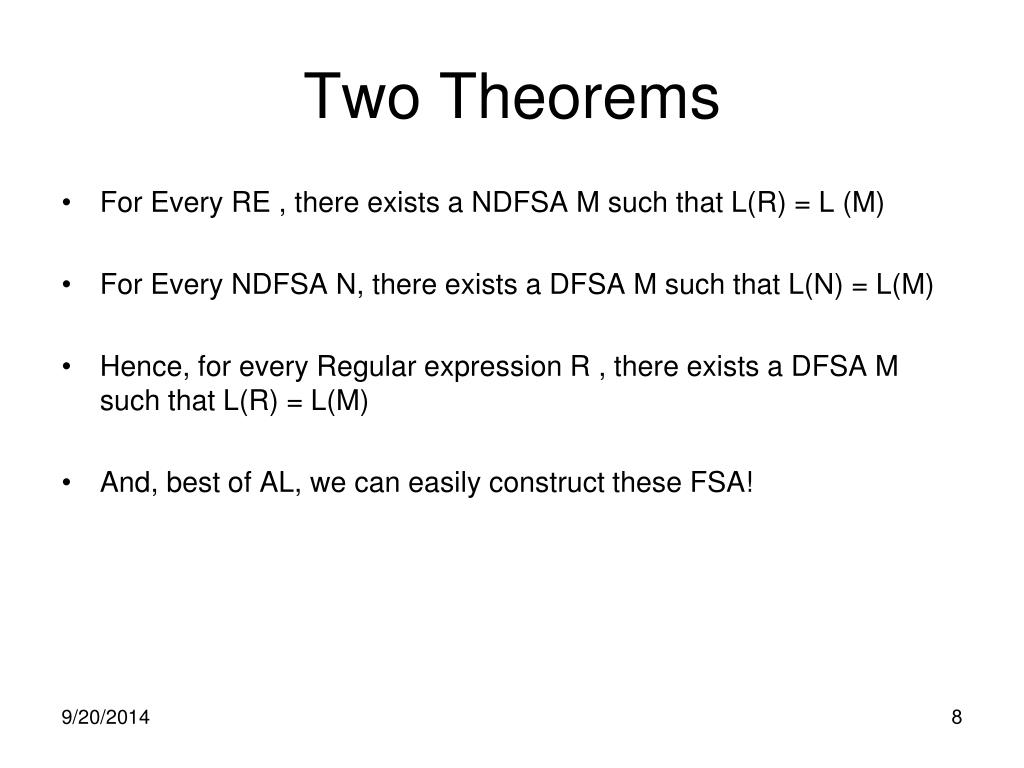

Two Theorems

  • For Every RE , there exists a NDFSA M such that L(R) = L (M)

  • For Every NDFSA N, there exists a DFSA M such that L(N) = L(M)

  • Hence, for every Regular expression R , there exists a DFSA M such that L(R) = L(M)

  • And, best of AL, we can easily construct these FSA!


Proof of theorem 1

Proof of Theorem 1

  • Give rules of constructing NDSFA from R

a

M(a)

1) a

a

4) a*

M(a)

M(b)

l

l

2) a.b

Final state

Start state

M(a)

l

l

3) a|b

M(b)

l

l


Example for constructing ndfsa from re

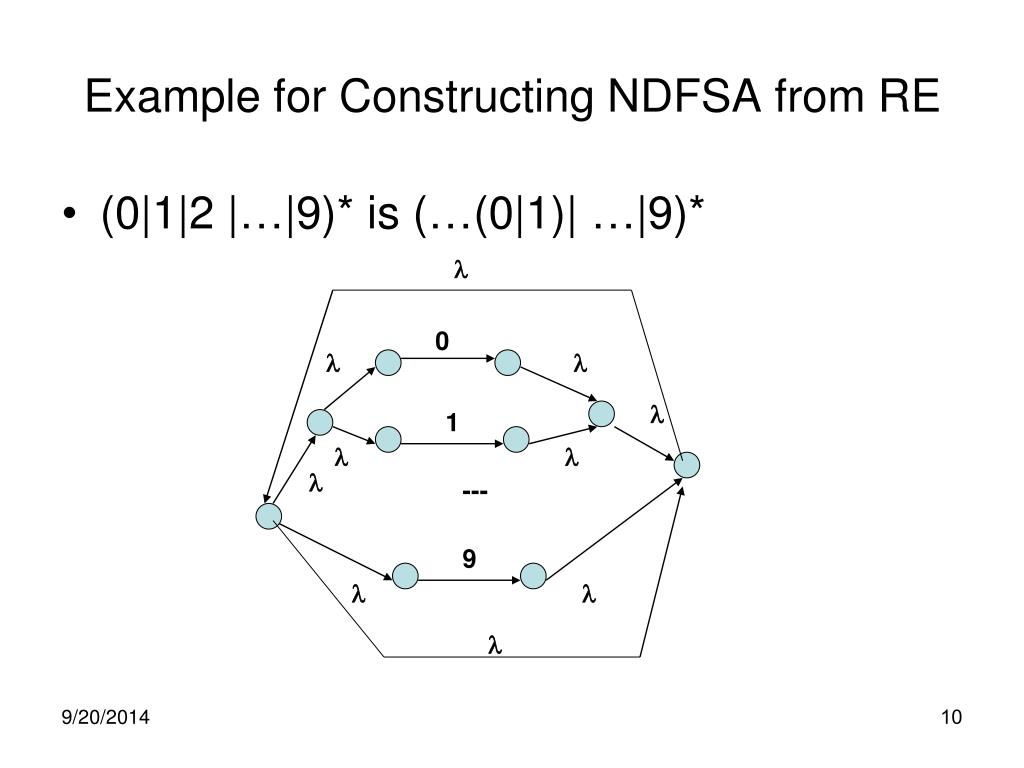

Example for Constructing NDFSA from RE

  • (0|1|2 |…|9)* is (…(0|1)| …|9)*

l

0

l

l

l

1

l

l

l

---

9

l

l

l


Proof of theorem 2

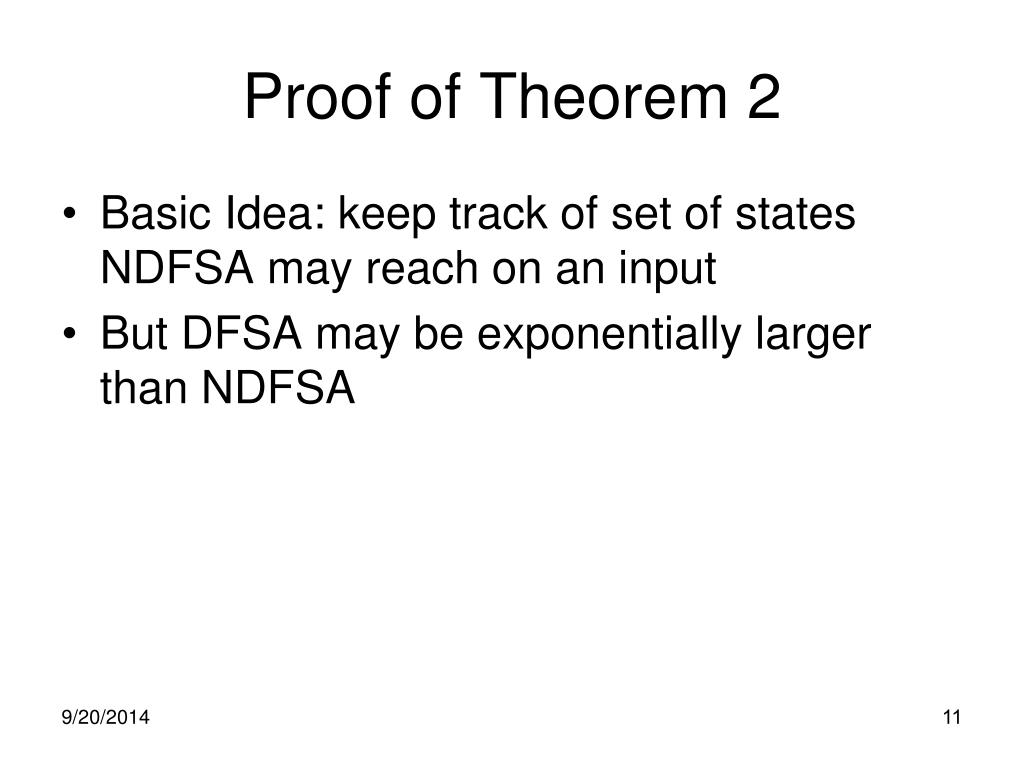

Proof of Theorem 2

  • Basic Idea: keep track of set of states NDFSA may reach on an input

  • But DFSA may be exponentially larger than NDFSA


Example of power set construction

Example of Power-set Construction

  • (a|b)*.b.b

a

l

b

b

2

3

1

4

b

a

a

b

II

I

III

b

b

a
