Presentation Transcript

Centerpoint intermodal center cic

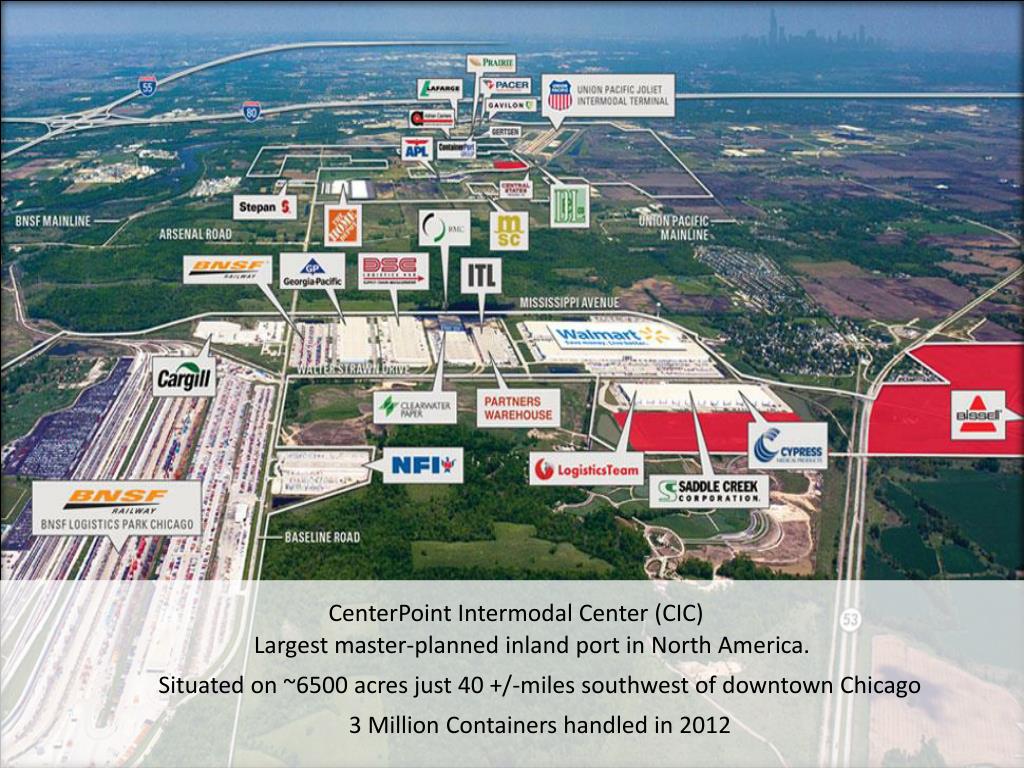

CenterPoint Intermodal Center (CIC)

Largest master-planned inland port in North America.

Situated on ~6500 acres just 40 +/-miles southwest of downtown Chicago

3 Million Containers handled in 2012

Centerpoint intermodal center cic

ICD Tughlakhabad

Largest ICD In india

Situated on ~44 Hectares of Land in NCR Region of India

450,000 Containers handled in 2012

Centerpoint intermodal center cic

  • Situated in NCR Region of India

  • 4 full length rail lines

  • 10,000 sqm covered Export warehouse

  • 6,000 sqm covered Import warehouse

  • Two bonded warehouses of 8500 sqm- 3,000 sqm dedicated for LCL export cargo

  • Open stack space for 12000 loaded TEUs and 2000 empty TEUs

  • Separate empty parks for stacking of 10000 + empty TEUs

  • 2 hectare parking area for parking of approx. 750+ trailer

Centerpoint intermodal center cic

Setting up new ICDs in North India Region – The Need & Challenges

Future of ICD’s in India

Presentation by Mr. Dhruv Kotak, J M Baxi Group

Centerpoint intermodal center cic

Constraints with the Current System

  • Transportation delays due to city traffic congestion.

  • Trailer idle time due to wait at city entry points for roads to open.

  • Severe space shortage in ICDs leading to delays and inconvenience to CHAs

  • Severe warehousing space shortage

Centerpoint intermodal center cic

Choosing Appropriate Location for Future Proof ICD

  • Capacity

  • Distance from the highway

  • Proximity to Rail Line

  • Capacity of Rail Line

  • Length of Rail Line

  • Proximity to Dedicated Freight Corridor and National Highway

  • Land Mass (100 to 110 Acres required to handle large trains)

  • Scale of Capacity should be at least 100 Acres

Centerpoint intermodal center cic


  • Modern Cargo Handling Equipments

  • State of art terminal management system

  • Robotics and Automation wherever possible and feasible

  • Modern Warehousing Design

  • Fast Turnaround time with the help of Rail

Centerpoint intermodal center cic

Multipurpose Cargo Handling Systems

  • Major Hinterland Creation in Private Space

  • A quasi space having container handling capacity (ICD)

  • Future terminals will not only have ICD / CFS but will also accommodate Agri Parks, Cold chains, Bulk Handling Facilities, Collateral Warehousing, Liquid Logistic Facilities (Liquid Silos)

Centerpoint intermodal center cic

Ecosystem Development

  • Ecosystem needs to be developed around container terminals which will supplement all the other activities.

  • This will also bring improvement and efficiency in cost per unit

Centerpoint intermodal center cic

Hub + Spoke Development

  • Dedicated freight corridor will create ecosystem for Hub and Spoke model

  • It will provide tremendous scale benefits

  • For creation of efficient hub and spoke model we need there is a need to creation separate category of rail operators.

  • Big Train rail / Hub Operators which will connect to Hub Terminals

  • Spoke Rail Operators which will connect to hinterland.

  • There is a need to create this difference and a different plan need to be created for the same.

  • Create 3rd Category of rail operators who will carry others commodities i.e. bulk & break bulk directly to ports or via hub ports / terminals.

Centerpoint intermodal center cic

So what is the J M Baxi Group doing about it?

Centerpoint intermodal center cic

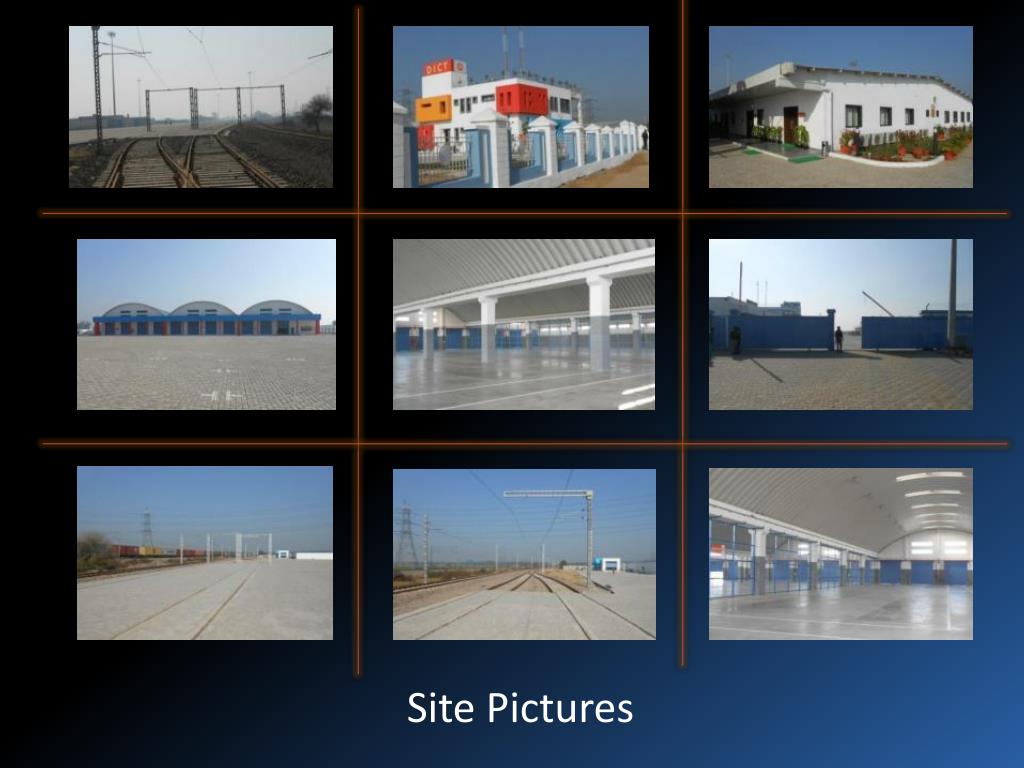

Site Pictures

Centerpoint intermodal center cic

Site Pictures

Centerpoint intermodal center cic

We have it all at DICT, our pilot project at Sonepat.

State of art Inland Container Deport Cum Logistics Park with facilities

as below and much more:-

  • Container Repairing facility

  • Latest Trailers

  • Liquid Tank Farm Facility

  • Controlled temperature

  • warehousing area

  • Mechanized Bagging Plant

  • Grain Silos

  • Scrap Handling Yards

  • Total Area – 65 Acres

  • Warehousing Space

  • Future Warehousing Planned

  • Reefer Plug Points

  • Rail Handling Lines

  • Handling Equipment’s like Rubber Tyre Gantry Cranes, Reach Stackers, Hydra , Cranes , Fork Lifts.

Centerpoint intermodal center cic

DICT – Location Advantage

  • Cargo coming from “North Direction” to Delhi passes DICT before entering Delhi or any of the NCR ICD’s.

  • Cargo coming from “North West” or “North East” side of Delhi can be routed through DICT without adding any cost and with a considerable reduction in turnaround of trailers.

  • Access roads being used for First & Last mile are much better from DICT when compared to other NCR ICD’s.

  • “Kundli Manesar Palwal”(KMP) & “Eastern Peripheral Corridor” (EPC)are two expressways encircling NCR and under construction.

  • DICT lies at a location approx. 35 Kms from KMP passing point at Kundli.

  • Once operational a lot of the traffic identified in earlier slides will not be permitted inside Delhi.

Centerpoint intermodal center cic

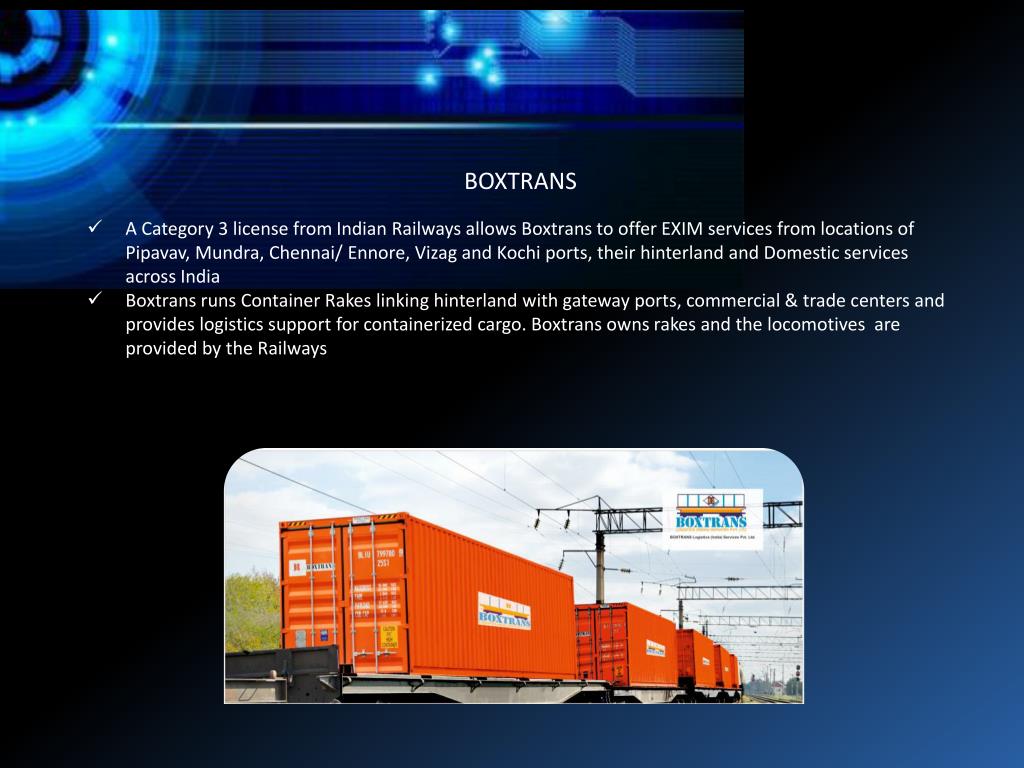

  • A Category 3 license from Indian Railways allows Boxtrans to offer EXIM services from locations of Pipavav, Mundra, Chennai/ Ennore, Vizag and Kochi ports, their hinterland and Domestic services across India

  • Boxtrans runs Container Rakes linking hinterland with gateway ports, commercial & trade centers and provides logistics support for containerized cargo. Boxtrans owns rakes and the locomotives are provided by the Railways

Centerpoint intermodal center cic

Thank You
