Uni Bonn contributions to SMOS Validation

Ralf Lindau

Bonn University

SMOS Workshop – Hamburg, 9.-10. November 2006

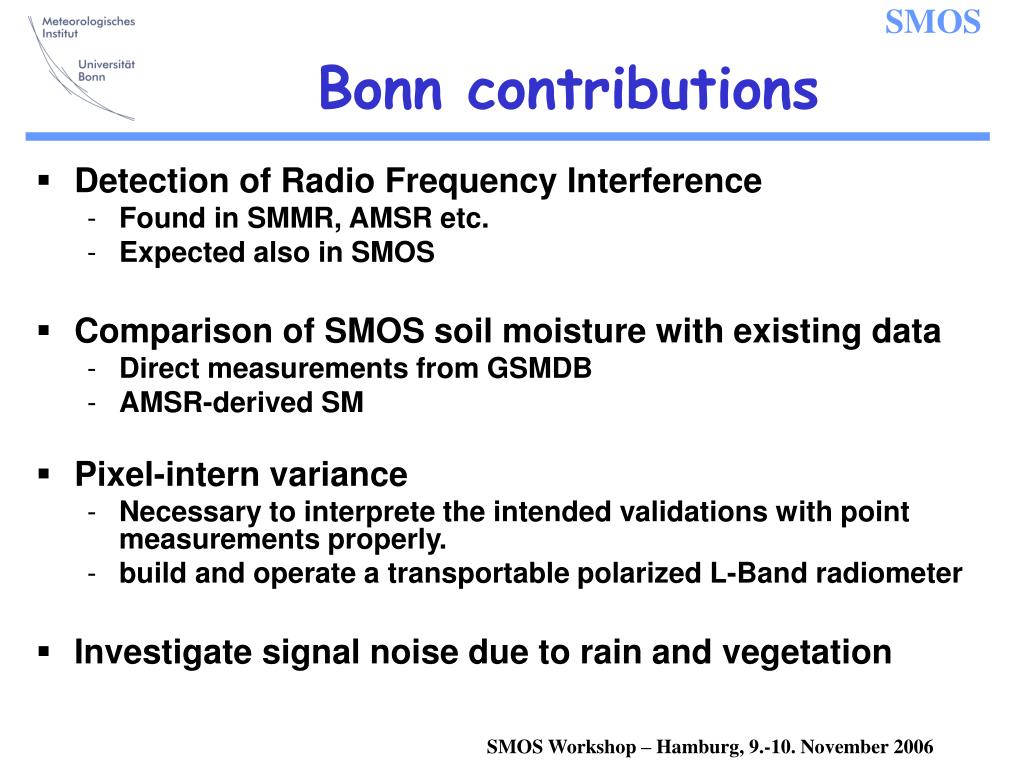

Bonn contributions

Bonn contributions

  • Detection of Radio Frequency Interference

    • Found in SMMR, AMSR etc.

    • Expected also in SMOS

  • Comparison of SMOS soil moisture with existing data

    • Direct measurements from GSMDB

    • AMSR-derived SM

  • Pixel-intern variance

    • Necessary to interprete the intended validations with point measurements properly.

    • build and operate a transportable polarized L-Band radiometer

  • Investigate signal noise due to rain and vegetation

SMOS Workshop – Hamburg, 9.-10. November 2006


Radio frequency interference

Radio Frequency Interference

  • Time series of 6 GHz brightness temperature from SMMR in France

  • Until 1981 the normal annual cycle is found.

  • After 1981 the 6 Ghz signal is completely unusable due to noise.

SMOS Workshop – Hamburg, 9.-10. November 2006


Smmr rfi in 6 ghz

SMMR RFI in 6 GHz

The scatter is low inSibiria, increases westward and reaches maximum values near St. Petersburg

SMOS Workshop – Hamburg, 9.-10. November 2006


Asmr rfi

ASMR RFI

In Europe the 10 GHz channel is completely noisy in England and Italy.

In the USA the 6 GHz measurements are corrupted over New York, Boulder etc.

SMOS Workshop – Hamburg, 9.-10. November 2006


Amsr 10 ghz rfi

AMSR 10 GHz RFI

250 K

  • RFI is detectable by

    • high monthly averages

    • high monthly stddev.

300 K

SMOS Workshop – Hamburg, 9.-10. November 2006


Simple rfi scheme

Simple RFI Scheme

  • TB> 260 K

  • Stddev> 5 K

  • DTB> 20 K

    compared to a 10° x 30°

    surrounding

SMOS Workshop – Hamburg, 9.-10. November 2006


Soil moisture from amsr

Soil Moisture from AMSR

Longtime mean

+

10-day anomalies

SMOS Workshop – Hamburg, 9.-10. November 2006


2 step retrieval

2-Step Retrieval

SMOS Workshop – Hamburg, 9.-10. November 2006


Pixel intern variance

Pixel-intern Variance

Belarussian soil moisture data

21 stations, 10 daily during about 10 years

Average spatially and compare the reduced variance to the total variance

40% are left for 400-km-Pixels

59% are left for SMMR-Pixels

The left external variance is equal to the maximum correlation between point measurements and area averages

SMOS Workshop – Hamburg, 9.-10. November 2006
