Aps photo gate development

APS photo gate development

Aug 2003

LBNL

Howard Wieman, Fred Bieser, Howard Matis, Marcus Oldenburg, Fabrice Retiere, Eugene Yamamoto

UCI

Yandong Chen, Stuart Kleinfelder


Outline
Outline

  • Why go use photo gate in CMOS APS

  • Model expectations

  • Silicon tests


Photo gate purpose the problems addressed
Photo gate purpose, the problems addressed

  • CDS removal of fixed pattern noise and KTC reset noise

  • Increase signal by reducing signal spreading to adjacent pixels. The photo gate permits large geometry without adding capacitance to the sense node.

P

P-

P+

Standard diode geometry


Photo gate geometry

transfer gate

drain

photo gate

0.4 m

5 nm

1 m

1 m

-2 m-

x

0.1 m

P epi 1.4x1015 1/cm3

8 m

x = 0.4 and 0.8 m

N+ 1x1020 1/cm3

(simulation quantities)

Photo gate geometry

  • Large photo gate to collect large fraction of the charge on a single pixel, directly on the p- epi layer

  • Small transfer gate also directly on p- epi layer

  • Small drain (minimum capacitance) connected to source follower gate (sense node)

reset gate

photo gate

reset gate

transfer gate

sense node drain

row select gate

source follower gate

20 m


Photo gate issues in standard cmos

transfer gate

photo gate

drain

floating n well

Photo gate issues in standard CMOS

double poly

  • No double poly process – possible poor transfer between gates because of low transverse field

  • Floating n well between gates, a bad solution to the transfer problem with single poly

  • Sub-micron process may solve problem

single poly


Photo gate transfer gate operation

trans

gate

1.8 V V


gate

drain

2.4 V


gate

trans

gate

drain

V phg = 0.8 V

transfer mode

V phg = 2.4 V

collection mode

Photo gate/transfer gate operation


Photo gate transfer gate with 800 nm separation

trans

gate

1.8 V V


gate

drain

2.4 V


gate

trans

gate

drain

V phg = 0.8 V

transfer mode

V phg = 2.4 V

collection mode

Photo gate/transfer gate with 800 nm separation


Drain current after light injection

Light injection

transfer gate

photo gate

drain

60 ns

Drain current after light injection

  • 400 nm between photo gate and transfer gate, no floating n well

  • Nano amp drain current

  • Rapid electron transfer - complete in 60 ns

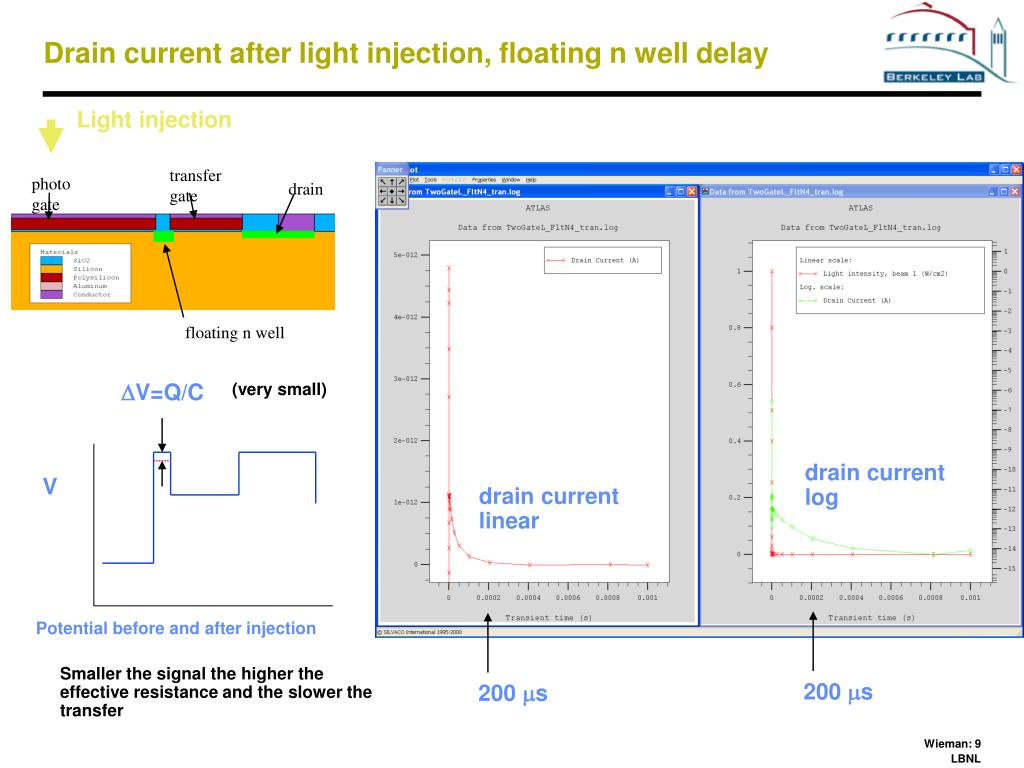

Drain current after light injection floating n well delay

Light injection

transfer gate

photo gate

drain

floating n well

200 s

200 s

Drain current after light injection, floating n well delay

V=Q/C

(very small)

drain current

log

V

drain current

linear

Potential before and after injection

Smaller the signal the higher the effective resistance and the slower the transfer


First silicon tests

Photo-gate directly to sense node drain

First silicon tests

Output signal for Fe55 X-ray test

Issues:

  • Signal spreading

  • Reduced gain

DC bias:

V photo-gate 0.6 V

V drain 2.4 V

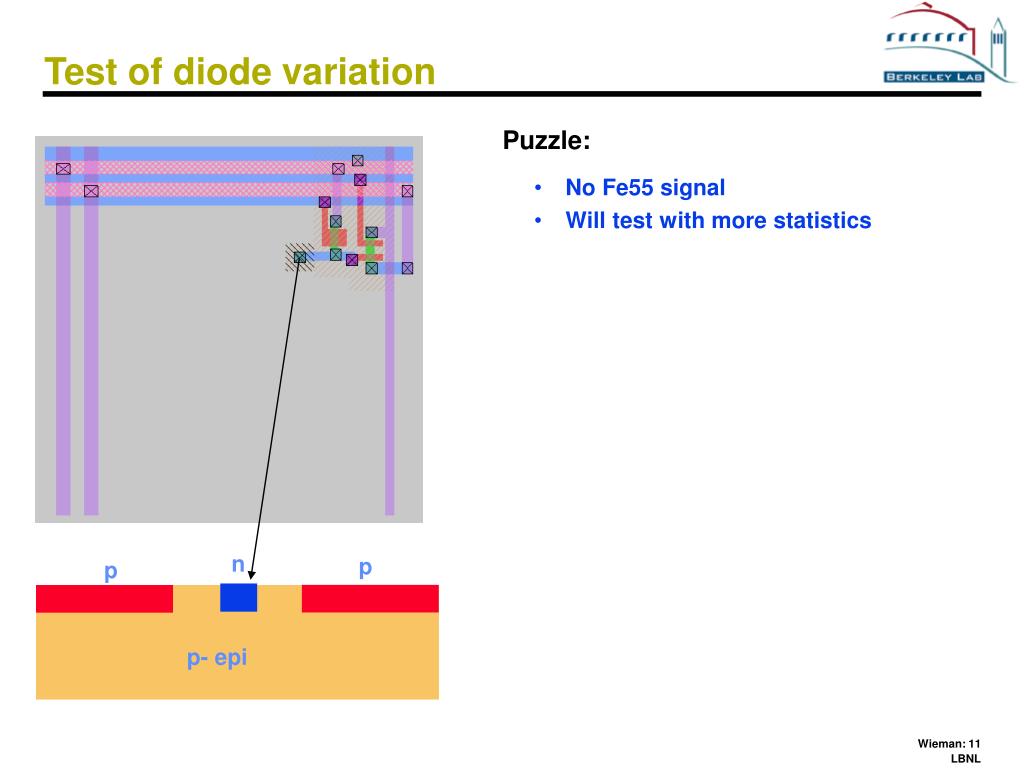

Test of diode variation
Test of diode variation

Puzzle:

  • No Fe55 signal

  • Will test with more statistics

n

p

p

p- epi
