  1. SCOoffice Server for OpenServer 5.0.7Basic Administration 2 Rick Powell System Engineer

  2. Administration 2 Overview • Configuration • Services • Distributed Mail

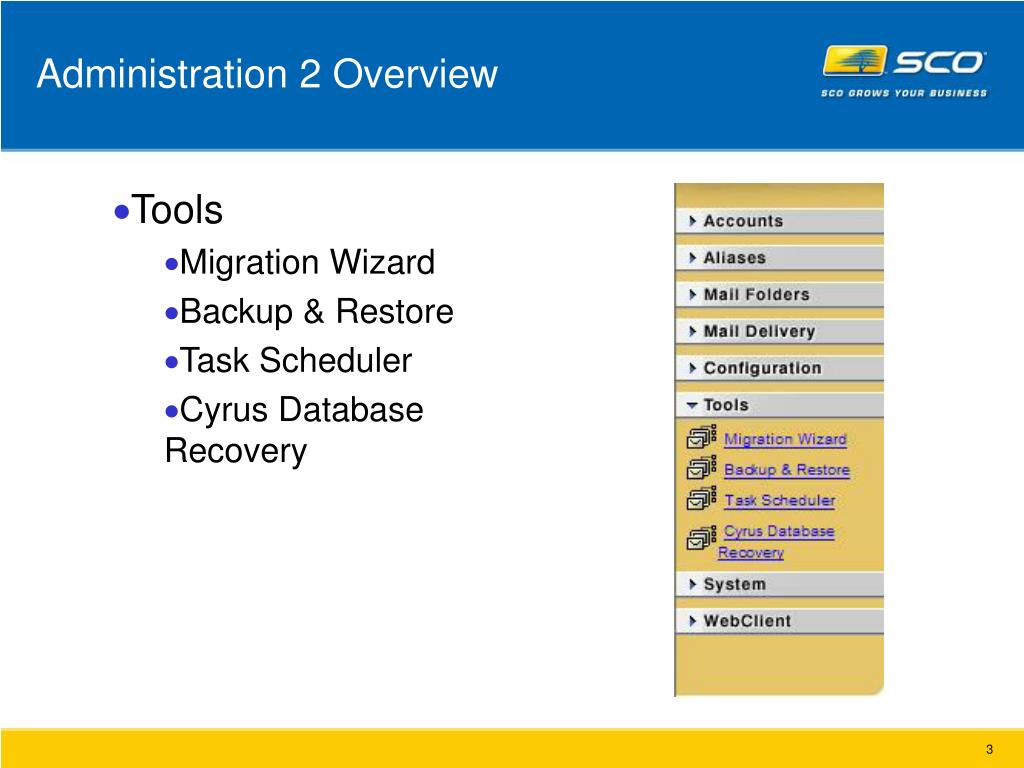

  3. Administration 2 Overview • Tools • Migration Wizard • Backup & Restore • Task Scheduler • Cyrus Database Recovery

  4. Administration 2 Overview • System • Statistics • Logging • About

  5. Configuring Services Services Apache Cyrus IMAP OpenLDAP Postfix ProFTPD

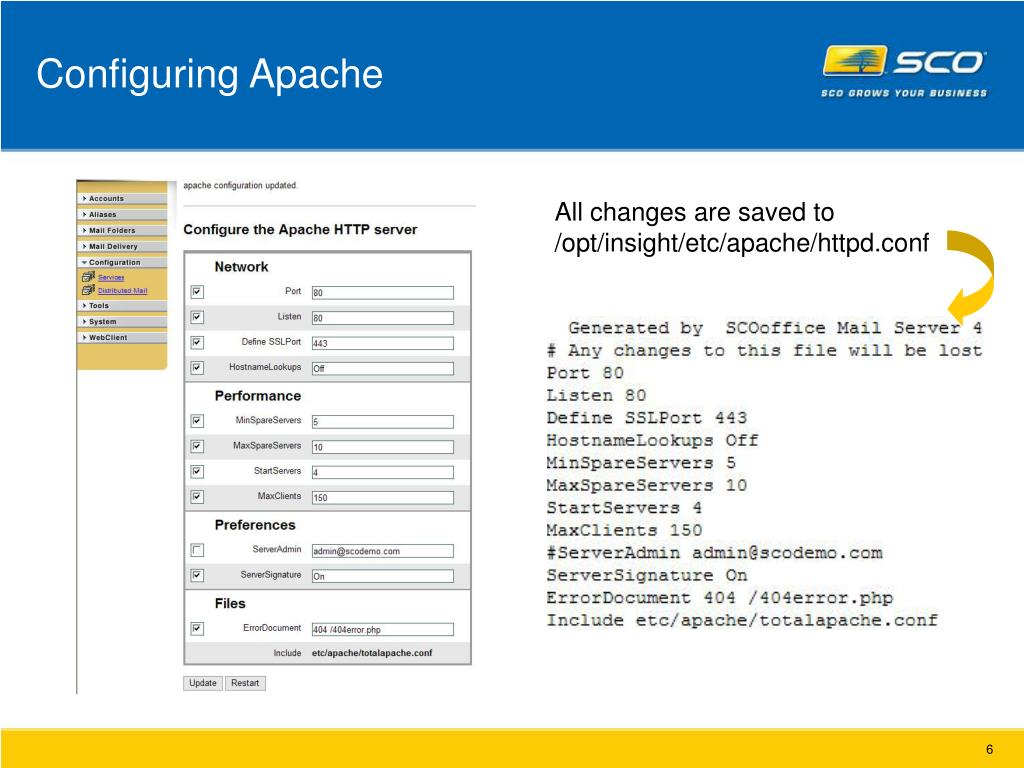

  6. Configuring Apache All changes are saved to /opt/insight/etc/apache/httpd.conf

  7. Configuring Cyrus IMAP All changes are saved to /opt/insight/etc/cyrus.conf

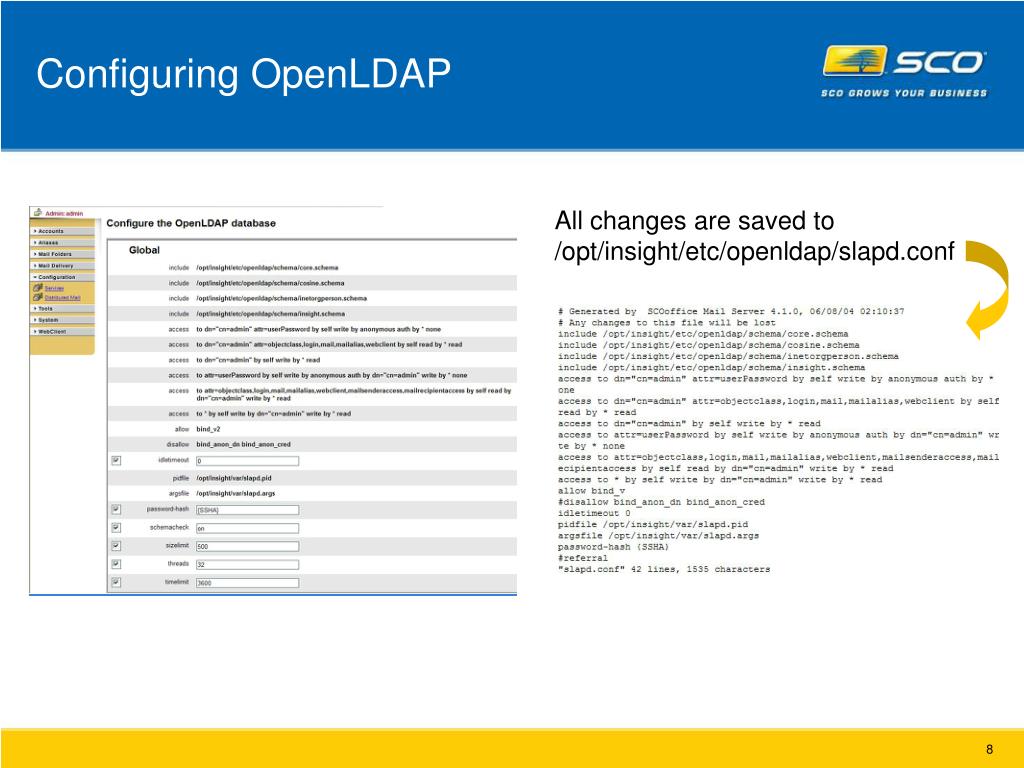

  8. Configuring OpenLDAP All changes are saved to /opt/insight/etc/openldap/slapd.conf

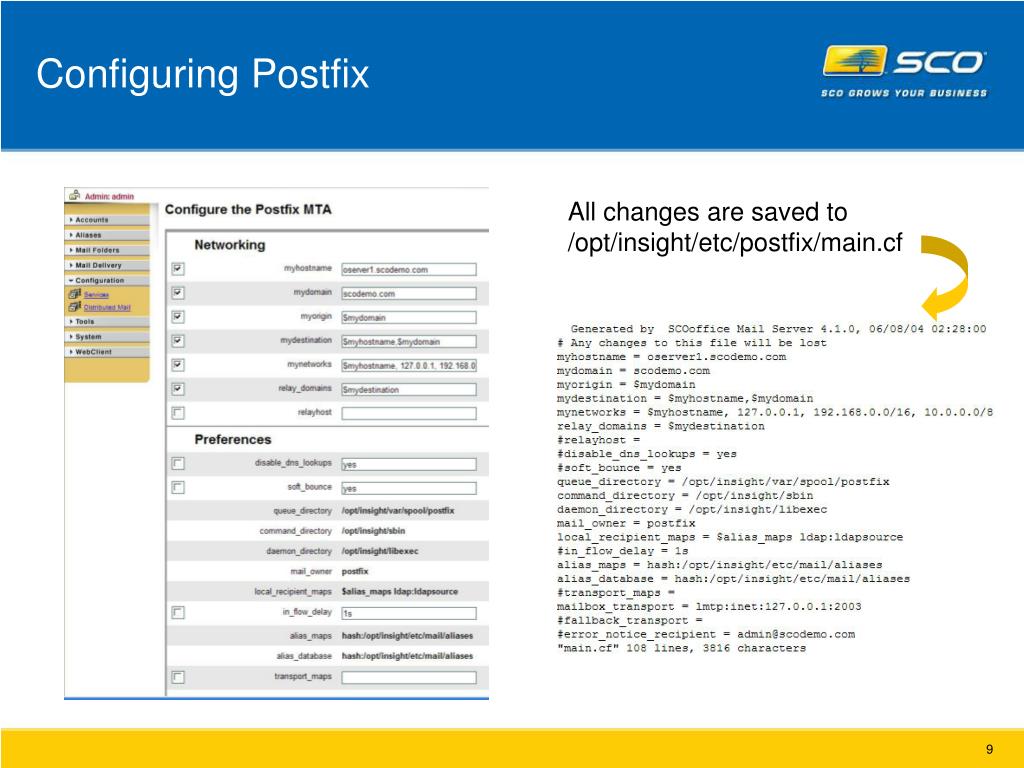

  9. Configuring Postfix All changes are saved to /opt/insight/etc/postfix/main.cf

  10. Distributed Mail Configuration • Server Types • Single • Master • Slave • Authentication • Options • LDAP • (default) • Active • Directory

  11. Configuring ProFTPD All Changes are saved to /opt/insight/etc/proftpd.conf

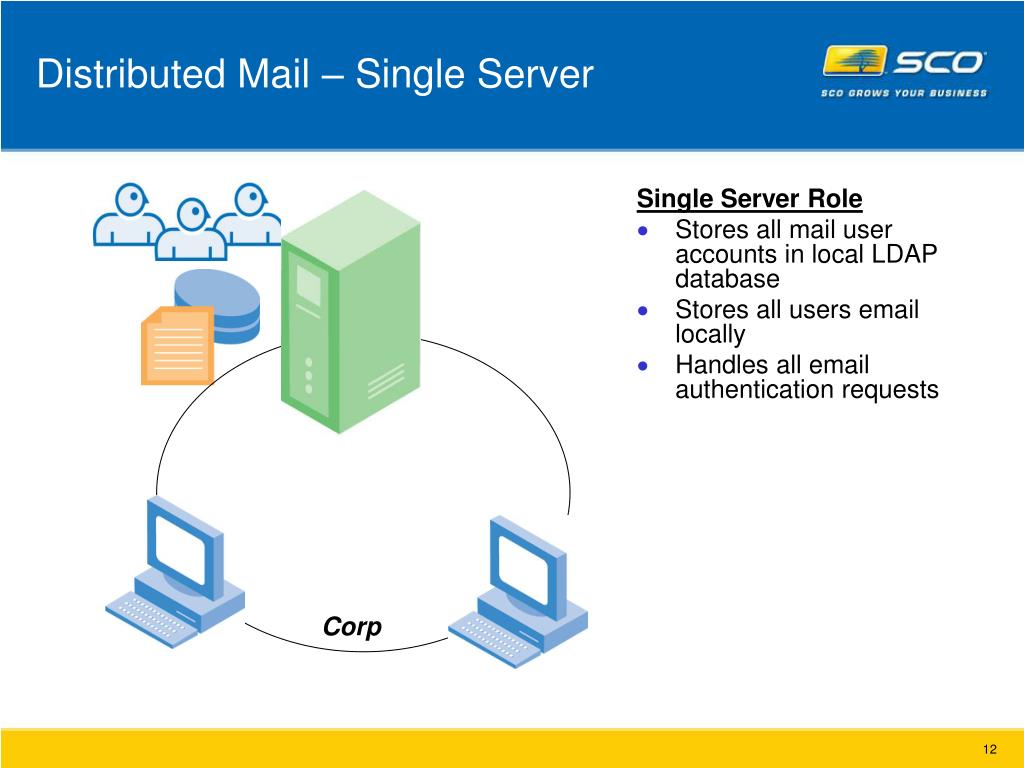

  12. Distributed Mail – Single Server • Single Server Role • Stores all mail user accounts in local LDAP database • Stores all users email locally • Handles all email authentication requests Corp

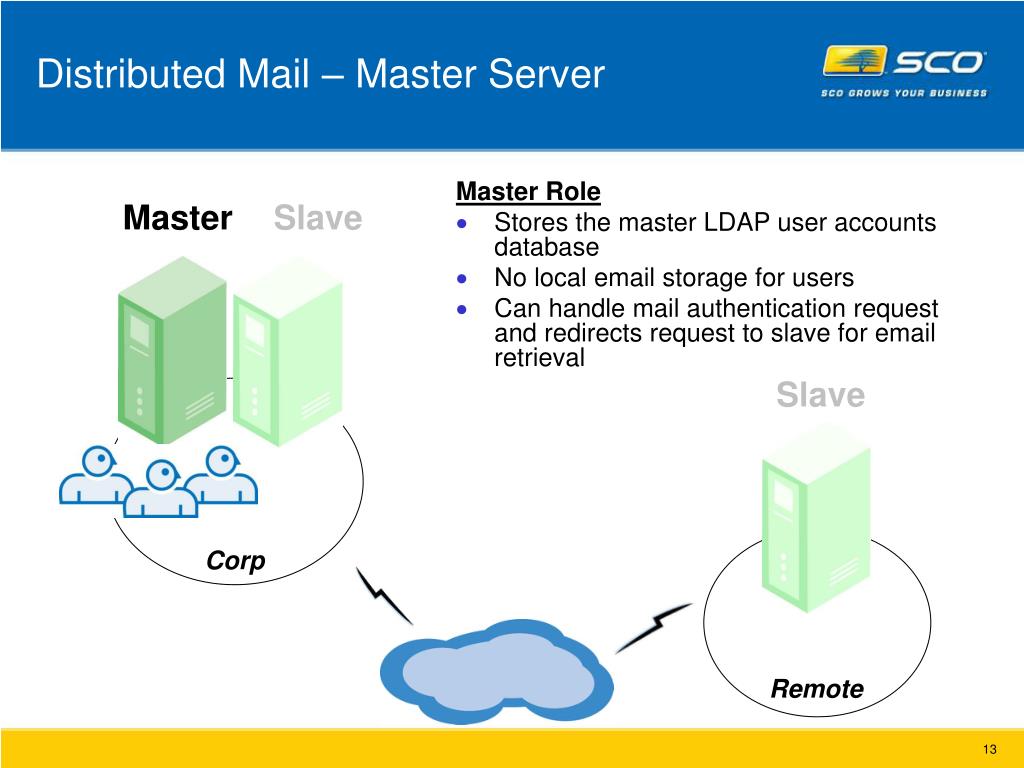

  13. Distributed Mail – Master Server • Master Role • Stores the master LDAP user accounts database • No local email storage for users • Can handle mail authentication request and redirects request to slave for email retrieval Master Slave Slave Slave Corp Remote

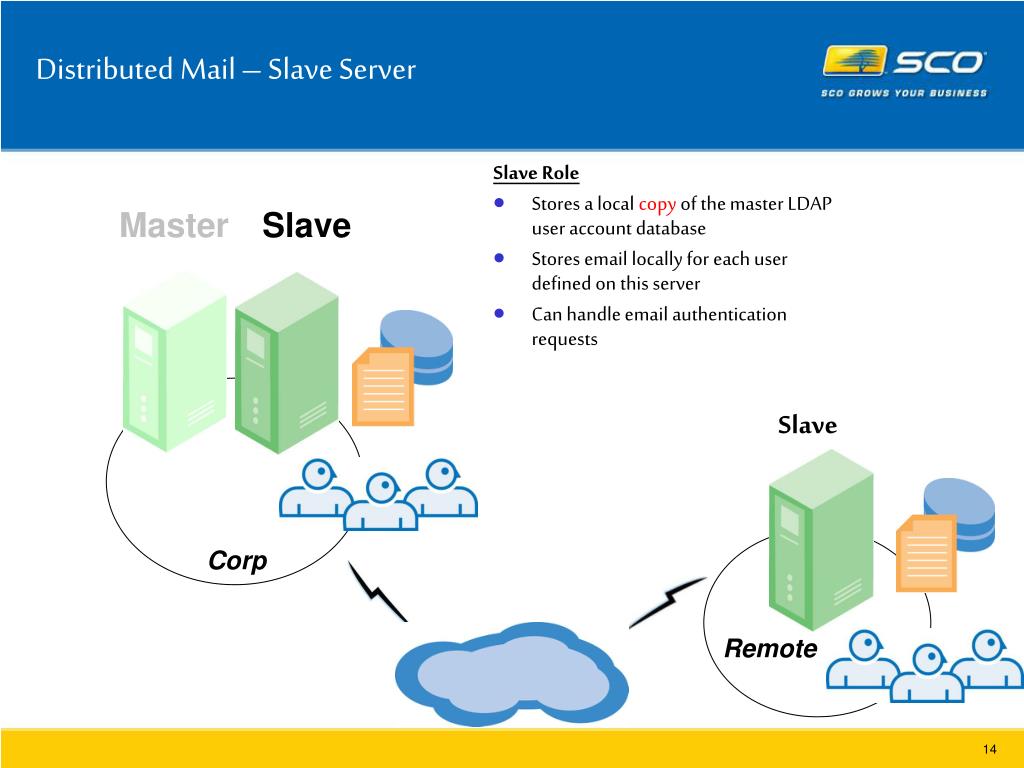

  14. Distributed Mail – Slave Server • Slave Role • Stores a local copy of the master LDAP user account database • Stores email locally for each user defined on this server • Can handle email authentication requests Master Slave Slave Corp Remote

  15. Active Directory Authentication

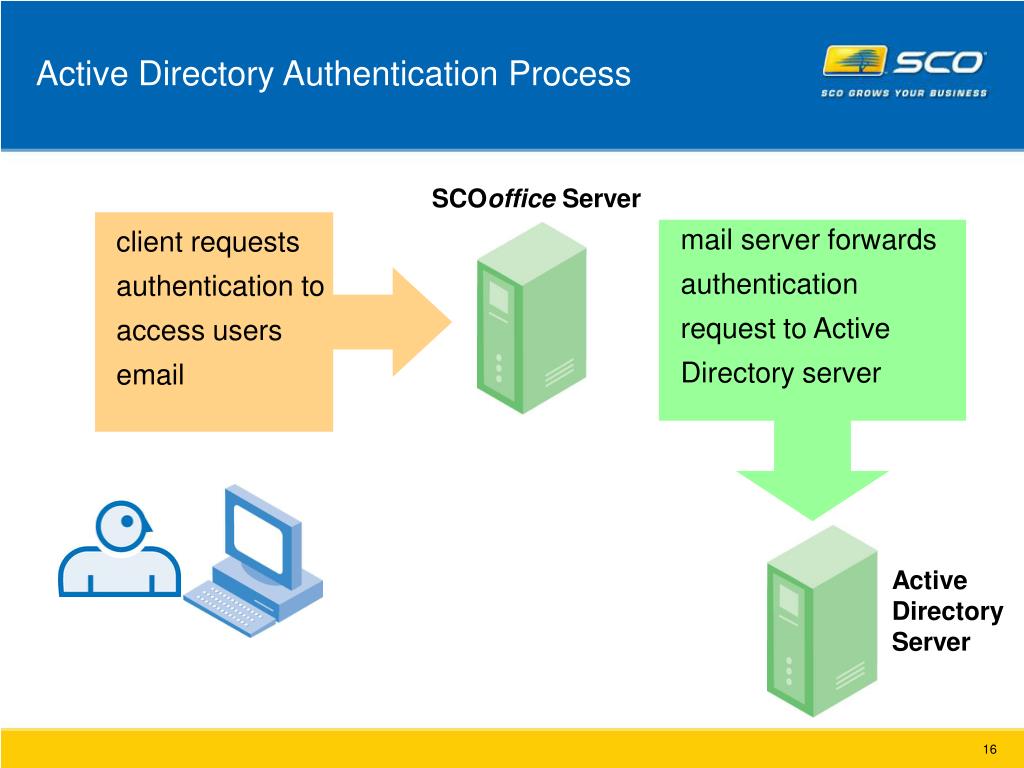

  16. Active Directory Authentication Process SCOoffice Server mail server forwards authentication request to Active Directory server client requests authentication to access users email Active Directory Server

  17. Migration Wizard • Migration Wizard • Migrate mail from an existing server (server-to-server) • Import mail from an existing pst file • Import mail from and existing MBOX file • Import from an RFC 2849 LDIF file • Import from an /etc/shadow file

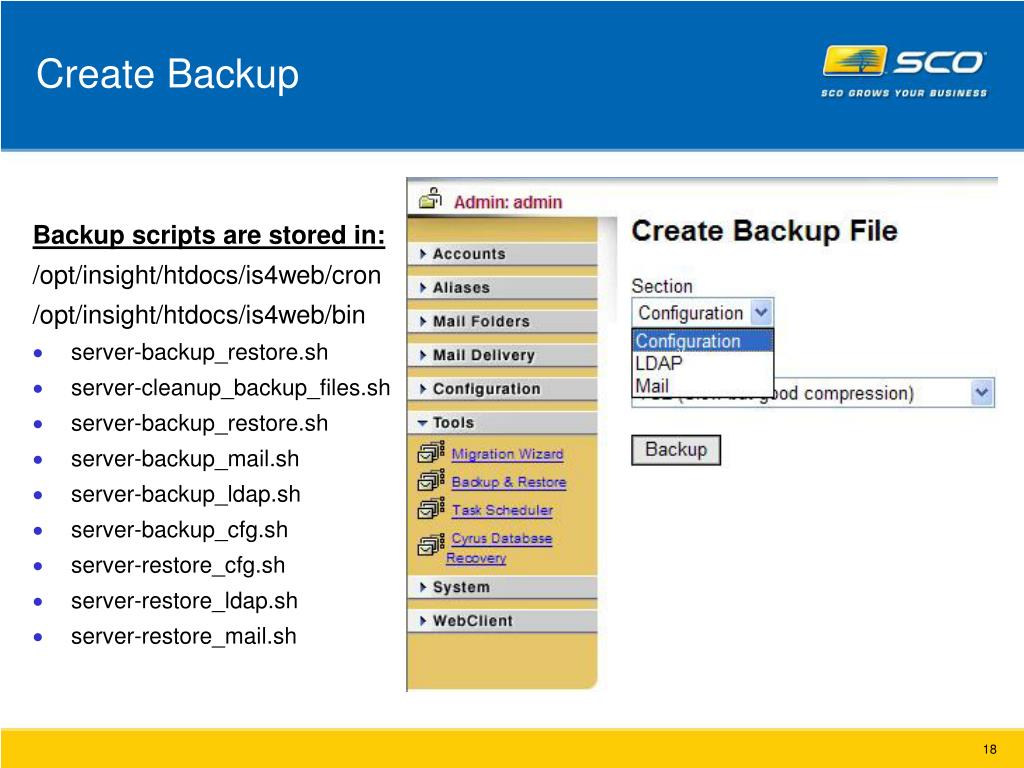

  18. Create Backup • Backup scripts are stored in: • /opt/insight/htdocs/is4web/cron • /opt/insight/htdocs/is4web/bin • server-backup_restore.sh • server-cleanup_backup_files.sh • server-backup_restore.sh • server-backup_mail.sh • server-backup_ldap.sh • server-backup_cfg.sh • server-restore_cfg.sh • server-restore_ldap.sh • server-restore_mail.sh

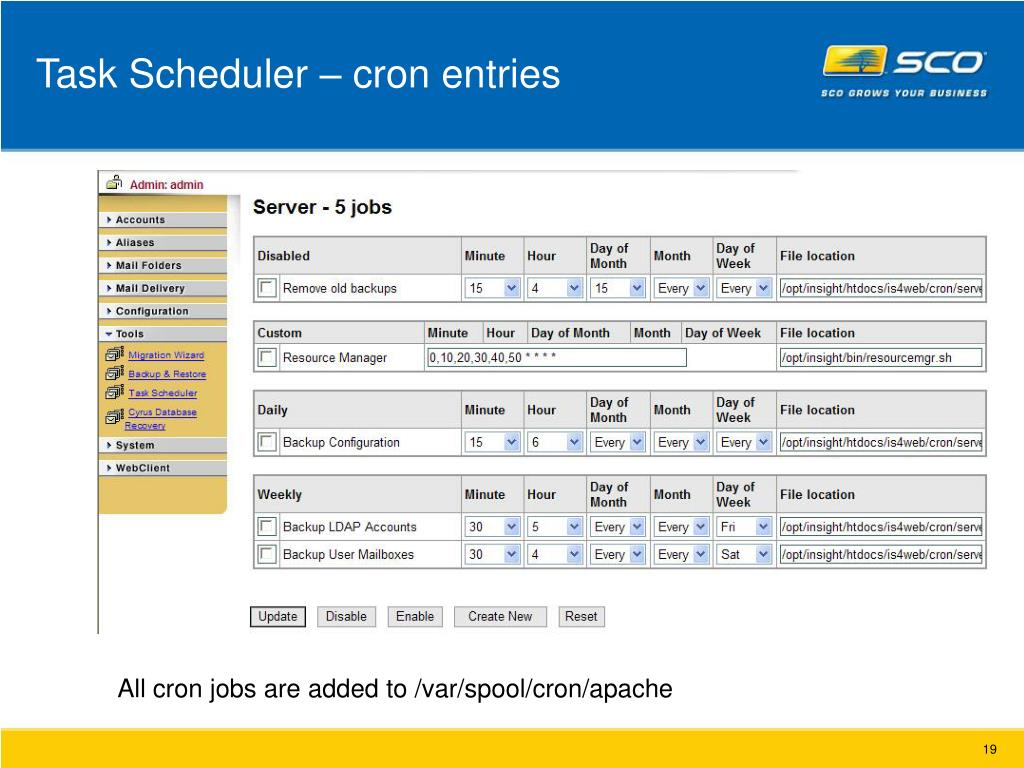

  19. Task Scheduler – cron entries All cron jobs are added to /var/spool/cron/apache

  20. Cyrus Database Recovery

  21. System - Statistics • Statistics • Inventory • Security • Service Quality

  22. System - About • License Agreements for: • SCO • Apache • Cyrus • OpenLDAP • Postfix • ProFTPd

  23. Basic Administration 2 Completed
