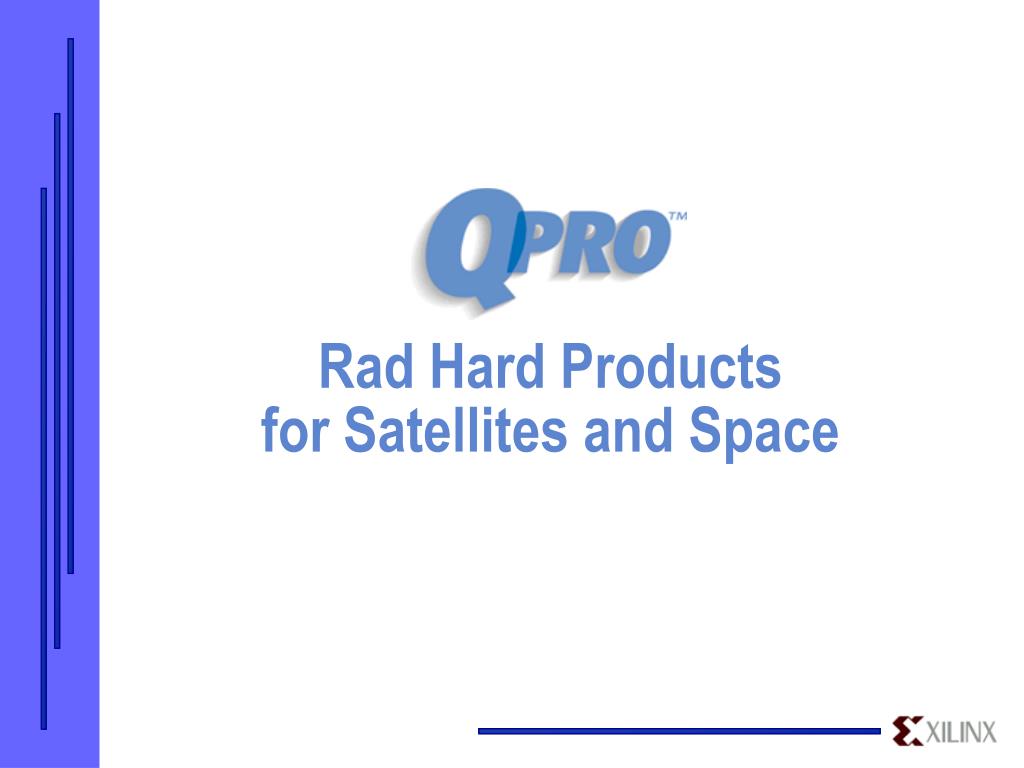

  1. Rad Hard Productsfor Satellites and Space

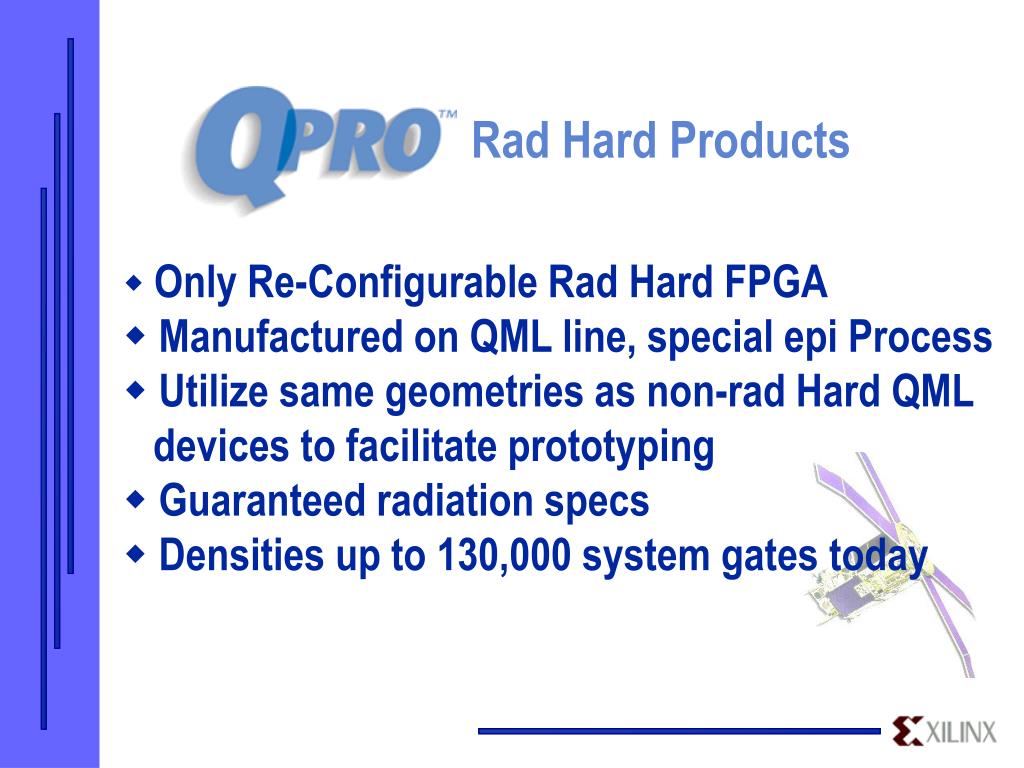

  2. Rad Hard Products • Only Re-Configurable Rad Hard FPGA • Manufactured on QML line, special epi Process • Utilize same geometries as non-rad Hard QML • devices to facilitate prototyping • Guaranteed radiation specs • Densities up to 130,000 system gates today

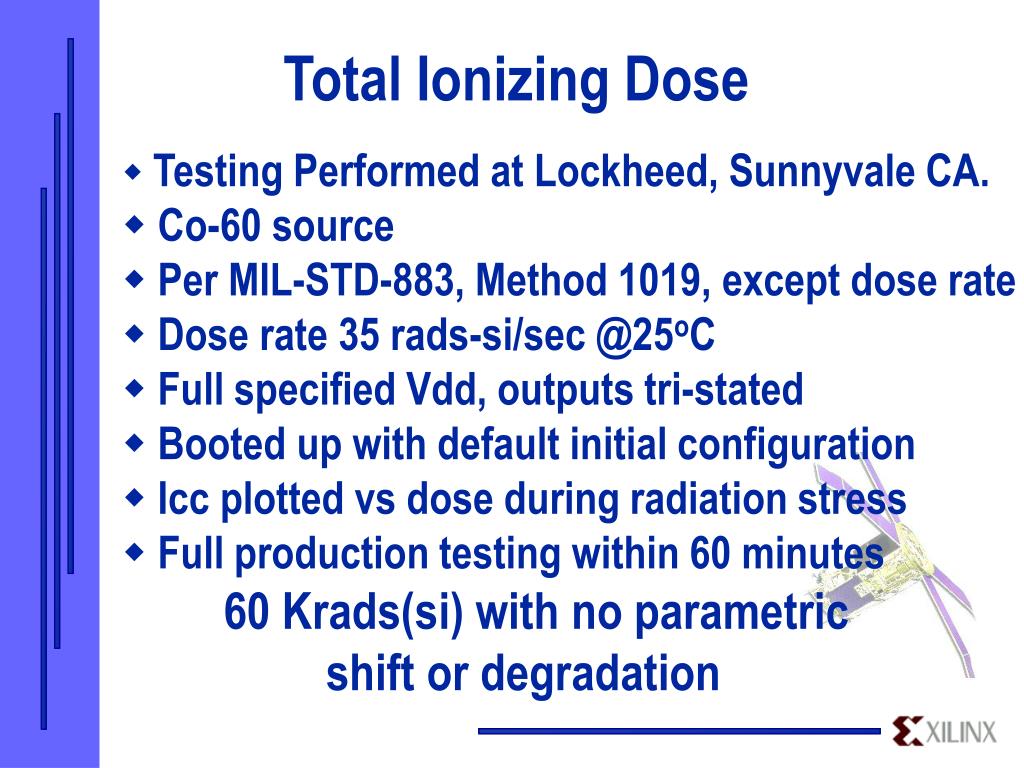

  3. Total Ionizing Dose • Testing Performed at Lockheed, Sunnyvale CA. • Co-60 source • Per MIL-STD-883, Method 1019, except dose rate • Dose rate 35 rads-si/sec @25oC • Full specified Vdd, outputs tri-stated • Booted up with default initial configuration • Icc plotted vs dose during radiation stress • Full production testing within 60 minutes • 60 Krads(si) with no parametric • shift or degradation

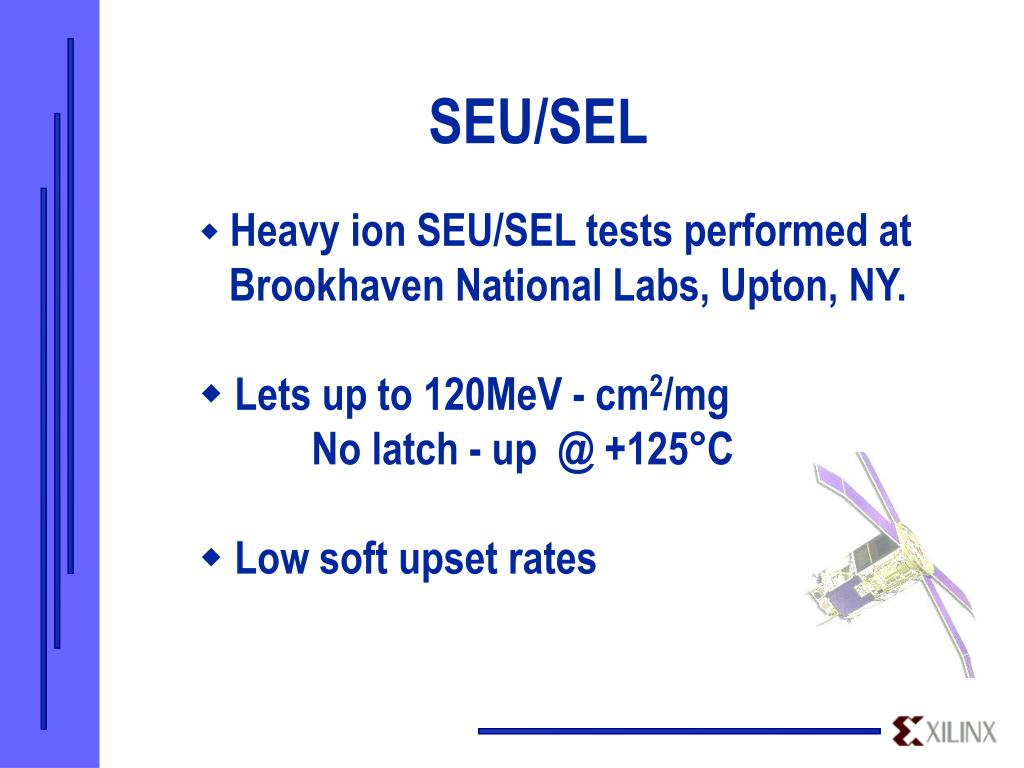

  4. SEU/SEL • Heavy ion SEU/SEL tests performed at • Brookhaven National Labs, Upton, NY. • Lets up to 120MeV - cm2/mg • No latch - up @ +125°C • Low soft upset rates

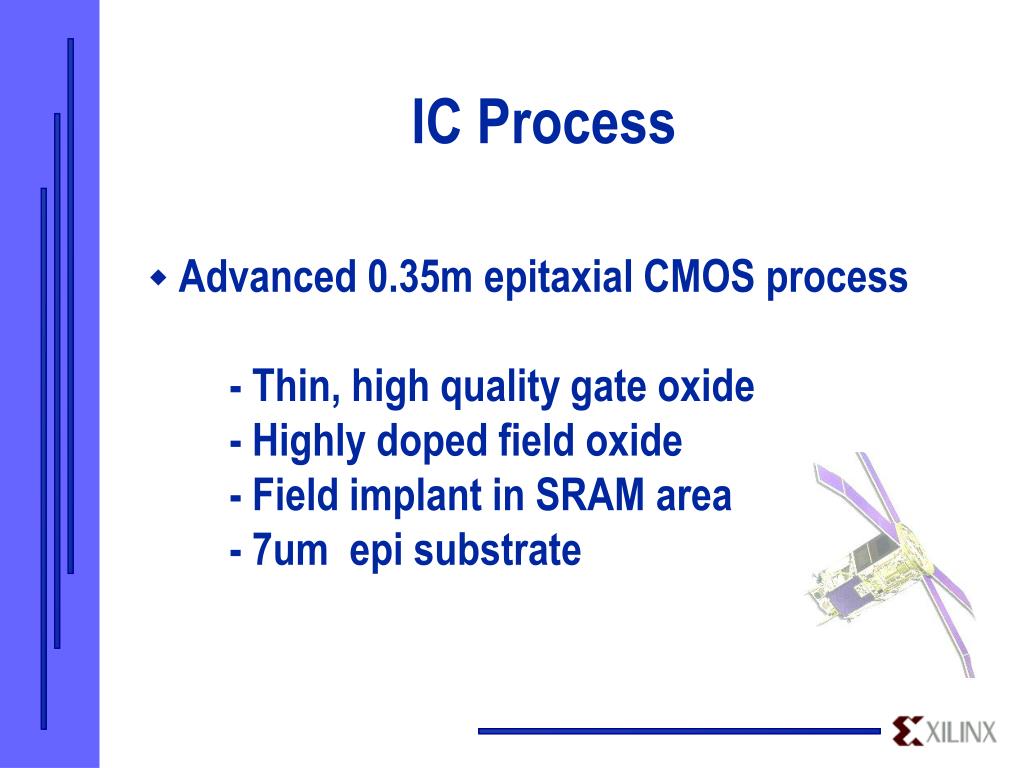

  5. IC Process • Advanced 0.35m epitaxial CMOS process • - Thin, high quality gate oxide • - Highly doped field oxide • - Field implant in SRAM area • - 7um epi substrate

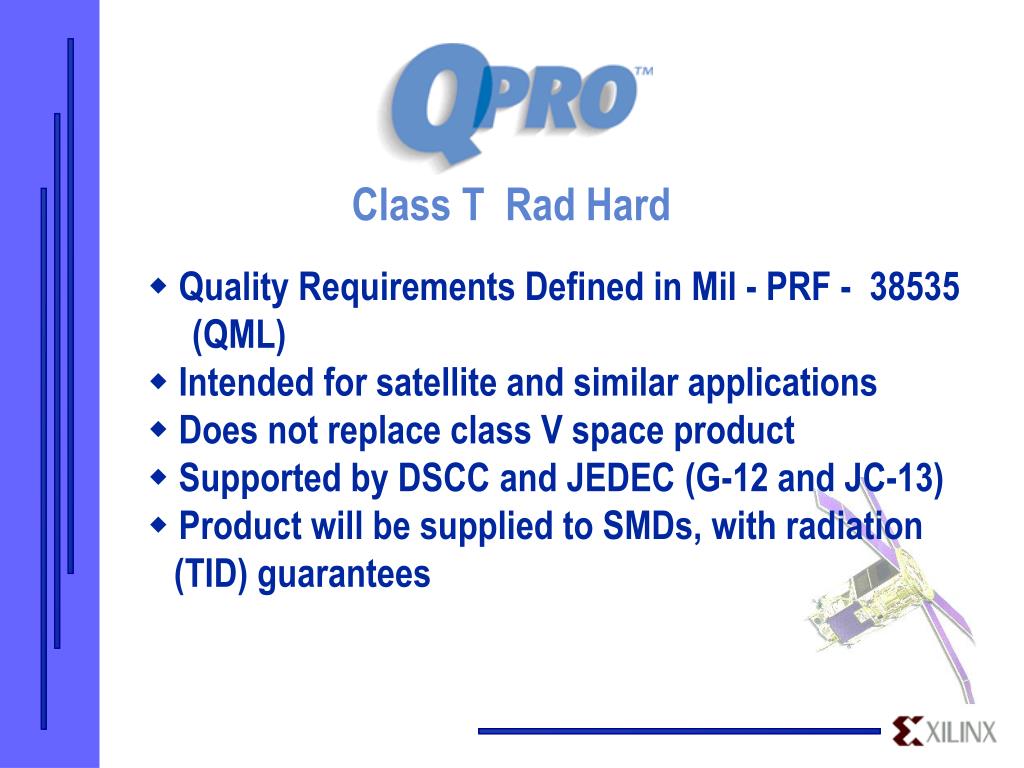

  6. Class T Rad Hard • Quality Requirements Defined in Mil - PRF - 38535 • (QML) • Intended for satellite and similar applications • Does not replace class V space product • Supported by DSCC and JEDEC (G-12 and JC-13) • Product will be supplied to SMDs, with radiation (TID) guarantees

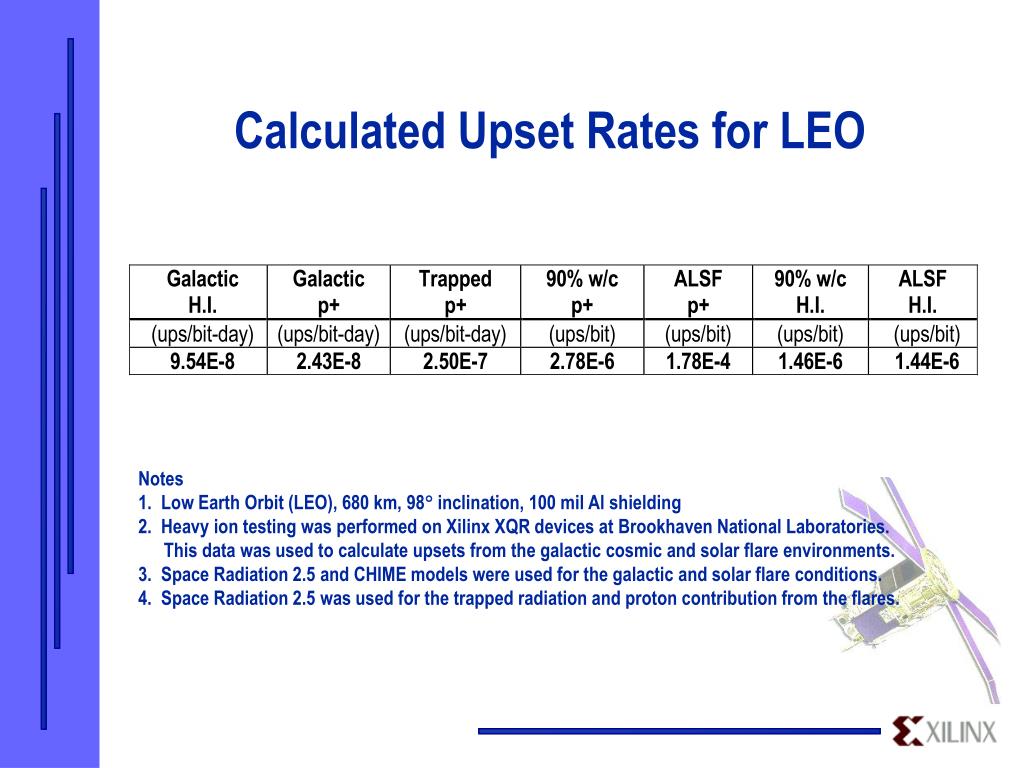

  7. Calculated Upset Rates for LEO Notes 1. Low Earth Orbit (LEO), 680 km, 98 inclination, 100 mil Al shielding 2. Heavy ion testing was performed on Xilinx XQR devices at Brookhaven National Laboratories. This data was used to calculate upsets from the galactic cosmic and solar flare environments. 3. Space Radiation 2.5 and CHIME models were used for the galactic and solar flare conditions. 4. Space Radiation 2.5 was used for the trapped radiation and proton contribution from the flares.

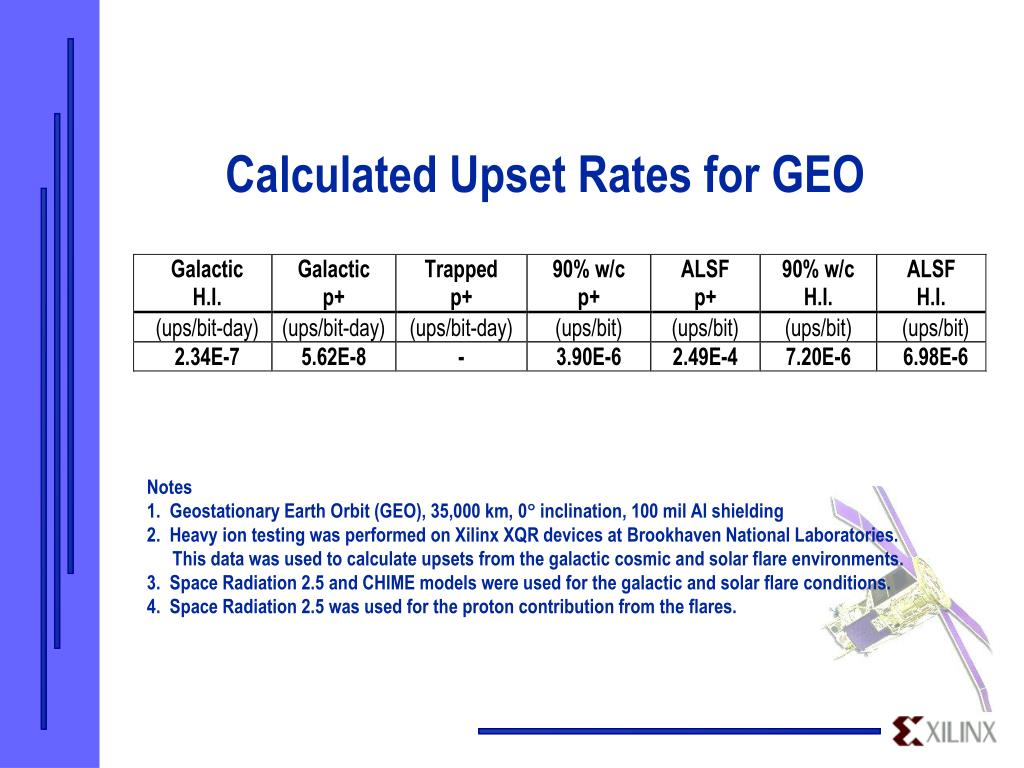

  8. Calculated Upset Rates for GEO Notes 1. Geostationary Earth Orbit (GEO), 35,000 km, 0 inclination, 100 mil Al shielding 2. Heavy ion testing was performed on Xilinx XQR devices at Brookhaven National Laboratories. This data was used to calculate upsets from the galactic cosmic and solar flare environments. 3. Space Radiation 2.5 and CHIME models were used for the galactic and solar flare conditions. 4. Space Radiation 2.5 was used for the proton contribution from the flares.

  9. Single Event Upset Test • Conclusion: • 398 upset (calculated) during a 5-year LEO mission1,2,3,4 • Statistically, one bit upset per 110 hrs in the 800,000configuration latches Notes: 1) 680 km, 98° inclination, 100 mil Al shielding with two 90% worst-case flares per year and one ALSF per mission 2) Heavy ion testing performed on Xilinx XQR devices at Brookhaven National Laboratories. This data was used to calculate upsets from the galactic cosmic and solar flare environments. 3) Space Radiation 2.5 and CHIME models used for the galactic and solar flare conditions. 4) Space Radiation 2.5 used for the trapped radiation and proton contribution from the flares.

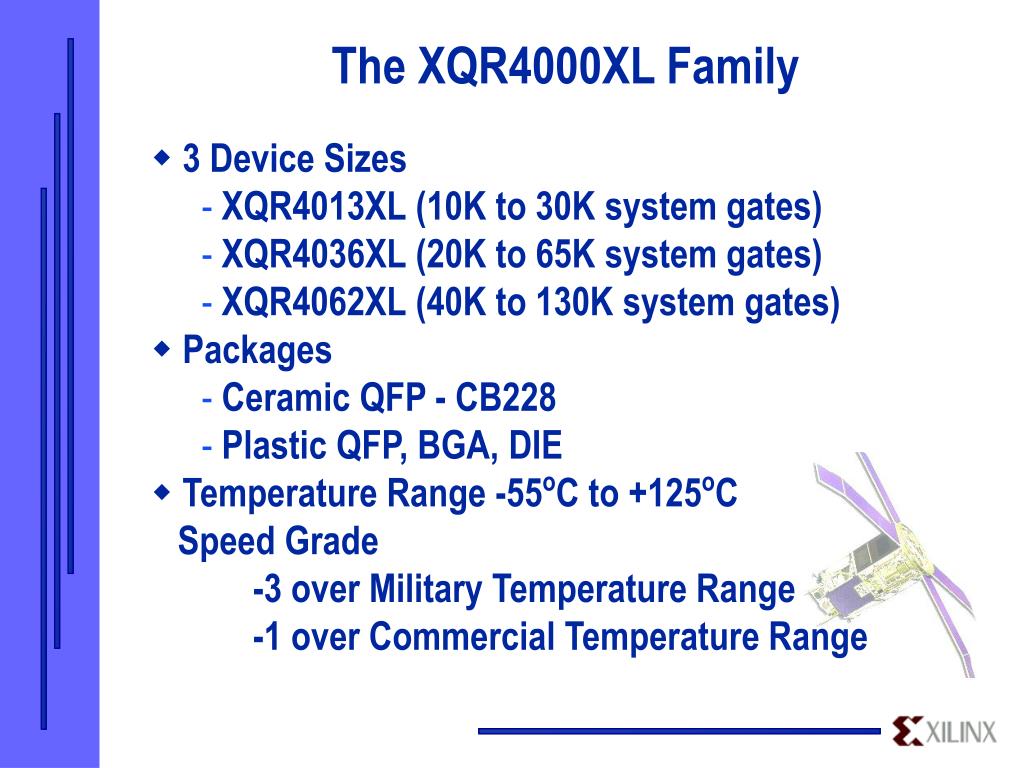

  10. The XQR4000XL Family • 3 Device Sizes • XQR4013XL (10K to 30K system gates) • XQR4036XL (20K to 65K system gates) • XQR4062XL (40K to 130K system gates) • Packages • Ceramic QFP - CB228 • Plastic QFP, BGA, DIE • Temperature Range -55oC to +125oC Speed Grade -3 over Military Temperature Range -1 over Commercial Temperature Range

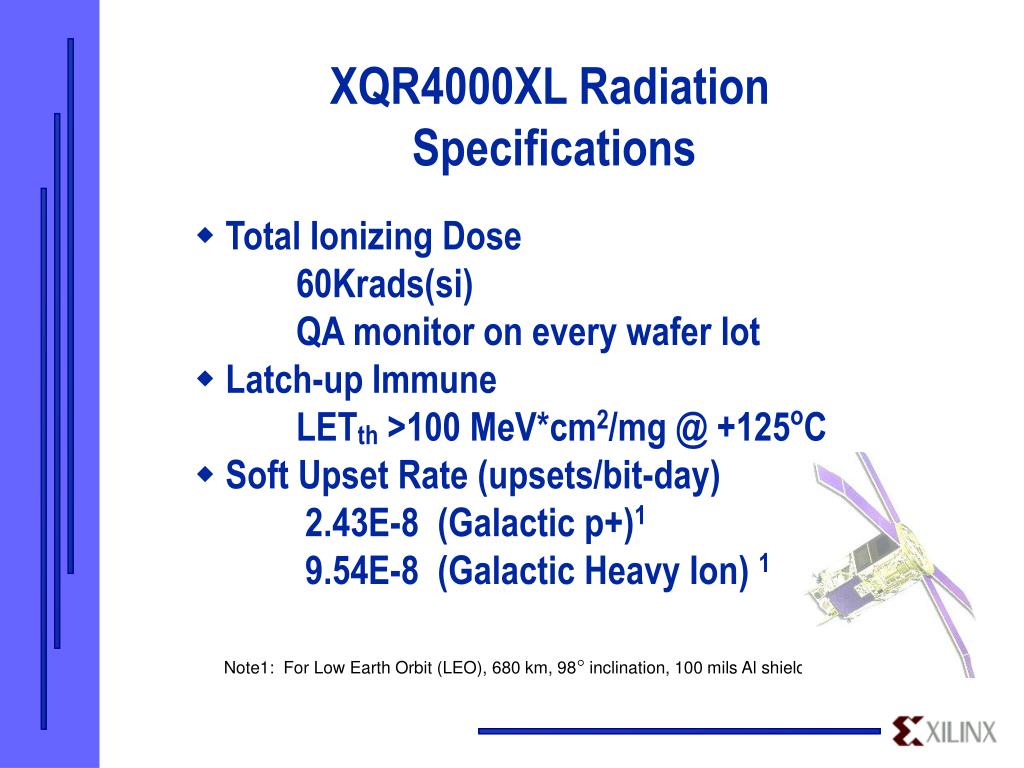

  11. XQR4000XL Radiation Specifications • Total Ionizing Dose 60Krads(si) QA monitor on every wafer lot • Latch-up Immune • LETth >100 MeV*cm2/mg @ +125oC • Soft Upset Rate (upsets/bit-day) • 2.43E-8 (Galactic p+)1 • 9.54E-8 (Galactic Heavy Ion) 1 Note1: For Low Earth Orbit (LEO), 680 km, 98° inclination, 100 mils Al shielding

  12. Virtex Rad Hard The Next Generation • Advanced 0.25m process total dose >100K Rads • Initial SEU evaluation in 1Q99 • Product schedules: • XQVR300 XQVR600 XQVR1000 • Q399 Q499 Q100

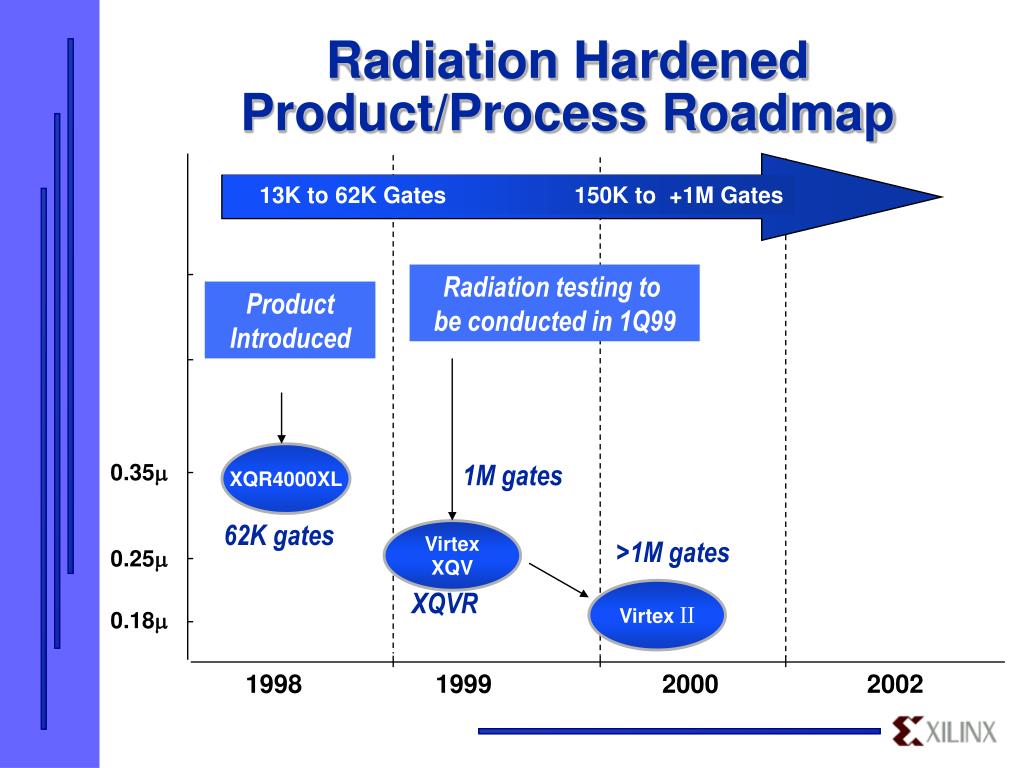

  13. 13K to 62K Gates 150K to +1M Gates Radiation Hardened Product/Process Roadmap Radiation testing to be conducted in 1Q99 Product Introduced XQR4000XL 1M gates 0.35 62K gates Virtex XQV >1M gates 0.25 XQVR Virtex II 0.18 1998 1999 2000 2002

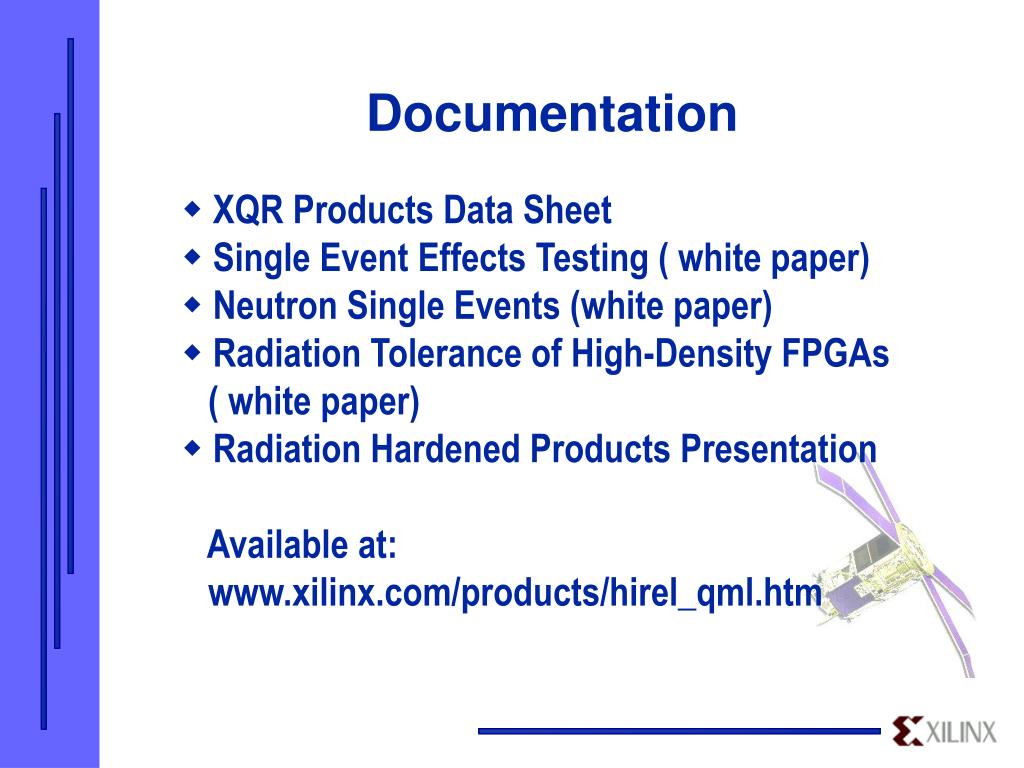

  14. Documentation • XQR Products Data Sheet • Single Event Effects Testing ( white paper) • Neutron Single Events (white paper) • Radiation Tolerance of High-Density FPGAs ( white paper) • Radiation Hardened Products Presentation Available at: www.xilinx.com/products/hirel_qml.htm

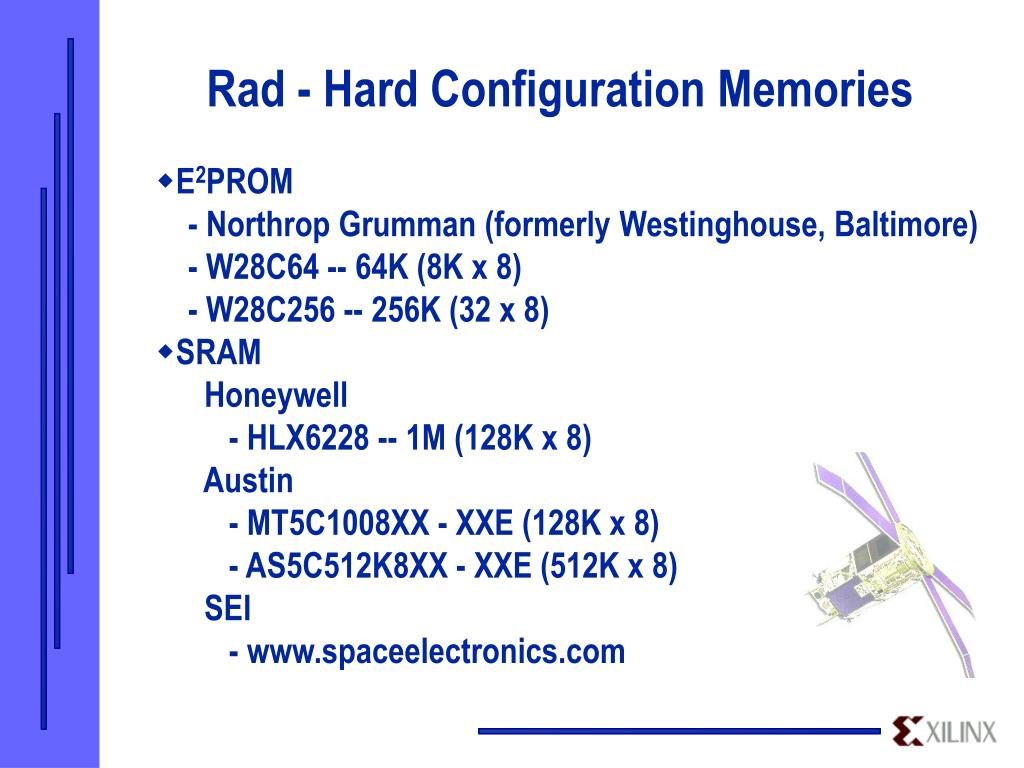

  15. Rad - Hard Configuration Memories • E2PROM • - Northrop Grumman (formerly Westinghouse, Baltimore) • - W28C64 -- 64K (8K x 8) • - W28C256 -- 256K (32 x 8) • SRAM • Honeywell • - HLX6228 -- 1M (128K x 8) • Austin • - MT5C1008XX - XXE (128K x 8) • - AS5C512K8XX - XXE (512K x 8) • SEI • - www.spaceelectronics.com
