Presentation Transcript

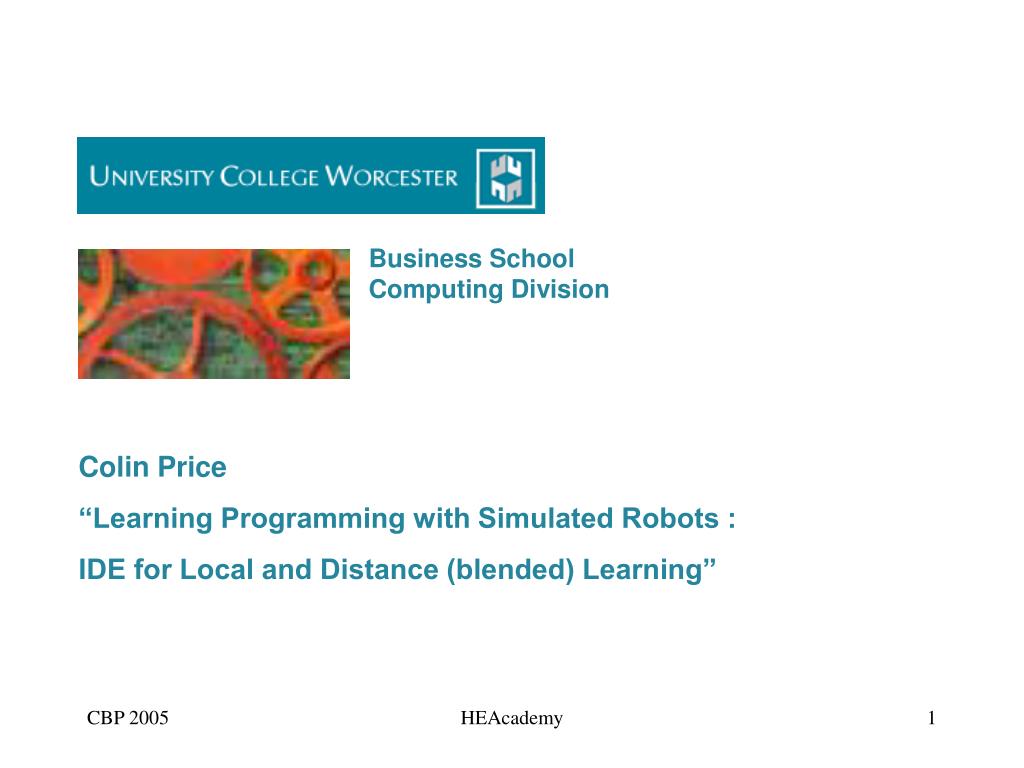

Business school computing division

Business School Computing Division

Colin Price

“Learning Programming with Simulated Robots :

IDE for Local and Distance (blended) Learning”

HEAcademy

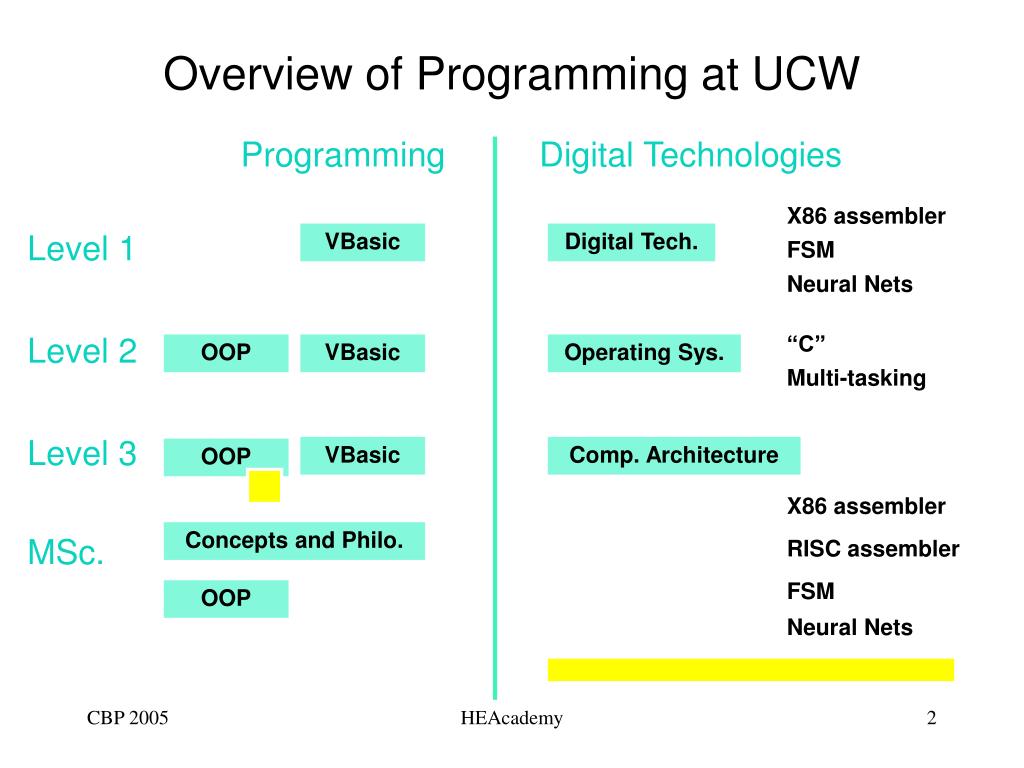

Overview of programming at ucw

Overview of Programming at UCW

Programming

Digital Technologies

X86 assembler

Level 1

VBasic

Digital Tech.

FSM

Neural Nets

Level 2

“C”

OOP

VBasic

Operating Sys.

Multi-tasking

Level 3

VBasic

Comp. Architecture

OOP

X86 assembler

Concepts and Philo.

MSc.

RISC assembler

FSM

OOP

Neural Nets

HEAcademy

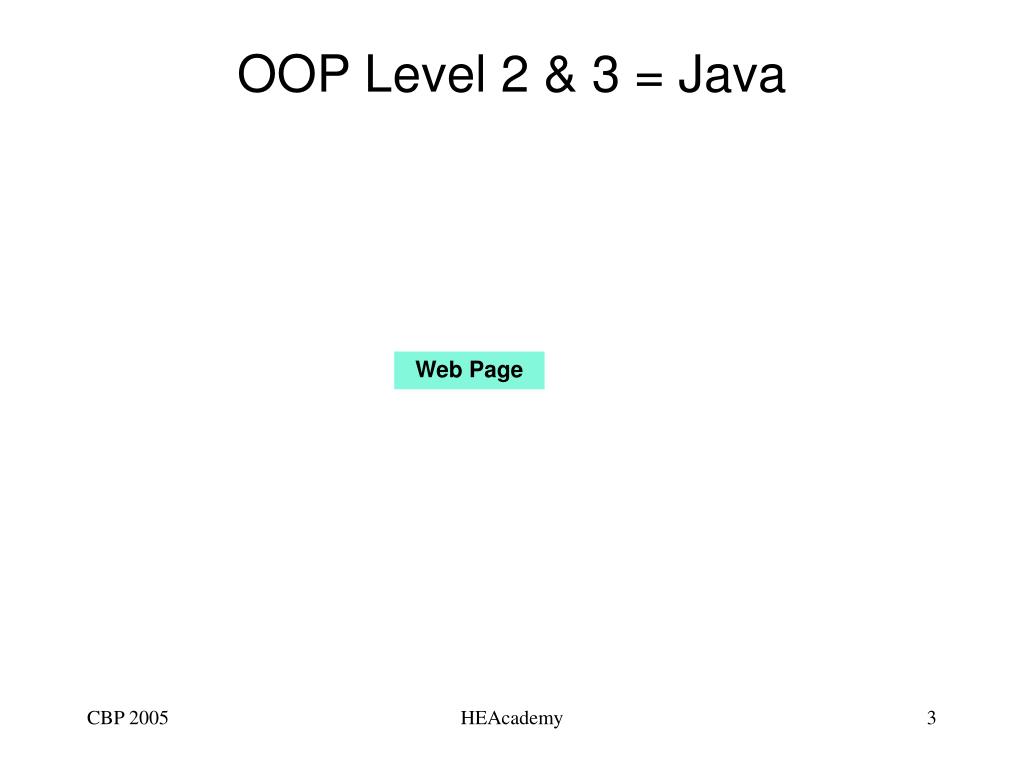

Oop level 2 3 java

OOP Level 2 & 3 = Java

Web Page

HEAcademy


Our integrated environment

Our Integrated Environment

Distributed Simulator

Simulator

Robot

mController

HEAcademy


Rationale

Rationale

  • CS Students may need to learn:

  • Various programming paradigms

  • Various programming languages

  • Operating Systems

  • Embedded Systems, Control

  • Artificial Intelligence

Simulator

Integrated Environment provides unifying thread connecting learning modules.

Robot

HEAcademy


Characteristics of this ide

Characteristics of this IDE

  • Same souce code runs on Robots as in the Simulator

  • Robot and Simulator engines ‘isomorphic’

  • Same visual Robot World used for all languages (C, Java, FSM, NNet, LISP)

  • Principal programming paradigm is ‘Concurrent’

  • Hardware is cheap, is ‘Industry Standard’

  • Situates Computing in broader context of Cognitive Science, Ubiquitous Computing, Social Science

HEAcademy


Why program robots

Why program robots?

  • Commercially viable

  • Serious promise of AI

  • Good vehicle for integrated learning of Programming

  • Analogy of living beings

HEAcademy


Business school computing division

Human Qualities

Cognitive

Psychomotoric

Affective

Acting

Thinking

Feelings

Behaving

Knowing

Emotions

Braitenberg Vehicles

HEAcademy


Programming behaviour

Programming Behaviour

Multi-tasking

Collide

bumper

public void collide() {

}

Searchlight

public void searchlight() {

}

CPU

eyes

public void wander() {

for(;;) {

wander_flag = true;

wanderOpL = 10;

wanderOpR = 10;

muMonSleep(500);

}

}

Wander

HEAcademy

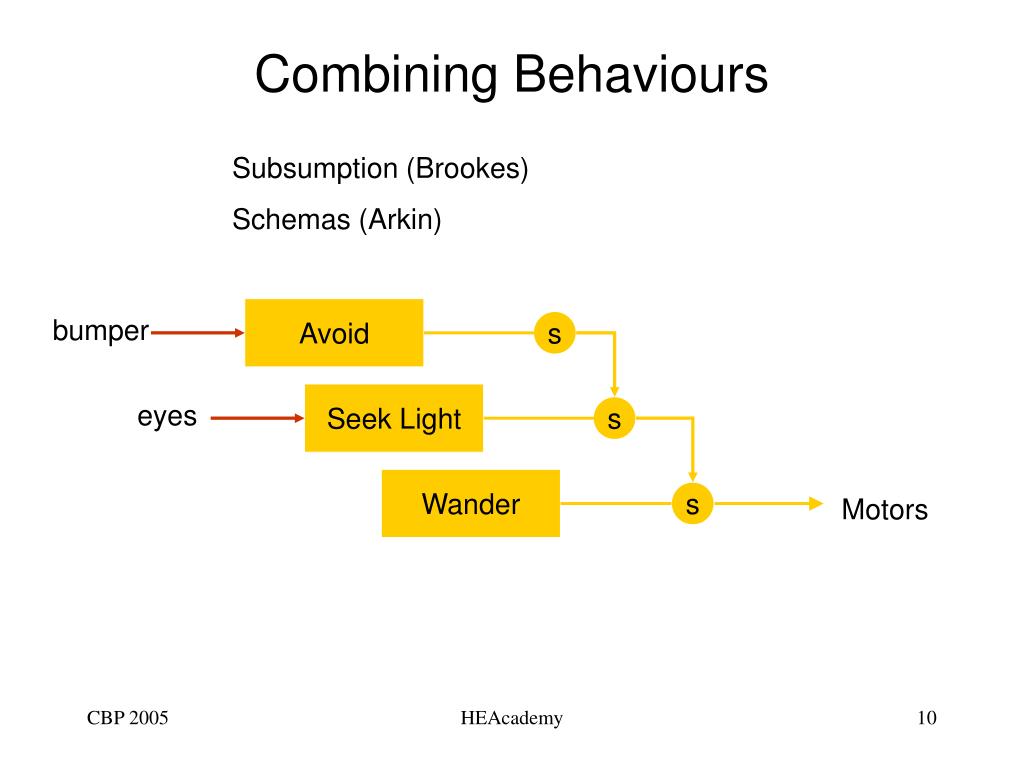

Combining behaviours

bumper

Avoid

s

eyes

Seek Light

s

Wander

s

Motors

Combining Behaviours

Subsumption (Brookes)

Schemas (Arkin)

HEAcademy


M robot demo

mRobot Demo

HEAcademy


Approaches to learning programming

Approaches to Learning Programming

Other important paradigms

Deploying this Environment

FSM

  • Year 1 students

    • FSM, Neural Nets

  • Year 2 students

    • Multitasking OS

  • Year 3 students

    • FSM, Neural Nets

NNet

HEAcademy


Finite state machine paradigm

Finite State Machine Paradigm

FSM Table

Robot World

HEAcademy


Neural net tool

Neural Net Tool

L

Training Set

Learned Controller

R

eyes

motors

HEAcademy


Nnet demo

NNet Demo

HEAcademy

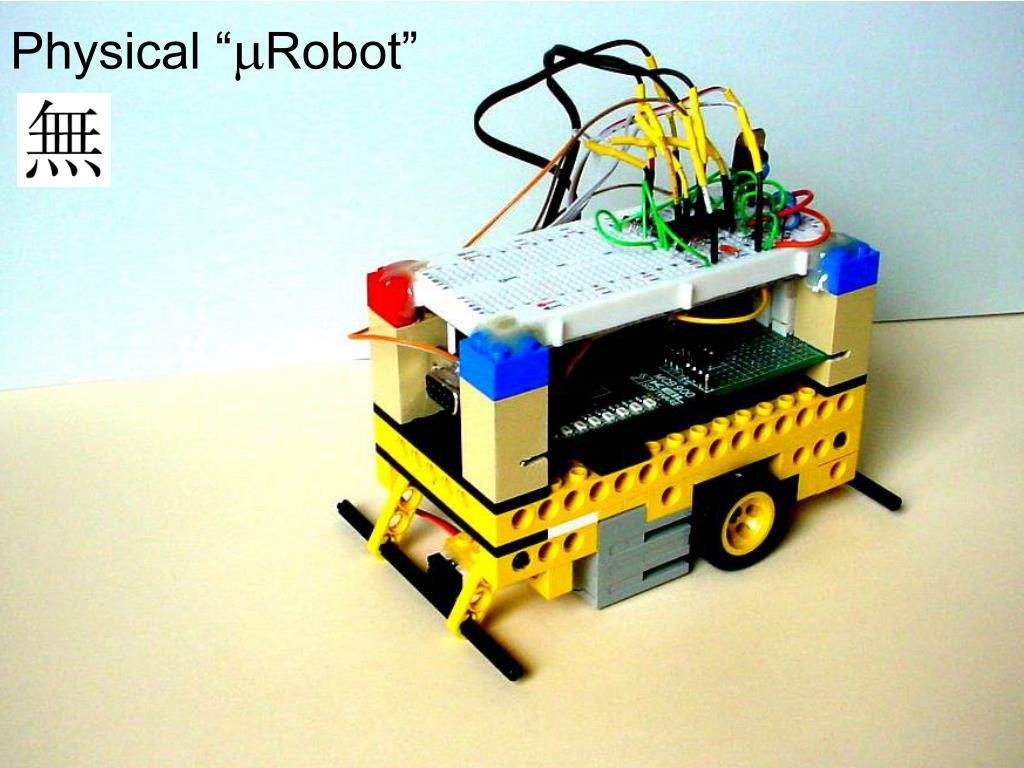

Physical m robot

Physical “mRobot”

HEAcademy


Os teaching board

OS Teaching Board

RS 232

http://www.keil.com/

MBC900 Philips 89LPC932

HEAcademy


Pedagogical dimension

Pedagogical Dimension

  • Rapid, efficient, visual, fun learning to program

  • Skills transferable: ‘C’ and ‘Java’; 3 program constructs

  • Programming for action, interaction

  • Unrolling the constraints of the IDE, discover OO paradigm

  • Application of physics and math

  • Links between artificial and natural systems

HEAcademy

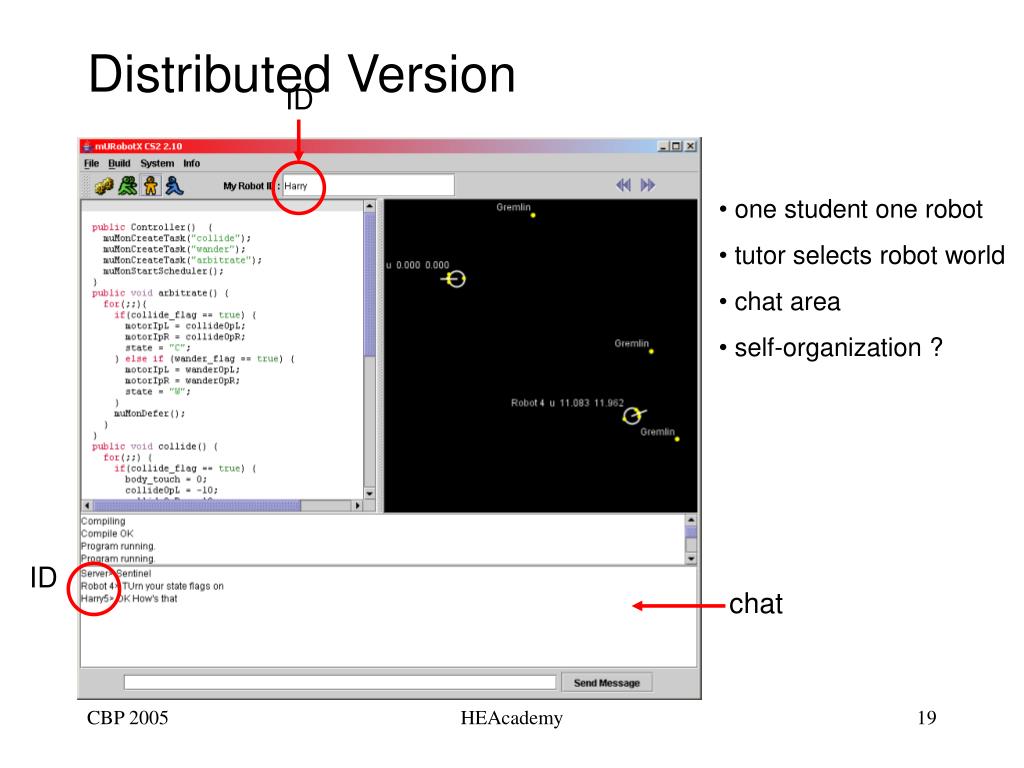

Distributed version

ID

ID

Distributed Version

  • one student one robot

  • tutor selects robot world

  • chat area

  • self-organization ?

chat

HEAcademy

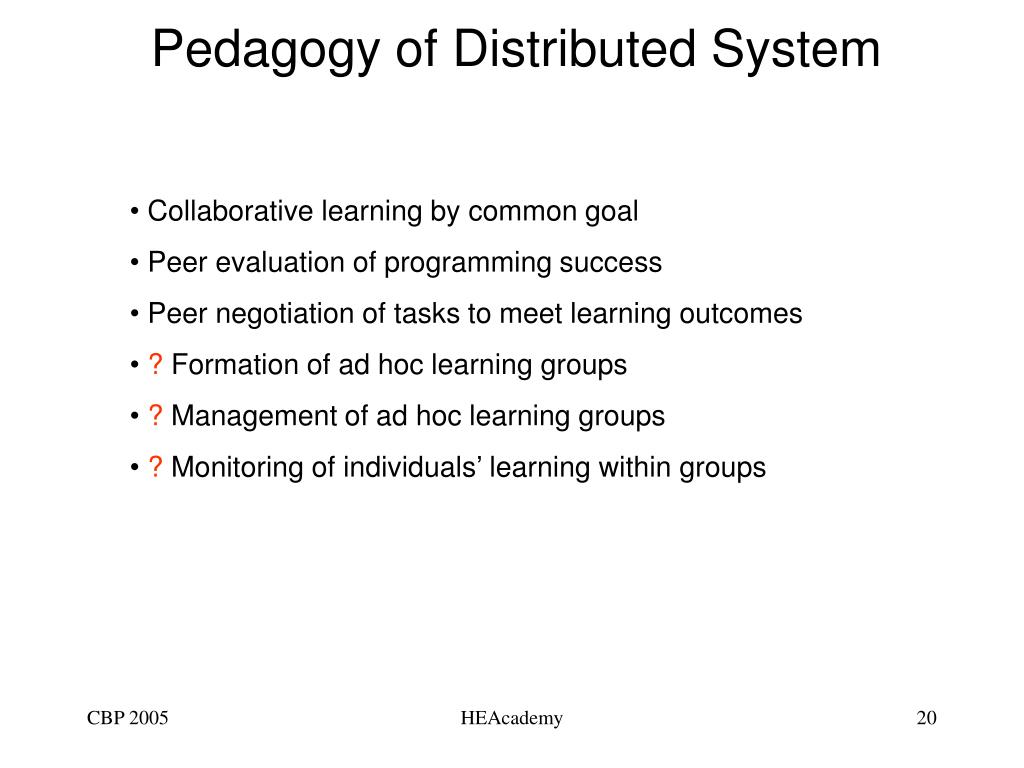

Pedagogy of distributed system

Pedagogy of Distributed System

  • Collaborative learning by common goal

  • Peer evaluation of programming success

  • Peer negotiation of tasks to meet learning outcomes

  • ? Formation of ad hoc learning groups

  • ? Management of ad hoc learning groups

  • ? Monitoring of individuals’ learning within groups

HEAcademy


Business school computing division

Structure of Distributed System

Student (client)

Tutor (client)

Server

controller code

Server maintains lists

javac

engine

chat

Info xfer via RMI calls

HEAcademy


Current applications

Current Applications

  • ODEs Solver

  • Digital Simulator

  • Robot Programming

1

2

3

HEAcademy

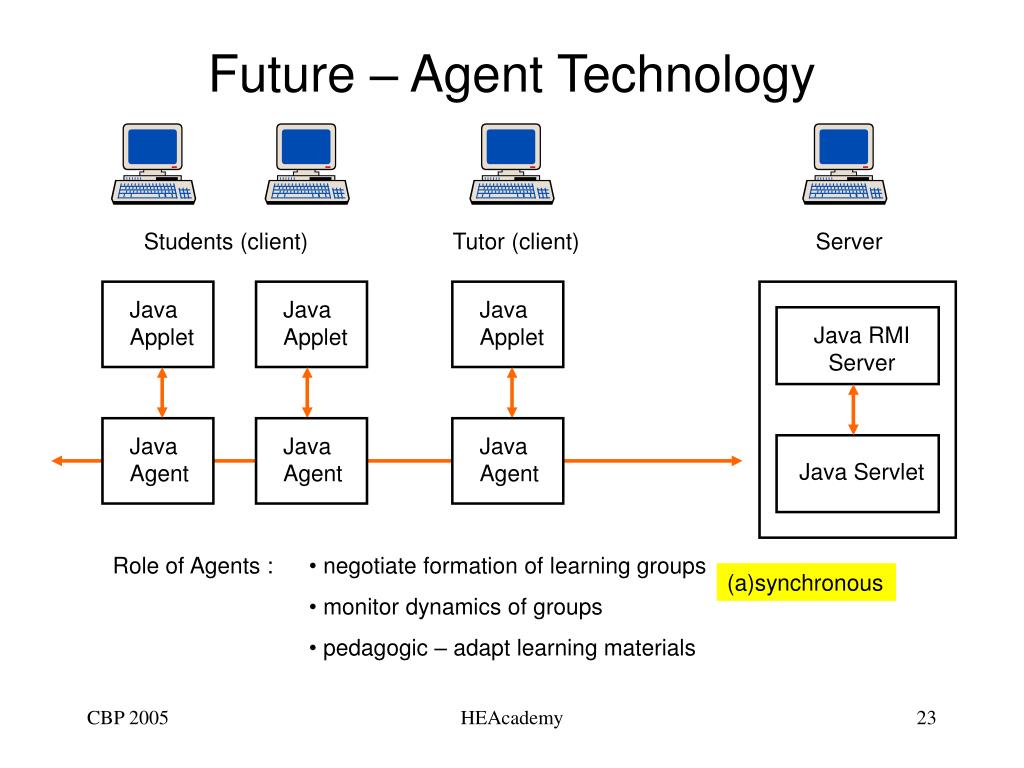

Future agent technology

Future – Agent Technology

Java Applet

Java Applet

Java Applet

Java RMI Server

Java Servlet

Students (client)

Tutor (client)

Server

Java Agent

Java Agent

Java Agent

Role of Agents :

  • negotiate formation of learning groups

  • monitor dynamics of groups

  • pedagogic – adapt learning materials

(a)synchronous

HEAcademy


Summary

Summary

  • Provides integration of programming effort

  • Multi-language ( “C”, “Java”)

  • Multi-paradigm: Concurrent, Procedural, FSM, NNet, Agent

  • Generalisable: Replace Robot with Atoms

  • Pedagogically interesting: Formation and Management of learning groups

  • Situates Computing in broader context of Cognitive Science, Ubiquitous Computing, Social Science, Philosophy, …

HEAcademy

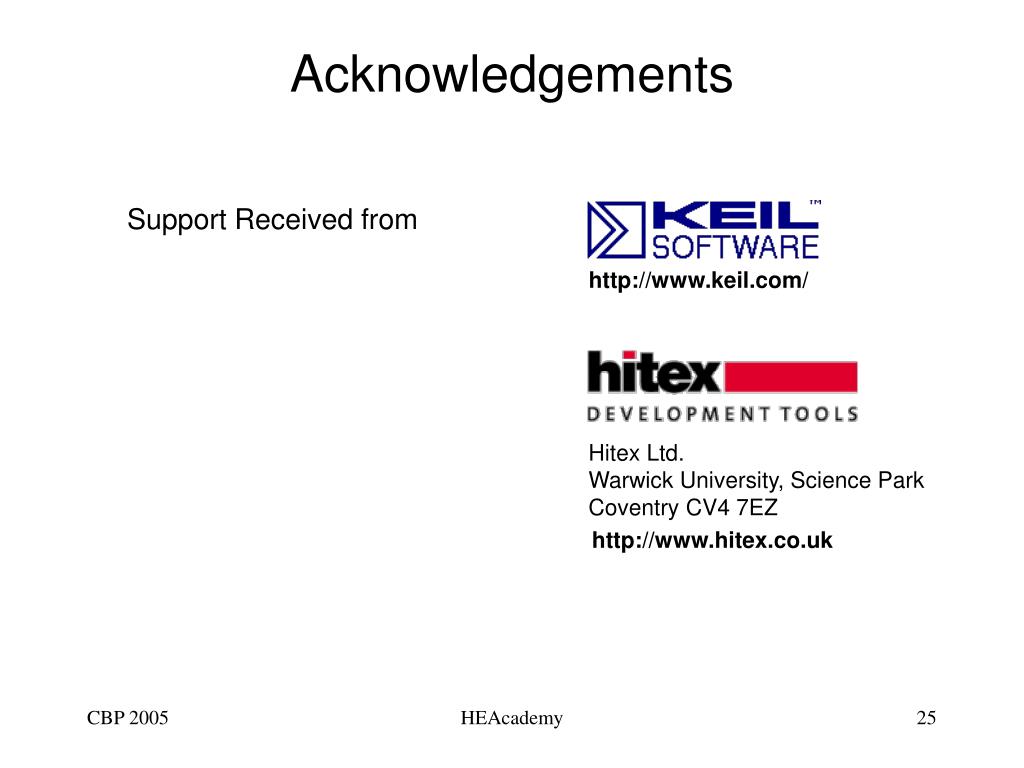

Acknowledgements

Acknowledgements

Support Received from

http://www.keil.com/

Hitex Ltd.Warwick University, Science Park Coventry CV4 7EZ

http://www.hitex.co.uk
