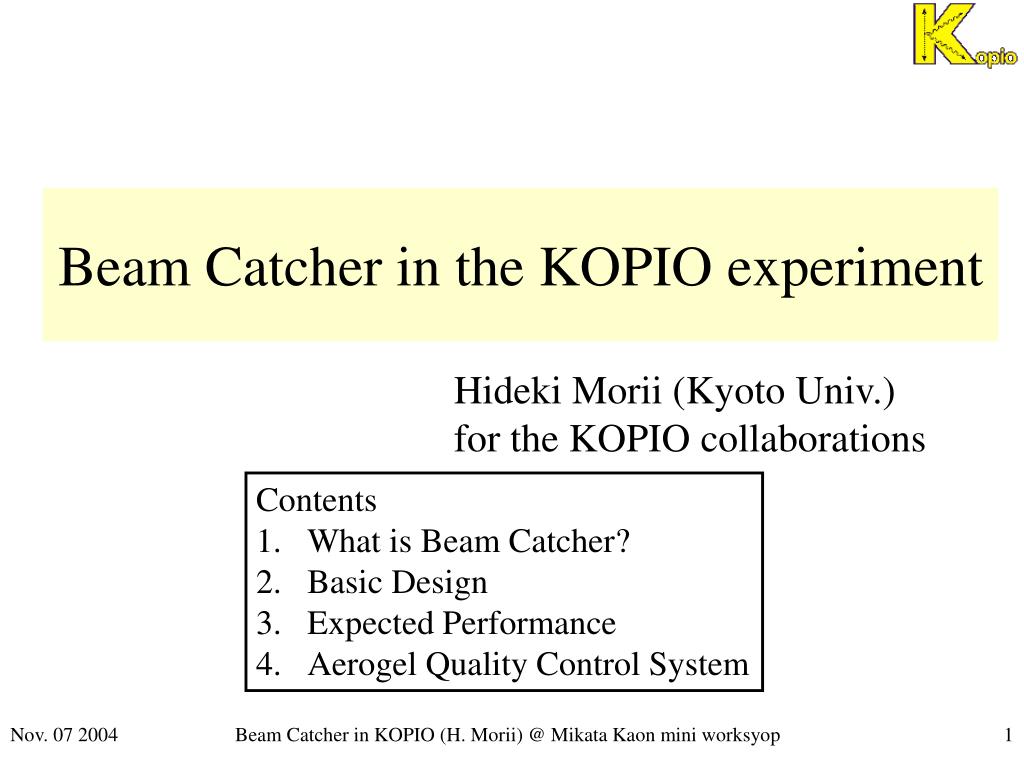

  1. Beam Catcher in the KOPIO experiment Hideki Morii (Kyoto Univ.) for the KOPIO collaborations • Contents • What is Beam Catcher? • Basic Design • Expected Performance • Aerogel Quality Control System Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  2. 1. What is Beam Catcher? Beam Catcher in the KOPIO experiment • KOPIO experiment measures KL->p0nn mode • Identification : Detect p0 and nothing 9 2g 9veto Vetoing extra particle is predominant defense to BG Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  3. 1. What is Beam Catcher? Beam Catcher • Photon veto which covers beam core region • under high neutron rate • ~10GHz (>10MeV) • Need to be… • efficient to g rays : 99% @ 300MeV • inefficient to neutrons : 0.3% @ 0.8GeV • Aerogel Cherenkov + distributed geometry • suppress neutron efficiency Catcher Module Lead Converter Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  4. 1. What is Beam Catcher? Beam Catcher – MC Event Display Event Display for g Event Display for neutron Top View Top View Side View Side View Secondary particles are created isotropically Shower spreads forward -> Can distinguish g from neutron using geometry Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  5. 2. Basic Design Design of Beam Catcher – Single Module • Lead converter • Size : 30 x 30 cm , 2mm thick • Aerogel • Size : 30 x 30 cm , 5 cm thick • Refractive index : n ~ 1.05 • Mirror • flat mirror • Funnel • Winston cone type • PMT • 5 inch PMT Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  6. 2. Basic Design Top View Design of Beam Catcher - Configuration • Tapered configuration • 10 modules (front layer) • 20 modules (back layer) • 25 layers • Number of modules • 370 modules • Coincidence condition Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  7. 3. Expected Performance efficiency for g efficiency g energy (GeV) Simulation – Efficiency for g • Coincidence efficiency for g vertical position dependence beam size efficiency efficient region :±7cm Y position (cm) Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  8. 3. Expected Performance Simulation – Insensitivity to neutrons (1) • Insensitivity to neutrons number of false veto coincidence efficiency for n efficiency neutron yield coincidence count neutron kinetic energy (GeV) →2.8 % false veto prob. Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  9. 3. Expected Performance single count rate by n neutron spectrum single count rate Simulation – Insensitivity to neutrons (2) • Single count rate by neutrons →single rate ~ : 600kHz / module Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  10. 4. Aerogel Quality Control System Aerogel Quality Control System (i) Transmittance • LED (light source) + PMT (photo detector) (ii) Cherenkov light Yield • Solenoid Spectrometer (as b source) + mirror + PMT It is important to control optical properties of aerogel Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  11. 4. Aerogel Quality Control System : (i) transmittance Setup for Transmittance Measurement • PMT with 2mm hole mask detects LED light • 30mm x 30mm area is scanned at 2mm interval • by moving X-Y stage Masked by black paper with a 2mmX2mm hole UV,BLUE,GREEN, YELLOW,RED 5-COLORS Aperture Aperture PMT on XY stage Aerogel on X-Y stage • position dependence of transmittance can be measured Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  12. 4. Aerogel Quality Control System : (i) transmittance Fit the function 1-A:Absorption CT:Rayleigh Scattering parameter Transmittance -Rayleigh scattering- Note that Rayleigh scattering is dominant in Aerogel transmittance transmittance The tile with Clean surface n=1.03 The Tile with rough surface n=1.03 A=0.93 CT=0.0088mm4 A=0.82 CT=0.0094mm4 Absorption also increase l(nm) λ(nm) Two parameters, A and CT, are used as the input to our MC simulation . Can it predict correct light yield? Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  13. 4. Aerogel Quality Control System : (ii) light yield Measurement of Cherenkov Light Yield To measure Cherenkov light yield… • Solenoid Magnet Spectrometer • b source + gap type solenoid magnet • Setup for light yield measurement • Spectrometer + mirror + PMT Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  14. 4. Aerogel Quality Control System :(ii) light yield Solenoid Magnet Spectrometer b source＋Gap-type Solenoid Magnet ==> Spectrometer • We can get monochromatic electron beam • Variable Energy up to a few MeV • Beam intensity of ~30 Hz @2.5MeV r Concept of Electron trajectory in this magnet • POINT • TWO MAGNETS • Large acceptance • High Resolution • parallel e- beam along Z-axis IRON Ru COIL Electron rotate by Bz GAP Magnetic Field is strong near the gap 0.8 m Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  15. 4. Aerogel Quality Control System : (ii) light yield Magnet Current VS peak e- energy Energy Energy KeV KeV 820 1460 2010 2400 2670 （ （ ） ） Resolution(%) Resolution(%) 13.7 10.1 10.1 7.5 6．3 5.7 Spec of the Spectrometer Energy spectrum of 106Ru with and without magnet ［keV］ Spectrum of focused electron ●data ▲Expectation ［A］ ［keV］ Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  16. 4. Aerogel Quality Control System : (ii) light yield from Spectrometer Measurement of Cherenkov Yield by the Spectrometer Setup Cherenkov image on PMT • b source 106Ru(3.541MeV) 5inchPMT MC Two trigger Scintillators are placed downstream of 10f hole at the mirror surface Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  17. 4. Aerogel Quality Control System : (ii) light yield Cherenkov Yield Energy Dependence Measurement1 • We measure the Cherenkov light yield with changing the energy of electron Example of the results for two aerogel samples (thickness=11mm) with similar transmittance but different refractive index n=１．０5 TR=69％@470nm P.E n=１．０３ TR=67％@470nm P.E ▲　ＧＥＡＮＴ ●　ＤＡＴＡ ▲　ＧＥＡＮＴ ●　ＤＡＴＡ Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop Incident Energy of electron Incident Energy of electron

  18. Summary Summary • Beam Catcher • Photon detector positioned in neutral beam -> Need to have enough g efficiency ->Need to insensitive to neutrons • Design • Pb + Aerogel Cherenkov counter with distributed geometry • Expected Performance • 99% @ 300MeV / 0.3% @ 800MeV -> ~3% false veto prob. • Aerogel quality control system • Transmittance • Cherenkov light yield Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  19. Extras Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  20. Beam Catcher – Prototype Test Prototype Module • Light yield – using p+ • Neutron inefficiency - using proton in place of neutrons Light Yield Proton Efficiency Data matches MC very well Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

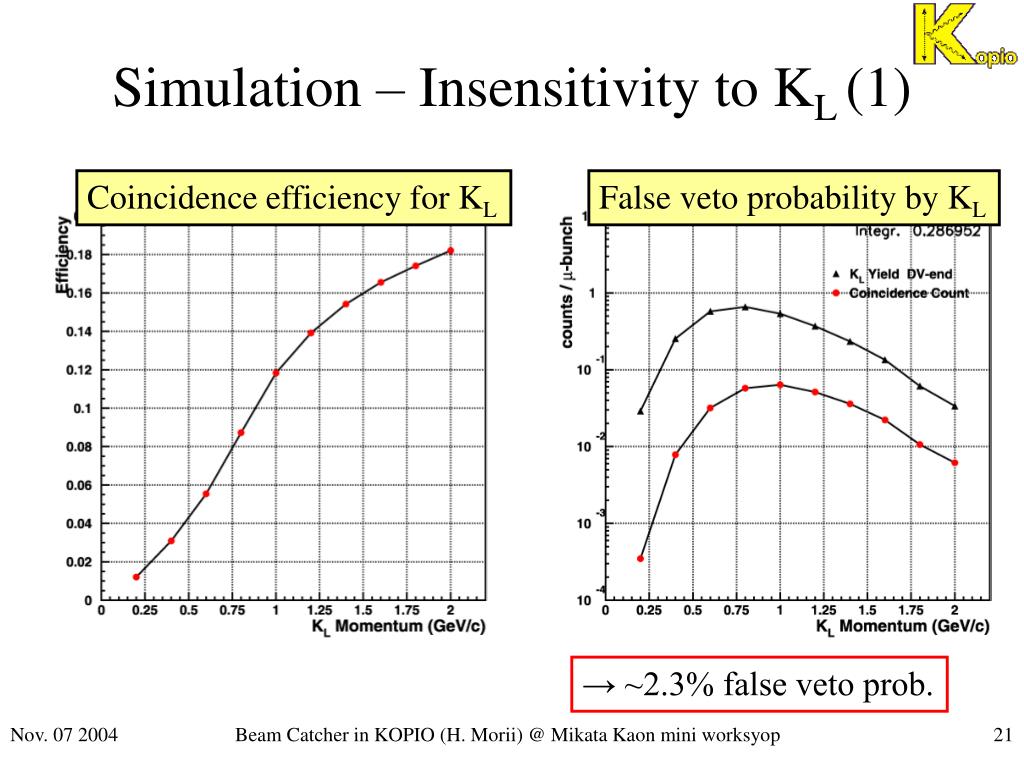

  21. Simulation – Insensitivity to KL (1) Coincidence efficiency for KL False veto probability by KL → ~2.3% false veto prob. Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  22. Simulation – Insensitivity to KL (2) Single count rate by KL → single rate : ~330 kHz Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop

  23. 4. Aerogel Quality Control System Cherenkov Yield Energy Dependence Measurement2 Example of the results for two aerogel samples (thickness=11mm) with the same refractive index but different transmittance n=1.03 TR=67%@470nm P.E n=1.03 TR=85％@470nm P.E 1.9 P.E @2.4MeV 1.5 P.E @2.4MeV ▲　ＧＥＡＮＴ ●　ＤＡＴＡ ▲　ＧＥＡＮＴ ●　ＤＡＴＡ Incident Energy of electron Incident Energy of electron A=0.82 CT=0.0094μm4 A=0.94 CT=0.0044μm4 Beam Catcher in KOPIO (H. Morii) @ Mikata Kaon mini worksyop
