  1. ALTEC Automated Gang LockFinal Presentation Presented By Randy Turner Michael Thompson Justin Rutledge Ben Mize Drew Mardis Richard Moyer

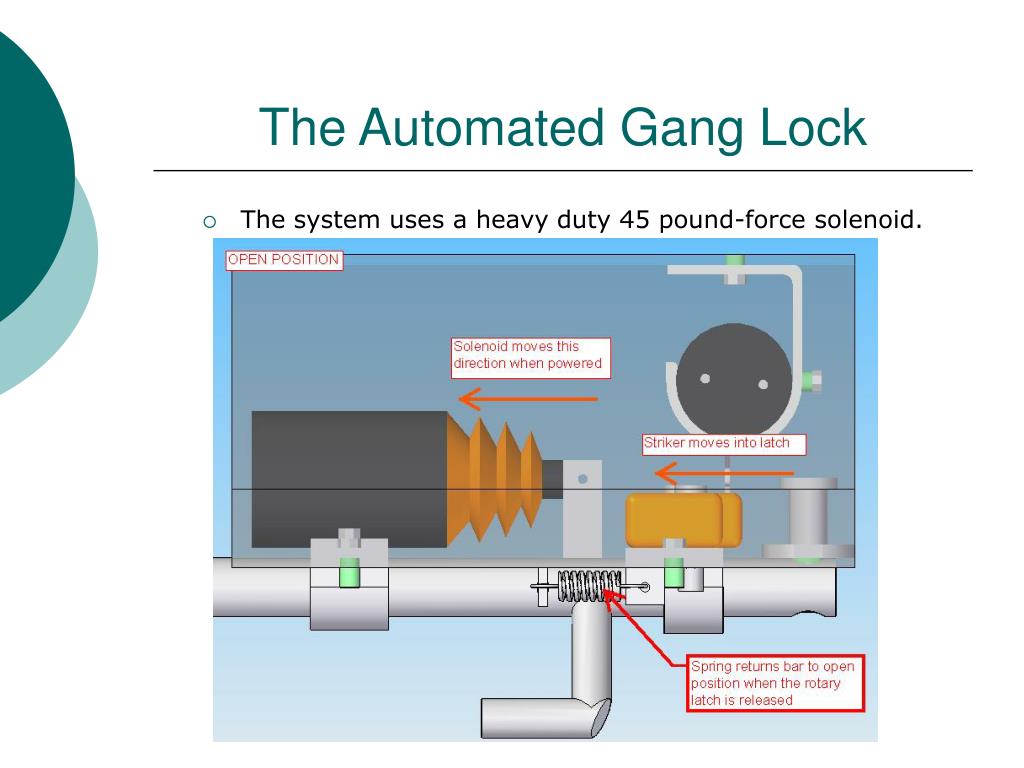

  2. The Automated Gang Lock • The system uses a heavy duty 45 pound-force solenoid.

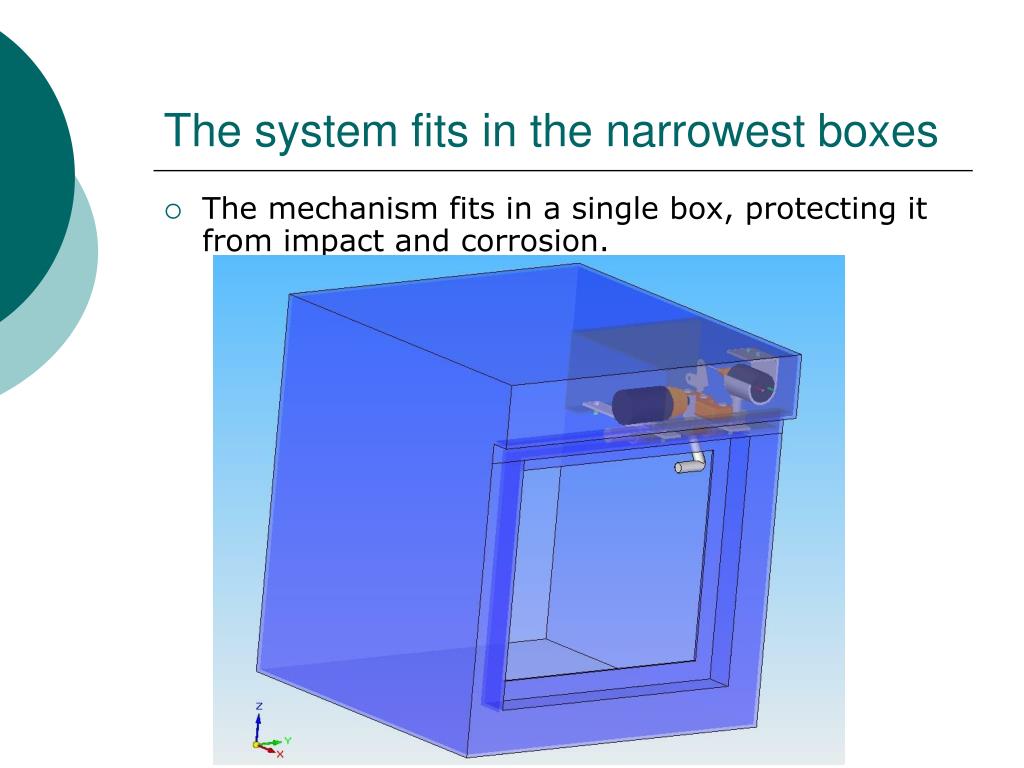

  3. The system fits in the narrowest boxes • The mechanism fits in a single box, protecting it from impact and corrosion.

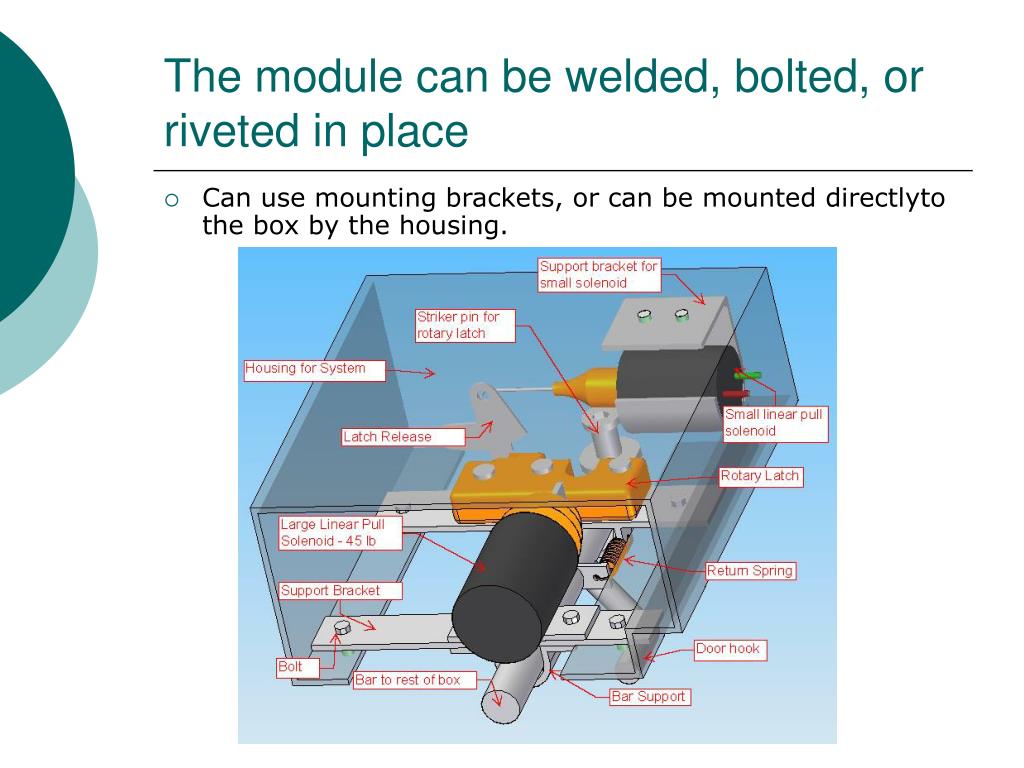

  4. The module can be welded, bolted, or riveted in place • Can use mounting brackets, or can be mounted directlyto the box by the housing.

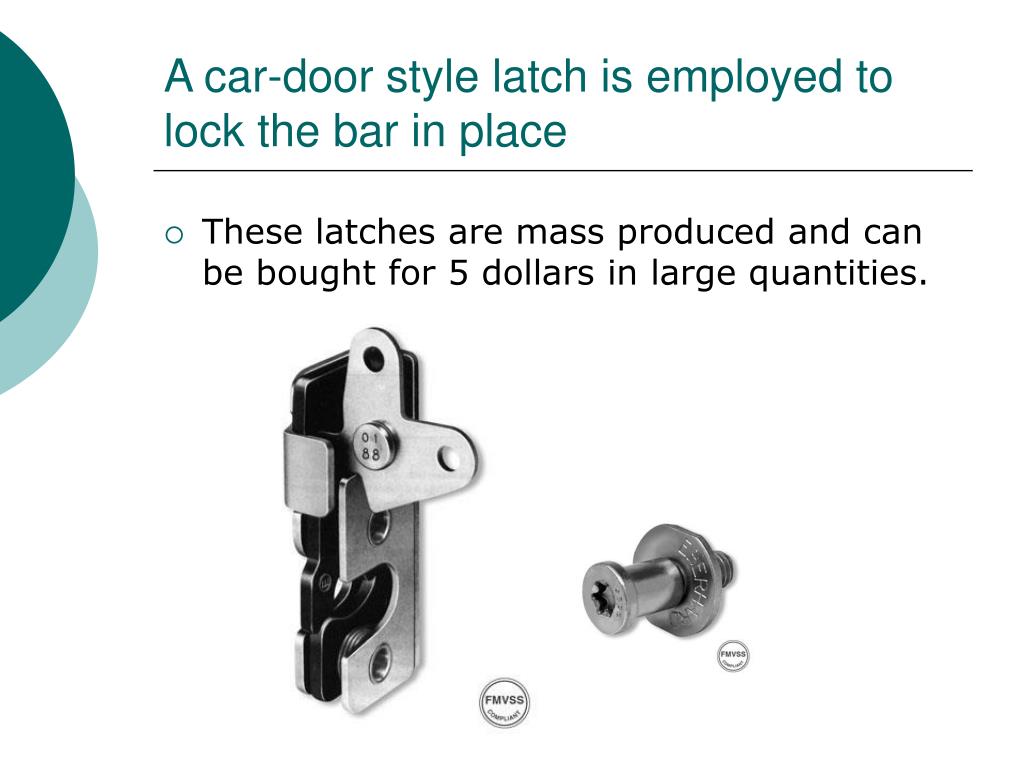

  5. A car-door style latch is employed to lock the bar in place • These latches are mass produced and can be bought for 5 dollars in large quantities.

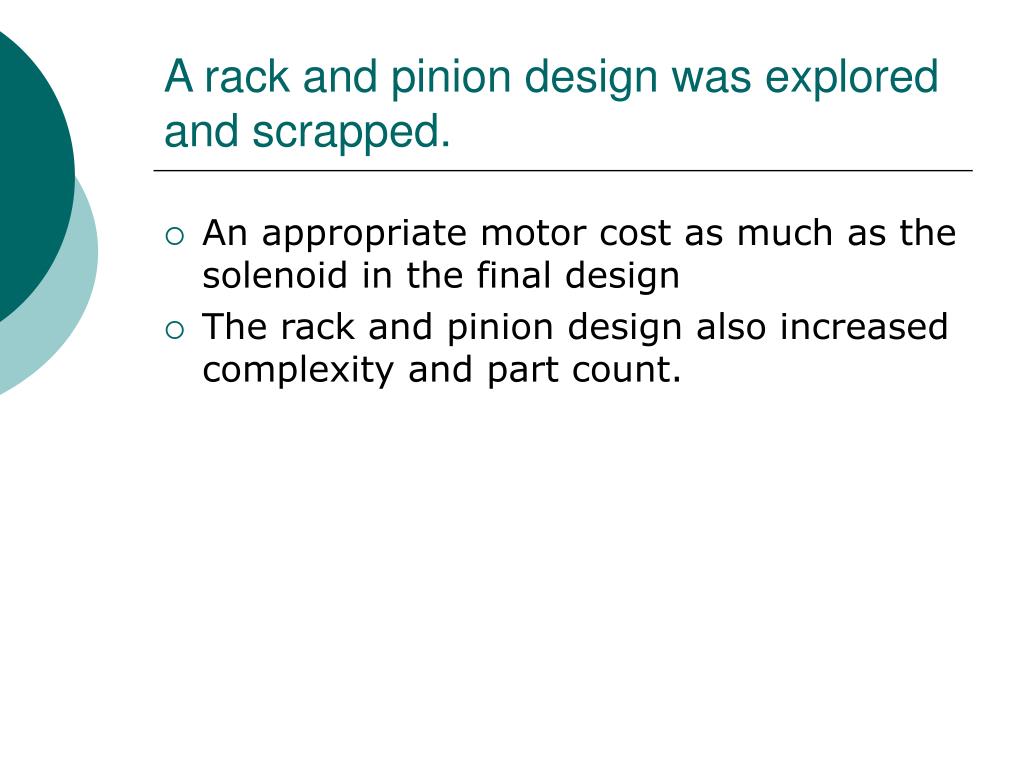

  6. A rack and pinion design was explored and scrapped. • An appropriate motor cost as much as the solenoid in the final design • The rack and pinion design also increased complexity and part count.

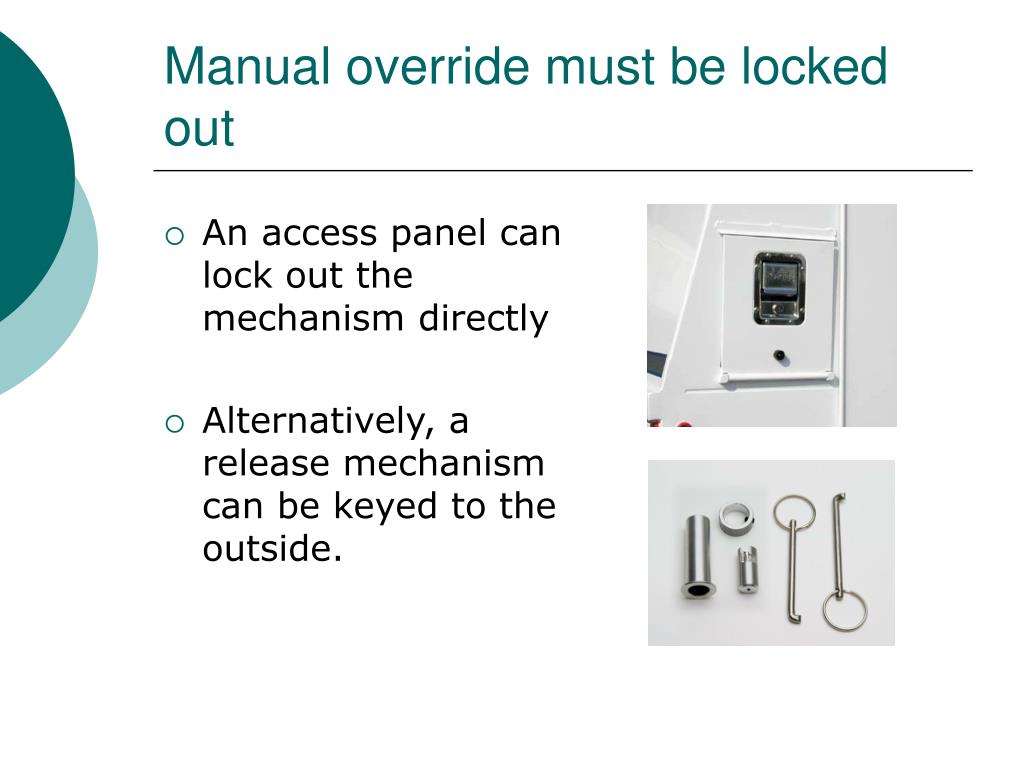

  7. Manual override must be locked out • An access panel can lock out the mechanism directly • Alternatively, a release mechanism can be keyed to the outside.

  8. The bar moves forward with a solenoid, and reverses with a spring

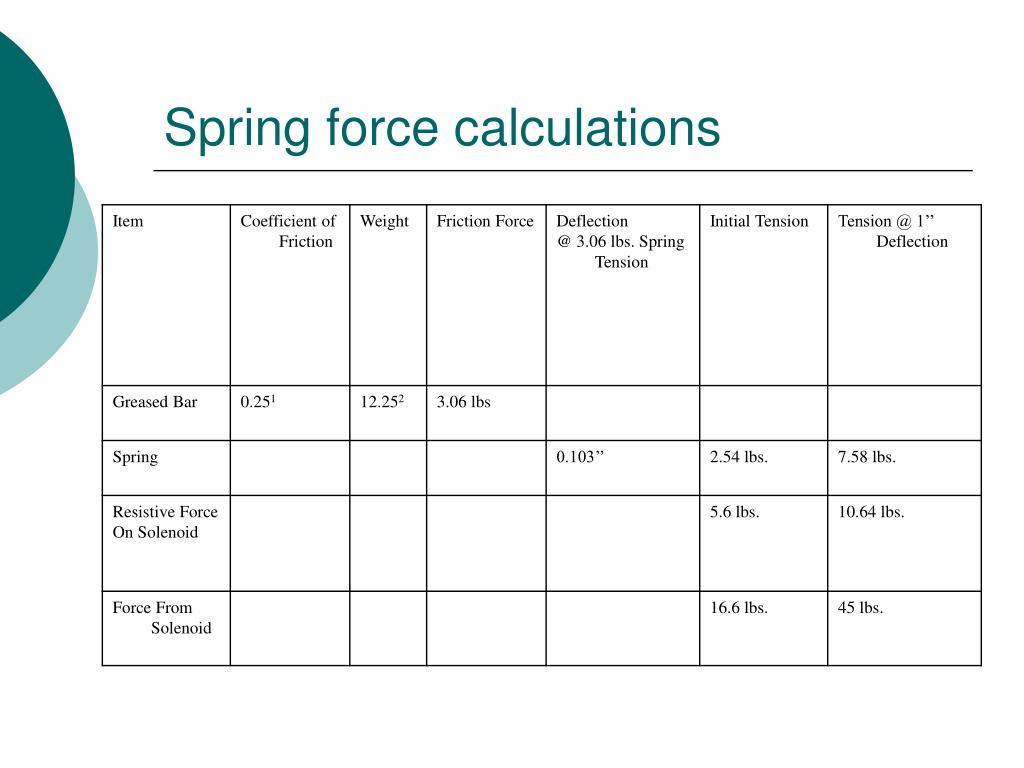

  9. Spring force calculations

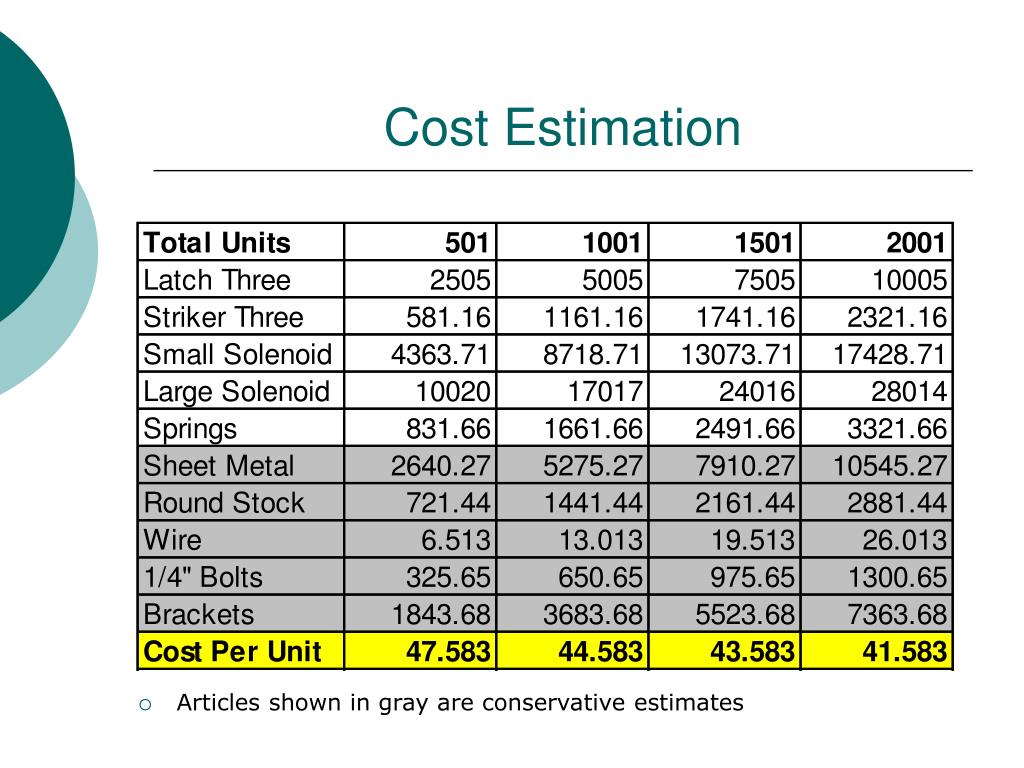

  10. Cost Estimation • Articles shown in gray are conservative estimates

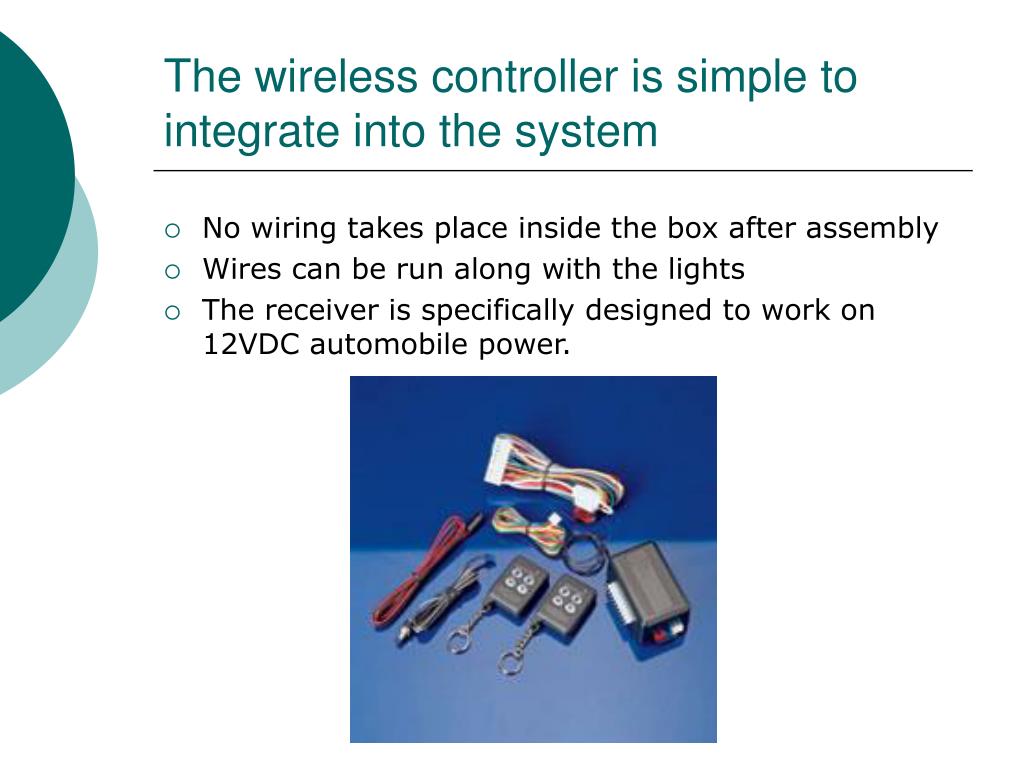

  11. The wireless controller is simple to integrate into the system • No wiring takes place inside the box after assembly • Wires can be run along with the lights • The receiver is specifically designed to work on 12VDC automobile power.

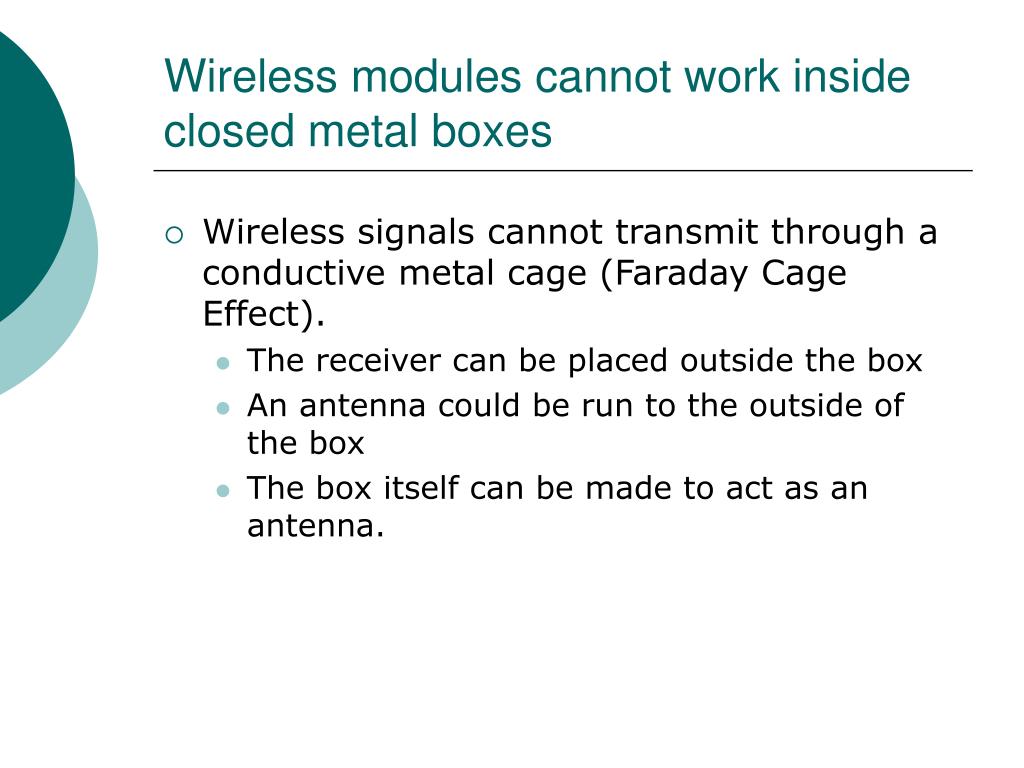

  12. Wireless modules cannot work inside closed metal boxes • Wireless signals cannot transmit through a conductive metal cage (Faraday Cage Effect). • The receiver can be placed outside the box • An antenna could be run to the outside of the box • The box itself can be made to act as an antenna.

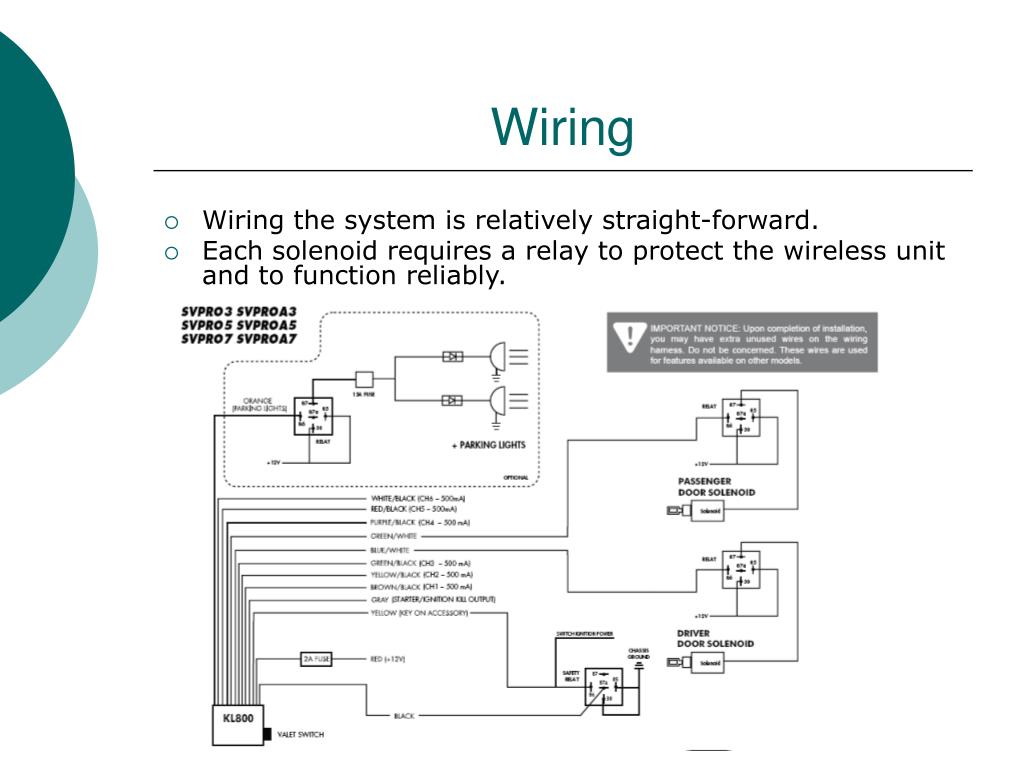

  13. Wiring • Wiring the system is relatively straight-forward. • Each solenoid requires a relay to protect the wireless unit and to function reliably.

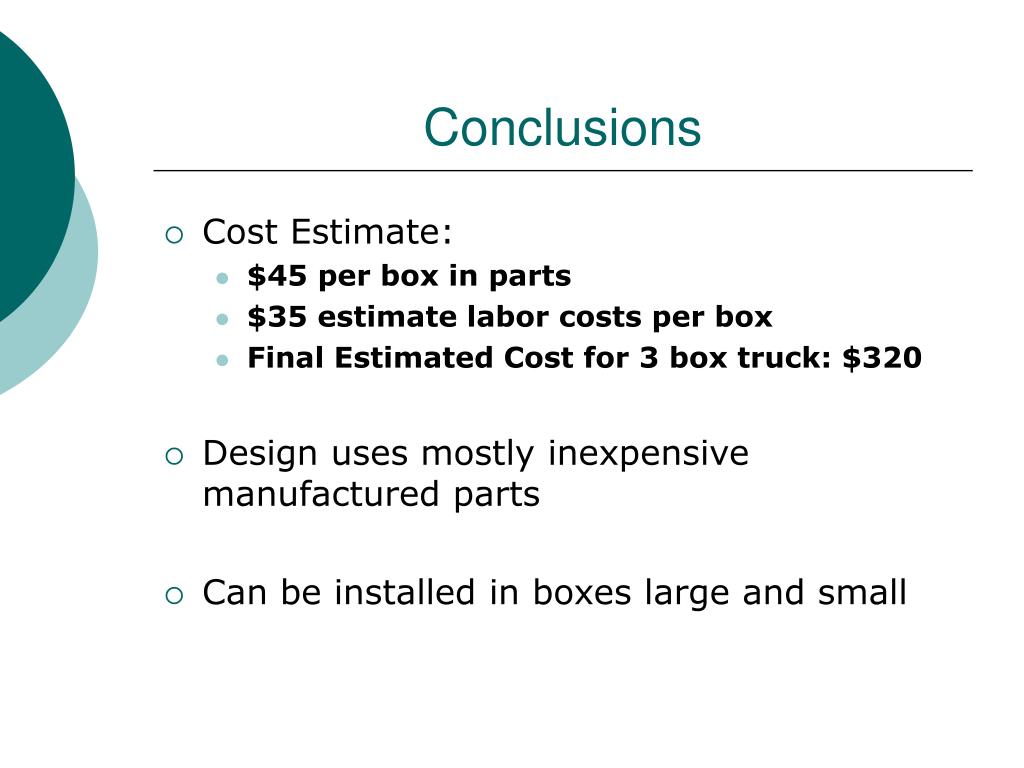

  14. Conclusions • Cost Estimate: • $45 per box in parts • $35 estimate labor costs per box • Final Estimated Cost for 3 box truck: $320 • Design uses mostly inexpensive manufactured parts • Can be installed in boxes large and small

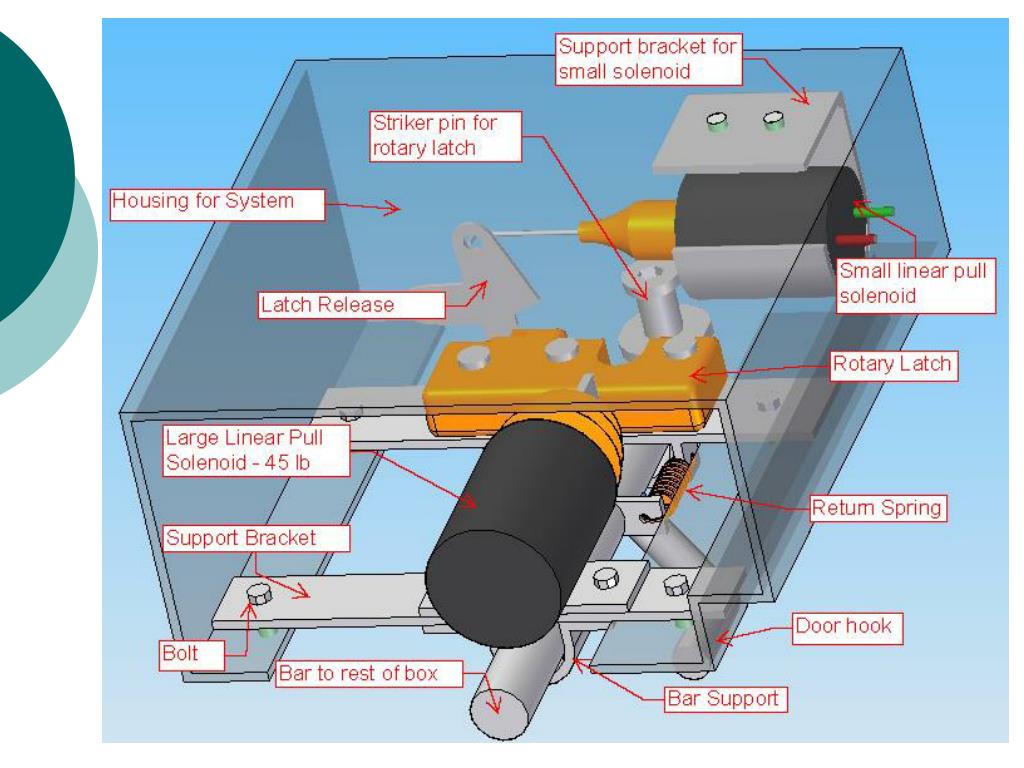

  15. The automated system
