Cscape 8.6. August 2008. Horner APG. New Workbench Features - New Model – XL6. New Workbench Feature – Tapi Support.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about ' Cscape 8.6 ' - fonda


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
Cscape 8 6

Cscape 8.6

August 2008

Horner APG



New workbench feature tapi support
New Workbench Feature – Tapi Support

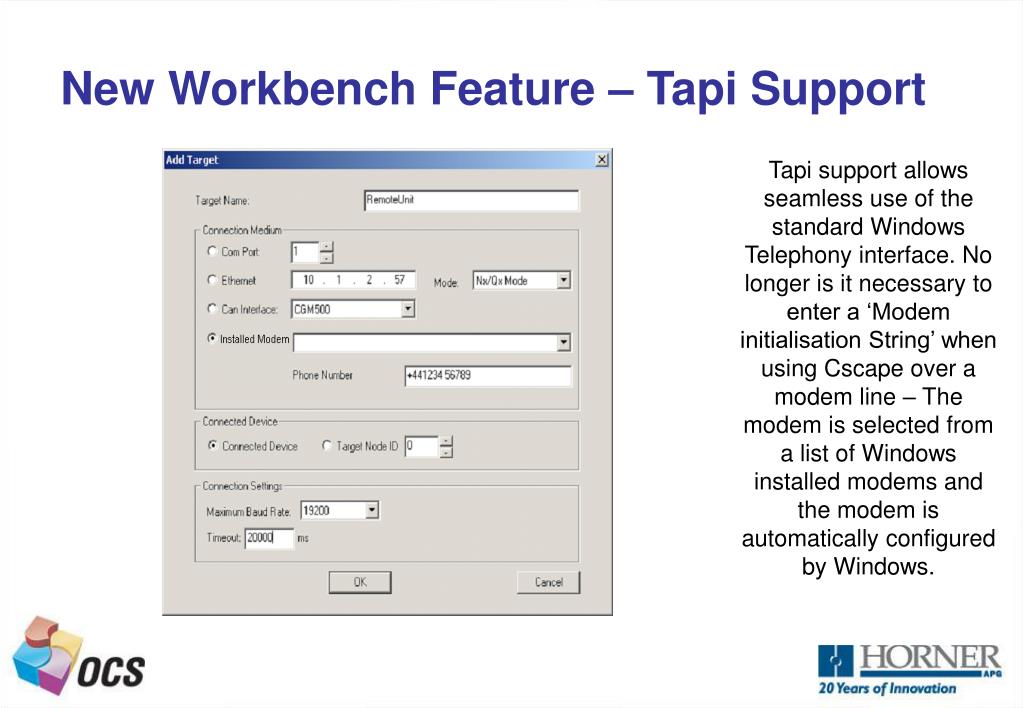

Tapi support allows seamless use of the standard Windows Telephony interface. No longer is it necessary to enter a ‘Modem initialisation String’ when using Cscape over a modem line – The modem is selected from a list of Windows installed modems and the modem is automatically configured by Windows.


New workbench feature connect disconnect feature
New Workbench Feature – Connect/Disconnect Feature

A new button will be available to connect and disconnect Cscape from the Target device. This will allow a much quicker means of releasing the serial port if it is required to run another package which uses the serial port.

In addition it will cause the dial and hang-up to occur when using the Tapi connection thus preventing the need for long duration connections to remote device via modem.


New look and feel separate subroutines blocks
New Look And Feel - Separate Subroutines Blocks

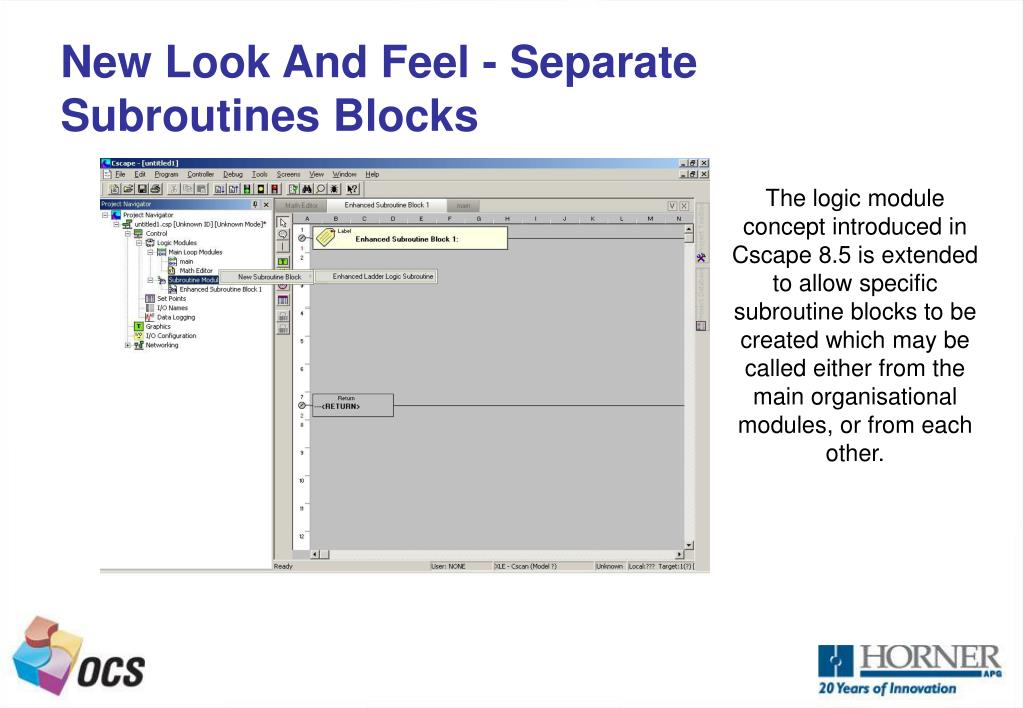

The logic module concept introduced in Cscape 8.5 is extended to allow specific subroutine blocks to be created which may be called either from the main organisational modules, or from each other.




New look and feel cbreeze feature integration timer object

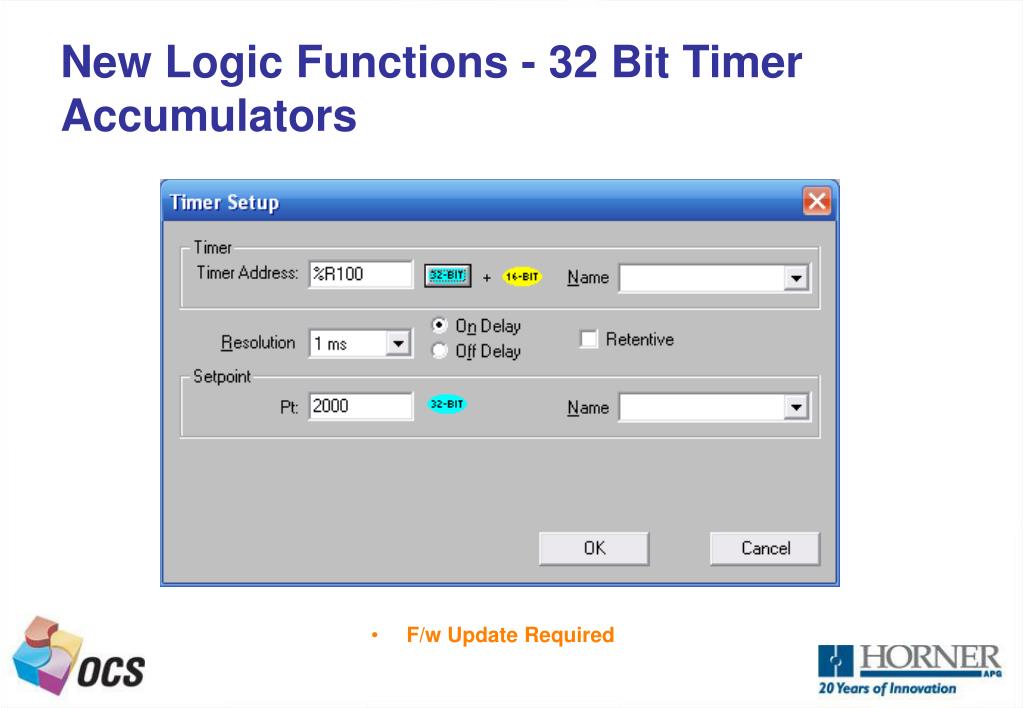

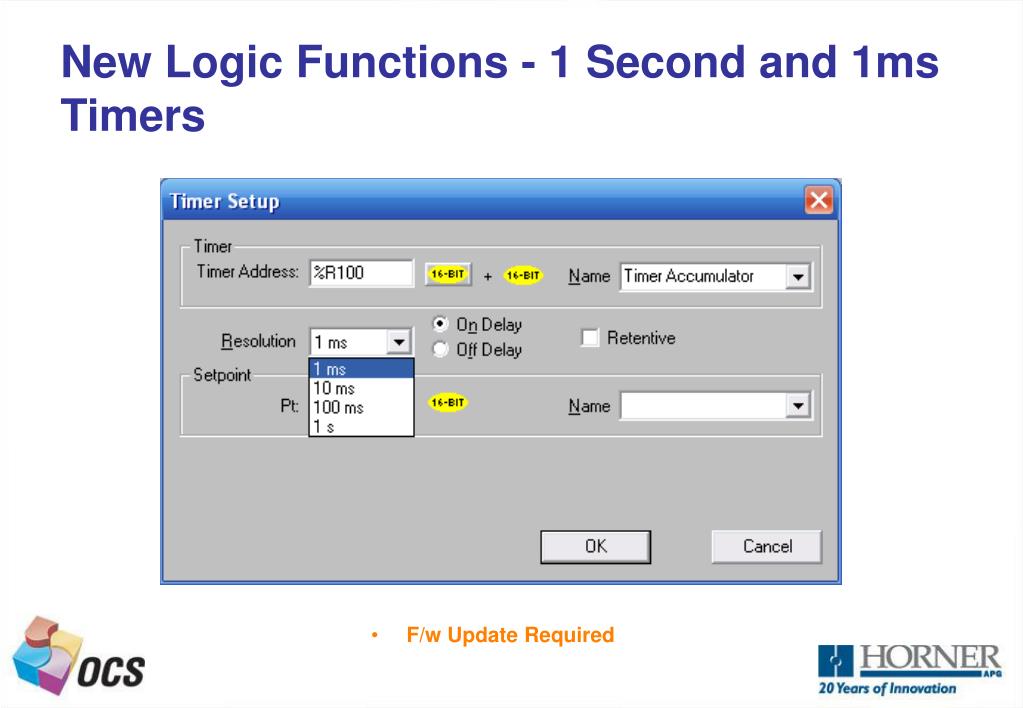

New Look And Feel - CBreeze Feature Integration - Timer Object

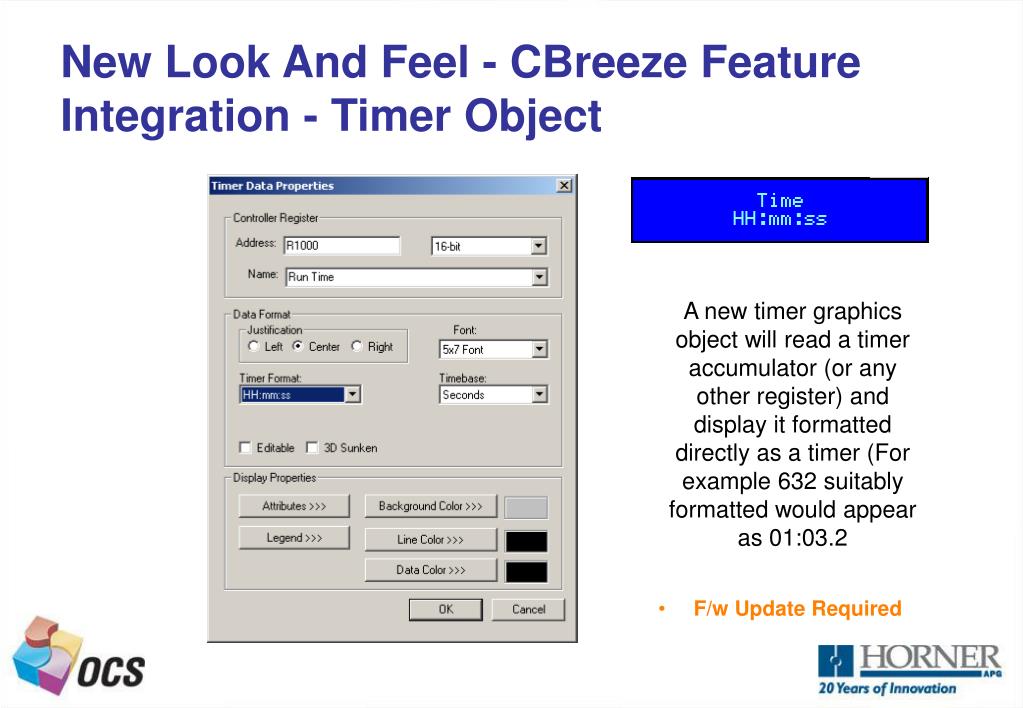

A new timer graphics object will read a timer accumulator (or any other register) and display it formatted directly as a timer (For example 632 suitably formatted would appear as 01:03.2

  • F/w Update Required


New workbench features datawatch improvements
New Workbench Features - Datawatch Improvements Object

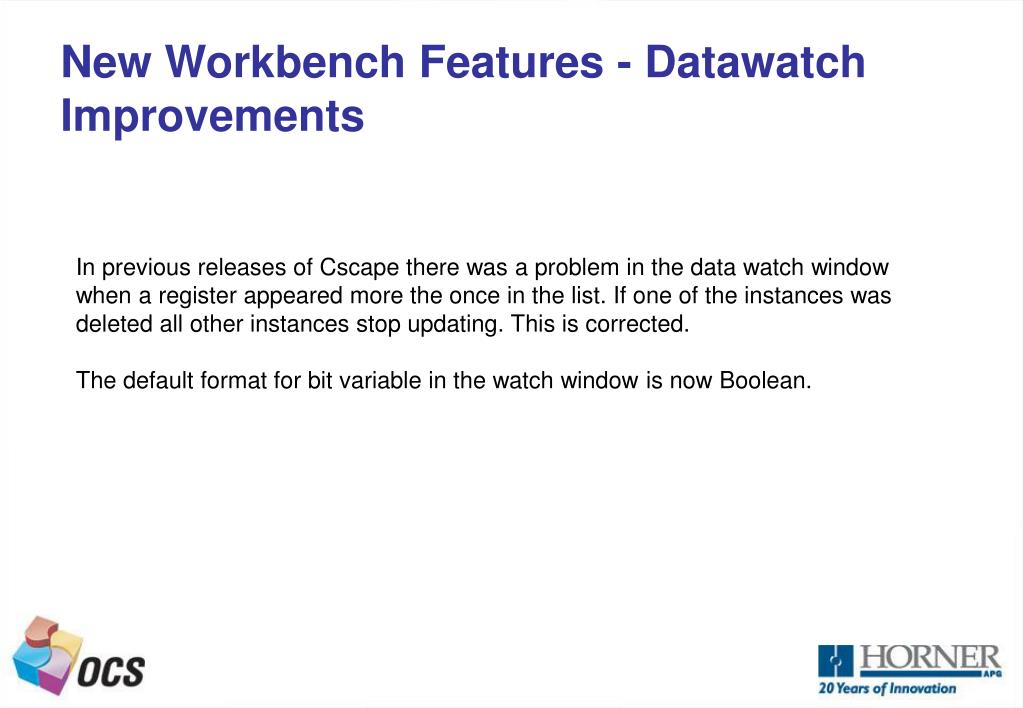

In previous releases of Cscape there was a problem in the data watch window when a register appeared more the once in the list. If one of the instances was deleted all other instances stop updating. This is corrected..

The default format for bit variable in the watch window is now Boolean.


Modbus tcp on xl series ethernet modules

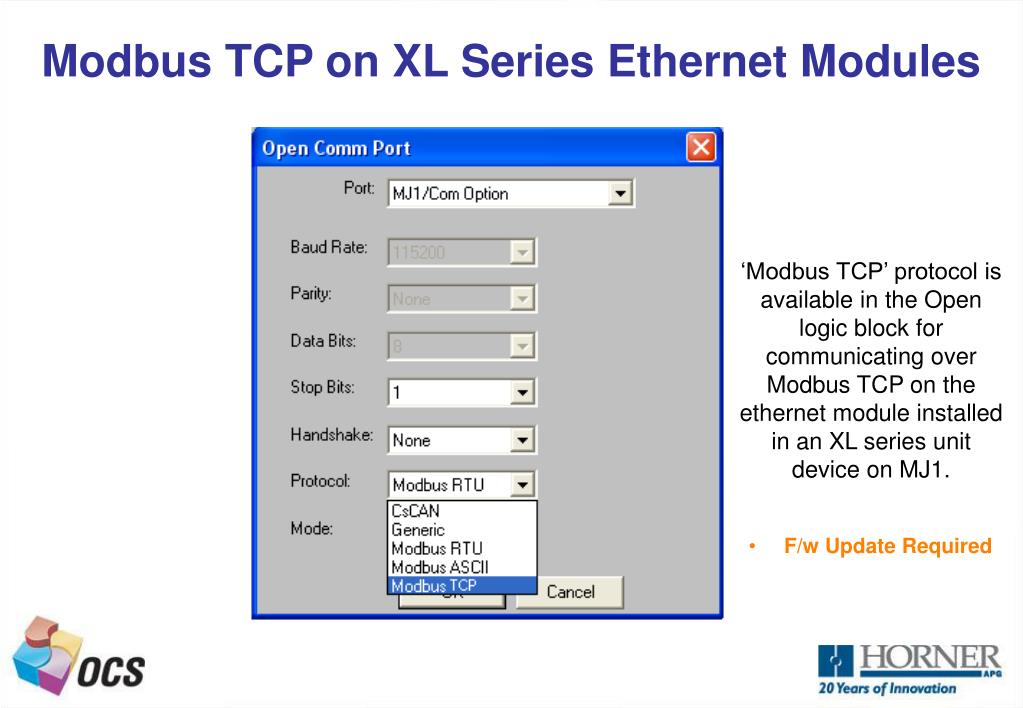

‘Modbus TCP’ protocol is available in the Open logic block for communicating over Modbus TCP on the ethernet module installed in an XL series unit device on MJ1.

Modbus TCP on XL Series Ethernet Modules

  • F/w Update Required


Envision support
Envision Support block for communicating over Modbus TCP on the ethernet module installed in an XL series unit device on MJ1.

  • New Envision EV models

    Allows creating screens for PC use including larger 1280x1024 screen and a wide screen selection.

    Move Project to Envision(Export to Envision)

  • Automatically releases PC communication ports and starts Envision with the current Cscape project.


Move protocol settings between ports
Move Protocol Settings Between Ports block for communicating over Modbus TCP on the ethernet module installed in an XL series unit device on MJ1.

Previously there was no means to transfer the protocol configuration of one port to another port, other than by deleting the original configuration and manually re-entering the information.

Now Cscape allows transferring the configurations with a single click.


Compound project file
Compound Project File block for communicating over Modbus TCP on the ethernet module installed in an XL series unit device on MJ1.

Previous releases of Cscape have supported ‘Project Files’ where the information for how the component .Csp files of project fitted together was stored.

Several users made the assumption that all the information for the project was stored in that single file. It was foreseen that users might archive this single file and in the future when attempting to reload the file would find that the file was worthless without the component .csp files.

The new project file format will contain the .csp files and so contain all the information required to archive and transfer an entire project.


Major bug fixes enhancements
Major Bug Fixes/Enhancements block for communicating over Modbus TCP on the ethernet module installed in an XL series unit device on MJ1.

  • Pause ‘n’ Load Fixed.

  • Exported programs for OCS4/5/651 for Compact Flash are now readable by the OCS.

  • Insertion and Removal of USB/Serial converters is detected and handled dynamically.

  • Upload of program with multiple languages retrieves the language information.

  • Goto dialog with errors don’t produce multiple error boxes.

  • Extended Register Support for Rx and Tx Communication Blocks.

  • Removable Media File Copy Supported.

  • Workspace Window set up preserved for subsequent file loads.

  • Missing protocol file no longer causes a Cscape Crash.

  • Serial Operations suppressed if no device is detected on the currently selected communication interface.

  • Modbus Protocol backward compatibility issue fixed.

  • Ladder find on multiple module programs works correctly.

  • Error search on multiple module programs works correctly.

  • F/w Update Required


Companion firmware release v12 4
Companion Firmware Release (v12.4) block for communicating over Modbus TCP on the ethernet module installed in an XL series unit device on MJ1.

  • XLe/XLt New Features/Bug Fixes

    • Ladder Scan Fix

    • Enhanced Modbus Support (Extended Addressing)

    • Modbus TCP for Ethernet (Master and Slave)

    • Memory Backup/Restore

  • XL6/NX/QX New Features/Bug Fixes

    • EnvisionFX support (NX/QX)

    • Ethernet IP (I/O Connection) support for Allen Bradley

    • Memory Backup/Restore
