  1. Elementary Microarchitecture Algebra John Matthews and John Launchbury Oregon Graduate Institute

  2. Hawk Goals • Develop specifications that are clear and concise • Simulate the specifications, both concretely and symbolically • Formally verify specifications at the source-code level

  3. Algebraic Verification • Developed a domain-specific algebra for microarchitectures • Proved equational laws that hold between microarchitecture components • We simplify pipelines using these laws while preserving functional (cycle-accurate) behavior • But clock cycle period may change!

  4. Transactions • Group data and control information together • Transactions - containing destinations, sources, and operations - flow through the model • Decide control locally whenever possible R3 <- Add R1 R2 16 5 11

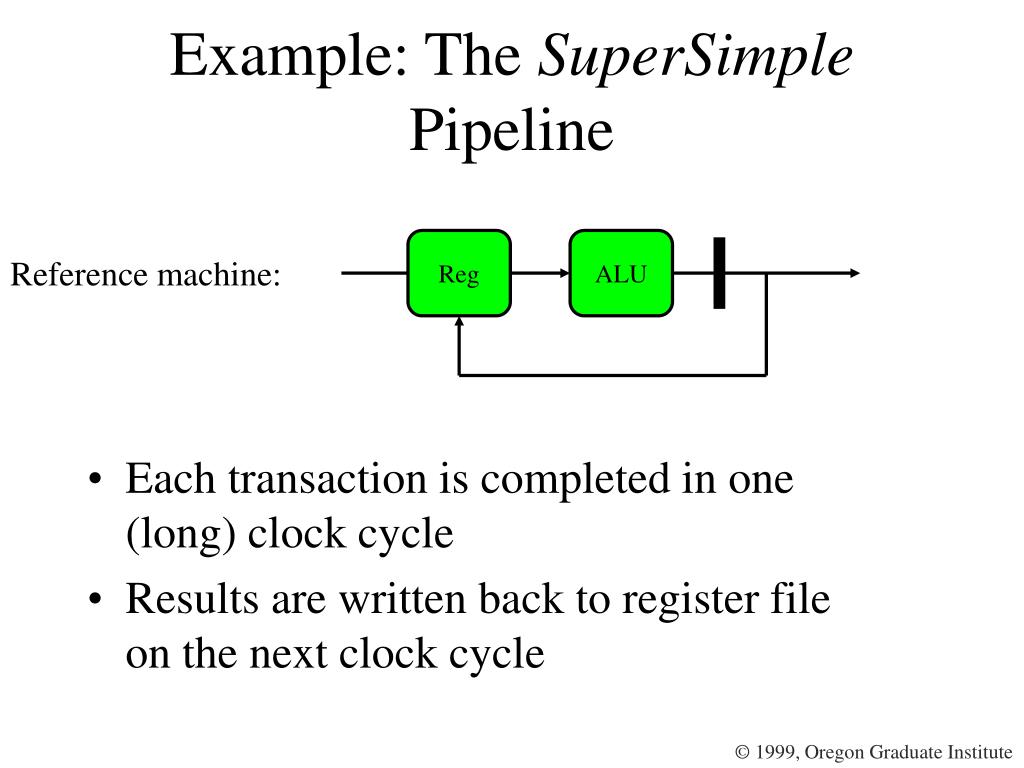

  5. Example: The SuperSimple Pipeline Reg ALU Reference machine: • Each transaction is completed in one (long) clock cycle • Results are written back to register file on the next clock cycle

  6. Example: The SuperSimple Pipeline Reg ALU Reference machine: R3 <- Add R1 R2 - - -

  7. Example: The SuperSimple Pipeline Reg ALU Reference machine: R3 <- Add R1 R2 R3 <- Add R1 R2 - - - - 5 11

  8. Example: The SuperSimple Pipeline Reg ALU Reference machine: R3 <- Add R1 R2 R3 <- Add R1 R2 R3 <- Add R1 R2 - - - - 5 11 16 5 11

  9. Example: The SuperSimple Pipeline Reg ALU Reference machine: R3 <- Add R1 R2 R3 <- Add R1 R2 R3 <- Add R1 R2 - - - - 5 11 16 5 11 R3 <- Add R1 R2 16 5 11

  10. Example: The SuperSimple Pipeline Reg ALU Reference machine: Reg ALU Pipelined machine:

  11. Verifying SuperSimple • Pipelined machine should behave the same as reference machine, except the pipelined machine has one more cycle of latency Reg ALU Reg ALU

  12. Verifying SuperSimple • We incrementally simplify the pipeline • Use local algebraic laws, each proved by induction over time Reg ALU Reg ALU

  13. Circuit Duplication Law • We can always duplicate a circuit without changing its functional behavior F F F

  14. Retiming the Pipeline • We first move delay circuits forward, using the circuit duplication law Reg ALU Reg ALU

  15. Retiming the Pipeline • We first move delay circuits forward, using the circuit duplication law Reg ALU Reg ALU

  16. Retiming the Pipeline • We first move delay circuits forward, using the circuit duplication law Reg ALU Reg ALU

  17. Time-Invariance Laws • Delay circuits can be moved across time-invariant circuits without changing behavior ALU ALU

  18. Retiming the Pipeline • Apply time-invariance laws to continue moving delay circuits Reg ALU Reg ALU

  19. Retiming the Pipeline • Apply time-invariance laws to continue moving delay circuits Reg ALU Reg ALU

  20. Retiming the Pipeline • Apply time-invariance laws to continue moving delay circuits Reg ALU Reg ALU

  21. Removing Forwarding Logic • The register-bypass laws allow us to remove a bypass circuit on the output of a registerFile Reg Reg Reg Reg

  22. Removing Forwarding Logic • Apply register-bypass law to remove bypass circuit Reg ALU Reg ALU

  23. Removing Forwarding Logic • Apply register-bypass law to remove bypass circuit Reg ALU Reg ALU

  24. Removing Forwarding Logic • Repositioning components Reg ALU Reg ALU

  25. Removing Forwarding Logic • Repositioning components Reg ALU Reg ALU

  26. Removing Forwarding Logic • Repositioning components Reg ALU Reg ALU

  27. Removing Forwarding Logic • Repositioning components Reg ALU Reg ALU

  28. Removing Forwarding Logic • Repositioning components Reg ALU Reg ALU

  29. Removing Forwarding Logic • Repositioning components Reg ALU Reg ALU

  30. Removing Forwarding Logic • Repositioning components Reg ALU Reg ALU

  31. Simplification Complete! • Pipeline has been reduced to reference machine, but delayed by one clock cycle Reg ALU Reg ALU

  32. Simplifying Stalling Pipelines • More complex pipelines often have to stall to resolve hazards or mis-speculation • A stalling pipeline won’t be cycle-accurate with respect to a reference machine • We still simplify as much as possible • Then use other verification techniques on simplified pipeline • Simplified pipeline should be easier to verify

  33. The SomewhatSimple Pipeline • Resolves mem-alu data hazards by stalling • Resolves branch mispredictions by squashing misp ? hazard? ICache Reg ALU Mem Kill

  34. misp ? hazard? ICache Reg ALU Mem Kill Original Pipeline

  35. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....

  36. misp ? hazard? ICache Reg ALU Mem Kill Various Retiming Laws Simplifying pipeline .....

  37. misp ? hazard? ICache Reg ALU Mem Kill Various Retiming Laws Simplifying pipeline .....

  38. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....

  39. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....

  40. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....

  41. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....

  42. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....

  43. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....

  44. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....

  45. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....

  46. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....

  47. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....

  48. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....

  49. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....

  50. misp ? hazard? ICache Reg ALU Mem Kill Simplifying pipeline .....
