Presentation Transcript


Methods to differentiate radiation induced necrosis and recurrent disease in gliomas l.jpg

Methods to Differentiate Radiation Induced Necrosis and Recurrent Disease in Gliomas

Lars Ewell

University of Arizona Medical Center

Department of Radiation Oncology

MRI Research Group

2/2/07


Methods to differentiate radiation induced necrosis and recurrent disease in gliomas2 l.jpg

2

Methods to Differentiate Radiation Induced Necrosis and Recurrent Disease in Gliomas

  • Introduction: The Problem

  • Radiation Damage: Brain vs. Tumor

  • Similarities/Differences

  • MRS: Metabolite Ratios

  • DWMRI: ADC

  • ABRC Grant

  • Conclusion


Radiation induced necrosis l.jpg

3

Radiation Induced Necrosis

  • Radiation is one of the few proven currently known methods to increase survival and quality of life for glioma (brain tumor) patients.

  • Radiation dose has been correlated with recurrence.

  • Too much radiation can kill normal brain tissue.

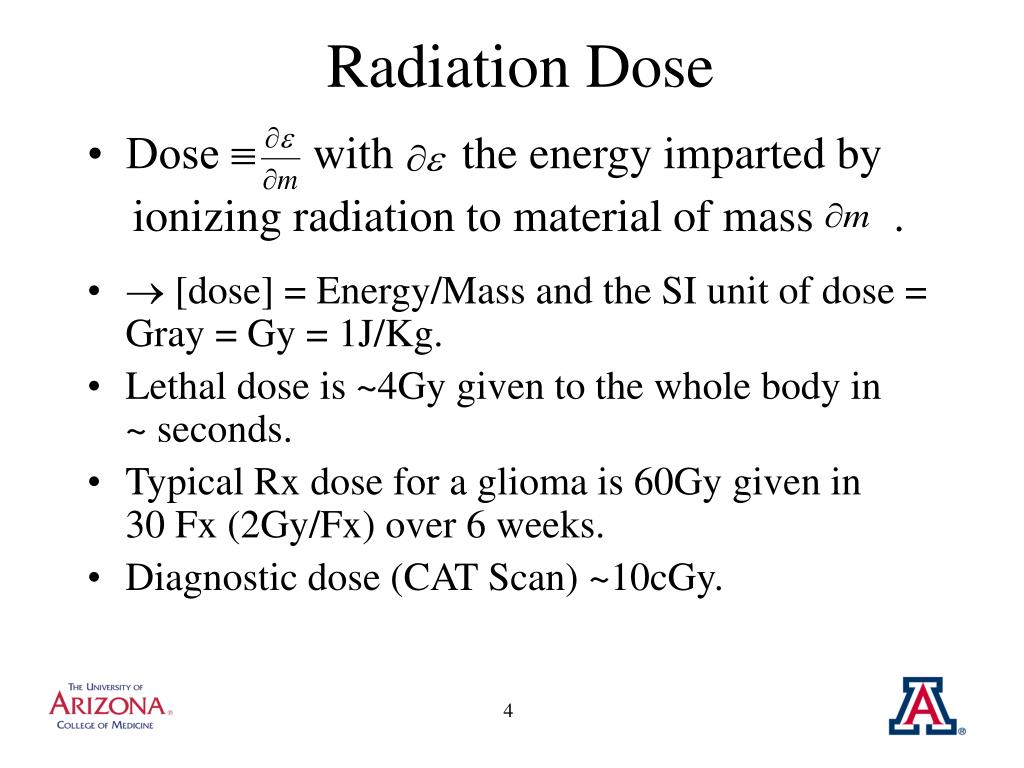

Radiation dose l.jpg

• Dose  with the energy imparted by

ionizing radiation to material of mass .

4

Radiation Dose

  •  [dose] = Energy/Mass and the SI unit of dose = Gray = Gy = 1J/Kg.

  • Lethal dose is ~4Gy given to the whole body in ~ seconds.

  • Typical Rx dose for a glioma is 60Gy given in 30 Fx (2Gy/Fx) over 6 weeks.

  • Diagnostic dose (CAT Scan) ~10cGy.


Radiation damage cell survival l.jpg

5

Radiation Damage: Cell Survival

  • The ratio  has units of dose, and is used to determine tissue radiation reaction.

100

  • The ‘linear – quadratic’ model of cell survival, w/ S the surviving fraction, D the dose and  constants.

10-1

Surviving Fraction

10-2

4

8

12

Radiation Dose (Gy)


Radiation damage early late l.jpg

6

Radiation Damage: Early - Late

  • The ratio  has been correlated with response time for radiation damage to manifest.

  • For brain and/or spinal cord,  ~ 2Gy indicating a late radiation response (months to years).

  • For tumor,  ~ 10 Gy indicating an early radiation response (weeks to months).


Rin recurrent disease l.jpg

7

RIN/Recurrent Disease

  • T1 weighted contrast enhanced MRI taken 16 months after completion of radiotherapy (left).

  • Same MRI taken 2 months, 15 days later.

  • Biopsy later revealed no evidence of recurrent tumor.

Kumar et al., Radiology, 217, 2, November 2000.


Rin recurrent disease comparison l.jpg

8

RIN/Recurrent Disease: Comparison

  • ‘Enhancing lesion’ on MRI.

  • Origin at or near primary site.

  • Growth over time.

Similarities:

  • Additional radiation can benefit recurrent disease.

  • Additional radiation detrimental to RIN.

Differences:

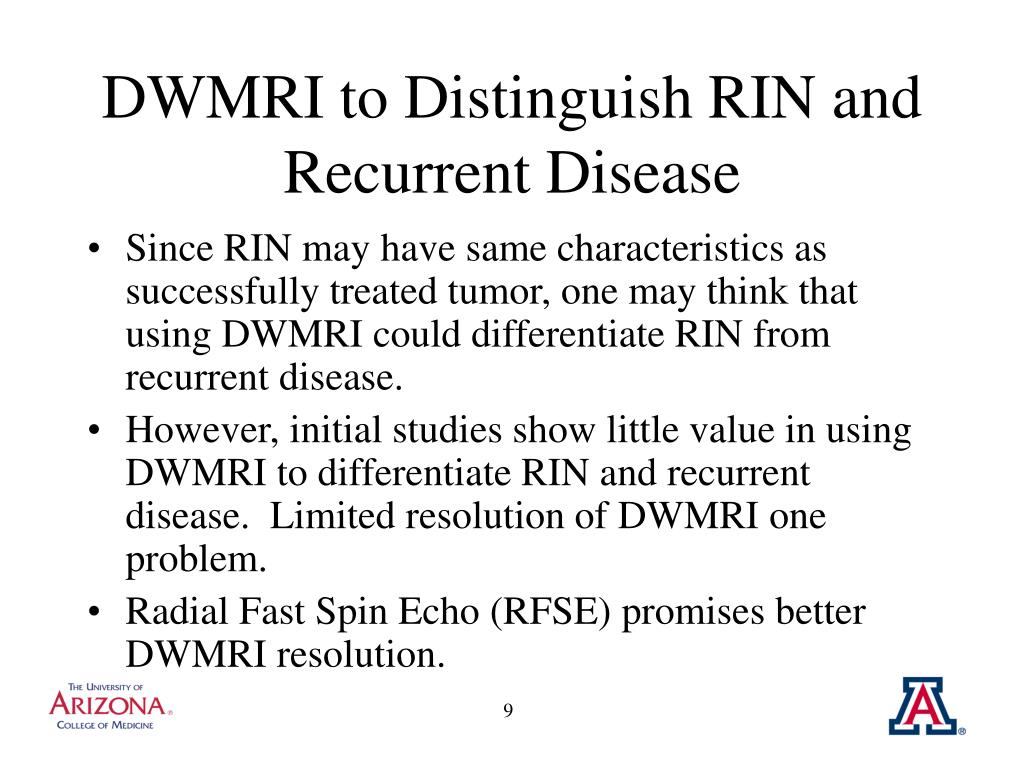

Dwmri to distinguish rin and recurrent disease l.jpg

9

DWMRI to Distinguish RIN and Recurrent Disease

  • Since RIN may have same characteristics as successfully treated tumor, one may think that using DWMRI could differentiate RIN from recurrent disease.

  • However, initial studies show little value in using DWMRI to differentiate RIN and recurrent disease. Limited resolution of DWMRI one problem.

  • Radial Fast Spin Echo (RFSE) promises better DWMRI resolution.

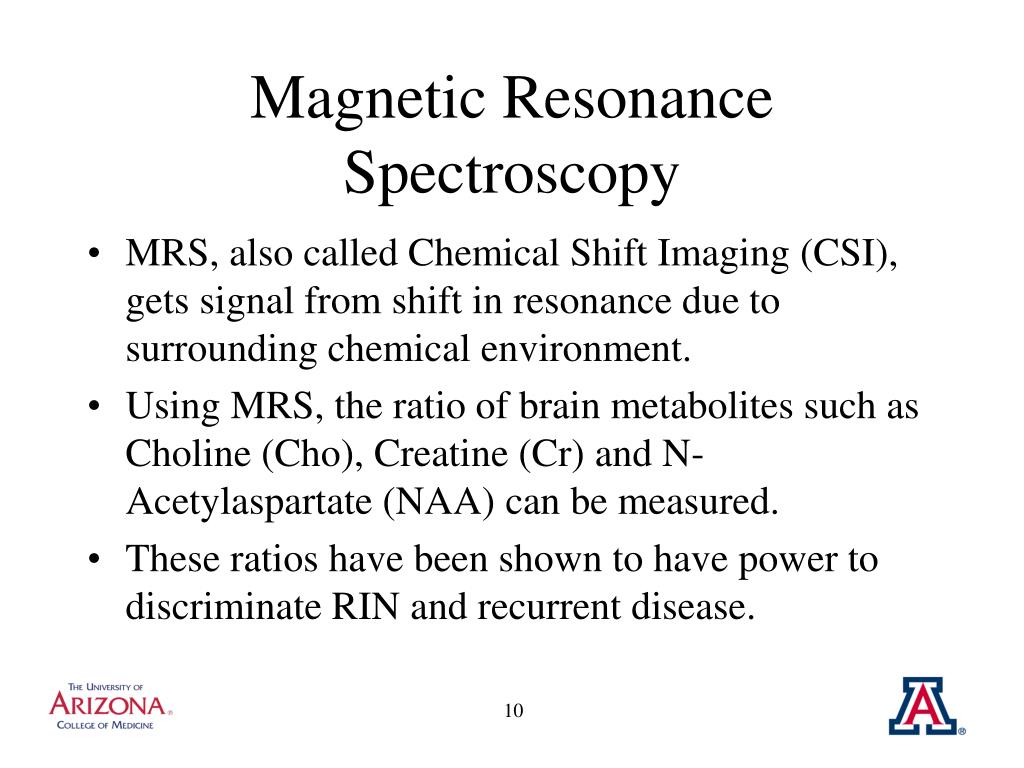

Magnetic resonance spectroscopy l.jpg

10

Magnetic Resonance Spectroscopy

  • MRS, also called Chemical Shift Imaging (CSI), gets signal from shift in resonance due to surrounding chemical environment.

  • Using MRS, the ratio of brain metabolites such as Choline (Cho), Creatine (Cr) and N-Acetylaspartate (NAA) can be measured.

  • These ratios have been shown to have power to discriminate RIN and recurrent disease.


Mrs metabolites l.jpg

11

MRS Metabolites

  • Cho is a neurotransmitter and is increased in tumors. Correlated with high cellular density.

  • NAA is a metabolite found in neurons, and is decreased in tumors.

  • Cr is a brain metabolite and is also decreased in tumors.


Mrs metabolite ratios l.jpg

12

MRS Metabolite Ratios

*

*

  • 2D CSI scans given to seven patients.

  • 16cm FOV, 16x16 and slice thickness of 10-20mm.

  • 1 average, scan time of 4 min., 20sec.

  • Absence of tumor confirmed by biopsy in two patients.

*

Weybright et al., Neuroradiology (2004) 46: 541–549


Magnetic resonance spectroscopy13 l.jpg

13

Magnetic Resonance Spectroscopy

NAA

Cho

Cr

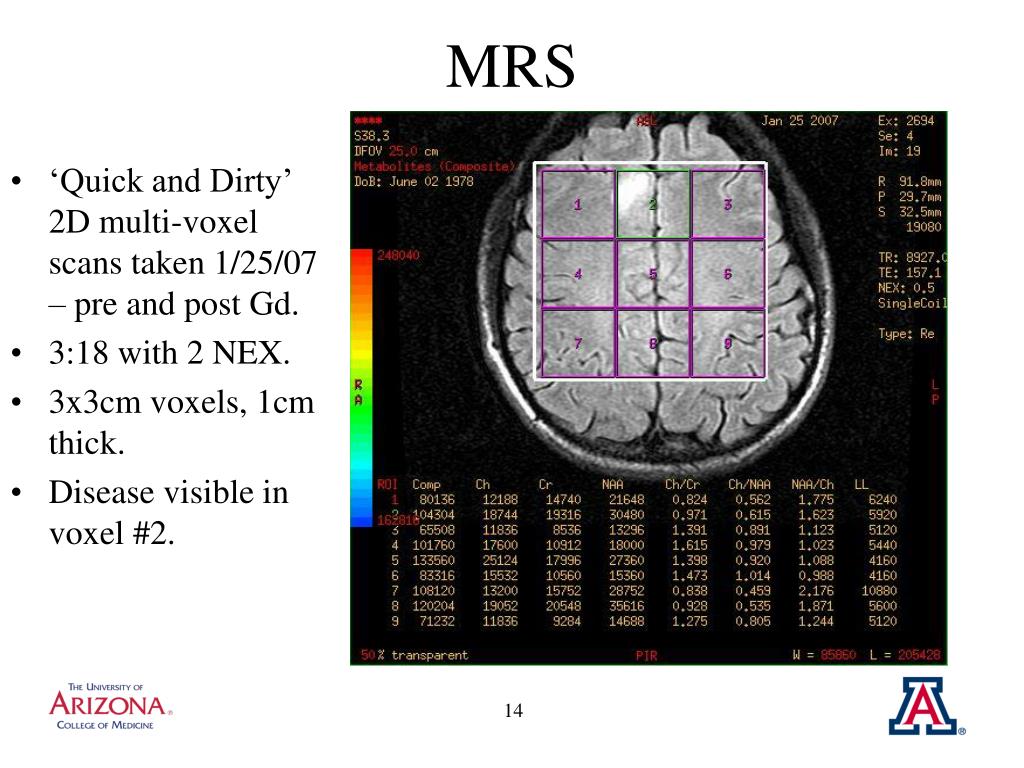

Slide14 l.jpg

14

MRS

  • ‘Quick and Dirty’ 2D multi-voxel scans taken 1/25/07 – pre and post Gd.

  • 3:18 with 2 NEX.

  • 3x3cm voxels, 1cm thick.

  • Disease visible in voxel #2.


Mrs normal vs disease l.jpg

15

MRS: Normal vs. Disease

Voxel # 7 - Normal

Voxel # 2 - Disease


Mrs pre vs post gd l.jpg

16

MRS: Pre vs. Post Gd

Pre Gd

Post Gd


Magnetic resonance spectroscopy17 l.jpg

17

Magnetic Resonance Spectroscopy

  • Although MRS has been shown to have discriminating power, there are two problems associated with it: 1) Low resolution. 2) Long scan time.

  • Imaging protocol will join MRS with RFSE DWMRI to create synergistic combination.


Arizona biomedical research commission l.jpg

18

Arizona Biomedical Research Commission

  • Grant Awarded: Diffusion Weighted MRI and Magnetic Resonance Spectroscopy to Differentiate Radiation Necrosis and Recurrent Disease in Gilomas (PI LAE).

  • Enroll 60 patients diagnosed with a glioma (metastatic or primary) and follow longitudinally.


Imaging protocol l.jpg

19

Imaging Protocol

  • Patients eligible to enroll if they have a reasonable risk of suffering from RIN.

  • Published data indicate that patients receiving a dose of  60Gy in 30 Fx have between a 5 and 24% chance of developing RIN.

  • Hypo-fractionation and Stereotactic Radio-Surgery (SRS) are also forms of radiation Tx.


Imaging protocol enrollment criteria l.jpg

  • BED = nd(1 + ) with n the

  • number of fractions, d the dose,  and  the linear quadratic constants.

20

Imaging Protocol: Enrollment Criteria

  • Biological Equivalent Dose (BED) used to determine enrollment criteria for hypo-fractionation and SRS.

  • 5 x 6Gy required for hypo - fractionation, 21Gy for SRS.


Imaging protocol enrollment criteria21 l.jpg

Radiation Type

Number of Fractions

Minimum Radiation (Gy)

SRS

1

21

Hypo-fraction

5

30

Normal Fraction

30

60

Re-treatment

varies

varies

21

Imaging Protocol: Enrollment Criteria


Imaging protocol imaging sequence l.jpg

Time from End of Radiotherapy (days)

Scans Performed

Comments

-5

CT, MRI, DWMRI, MRS

Baseline scans. Used to plan radiotherapy. CT and MRI registered using Brainscan.

30

MRI, DWMRI, MRS

First scan for comparison.

90

MRI, DWMRI, MRS

Second scan for comparison. Potential radiation necrosis.

Check ADCW for change.

22

Imaging Protocol: Imaging Sequence


Imaging protocol23 l.jpg

23

Imaging Protocol

  • VOI centered at center of resection cavity.

  • 2D Multi-voxel CSI with 1cm slice thickness. 7x7cm.

  • Three slices, ~8:30 for each slice, one centered on lesion and one superior and inferior.

  • MRS will take majority of time.


Imaging protocol24 l.jpg

24

Imaging Protocol

  • Current ‘Gold Standard’ for confirming glioma vs. RIN is pathologic examination of biopsy.

  • We expect that ~50% of enrolled patients will undergo biopsy at some point.

  • Vector Vision should locate biopsy location to within ~2mm.

  • Biopsy MRI registered with protocol MRI using Brainscan software.


Imaging protocol25 l.jpg

25

Imaging Protocol

  • Approved by SRC 11/14/06.

  • Third submission to IRB will take place early next week.

  • Expect approval shortly thereafter – 2/13/07

  • Patient enrollment thereafter.


Conclusion l.jpg

26

Conclusion

  • DWMRI and MRS are non-invasive forms of medical imaging that show promise for differentiation between RIN and recurrent disease in glioma patients.

  • It will take work to realize the full potential of these complimentary imaging forms.


Acknowledgement l.jpg

27

Acknowledgement

  • Chris Watchman, Russ Hamilton

  • Dino Stea, Marco Marsella

  • Thomas Chong

  • Scott Squire

  • Jamie Holt
