  1. Chapter 4Forces in One Dimension Honors Physics Glencoe, 1999

  2. 4.1 Force & Motion • Force- any agent that can cause an object to change its state of motion • Contact forces- must touch to interact (walking, throwing, crashing) • Field forces- no touching necessary (gravity, magnetism) • Force (free-body) diagram- shows vectors of all forces involved in motion

  3. Net Force (Fnet) • Sum of all forces

  4. Newton’s Second Law • “The acceleration of an object is equal to the sum of the forces acting on the object, divided by the mass of he object.” • ā = SF/m (S is the “sum of” F)

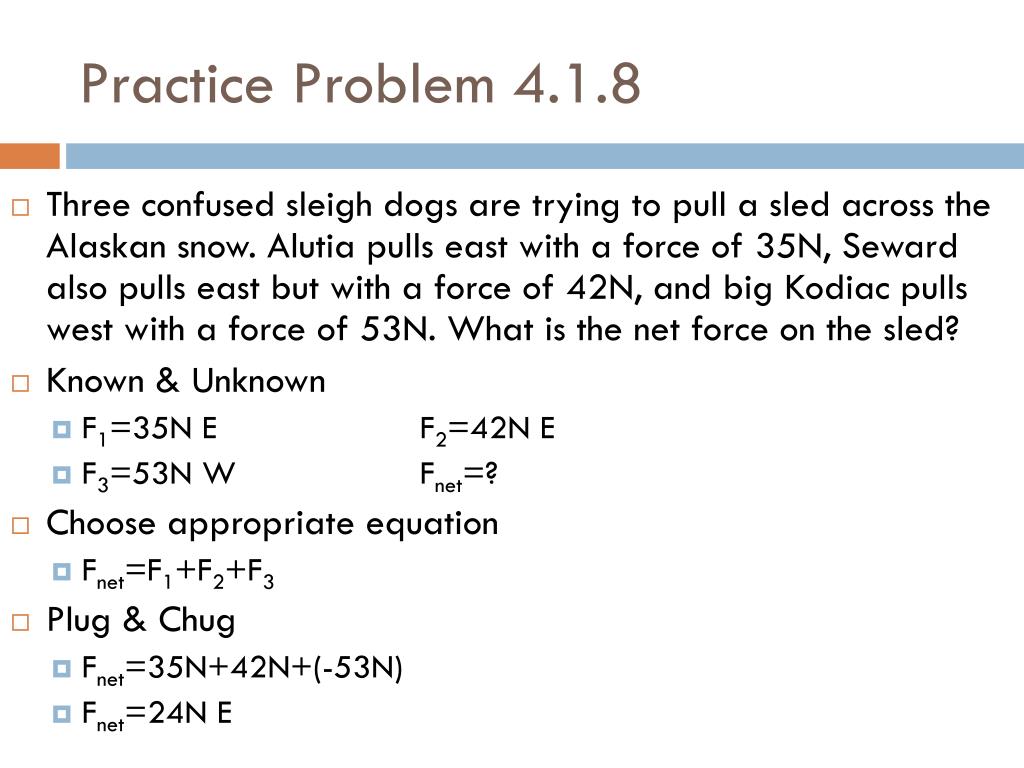

  5. Practice Problem 4.1.8 • Three confused sleigh dogs are trying to pull a sled across the Alaskan snow. Alutia pulls east with a force of 35N, Seward also pulls east but with a force of 42N, and big Kodiac pulls west with a force of 53N. What is the net force on the sled? • Known & Unknown • F1=35N E F2=42N E • F3=53N W Fnet=? • Choose appropriate equation • Fnet=F1+F2+F3 • Plug & Chug • Fnet=35N+42N+(-53N) • Fnet=24N E

  6. Newton’s First Law- Inertia • “Every object continues in its state of rest or uniform velocity as long as no net force acts on it.” • Inertia is measured in terms of a ratio, the amount of force need to cause one unit of acceleration • Ratio is called mass and is measured in kilogram (kg) • A 150 kg object requires 150 units of force to cause an acceleration of 1 m/s2 • The unit of force is called a Newton (N) • Force needed to accelerate a mass of 1 kg by 1 m/s2

  7. Types of Forces

  8. 4.2 Using Newton’s Laws • Apparent weight- force on the object as exerted by a gravitational field • On earth, g = Fg/m • On the earth’s moon, g = 1.63m/s2 • 1.63m/s2 = F/m

  9. Your New (SI) Weight • Weight is measured in Newtons, not pounds • To determine your mass • Your weight (in pounds) ÷ 2.2 • To determine your weight in Newtons • Your mass (in kg) x 9.80m/s2 • Mr. Latham=185lbs • (185lbs)/(2.2lbs/kg)=84.1kg • (84.1kg)(9.80m/s2)=824.1N

  10. Weightlessness • Apparent Weight of 0N • Your acceleration has the same magnitude and direction as the gravity field • If you are not in a measurable gravity field • http://www.youtube.com/watch?v=2V9h42yspbo

  11. Drag Force (Fd) • The force exerted by a fluid on the object moving through the fluid • Dependant on size and shape of object, properties of fluid, velocity of object • Terminal velocity- reached when drag force equals the force of gravity

  12. Practice Problems 4.2.16 • Kamaria is learning how to ice-skate. She wants her mother to pull her along so that she has an acceleration of 0.80m/s2. If Kamaria’s mass is 27.2kg, with what force does her mother need to pull her? • Known & Unknown • m=27.2kg F=? • a= 0.80m/s2 • Choose appropriate equation • F=ma • Plug & Chug • F=(27.2kg)(0.80m/s2) • F=22N

  13. Practice Problem 4.2.17 • Taru & Reiko simultaneously grab a 0.75kg piece of rope and begin tugging on it in opposite directions. If Taru pulls with a force of 16.0N and the rope accelerates away from her at 1.25m/s2, with what force is Reiko pulling? • Known & Unknown • m=0.75kg FTaru=16.0N • a=-1.25m/s2FReiko=? Fnet=? • Choose appropriate equation(s) • Fnet=ma Fnet=FTaru+FReiko • FTaru+FReiko=ma • Plug & Chug • 16.0N+FReiko=(0.75kg)(-1.25m/s2) • FReiko=(0.75kg)(-1.25m/s2)-16.0N • FReiko=17N

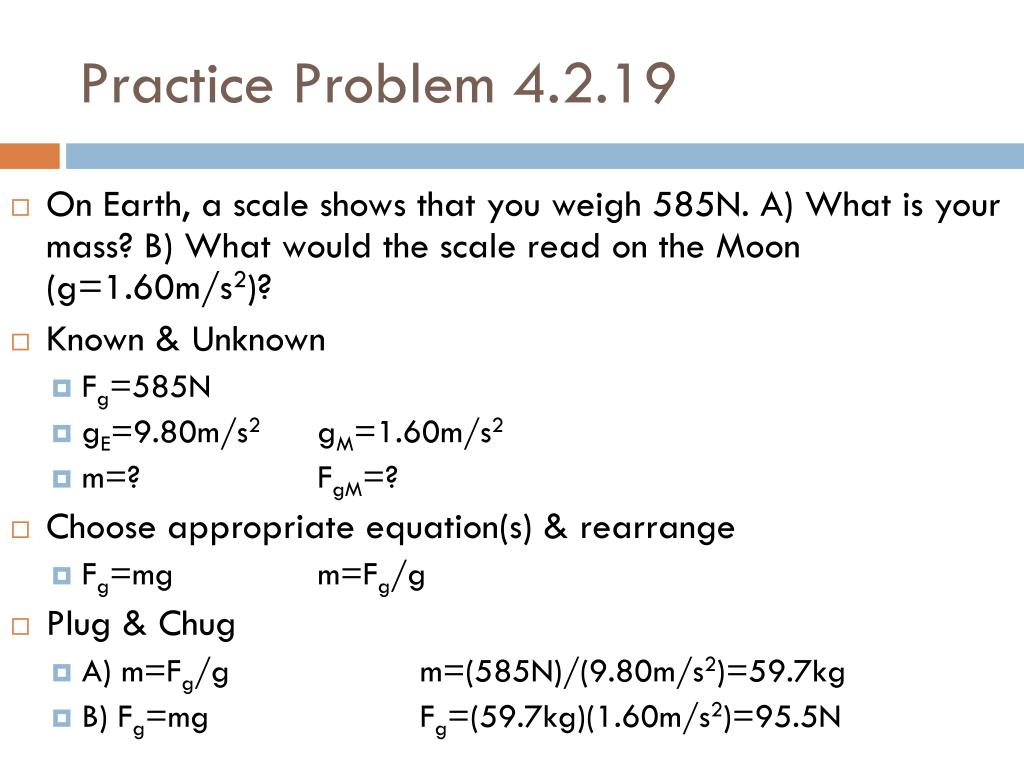

  14. Practice Problem 4.2.19 • On Earth, a scale shows that you weigh 585N. A) What is your mass? B) What would the scale read on the Moon (g=1.60m/s2)? • Known & Unknown • Fg=585N • gE=9.80m/s2gM=1.60m/s2 • m=? FgM=? • Choose appropriate equation(s) & rearrange • Fg=mg m=Fg/g • Plug & Chug • A) m=Fg/g m=(585N)/(9.80m/s2)=59.7kg • B) Fg=mg Fg=(59.7kg)(1.60m/s2)=95.5N

  15. 4.3 Interaction ForcesNewton’s Third Law • “Whenever one object exerts a force on a second object, the second exerts an equal force in the opposite direction on the first.” • FA on B = -FB on A

  16. Practice Problem 4.3.31 • A suitcase sits on a stationary airport luggage cart. Draw a free-body diagram for each object and specifically indicate any interaction pairs between the two.

  17. Tension (FT) • A force exerted on a string • Equal to the net weight of the objects that it supports

  18. Normal Force (FN) • The perpendicular contact force exerted by a surface on another object • If the surface is tilted, the FN is tilted at the same angle

  19. Practice Problem 4.3.32 • You are helping to repair a roof by loading equipment into a bucket that workers hoist to the rooftop. If the rope is guaranteed not to break as long as the tension does not exceed 450N and you fill the bucket until it has a mass of 42kg, what is the greatest acceleration that the workers can give the bucket as they pull it to the roof?
