The repast framework and social simulations

The RePast Framework and Social Simulations

Presented by Tim Furlong


Overview

Overview

  • RePast

  • Social Simulations

  • Simulations implemented with RePast

    • Santa Fe Artificial Stock Market

    • Endogenizing Geopolitical Boundaries


Repast

RePast

  • REcursive Porous Agent Simulation Toolkit

  • Java class library

  • University of Chicago

    • Social Science Research Computing


Repast framework

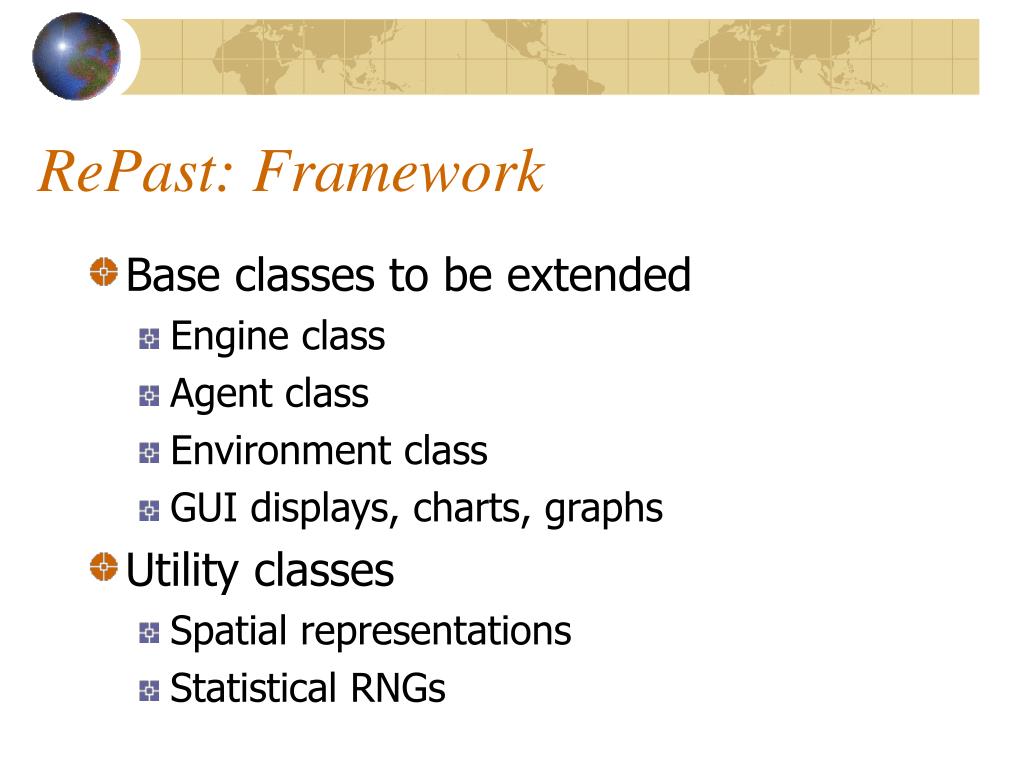

RePast: Framework

  • Base classes to be extended

    • Engine class

    • Agent class

    • Environment class

    • GUI displays, charts, graphs

  • Utility classes

    • Spatial representations

    • Statistical RNGs


The repast framework and social simulations

  • Generic approach

    • Discrete event simulator

  • Easy implementation

    • SugarScape(partial) : ~ 650 LOC

    • Game of Life : ~ 750 LOC


Repast advantages

RePast: Advantages

  • Facilitates implementation

    • Convenient representation of heterogeneous agents

    • Support for geometric world models

    • Garbage collection

  • ‘Powerful’ visualization techniques

    Lars-Erik Cederman, “Endogenizing Geopolitical Boundaries with Agent-based Modeling”, prepared for Sackler Colloquium on “Adaptive Agents, Intelligence, and Emergent Human Organization: Capturing Complexity through Agent-based Modelling”, Oct. 2001.


Repast applications

RePast: Applications

  • School voucher programs

  • Consumer choice

  • Decision making in closed regimes

  • Modeling the size of wars

  • Voting dynamics

  • Self-organizing computer networks

  • Multi-cellular tumors

    Repast Homepage – Projects and Publications : http://repast.sourceforge.net/projects.html


Social simulations

Social Simulations

  • Goal is to simulate observed behaviors with hypothesized model

  • Several ‘flavors’ of simulation

    • Statistical : global variables

    • Agent-based : allows heterogeneous agents with varied and dynamic behavior


The santa fe artificial stock market re examined suggested corrections

The Santa Fe Artificial Stock Market Re-Examined: Suggested Corrections

Norman Ehrentreich


Sfi asm introduction

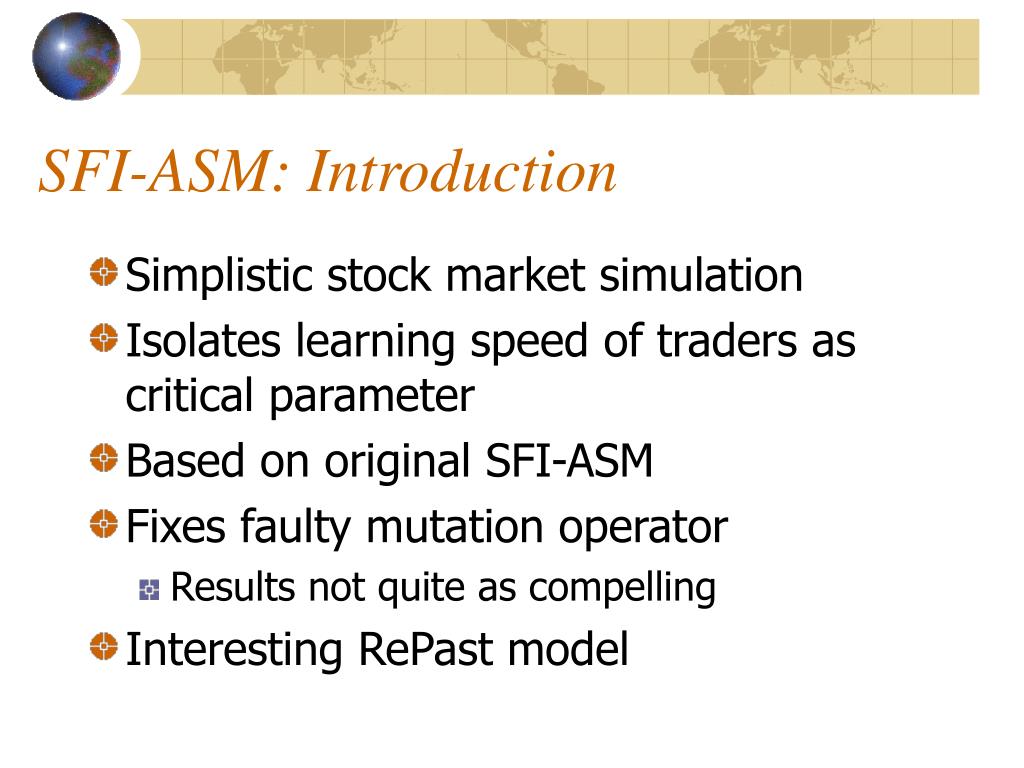

SFI-ASM: Introduction

  • Simplistic stock market simulation

  • Isolates learning speed of traders as critical parameter

  • Based on original SFI-ASM

  • Fixes faulty mutation operator

    • Results not quite as compelling

  • Interesting RePast model


Sfi asm original model

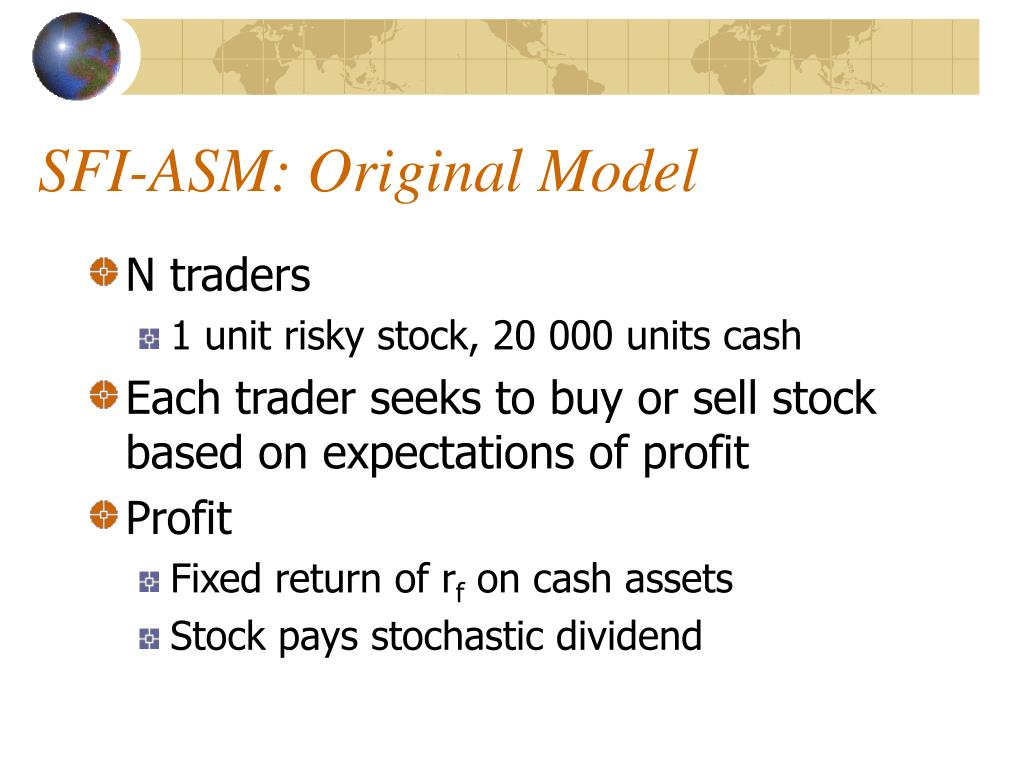

SFI-ASM: Original Model

  • N traders

    • 1 unit risky stock, 20 000 units cash

  • Each trader seeks to buy or sell stock based on expectations of profit

  • Profit

    • Fixed return of rf on cash assets

    • Stock pays stochastic dividend


Sfi asm stock

SFI-ASM: Stock

  • Only one ‘stock’ in market

  • Stock has price pt and dividend dt

  • Dividend of stock at time t +1

  • Mean-reverting factor of (1 – ρ), but generally stochastic


Sfi asm traders

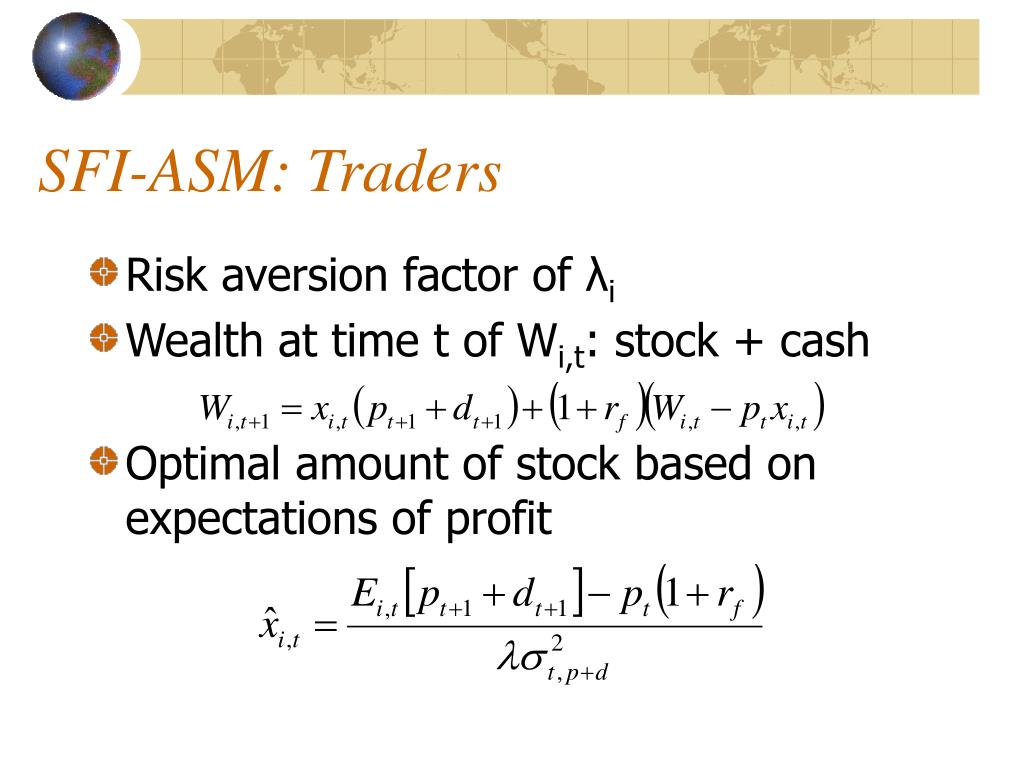

SFI-ASM: Traders

  • Risk aversion factor of λi

  • Wealth at time t of Wi,t: stock + cash

  • Optimal amount of stock based on expectations of profit


Sfi asm expectation rules

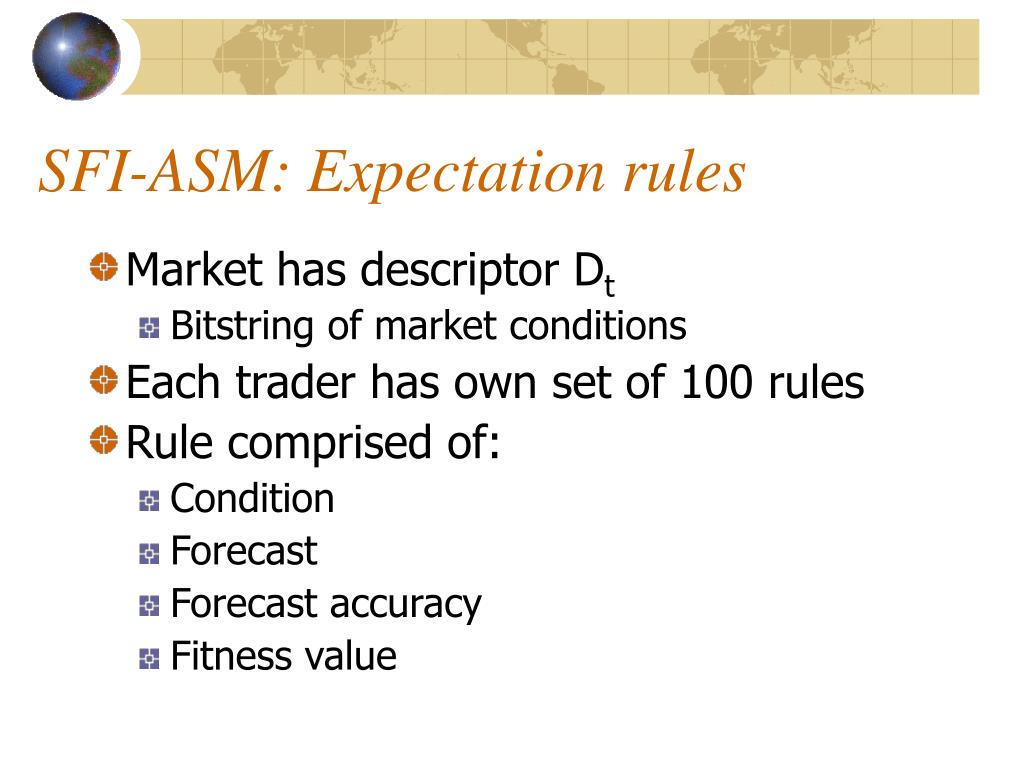

SFI-ASM: Expectation rules

  • Market has descriptor Dt

    • Bitstring of market conditions

  • Each trader has own set of 100 rules

  • Rule comprised of:

    • Condition

    • Forecast

    • Forecast accuracy

    • Fitness value


The repast framework and social simulations

  • Condition is pattern matching rule

    • String of {0,1,#}

    • Bits are technical or fundamental

  • Forecast for rule j: (aj,bj)


The repast framework and social simulations

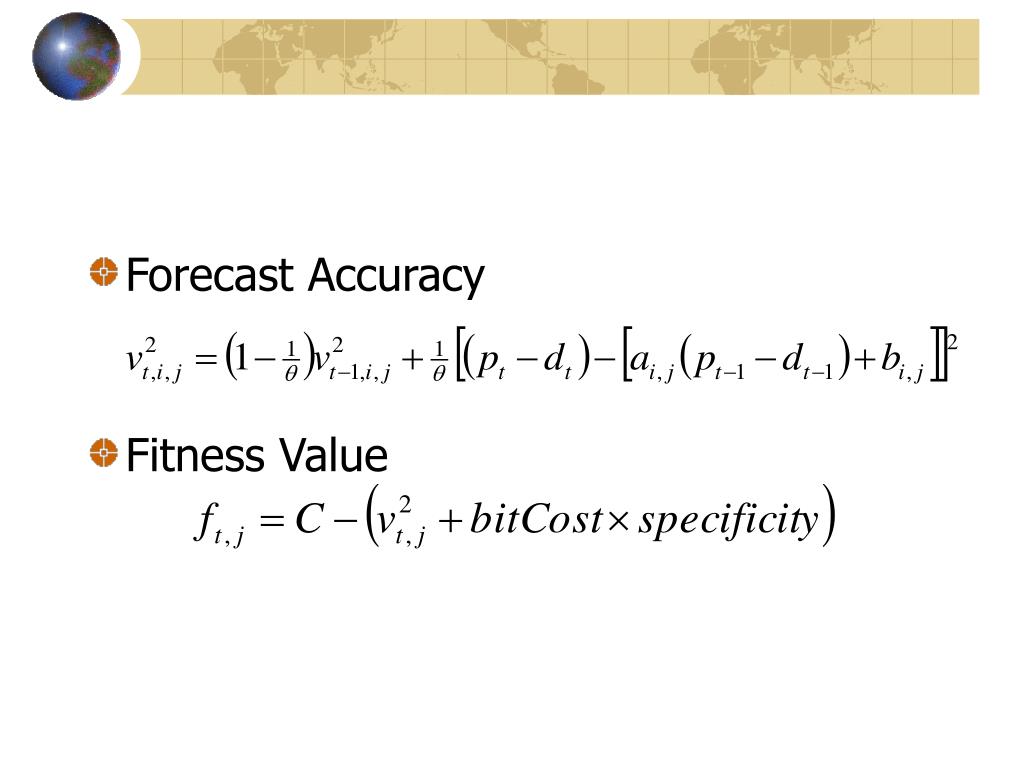

  • Forecast Accuracy

  • Fitness Value


Sfi asm rule evolution

SFI-ASM: Rule Evolution

  • Genetic algorithm invoked after every K rounds of trading to evolve rules

    • Mutation (p=0.7)

    • Crossover


Sfi asm correction

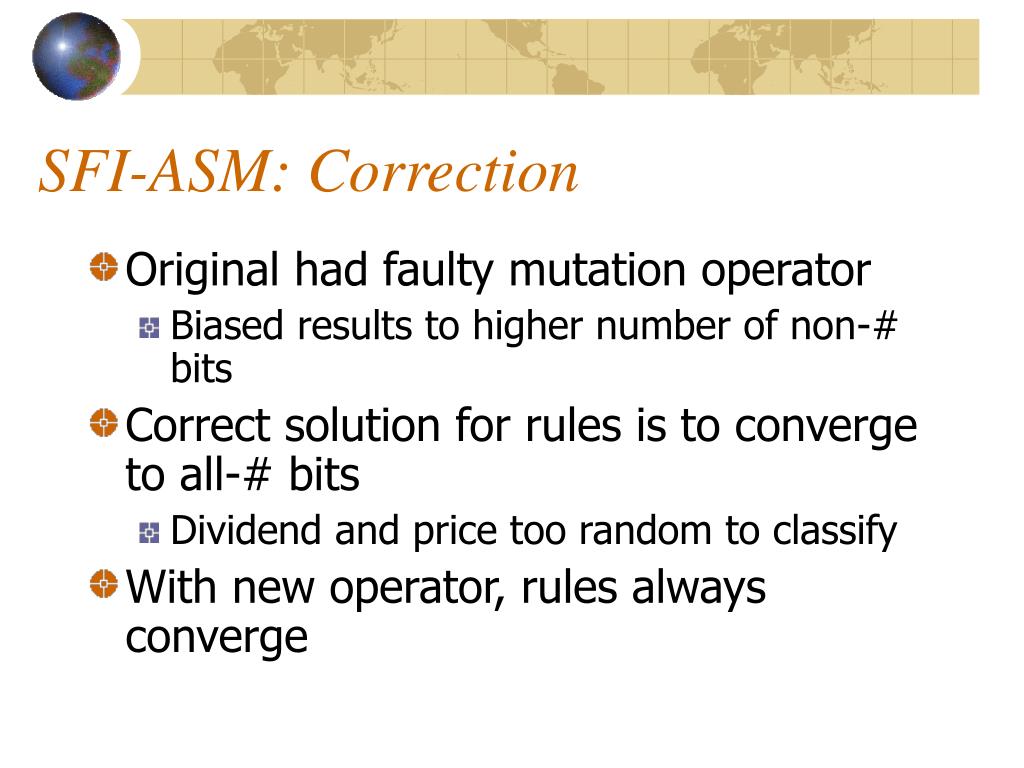

SFI-ASM: Correction

  • Original had faulty mutation operator

    • Biased results to higher number of non-# bits

  • Correct solution for rules is to converge to all-# bits

    • Dividend and price too random to classify

  • With new operator, rules always converge


Sfi asm results

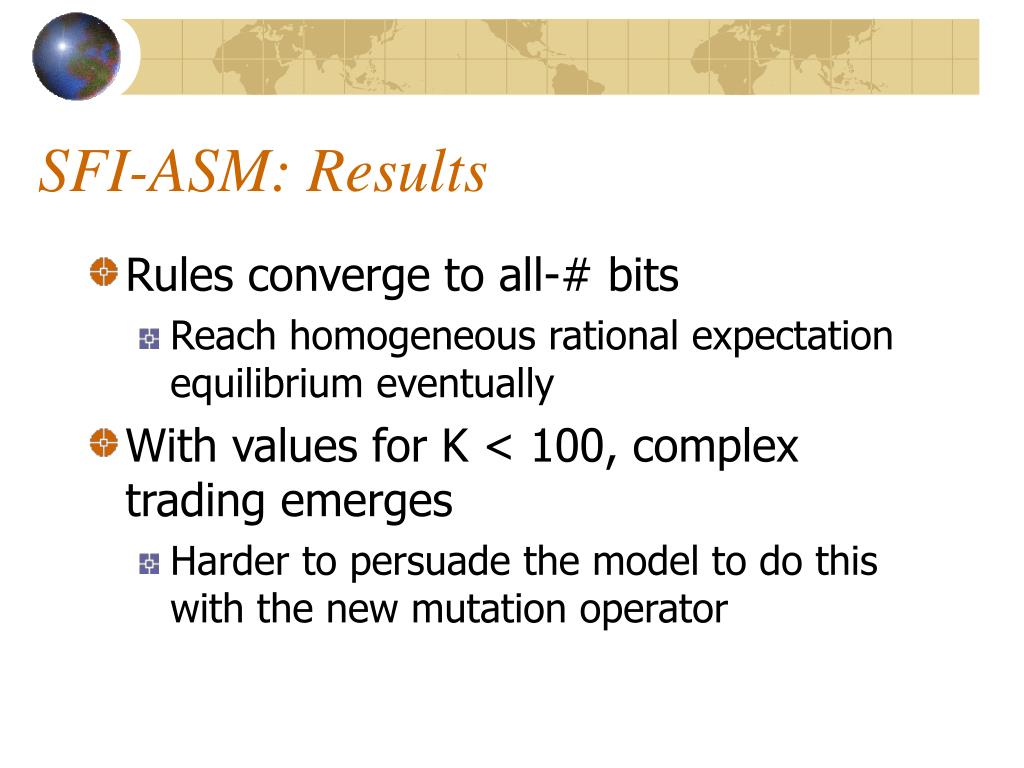

SFI-ASM: Results

  • Rules converge to all-# bits

    • Reach homogeneous rational expectation equilibrium eventually

  • With values for K < 100, complex trading emerges

    • Harder to persuade the model to do this with the new mutation operator


The repast framework and social simulations

  • Faster learners exploit slower learners

    • Short-term trends

    • In new model, only valid in beginning


Endogenizing geopolitical boundaries with agent based modeling

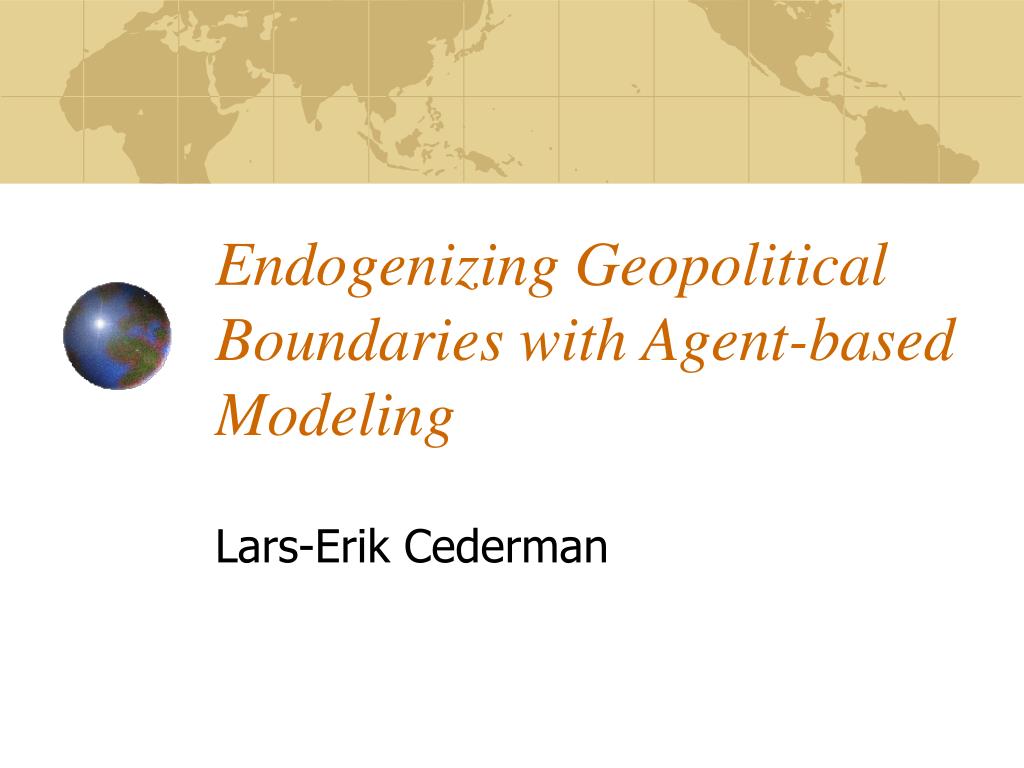

Endogenizing Geopolitical Boundaries with Agent-based Modeling

Lars-Erik Cederman


Egb introduction

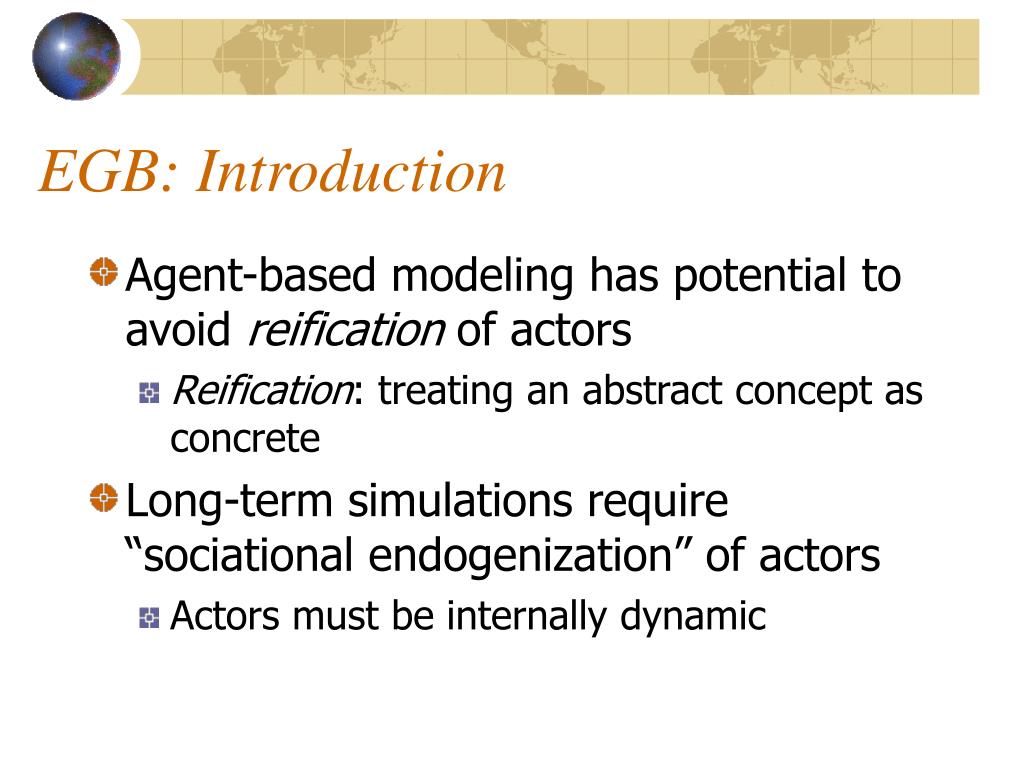

EGB: Introduction

  • Agent-based modeling has potential to avoid reification of actors

    • Reification: treating an abstract concept as concrete

  • Long-term simulations require “sociational endogenization” of actors

    • Actors must be internally dynamic


Egb background

EGB: Background

  • Essentialist perspective

    • Ignore change of actors

    • Fixed entities with attributes

  • Sociational perspective

    • Dynamic actors and relationships

    • Context-sensitive


Egb endogenization

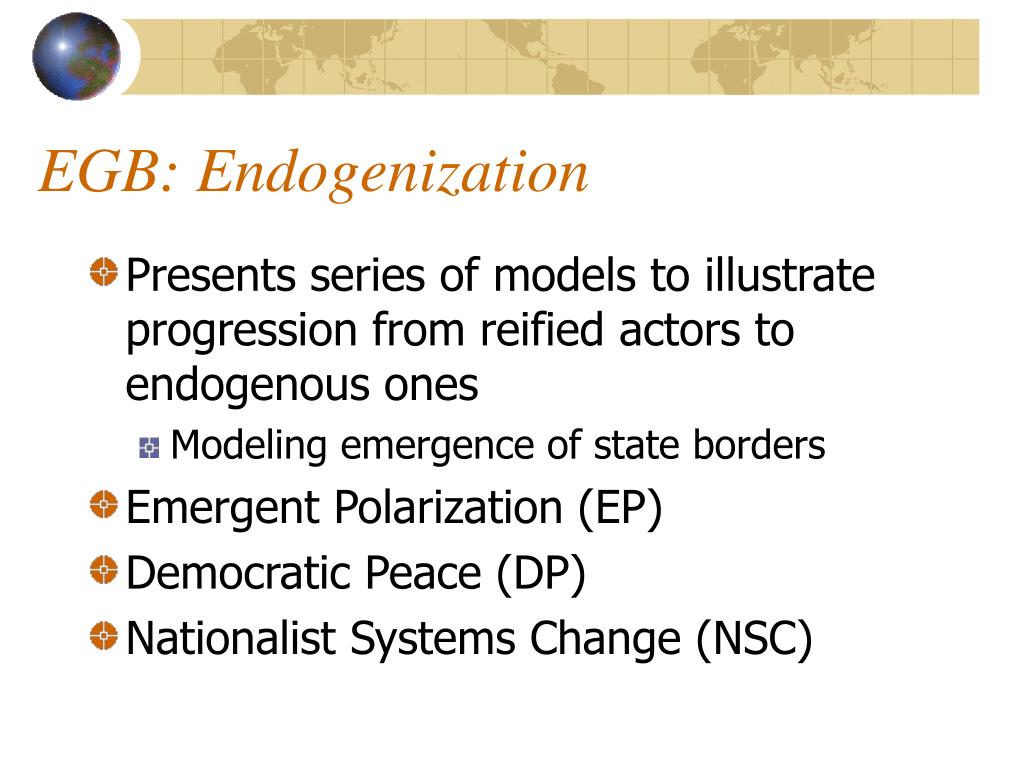

EGB: Endogenization

  • Presents series of models to illustrate progression from reified actors to endogenous ones

    • Modeling emergence of state borders

  • Emergent Polarization (EP)

  • Democratic Peace (DP)

  • Nationalist Systems Change (NSC)


Egb emergent polarization

EGB: Emergent Polarization

  • Models conquest and expansion of states

  • Villages or counties on a finite 2d grid

  • States emerge as villages conquer neighbors

    • State has capital based on original village

    • Resources gathered from the territories depends on distance to capital


Egb ep turn structure

EGB: EP turn structure

  • Five phases per turn

    • Resource allocation

    • Decisions

    • Interaction

    • Resource updating

    • Structural change


The repast framework and social simulations

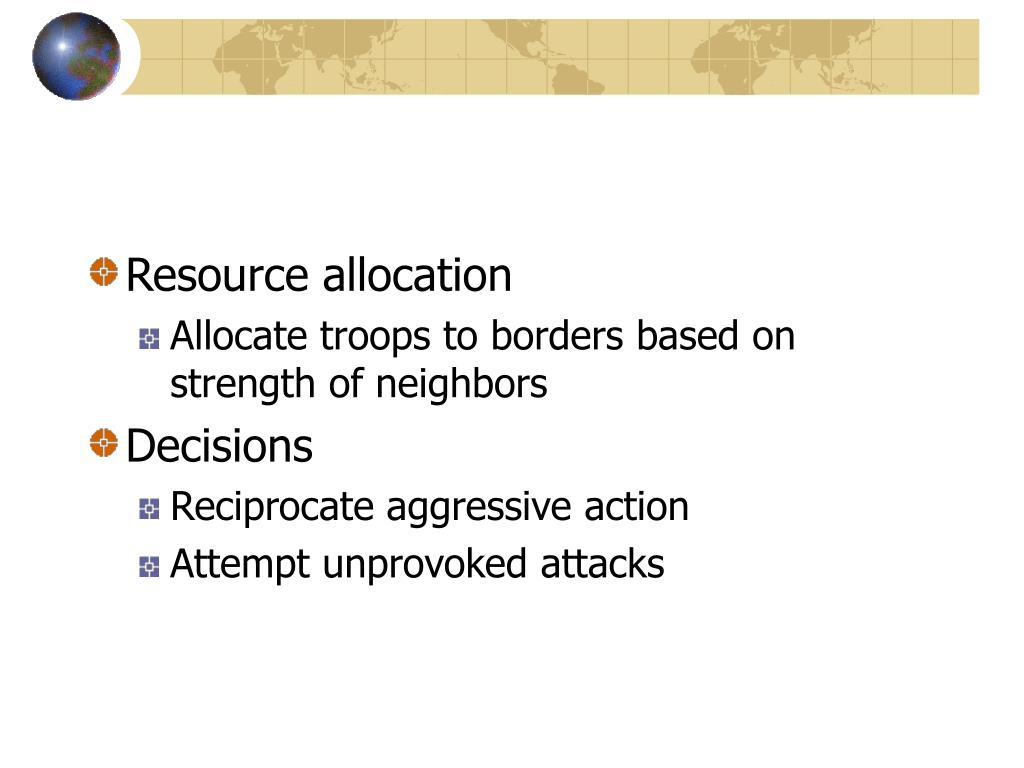

  • Resource allocation

    • Allocate troops to borders based on strength of neighbors

  • Decisions

    • Reciprocate aggressive action

    • Attempt unprovoked attacks


The repast framework and social simulations

  • Interaction

    • Resolve conflicts based on balance of power

  • Resource updating

    • States gain resources from provinces

  • Structural change

    • Structure of defeated state altered by outcome of conflicts


The repast framework and social simulations

  • Notes

    • States can spread too thin, inviting attack from other neighbors and opening multiple fronts to conflict

    • Can extend the model to allow alliances between states


Egb democratic peace

EGB: Democratic Peace

  • Adds categorical relationships to previous model

  • Observed that democracies do not fight each other

  • Add ‘democracy’ label to some states

  • Democracies do not fight each other, and form a defensive coalition


The repast framework and social simulations

  • Notes

    • Difference in balance of power produces significant results

    • Example of adding ‘categorical social’ processes

      • Threat evaluation is still relational


Egb nationalist systems change

EGB: Nationalist Systems Change

  • Introduce concept of actors separate from states : nations

    • Nations and states sometimes coincide, but not always

  • Each village has ‘cultural’ identity : string of trait values

  • Nation is a pattern string of traits with wildcards


The repast framework and social simulations

  • Nations founded and joined by agents

    • Capitals more likely to found nations due to resources

  • National identities have major impact on inter-state relations

    • ‘irredentist’ invasions to conquer conationals not under ‘home rule’


Egb conclusions

EGB: Conclusions

  • Agent-based simulations are better at modeling complex phenomenae than conventional approaches

  • Treating actors as themselves emergent and internally dynamic is necessary to good simulation over long time scales


Questions

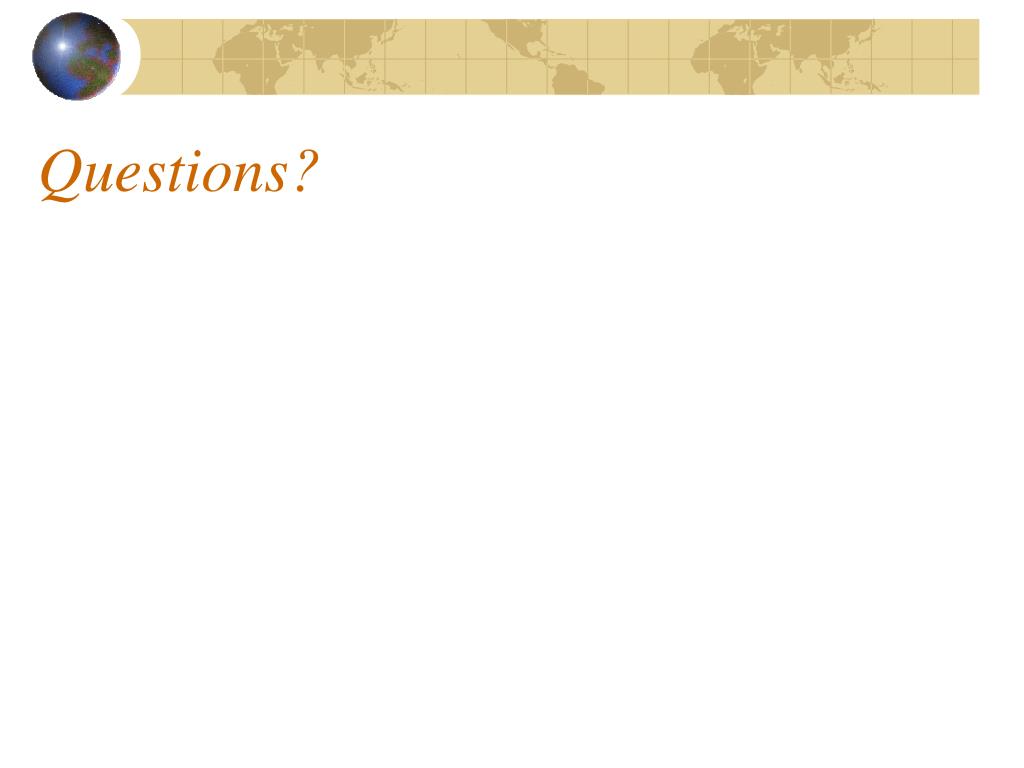

Questions?
