Redtacton

REDTACTON

By

Sowmya.Majeti

SaiPriyadarshini.Vagvala


Contents

Contents

  • Introduction

  • History

  • What is RedTacton?

  • How it Works?

  • Functional Features

  • Applications

  • Comparison with other Networks

  • Prototype Devices

  • Human Safety

  • Challenges

  • Conclusion


Redtacton

Introduction

Technology

Need


Introduction

Introduction

  • Human Area Network………

  • Uses the surface of the human body.

  • Technically, it is completely distinct from wireless and infrared technologies.

  • RedTacton can achieve duplex communication over the human body at a maximum speed of 10 Mbps.

  • Transmission path is formed when a part of the human body comes in contact.


History

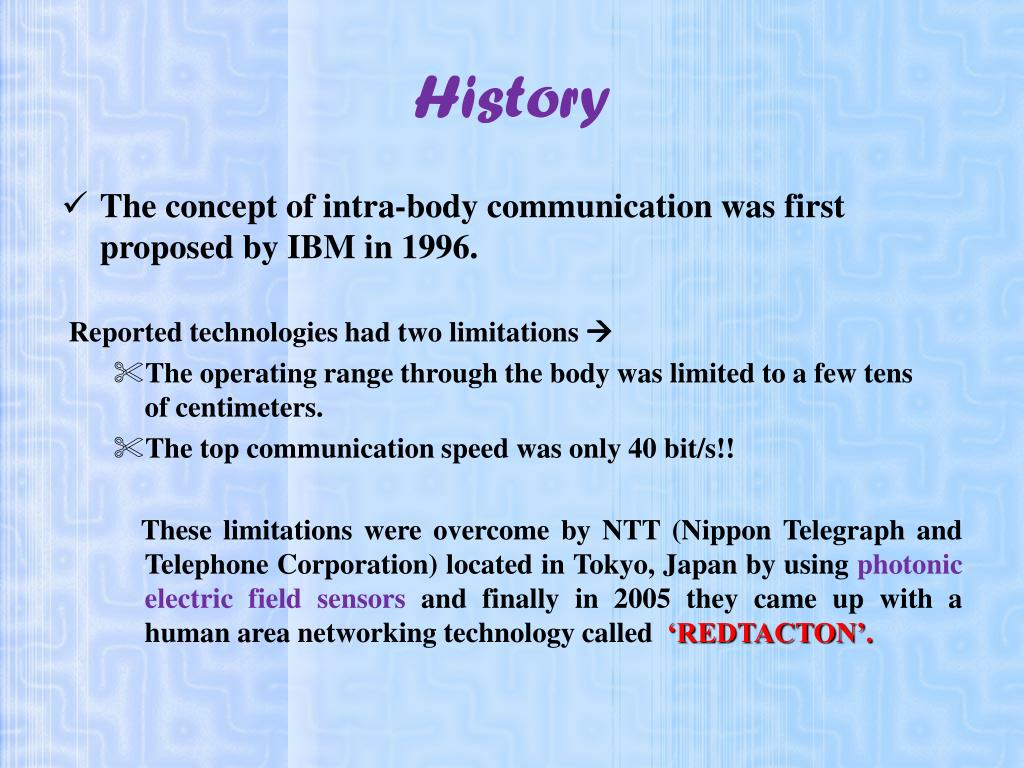

History

  • The concept of intra-body communication was first proposed by IBM in 1996.

    Reported technologies had two limitations 

    • The operating range through the body was limited to a few tens of centimeters.

    • The top communication speed was only 40 bit/s!!

      These limitations were overcome by NTT (Nippon Telegraph and Telephone Corporation) located in Tokyo, Japan by using photonic electric field sensors and finally in 2005 they came up with a human area networking technology called ‘REDTACTON’.


What is redtacton

What is RedTacton?

  • RED: a warm color emphasis and cordial communications

  • TACTON: Action triggered by Touching.

  • RedTacton utilizes a point to point network, known as a Pico net.

RED TACTON Device


How it works

How it Works?


Redtacton

The electric field Es that reaches the receiver is

Es = Ea – (Eb + Ec)


Redtacton

  • Transmitter sends data.

  • Transmitting transceiver creates a change in the field.

  • Field from human body dissipates into earth.

  • Electric field is received using sensing technology.

  • Receiving transceiver recognizes the change in the electric field.

  • Sensing technology measures the weak electric fields induced.

  • Electro-optical crystal uses laser to convert and read the signal.


Functional features

Functional Features


Redtacton

Touch: Communication with just a touch or a step!

TOUCHING

GRIPPING


Redtacton

Broadband & Interactive:

Bandwidth does not deteriorate even with duplex

operation & simultaneous access by many users!


Redtacton

Any-Media:Works with many transmission media common in

human life!

Along surface

ThroughMaterials


Applications

Applications

  • One to One services

  • Intuitive Operations

  • Device personalization

  • New behavior patterns

  • Marketing applications


Redtacton

  • Security applications

User verification and lock management at entrance

User verification and unlocking with just a touch


Applications1

Applications

Instant private Data exchange

Electronic business cards can be shared by shaking hands

Touch printer to print

User verification and unlocking with just a touch


Comparison with other networks

Comparison with other networks

With respect to distance


Redtacton

P: Poor E: Excellent


Prototype devices

PROTOTYPE DEVICES

Portable Card-Size Transmitter

  • Transmission rate:230 kbps

  • Protocol: Proprietary protocol

  • Transmission method: Unidirectional

    Embedded Receiver

  • Transmission rate:230 kbps

  • Protocol: Proprietary protocol

  • Transmission method: Unidirectional

  • External device interface:

    10/100Base-T,RS232C


Under progress

Under Progress:

REDTACTON Transceiver (PC-Card Type)

  • Transmission rate: 10 Mbps

  • Protocol: TCP/IP

  • Transmission method: Half-duplex

  • Terminal interface: PCMCIA

    REDTACTON Transceiver (Hub Type)

  • Transmission rate:10 Mbps

  • Protocol: TCP/IP

  • Transmission method: Half-duplex

  • External device interface:10BASE-T

    USB Transceiver

  • Transmission rate not yet determined

    (in testing stage)


Human safety

?

HUMAN SAFETY?

?

?

?

?

?

?

?

?

?

?

?

?

?

?

?

?

?


Challenges

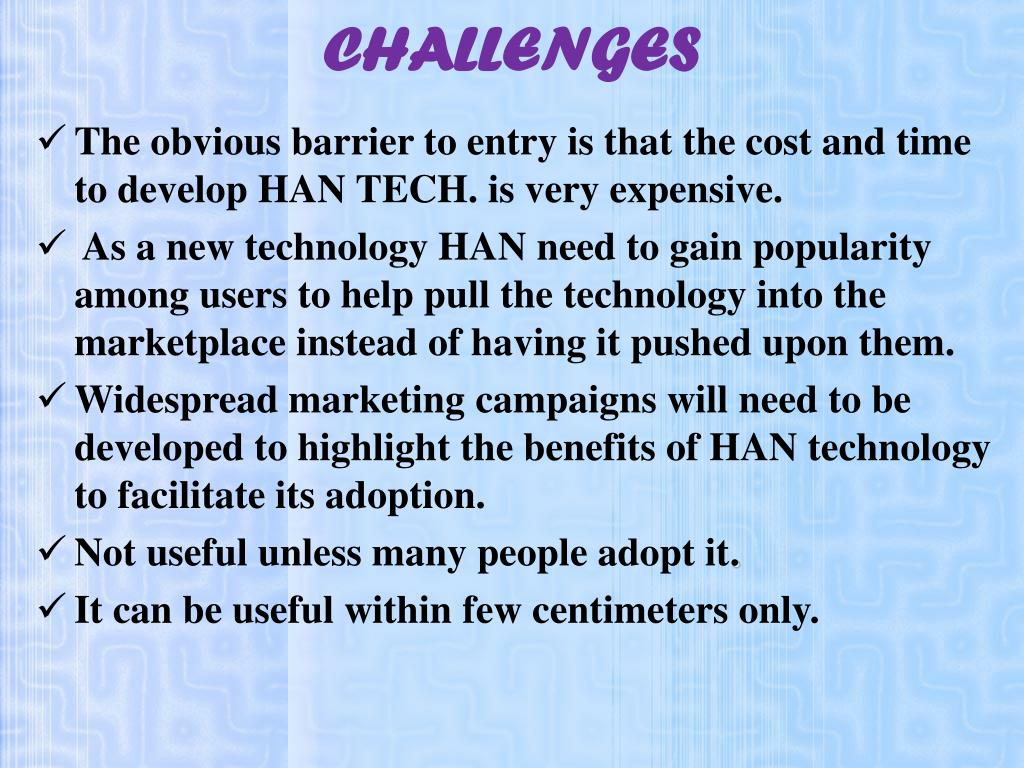

CHALLENGES

  • The obvious barrier to entry is that the cost and time to develop HAN TECH. is very expensive.

  •  As a new technology HAN need to gain popularity among users to help pull the technology into the marketplace instead of having it pushed upon them.

  • Widespread marketing campaigns will need to be developed to highlight the benefits of HAN technology to facilitate its adoption.

  • Not useful unless many people adopt it.

  • It can be useful within few centimeters only.


Redtacton

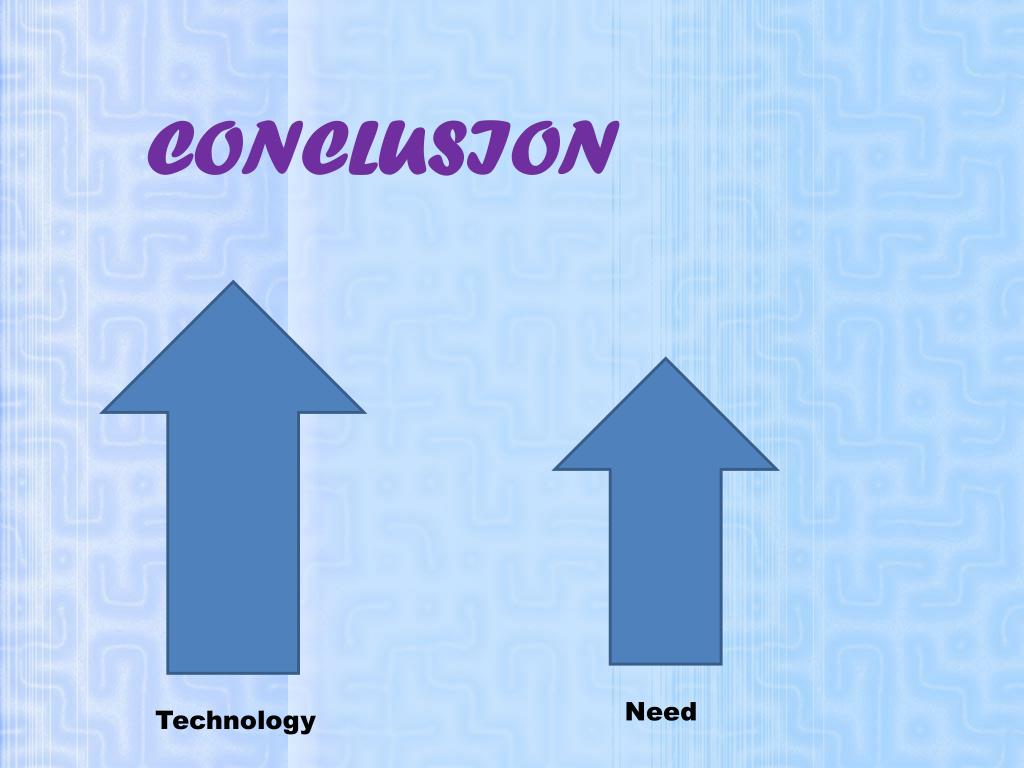

CONCLUSION

Need

Technology


Redtacton

“FUTURE BELONGS TO  RED TACTON”


Redtacton

Thank you
