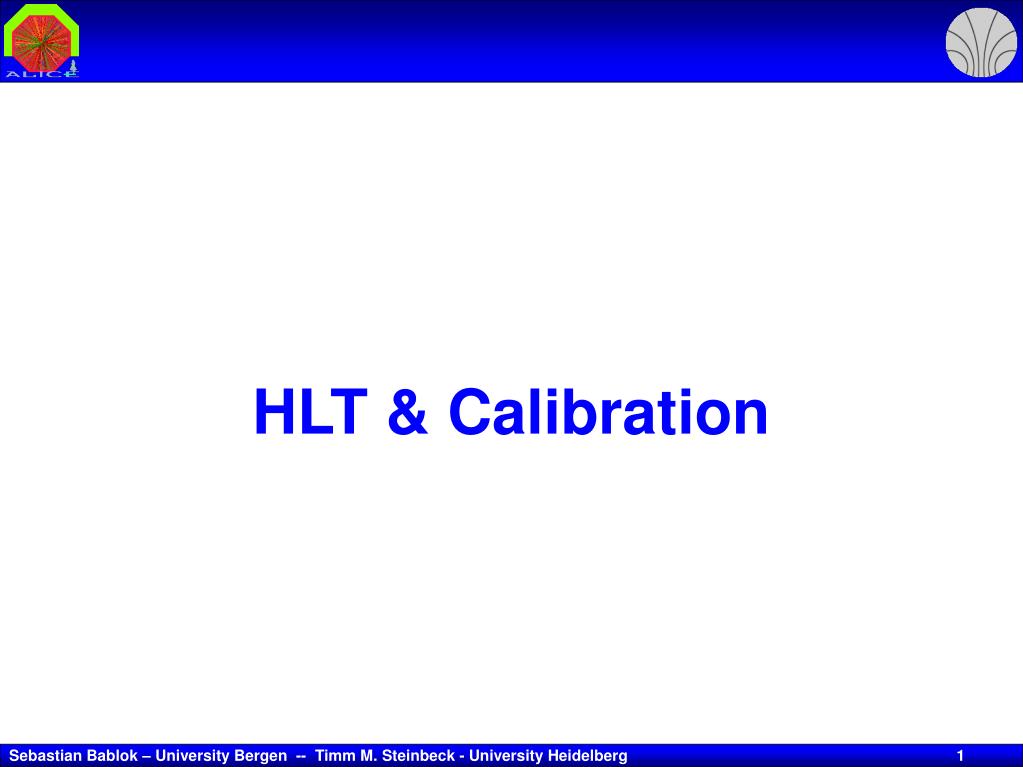

HLT & Calibration


Hlt as calibration data source

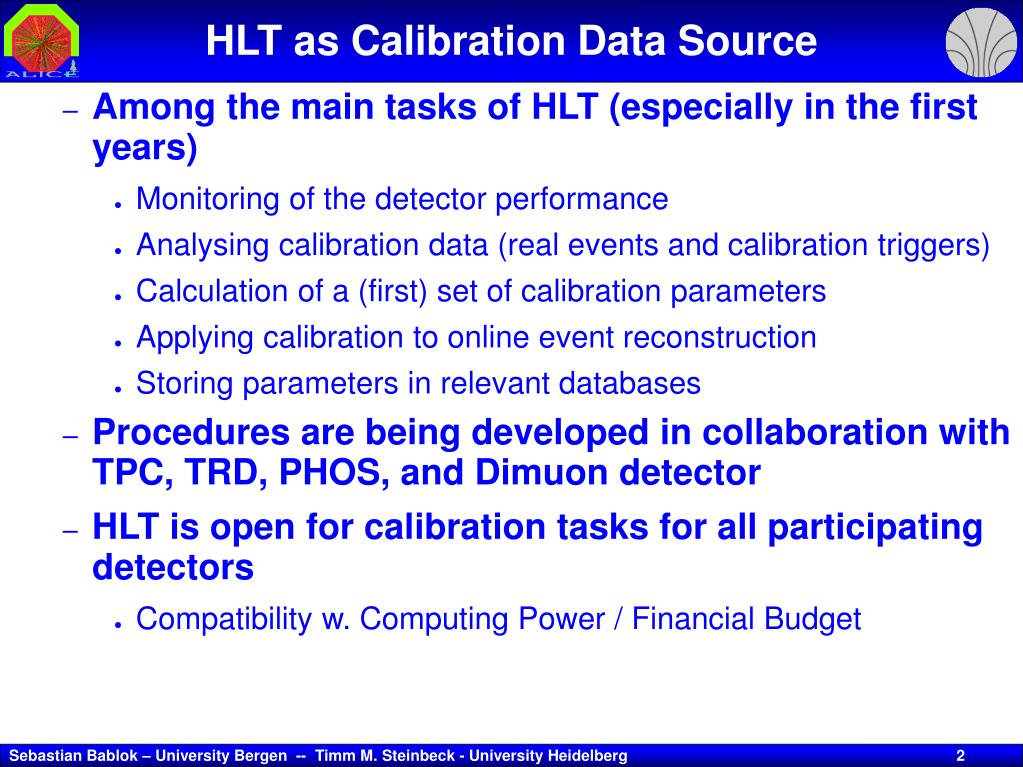

HLT as Calibration Data Source

  • Among the main tasks of HLT (especially in the first years)

    • Monitoring of the detector performance

    • Analysing calibration data (real events and calibration triggers)

    • Calculation of a (first) set of calibration parameters

    • Applying calibration to online event reconstruction

    • Storing parameters in relevant databases

  • Procedures are being developed in collaboration with TPC, TRD, PHOS, and Dimuon detector

  • HLT is open for calibration tasks for all participating detectors

    • Compatibility w. Computing Power / Financial Budget


Hlt databases

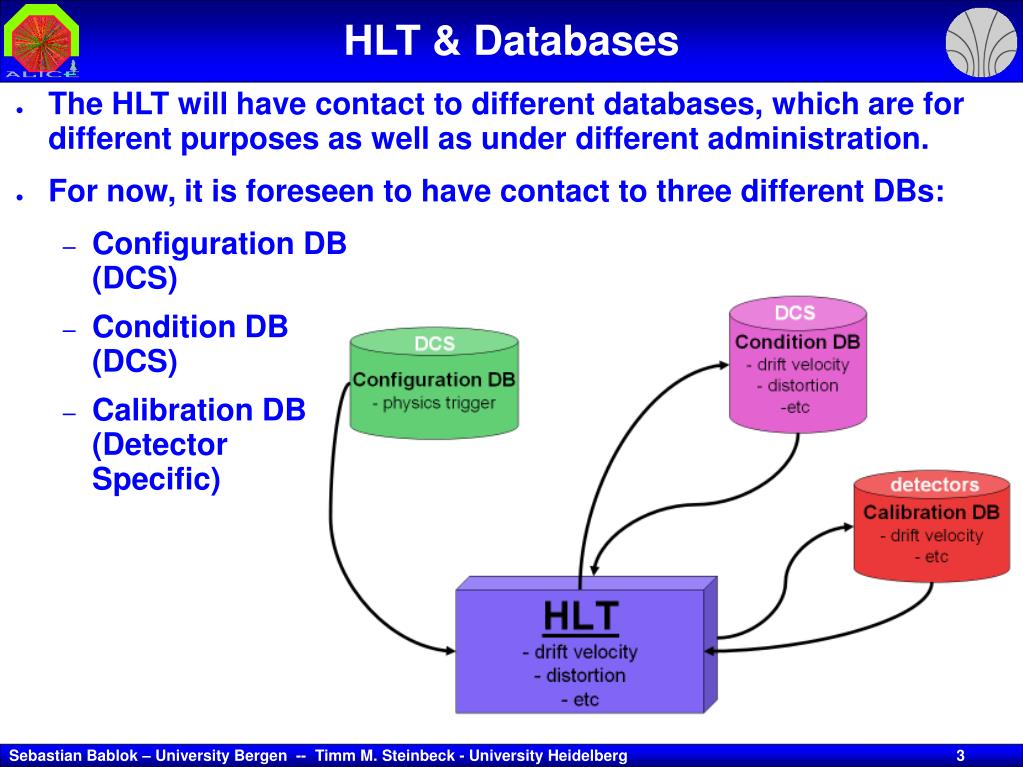

HLT & Databases

  • The HLT will have contact to different databases, which are for different purposes as well as under different administration.

  • For now, it is foreseen to have contact to three different DBs:

    • Configuration DB (DCS)

    • Condition DB (DCS)

    • Calibration DB (Detector Specific)


Hlt db remarks

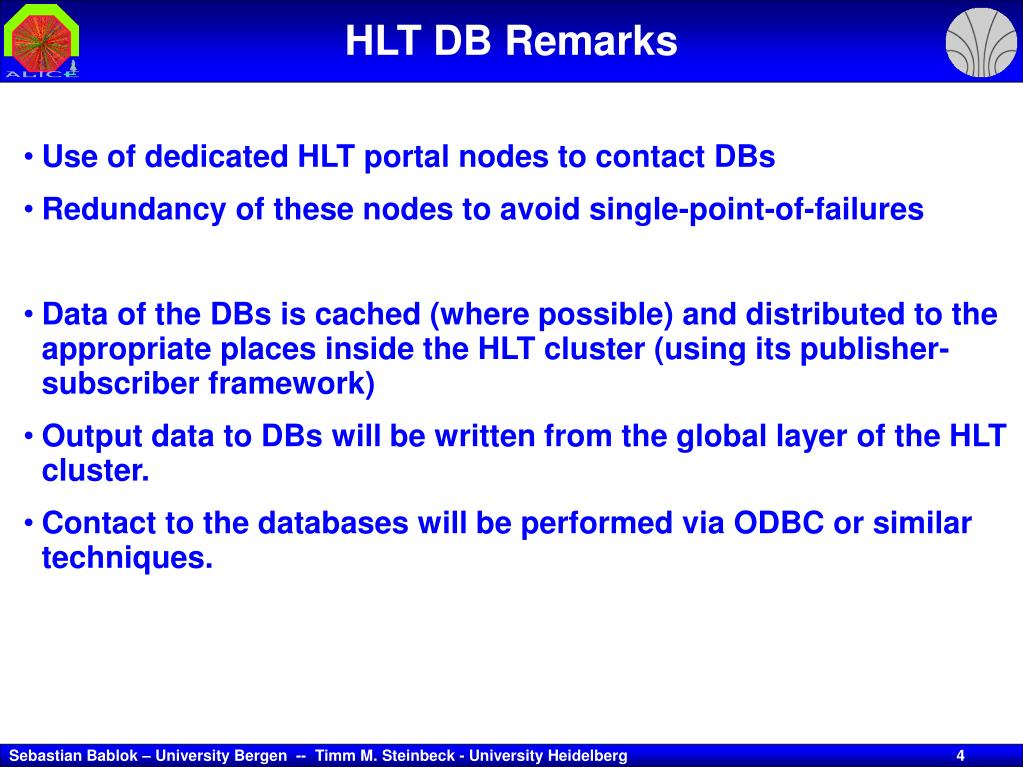

HLT DB Remarks

  • Use of dedicated HLT portal nodes to contact DBs

  • Redundancy of these nodes to avoid single-point-of-failures

  • Data of the DBs is cached (where possible) and distributed to the appropriate places inside the HLT cluster (using its publisher-subscriber framework)

  • Output data to DBs will be written from the global layer of the HLT cluster.

  • Contact to the databases will be performed via ODBC or similar techniques.


Tpc calibration example 1

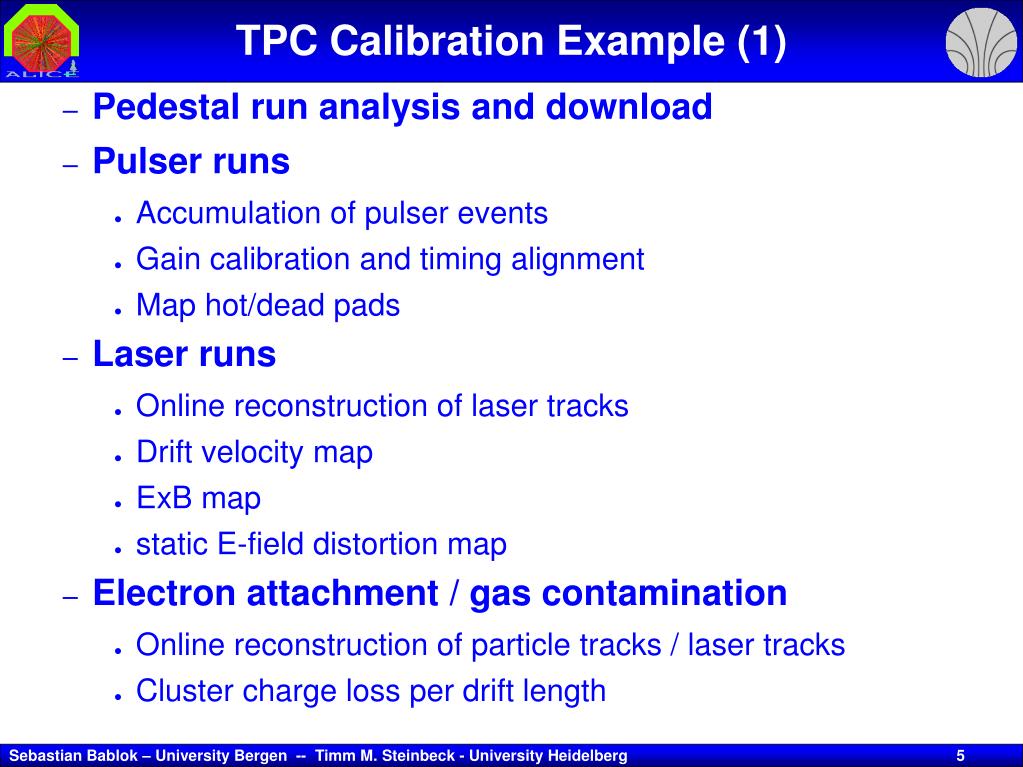

TPC Calibration Example (1)

  • Pedestal run analysis and download

  • Pulser runs

    • Accumulation of pulser events

    • Gain calibration and timing alignment

    • Map hot/dead pads

  • Laser runs

    • Online reconstruction of laser tracks

    • Drift velocity map

    • ExB map

    • static E-field distortion map

  • Electron attachment / gas contamination

    • Online reconstruction of particle tracks / laser tracks

    • Cluster charge loss per drift length


Tpc calibration example 2

TPC Calibration Example (2)

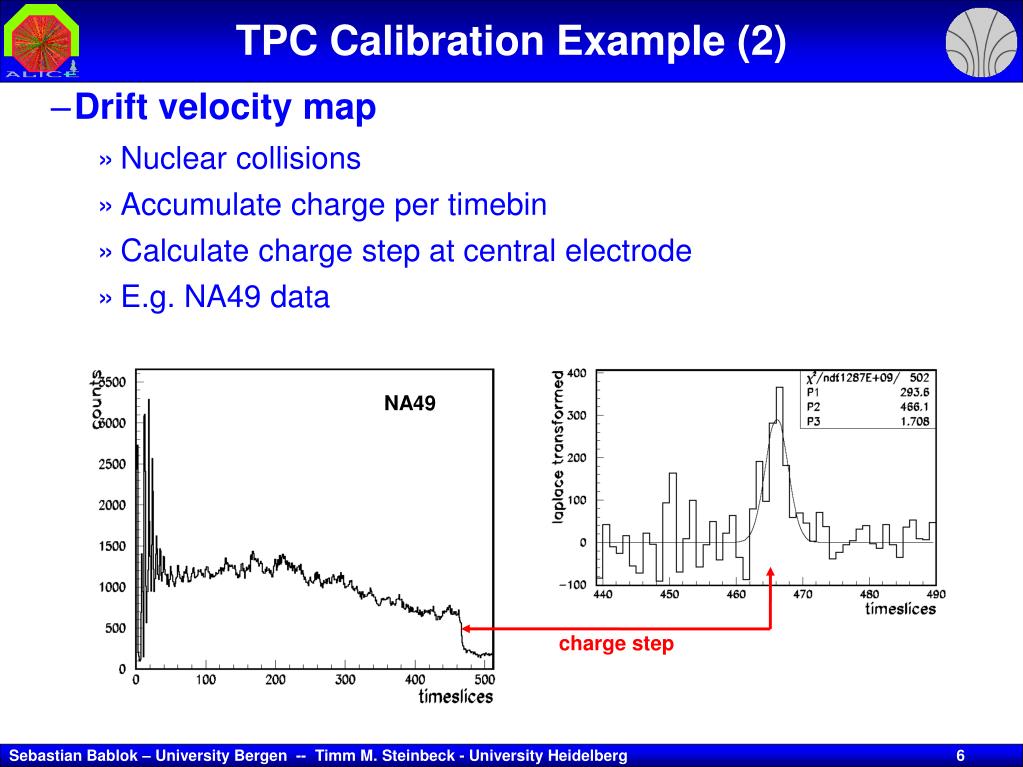

  • Drift velocity map

    • Nuclear collisions

    • Accumulate charge per timebin

    • Calculate charge step at central electrode

    • E.g. NA49 data

NA49

charge step


Tpc calibration example 3

TPC Calibration Example (3)

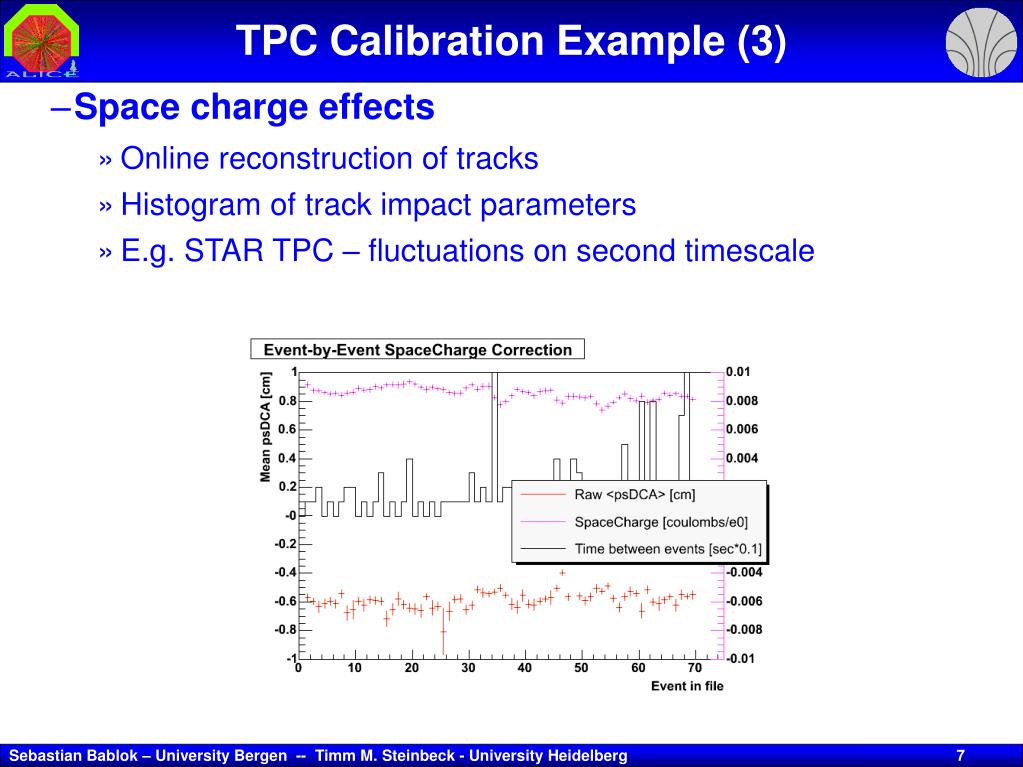

  • Space charge effects

    • Online reconstruction of tracks

    • Histogram of track impact parameters

    • E.g. STAR TPC – fluctuations on second timescale


Tpc calibration example 4

TPC Calibration Example (4)

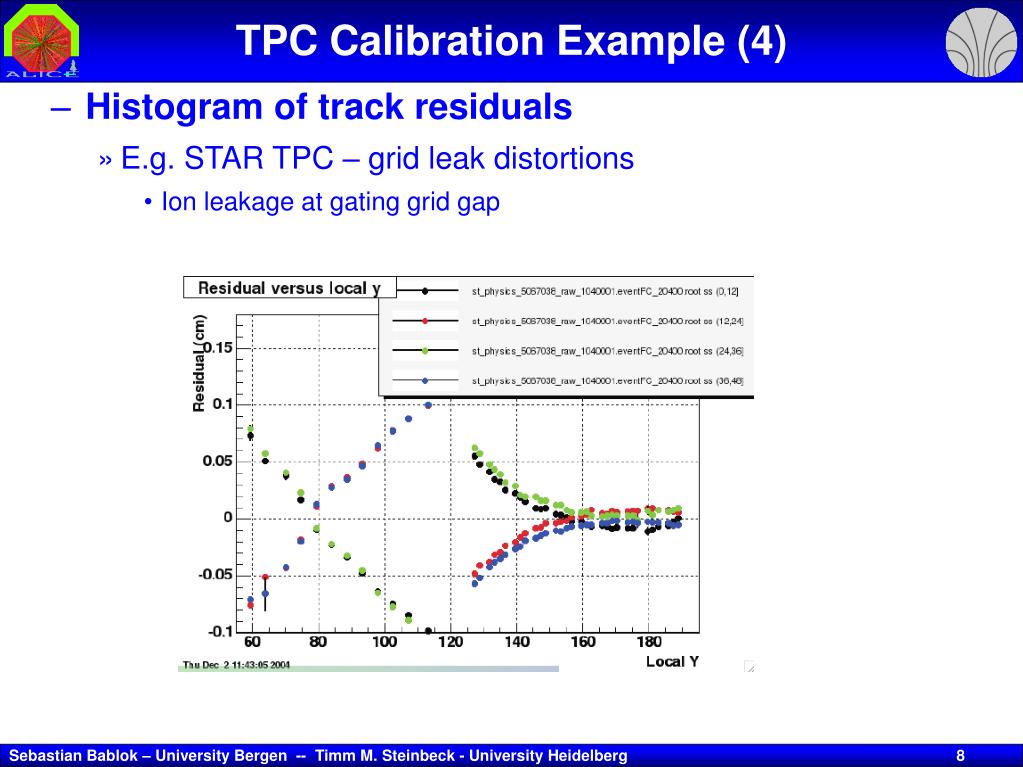

  • Histogram of track residuals

    • E.g. STAR TPC – grid leak distortions

      • Ion leakage at gating grid gap


Phos calibration example

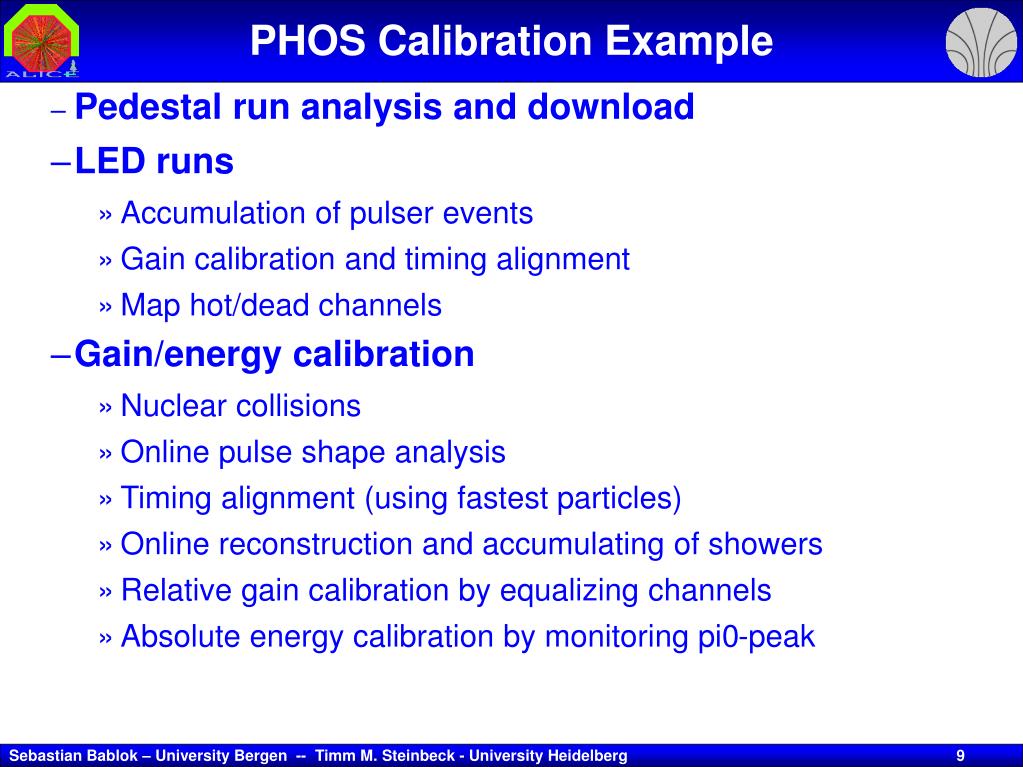

PHOS Calibration Example

  • Pedestal run analysis and download

  • LED runs

    • Accumulation of pulser events

    • Gain calibration and timing alignment

    • Map hot/dead channels

  • Gain/energy calibration

    • Nuclear collisions

    • Online pulse shape analysis

    • Timing alignment (using fastest particles)

    • Online reconstruction and accumulating of showers

    • Relative gain calibration by equalizing channels

    • Absolute energy calibration by monitoring pi0-peak


Hlt questions open points

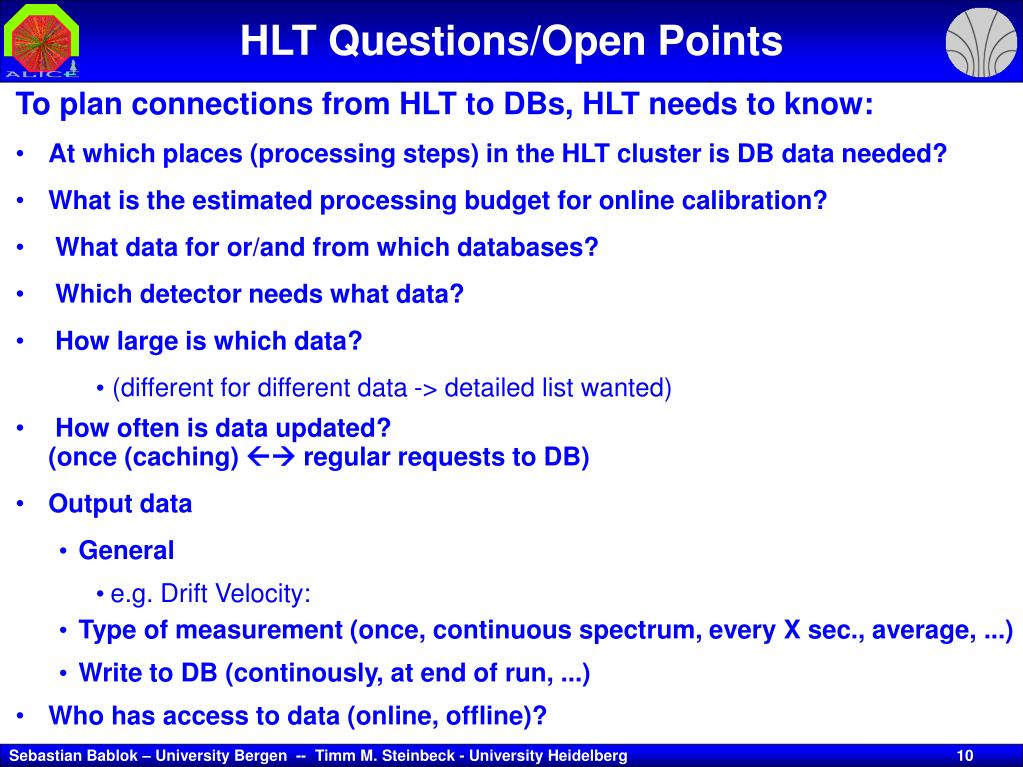

HLT Questions/Open Points

To plan connections from HLT to DBs, HLT needs to know:

  • At which places (processing steps) in the HLT cluster is DB data needed?

  • What is the estimated processing budget for online calibration?

  • What data for or/and from which databases?

  • Which detector needs what data?

  • How large is which data?

    • (different for different data -> detailed list wanted)

  • How often is data updated? (once (caching)  regular requests to DB)

  • Output data

    • General

      • e.g. Drift Velocity:

  • Type of measurement (once, continuous spectrum, every X sec., average, ...)

  • Write to DB (continously, at end of run, ...)

  • Who has access to data (online, offline)?


  • Login
