  1. Kerberos5 with Mobile Agent Service Authenticator (MASA) By: Poonam Gupta Sowmya Sugumaran

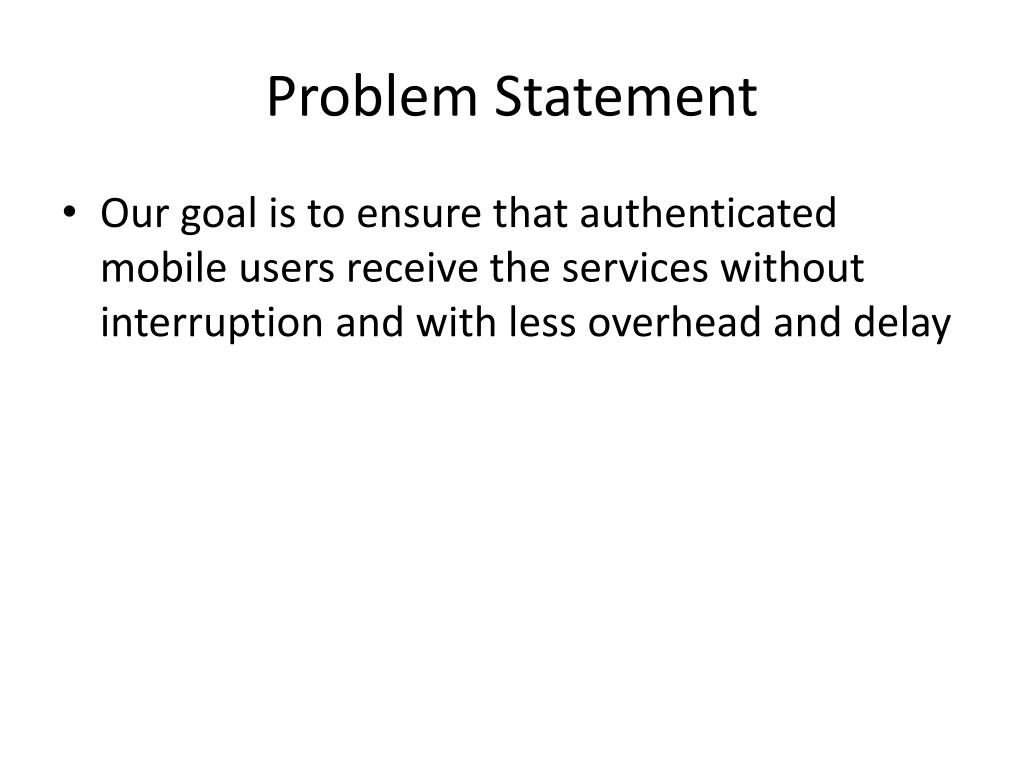

  2. Problem Statement • Our goal is to ensure that authenticated mobile users receive the services without interruption and with less overhead and delay

  3. Mobility Services • Network Layer Mobility • ensures connection for mobile users • Service Layer Mobility • ensures services for mobile users

  4. Modification to Our Proposal Proactively acquiring TGT and service tickets in realms to be visited

  5. Motivation and Example • Realms - consists of clients, KDC, Server application • Clients can get the service from different realm in cross-realm authentication without having an account to different realm

  6. Motivation and example continued • Student wants to print a file from dept a to dept b • Without cross-realm mechanism user will have to an account in each realm and transfer file between each realms to print a file • With our scheme service ticket to print a file can be achieved proactively by exploiting the use of cross-realm mechanism and knowledge of mobility

  7. No-Cross-Realm(NCR) Message Exchange for Realm1 for Mobile Users 1) Client ---C, TGS--------------------------------> AS 2) Client <------{TC ,tgs , Kc,tgs}Kc----------------AS 3) Client -------Tc,tgs , Ac,tgs , S------------------> TGS 4) Client <---------{Tc,s , Kc,s , }Kc,tgs ------------TGS 5) Client-----------Tc,s , Ac,s- -------------------->Server

  8. NCR Message Exchange for mobile users for Realm2 1) Client ---C, TGS--------------------------------> AS 2) Client <------TGT-------------------------------AS 3) Client -------TGT,Service,authenticator--->TGS 4) Client <---------Service Ticket ------------TGS 5) Client---Service Ticket, Authenticator ->Server

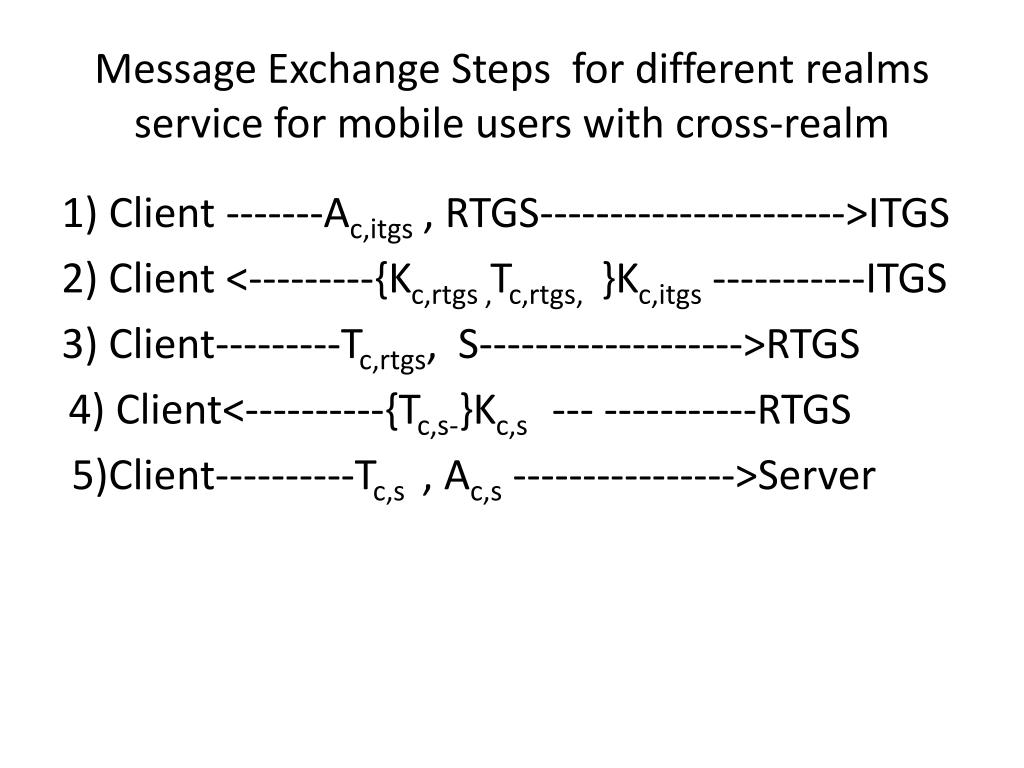

  9. Message Exchange Steps for different realms service for mobile users with cross-realm 1) Client -------Ac,itgs, RTGS---------------------->ITGS 2) Client <---------{Kc,rtgs ,Tc,rtgs, }Kc,itgs -----------ITGS 3) Client---------Tc,rtgs, S------------------->RTGS 4) Client<----------{Tc,s-}Kc,s --- -----------RTGS 5)Client----------Tc,s , Ac,s ---------------->Server

  10. Difference With cross-realm mechanism combining cross-realm mechanism and our scheme Exchange of messages are same Get the service ticket proactively • Exchange of messages are same • Get the service ticket when you need it

  11. Ticket Flow Kerberos V4 Cross-Realm Authentication Tutorial Slide from Jourge Cuellar

  12. Kerberos 5 • Allows for trusted path • Hierarchical Realm • Non-hierarchical (shortcuts)

  13. Our Scheme: MASA • Mobile Agent Service Authenticator (MASA): A software agent on the mobile client to assist with proactively acquiring authentication (TGTs) from to-be-visited realms. • User App -> MASA -> Kerberos(AS, TGS) • MASA knows mobile user’s: • profile (preferences) • mobility pattern

  14. Comparison (Handling Mobile Users) • No Cross-Realm Scheme (NCRS): • Requires user account in each visited realm • User needs to be authenticated in each realm • Reactive Cross-Realm Scheme (RCRS): • User can acquire TGT for to-be-visited realm from registered Realm • Reactive: acquires service ticket at the time of service • MASA: • Uses Cross realm mechanism • Reduces number of messages (overhead) • Proactive: acquires TGT and service ticket before the service request • Reduces latency

  15. MASA Implementation: Basic Idea • Event based • Assume network layer mobility events can be mapped to Realm layer mobility events • Service Table: services needed by user in each Realm he visits • Upon Move_to_Realm_Warning(Rnext) • get TGT for Rnext using cross-realm mechanism in Rhome • Get service ticket from TGT from Rnext for each service needed from Rnext

  16. MASA Implementation: Detail Rhome MASA Server Cross-Realm Rnext Rcurrent Initial log on Get ticket from home TGT_next Servicenext Mobile User MASA Client MobileUser MASA Client Move to R_next

  17. MASA Implementation: Comments • Client-Server Architecture • MASA – client is light weight • MASA – Server maintains user profile and maintain mobility data • Reduce message generated by Mobile client • Saves wireless bandwidth • Saves mobile energy

  18. MASA Cost Analysis • fc: frequency service (call) request • fm: frequency of moves (change of realm) • CMR (Call-to-Mobility Ratio): • Cost: Either Number of Messages or Latency • Normalized Cost = fc(cost of each service request) + fm (cost incurred on each move) • Find CMRs for which CostMASA< Costold_scheme

  19. MASA Cost Analysis Continued • Consider Only message generated by mobile • a: cost of long distance message compared to local message • Costncrs = 2fm + 3*fc • Costmasa = 2afm + a*fc • MASA is better if Costmasa < Costncrs • i.e. CMR > 2(a-1)/(3-a) • If a == 1 then for CMR >0 MASA better than NCRS • If a==2 then for CMR > 2 MASA better than NCRS

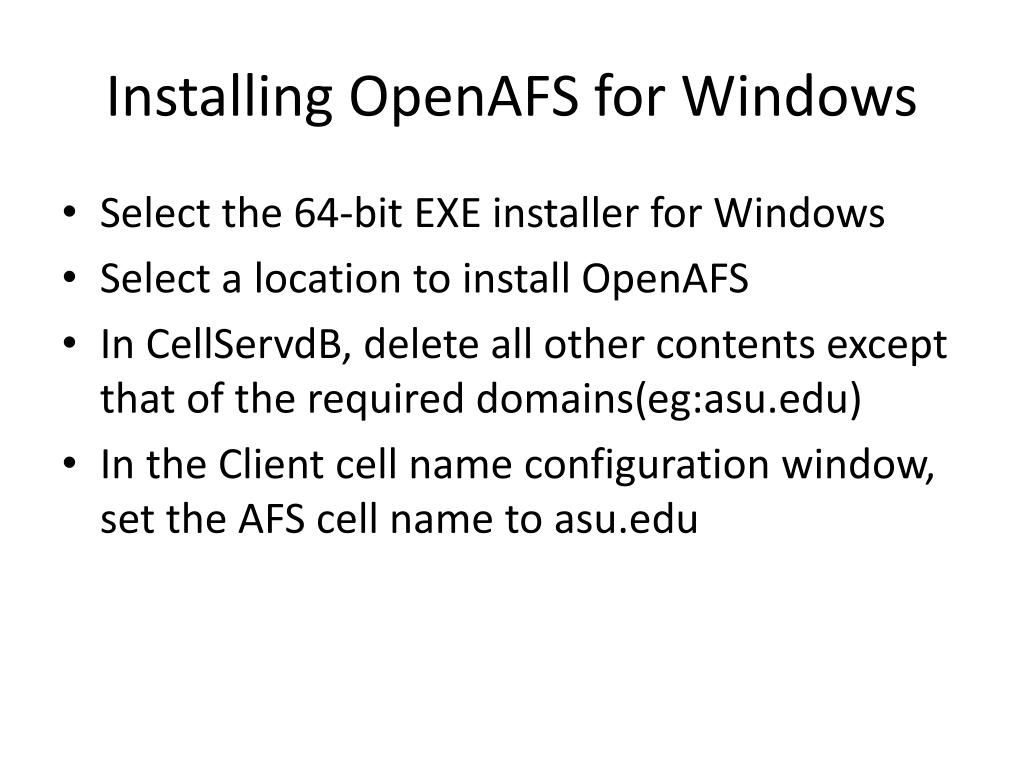

  20. Installing OpenAFS for Windows • Select the 64-bit EXE installer for Windows • Select a location to install OpenAFS • In CellServdB, delete all other contents except that of the required domains(eg:asu.edu) • In the Client cell name configuration window, set the AFS cell name to asu.edu

  21. After Installation • Ticket manager will start upon login and display a ticket initialization window • Initialize the ticket using the Network ID • If successful, the ticket and tokens can be viewed by clicking on the Kerberos icon.

  22. Many thanks to • Prof. Dijiang Huang • Wenzhe Jiao

  23. References: • ftp://ftp.cis.upenn.edu/pub/papers/scedrov/k5cr.pdf • http://www.isoc.org/isoc/conferences/ndss/99/proceedings/papers/wu.pdf • http://kickjava.com/src/javax/security/auth/kerberos/KerberosPrincipal.java.html

  24. Thank You…!!!
