Web maintenance console

NS1000

Web Maintenance Console


Introduction

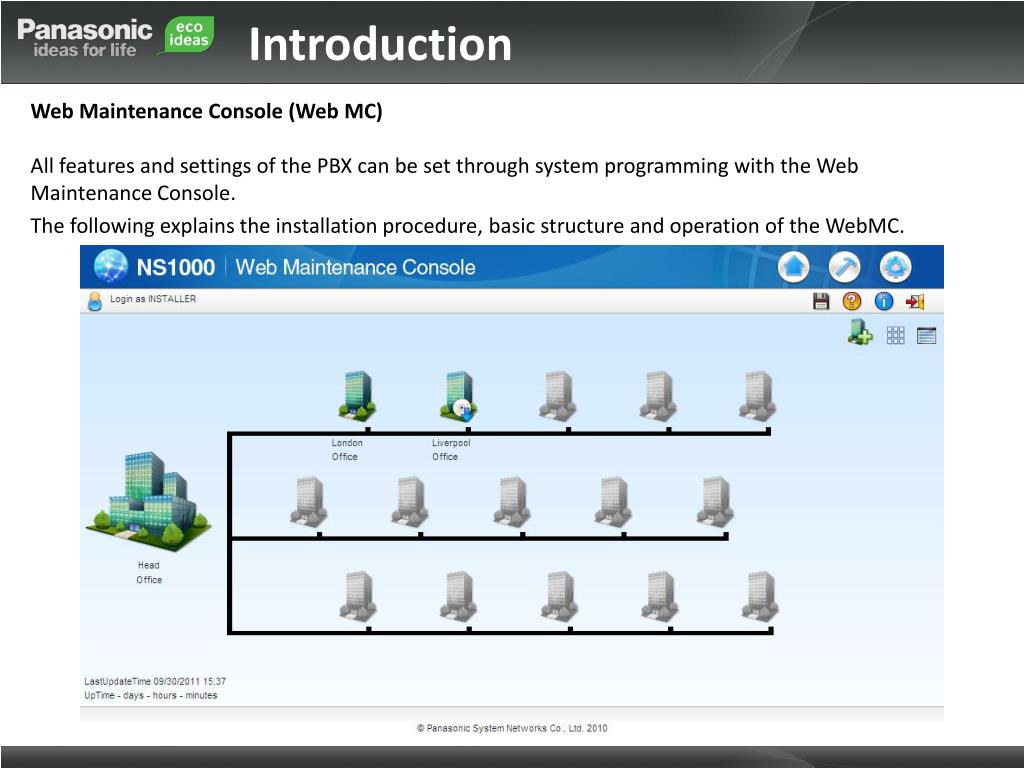

Introduction

  • Web Maintenance Console (Web MC) All features and settings of the PBX can be set through system programming with the Web Maintenance Console.

  • The following explains the installation procedure, basic structure and operation of the WebMC.


Contents

Contents

  • Chapter 1 Overview

    • 1-1. Web Maintenance Console

    • 1-2. Operating Modes

  • 1-3. User’s Account

  • Chapter 2Connections

  • 2-1. System Requirements

  • 2-2. Available Connections2-3. Accessing Web MC2-4. Logging into Web MC

  • Chapter 3WebMC – Tour

  • 3-1. Screen Descriptions

  • 3-2. Button Descriptions

  • 3-3. SLOT View

  • Chapter 4Appendix

  • Static NAT Setting Example


  • Overview

    Chapter 1

    Overview


    1 1 web maintenance console overview

    1-1. Web Maintenance Console - Overview

    • There is only one Programming Tool for KX-NS1000.

    • The NS1000 WebMC is a web-based application which allows you to manage the PBX system easily.

    • KX-NS1000 does NOT support Unified PC Maintenance Console (UPCMC) for KX-NCP/TDE/TDA.

    • KX-NS1000 does NOT support the system programming using proprietary telephones.


    1 2 operating modes

    1-2. Operating Modes

    • There are (TBC) two programming modes; Interactive Mode & Batch Mode

    • Interactive Mode (Allows real-time access and configuration of the PBX system.)

    • Direct Connection (http)

    • Via LAN (http)

    • Via VPN (http)

    • Via Internet (https)

    • Off-Line Mode (Configuration is done Off-Line and applied to the PBX at a later date.)

    TBC

    • Direct Connection (http)

    • Via LAN (http)

    • Via VPN (http)

    • Via Internet (https)


    1 3 user accounts

    1-3.User Accounts

    • Account Levels

    • The WebMC supports 3 different account types (Access Levels). The number of users who can simultaneously login to the system are shown below.

    Account Levels

    Number of Accounts

    *1The total number of administrator and user accounts combined cannot exceed 1512.


    Connections

    Chapter 2

    Connections


    2 1 system requirements

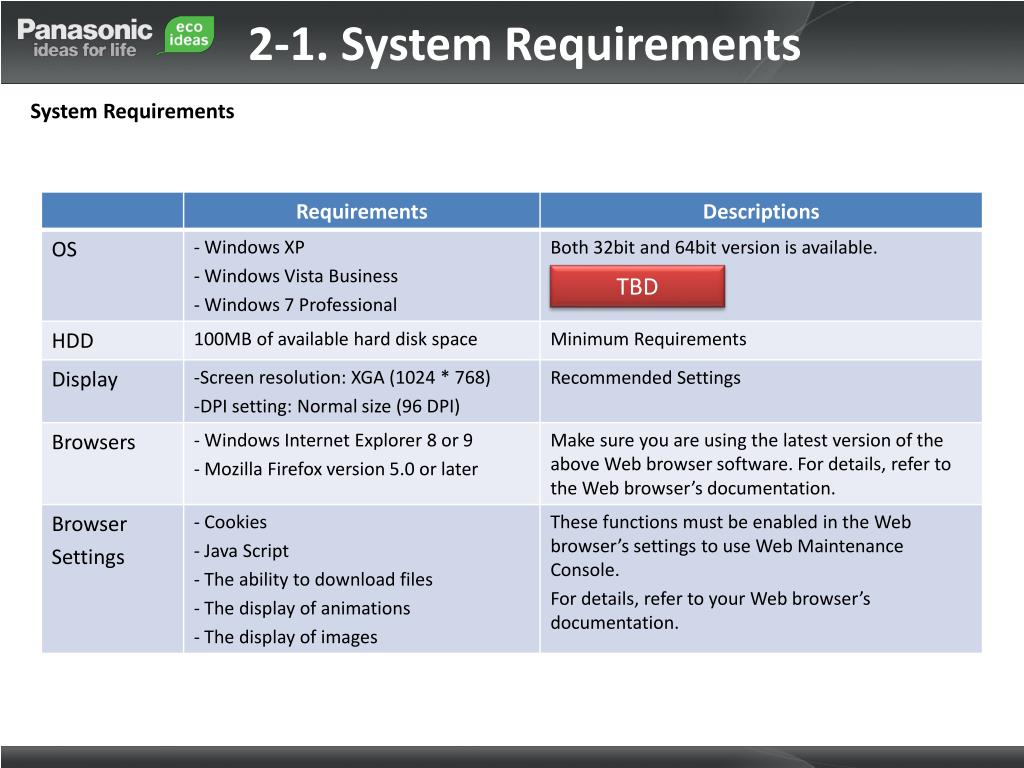

    2-1.System Requirements

    • System Requirements

    TBD


    2 2 available connections 1 3

    2-2. Available Connections (1/3)

    • In order to program or manage the PBX, you need to connect your PC to the PBX.

    • Several connection methods are provided, and here you can see the outline of the direct connection.

    • 1. Direct Connection (MNT Port)

    Set the PC as a DHCP client.

    The MNT port isset as a DHCP server.

    - Ethernet cable with an RJ45 connector - Maximum Distance: 100 m

    If the PC has “Gigabit Ethernet interface”, an Ethernet “crossover cable may be needed.

    It depends on the specification of the PC.


    2 2 available connections 2 3

    2-2. Available Connections (2/3)

    Switch

    Switch

    • It is also possible to manage the PBX via a LAN or VPN connection.

    • 2. LAN/VPN Connection (LAN Port)

    • Via LAN

    • Via VPN

    - 10BASE-T/100BASE-TX: CAT 5 or higher

    - 1000BASE-T: CAT 5e or higher- Maximum length: 100 m

    - Auto Negotiation: ON- If using VLAN: The switch must be IEEE 802.1Q compliant, and set the port to “Untagged”.


    2 2 available connections 3 3

    2-2. Available Connections (3/3)

    Switch

    • Using the WebMC and suitable network routing, it is possible to access the PBX system via the Internet. Ensure that appropriate security measures are in-place before attempting this. (Firewall etc)

    • 3. Connection via Internet

    Specify static NAT (port forwarding) settings to the router.

    - 10BASE-T/100BASE-TX: CAT 5 or higher

    - 1000BASE-T: CAT 5e or higher- Maximum length: 100 m

    - Auto Negotiation: ON- If using VLAN: The switch must be IEEE 802.1Q compliant, and set the port to “Untagged”.

    The WAN port on the KX-NS1000 is not supported with ver. 1.0.


    2 3 accessing the web mc

    2-3. Accessing the Web MC

    There are different addresses depending on Connection Types:

    When Connecting via MNT Port

    http://kx-ns1000.(or http://223.0.0.1)

    Be sure to include the period (.) at the end as shown.

    “223.0.0.1”: the default IP address of the MNT port = Fixed

    When Connecting via LAN or VPN

    http://192.168.0.101/WebMC

    “192.168.0.101”: the default IP address of the LAN port = Variable

    3. When Connecting via Internet (SSL Connection)

    https://xxx.xxx.xxx.xxx/yyy

    “xxx.xxx.xxx.xxx” will be an IP address, and “yyy” will be a port numbers that can be accessed from the internet, for example the IP address and port number of a router.

    Port forwarding settings must specify the IP address and the port number of the network

    router ("xxx.xxx.xxx.xxx:yyy") to transfer the packets to the PBX in the LAN, so that the

    packets sent to the global IP address and specified port of the router will be transferred

    to the IP address and specified

    The URL is case-sensitive. Enter the uppercase and lowercase letters exactly as shown above.


    2 4 login logout 1

    2-4. LOGIN / LOGOUT (1)

    • LOGIN

    • After establishing a connection to Web Maintenance Console, the login window is displayed, and a login name and password must be entered.

    • Login Restrictions

    • Up to 33 users may log in at one time to Web Maintenance Console. However, only 1 user may change PBX system settings at a time. (1 Installer / 32 Admin/Users)If a User is making changes, and the Installer logs in, the Installer may override the user’s ability to make changes so that programming can be performed.Users that are logged in to Web Maintenance Console, but do not have the ability to make changes, may only view menus and setting items they would normally be able to edit.

    • If a user fails to log in three times (wrong password), the failure is recorded in the error log of the PBX and the user cannot log in again for 5min.


    2 4 login logout 2

    2-4. LOGIN / LOGOUT (2)

    • LOGOUT

    • Be sure to log out from the Web MC using the Logout button, otherwise any unsaved changes will be lost.

    • Clicking this button will save any programming changes to the PBX’s Storage Memory Card and log you out of Web Maintenance Console.


    Webmc tour

    Chapter 3

    WebMC - Tour


    3 1 screen descriptions 1 4

    3-1.Screen Descriptions (1/4)

    • Upon LOGIN, you are presented with the ‘Home’ Screen

    Home Screen Icon

    Loads the Home screen.

    PBX Slaves

    Displays the Maintenance screen.

    Displays the Setup screen.

    Saves the data.

    Opens the on-line help.

    PBX Maser

    Displays the Web MC version info.

    Saves the data and logs you out.

    Adds slave units.

    Displays the Home screenin icon view.

    Displays the Home screenin list view.


    3 1 screen descriptions 2 4

    3-1.Screen Descriptions (2/4)

    • Using the ‘List’ view in the ‘Home’ Screen allows you to see the PBX Type (Master/Slave), IP-Address, MAC address, S/W Version and Region type of all PBXs in a One-Look system.

    List View

    PBX Status

    PBX System Information is shown here.


    3 1 screen descriptions 3 4

    3-1. Screen Descriptions (3/4)

    • Setup Screen

    Setup Screen Icon

    Connected Site

    • Setup Screen Tree Items


    3 1 screen descriptions 4 4

    3-1.Screen Descriptions (4/4)

    • Maintenance Screen

    Maintenance Screen Icon

    Maintenance Screen Tree Items


    3 2 button descriptions 1 2

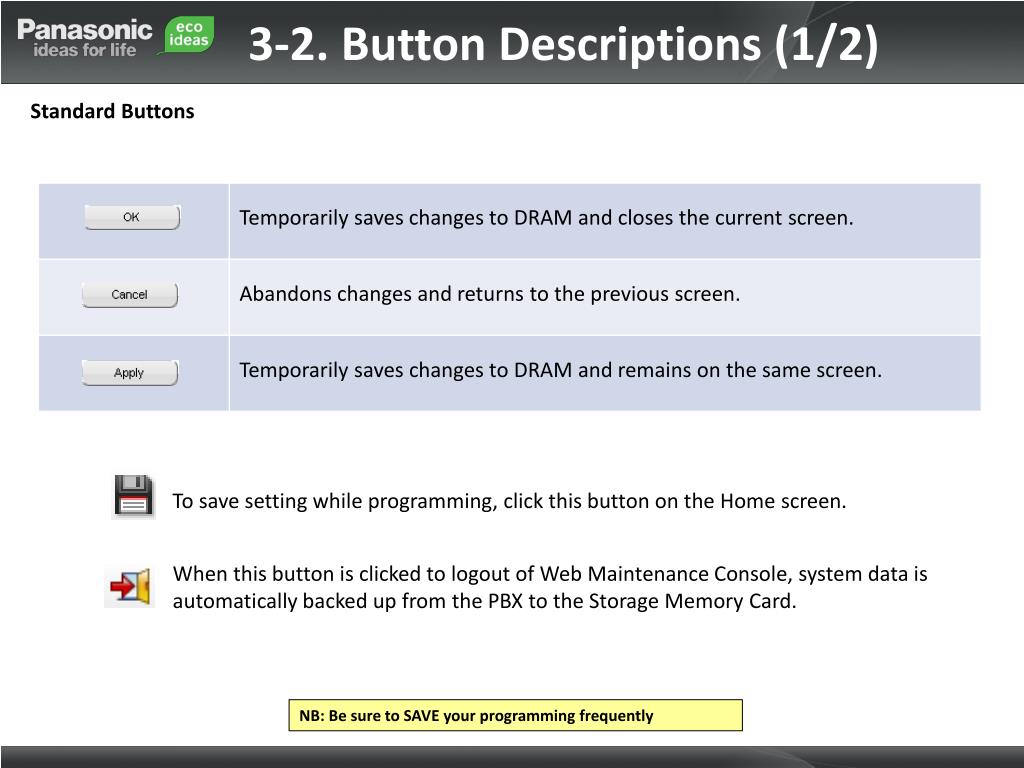

    3-2.Button Descriptions (1/2)

    • Standard Buttons

    To save setting while programming, click this button on the Home screen.

    When this button is clicked to logout of Web Maintenance Console, system data is automatically backed up from the PBX to the Storage Memory Card.

    NB: Be sure to SAVE your programming frequently


    3 2 button descriptions 2 2

    3-2.Button Descriptions (2/2)

    Deletes the selected row

    Edits the selected row

    Adds new entry

    Remove filter

    • Each Setting screen has a number of helpful icons available. The available icons will differ, depending on the screen.

    • Standard Icons

    Copies Data Fields


    3 3 slot view

    3-3.Slot View

    • In the ‘Settings’ View, the ‘SLOT’ view shows what Physical and Virtual cards are installed. May other system properties or features can also be viewed.

    ‘Settings’ -> PBX Configuration -> 1. Slot

    Select ‘Physical’ or ‘Virtual’ Slot View

    Status Buttons

    Installed ‘Physical’ Cards


    Appendix

    Chapter 4

    Appendix


    A 1 static nat setting example

    A-1Static NAT Setting Example

    PBX 1

    PBX 1: https://133.149.172.28:8080

    PBX 2: https://133.149.172.28:8081

    Dynamic NAPT

    Static NAPT

    IP Address: 192.168.0.2

    Protocol: TCP

    Web MC Port No.: 443

    Local IP Address: 10.75.60.1

    Global IP Address: 133.125.149.44

    Local IP Address: 192.168.0.1

    Global IP Address: 133.149.172.28

    PBX 2

    IP Address: 10.75.60.2

    Internet

    I/F: a

    IP Address: 192.168.0.3

    Protocol: TCP

    Web MC Port No.: 443

    I/F: b

    No particular settings


  • Login
