  1. Introduction to ARM A15 LinuxDSP Platform Software Apps Team04/19/2013 TI Confidential - NDA Restrictions 1

  2. Outline • ARM Cortex-A15 Overview • ARM A15 Linux Overview • U-boot • Two Stage Bootloading • Boot Monitor • SMP Boot Sequence • LPAE • Linux Drivers 2 TI Confidential - NDA Restrictions

  3. ARM A15 Overview • ARMv7-A Cortex - the latest member of the Cortex-A series of processors • 1-4x SMP within a single processor cluster and low power consumption • Thumb-2 Technology • TrustZone Security • Floating Point • NEON • Hardware Virtualization • Large Physical Address Extension (LPAE) 3 TI Confidential - NDA Restrictions

  4. Thumb-2 Technology • Thumb Mode • 16-bit Thumb instructions vs 32-bit ARM instructions • Thumb-2 extends with additional 32-bit instructions • Code density similar to Thumb • up to a 30% reduction in memory to store instructions • Performance similar to the ARM instruction set on 32-bit memory

  5. TrustZone Security • 2 virtual processors backed by hardware based access control • Enable application core to switch between 2 states (worlds) • Each world can operate independently while using the same core. • Memory and peripherals are made aware of the operating world and provide access control • Secure Monitor is code that runs in secure Monitor mode and processes switches to and from the secure world

  6. Floating Point • Vector Floating Point (VFP) is an FPU coprocessor extension to the ARM architecture • Hardware support for FP operations in half-, single- and double-precision floating point arithmetic.

  7. NEON • Advanced SIMD extension, or Media Processing Engine (MPE) • A combined 64- and 128-bit SIMD instruction set • Provides acceleration for media and signal application • NEON hardware shares the same floating-point registers as used in VFP. Linux version: 3.6.0, GCC version: Linaro 4.6.3

  8. Hardware Virtualization • Hardware support for multiple software environments available on the same physical processor • Software applications can access the system capabilities simultaneously • Virtual envrionments are isolated from each other

  9. LPAE • 64-bit “long-descriptor” format for page tables • Supports 40-bit physical address – up to 1TB of memory

  10. ARM A15 Linux Overview • U-boot • Two Stage Bootloading • Boot Monitor • SMP Boot Sequence • LPAE • Linux Drivers

  11. U-Boot • Based on the Universal Boot Loader public project • Program that moves executable from non-volatile memory to memory and then transfers CPU control to the newly “loaded” executable • Minimal drivers • SPI • I2C • UART • NAND • ETH • USB

  12. Two Stage Bootloading • ROM Boot Loader(RBL) loads Secondary Program Loader (SPL) from SPI NOR flash • SPL loads and run the second stage boot loader, a full version of U-Boot) from NOR or NAND • Keystone II – SPI boot mode • The first 64K of the SPI NOR flash is flashed with SPL • Followed by U-Boot image

  13. Boot Monitor • ARM Cortex A15 requires certain functions to be executed in the PL1 privilege level • Provides secure privilege level execution service for Linux Kernel code through SMC calls

  14. Boot Monitor – High level architecture

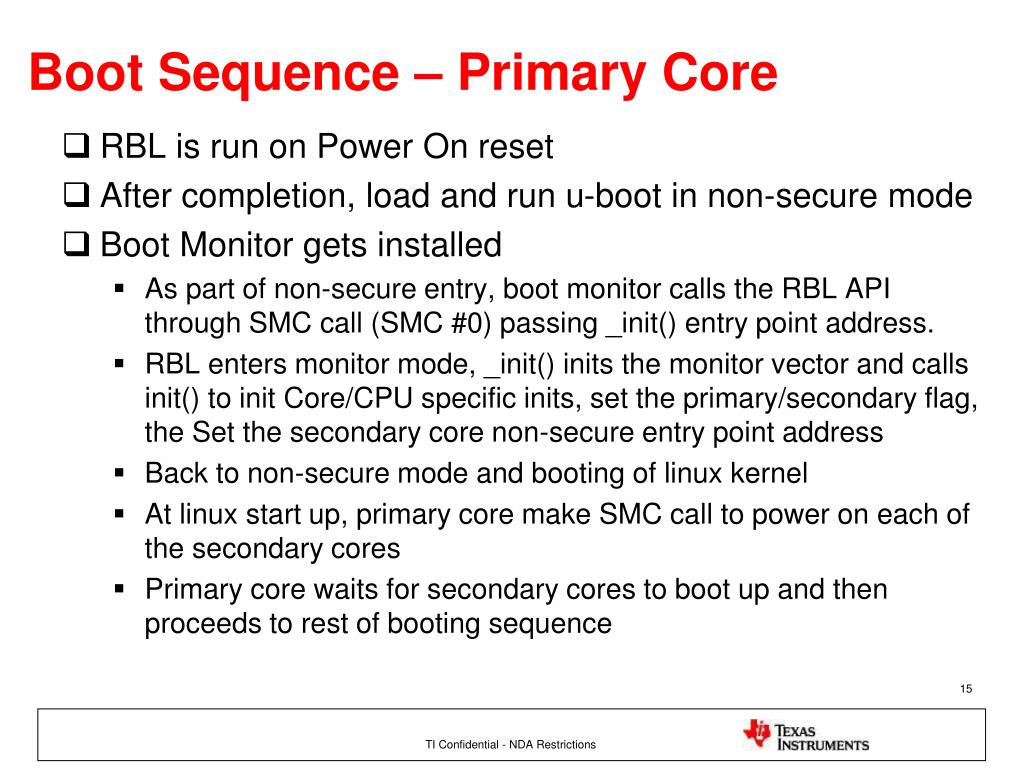

  15. Boot Sequence – Primary Core • RBL is run on Power On reset • After completion, load and run u-boot in non-secure mode • Boot Monitor gets installed • As part of non-secure entry, boot monitor calls the RBL API through SMC call (SMC #0) passing _init() entry point address. • RBL enters monitor mode, _init() inits the monitor vector and calls init() to init Core/CPU specific inits, set the primary/secondary flag, the Set the secondary core non-secure entry point address • Back to non-secure mode and booting of linux kernel • At linux start up, primary core make SMC call to power on each of the secondary cores • Primary core waits for secondary cores to boot up and then proceeds to rest of booting sequence TI Confidential - NDA Restrictions

  16. Boot Sequence – Secondary Core • On Power On reset, RBL initializes and enters the secondary entry point address of the Boot Monitor core through SMC call (SMC #0) • RBL enters monitor mode, _init() inits the monitor vector and calls init() to init Core/CPU specific inits. • On return from _init(), it jumps to secondary kernel entry point address and start booting 2nd instance of Linux kernel

  17. LPAE • DDR3A memory address space 0x08 0000 0000 – 0x09 FFFF FFFF • Cortex-A15 LPAE with 40-bit address bus may access if MMU is on • ARM has only 32-bit effective address bus if MMU is off • To access DDR3A when MMU is off • MSMC maps first 2GB to 0x00 8000 0000 – 0x00 FFFF FFFF • The aliased address space can be used when MMU is on or off • Keystone II does not support cache coherency for the aliased address space • Default memory property of TCI6638 is 0x8000 0000 size 0x2000 0000 • When U-boot boots the kernel, it can modify the default start address. • If mem_lpae=0, U-boot does not modify • If mem_lpae=1, U-boot sets the start address to 0x08 0000 0000

  18. Linux Drivers • GIC IRQ chip driver • Keystone IPC IRQ chip driver • SMP • AEMIF driver • NAND driver • SPI and SPI NOR flash drivers • I2C and EEPROM drivers • Keystone GPIO driver • Keystone IPC GPIO driver • Network driver (NetCP), PktDMA, Packet Accelerator • SGMII driver • QoS driver • USB driver • 10Gig Ethernet driver (not validated due to test hardware) • PCIe driver

  19. Getting Started with MCSDK

  20. Prerequisite • K2EVM-HK (Follow Hardware setup guide to make sure you have the latest BMC updates) http://processors.wiki.ti.com/index.php/EVMK2H_Hardware_Setup • User guide: (getting started guide & exploring as well) http://processors.wiki.ti.com/index.php/MCSDK_User_Guide_for_KeyStone_II • Download MCSDK: http://software-dl.ti.com/sdoemb/sdoemb_public_sw/mcsdk/latest/index_FDS.html • Ubuntu Linux 12.04 LTS machine, set up Proxy (consult IT)

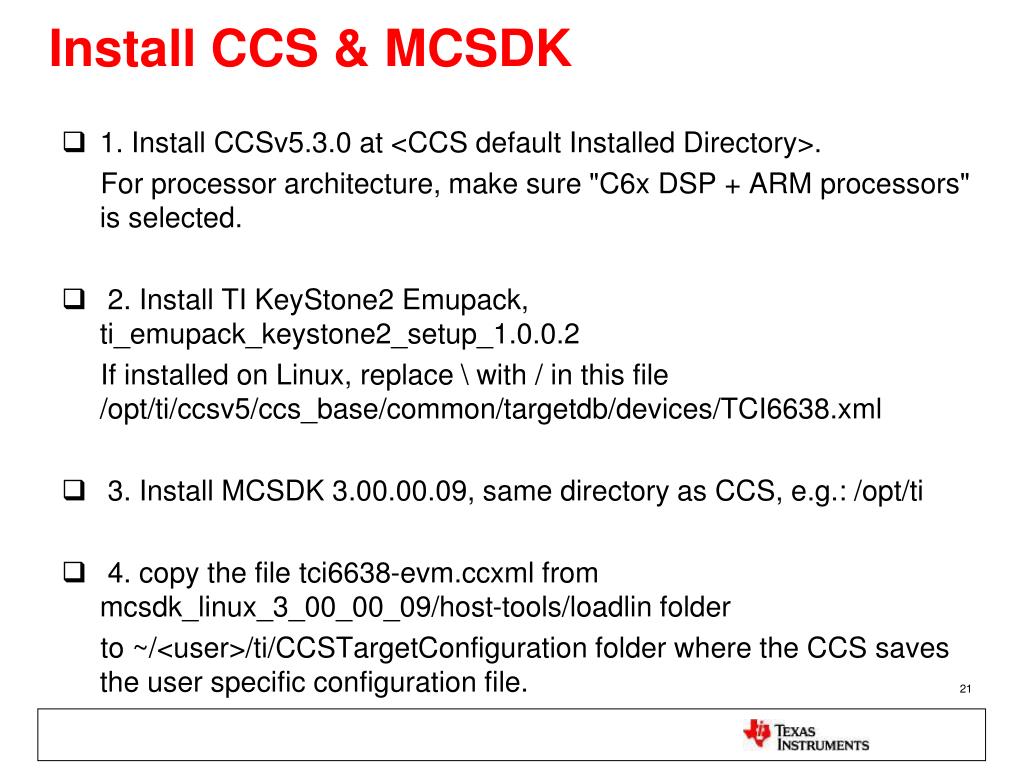

  21. Install CCS & MCSDK • 1. Install CCSv5.3.0 at <CCS default Installed Directory>. For processor architecture, make sure "C6x DSP + ARM processors" is selected. • 2. Install TI KeyStone2 Emupack, ti_emupack_keystone2_setup_1.0.0.2 If installed on Linux, replace \ with / in this file /opt/ti/ccsv5/ccs_base/common/targetdb/devices/TCI6638.xml • 3. Install MCSDK 3.00.00.09, same directory as CCS, e.g.: /opt/ti • 4. copy the file tci6638-evm.ccxml from mcsdk_linux_3_00_00_09/host-tools/loadlin folder to ~/<user>/ti/CCSTargetConfiguration folder where the CCS saves the user specific configuration file.

  22. Build Prerequisite • Toolchain installation: Download the gcc-linaro-arm-linux-gnueabi-2012.03-20120326_linux.tar.bz2 from https://launchpad.net/linaro-toolchain-binaries/trunk/2012.03 cd ~/ tar xjf gcc-linaro-arm-linux-gnueabi-2012.03-20120326_linux.tar.bz2 export CROSS_COMPILE=arm-linux-gnueabi- export ARCH=arm PATH=$HOME/gcc-linaro-arm-linux-gnueabi-2012.03-20120326_linux/bin:$PATH • Configure git and install packages needed at build time: sudo apt-get install git-core sudo apt-get install build-essential subversion ccache sed wget cvs coreutils unzip texinfo docbook-utils gawk help2man diffstat file g++ texi2html bison flex htmldoc chrpath libxext-dev xserver-xorg-dev doxygen bitbake uboot-mkimage libncurses5-dev

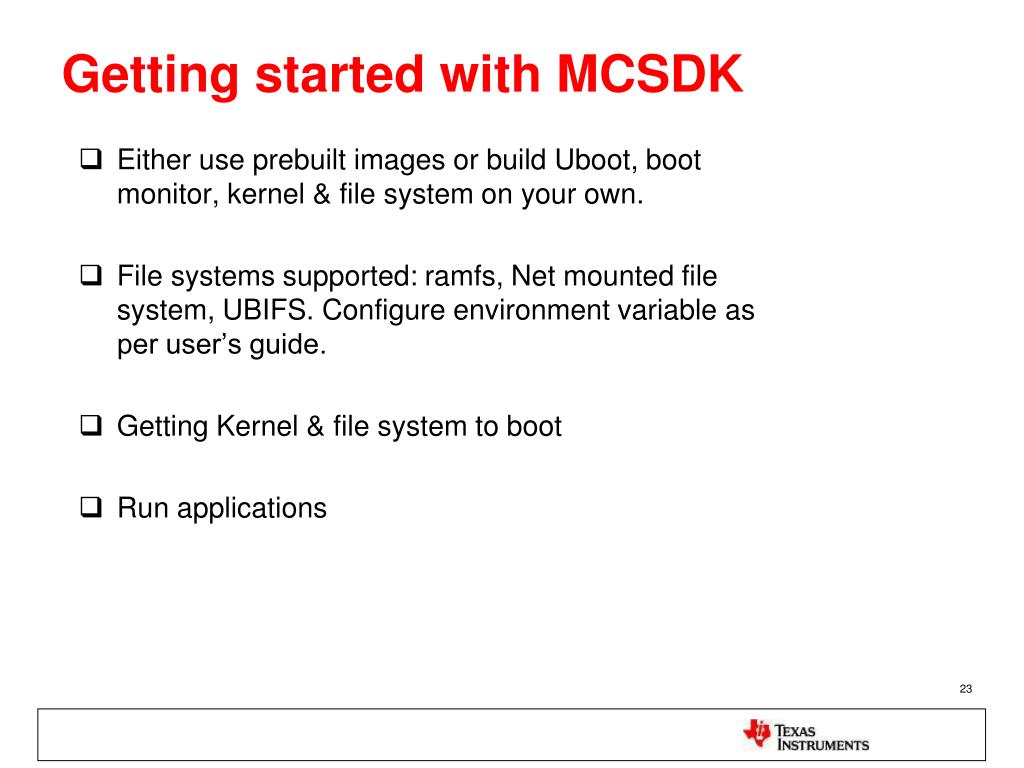

  23. Getting started with MCSDK • Either use prebuilt images or build Uboot, boot monitor, kernel & file system on your own. • File systems supported: ramfs, Net mounted file system, UBIFS. Configure environment variable as per user’s guide. • Getting Kernel & file system to boot • Run applications
