Presentation Transcript
Sharepoint 2013 installation

SharePoint 2013 Installation

Terry Henry

IS System Manager, SharePoint SME

Micron Technology Inc.


Overview
Overview

  • Requirements

  • Basic installation

  • Configuration

  • Micron’s Installation

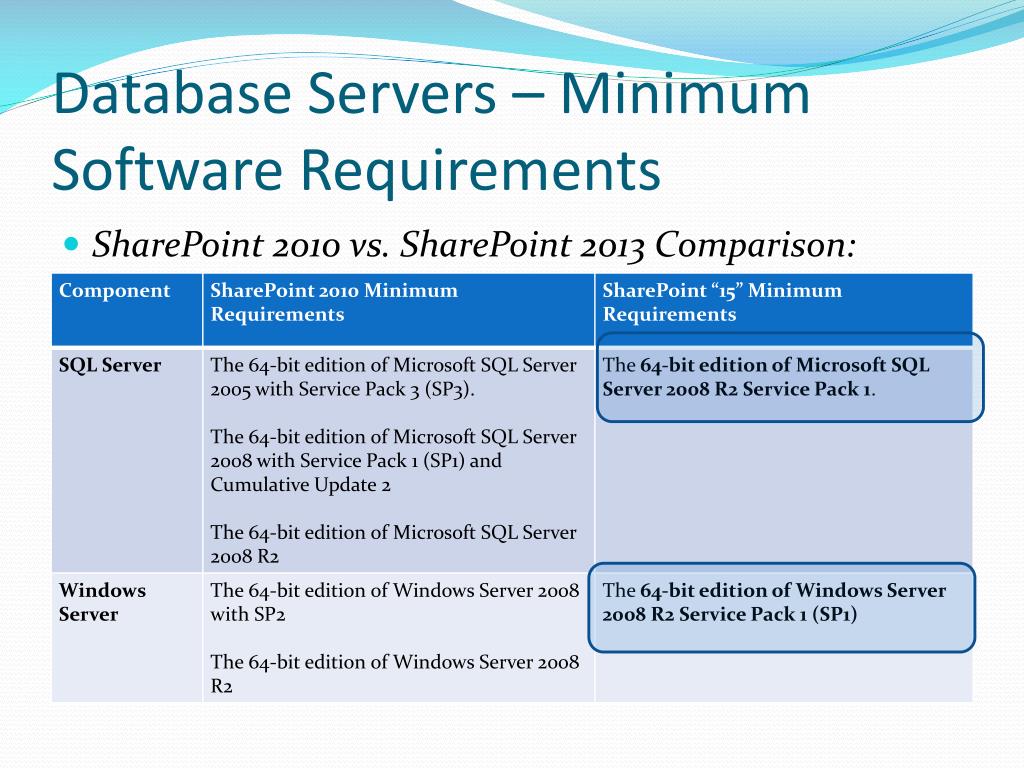

Database servers minimum software requirements
Database Servers – Minimum Software Requirements

  • SharePoint 2010 vs. SharePoint 2013 Comparison:

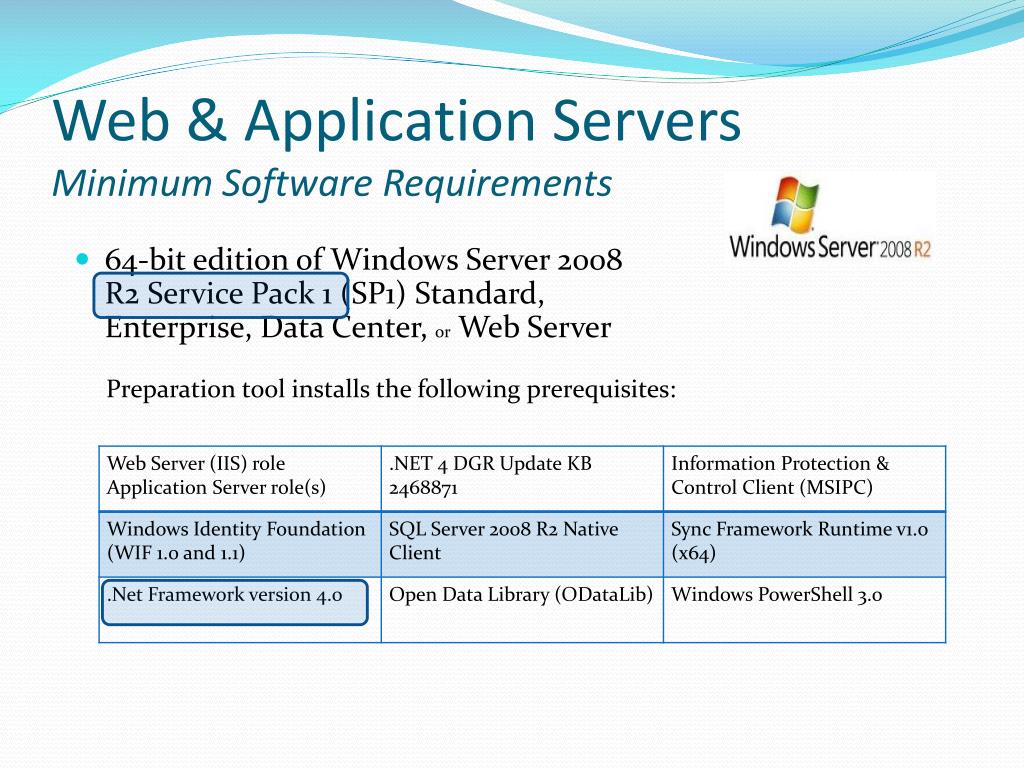

Web application servers minimum software requirements
Web & Application Servers Minimum Software Requirements

  • 64-bit edition of Windows Server 2008 R2 Service Pack 1 (SP1) Standard, Enterprise, Data Center, or Web Server

Preparation tool installs the following prerequisites:


Install the bits follow the basic steps
Install The Bits – Follow the Basic Steps

  • Plan and Prepare; Verify hardware and software requirements

  • Install the required software updates on all farm servers

  • Install the SharePoint 2013prerequisites on servers in the application and Web tiers

  • Install SharePoint 2013on the application server and the Web servers

  • Create and configure the SharePoint farm

  • Provision service applications as needed

  • Complete post-deployment tasks as required

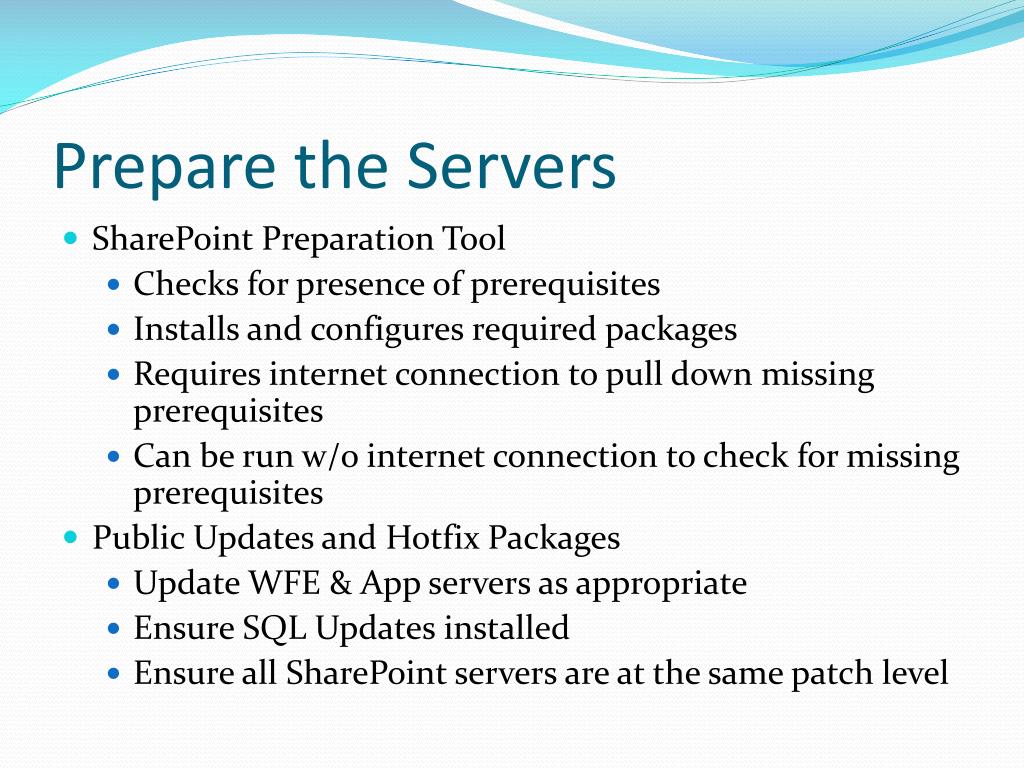

Prepare the servers
Prepare the Servers

  • SharePoint Preparation Tool

    • Checks for presence of prerequisites

    • Installs and configures required packages

    • Requires internet connection to pull down missing prerequisites

    • Can be run w/o internet connection to check for missing prerequisites

  • Public Updates and Hotfix Packages

    • Update WFE & App servers as appropriate

    • Ensure SQL Updates installed

    • Ensure all SharePoint servers are at the same patch level


Running the preparation tool
Running the Preparation Tool

  • Run on Web and Application servers

  • Ensure you are logged on as local admin

  • If running from bits on a file system, locate and run prerequisiteinstaller.exe from the SharePoint 15 bits folder

  • Otherwise, if you install from bootable image click Install software prerequisites

  • Click Next

  • May require server reboot – however preparation tool will continue to run after restart

  • Click Finish on the Installation Complete page


Installing sharepoint 15
Installing SharePoint 15

  • Login as local administrator

  • Installation steps similar to SharePoint 2010

  • Install on all SharePoint WFE & Application servers

  • Run Configuration Wizard when setup is finished on all servers

  • Configure diagnostic logging/usage health data/etc.

  • Create Web apps, site collections/sites, as planned


How we install 2013 at micron
How we install 2013 at Micron

  • SharePoint 2013, Server 2008 R2 SP1, SQL 2012 sp1

  • The install is the easy part.

  • Configuration can be time consuming

  • Install options

    • Manual

      • Time consuming when working with large farms.

    • Scripted

      • Repeatable

      • Initial script creation can be time consuming.


How we install 2013 at micron1
How we install 2013 at Micron

  • Farm configuration options

    • Configuration Wizard

    • Manual

    • Scripted

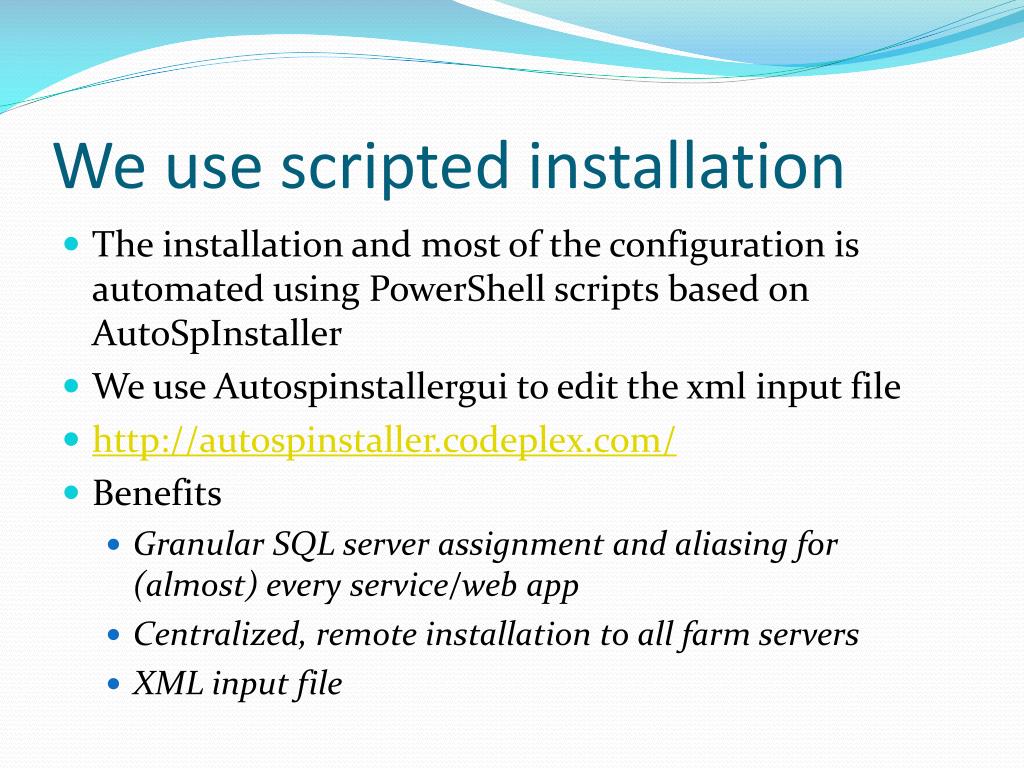

We use scripted installation
We use scripted installation

  • The installation and most of the configuration is automated using PowerShell scripts based on AutoSpInstaller

  • We use Autospinstallergui to edit the xml input file

  • http://autospinstaller.codeplex.com/

  • Benefits

    • Granular SQL server assignment and aliasing for (almost) every service/web app

    • Centralized, remote installation to all farm servers

    • XML input file


We use scripted installation1
We use scripted installation

  • Benefits (continued)

    • Consistent installation and configuration across farms.

    • Clean naming convention of databases and folders.

    • Ability to specify any XML input file, by passing it as an argument to AutoSPInstallerLaunch.bat

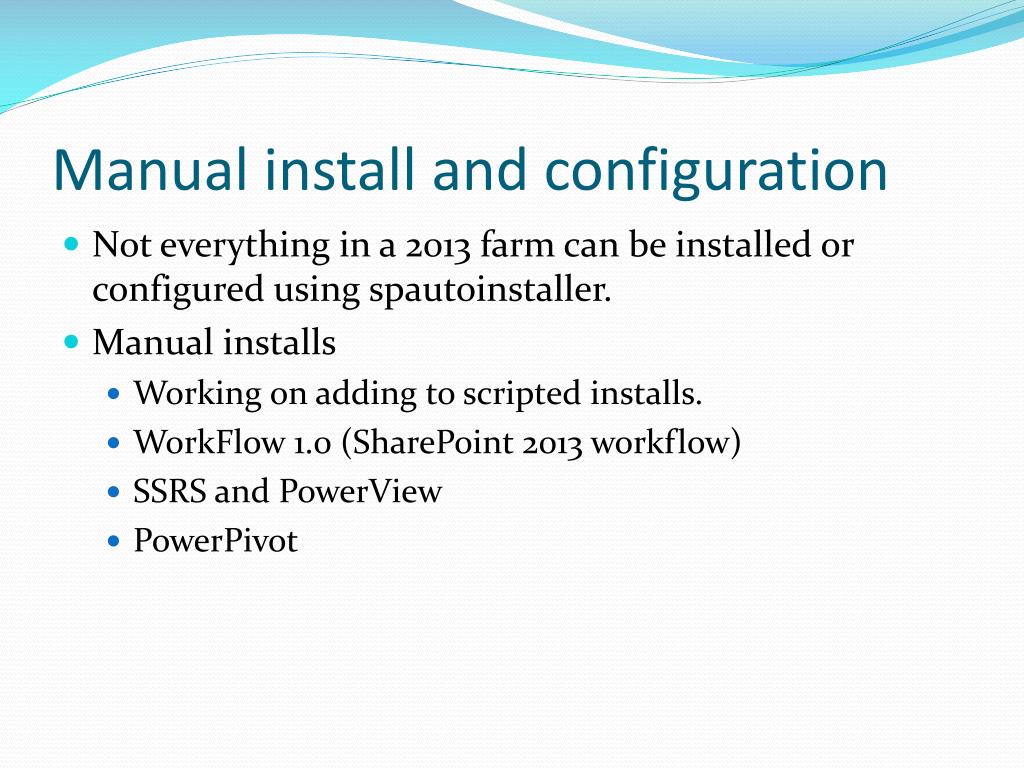

Manual install and configuration
Manual install and configuration

  • Not everything in a 2013 farm can be installed or configured using spautoinstaller.

  • Manual installs

    • Working on adding to scripted installs.

    • WorkFlow 1.0 (SharePoint 2013 workflow)

    • SSRS and PowerView

    • PowerPivot


Manual install and configuration1
Manual install and configuration

  • Manual Configuration

    • Working on adding to scripted installs.

    • Advance Search Topologies (Power Shell Only)

      • Installs all components on Central Admin Service.

    • Profile Import connection

    • Office Web Application Server

    • WorkFlow 1.0 (SharePoint 2013 workflow)

    • SSRS and PowerView

    • PowerPivot


Resources
Resources

  • Installation and Deployment for SharePoint 2013 Resource Center

    • http://technet.microsoft.com/sharepoint/fp142376

  • Downloadable eBook: Deployment guide for SharePoint 2013

    • http://www.microsoft.com/en-us/download/details.aspx?id=35396

  • Services on server mapping worksheet for SharePoint 2013

    • http://www.microsoft.com/en-us/download/details.aspx?id=30367

  • http://autospinstaller.codeplex.com

  • http://autospinstallergui.codeplex.com/
