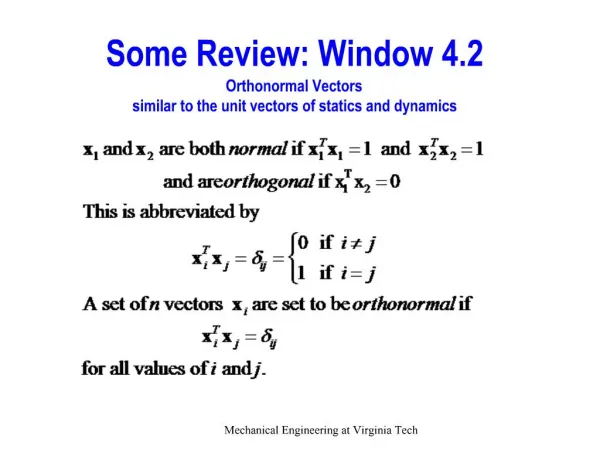

Some Review: Window 4.2 Orthonormal Vectors similar to the unit vectors of statics and dynamics

Dec 10, 2012

530 likes | 676 Views

? D. J. Inman2/53. Mechanical Engineering at Virginia Tech. 4.3 - Modal Analysis. Physical coordinates are not always the easiest to work inEigenvectors provide a convenient transformation to modal coordinatesModal coordinates are linear combination of physical coordinatesSay we have physical co
