  1. Probabilistic Robotics Introduction Probabilities Bayes rule Bayes filters

  2. Probabilistic Robotics Key idea: Explicit representation of uncertainty using the calculus of probability theory • Perception = state estimation • Action = utility optimization

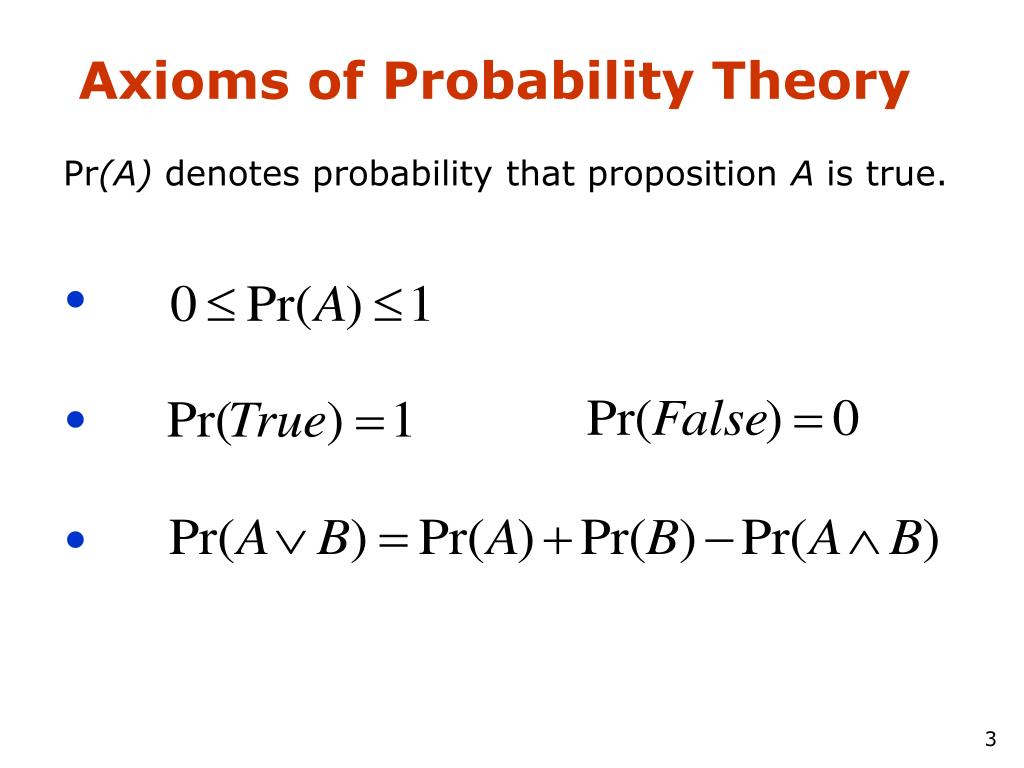

  3. Axioms of Probability Theory Pr(A) denotes probability that proposition A is true.

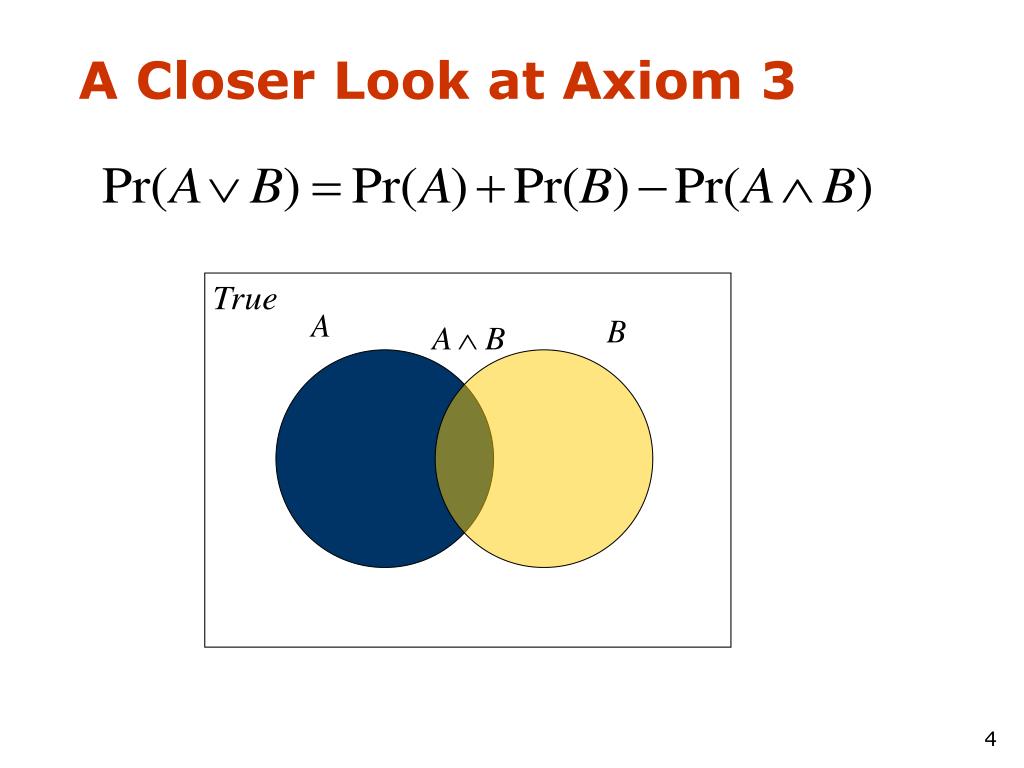

  4. B A Closer Look at Axiom 3

  5. Using the Axioms

  6. Discrete Random Variables • Xdenotes a random variable. • Xcan take on a countable number of values in {x1, x2, …, xn}. • P(X=xi), or P(xi), is the probability that the random variable X takes on value xi. • P( ) is called probability mass function. • E.g. .

  7. Continuous Random Variables • Xtakes on values in the continuum. • p(X=x), or p(x), is a probability density function. • E.g. p(x) x

  8. Joint and Conditional Probability • P(X=x and Y=y) = P(x,y) • If X and Y are independent then P(x,y) = P(x) P(y) • P(x | y) is the probability of x given y P(x | y) = P(x,y) / P(y) P(x,y) = P(x | y) P(y) • If X and Y are independent thenP(x | y) = P(x)

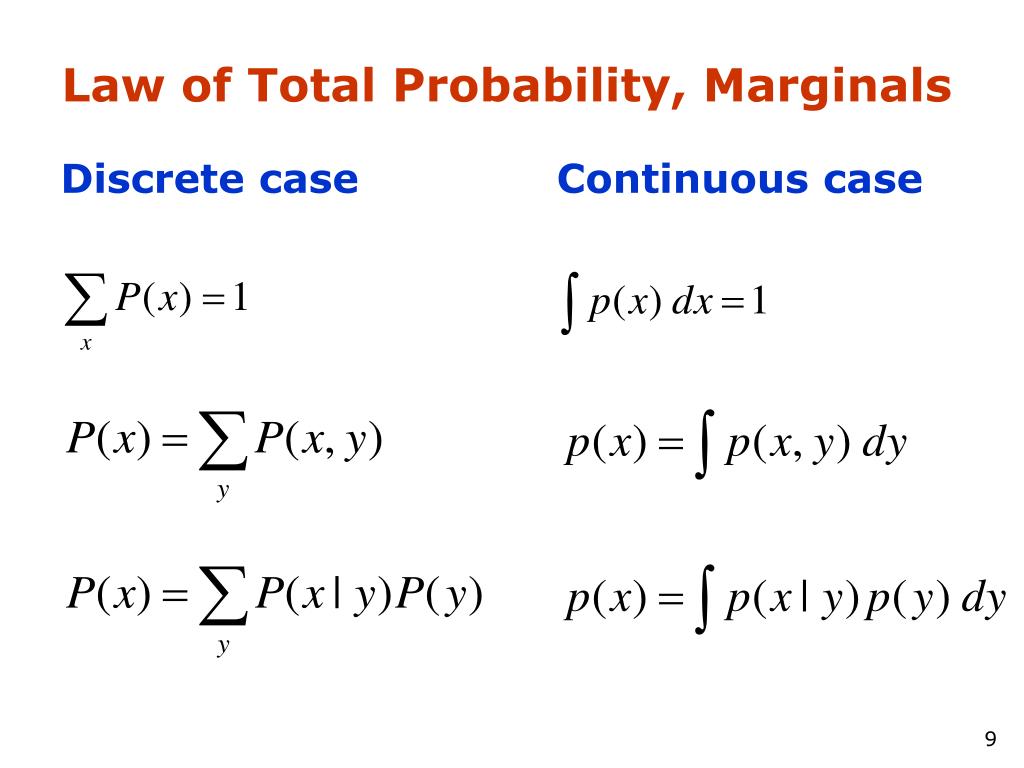

  9. Law of Total Probability, Marginals Discrete case Continuous case

  10. Bayes Formula

  11. Normalization Algorithm:

  12. Conditioning • Law of total probability:

  13. Bayes Rule with Background Knowledge

  14. Conditioning • Total probability:

  15. Conditional Independence equivalent to and

  16. Simple Example of State Estimation • Suppose a robot obtains measurement z • What is P(open|z)?

  17. count frequencies! Causal vs. Diagnostic Reasoning • P(open|z) is diagnostic. • P(z|open) is causal. • Often causal knowledge is easier to obtain. • Bayes rule allows us to use causal knowledge:

  18. Example • P(z|open) = 0.6 P(z|open) = 0.3 • P(open) = P(open) = 0.5 • z raises the probability that the door is open.

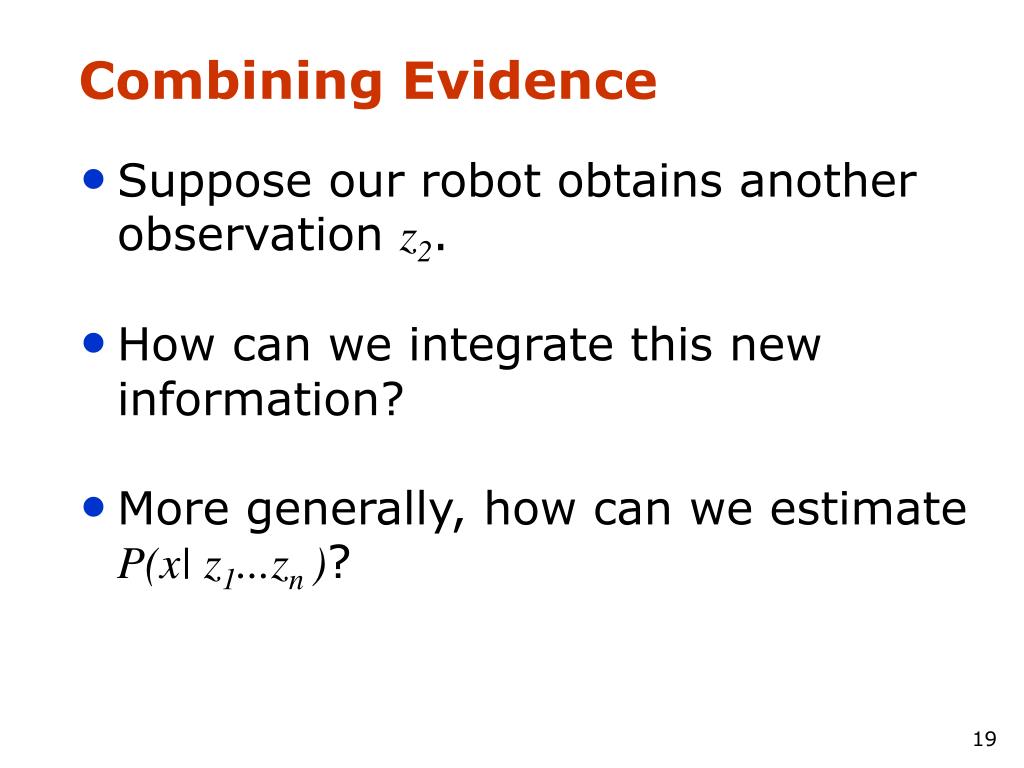

  19. Combining Evidence • Suppose our robot obtains another observation z2. • How can we integrate this new information? • More generally, how can we estimateP(x| z1...zn )?

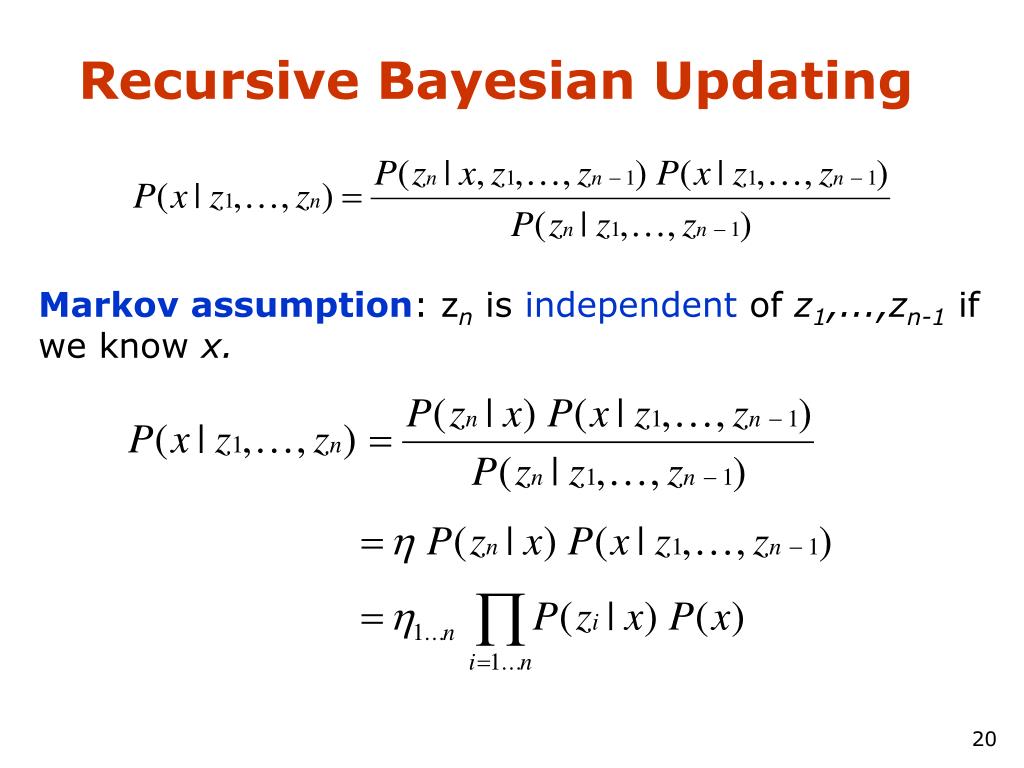

  20. Recursive Bayesian Updating Markov assumption: znis independent of z1,...,zn-1if we know x.

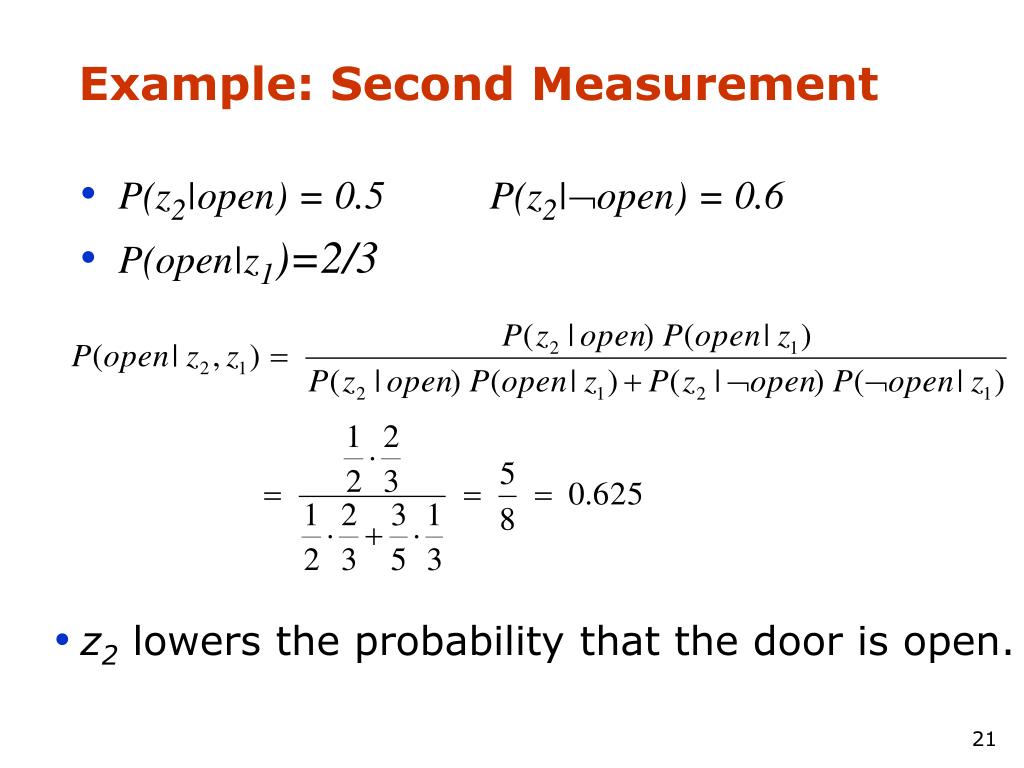

  21. Example: Second Measurement • P(z2|open) = 0.5 P(z2|open) = 0.6 • P(open|z1)=2/3 • z2lowers the probability that the door is open.

  22. A Typical Pitfall • Two possible locations x1and x2 • P(x1)=0.99 • P(z|x2)=0.09 P(z|x1)=0.07

  23. Actions • Often the world is dynamic since • actions carried out by the robot, • actions carried out by other agents, • or just the time passing by change the world. • How can we incorporate such actions?

  24. Typical Actions • The robot turns its wheels to move • The robot uses its manipulator to grasp an object • Plants grow over time… • Actions are never carried out with absolute certainty. • In contrast to measurements, actions generally increase the uncertainty.

  25. Modeling Actions • To incorporate the outcome of an action u into the current “belief”, we use the conditional pdf P(x|u,x’) • This term specifies the pdf that executing u changes the state from x’ to x.

  26. Example: Closing the door

  27. State Transitions P(x|u,x’) for u = “close door”: If the door is open, the action “close door” succeeds in 90% of all cases.

  28. Integrating the Outcome of Actions Continuous case: Discrete case:

  29. Example: The Resulting Belief

  30. Bayes Filters: Framework • Given: • Stream of observations z and action data u: • Sensor modelP(z|x). • Action modelP(x|u,x’). • Prior probability of the system state P(x). • Wanted: • Estimate of the state X of a dynamical system. • The posterior of the state is also called Belief:

  31. Markov Assumption Underlying Assumptions • Static world • Independent noise • Perfect model, no approximation errors

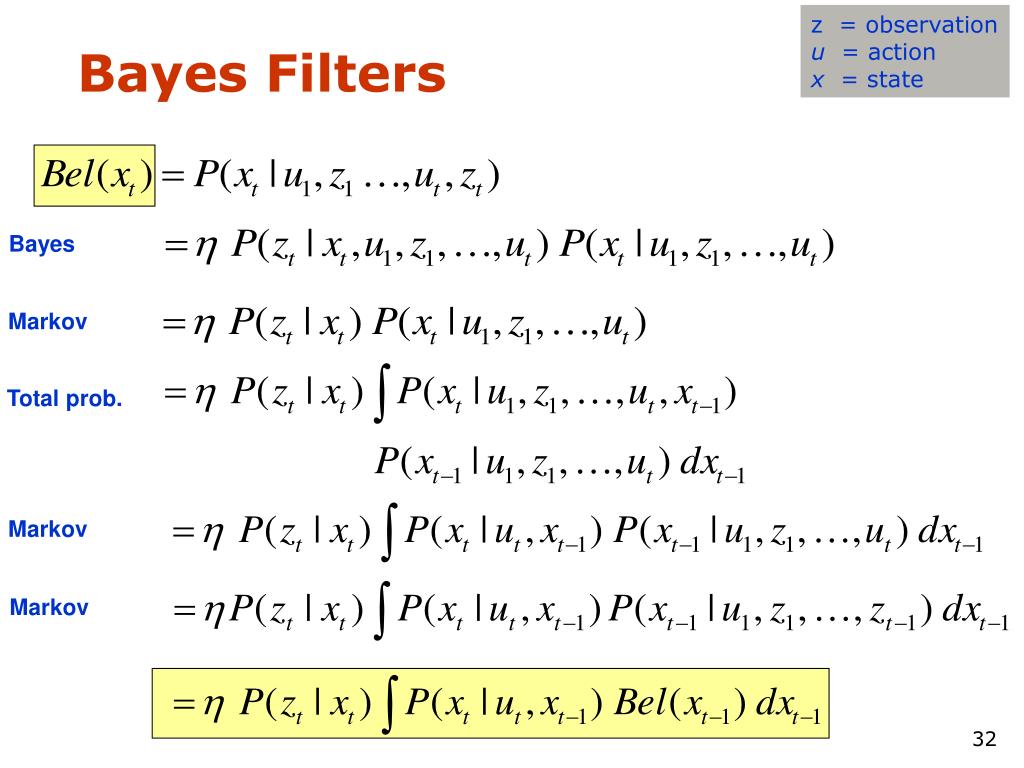

  32. Bayes Markov Total prob. Markov Markov z = observation u = action x = state Bayes Filters

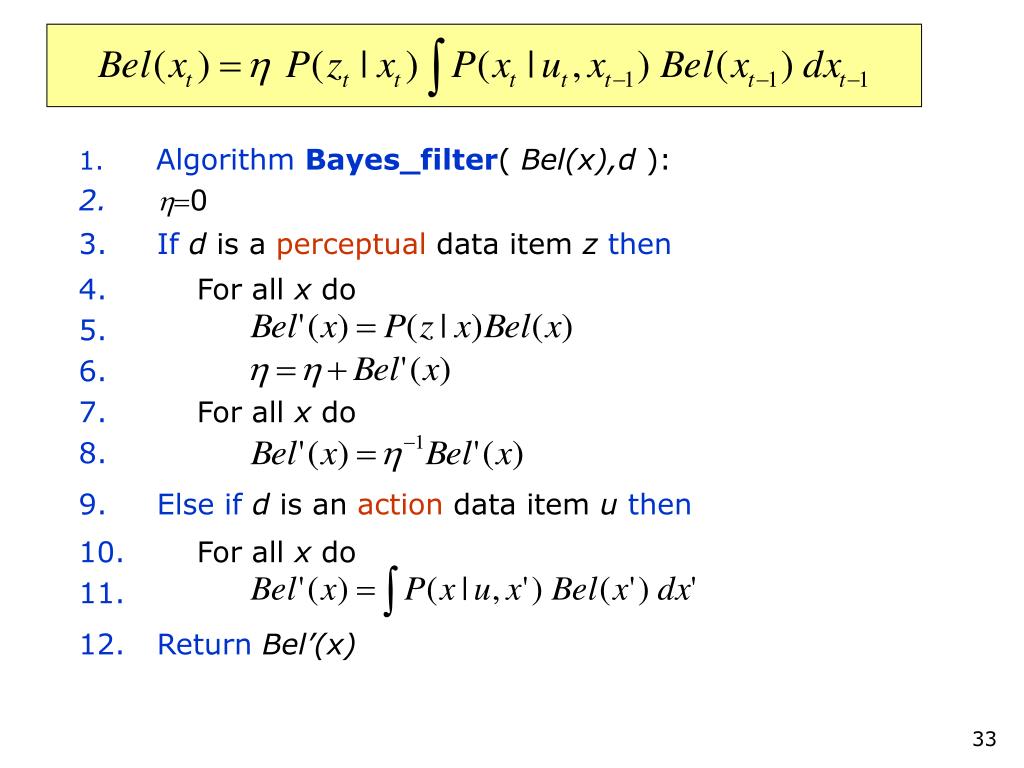

  33. Bayes Filter Algorithm • Algorithm Bayes_filter( Bel(x),d ): • h=0 • Ifd is a perceptual data item z then • For all x do • For all x do • Else ifd is an action data item uthen • For all x do • ReturnBel’(x)

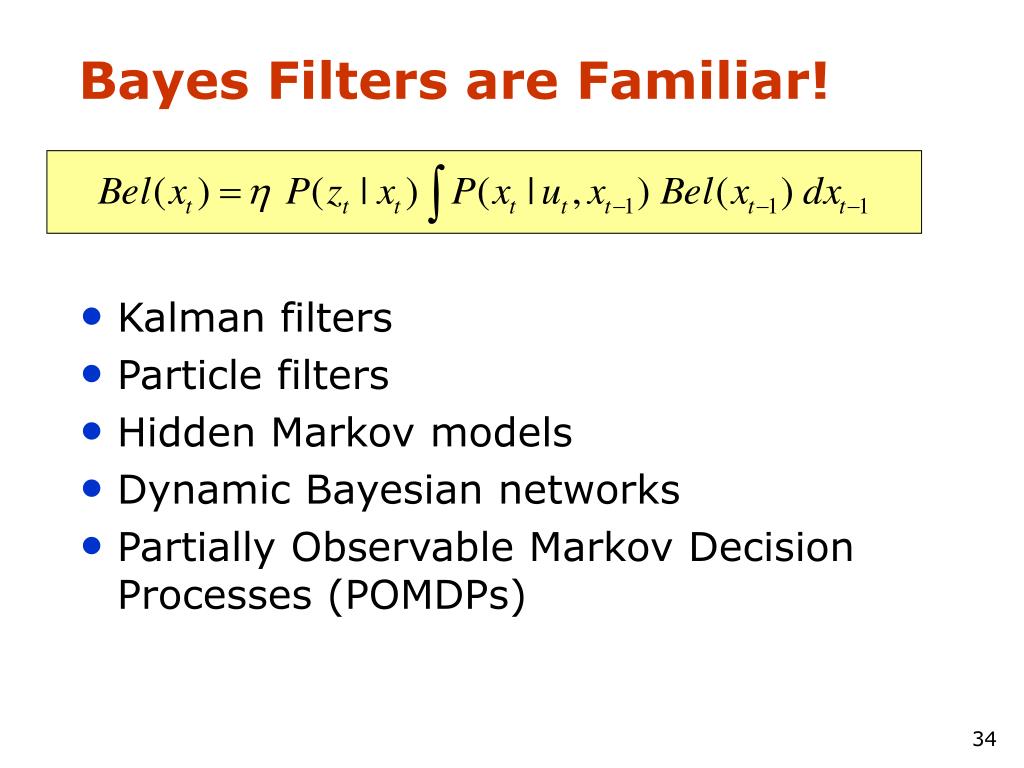

  34. Bayes Filters are Familiar! • Kalman filters • Particle filters • Hidden Markov models • Dynamic Bayesian networks • Partially Observable Markov Decision Processes (POMDPs)

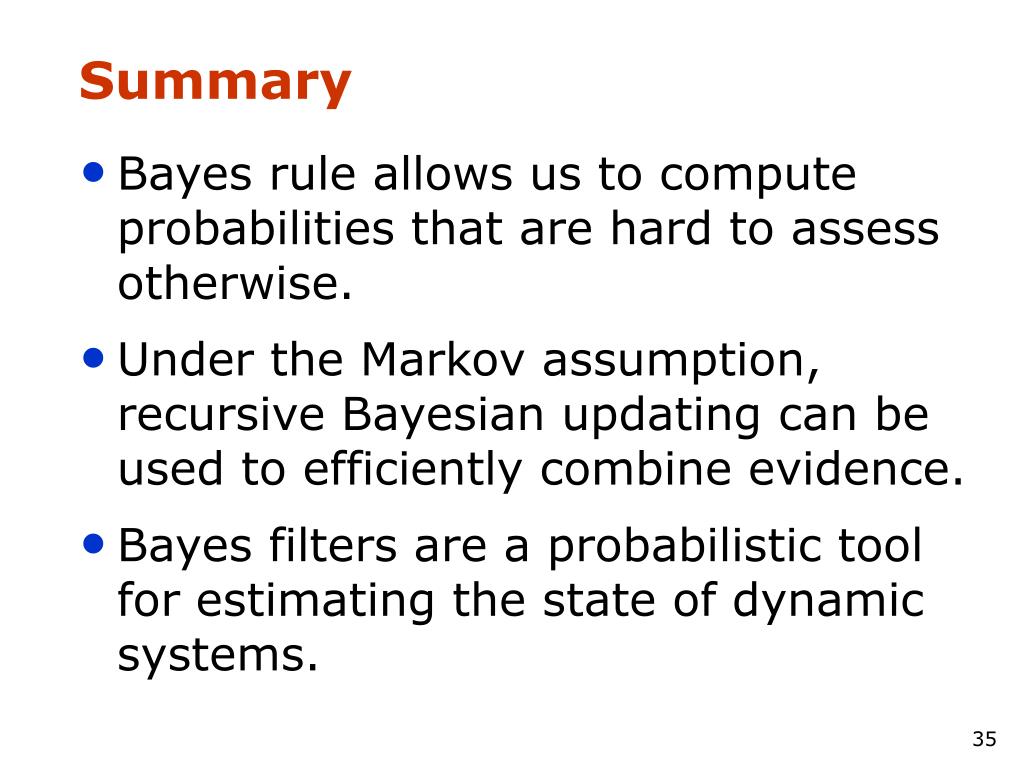

  35. Summary • Bayes rule allows us to compute probabilities that are hard to assess otherwise. • Under the Markov assumption, recursive Bayesian updating can be used to efficiently combine evidence. • Bayes filters are a probabilistic tool for estimating the state of dynamic systems.
