  1. Numerical Analysis of Critical Performance Parameters of the Sulzer Hexis Fuel Cell Stack Pascal Held, Thomas Hocker CCP – Center for Computational Physics ZHW – University of Applied Sciences Winterthur Winterthur, Switzerland Jeannette Frei, Jan Hoffmann Sulzer Hexis Ltd. Winterthur, Switzerland

  2. - Simulation - Software validation - Experimental setup - Hardware development - Program support - GUI development Introduction • 1998 the CCP starts with SOFC simulation • Goal: support of the HEXIS SOFC development with “virtual experiments” • Partners: • The Project is supported by the Swiss Commission for Technology and Innovation (KTI) Fuel Cells - Science and Technology 2004

  3. Contents • Environment • Volume Averaging Method • Model • Sensitivity Analysis • Results Fuel Cells - Science and Technology 2004

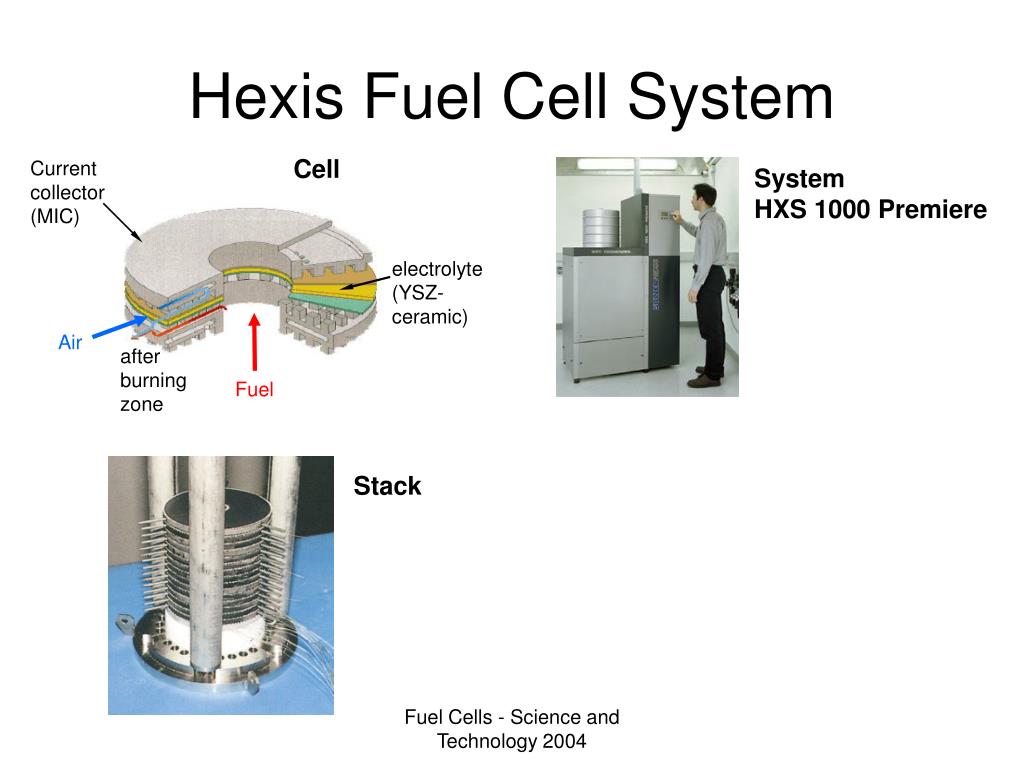

  4. Hexis Fuel Cell System Cell Current collector (MIC) SystemHXS 1000 Premiere electrolyte(YSZ-ceramic) Air after burning zone Fuel Stack Fuel Cells - Science and Technology 2004

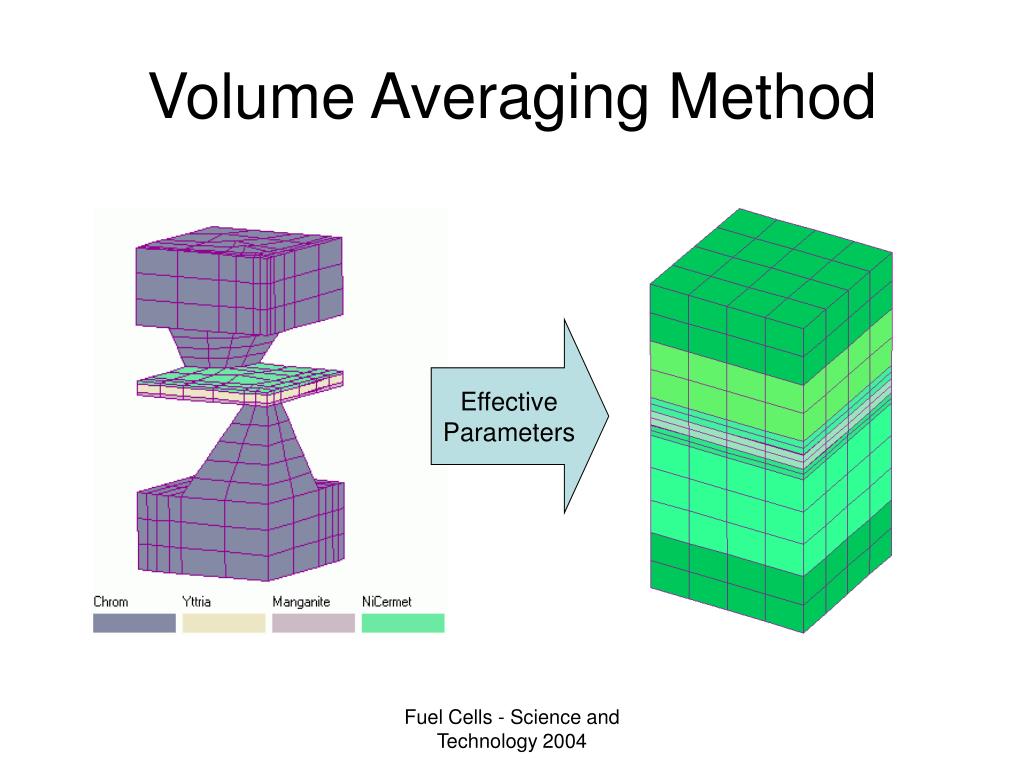

  5. Volume Averaging Method Effective Parameters Fuel Cells - Science and Technology 2004

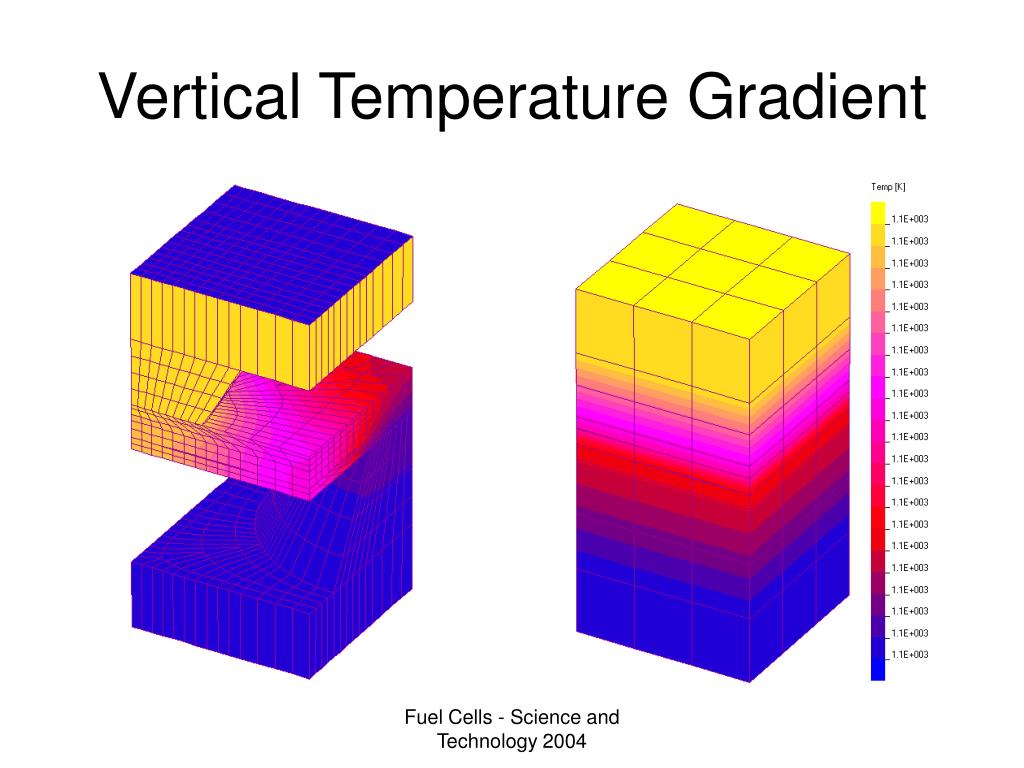

  6. Vertical Temperature Gradient Fuel Cells - Science and Technology 2004

  7. Horizontal Temperatur Gradient Fuel Cells - Science and Technology 2004

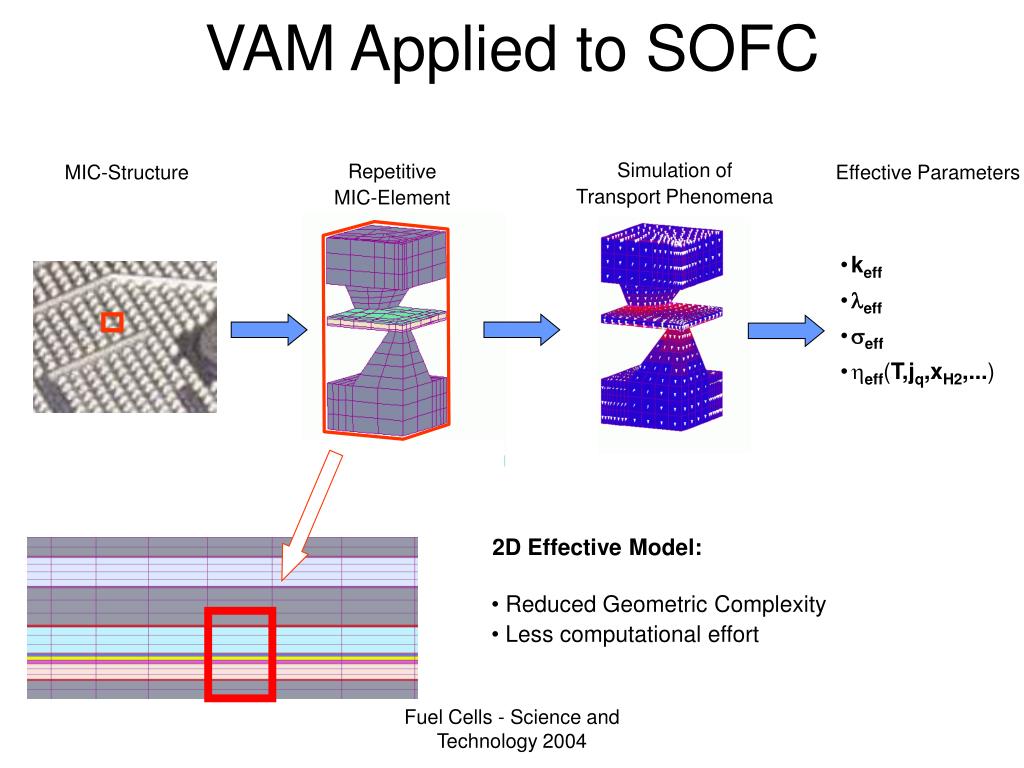

  8. RepetitiveMIC-Element VAM Applied to SOFC Simulation of Transport Phenomena MIC-Structure Effective Parameters • keff • eff • eff • eff(T,jq,xH2,...) 2D Effective Model: • Reduced Geometric Complexity • Less computational effort Fuel Cells - Science and Technology 2004

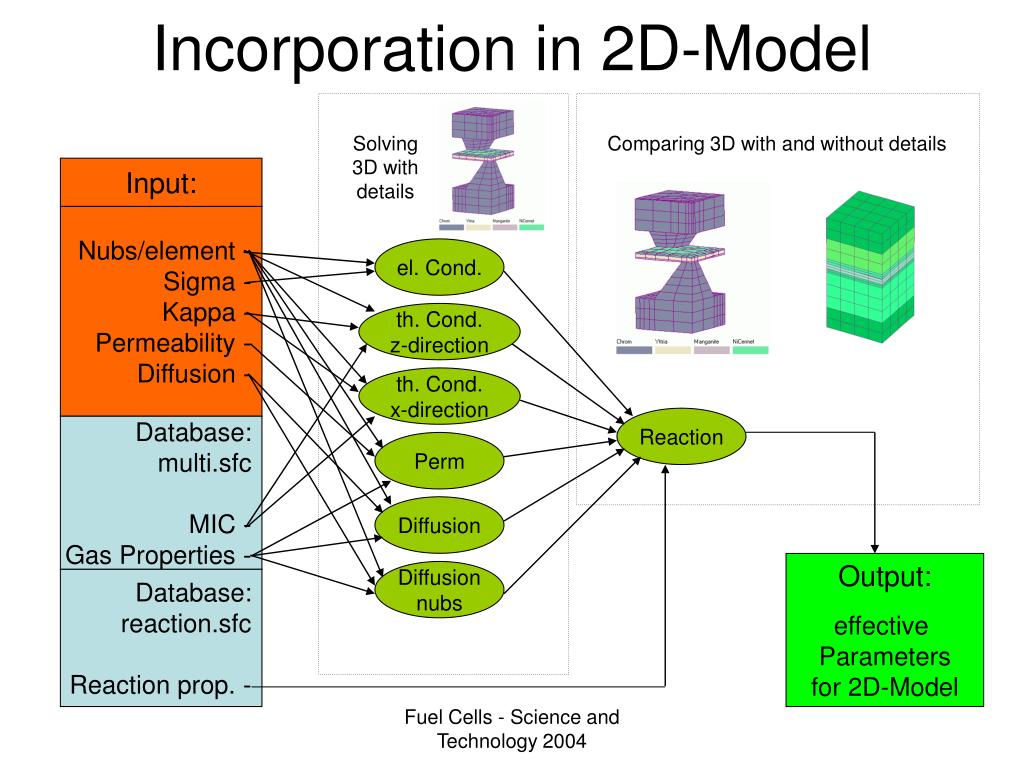

  9. Incorporation in 2D-Model Solving 3D with details Comparing 3D with and without details Input: Nubs/element - Sigma - Kappa - Permeability - Diffusion - el. Cond. th. Cond. z-direction th. Cond. x-direction Reaction Database: multi.sfc MIC - Gas Properties - Perm Diffusion Output: effective Parameters for 2D-Model Diffusion nubs Database: reaction.sfc Reaction prop. - Fuel Cells - Science and Technology 2004

  10. Parameter Variation Contact Resistance Different MIC-Designs Manganite RCont,Cath Nubs MIC Direct Hole Original Fuel Cells - Science and Technology 2004

  11. Sensitivity Analysis • Definition: Investigation into how projected performance varies along with changes in the key assumptions on which the projections are based. • Goals: Identify parameters of major importance to a) find out if more accurate measurements required b) concentrate on parameters with optimization potential Fuel Cells - Science and Technology 2004

  12. Procedure • Define upper and lower boundaries for input parameters (input parameters: material properties, geometries, operation condition) • Evaluate output variables for all possible combinations of input parameters • Statistical analysis of output variables Fuel Cells - Science and Technology 2004

  13. Input Variables Example: • Free Volume in Anode/Cathode (Diff_x) • Ion conductivity of Electrolyte (SigmaTKx) • Contact Resistance (Contact_x) DesignEase Screenshot Fuel Cells - Science and Technology 2004

  14. Required Simulations DesignEase Screenshot Follows 2n-law Fuel Cells - Science and Technology 2004

  15. Output Variables • According to optimization goals For example: • Area specific resistance (ASR) • Temperature Fuel Cells - Science and Technology 2004

  16. Results Parameter F (contact resistance cathode) has a major impact on overall performance Fuel Cells - Science and Technology 2004

  17. Further Information CCP-ZHW http://www.ccp.zhwin.ch Sulzer HEXIS Ltd. http://www.hexis.ch NM GmbH http://www.nmtec.ch NMSeses NMSeses (public domain version) with reduced capabilities is available under http://www.nmtec.ch Fuel Cells - Science and Technology 2004
