Presentation Transcript


Union pacific wind program

Union Pacific Wind Program

October 27, 2009


Wind energy supply chain

Farm

String

Nacelle

Hub

Blades

Tower

Base

section

Tower

mid

Section

Tower upper section

DtA = Down

Tower

Assembly

Wind Energy Supply Chain

1

Port or Plant

2

4

3

UPDS

Rail DC

Rail

6

5

PAD

Carriers


Union pacific wind program

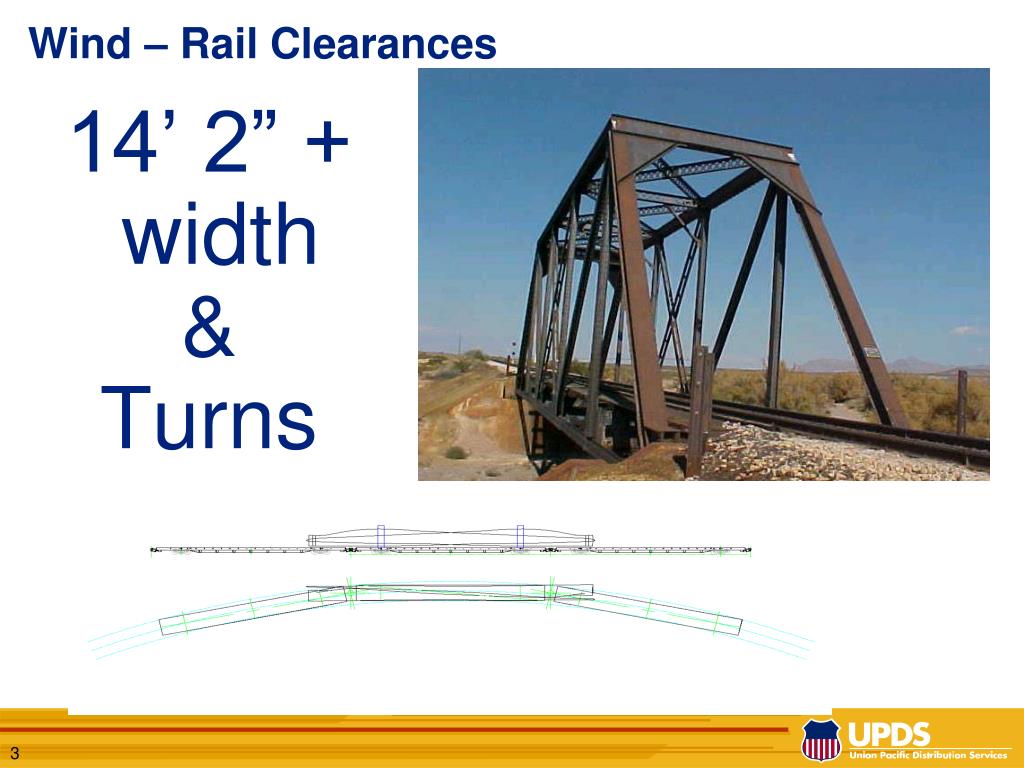

Wind – Rail Clearances

14’ 2” +

width

&

Turns


Union pacific wind program

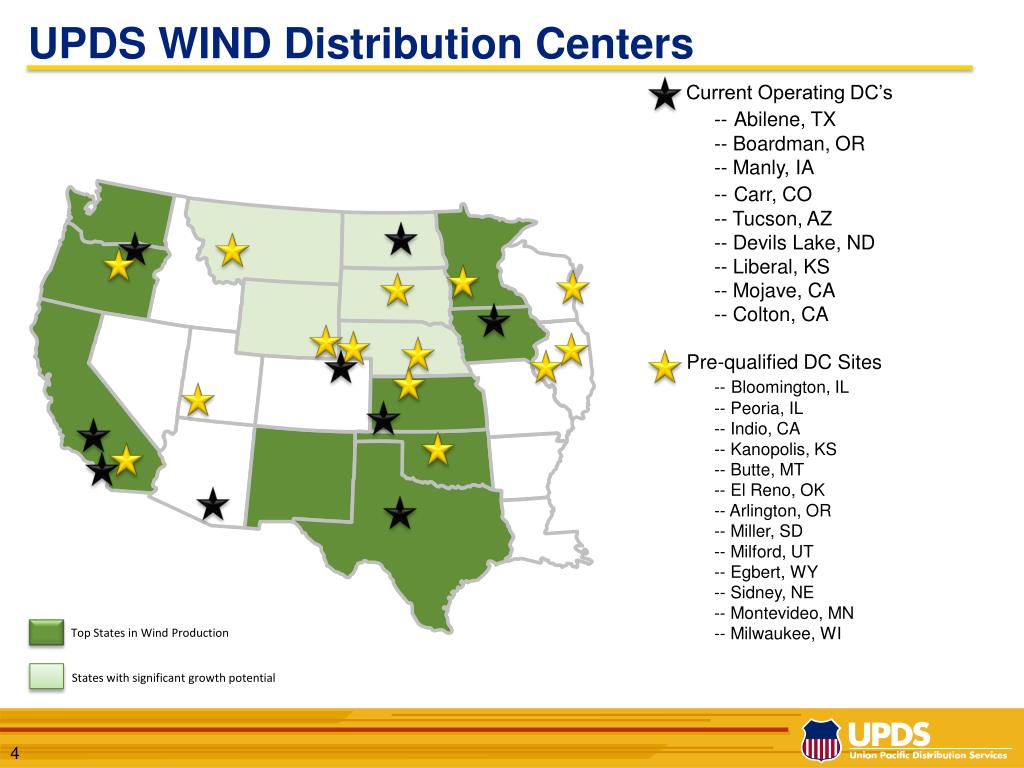

UPDS WIND Distribution Centers

  • Current Operating DC’s

    • --Abilene, TX

    • -- Boardman, OR

    • -- Manly, IA

    • --Carr, CO

    • -- Tucson, AZ

    • -- Devils Lake, ND

    • -- Liberal, KS

    • -- Mojave, CA

    • -- Colton, CA

  • Pre-qualified DC Sites

    • --Bloomington, IL

    • -- Peoria, IL

    • -- Indio, CA

    • -- Kanopolis, KS

    • -- Butte, MT

    • -- El Reno, OK

    • -- Arlington, OR

    • -- Miller, SD

    • -- Milford, UT

    • -- Egbert, WY

    • -- Sidney, NE

    • -- Montevideo, MN

    • -- Milwaukee, WI

Top States in Wind Production

States with significant growth potential


Manly iowa

Manly, Iowa


Short line universal tower fixtures

Short Line - Universal Tower Fixtures


Short line universal blade fixtures

Short Line – Universal Blade Fixtures
