mid atlantic crossroads max geni facility

Mid-Atlantic Crossroads (MAX) GENI Facility

Status Update

March 16, 2010

Tom Lehman

Xi Yang

Peter O\'Neil

Abdella Battou

integration of host and network slices
Integration of Host and Network Slices

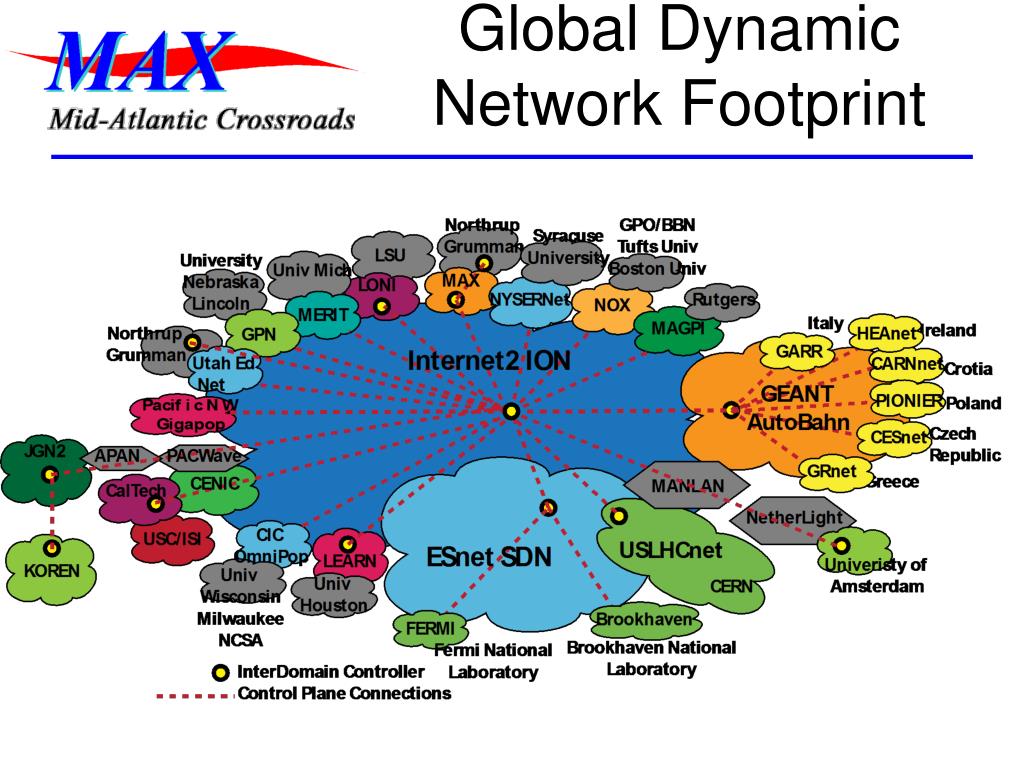

  • Leveraging deployed DRAGON and Global Dynamic Circuit Network for Global Reach
  • Also connected to ProtoGENI
max aggregate manager

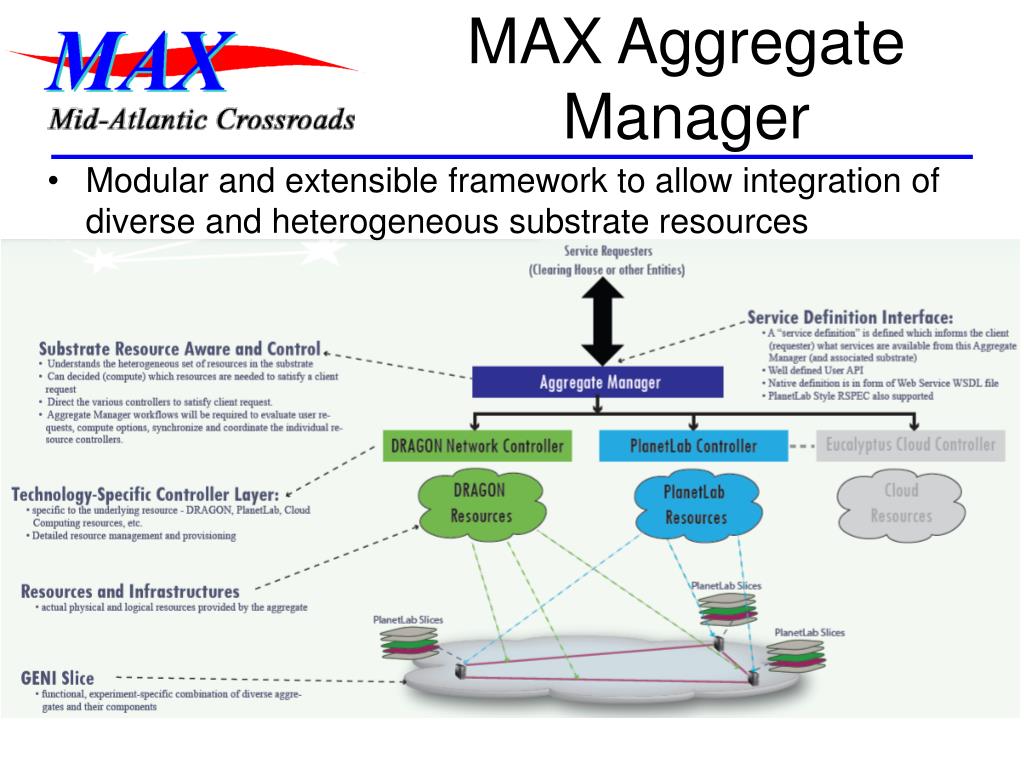

MAX Aggregate Manager
  • Modular and extensible framework to allow integration of diverse and heterogeneous substrate resources
max aggregate manager1

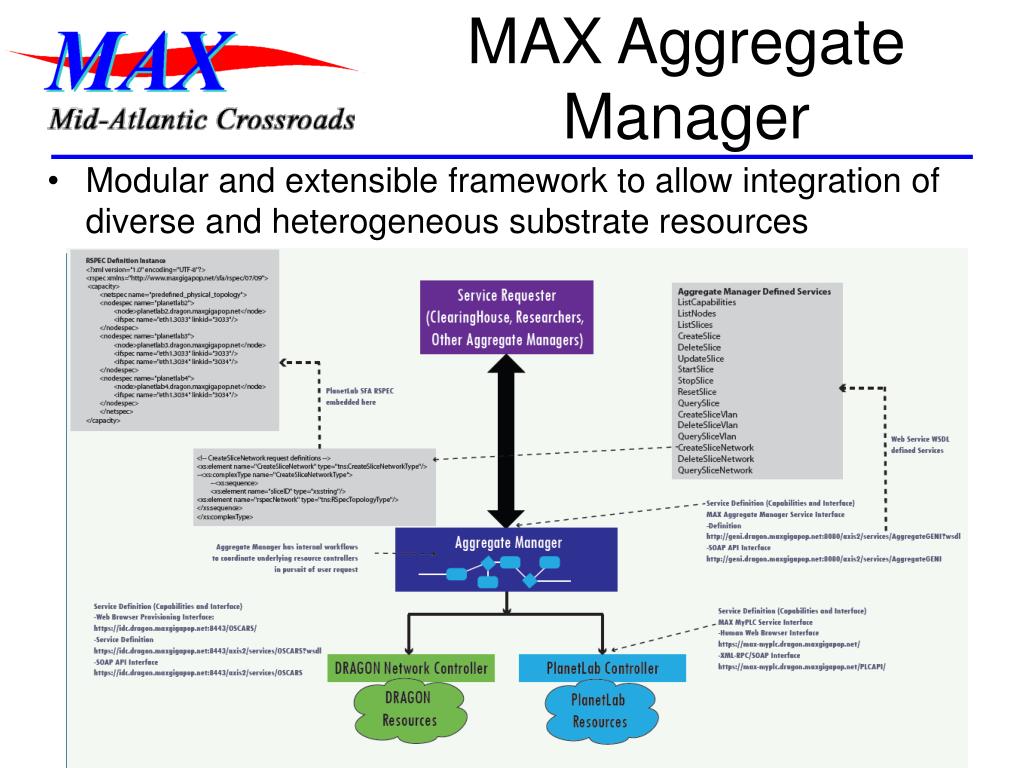

MAX Aggregate Manager
  • Modular and extensible framework to allow integration of diverse and heterogeneous substrate resources
max aggregate manager2

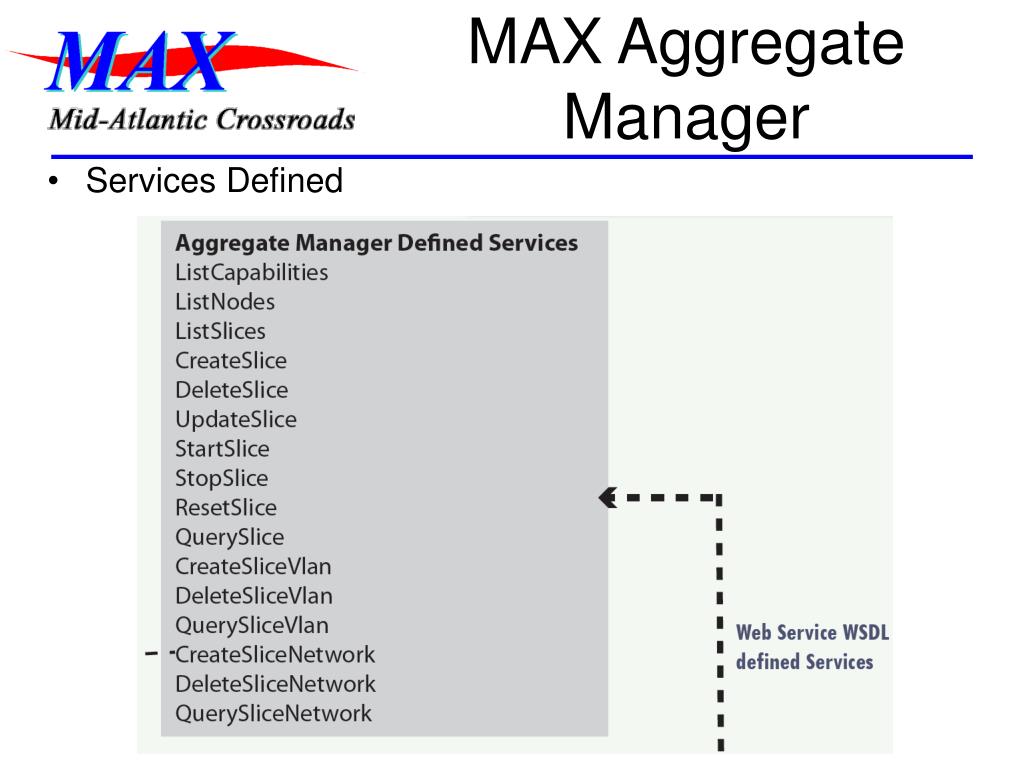

MAX Aggregate Manager
  • Services Defined
max rspec
MAX RSPEC
  • Services Defined
cross domain stitching

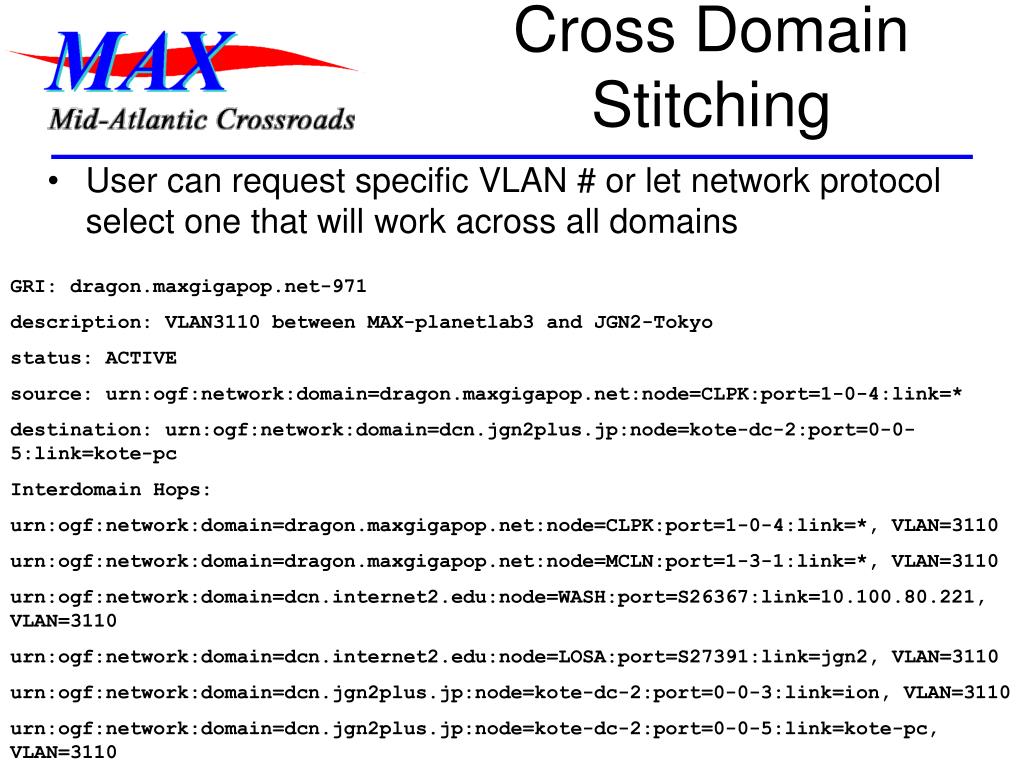

Cross Domain Stitching
  • User can request specific VLAN # or let network protocol select one that will work across all domains

GRI: dragon.maxgigapop.net-971

description: VLAN3110 between MAX-planetlab3 and JGN2-Tokyo

status: ACTIVE

source: urn:ogf:network:domain=dragon.maxgigapop.net:node=CLPK:port=1-0-4:link=*

destination: urn:ogf:network:domain=dcn.jgn2plus.jp:node=kote-dc-2:port=0-0-5:link=kote-pc

Interdomain Hops:

urn:ogf:network:domain=dragon.maxgigapop.net:node=CLPK:port=1-0-4:link=*, VLAN=3110

urn:ogf:network:domain=dragon.maxgigapop.net:node=MCLN:port=1-3-1:link=*, VLAN=3110

urn:ogf:network:domain=dcn.internet2.edu:node=WASH:port=S26367:link=10.100.80.221, VLAN=3110

urn:ogf:network:domain=dcn.internet2.edu:node=LOSA:port=S27391:link=jgn2, VLAN=3110

urn:ogf:network:domain=dcn.jgn2plus.jp:node=kote-dc-2:port=0-0-3:link=ion, VLAN=3110

urn:ogf:network:domain=dcn.jgn2plus.jp:node=kote-dc-2:port=0-0-5:link=kote-pc, VLAN=3110

slide11
More Information:

http://geni.maxgigapop.net
