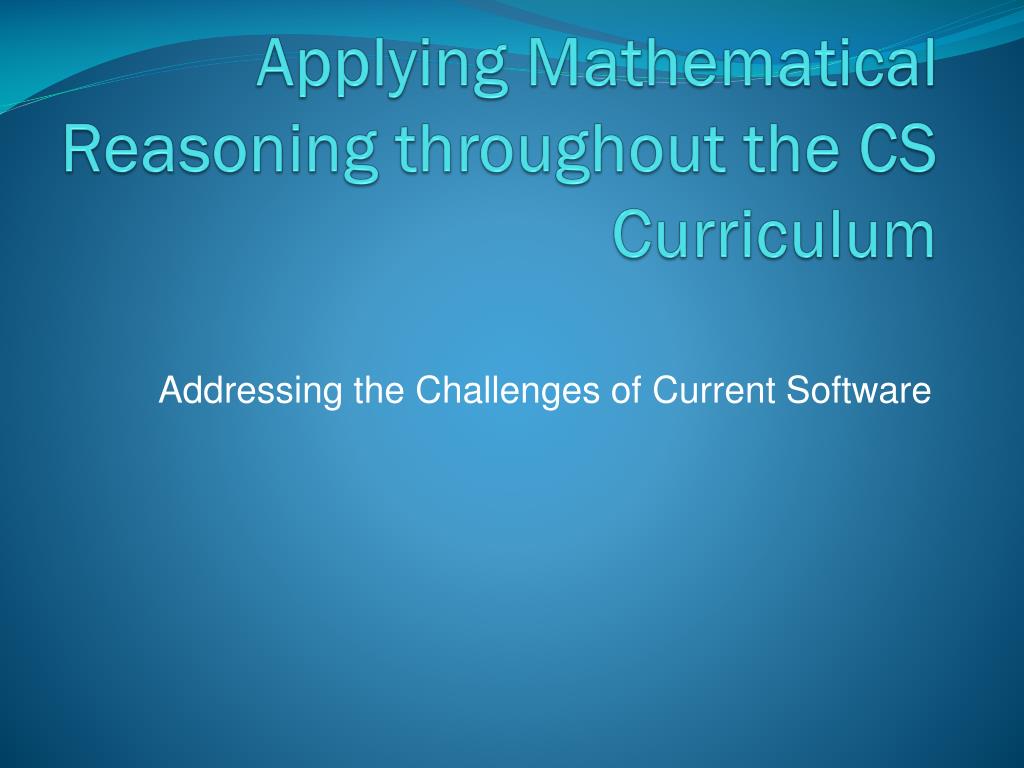

  1. Applying Mathematical Reasoning throughout the CS Curriculum Addressing the Challenges of Current Software

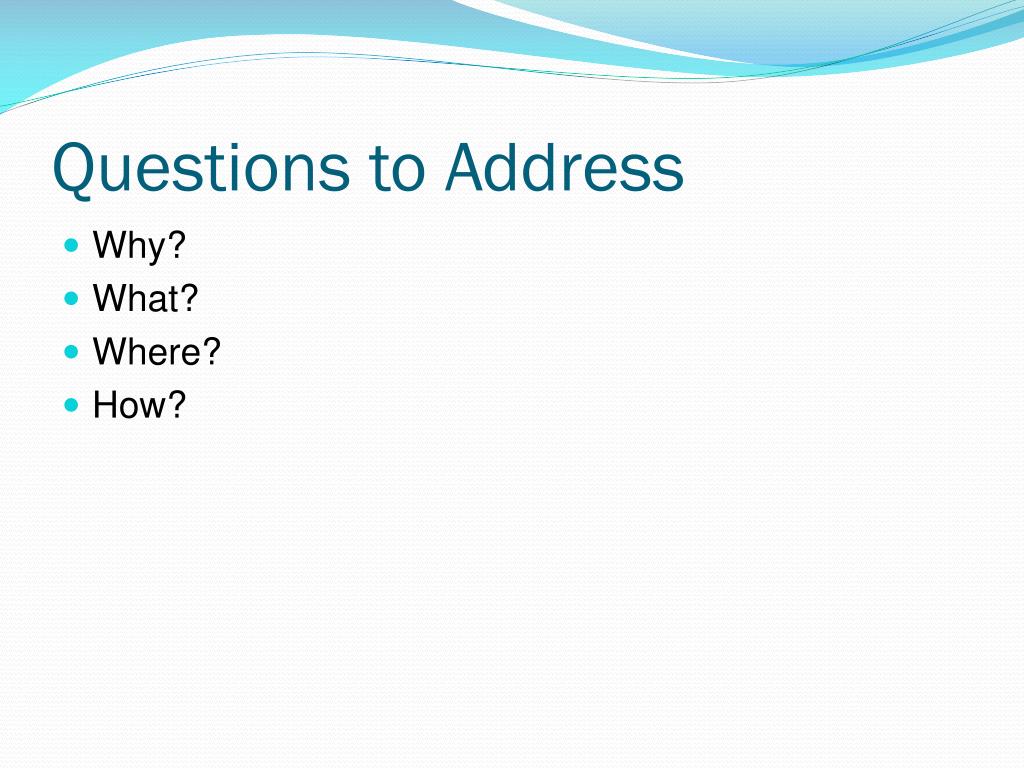

  2. Questions to Address • Why? • What? • Where? • How?

  3. Some Work • Binary search specifications • Java • C++ • Any other language • Are the algorithms correct? • Do the implementations work? • What’s the difference?

  4. Why? • Current software is too large for one person to understand. • Students need tools for dealing with all sizes of projects. • Maintenance makes up the majority of jobs. • Students need to separate specifications from implementations.

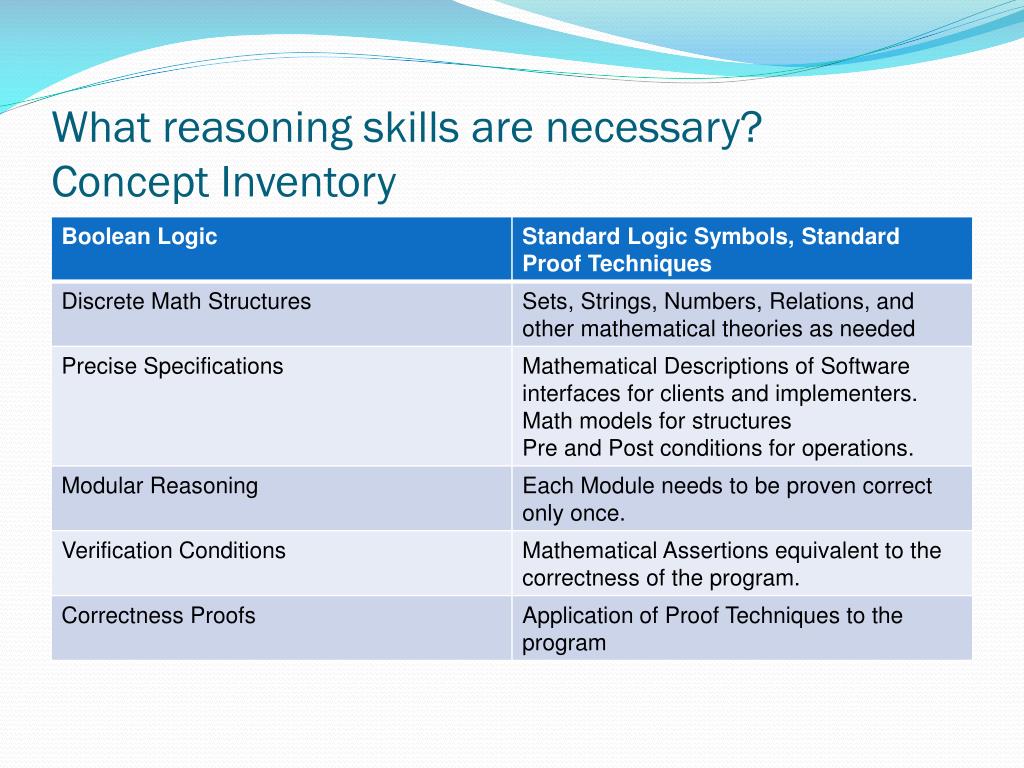

  5. What reasoning skills are necessary?Concept Inventory

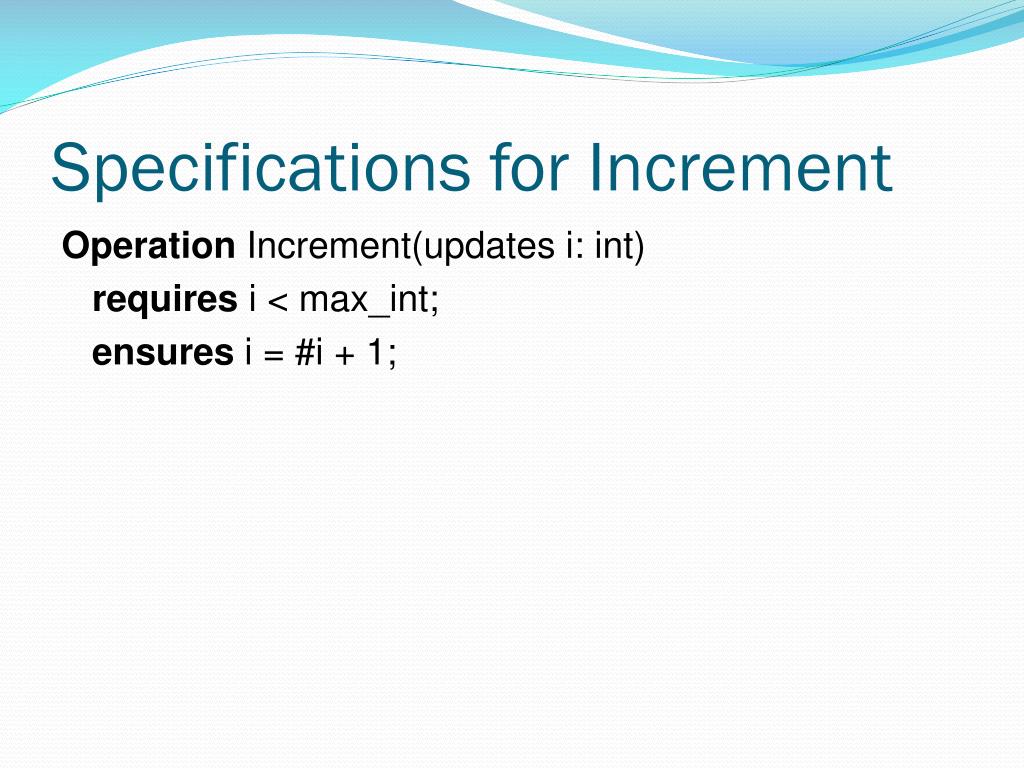

  6. Specifications for Increment Operation Increment(updates i: int) requires i < max_int; ensures i = #i + 1;

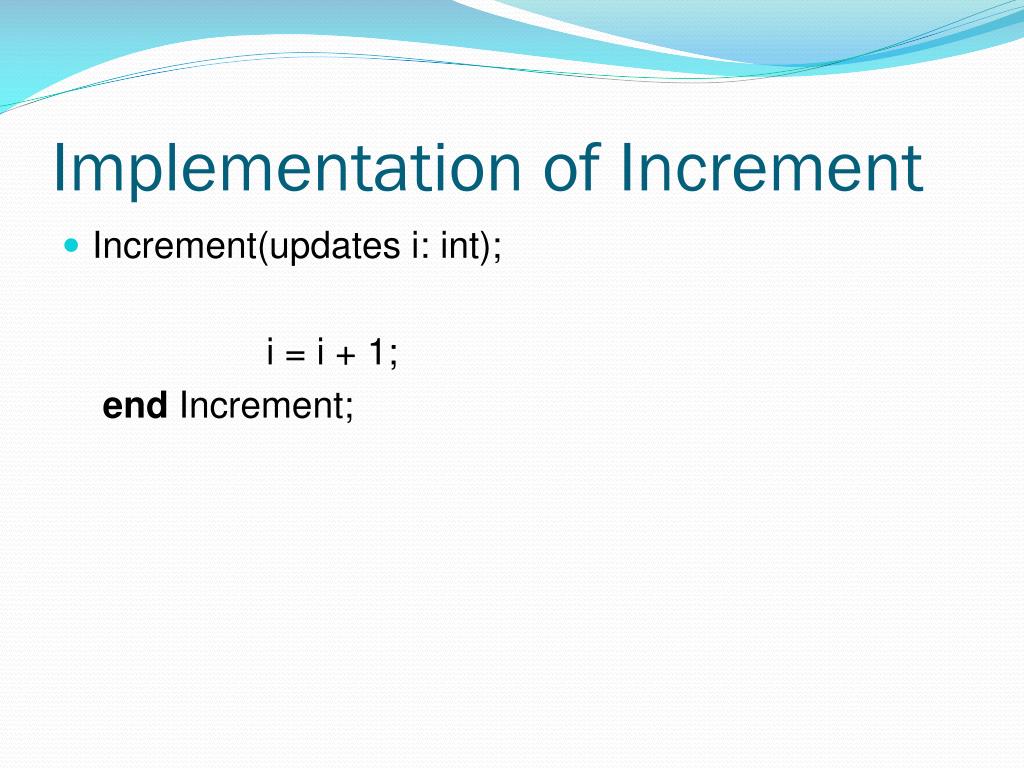

  7. Implementation of Increment • Increment(updates i: int); i = i + 1; end Increment;

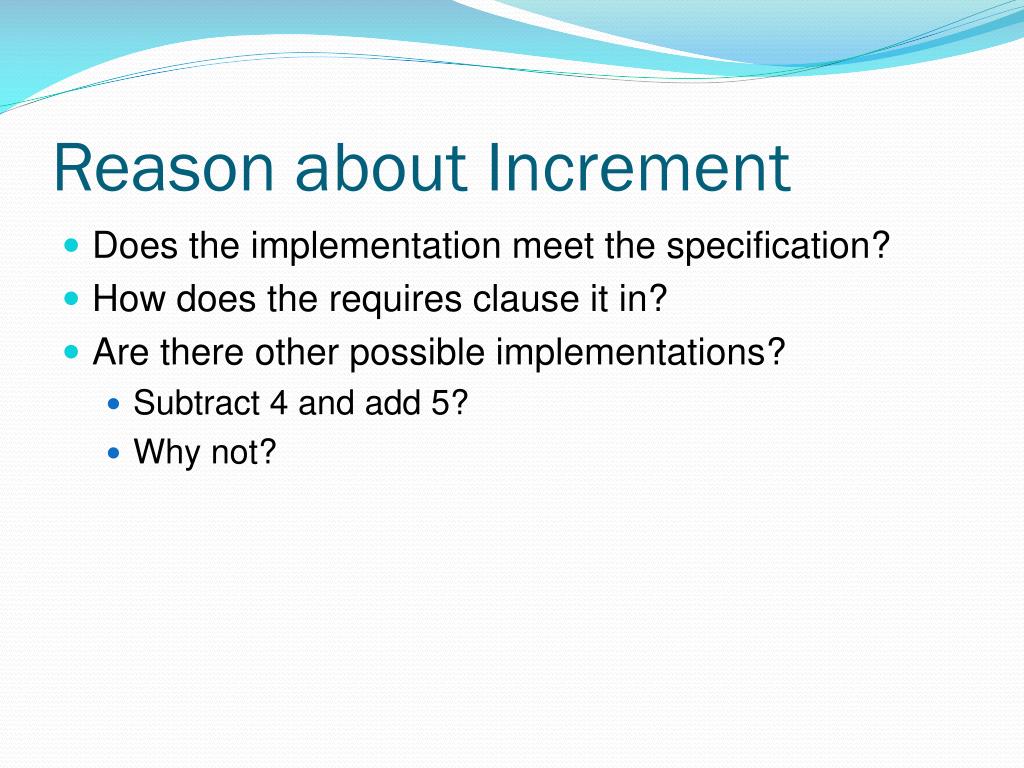

  8. Reason about Increment • Does the implementation meet the specification? • How does the requires clause it in? • Are there other possible implementations? • Subtract 4 and add 5? • Why not?

  9. Work • Write specifications for Decrement (requires and ensures clauses) • Write an implementation assuming that there is a built in minus for integers.

  10. Work • Specify (write requires and ensures clauses )an operation that receives an integer and returns the value of that integer plus two. • Implement your operation assuming you can access the operation “Increment.”

  11. OperationPlusTwo(updatesi: int); requiresi < max_int – 1; ensuresi = #i + 2; PlusTwo( updatesi: int) Increment(i); Increment(i); endPlusTwo

  12. Reason about the Program

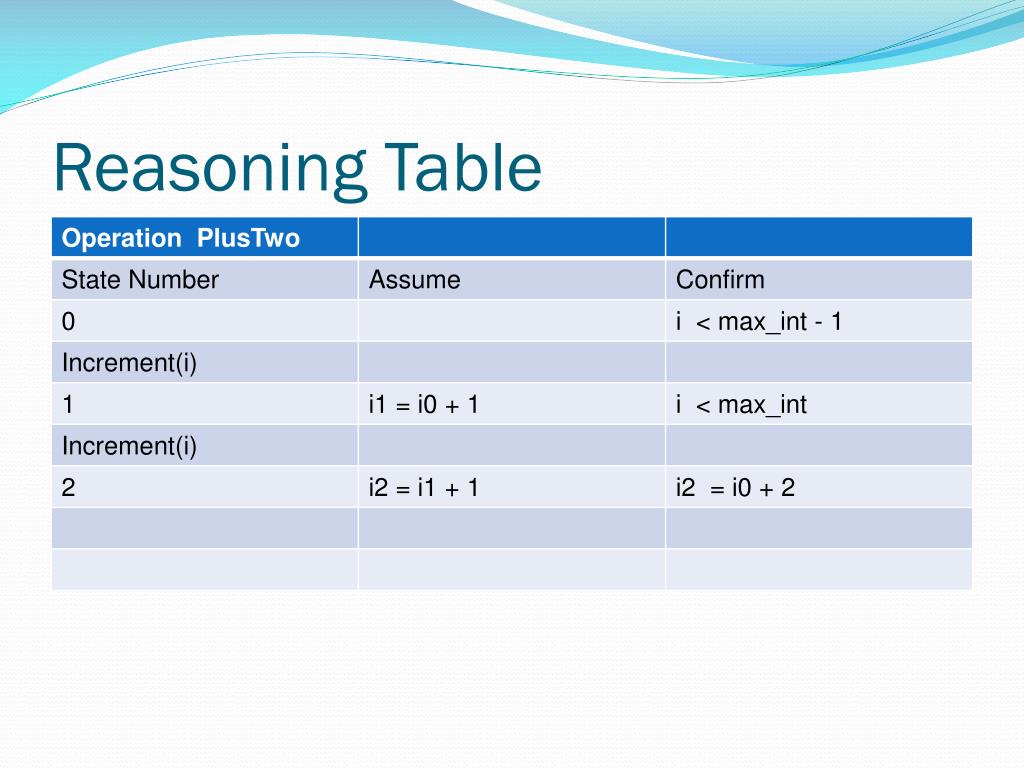

  13. Reasoning Table

  14. Work Specification: Operation Exchange(updates I, J: Integer); ensures I = #J and J = #I; Code: Procedure Exchange(updates I, J: Integer); I := Sum(I, J); J := Difference(I, J); I := Difference(I, J); End Exchange;

  15. Are the Specs Sufficient? • What about min_int and max_int? • Add a requires clause

  16. Need to Know Operation Difference (updates I: int, preserves J: int); requires I – J < max_int and I – J > min_int; ensures I = I – J; Operation Sum (updates I: int, preserves J: int); requires I + J < max_int and I + J > min_int; ensures I = I + J;

  17. Reasoning Table Operation Exchange

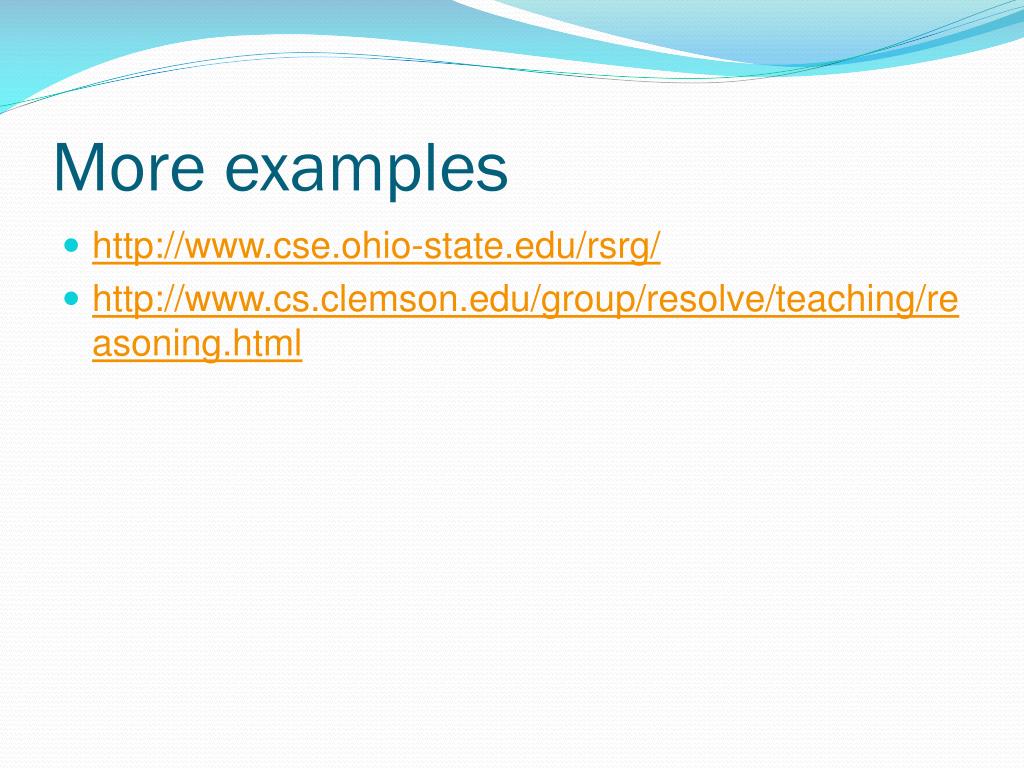

  18. More examples • http://www.cse.ohio-state.edu/rsrg/ • http://www.cs.clemson.edu/group/resolve/teaching/reasoning.html

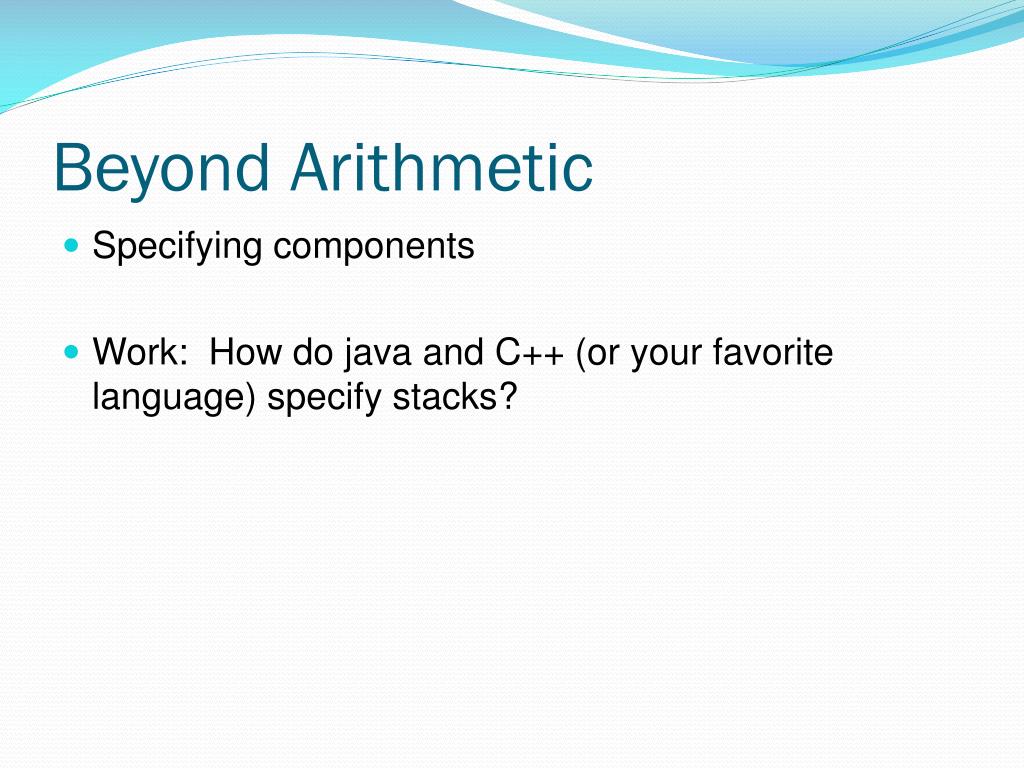

  19. Beyond Arithmetic • Specifying components • Work: How do java and C++ (or your favorite language) specify stacks?

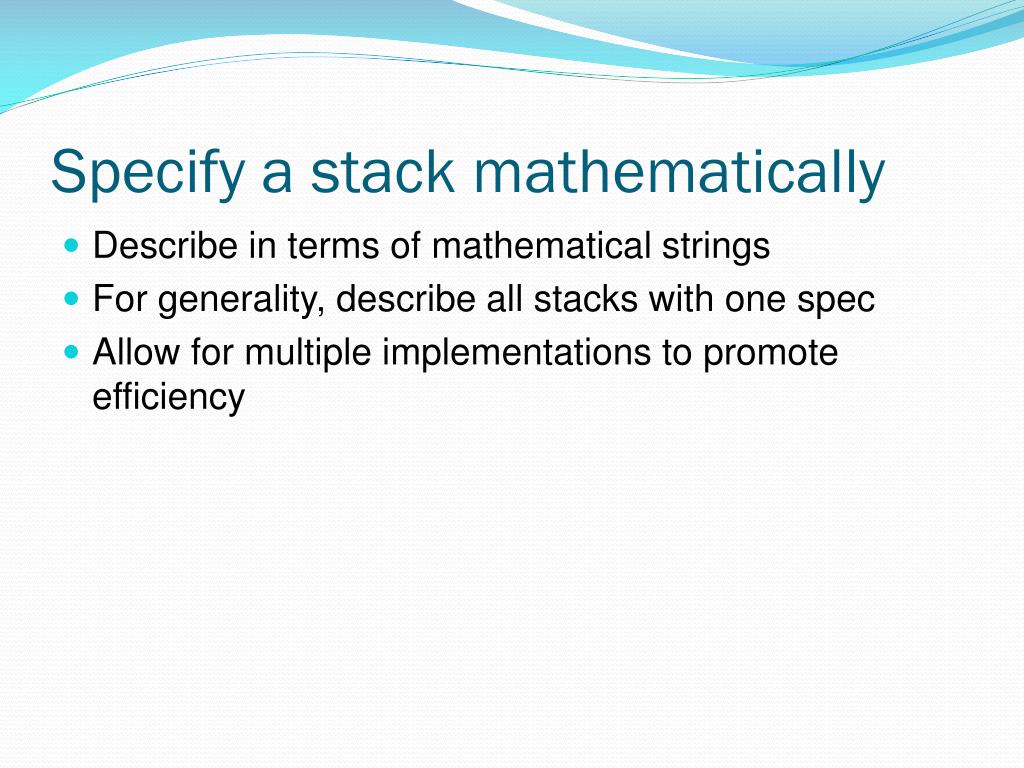

  20. Specify a stack mathematically • Describe in terms of mathematical strings • For generality, describe all stacks with one spec • Allow for multiple implementations to promote efficiency

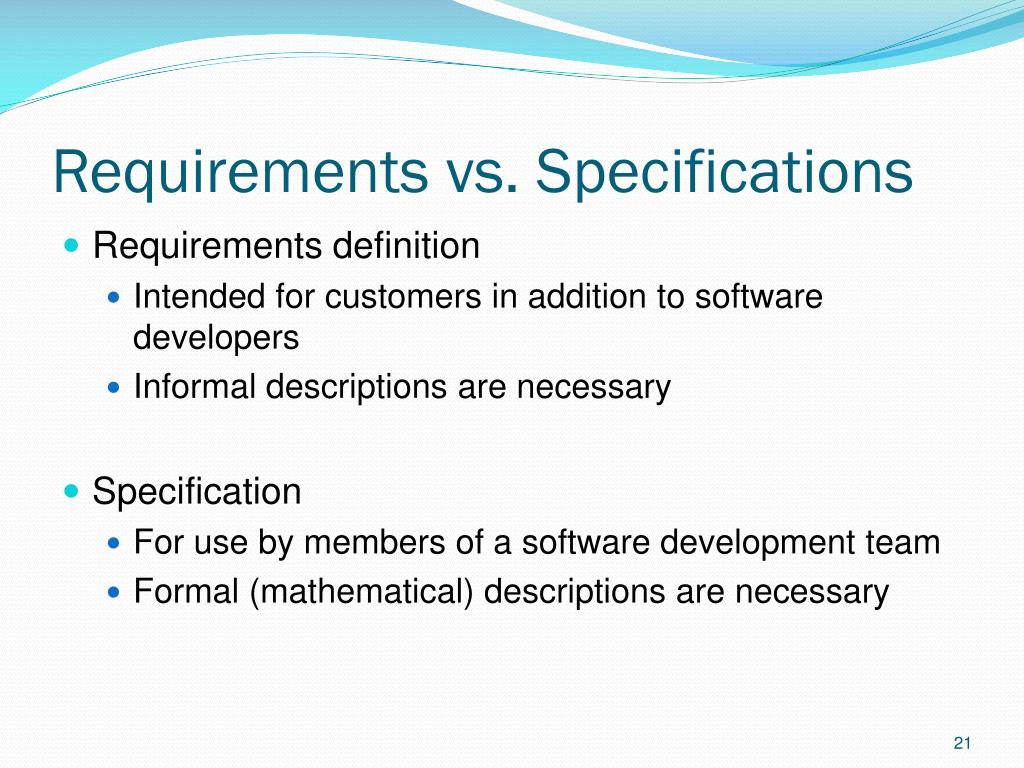

  21. Requirements vs. Specifications • Requirements definition • Intended for customers in addition to software developers • Informal descriptions are necessary • Specification • For use by members of a software development team • Formal (mathematical) descriptions are necessary

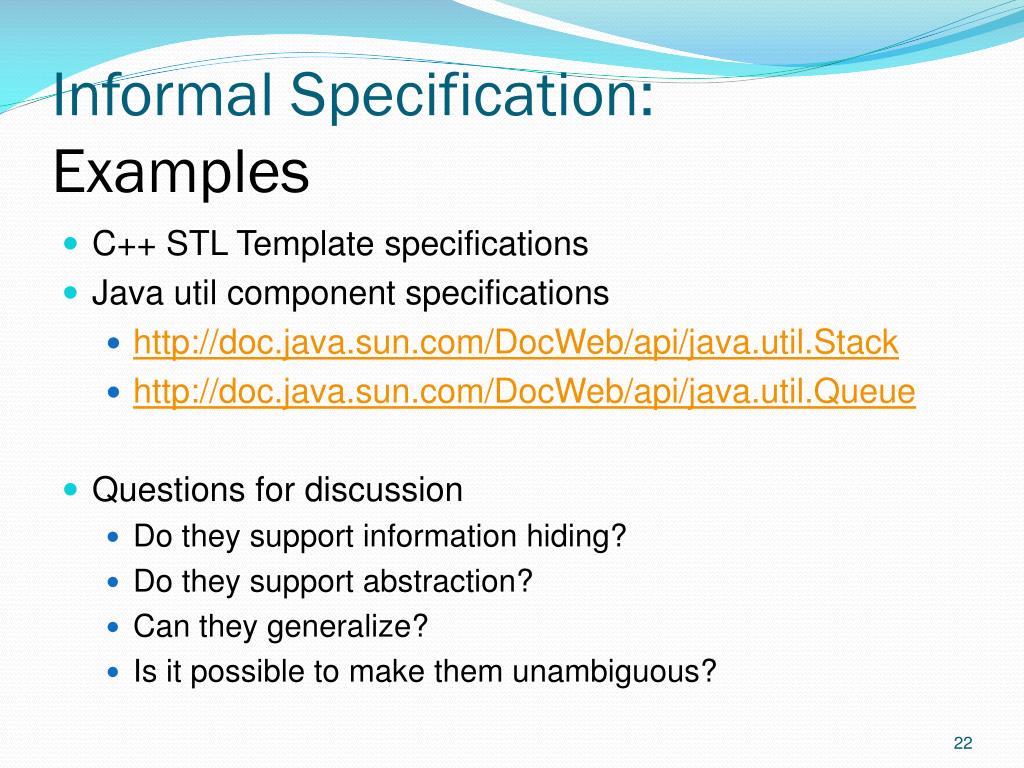

  22. Informal Specification:Examples • C++ STL Template specifications • Java util component specifications • http://doc.java.sun.com/DocWeb/api/java.util.Stack • http://doc.java.sun.com/DocWeb/api/java.util.Queue • Questions for discussion • Do they support information hiding? • Do they support abstraction? • Can they generalize? • Is it possible to make them unambiguous?

  23. Informal Specifications • Straightforward descriptions • Push pushes an item onto the top of this stack • How much do they help? • Use of metaphors • A Queue is like a line at a fast food restaurant • Do they generalize? • Use of implementation details • Push behaves like addElement method on Vector • Is this appropriate for a user-oriented cover story?

  24. Formal Interface Specification • Communicates precisely the demands and responsibilities to component users and developers • Allows for independent development of client and implementation components in parallel in a team environment • Minimizes integration costs

  25. Reasoning Benefits • Formal Specifications make it possible to formally reason about correctness of software • Such reasoning may be manual or mechanical (i.e. with automate support)

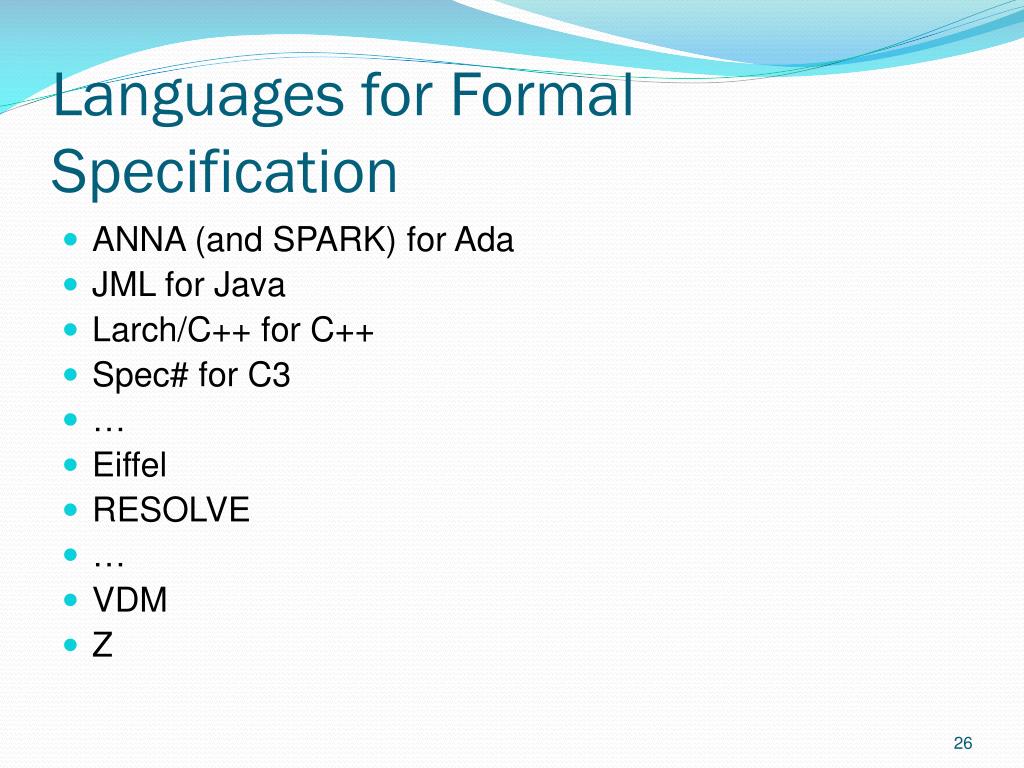

  26. Languages for Formal Specification • ANNA (and SPARK) for Ada • JML for Java • Larch/C++ for C++ • Spec# for C3 • … • Eiffel • RESOLVE • … • VDM • Z

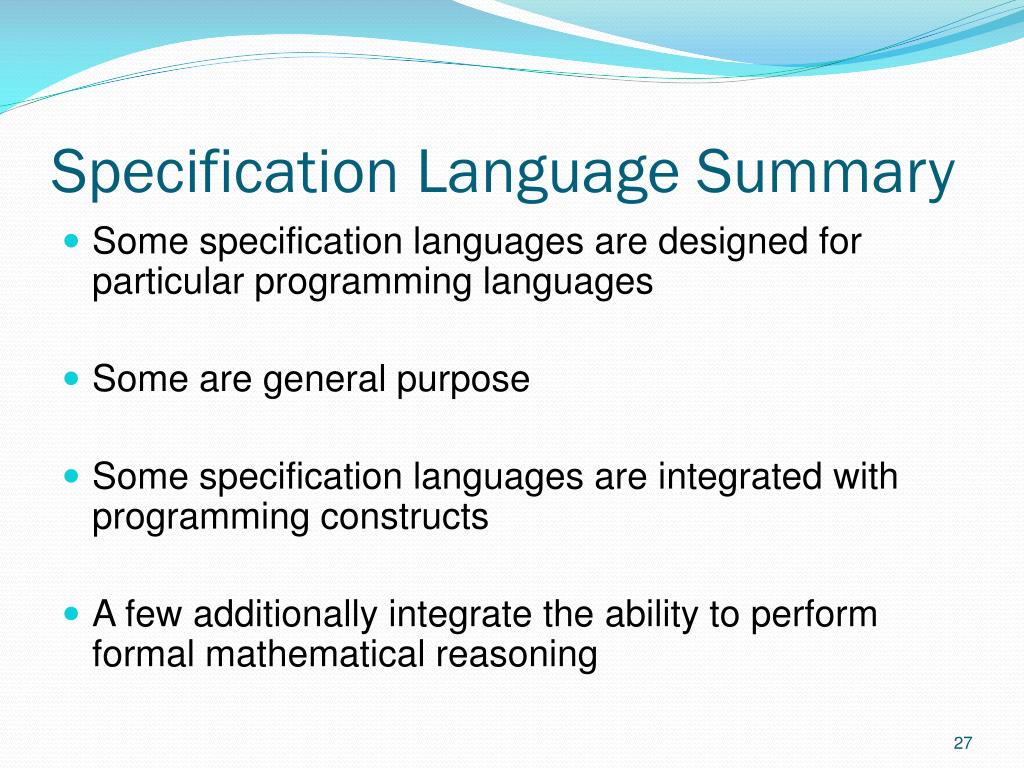

  27. Specification Language Summary • Some specification languages are designed for particular programming languages • Some are general purpose • Some specification languages are integrated with programming constructs • A few additionally integrate the ability to perform formal mathematical reasoning

  28. Meaning of Specifications • Requirements and guarantees • Requires clauses are preconditions • Ensures clauses are postconditions • Callers are responsible for requirements • Caller of Increment is responsible for making sure I < max_int • Guarantees hold only if callers meet their requirements

  29. Mathematical Strings • Unlike sets, strings have order • Example: Str(Z) for String of integers • Notations • Empty string (written: empty_string or L) • Concatenation: alpha o beta • Length (written: |alpha| ) • String containing one entry (e.g., <5>)

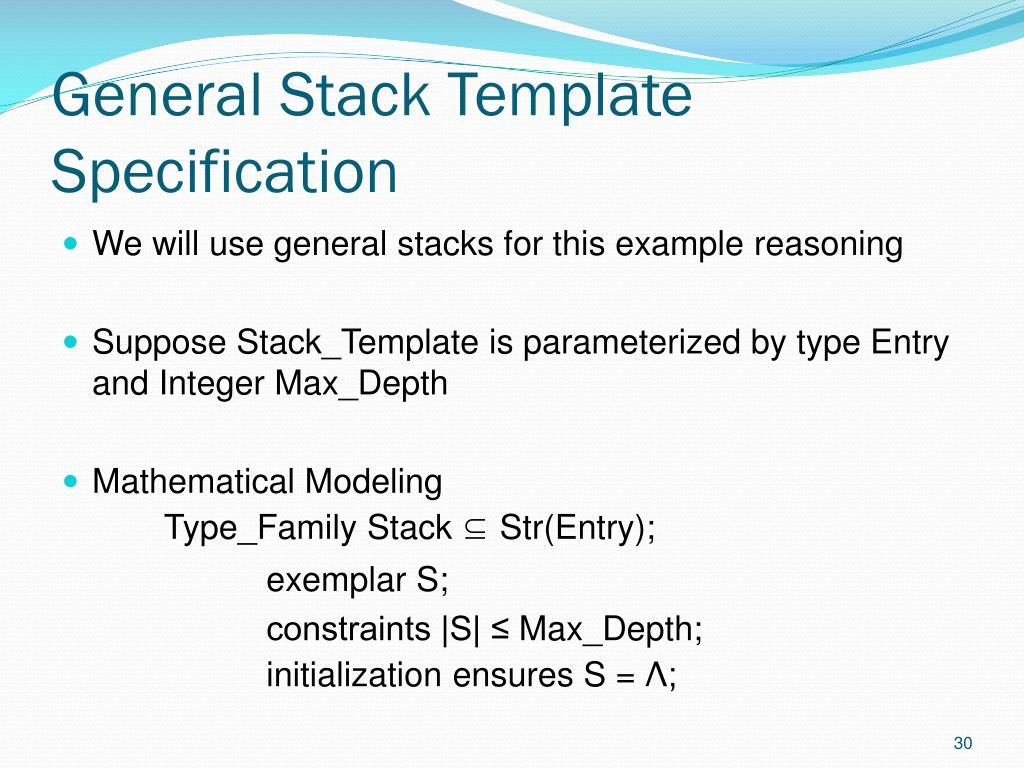

  30. General Stack Template Specification • We will use general stacks for this example reasoning • Suppose Stack_Template is parameterized by type Entry and Integer Max_Depth • Mathematical Modeling Type_FamilyStack ⊆ Str(Entry); exemplar S; constraints |S| ≤ Max_Depth; initialization ensures S = Λ;

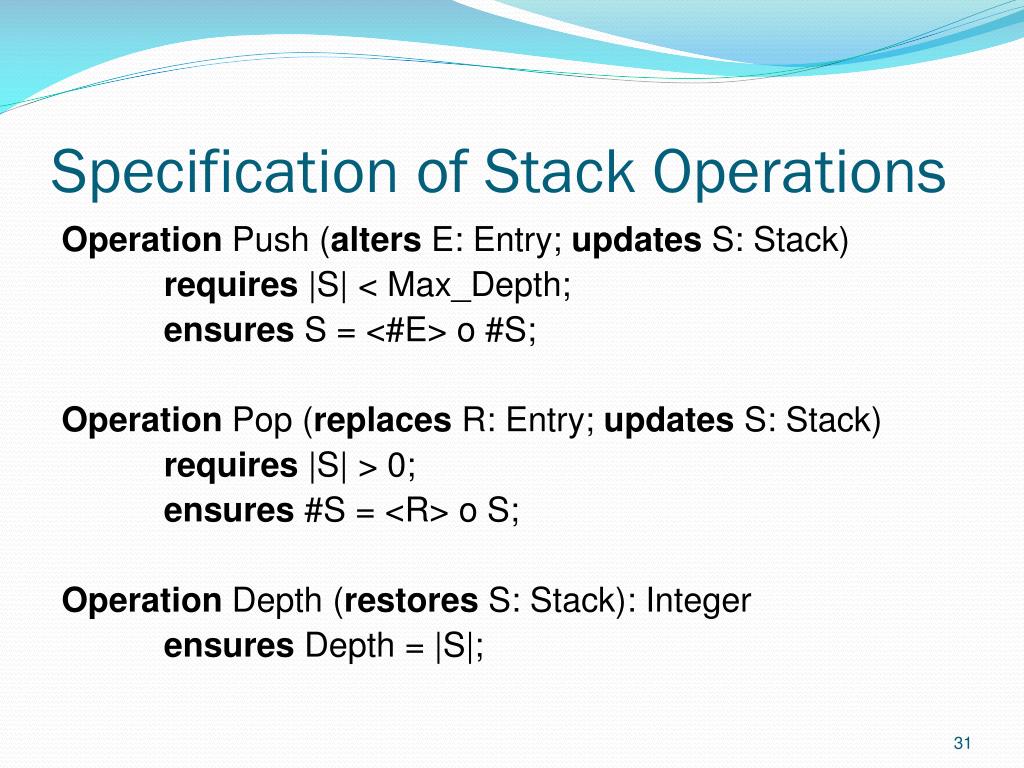

  31. Specification of Stack Operations Operation Push (alters E: Entry; updates S: Stack) requires |S| < Max_Depth; ensures S = <#E> o #S; Operation Pop (replaces R: Entry; updates S: Stack) requires |S| > 0; ensures #S = <R> o S; Operation Depth (restores S: Stack): Integer ensures Depth = |S|;

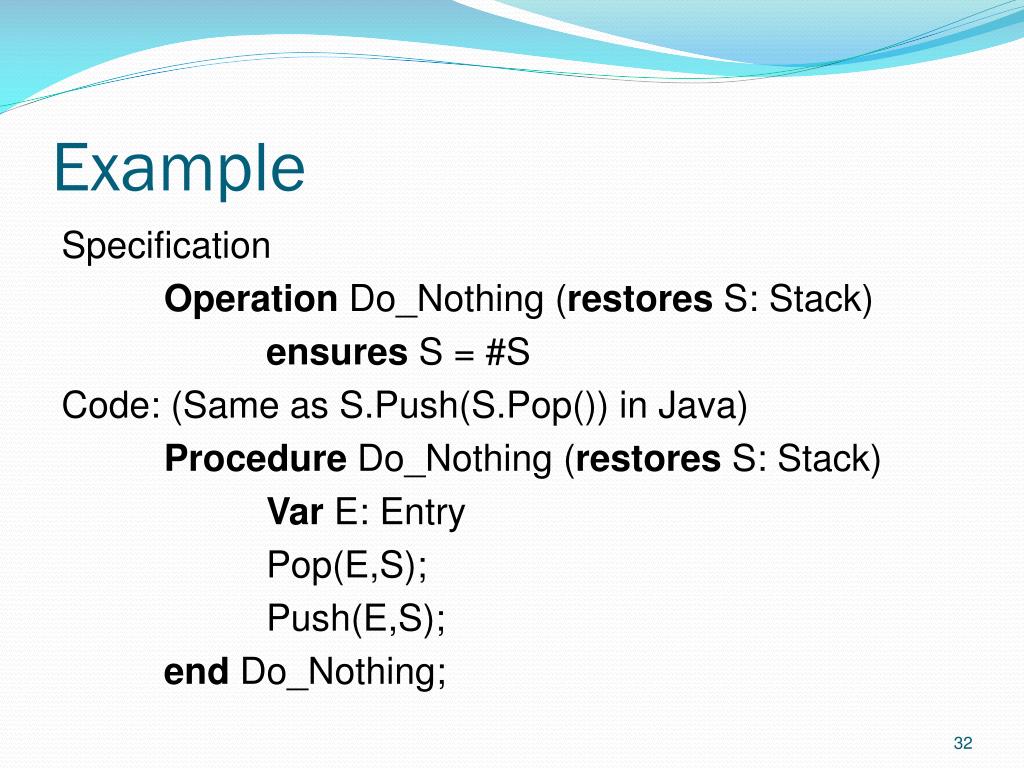

  32. Example Specification OperationDo_Nothing (restores S: Stack) ensures S = #S Code: (Same as S.Push(S.Pop()) in Java) ProcedureDo_Nothing (restores S: Stack) Var E: Entry Pop(E,S); Push(E,S); endDo_Nothing;

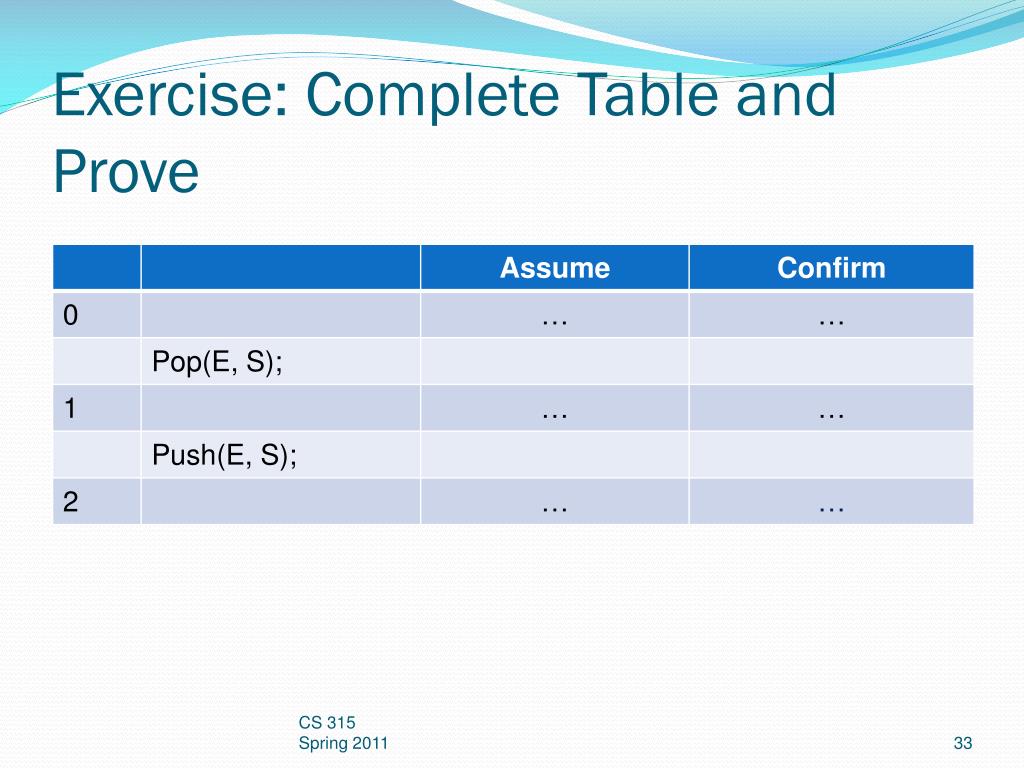

  33. Exercise: Complete Table and Prove CS 315 Spring 2011

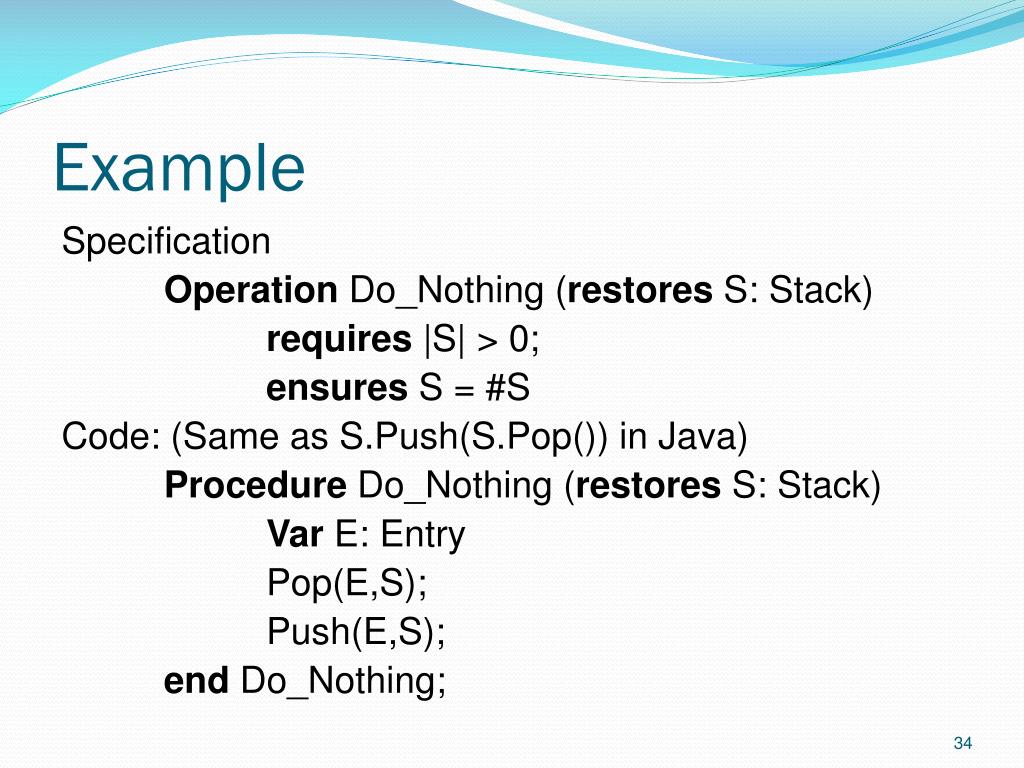

  34. Example Specification OperationDo_Nothing (restores S: Stack) requires |S| > 0; ensures S = #S Code: (Same as S.Push(S.Pop()) in Java) ProcedureDo_Nothing (restores S: Stack) Var E: Entry Pop(E,S); Push(E,S); endDo_Nothing;

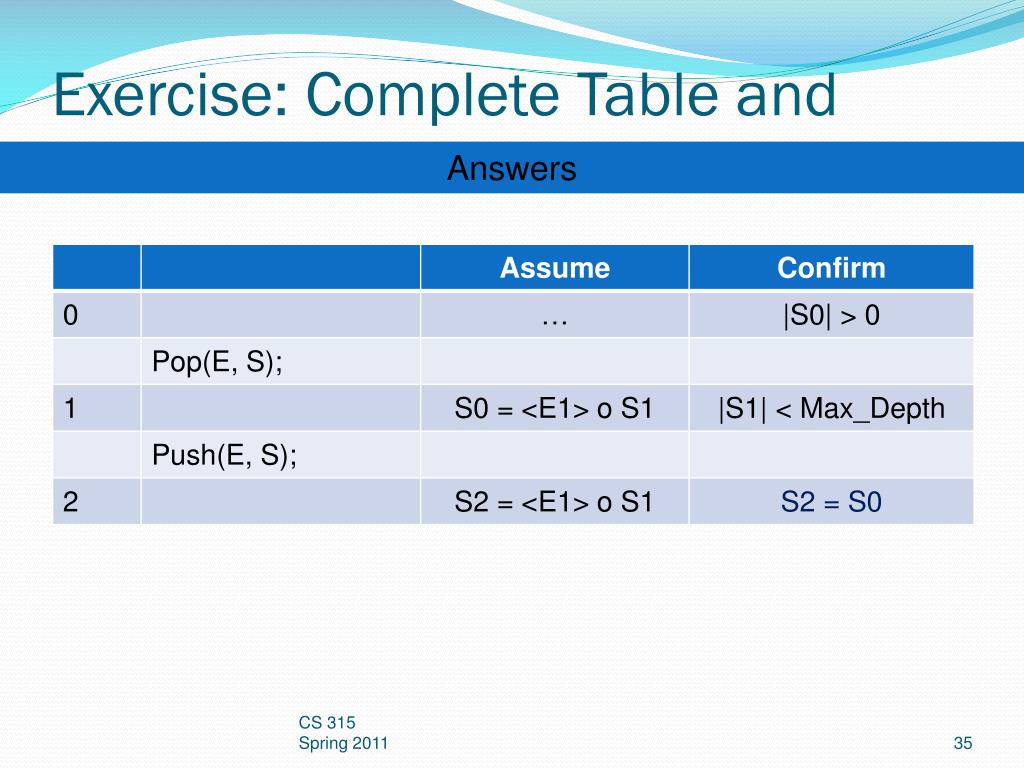

  35. Exercise: Complete Table and Prove Answers CS 315 Spring 2011

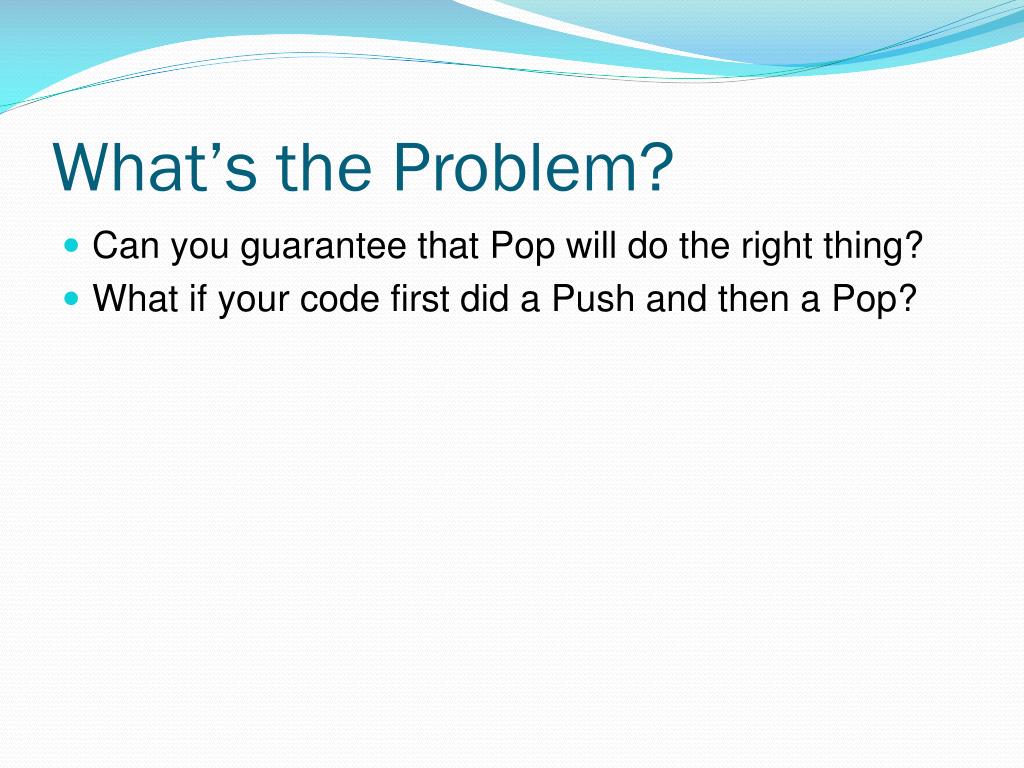

  36. What’s the Problem? • Can you guarantee that Pop will do the right thing? • What if your code first did a Push and then a Pop?

  37. Work • Write a generic specification for Queues.

  38. Generic Component Examples • http://resolve.cs.clemson.edu/interface/

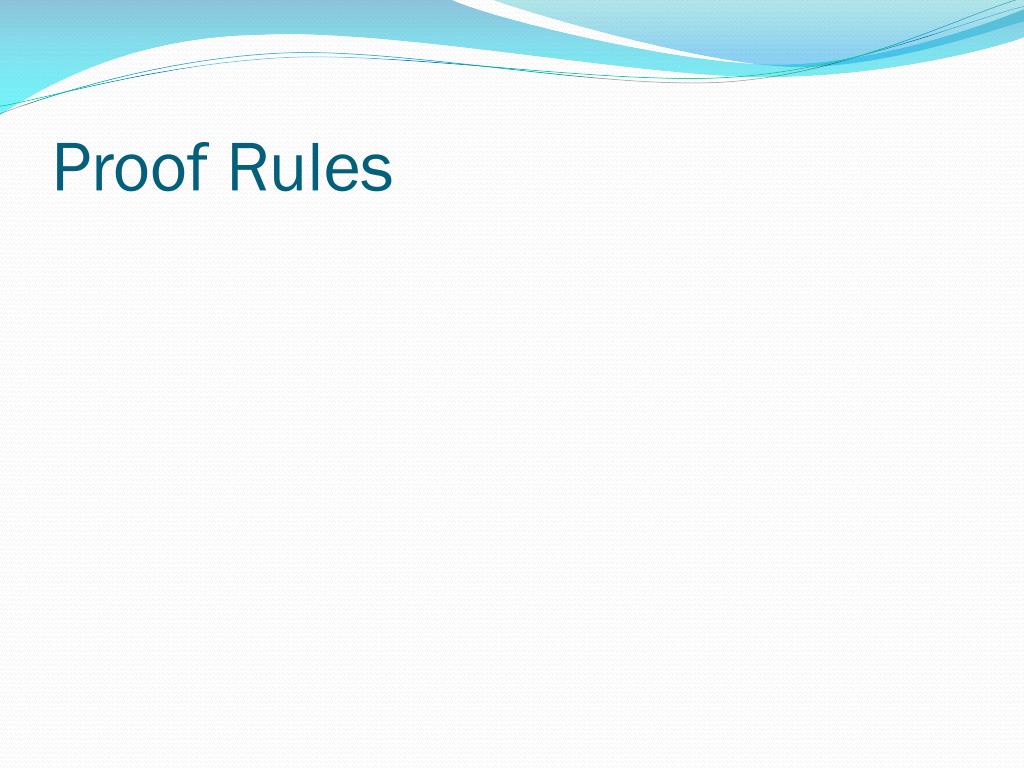

  39. Proof Rules

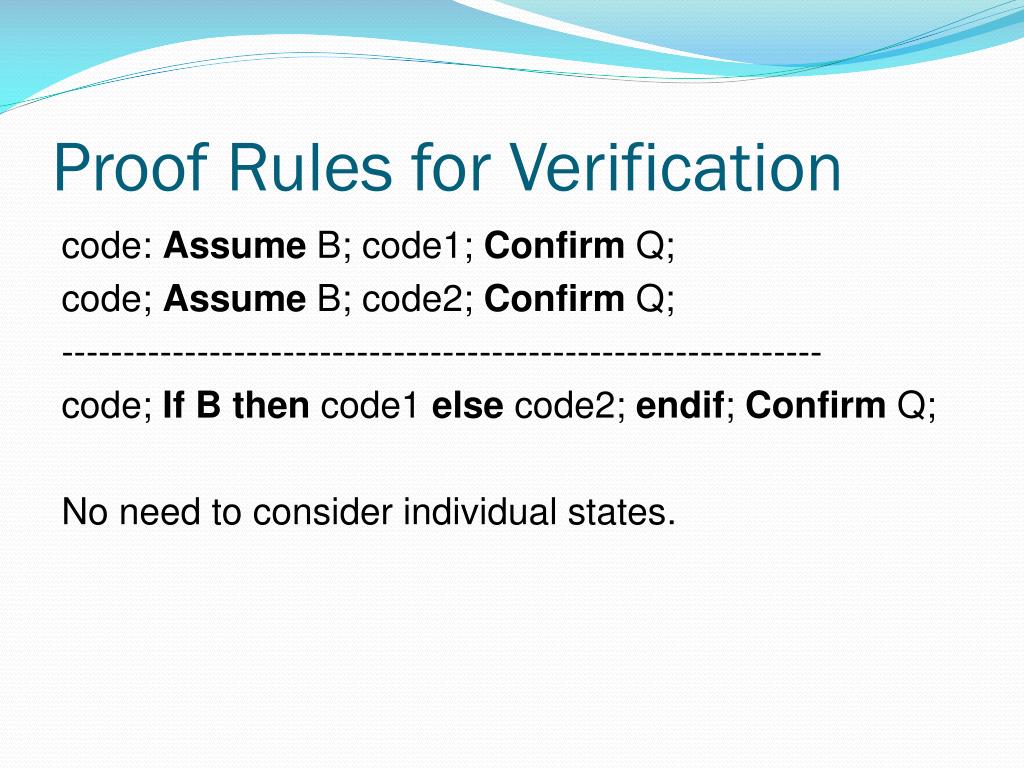

  40. Proof Rules for Verification code: Assume B; code1; Confirm Q; code; Assume B; code2; Confirm Q; -------------------------------------------------------------- code; If B then code1 else code2; endif; Confirm Q; No need to consider individual states.

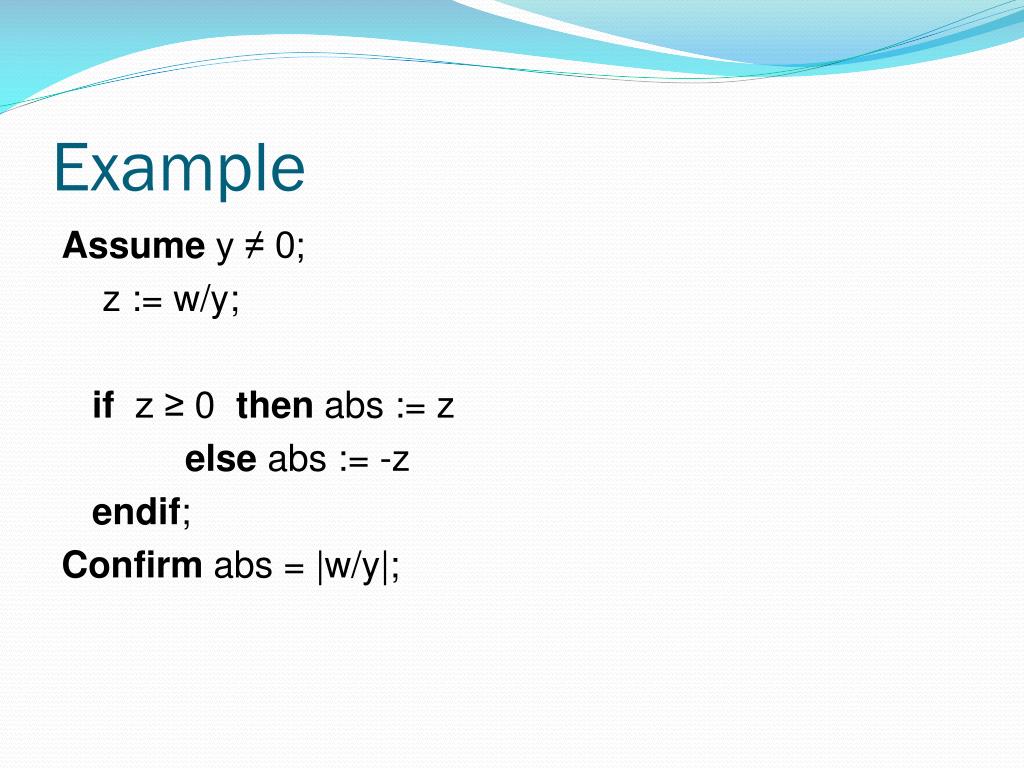

  41. Example Assume y ≠ 0; z := w/y; if z ≥0 then abs := z else abs := -z endif; Confirm abs = |w/y|;

  42. Apply the rule automatically (1) Assume y ≠ 0; z := w/y; Assume z ≥0 ; abs := z; Confirm abs = |w/y|; (2) Assume y ≠ 0; z := w/y; Assume (z ≥0); abs := z; Confirm abs = |w/y|;
