  1. Mine Pump Control TSW November 2009 Anders P. Ravn Aalborg University

  2. OOAD Development steps • Problem Domain Analysis • Application Domain Analysis • Architectural Design • Timing Analysis • Detailed Design • Implementation • Validation

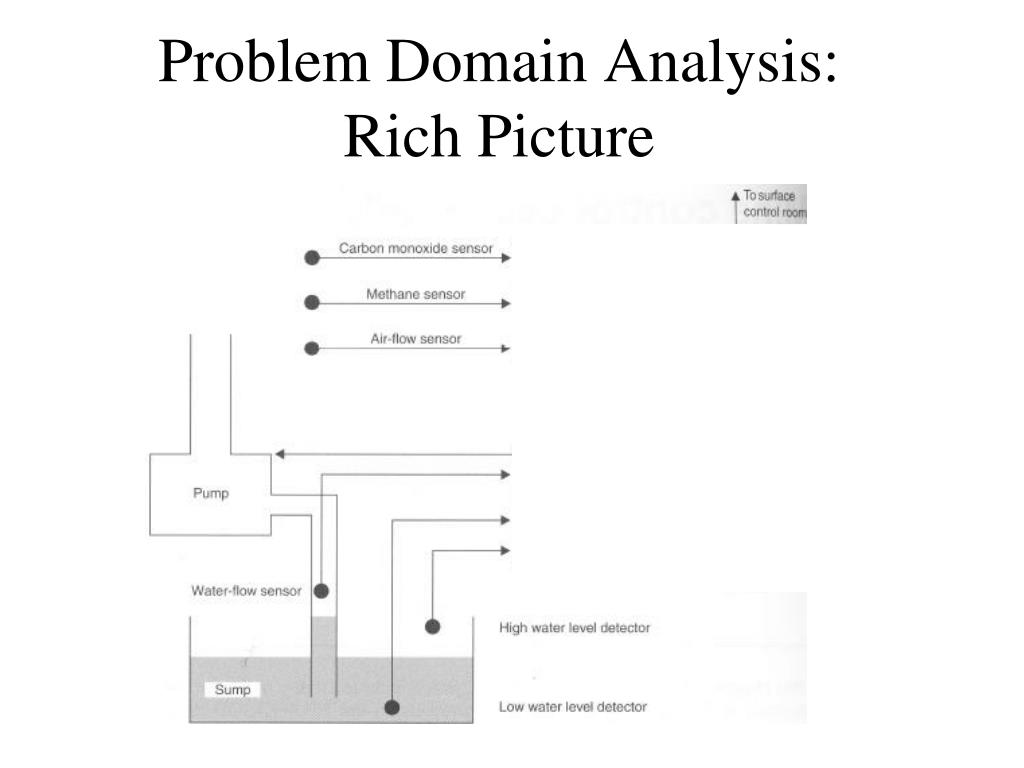

  3. Problem Domain Analysis:Rich Picture

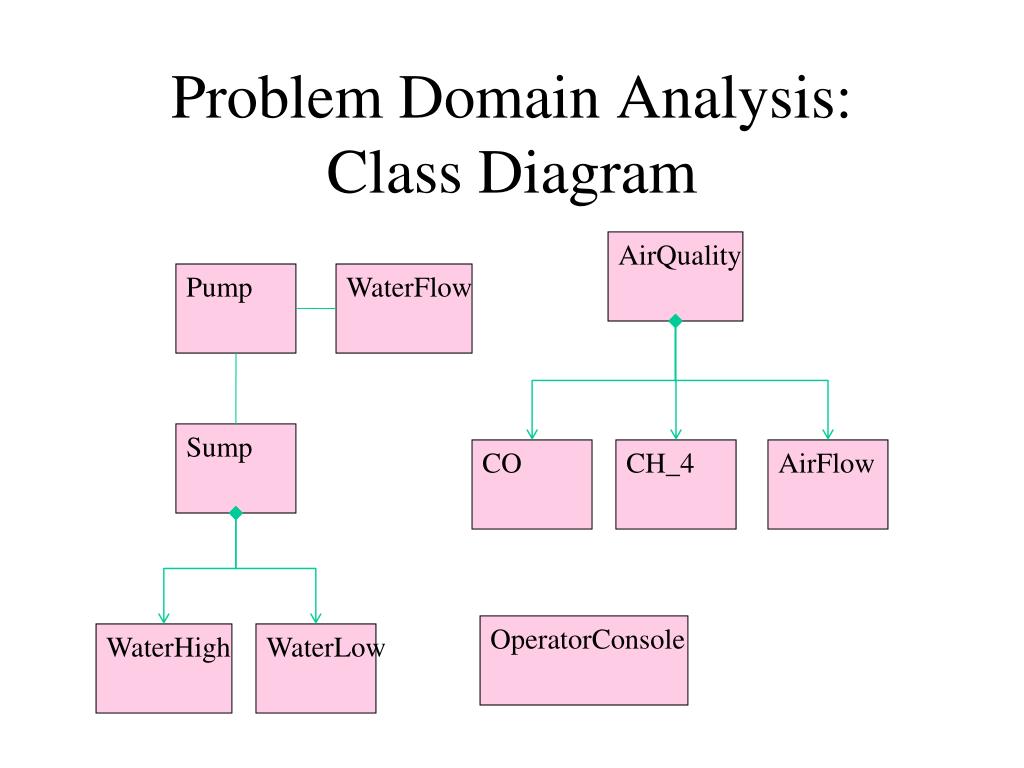

  4. Problem Domain Analysis:Class Diagram AirQuality Pump WaterFlow Sump CO CH_4 AirFlow OperatorConsole WaterHigh WaterLow

  5. Problem Domain AnalysisBehaviours Pump (only non-trivial) off On Off off on on

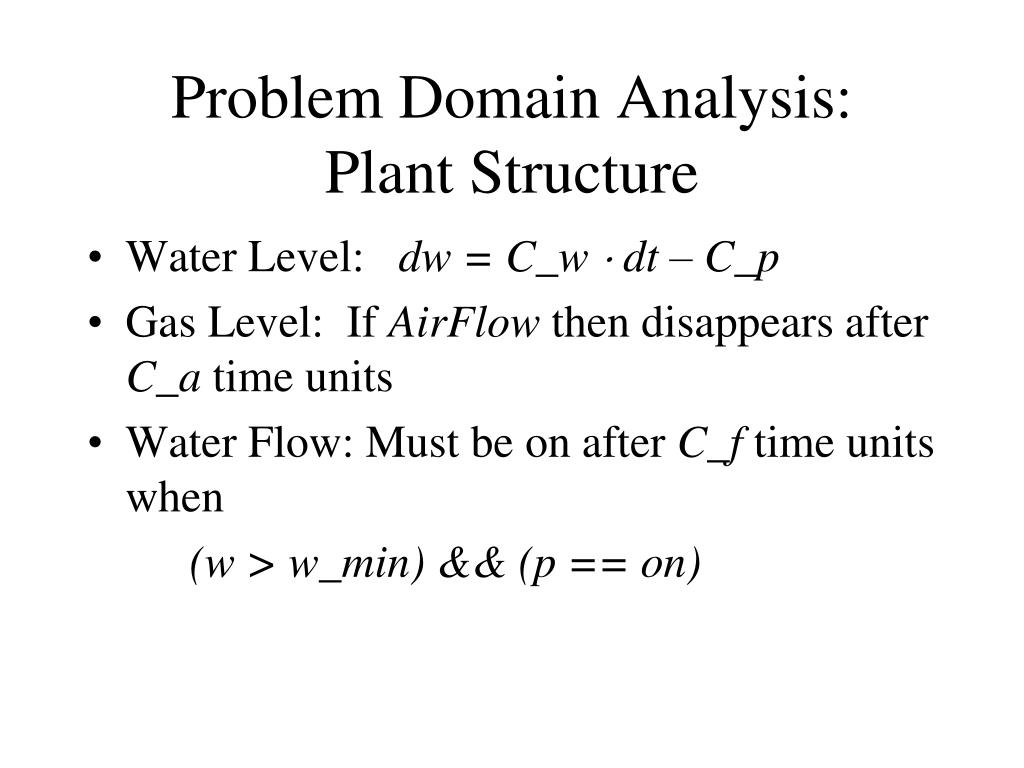

  6. Problem Domain Analysis:Plant Structure • Water Level: dw = C_w  dt – C_p • Gas Level: If AirFlow then disappears after C_a time units • Water Flow: Must be on after C_f time units when (w > w_min) && (p == on)

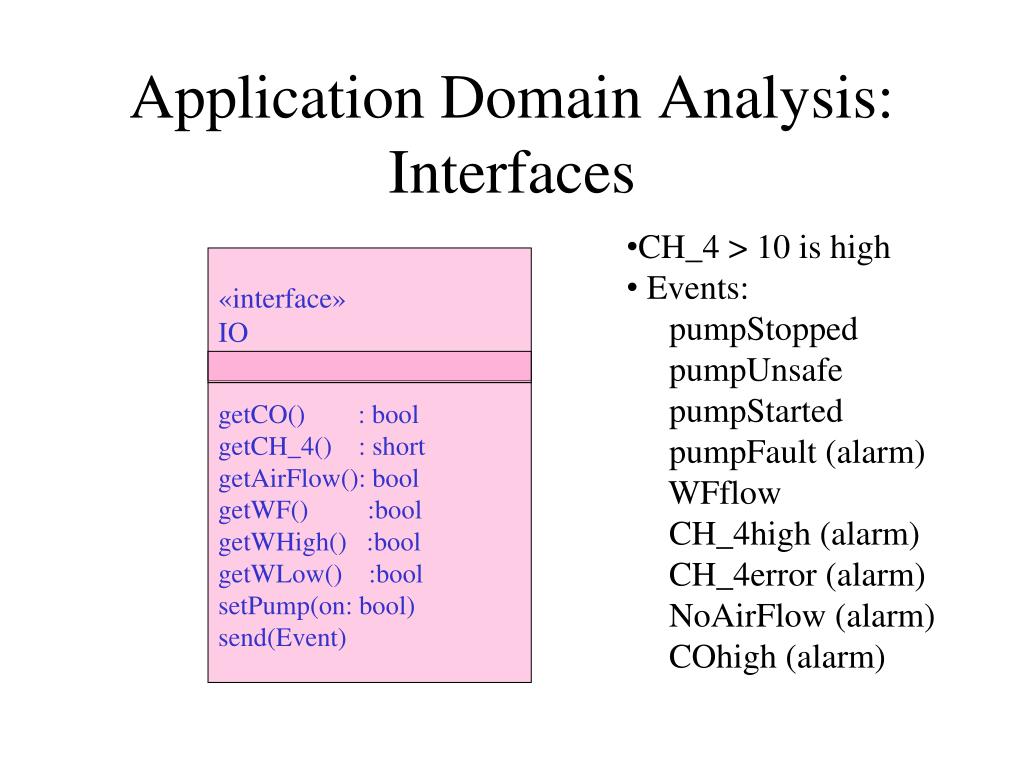

  7. «interface» IO getCO() : bool getCH_4() : short getAirFlow(): bool getWF() :bool getWHigh() :bool getWLow() :bool setPump(on: bool) send(Event) Application Domain Analysis:Interfaces • CH_4 > 10 is high • Events: • pumpStopped • pumpUnsafe • pumpStarted • pumpFault (alarm) • WFflow • CH_4high (alarm) • CH_4error (alarm) • NoAirFlow (alarm) • COhigh (alarm)

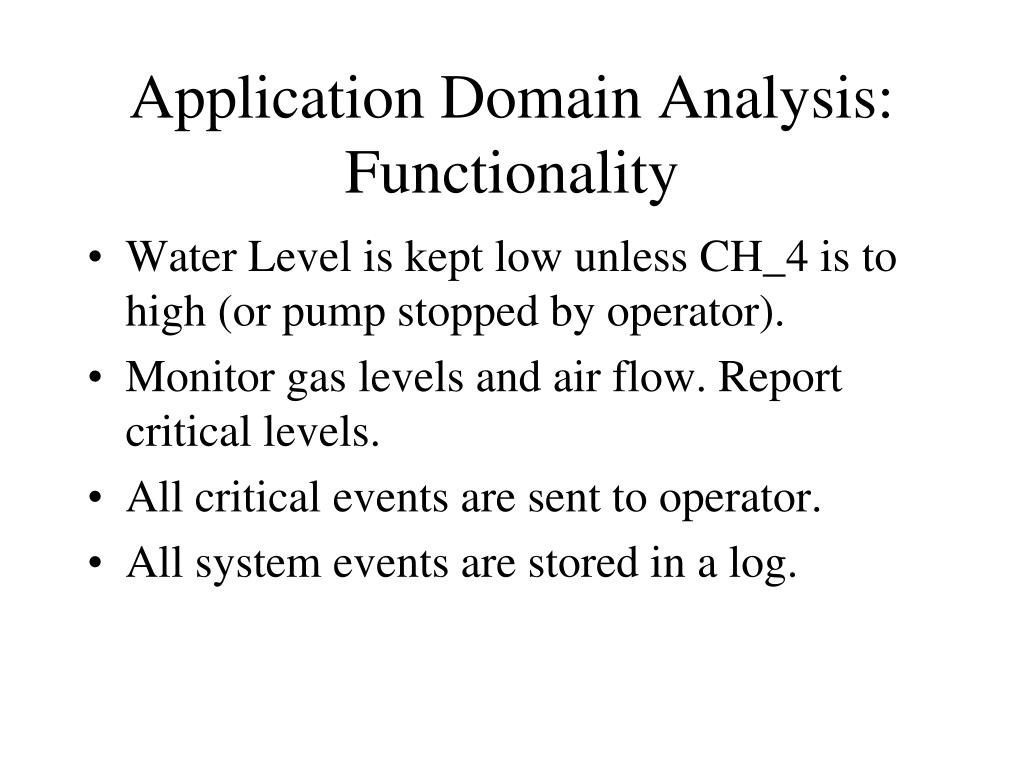

  8. Application Domain Analysis:Functionality • Water Level is kept low unless CH_4 is to high (or pump stopped by operator). • Monitor gas levels and air flow. Report critical levels. • All critical events are sent to operator. • All system events are stored in a log.

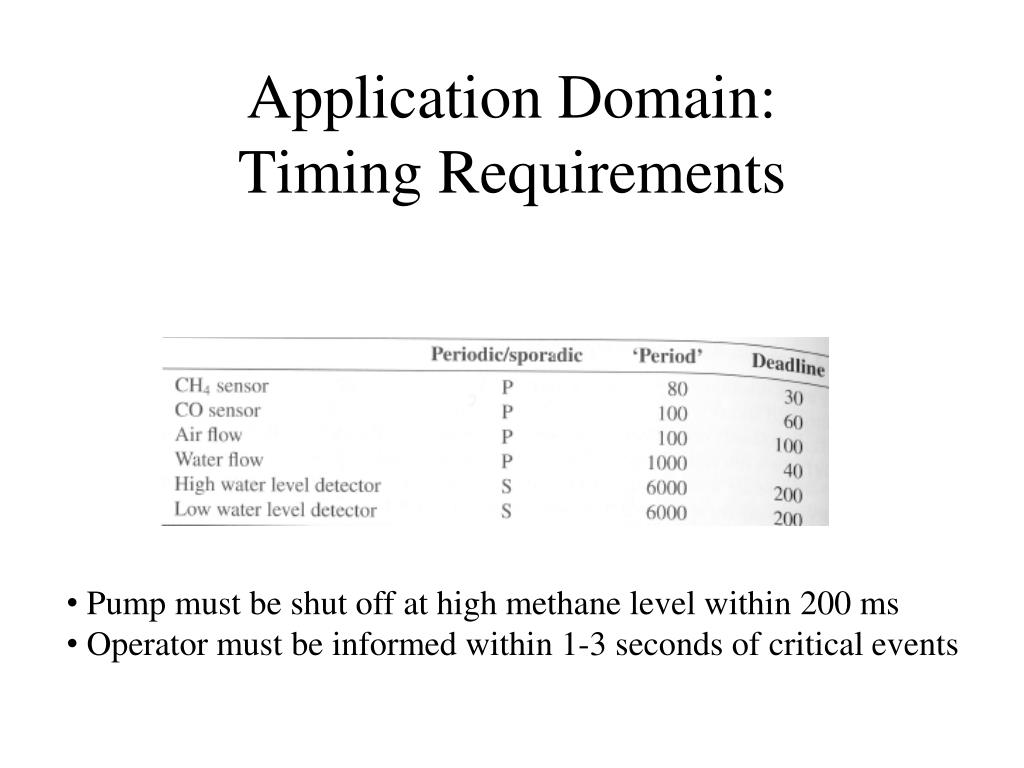

  9. Application Domain:Timing Requirements • Pump must be shut off at high methane level within 200 ms • Operator must be informed within 1-3 seconds of critical events

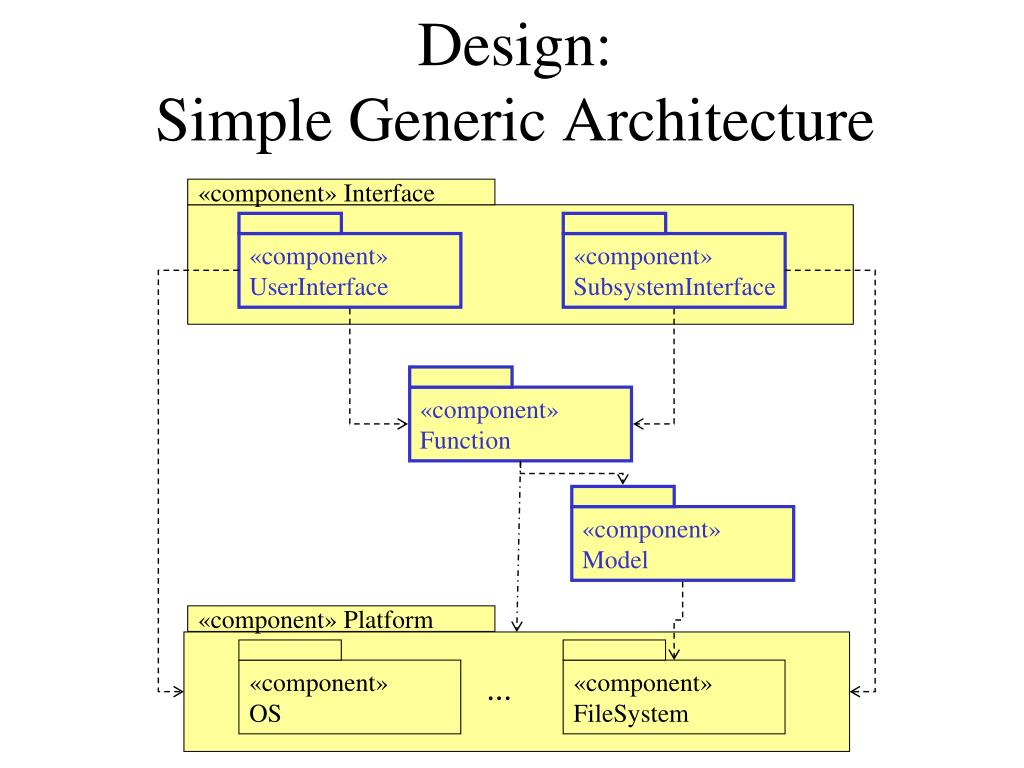

  10. «component» Model «component» UserInterface «component» SubsystemInterface «component» OS «component» FileSystem «component» Function Design:Simple Generic Architecture «component» Interface «component» Platform ...

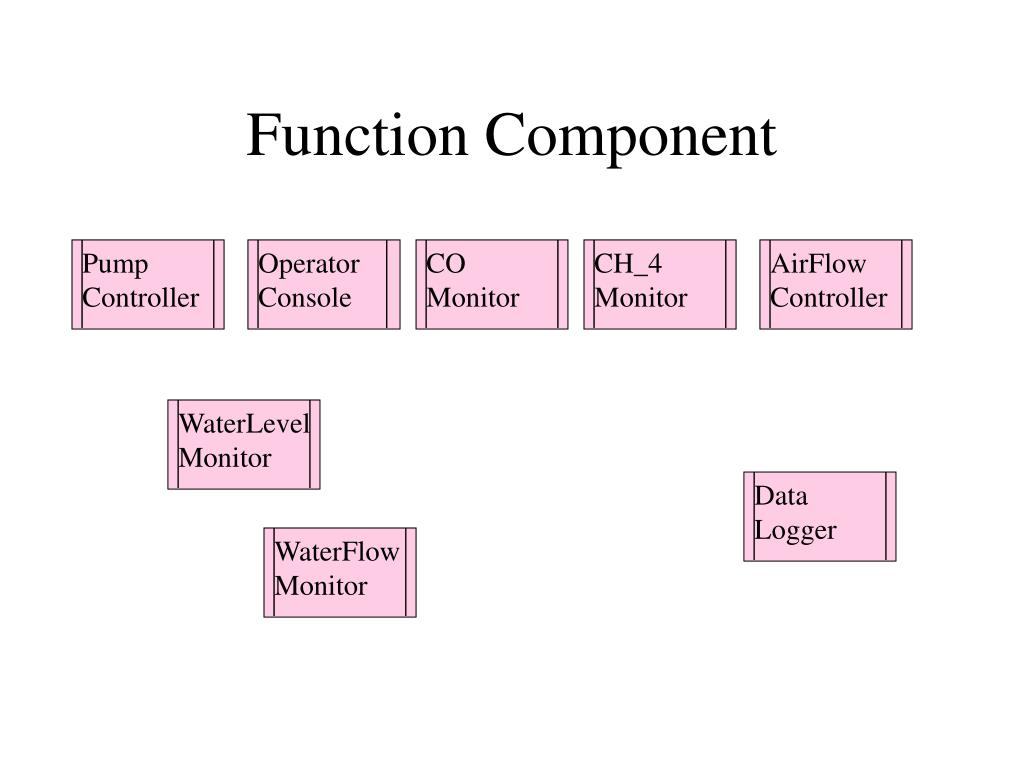

  11. Function Component CH_4 Monitor AirFlow Controller WaterLevel Monitor WaterFlow Monitor Data Logger CO Monitor Pump Controller Operator Console

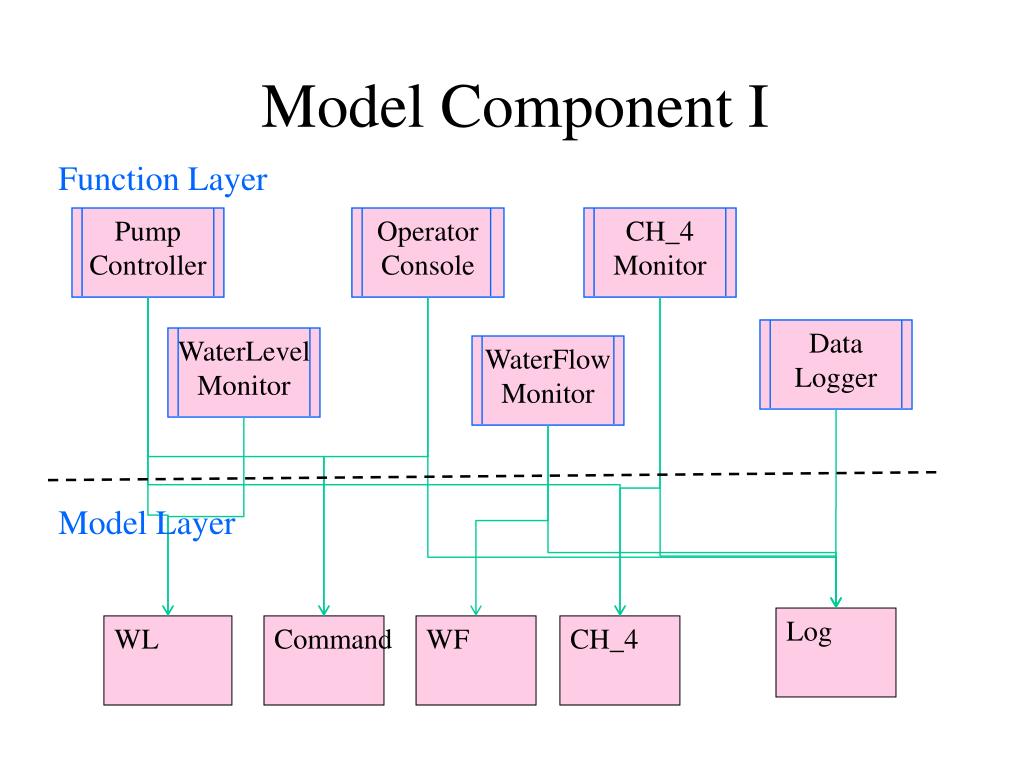

  12. Model Component I Function Layer CH_4 Monitor WaterFlow Monitor Data Logger Pump Controller Operator Console WaterLevel Monitor Model Layer Log WL Command WF CH_4

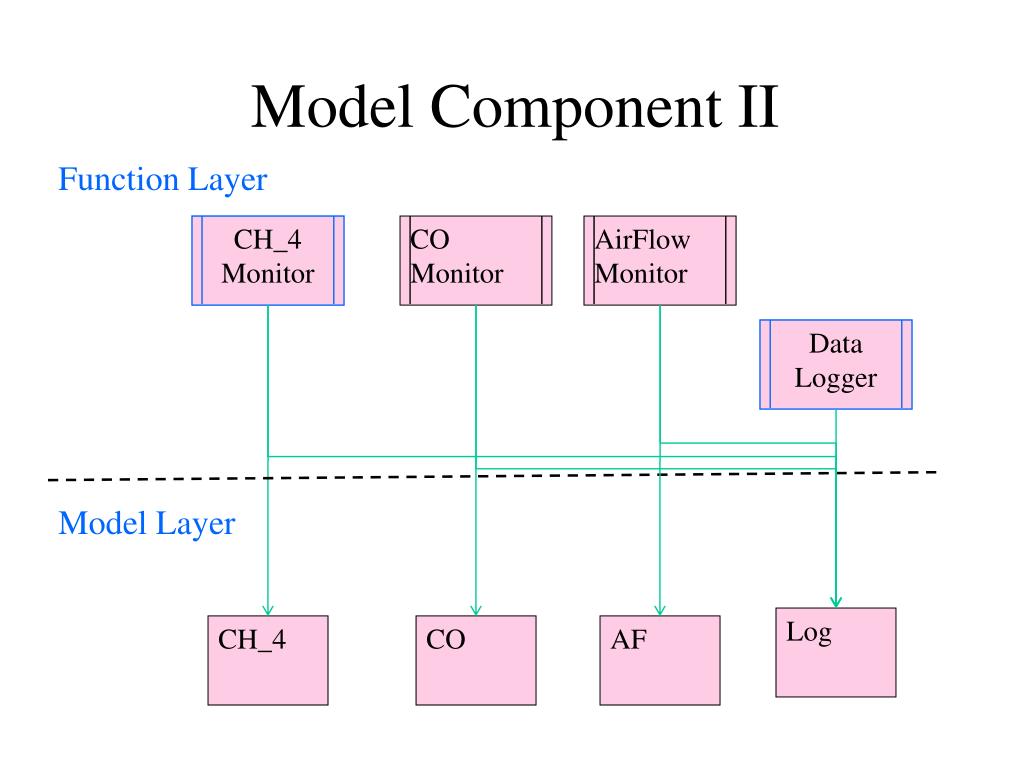

  13. Model Component II Function Layer CH_4 Monitor Data Logger CO Monitor AirFlow Monitor Model Layer Log CH_4 CO AF

  14. Function Component CH_4 Monitor AirFlow Controller WaterLevel Monitor WaterFlow Monitor Data Logger CO Monitor Pump Controller Operator Console

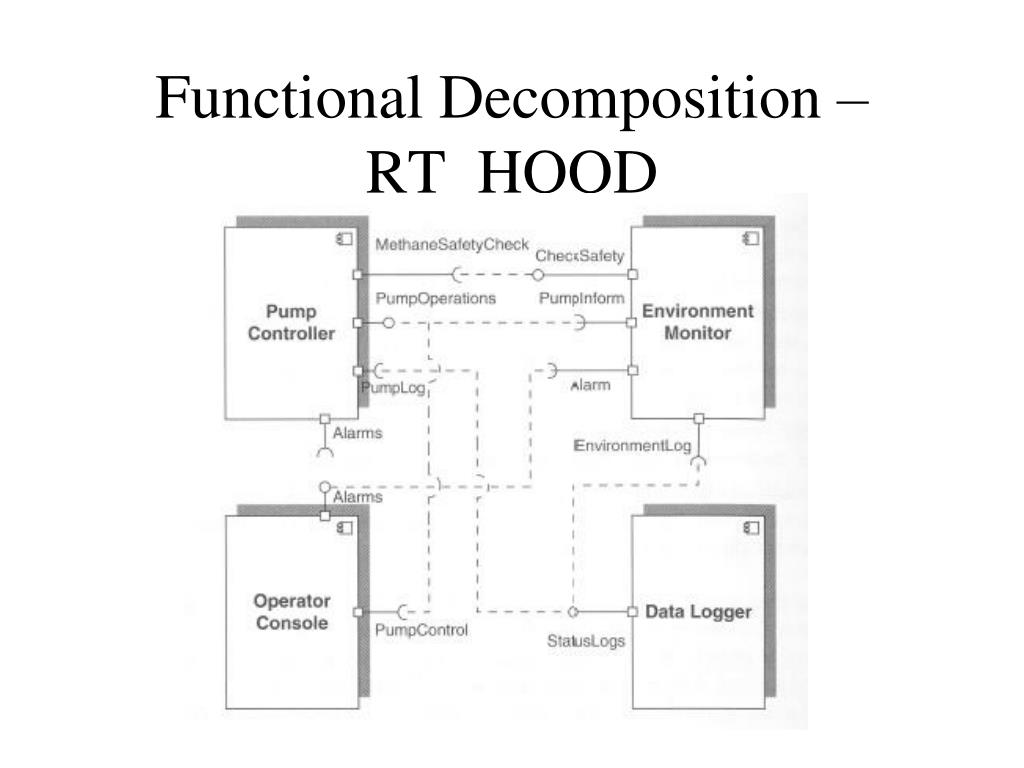

  15. Functional Decomposition – RT_HOOD

  16. Interfaces

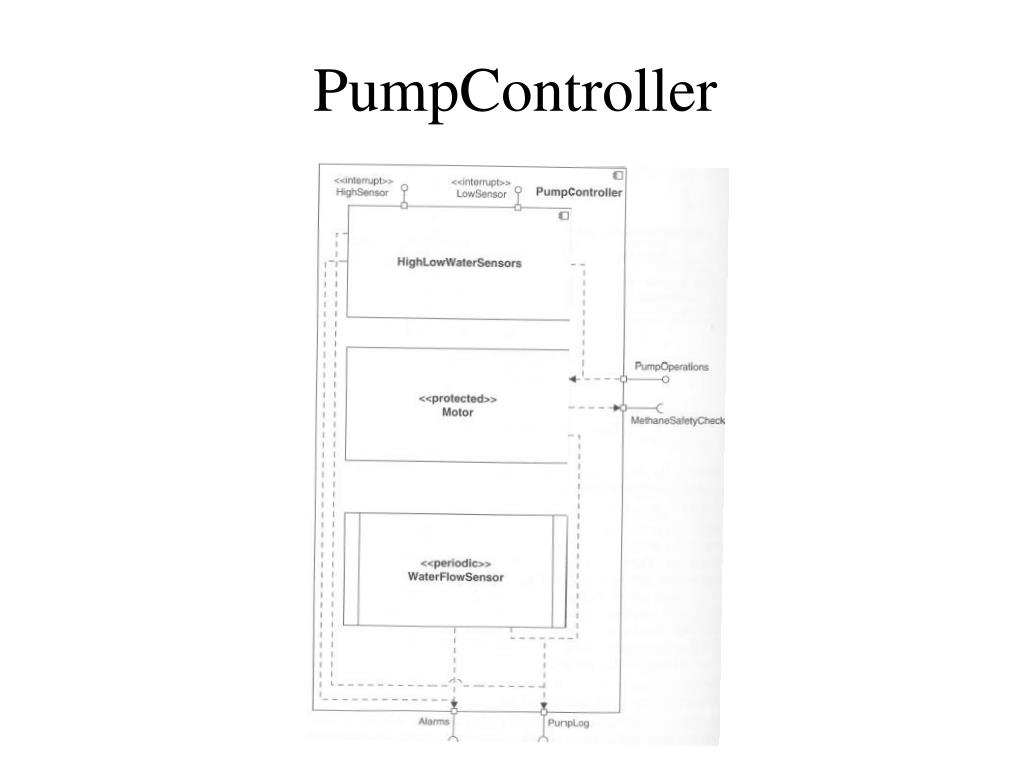

  17. PumpController

  18. WaterLevel Monitor

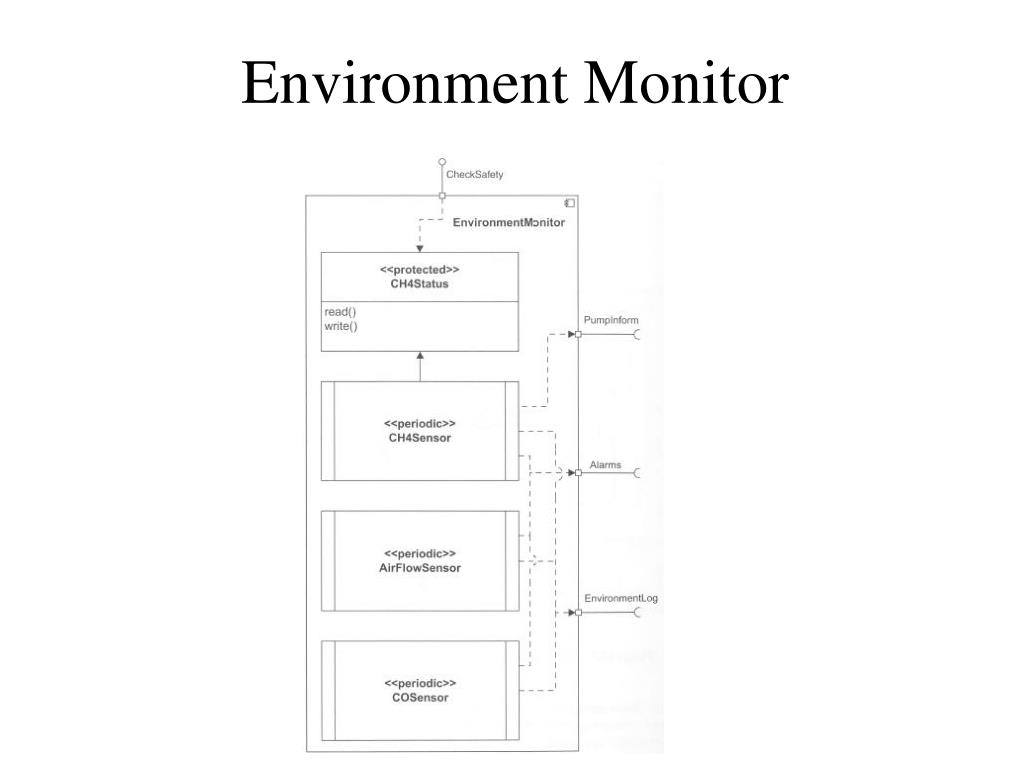

  19. Environment Monitor

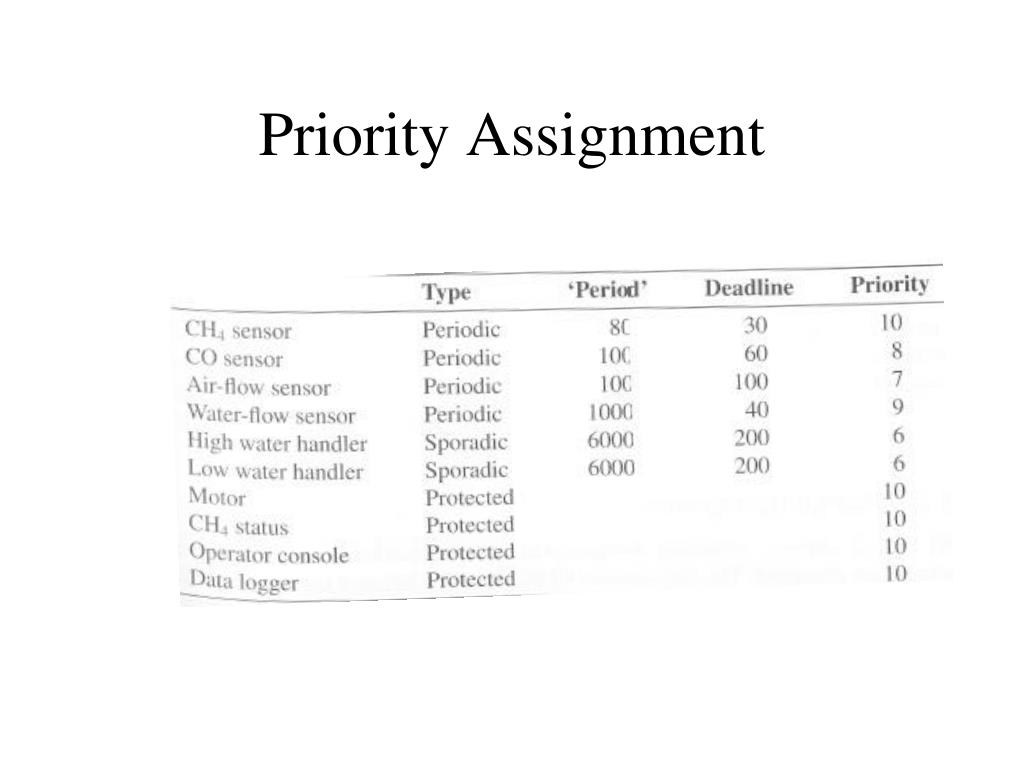

  20. Priority Assignment

  21. Feasibility Check

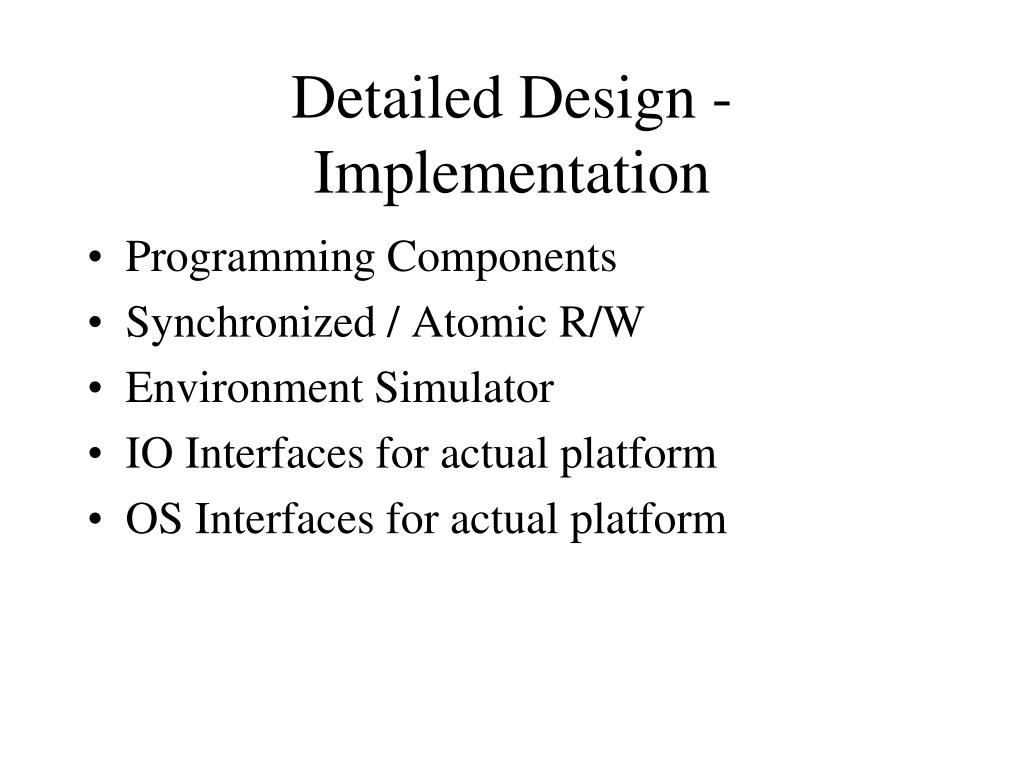

  22. Detailed Design - Implementation • Programming Components • Synchronized / Atomic R/W • Environment Simulator • IO Interfaces for actual platform • OS Interfaces for actual platform

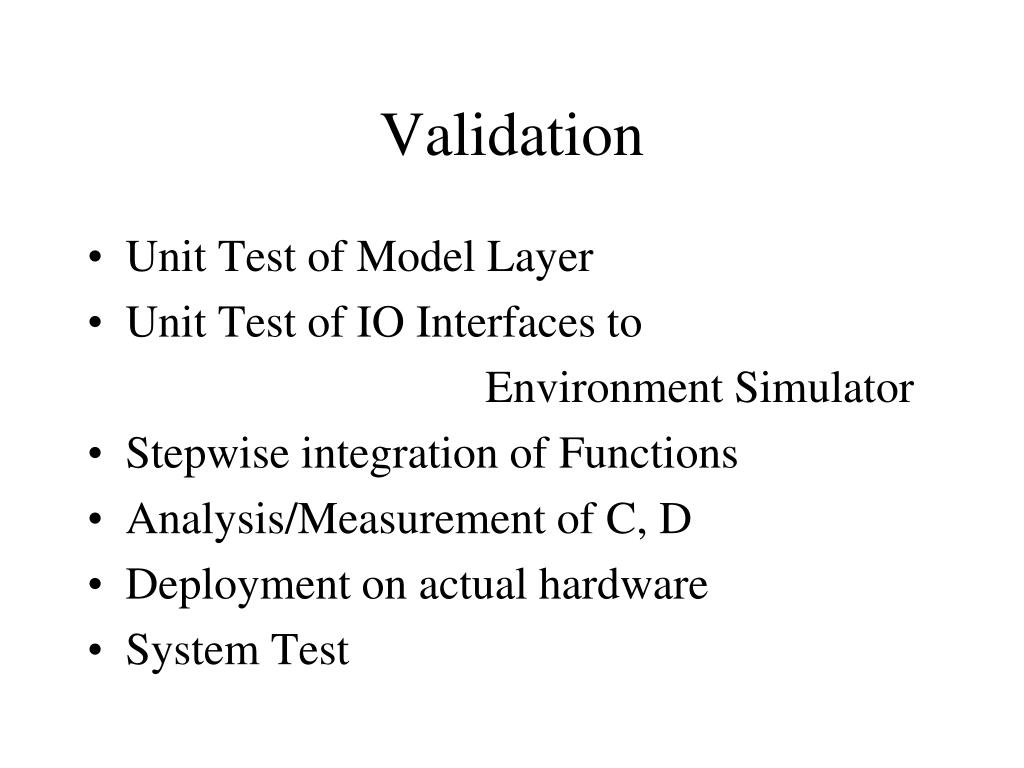

  23. Validation • Unit Test of Model Layer • Unit Test of IO Interfaces to Environment Simulator • Stepwise integration of Functions • Analysis/Measurement of C, D • Deployment on actual hardware • System Test
