  1. Formatievliegen Wintercursus 2009 / 2010

  2. Element • Formatievormen • Bochten • Cross Under • Section • Formatievormen • Formatiewisselingen • Training • Display Inhoud

  3. Echelon Right • Echelon Left • Line Astern • Follow the leader • Tail Chase • Line Abrest Formatievormen

  4. Turn Left • Turn Right Bochten

  5. VIC Left • Vic Right • Echelon Left • Echelon Right • Diamond Formatievormen section

  6. To From Formatiewisselingen section

  7. Start up en checks op parkeerplaats • Zelf radio check op 120.65 • Tigers naarparkeerplaatsvoor restaurant • Check in : • Uittaxien : • Volgorde 1, 2, 3, 4 ! • Departure ( Rolling Take Off ) : GO ! Seppe Formation CHECK IN Seppe Formation VIC LEFT Seppe Formation LINING UP 3 3 4 4 2 2 1 3 4 2 • Snelheidmakenalswielen los zijn Start up / Taxi / Take off

  8. Frequency : 120.65 • Change: • Frequency : 122.25 Seppe Formation CHANGE FREQUENCY TO 122.25 CHECK IN Seppe Formation Change Frequency NOW 2 3 3 2 4 4 1 3 4 2 Frequency Change to 122.25

  9. Frequency : 122.25 • Change: • Frequency : 120.65 Seppe Formation CHANGE FREQUENCY TO 120.65 CHECK IN Seppe Formation Change Frequency NOW 2 3 3 2 4 4 1 3 4 2 Frequency Change to 120.65

  10. 2 Clear 45° 1 Echelon Right

  11. 45° Clear Echelon Left

  12. 1 meter 1 meter Line Astern

  13. 2 Clear 90° 1 Line Abrest

  14. 2 1 30° Turn Right

  15. 2 1 30° Turn Left

  16. Throttle Cross Under

  17. 1 2 3 4 1 3 4 2 Vic Right

  18. 1 2 3 4 1 3 4 2 Vic left

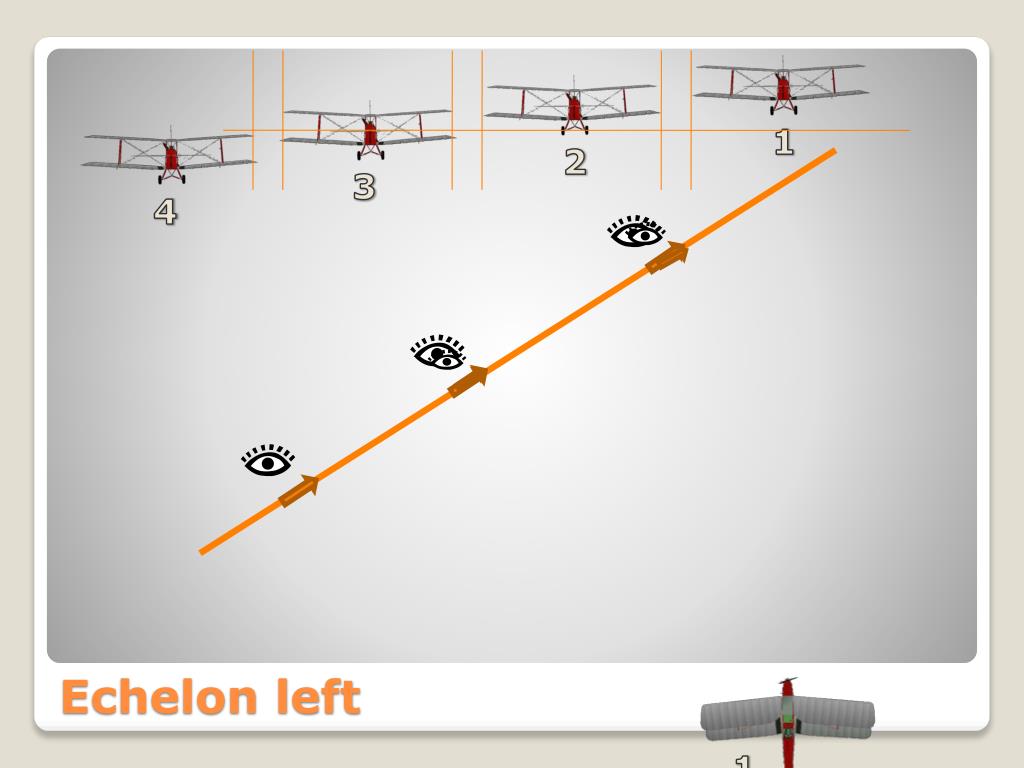

  19. 1 2 3 4 2 3 4 Echelon left 1

  20. 1 1 2 3 4 2 3 4 Echelon right

  21. 1 1 3 2 4 2 3 4 Diamond

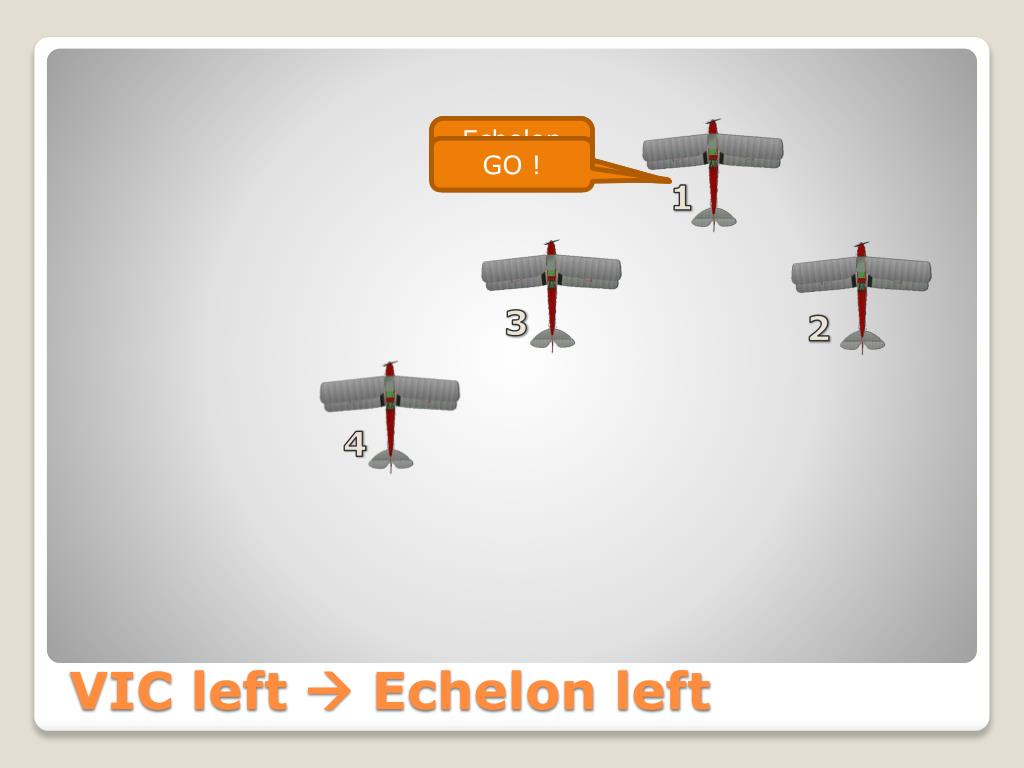

  22. Seppe Formation Echelon Left 1 GO ! 2 3 4 VIC left  Echelon left

  23. Seppe Formation Line Astern 1 GO ! 2 3 4 Seppe 4 VIC left  Line Astern

  24. Seppe Formation Diamond 1 GO ! 2 3 4 VIC left  Diamond

  25. Vic Right Seppe Formation Line Astern 1 GO ! GO ! 2 3 4 Seppe 4 VIC left  Line Astern VIC right

  26. Seppe Formation Echelon Right GO ! 1 2 3 4 VIC left  ‘Line Astern’ Echelon right

  27. 1 Seppe Formation Vic Left GO ! 2 3 4 Echelon left  Vic left

  28. Seppe Formation Vic Right GO ! 1 2 3 4 Echelon left  Vic right

  29. Seppe Formation Line Astern GO ! 1 2 3 4 Echelon left  Line Astern Seppe 4

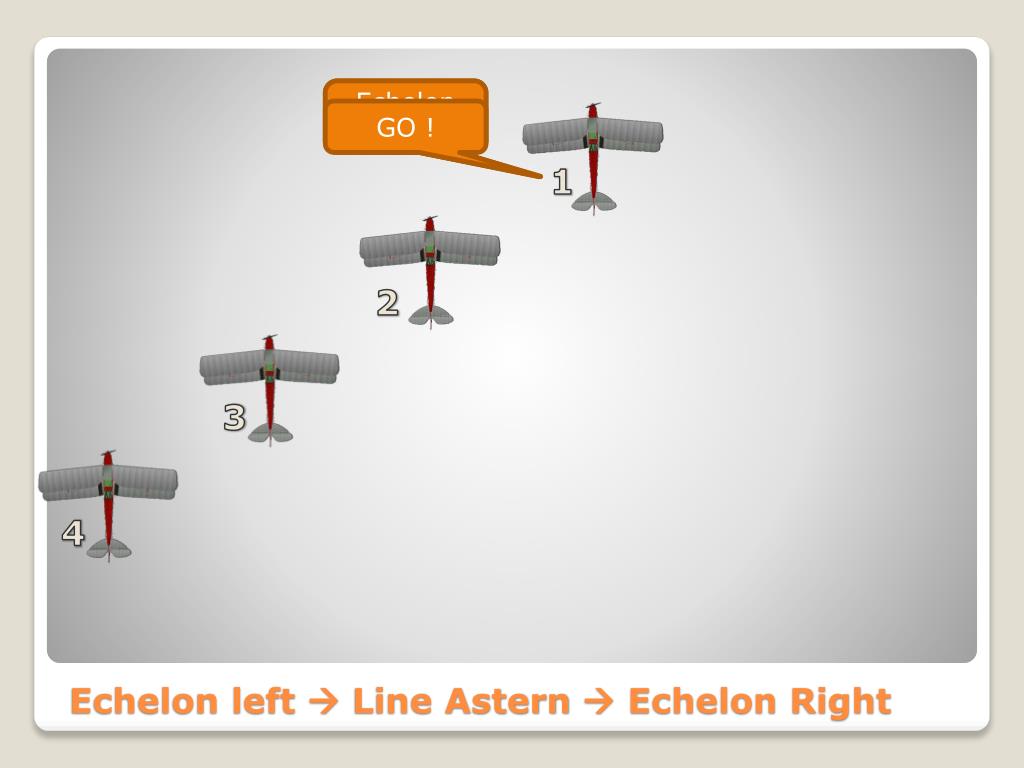

  30. Seppe Formation Echelon Right GO ! 1 2 3 4 Echelon left  Line Astern  Echelon Right

  31. 1 Seppe Formation Diamond GO ! 2 3 4 Echelon left  Diamond

  32. Seppe Formation Echelon Left GO ! 1 2 3 4 Line Astern  Echelon Left

  33. Seppe Formation Echelon Right GO ! 1 2 3 4 Line Astern  Echelon Right

  34. Seppe Formation Vic Left GO ! 1 2 3 4 Line Astern  VIC Left

  35. Seppe Formation Vic Right GO ! 1 2 3 4 Line Astern  VIC Right

  36. Seppe Formation Diamond GO ! 1 2 3 4 Line Astern  Diamond

  37. Seppe Formation Echelon Right GO ! 1 2 3 4 Vic Right Echelon Right

  38. VIC Left Seppe Formation Line Astern GO ! 1 2 3 4 Vic Right Line Astern  Vic Left Seppe 4

  39. Echelon Left Seppe Formation GO ! 1 2 3 4 Vic Right ‘Line Astern’  Echelon Left

  40. Seppe Formation Line Astern GO ! 1 2 3 4 Vic Right Line Astern

  41. Seppe Formation Line Astern Diamond GO ! 1 2 3 4 Seppe 4 Vic Right Line Astern  Diamond

  42. Line Astern Seppe Formation GO ! 1 2 3 4 Seppe 4 Diamond Line Astern

  43. VIC Right Seppe Formation Line Astern GO ! 1 2 3 4 Seppe 4 Diamond Line Astern  Vic Right

  44. Seppe Formation VIC Left GO ! 1 2 3 4 Diamond Vic Left

  45. Seppe Formation Echelon Right GO ! 1 2 3 4 Diamond ‘Line Astern’  Echelon Right

  46. Seppe Formation Echelon Left GO ! 1 2 3 4 Diamond Echelon Left

  47. Seppe Formation VIC Left GO ! 1 2 3 4 Echelon Right  VIC Left

  48. Seppe Formation VIC Right GO ! 1 2 3 4 Echelon Right  VIC Right

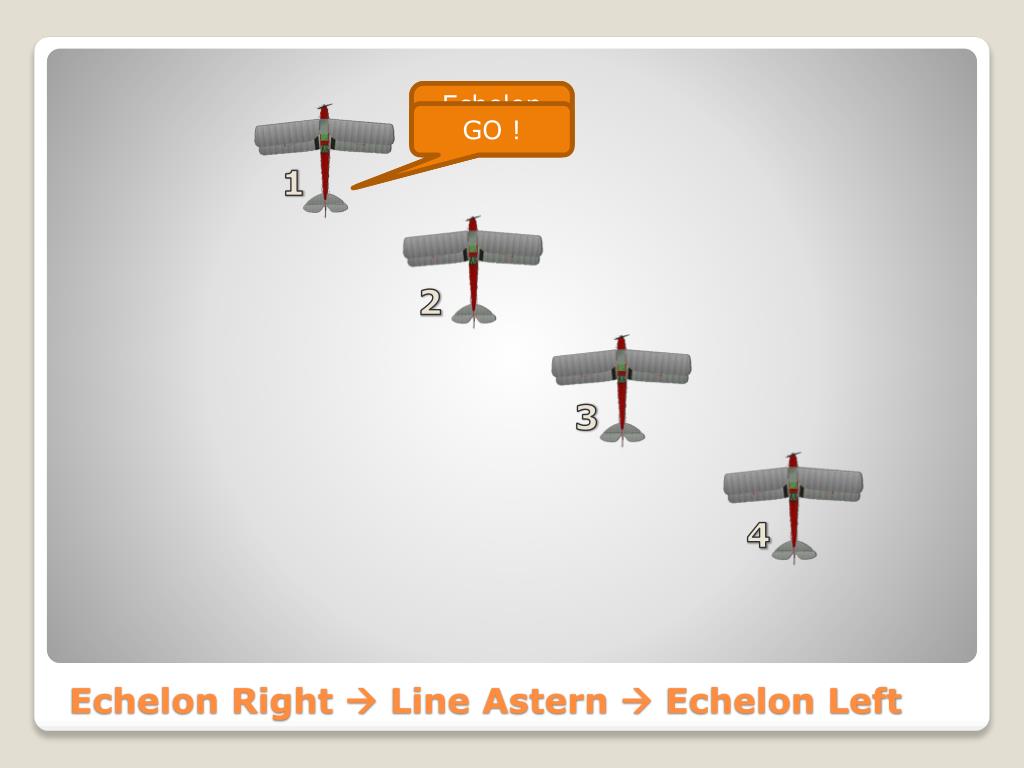

  49. Seppe Formation Echelon Left GO ! 1 2 3 4 Echelon Right  Line Astern  Echelon Left

  50. Seppe Formation Line Astern GO ! 1 2 3 4 Echelon Right  Line Astern Seppe 4
