Significant Digits

Significant Digits. Uncertainty of Measurement. Three Rules. Non-zero digits are significant Zeros between two significant digits are significant Zeros at the right end of a number, after a decimal point, are significant. Number 455.6 7.98 0.6224 5.2.

feo
Download Presentation

Significant Digits

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

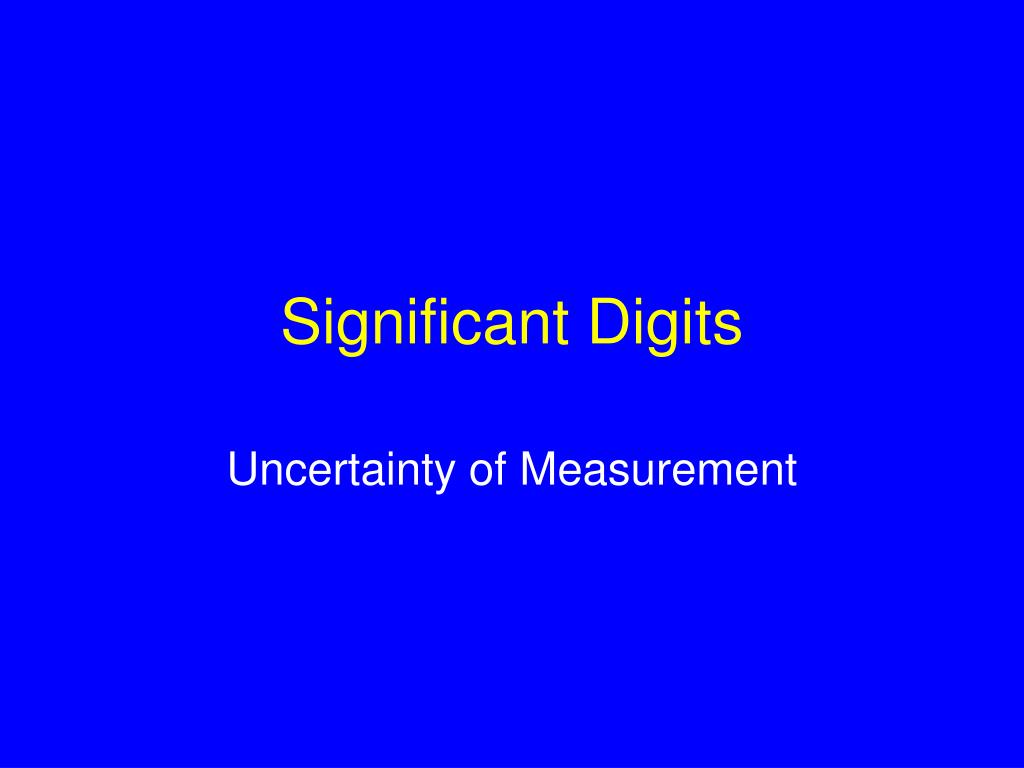

  1. Significant Digits Uncertainty of Measurement

  2. Three Rules • Non-zero digits are significant • Zeros between two significant digits are significant • Zeros at the right end of a number, after a decimal point, are significant

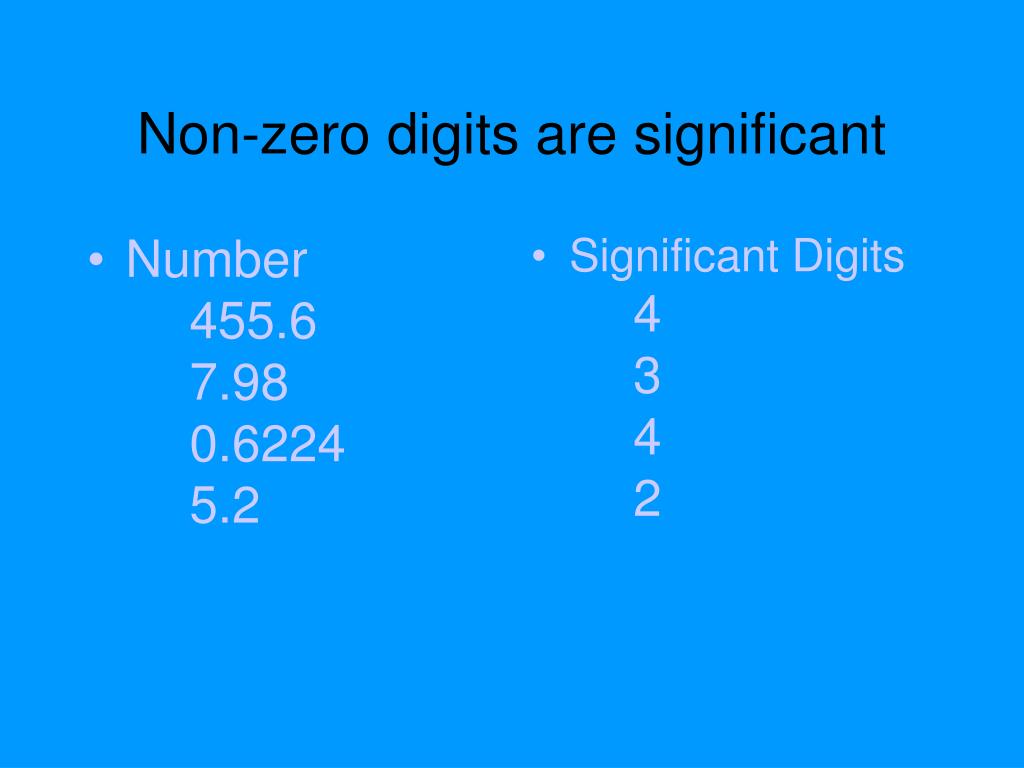

  3. Number 455.6 7.98 0.6224 5.2 Significant Digits 4 3 4 2 Non-zero digits are significant

  4. Zero to left of decimal point • 0.78895 5 significant digits • The zero to the left of the decimal point is there to communicate that the decimal point is a decimal point - convention

  5. Problems! • Numbers like 308.5 0.000811 5000

  6. Number 28.09 1008.91 3.005 2.03 Significant Digits 4 6 4 3 Zeros between non-zero digits are significant

  7. Space Holding zeros on numbers less than one • 0.00678 3 significant digits • 0.030086 5 significant digits

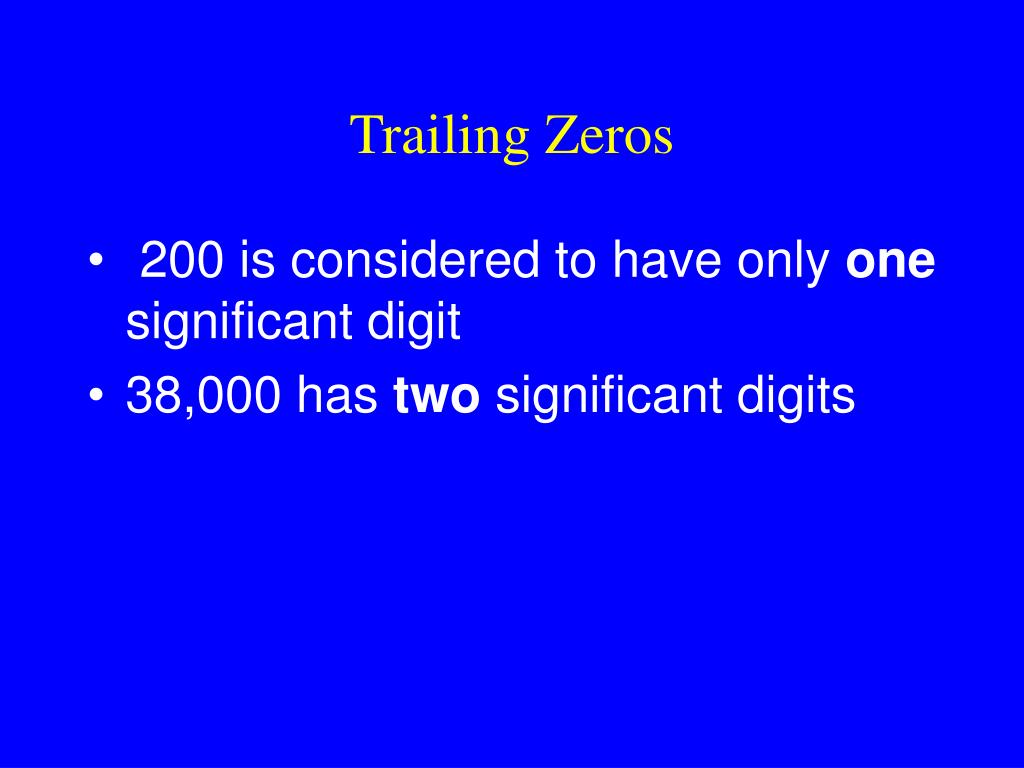

  8. Trailing Zeros • 200 is considered to have only one significant digit • 38,000 has two significant digits

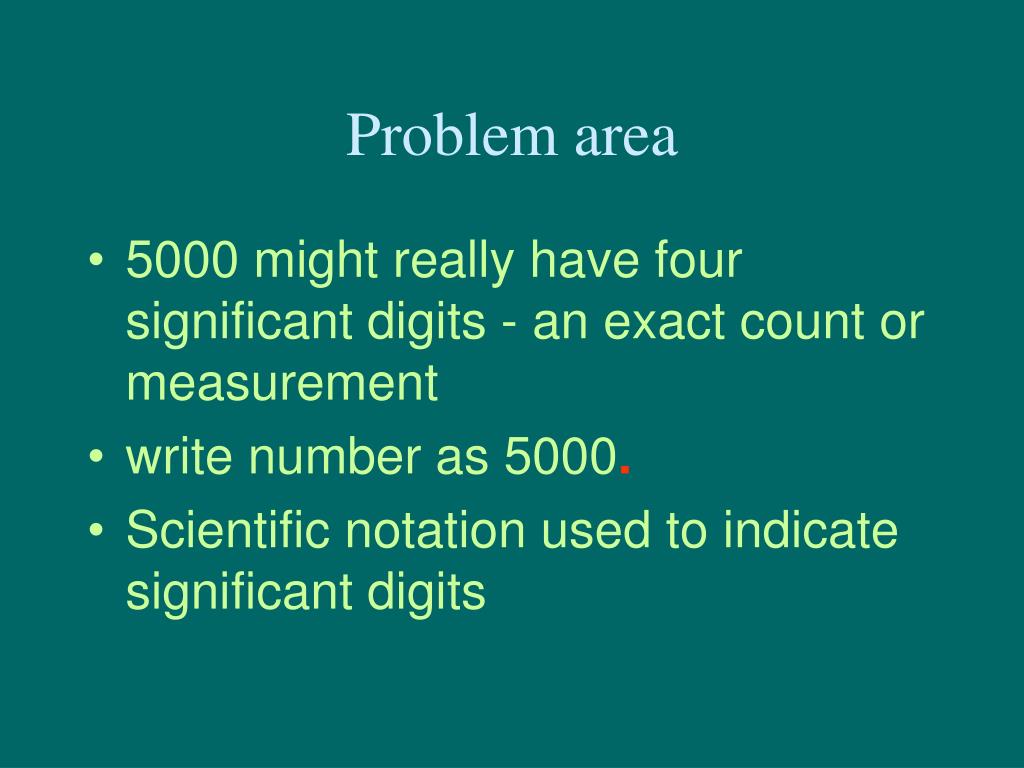

  9. Problem area • 5000 might really have four significant digits - an exact count or measurement • write number as 5000. • Scientific notation used to indicate significant digits

  10. 78002.1 0.00006003 34.61 8.81 42,300 6 4 4 3 3 Review

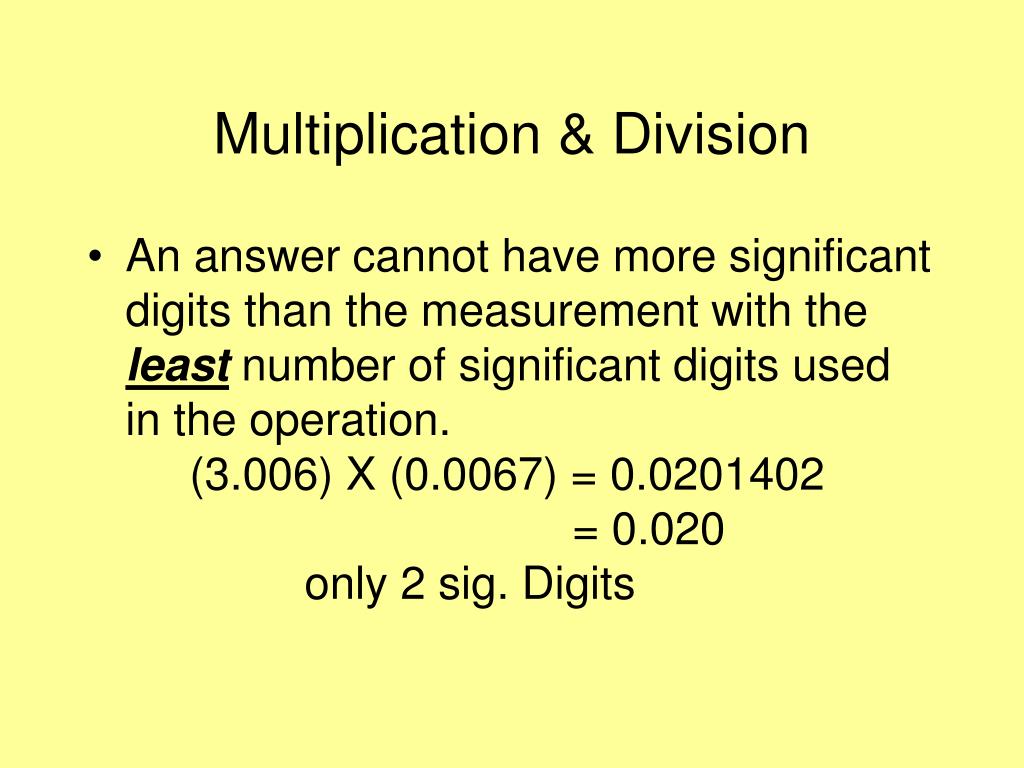

  11. Multiplication & Division • An answer cannot have more significant digits than the measurement with the least number of significant digits used in the operation. (3.006) X (0.0067) = 0.0201402 = 0.020 only 2 sig. Digits

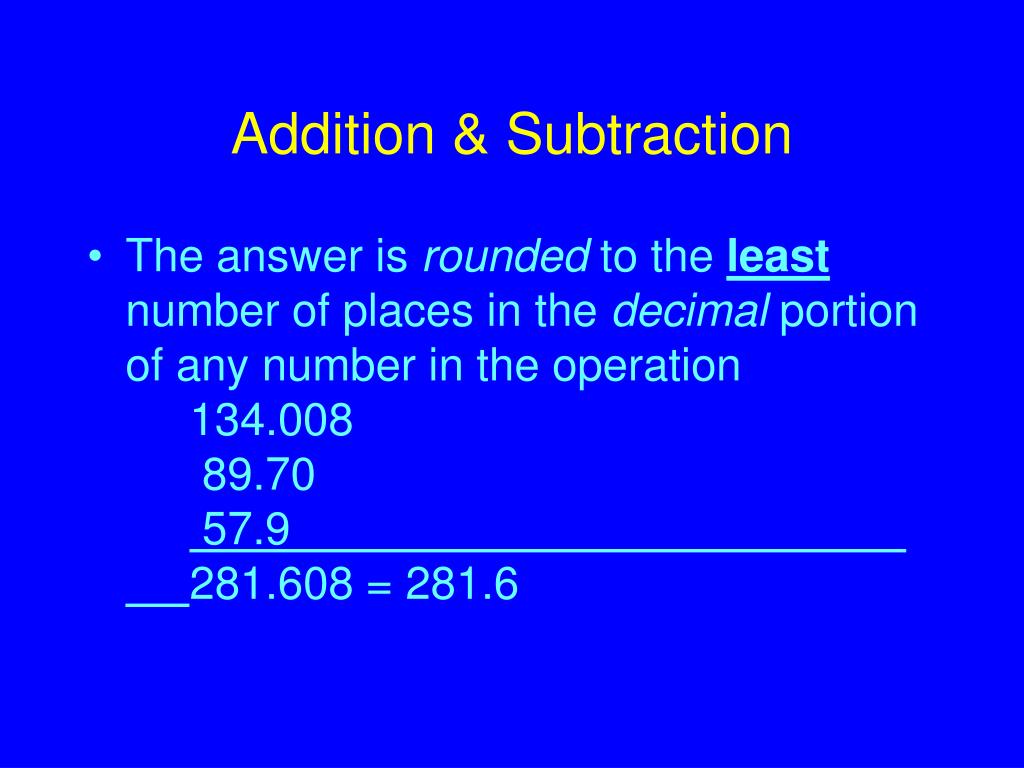

  12. Addition & Subtraction • The answer is rounded to the least number of places in the decimal portion of any number in the operation 134.008 89.70 57.9 281.608 = 281.6
