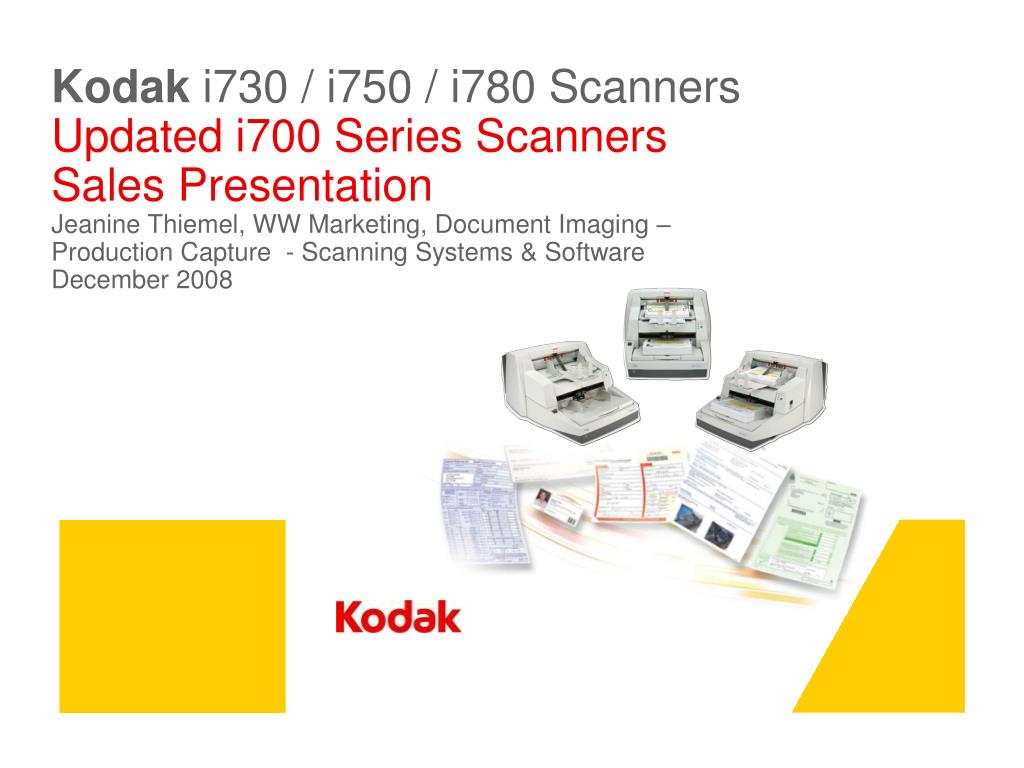

  1. Kodak i730 / i750 / i780 Scanners Updated i700 Series ScannersSales Presentation Jeanine Thiemel, WW Marketing, Document Imaging – Production Capture - Scanning Systems & SoftwareDecember 2008

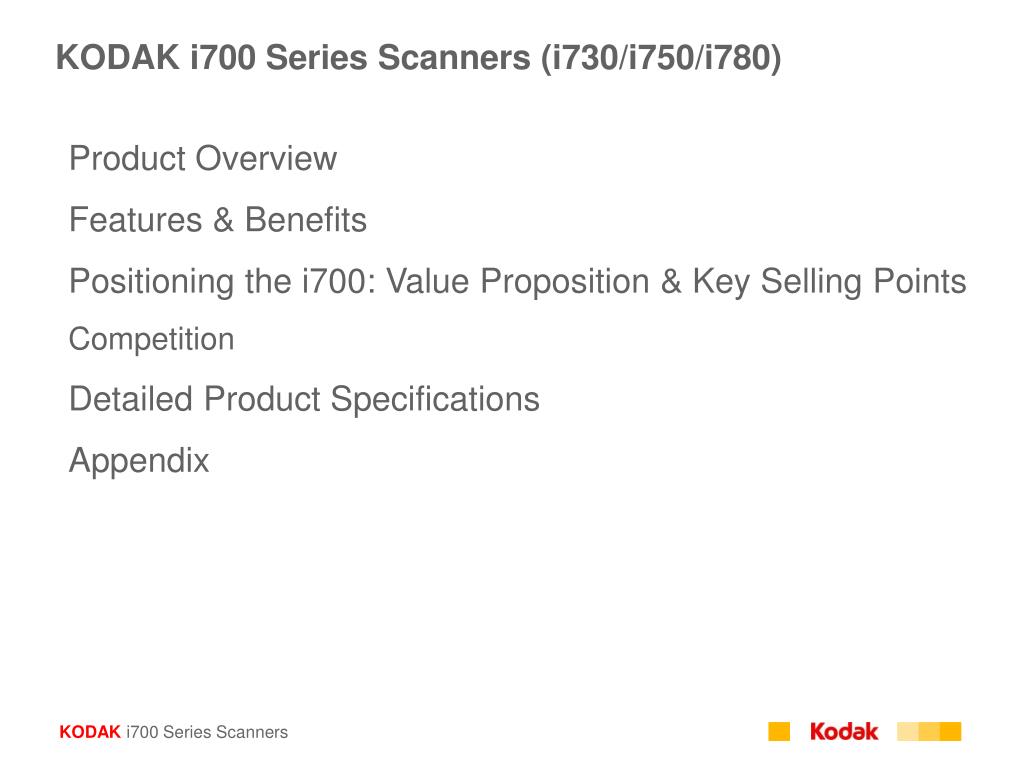

  2. KODAK i700 Series Scanners (i730/i750/i780) • Product Overview • Features & Benefits • Positioning the i700: Value Proposition & Key Selling Points • Competition • Detailed Product Specifications • Appendix KODAK i700 Series Scanners

  3. Positioning the i700 Series Value Proposition

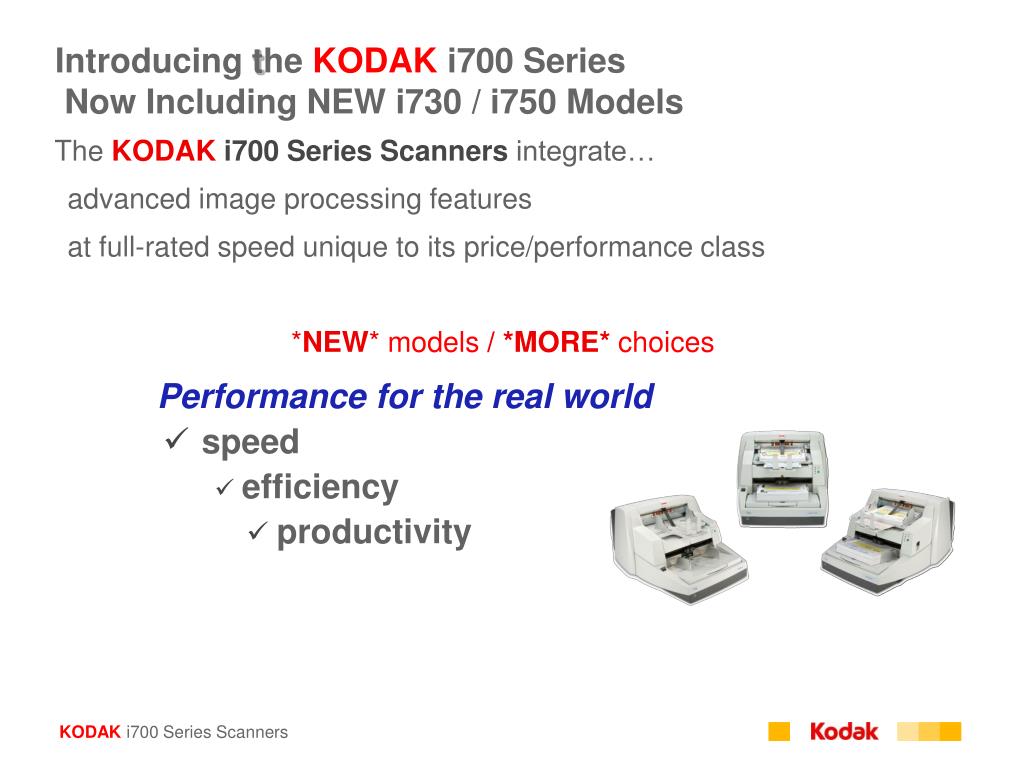

  4. Introducing the KODAK i700 Series Now Including NEW i730 / i750 Models • The KODAKi700 Series Scanners integrate… • advanced image processing features • at full-rated speed unique to its price/performance class • *NEW* models / *MORE* choices • Performance for the real world • speed • efficiency • productivity KODAK i700 Series Scanners

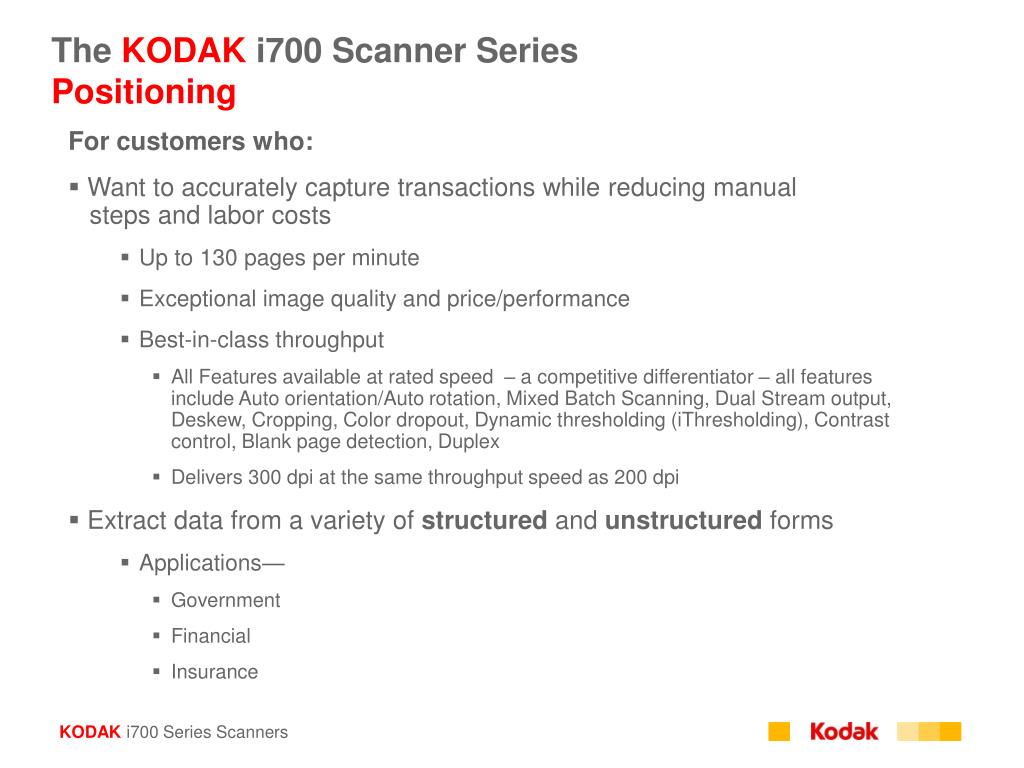

  5. The KODAKi700 Scanner SeriesPositioning • For customers who: • Want to accurately capture transactions while reducing manual steps and labor costs • Up to 130 pages per minute • Exceptional image quality and price/performance • Best-in-class throughput • All Features available at rated speed – a competitive differentiator – all features include Auto orientation/Auto rotation, Mixed Batch Scanning, Dual Stream output, Deskew, Cropping, Color dropout, Dynamic thresholding (iThresholding), Contrast control, Blank page detection, Duplex • Delivers 300 dpi at the same throughput speed as 200 dpi • Extract data from a variety of structured and unstructured forms • Applications— • Government • Financial • Insurance KODAK i700 Series Scanners

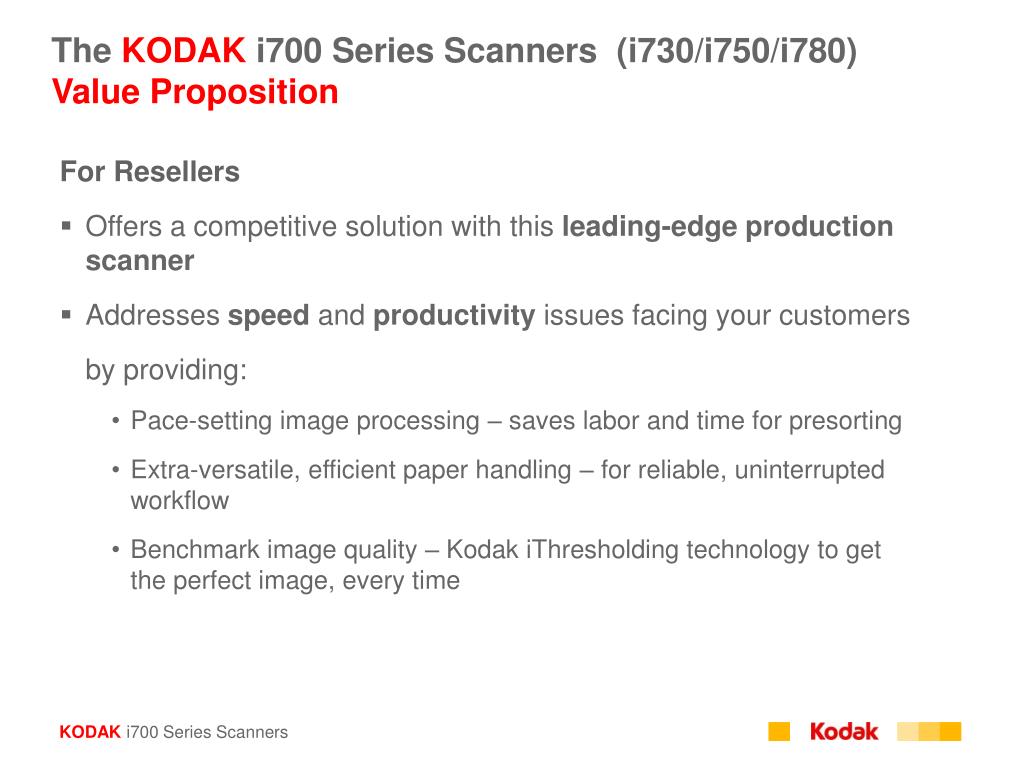

  6. The KODAKi700 Series Scanners (i730/i750/i780)Value Proposition • For Resellers • Offers a competitive solution with this leading-edge production scanner • Addresses speed and productivity issues facing your customers • by providing: • Pace-setting image processing – saves labor and time for presorting • Extra-versatile, efficient paper handling – for reliable, uninterrupted workflow • Benchmark image quality – Kodak iThresholding technology to get the perfect image, every time KODAK i700 Series Scanners

  7. The KODAKi700 Series Scanners Value Proposition • For End Users • This high-speed, production scanning system is optimized for mission-critical forms processing operations. • It’s the only scanner series in its price/performance class that operates at full-rated speeds with all advanced image processing features enabled • No Productivity Hit When You Enable Auto-Rotate: Only scanner series in its class that performs content-based, automatic orientation at full rated speed • Intelligent, Time-Saving Auto IQ: Superior image quality achieved with Kodak’s iThresholding capability, which automatically determines the best adjustments to a less than perfect document, without operator intervention KODAK i700 Series Scanners

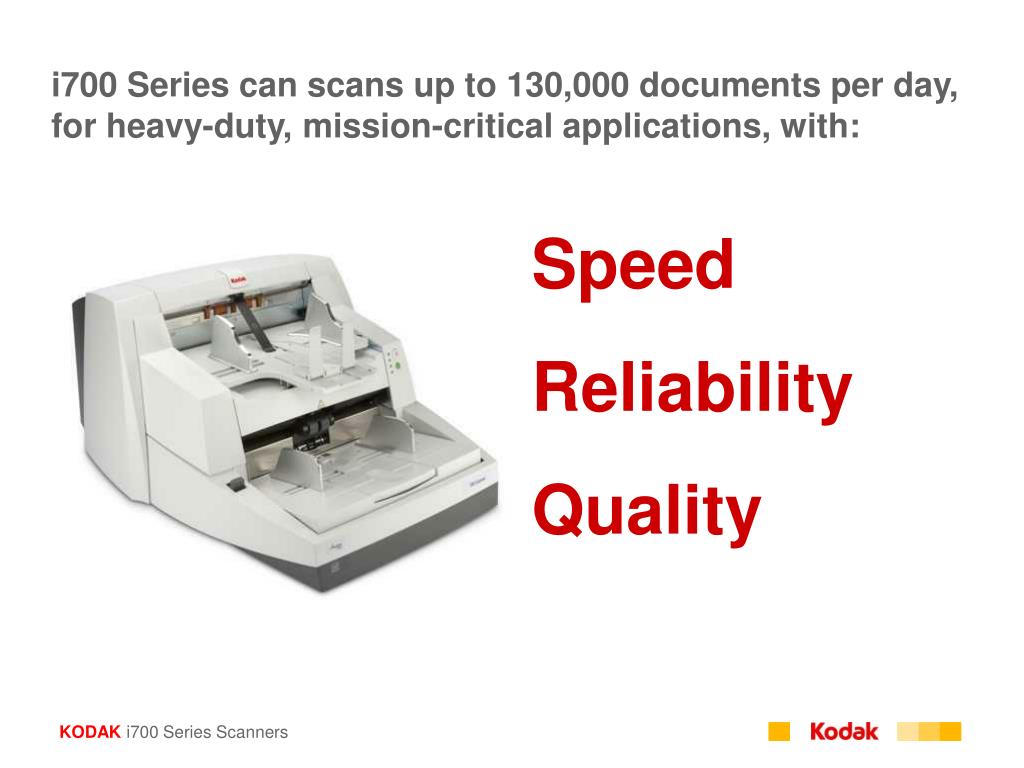

  8. i700 Series can scans up to 130,000 documents per day, for heavy-duty, mission-critical applications, with: Speed Reliability Quality KODAK i700 Series Scanners

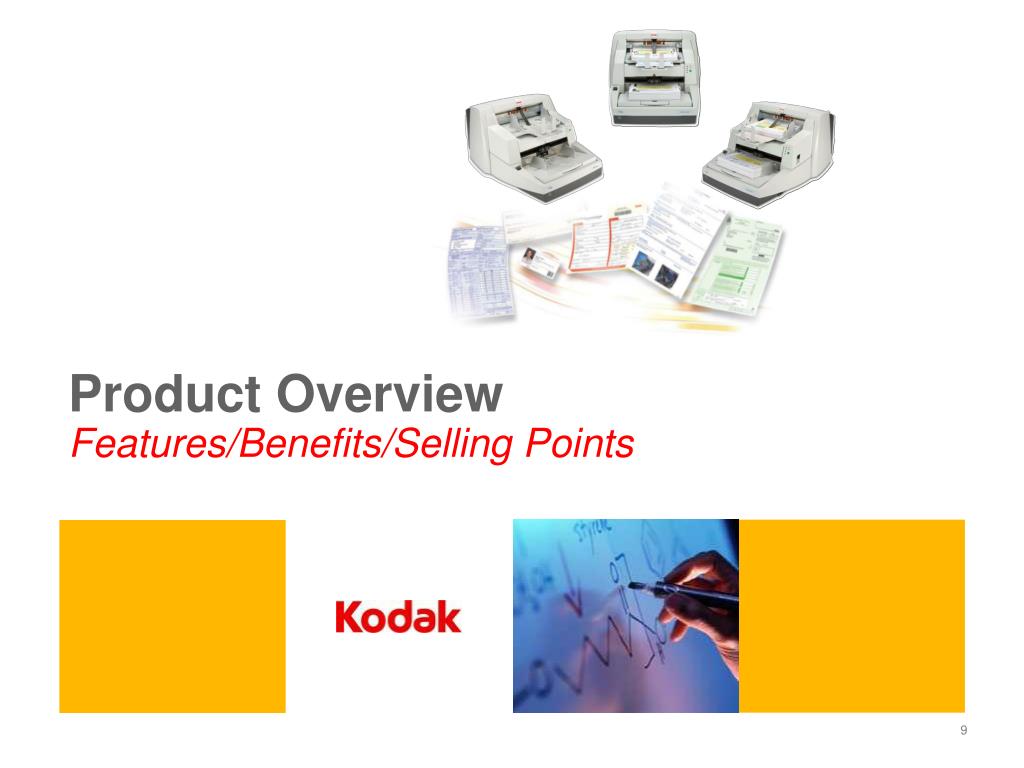

  9. Product Overview Features/Benefits/Selling Points

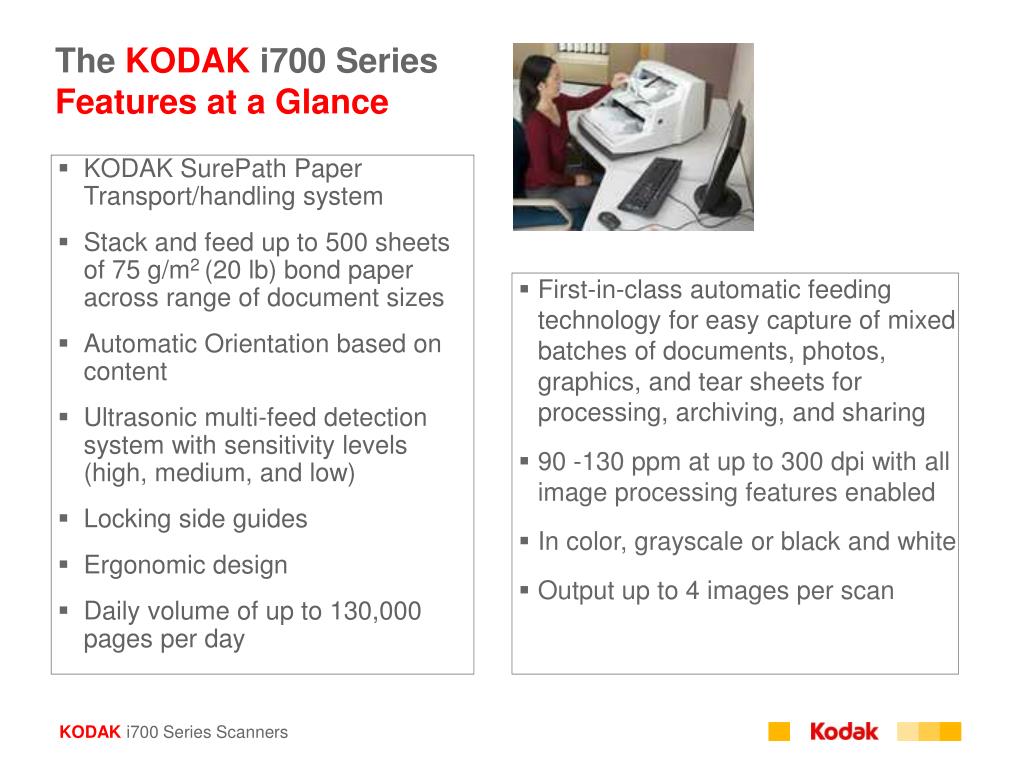

  10. KODAK SurePath Paper Transport/handling system Stack and feed up to 500 sheets of 75 g/m2 (20 lb) bond paper across range of document sizes Automatic Orientation based on content Ultrasonic multi-feed detection system with sensitivity levels (high, medium, and low) Locking side guides Ergonomic design Daily volume of up to 130,000 pages per day First-in-class automatic feeding technology for easy capture of mixed batches of documents, photos, graphics, and tear sheets for processing, archiving, and sharing 90 -130 ppm at up to 300 dpi with all image processing features enabled In color, grayscale or black and white Output up to 4 images per scan The KODAKi700 Series Features at a Glance KODAK i700 Series Scanners

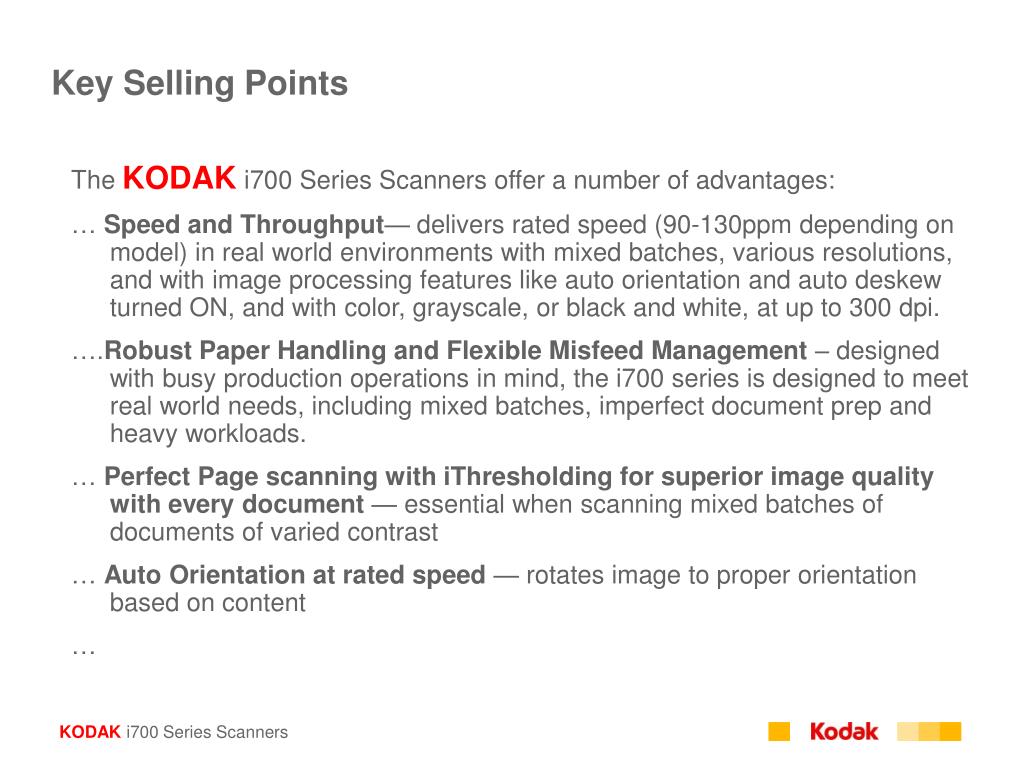

  11. Key Selling Points • The KODAK i700 Series Scanners offer a number of advantages: • … Speed and Throughput— delivers rated speed (90-130ppm depending on model) in real world environments with mixed batches, various resolutions, and with image processing features like auto orientation and auto deskew turned ON, and with color, grayscale, or black and white, at up to 300 dpi. • ….Robust Paper Handling and Flexible Misfeed Management – designed with busy production operations in mind, the i700 series is designed to meet real world needs, including mixed batches, imperfect document prep and heavy workloads. • … Perfect Page scanning with iThresholding for superior image quality with every document — essential when scanning mixed batches of documents of varied contrast • … Auto Orientation at rated speed — rotates image to proper orientation based on content • … KODAK i700 Series Scanners

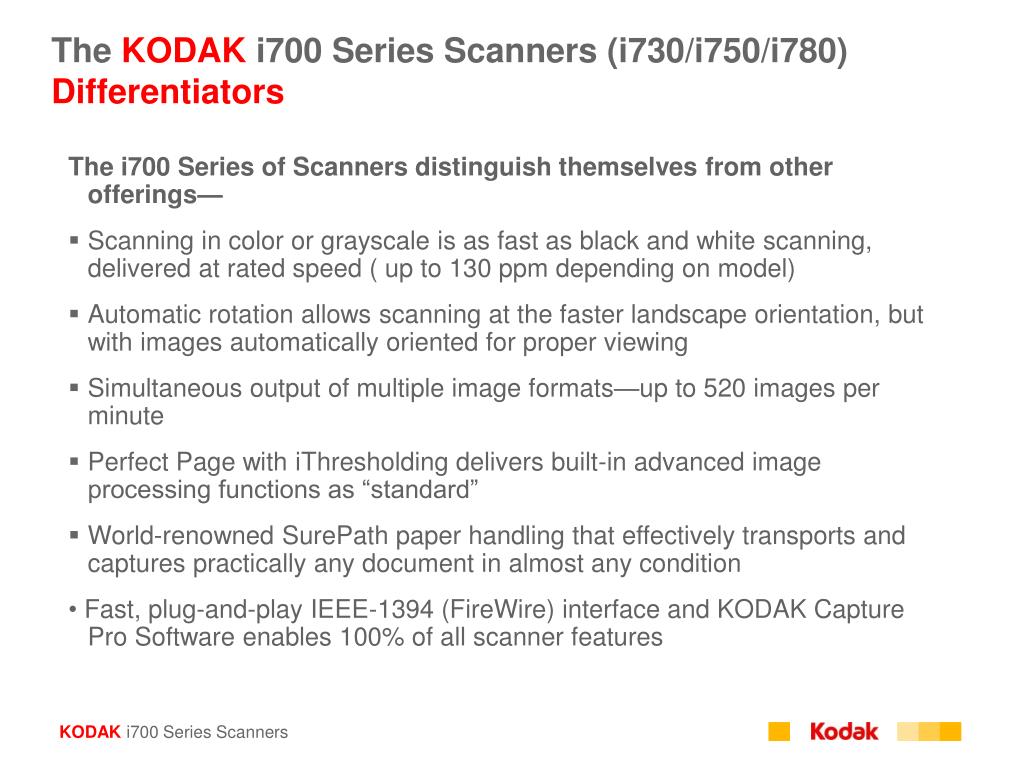

  12. The KODAKi700 Series Scanners (i730/i750/i780)Differentiators • The i700 Series of Scanners distinguish themselves from other offerings— • Scanning in color or grayscale is as fast as black and white scanning, delivered at rated speed ( up to 130 ppm depending on model) • Automatic rotation allows scanning at the faster landscape orientation, but with images automatically oriented for proper viewing • Simultaneous output of multiple image formats—up to 520 images per minute • Perfect Page with iThresholding delivers built-in advanced image processing functions as “standard” • World-renowned SurePath paper handling that effectively transports and captures practically any document in almost any condition • •Fast, plug-and-play IEEE-1394 (FireWire) interface and KODAK Capture Pro Software enables 100% of all scanner features KODAK i700 Series Scanners

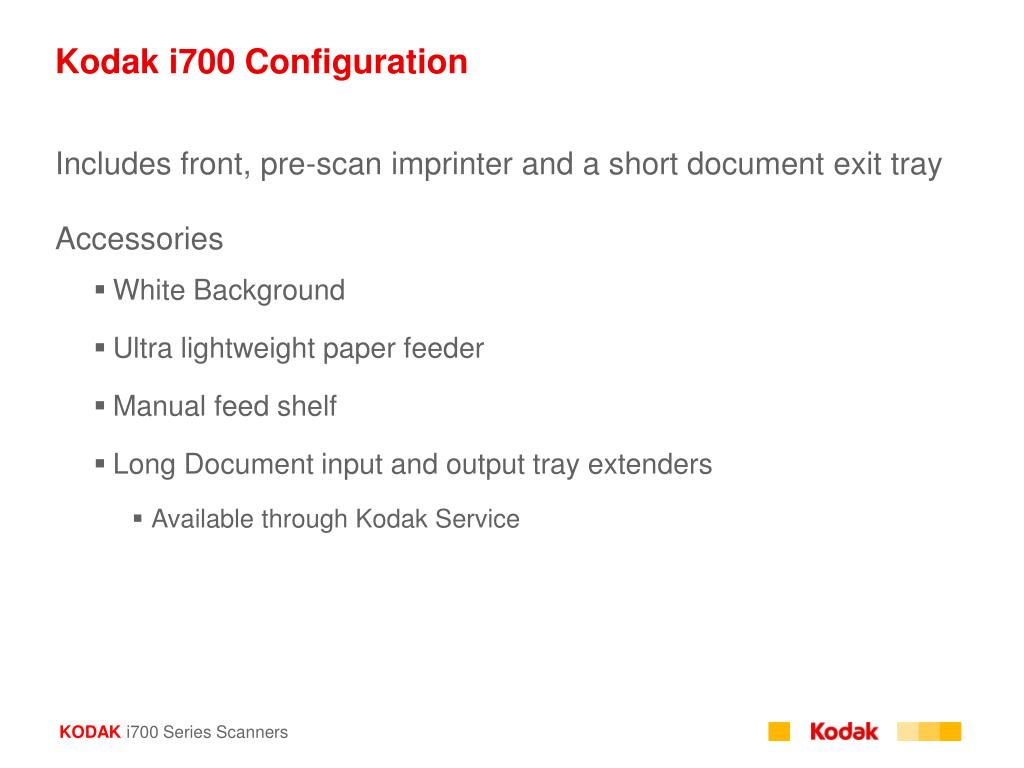

  13. Kodak i700 Configuration • Includes front, pre-scan imprinter and a short document exit tray • Accessories • White Background • Ultra lightweight paper feeder • Manual feed shelf • Long Document input and output tray extenders • Available through Kodak Service KODAK i700 Series Scanners

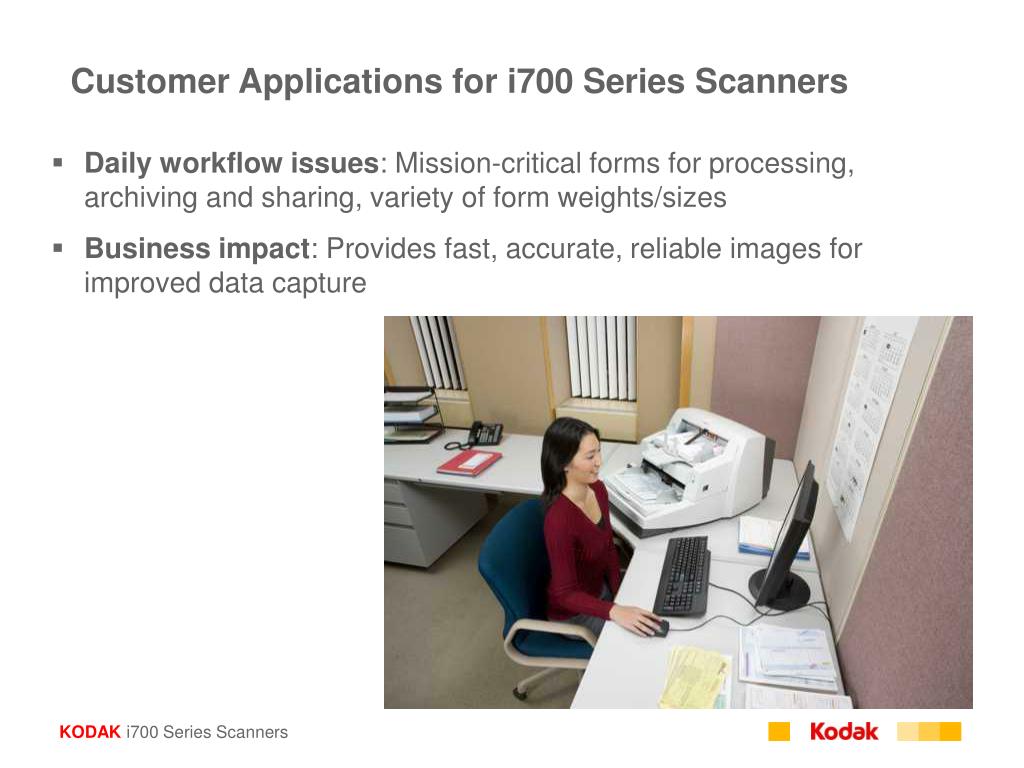

  14. Customer Applications for i700 Series Scanners • Daily workflow issues: Mission-critical forms for processing, archiving and sharing, variety of form weights/sizes • Business impact: Provides fast, accurate, reliable images for improved data capture KODAK i700 Series Scanners

  15. CompetitionKey Knockouts

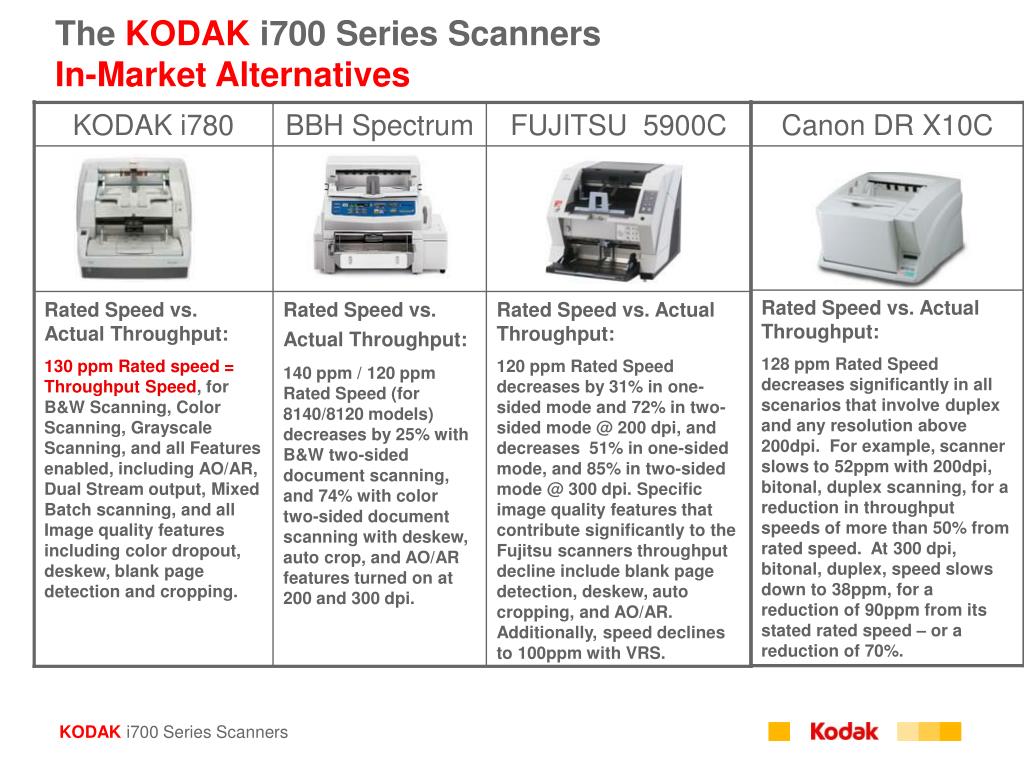

  16. KODAK i780 • BBH Spectrum • FUJITSU 5900C • Canon DR X10C • Rated Speed vs. Actual Throughput: • 128 ppm Rated Speed decreases significantly in all scenarios that involve duplex and any resolution above 200dpi. For example, scanner slows to 52ppm with 200dpi, bitonal, duplex scanning, for a reduction in throughput speeds of more than 50% from rated speed. At 300 dpi, bitonal, duplex, speed slows down to 38ppm, for a reduction of 90ppm from its stated rated speed – or a reduction of 70%. • Rated Speed vs. Actual Throughput: • 130 ppm Rated speed = Throughput Speed, for B&W Scanning, Color Scanning, Grayscale Scanning, and all Features enabled, including AO/AR, Dual Stream output, Mixed Batch scanning, and all Image quality features including color dropout, deskew, blank page detection and cropping. • Rated Speed vs. Actual Throughput: • 140 ppm / 120 ppm Rated Speed (for 8140/8120 models) decreases by 25% with B&W two-sided document scanning, and 74% with color two-sided document scanning with deskew, auto crop, and AO/AR features turned on at 200 and 300 dpi. • Rated Speed vs. Actual Throughput: • 120 ppm Rated Speed decreases by 31% in one-sided mode and 72% in two-sided mode @ 200 dpi, and decreases 51% in one-sided mode, and 85% in two-sided mode @ 300 dpi. Specific image quality features that contribute significantly to the Fujitsu scanners throughput decline include blank page detection, deskew, auto cropping, and AO/AR. Additionally, speed declines to 100ppm with VRS. The KODAKi700 Series Scanners In-Market Alternatives KODAK i700 Series Scanners

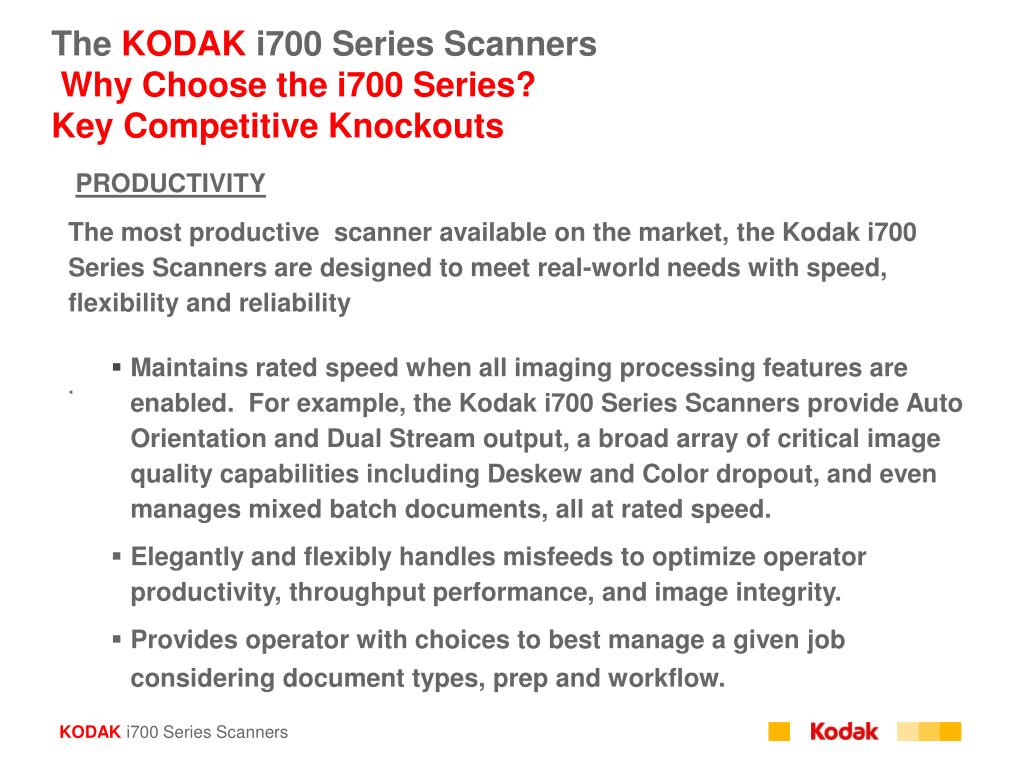

  17. The KODAKi700 Series Scanners Why Choose the i700 Series?Key Competitive Knockouts • PRODUCTIVITY • The most productive scanner available on the market, the Kodak i700 Series Scanners are designed to meet real-world needs with speed, flexibility and reliability • ·        • Maintains rated speed when all imaging processing features are enabled. For example, the Kodak i700 Series Scanners provide Auto Orientation and Dual Stream output, a broad array of critical image quality capabilities including Deskew and Color dropout, and even manages mixed batch documents, all at rated speed. • Elegantly and flexibly handles misfeeds to optimize operator productivity, throughput performance, and image integrity. • Provides operator with choices to best manage a given job considering document types, prep and workflow. KODAK i700 Series Scanners

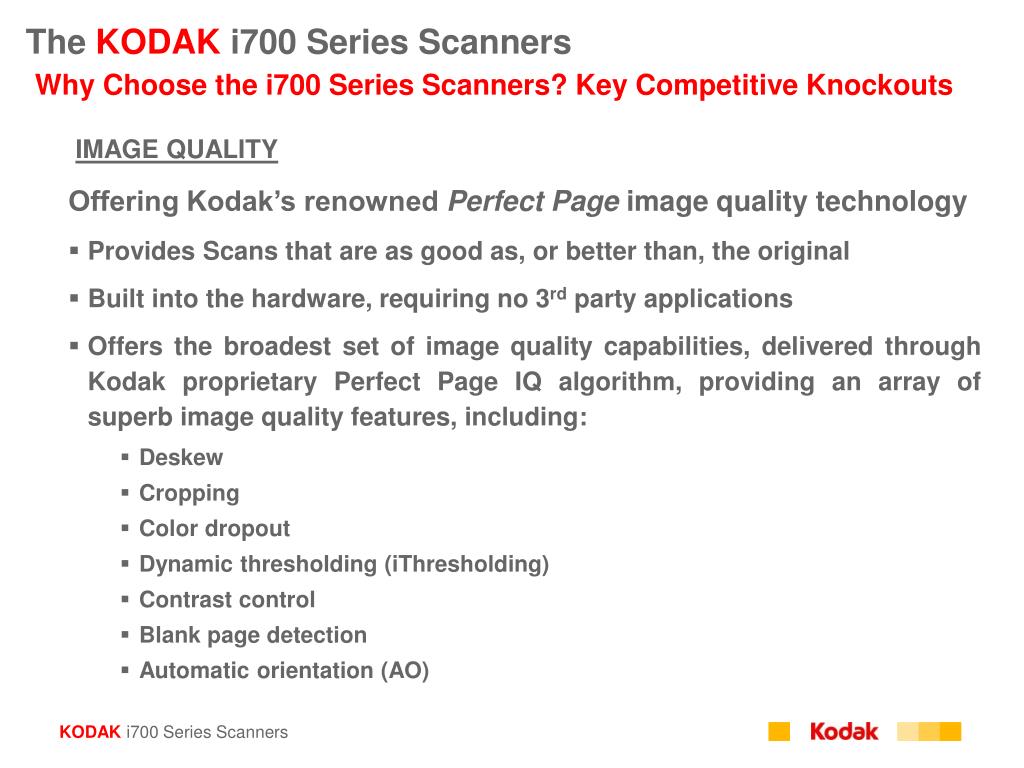

  18. The KODAKi700 Series Scanners Why Choose the i700 Series Scanners?Key Competitive Knockouts • IMAGE QUALITY • Offering Kodak’s renowned Perfect Page image quality technology • Provides Scans that are as good as, or better than, the original • Built into the hardware, requiring no 3rd party applications • Offers the broadest set of image quality capabilities, delivered through Kodak proprietary Perfect Page IQ algorithm, providing an array of superb image quality features, including: • Deskew • Cropping • Color dropout • Dynamic thresholding (iThresholding) • Contrast control • Blank page detection • Automatic orientation (AO) KODAK i700 Series Scanners

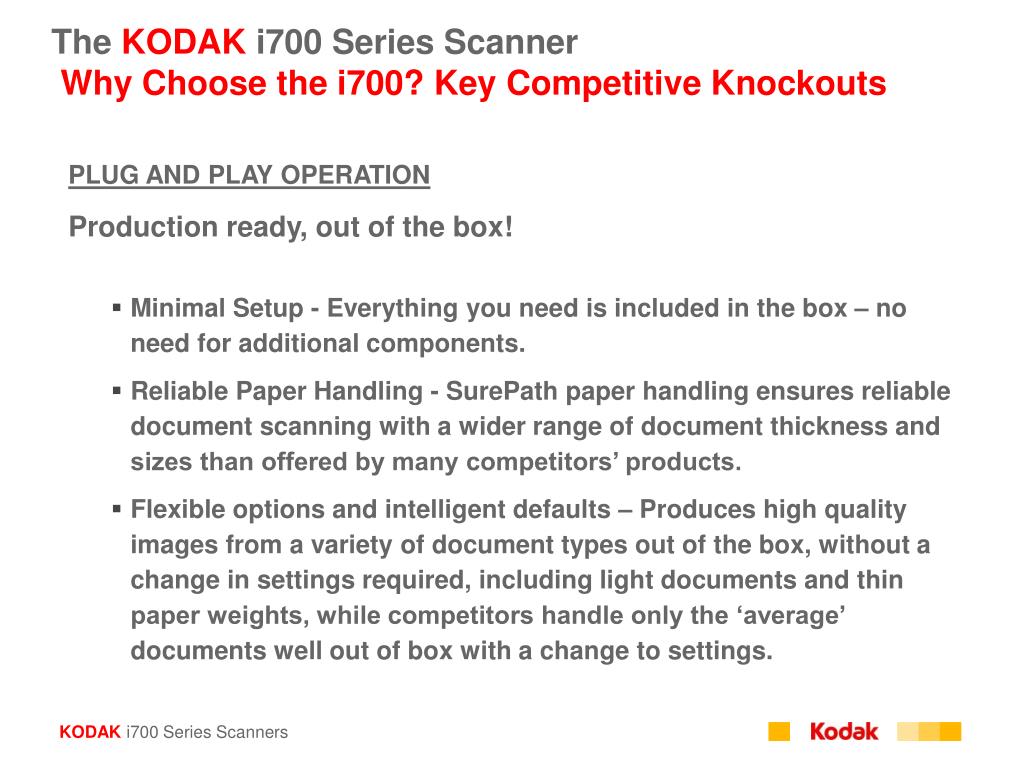

  19. The KODAKi700 Series Scanner Why Choose the i700?Key Competitive Knockouts • PLUG AND PLAY OPERATION • Production ready, out of the box! • Minimal Setup - Everything you need is included in the box – no need for additional components. • Reliable Paper Handling - SurePath paper handling ensures reliable document scanning with a wider range of document thickness and sizes than offered by many competitors’ products. • Flexible options and intelligent defaults – Produces high quality images from a variety of document types out of the box, without a change in settings required, including light documents and thin paper weights, while competitors handle only the ‘average’ documents well out of box with a change to settings. KODAK i700 Series Scanners

  20. Product SummaryDetailed Specifications

  21. A Quick Tour of KODAK i700 Series Scanners Easy access to complete paper path; low maintenance Perfect Page Scanning now with *AUTO ORIENTATION 508 Compliant IEEE 1394 (FireWire) Interface ISIS and TWAIN drivers Toggle Patch Front, PreScan Printer Wide range of paper types and sizes Dust control – enclosed camera design UltraLightweight Feeder Black or White Background Energy Star Tri-zone UDDS SurePath Paper Handling Transport Independent adjustable side guides now with locking feature Dual Xenon Illumination, lifetime lamps covered by service agreement 5 output formats (Bitonal, Greyscale, Color, BW and Greyscale, BW and Color) * 300 dpi at 200 dpi speed Ergonomics – including 500 Sheet elevator KODAK i700 Series Scanners

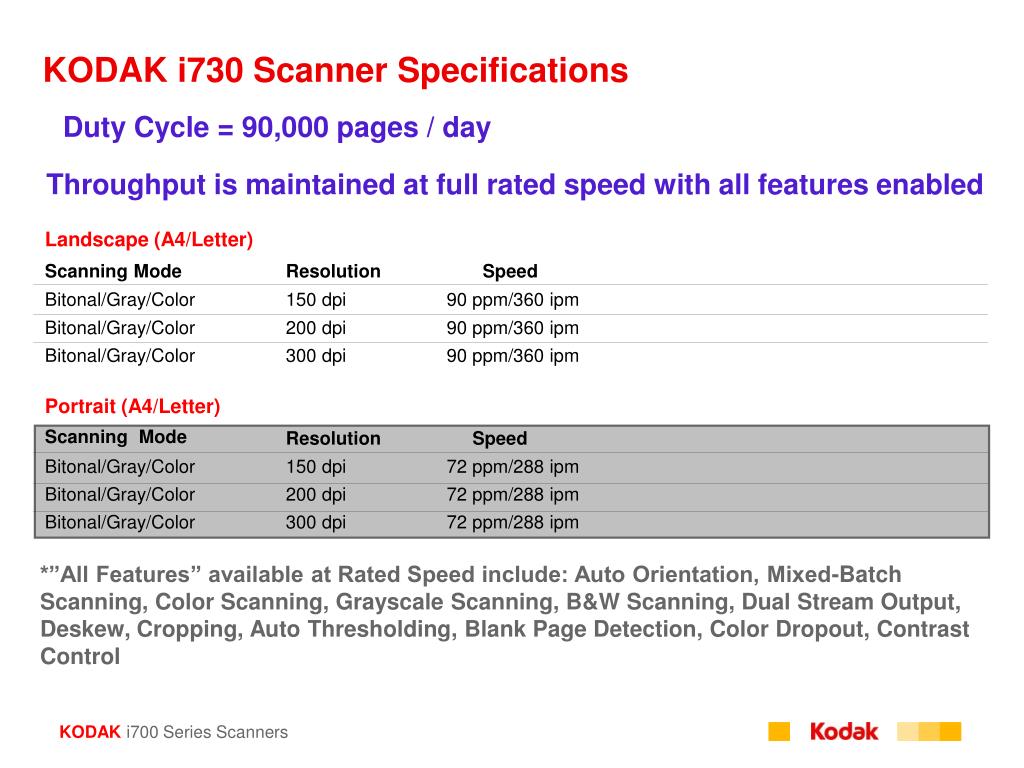

  22. KODAK i730 Scanner Specifications Duty Cycle = 90,000 pages / day Throughput is maintained at full rated speed with all features enabled Landscape (A4/Letter) Scanning Mode Resolution Speed Bitonal/Gray/Color 150 dpi 90 ppm/360 ipm Bitonal/Gray/Color 200 dpi 90 ppm/360 ipm Bitonal/Gray/Color 300 dpi 90 ppm/360 ipm Portrait (A4/Letter) Scanning Mode Resolution Speed Bitonal/Gray/Color 150 dpi 72 ppm/288 ipm Bitonal/Gray/Color 200 dpi 72 ppm/288 ipm Bitonal/Gray/Color 300 dpi 72 ppm/288 ipm *”All Features” available at Rated Speed include: Auto Orientation, Mixed-Batch Scanning, Color Scanning, Grayscale Scanning, B&W Scanning, Dual Stream Output, Deskew, Cropping, Auto Thresholding, Blank Page Detection, Color Dropout, Contrast Control KODAK i700 Series Scanners

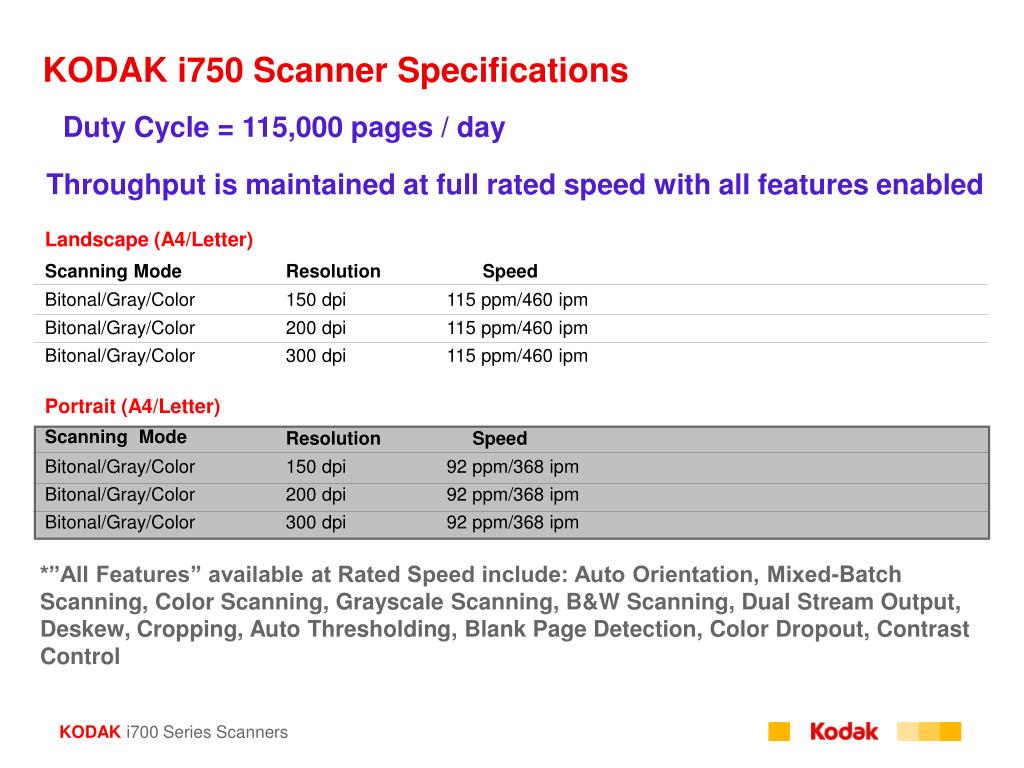

  23. KODAK i750 Scanner Specifications Duty Cycle = 115,000 pages / day Throughput is maintained at full rated speed with all features enabled Landscape (A4/Letter) Scanning Mode Resolution Speed Bitonal/Gray/Color 150 dpi 115 ppm/460 ipm Bitonal/Gray/Color 200 dpi 115 ppm/460 ipm Bitonal/Gray/Color 300 dpi 115 ppm/460 ipm Portrait (A4/Letter) Scanning Mode Resolution Speed Bitonal/Gray/Color 150 dpi 92 ppm/368 ipm Bitonal/Gray/Color 200 dpi 92 ppm/368 ipm Bitonal/Gray/Color 300 dpi 92 ppm/368 ipm *”All Features” available at Rated Speed include: Auto Orientation, Mixed-Batch Scanning, Color Scanning, Grayscale Scanning, B&W Scanning, Dual Stream Output, Deskew, Cropping, Auto Thresholding, Blank Page Detection, Color Dropout, Contrast Control KODAK i700 Series Scanners

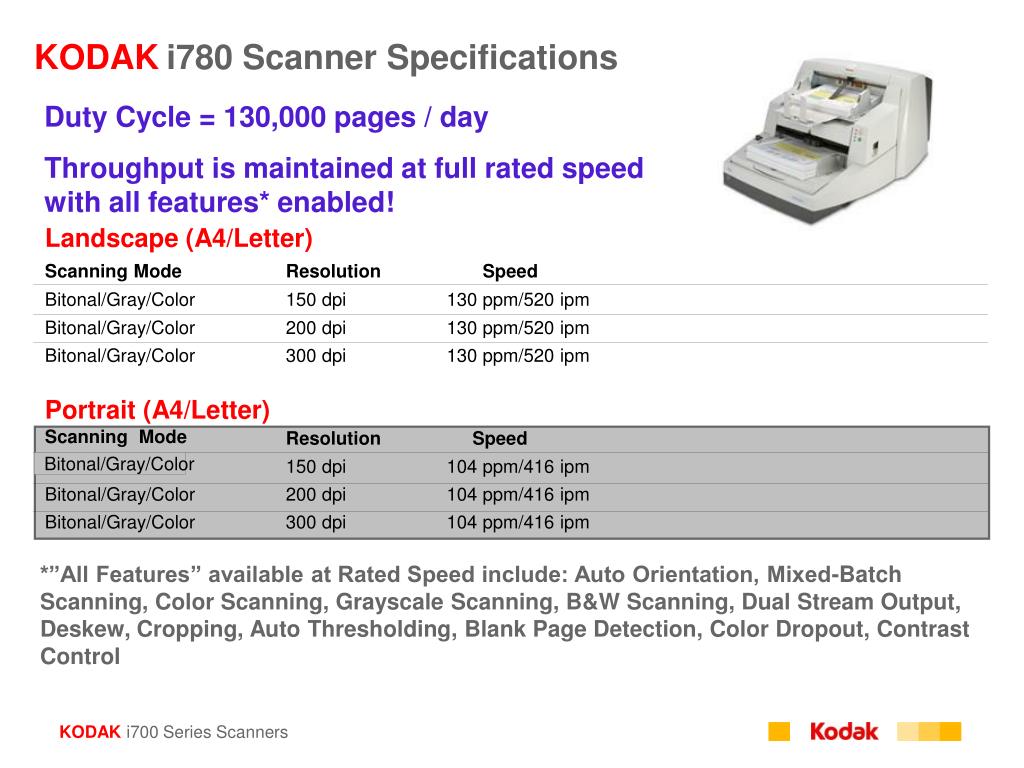

  24. KODAKi780 Scanner Specifications Duty Cycle = 130,000 pages / day Throughput is maintained at full rated speed with all features* enabled! Landscape (A4/Letter) Scanning Mode Resolution Speed Bitonal/Gray/Color 150 dpi 130 ppm/520 ipm Bitonal/Gray/Color 200 dpi 130 ppm/520 ipm Bitonal/Gray/Color 300 dpi 130 ppm/520 ipm Portrait (A4/Letter) Scanning Mode Resolution Speed Bitonal/Gray/Color 150 dpi 104 ppm/416 ipm Bitonal/Gray/Color 200 dpi 104 ppm/416 ipm Bitonal/Gray/Color 300 dpi 104 ppm/416 ipm *”All Features” available at Rated Speed include: Auto Orientation, Mixed-Batch Scanning, Color Scanning, Grayscale Scanning, B&W Scanning, Dual Stream Output, Deskew, Cropping, Auto Thresholding, Blank Page Detection, Color Dropout, Contrast Control KODAK i700 Series Scanners

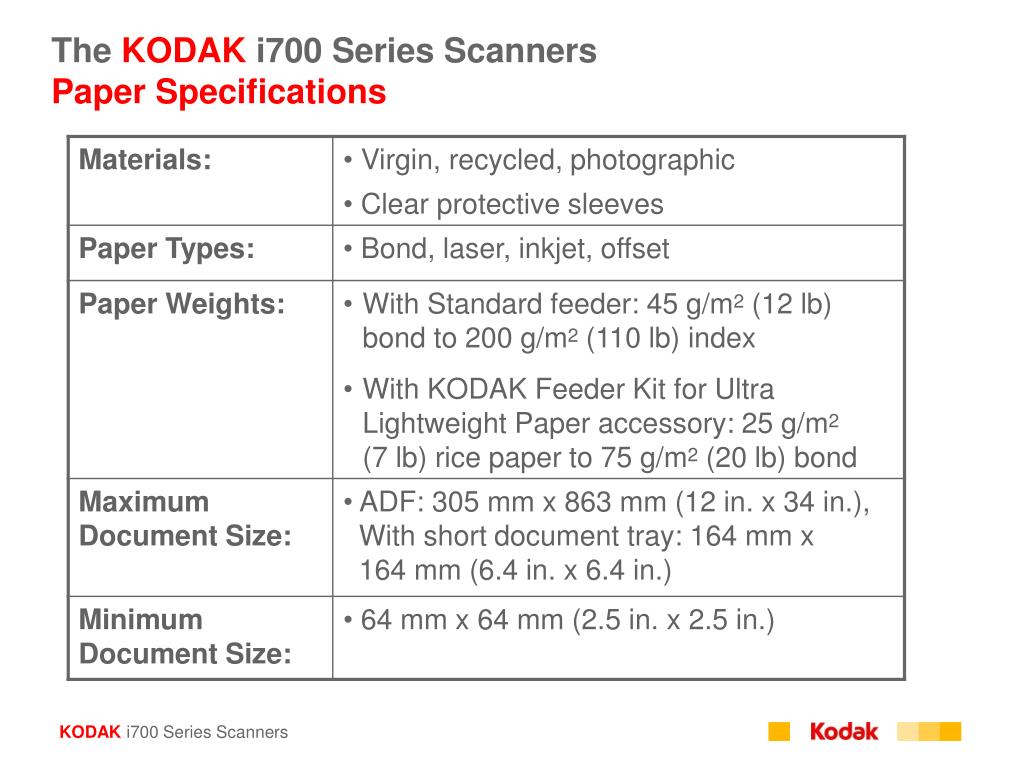

  25. The KODAKi700 Series Scanners Paper Specifications KODAK i700 Series Scanners

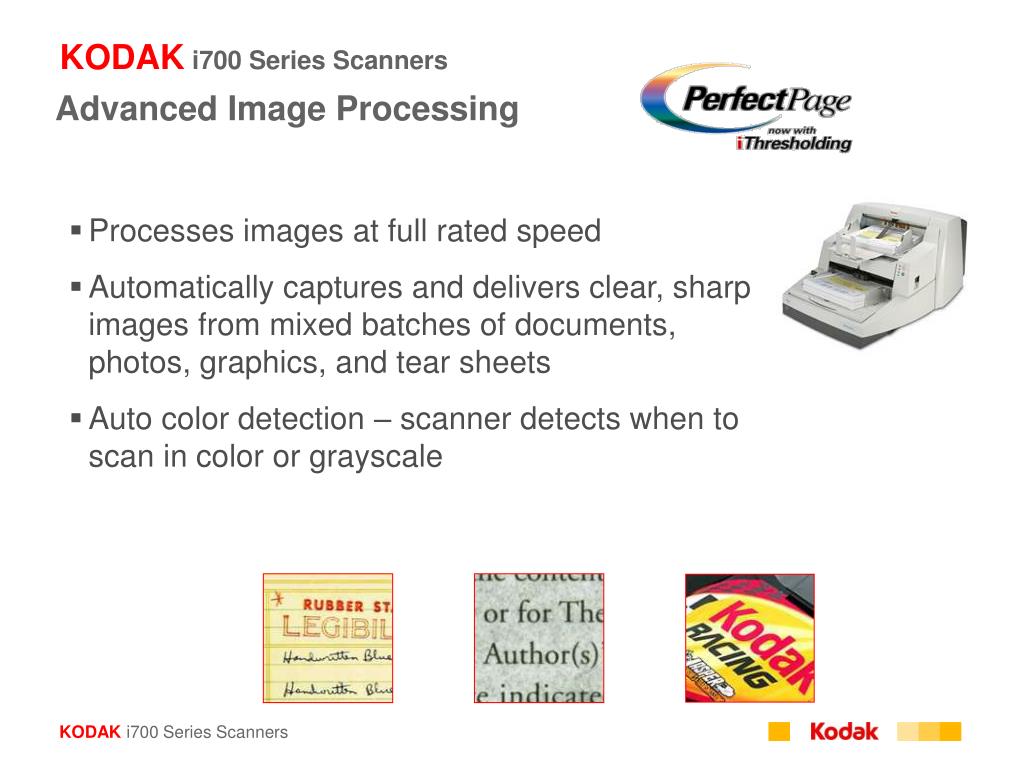

  26. KODAK i700 Series Scanners Advanced Image Processing • Processes images at full rated speed • Automatically captures and delivers clear, sharp images from mixed batches of documents, photos, graphics, and tear sheets • Auto color detection – scanner detects when to scan in color or grayscale KODAK i700 Series Scanners

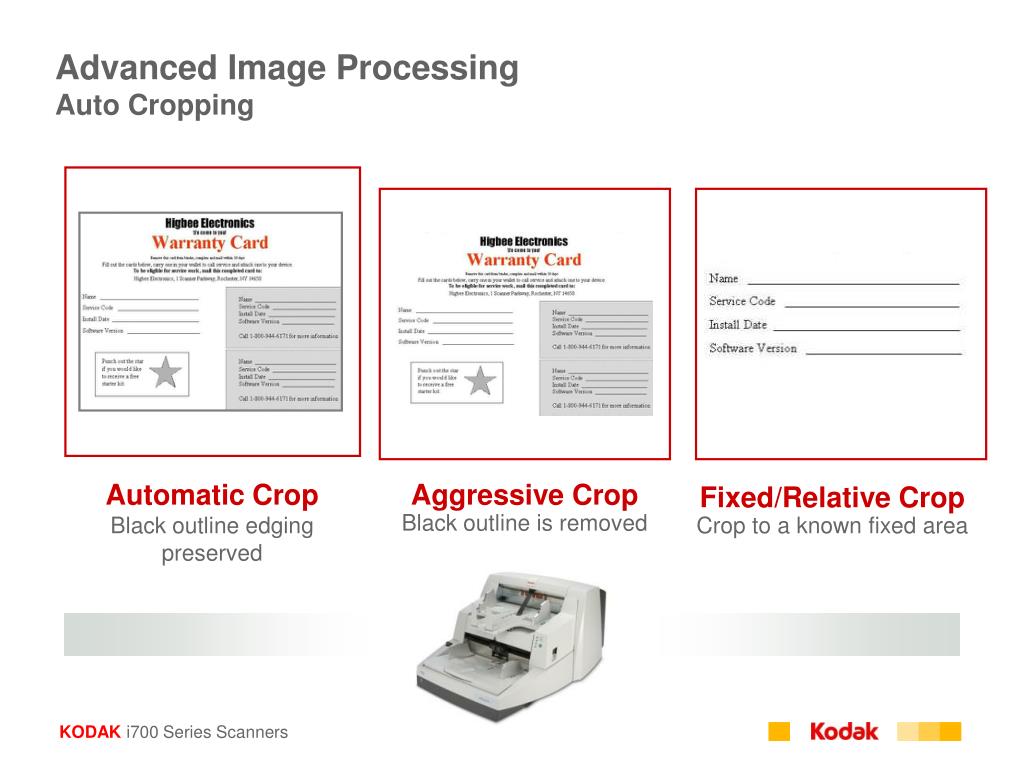

  27. Aggressive Crop Black outline is removed Advanced Image ProcessingAuto Cropping Automatic Crop Black outline edging preserved Fixed/Relative Crop Crop to a known fixed area KODAK i700 Series Scanners

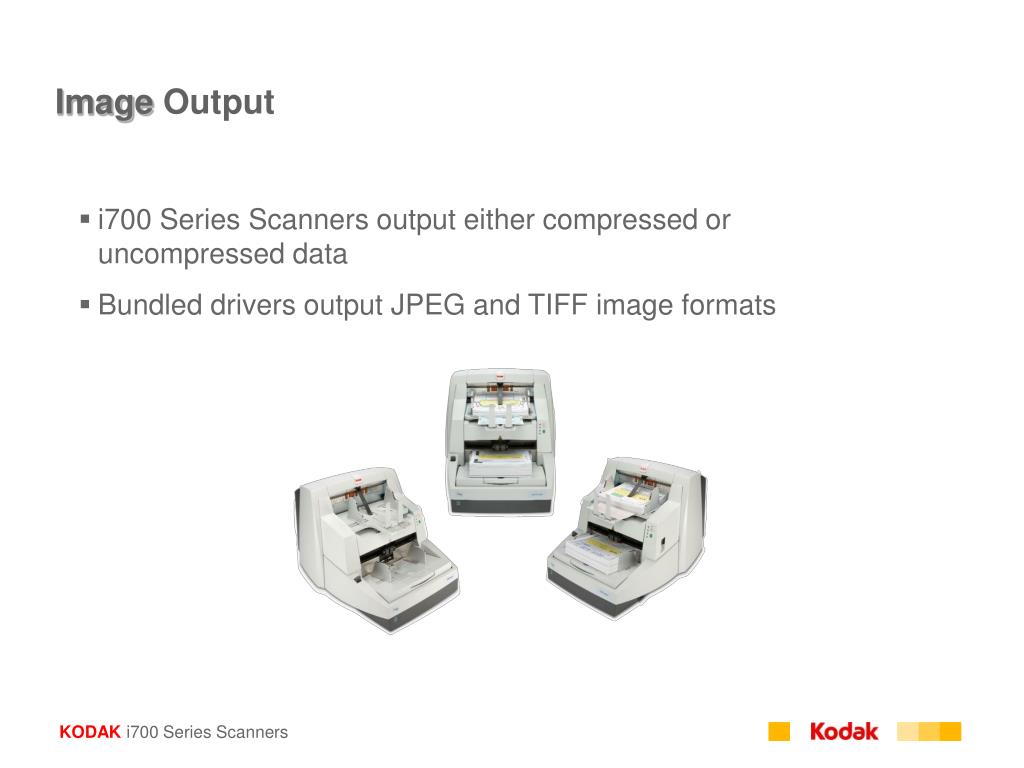

  28. Image Output • i700 Series Scanners output either compressed or uncompressed data • Bundled drivers output JPEG and TIFF image formats KODAK i700 Series Scanners

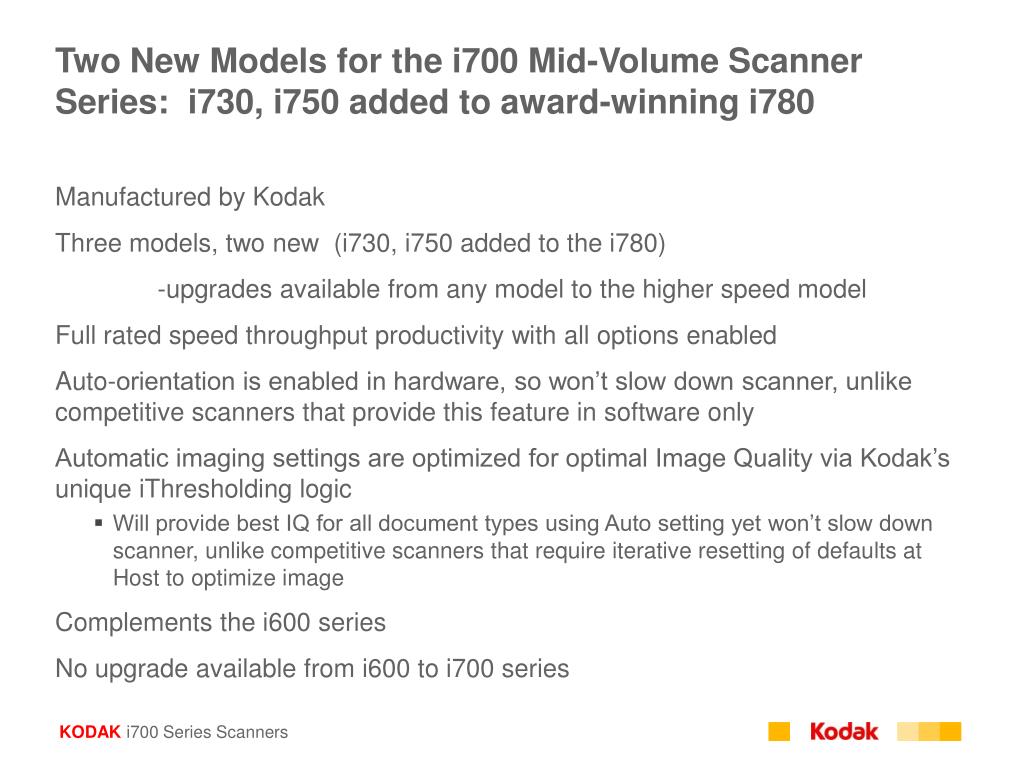

  29. Two New Models for the i700 Mid-Volume Scanner Series: i730, i750 added to award-winning i780 • Manufactured by Kodak • Three models, two new (i730, i750 added to the i780) • -upgrades available from any model to the higher speed model • Full rated speed throughput productivity with all options enabled • Auto-orientation is enabled in hardware, so won’t slow down scanner, unlike competitive scanners that provide this feature in software only • Automatic imaging settings are optimized for optimal Image Quality via Kodak’s unique iThresholding logic • Will provide best IQ for all document types using Auto setting yet won’t slow down scanner, unlike competitive scanners that require iterative resetting of defaults at Host to optimize image • Complements the i600 series • No upgrade available from i600 to i700 series KODAK i700 Series Scanners

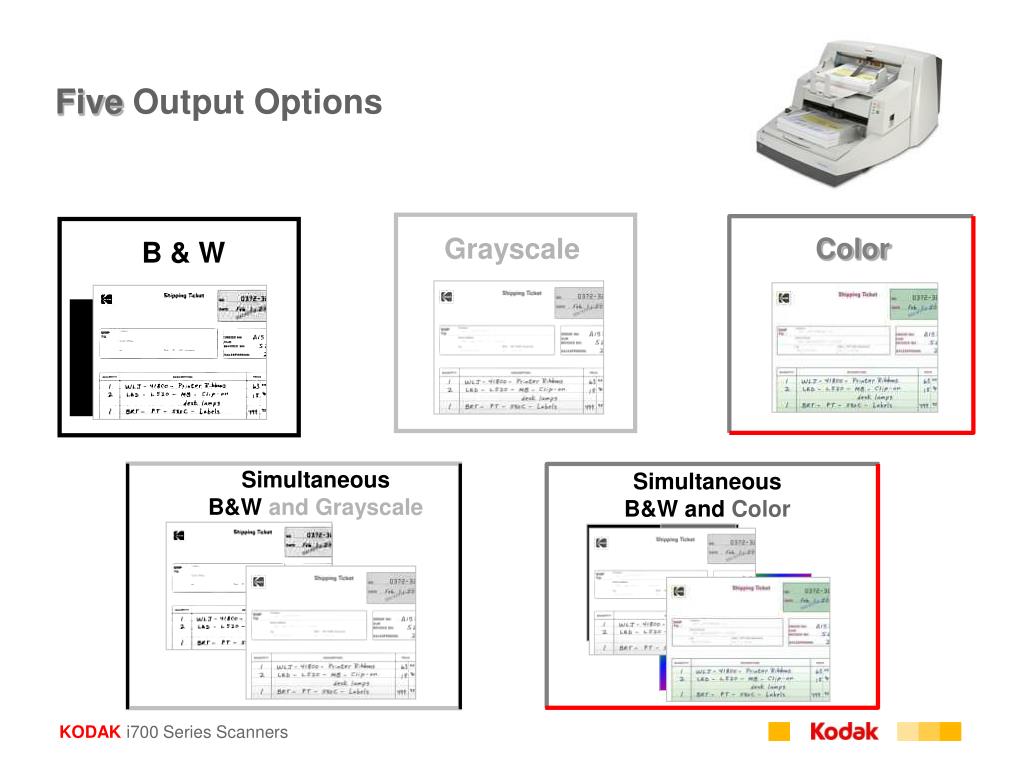

  30. Five Output Options Color Grayscale B & W Simultaneous B&W andGrayscale Simultaneous B&Wand Color KODAK i700 Series Scanners

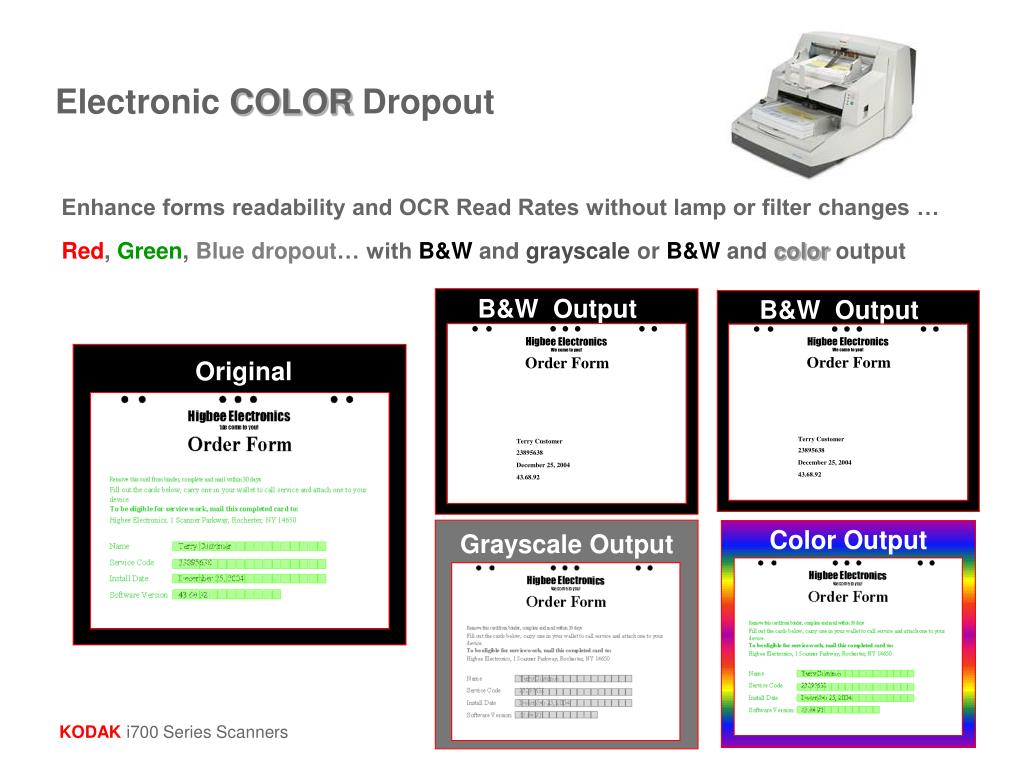

  31. B&W Output Original Electronic COLOR Dropout Enhance forms readability and OCR Read Rates without lamp or filter changes … Red, Green, Blue dropout… with B&W and grayscale or B&W and color output B&W Output Color Output Grayscale Output KODAK i700 Series Scanners

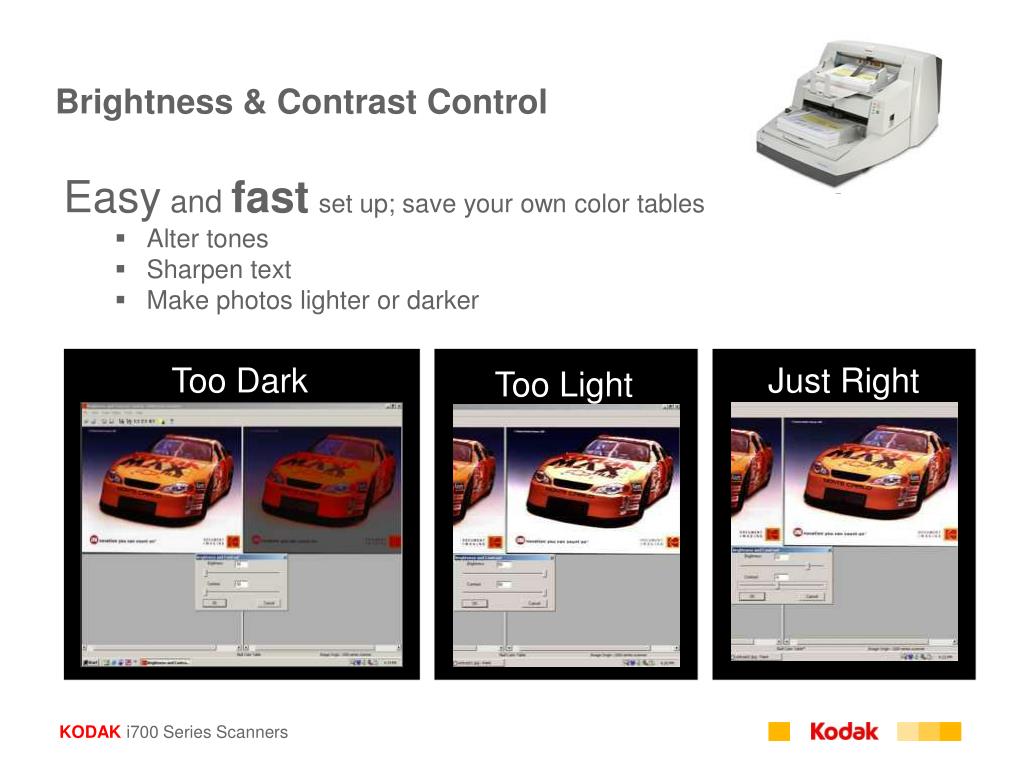

  32. Too Dark Just Right TooLight Brightness & Contrast Control • Easy and fastset up; save your own color tables • Alter tones • Sharpen text • Make photos lighter or darker KODAK i700 Series Scanners

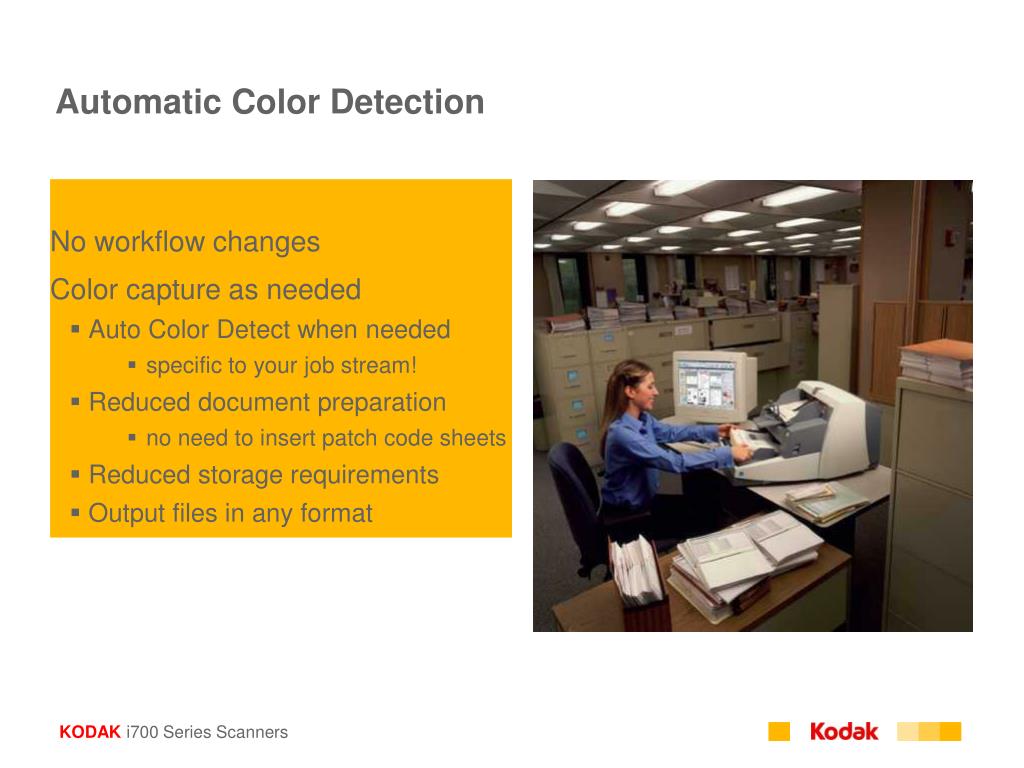

  33. Automatic Color Detection • No workflow changes • Color capture as needed • Auto Color Detect when needed • specific to your job stream! • Reduced document preparation • no need to insert patch code sheets • Reduced storage requirements • Output files in any format KODAK i700 Series Scanners

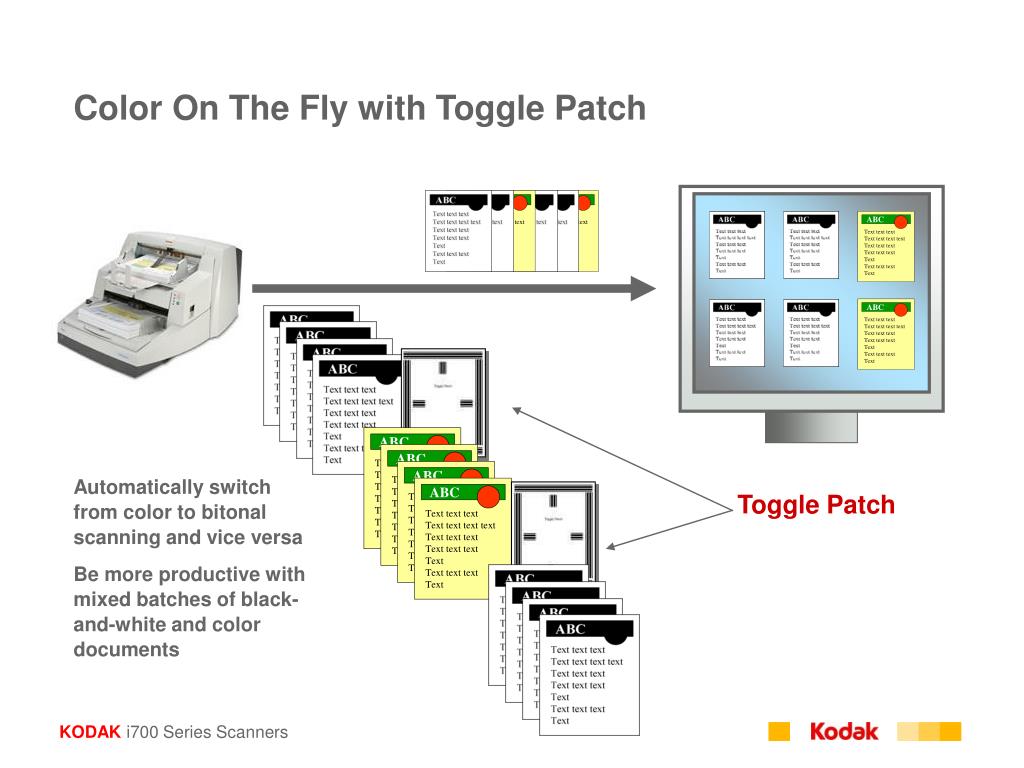

  34. Color On The Fly with Toggle Patch Automatically switch from color to bitonal scanning and vice versa Be more productive with mixed batches of black- and-white and color documents Toggle Patch KODAK i700 Series Scanners

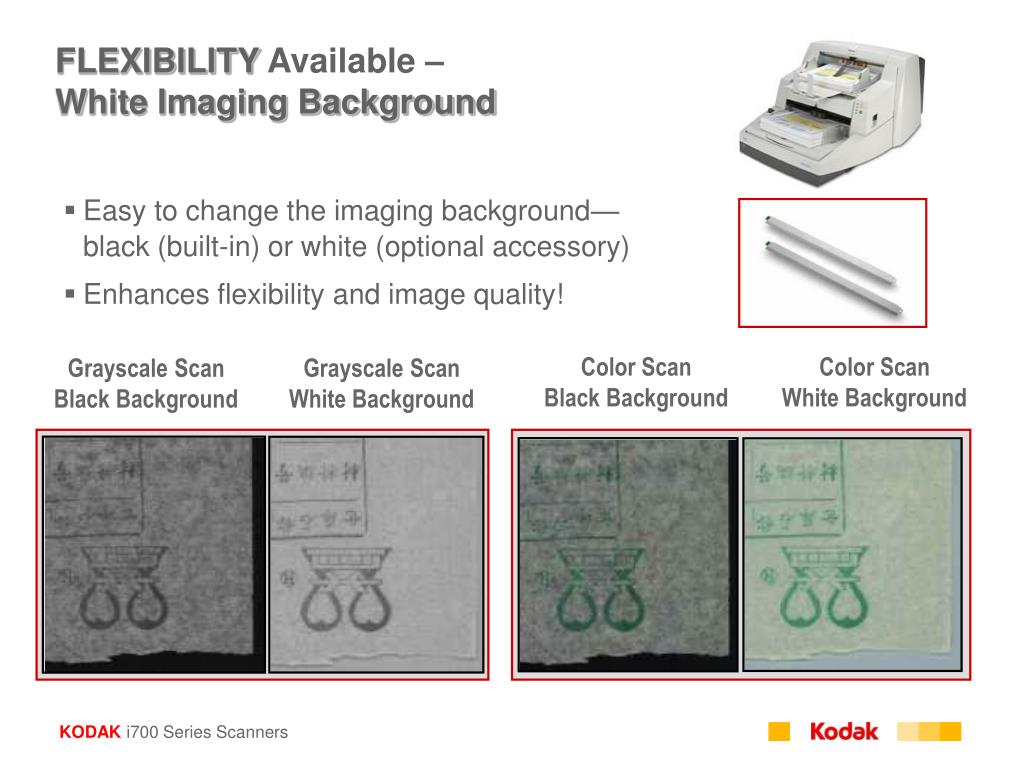

  35. FLEXIBILITY Available –White Imaging Background • Easy to change the imaging background— black (built-in) or white (optional accessory) • Enhances flexibility and image quality! Color ScanBlack Background Color ScanWhite Background Grayscale ScanBlack Background Grayscale ScanWhite Background KODAK i700 Series Scanners

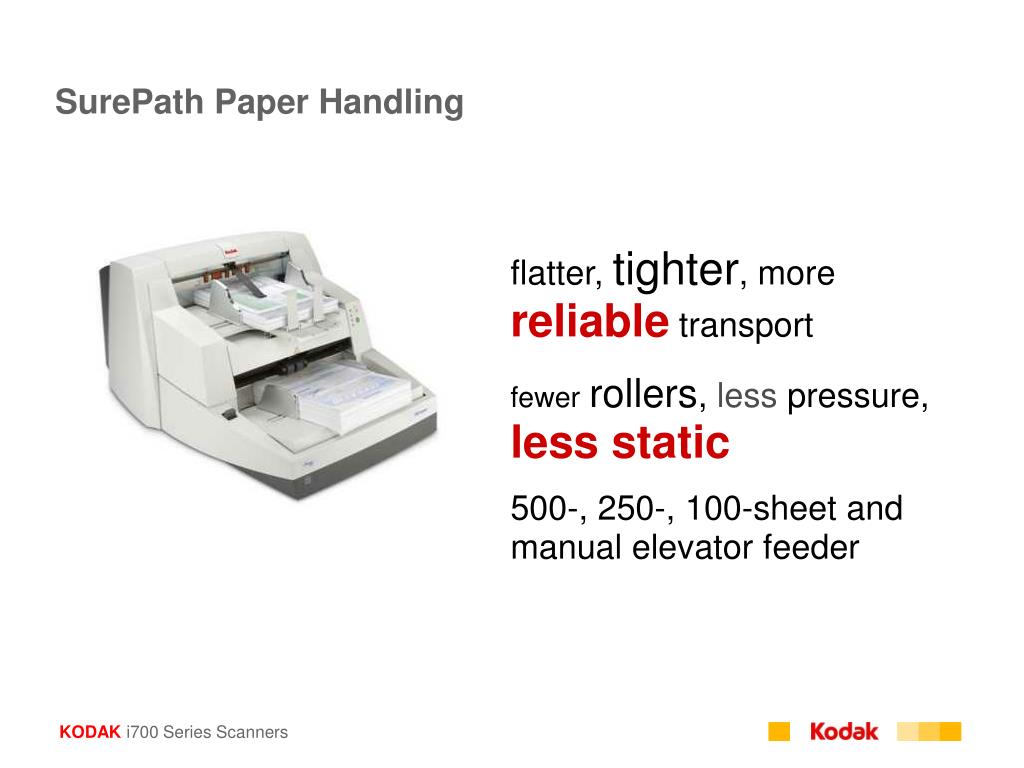

  36. SurePath Paper Handling flatter, tighter, more reliable transport fewerrollers, less pressure, less static 500-, 250-, 100-sheet and manual elevator feeder KODAK i700 Series Scanners

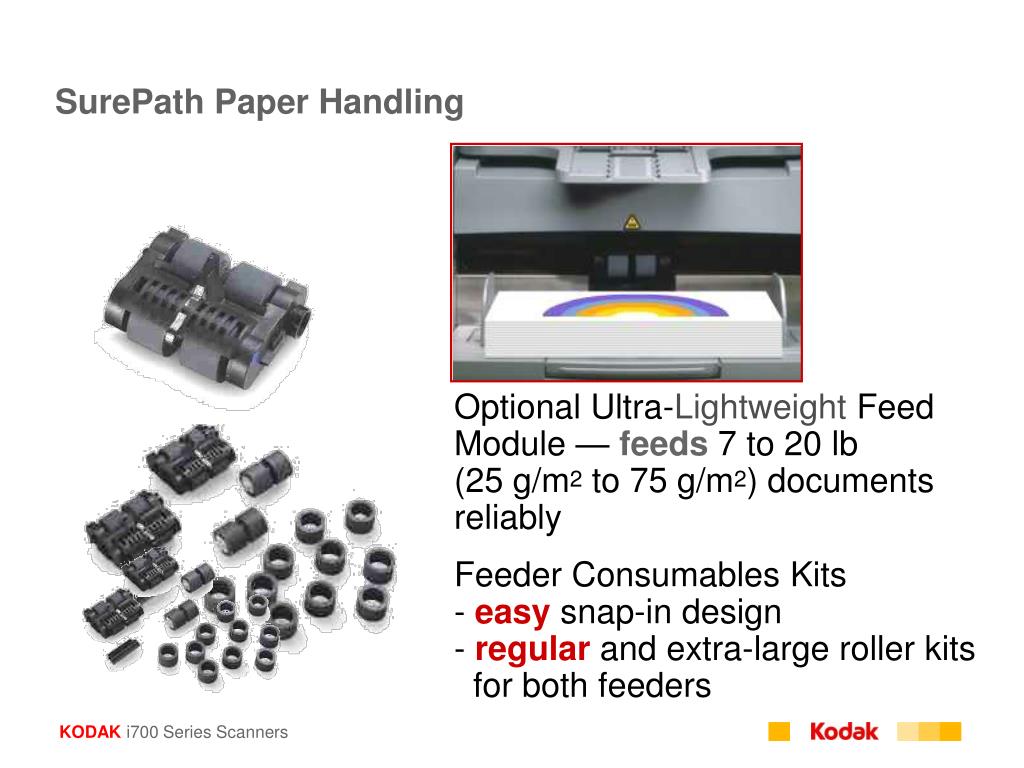

  37. SurePath Paper Handling Optional Ultra-Lightweight Feed Module — feeds 7 to 20 lb (25 g/m2 to 75 g/m2) documents reliably Feeder Consumables Kits - easy snap-in design- regular and extra-large roller kits for both feeders KODAK i700 Series Scanners

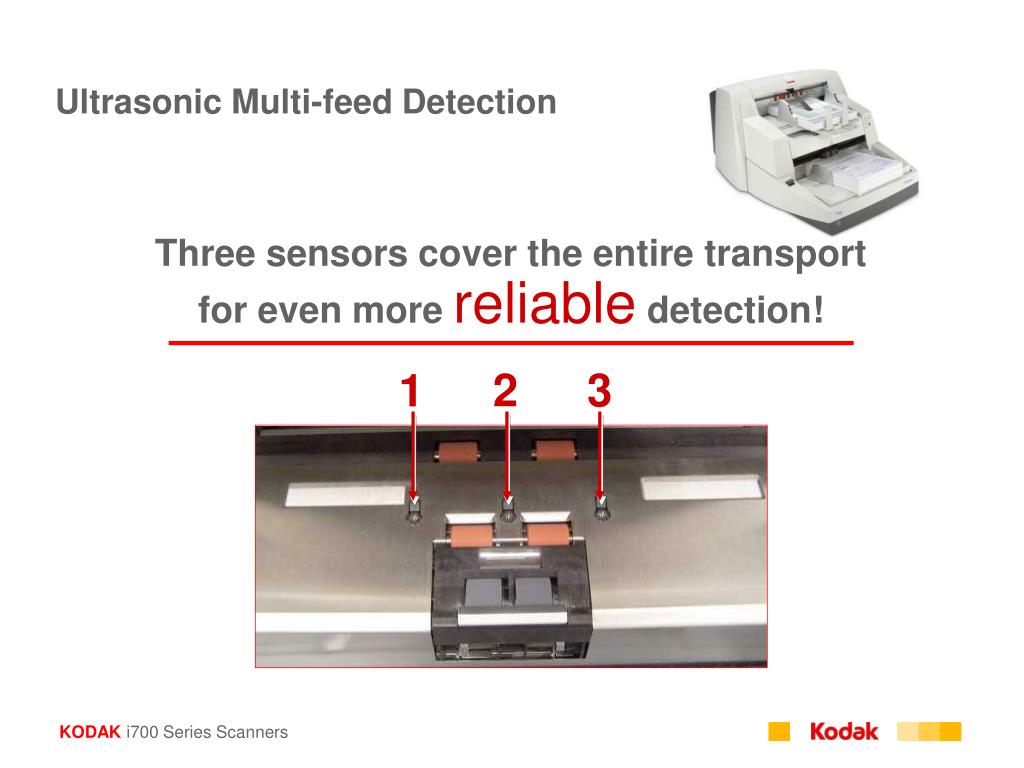

  38. 2 3 1 Ultrasonic Multi-feed Detection • Three sensors cover the entire transport for even more reliable detection! KODAK i700 Series Scanners

  39. Dual XENON Lamps Per Side Brighter Whiter 2500 + hours and cooler temperatures Fewer shadows on WRINKLED documents, cleaner images KODAK i700 Series Scanners

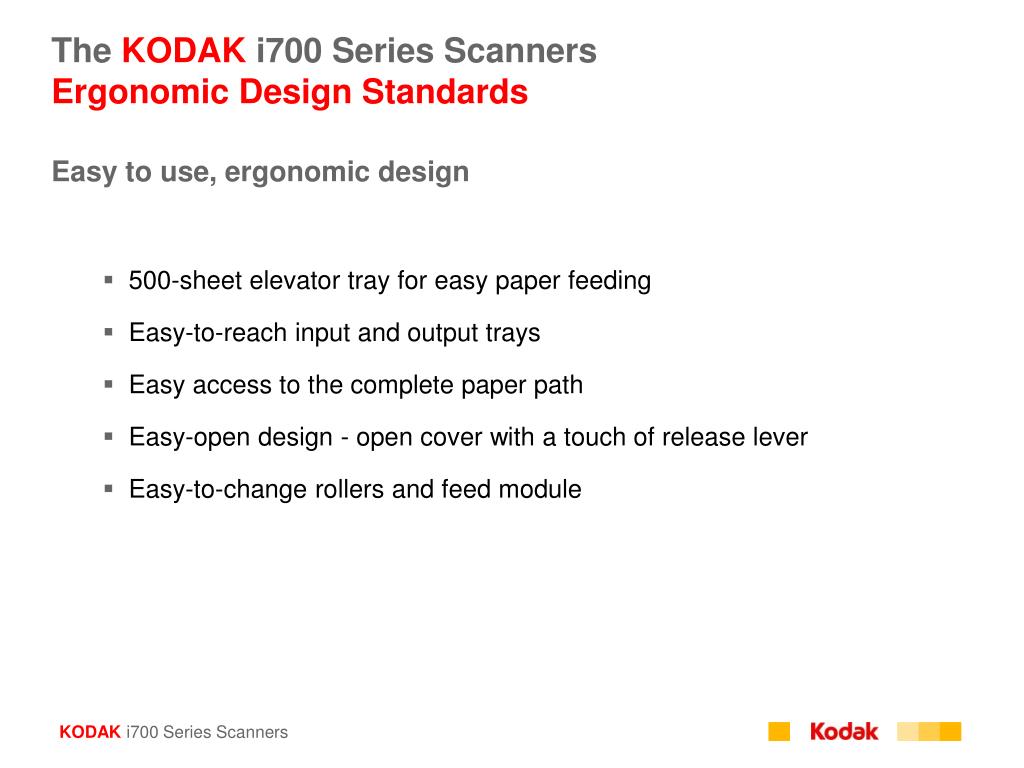

  40. The KODAKi700 Series Scanners Ergonomic Design Standards • Easy to use, ergonomic design • 500-sheet elevator tray for easy paper feeding • Easy-to-reach input and output trays • Easy access to the complete paper path • Easy-open design - open cover with a touch of release lever • Easy-to-change rollers and feed module KODAK i700 Series Scanners

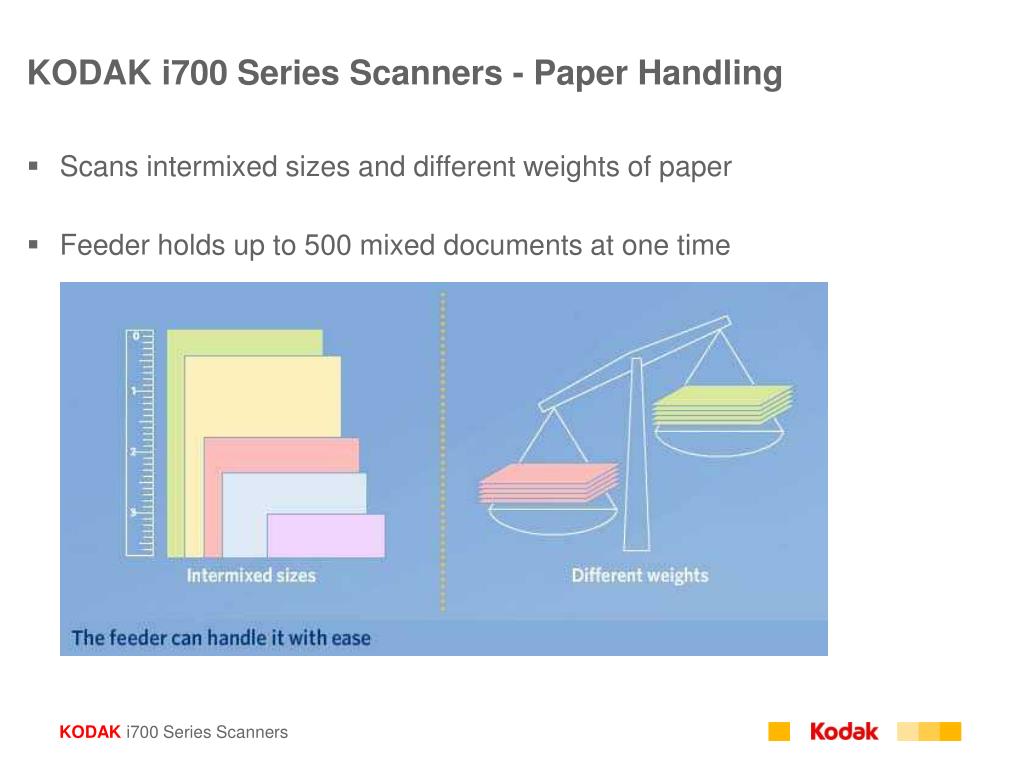

  41. KODAK i700 Series Scanners - Paper Handling • Scans intermixed sizes and different weights of paper • Feeder holds up to 500mixed documents at one time KODAK i700 Series Scanners

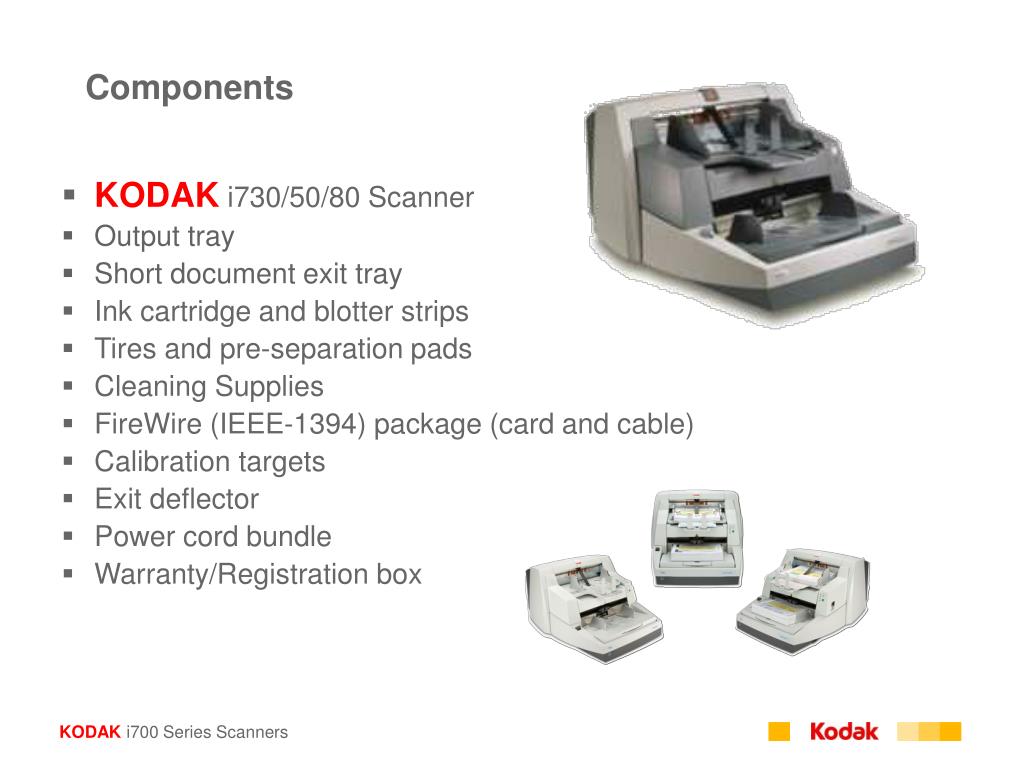

  42. Components • KODAKi730/50/80 Scanner • Output tray • Short document exit tray • Ink cartridge and blotter strips • Tires and pre-separation pads • Cleaning Supplies • FireWire (IEEE-1394) package (card and cable) • Calibration targets • Exit deflector • Power cord bundle • Warranty/Registration box KODAK i700 Series Scanners

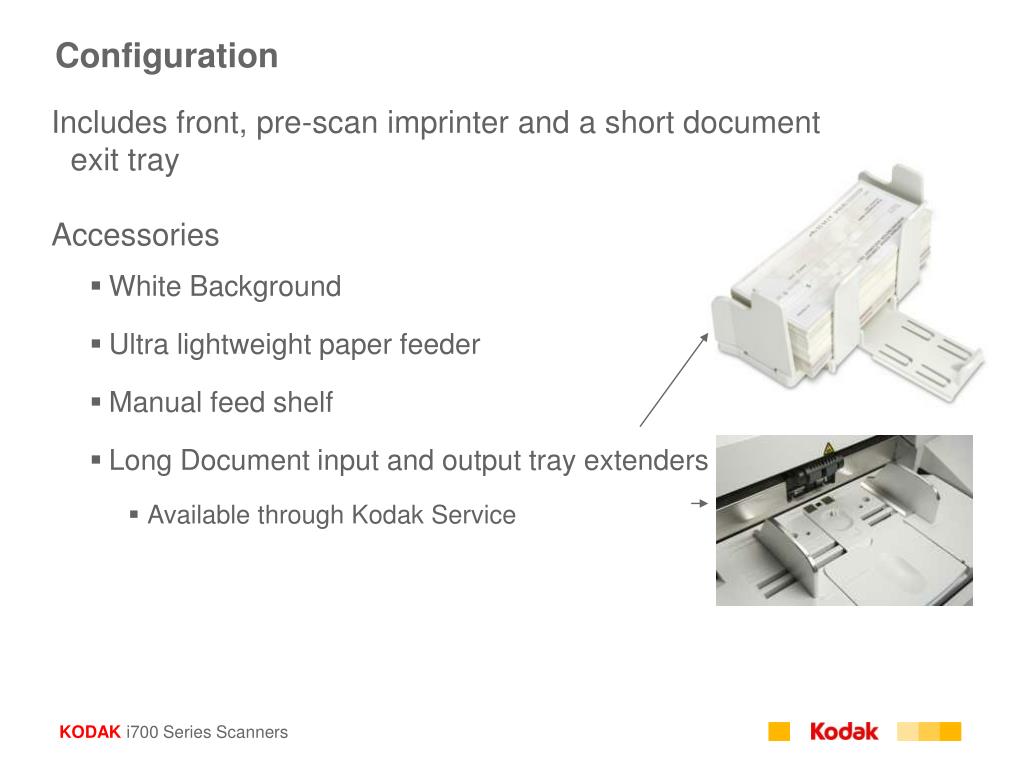

  43. Configuration • Includes front, pre-scan imprinter and a short document exit tray • Accessories • White Background • Ultra lightweight paper feeder • Manual feed shelf • Long Document input and output tray extenders • Available through Kodak Service KODAK i700 Series Scanners

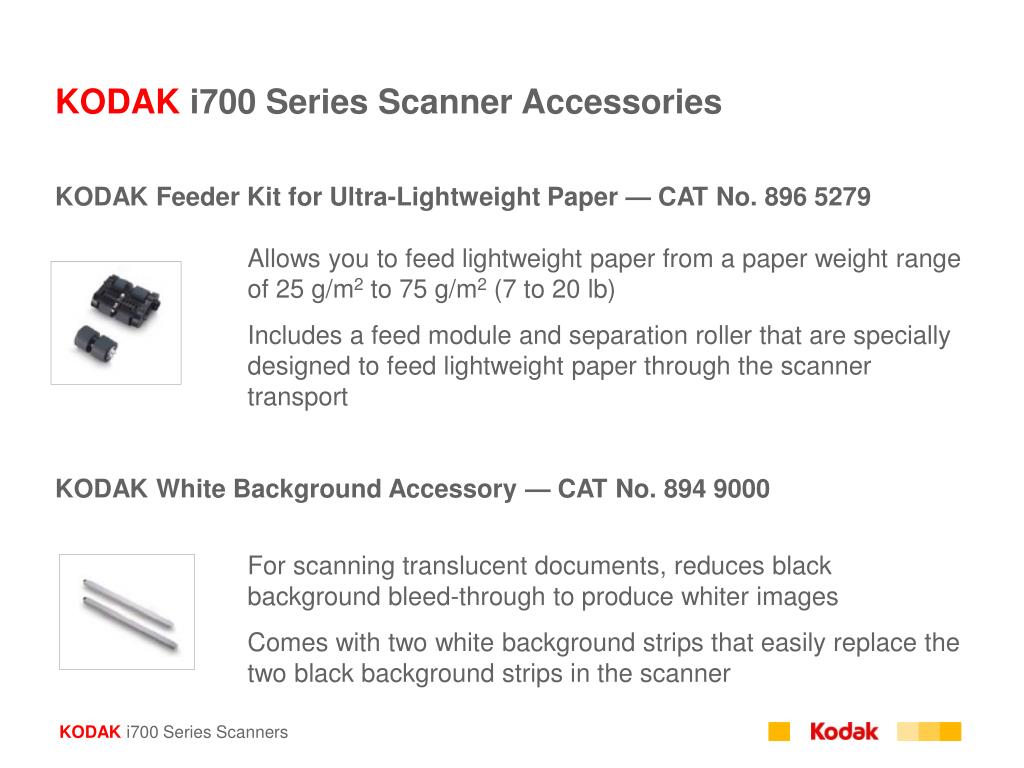

  44. KODAK i700 Series Scanner Accessories • KODAK Feeder Kit for Ultra-Lightweight Paper — CAT No. 896 5279 • Allows you to feed lightweight paper from a paper weight range of 25 g/m2 to 75 g/m2 (7 to 20 lb) • Includes a feed module and separation roller that are specially designed to feed lightweight paper through the scanner transport • KODAK White Background Accessory — CAT No. 894 9000 • For scanning translucent documents, reduces black background bleed-through to produce whiter images • Comes with two white background strips that easily replace the two black background strips in the scanner KODAK i700 Series Scanners

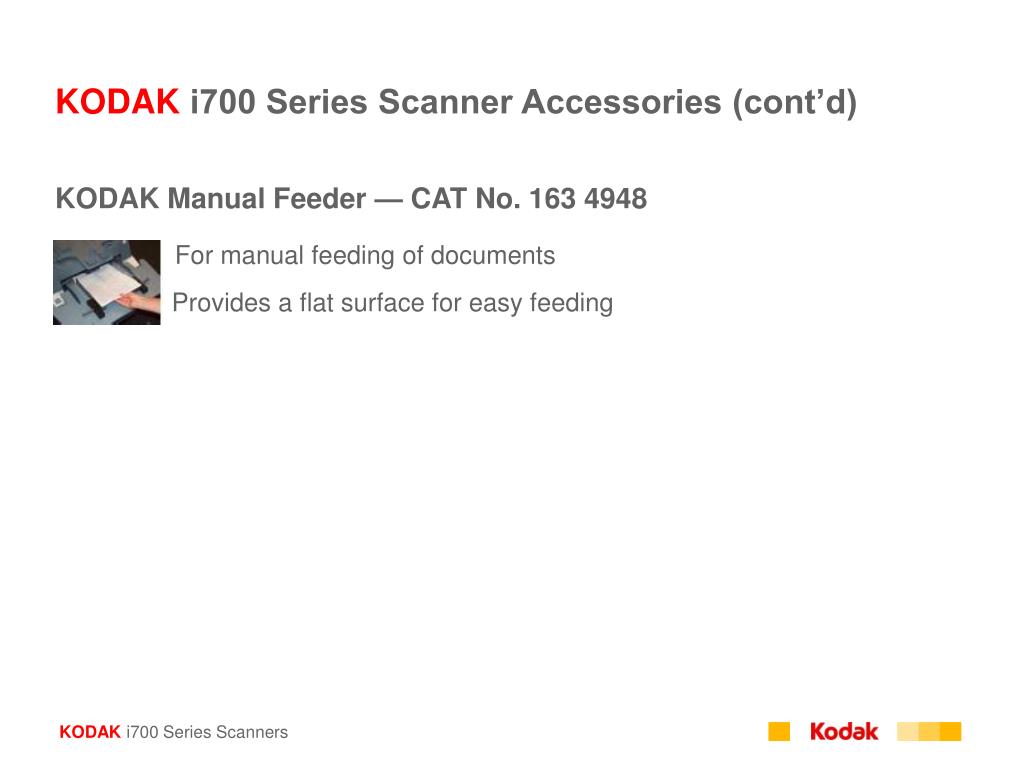

  45. KODAK i700 Series Scanner Accessories (cont’d) • KODAK Manual Feeder — CAT No.163 4948 • For manual feeding of documents • Provides a flat surface for easy feeding KODAK i700 Series Scanners

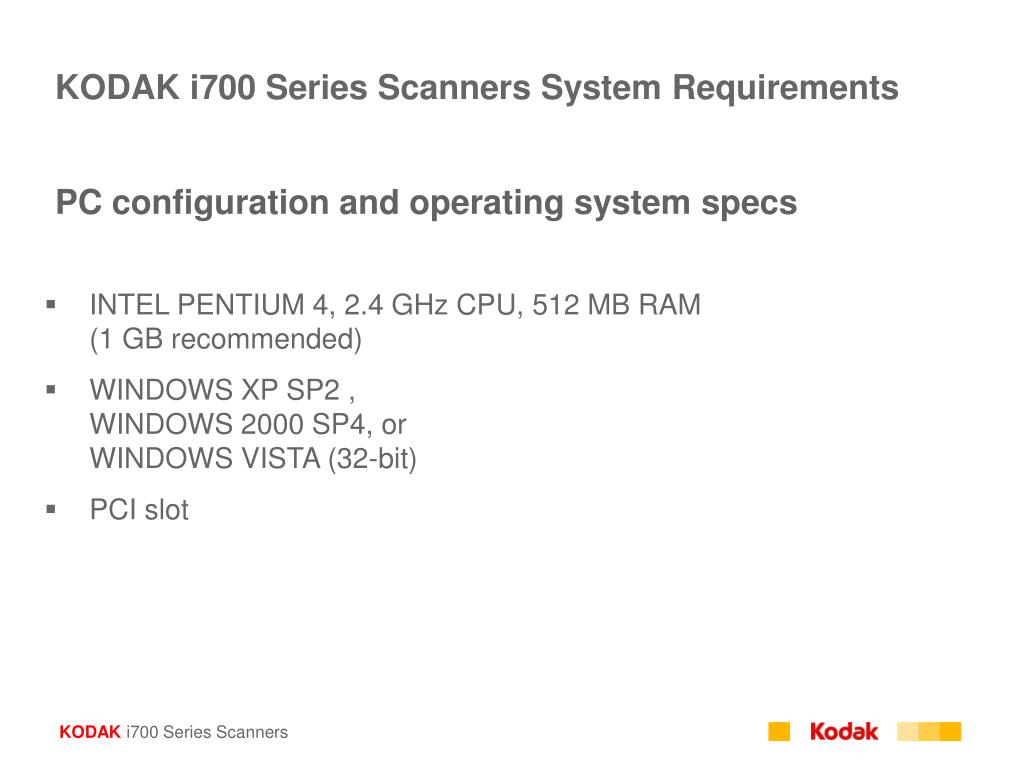

  46. KODAK i700 Series Scanners System Requirements • PC configuration and operating system specs • INTEL PENTIUM 4, 2.4 GHz CPU, 512 MB RAM (1 GB recommended) • WINDOWS XP SP2 , WINDOWS 2000 SP4, or WINDOWS VISTA (32-bit) • PCI slot KODAK i700 Series Scanners

  47. Experience • Choose a KODAK i700 Series Scanner • … from a recognized global leader in document imaging • Backed with • … experience • … expertise • … commitment • Visitwww.kodak.com\go\i700 KODAK i700 Series Scanners

  48. Kodak Worldwide Service & Support • Global reach • Local attention • Performance driven • Kodak’s benchmark service organization provides a single point of contact to help keep your equipment running at maximum potential With more than 3,000 highly trained professionals in over 120 countries, Kodak is one of the largest, most experienced service organizations in the industry with customer satisfaction ratings historically over 95%! KODAK i700 Series Scanners

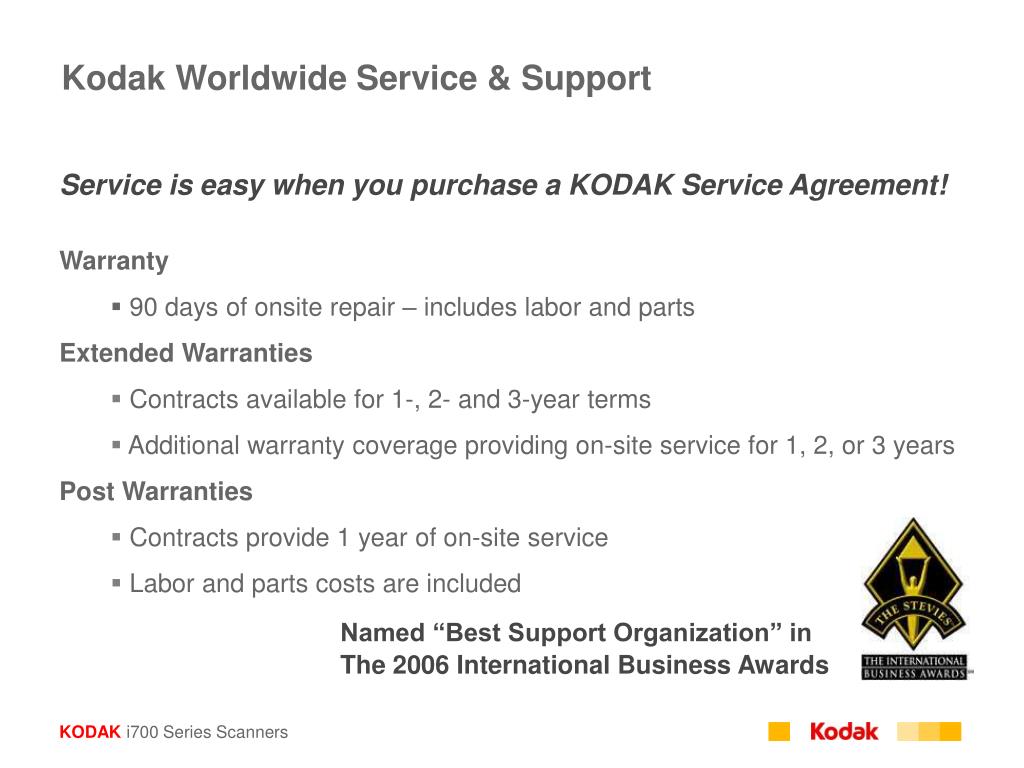

  49. Kodak Worldwide Service & Support Service is easy when you purchase a KODAK Service Agreement! Warranty • 90 days of onsite repair – includes labor and parts Extended Warranties • Contracts available for 1-, 2- and 3-year terms • Additional warranty coverage providing on-site service for 1, 2, or 3 years Post Warranties • Contracts provide 1 year of on-site service • Labor and parts costs are included Named “Best Support Organization” in The 2006 International Business Awards KODAK i700 Series Scanners

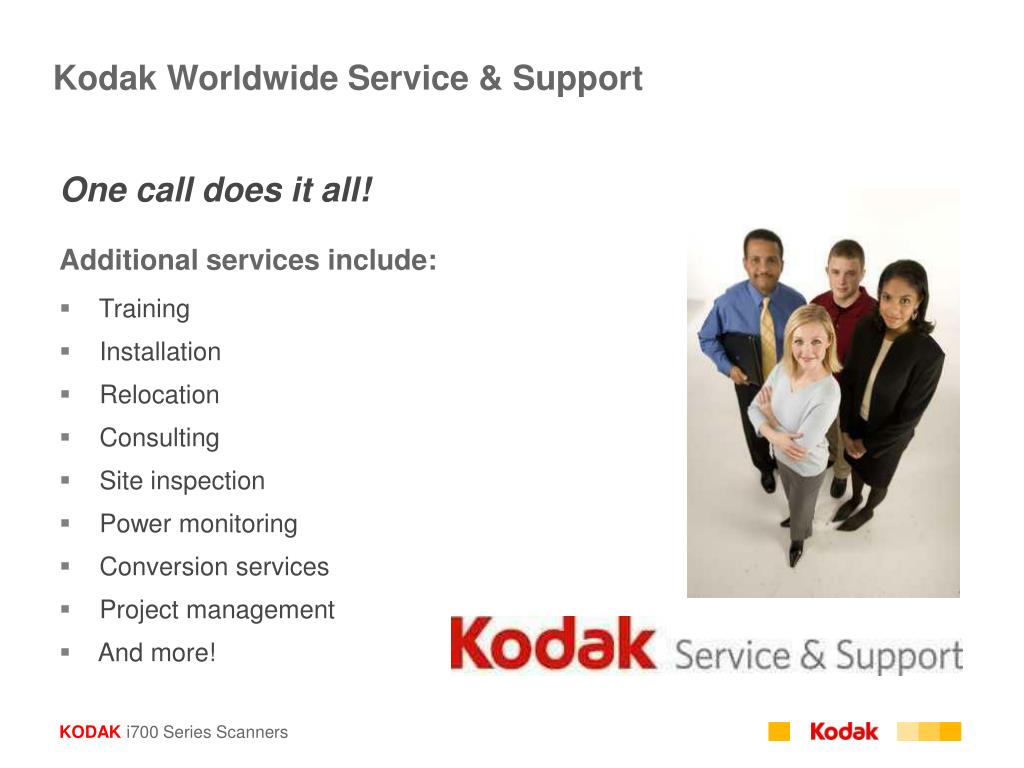

  50. Kodak Worldwide Service & Support One call does it all! Additional services include: • Training • Installation • Relocation • Consulting • Site inspection • Power monitoring • Conversion services • Project management • And more! KODAK i700 Series Scanners
