  1. Star Transformations Tony Hasler, UKOUG Birmingham 2012 Tony Hasler, Anvil Computer Services Ltd.

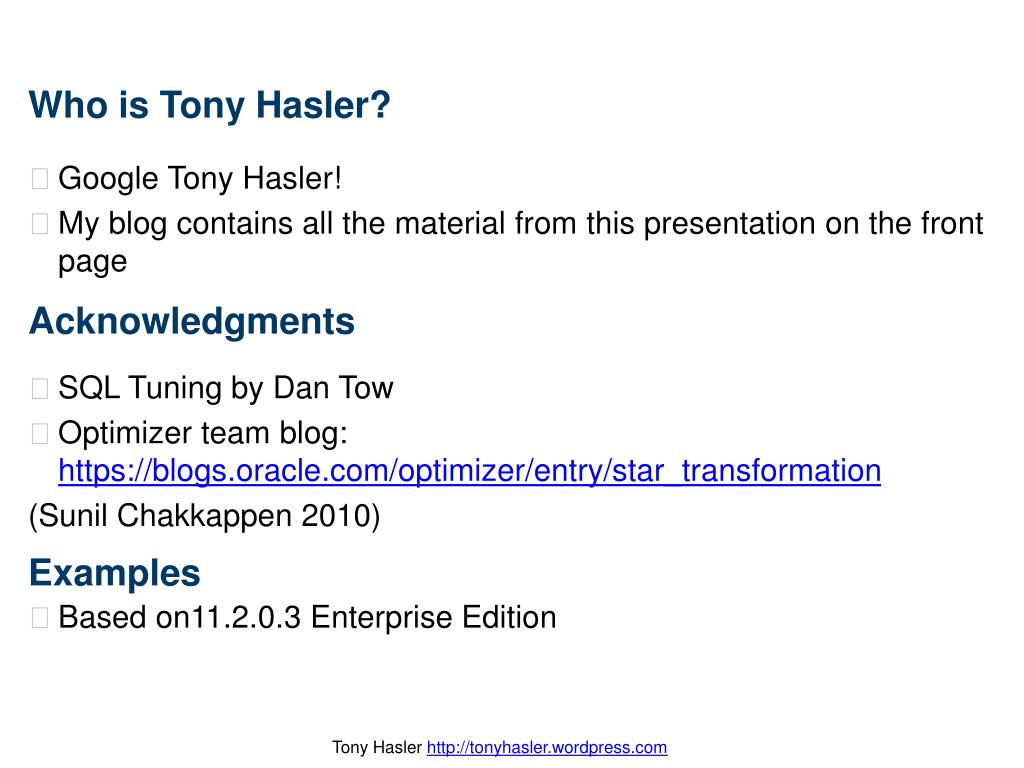

  2. Who is Tony Hasler? Acknowledgments • SQL Tuning by Dan Tow • Optimizer team blog: https://blogs.oracle.com/optimizer/entry/star_transformation (Sunil Chakkappen2010) Examples • Based on11.2.0.3 Enterprise Edition Google Tony Hasler! My blog contains all the material from this presentation on the front page Tony Hasler http://tonyhasler.wordpress.com

  3. Problem statement: Distributed Filters • Generally, we want to access very large tables using an index on the most selective filter we can find. • small (ish) tables may be accessed by a full-table scan using multi-block reads • Partitioning by column X is an alternative to creating an index on X (and a local index on Y is an alternative to a multi-column index on X,Y) • This is because we want to avoid reading data from a table only to reject it later on. • The most selective filter may or may not be a join condition • However, sometimes a combination of filters provides much stronger selectivity than any one filter. • When combinations of filters involve join conditions they are called Distributed Filters (by Dan Tow). Tony Hasler http://tonyhasler.wordpress.com

  4. Query using SH example schema SELECTprod_name,cust_first_name, time_id,amount_sold FROMcustomers c,productsp,sales s WHEREs.cust_id=c.cust_id ANDs.prod_id=p.prod_id ANDc.cust_last_name='Everett' ANDp.prod_category='Electronics'; NOTE: For convenience I will refer to the SALES table as a FACT table and the CUSTOMERS and PRODUCTS tables as DIMENSION tables but star transformations are NOT restricted to star schemas! Tony Hasler http://tonyhasler.wordpress.com

  5. What join order do we want? Sales (116,267 /918,843 ) Product (13) Customers (115) Sales (740 /918,843 ) Customers (80) Product (115) Sales (115 /918,843 ) Customers (80) Product (1,040) They are all bad! Tony Hasler http://tonyhasler.wordpress.com

  6. Wouldn’t it be nice if…. SALES (115/918,843 ) Merged bitmap (115/918,843) SALES_CUST_IDX (740 /918,843 ) SALES_PROD_IDX (116,267 /918,843 ) Product (13) Customers (115) Tony Hasler http://tonyhasler.wordpress.com

  7. Rewrite attempt 1: SELECTtime_id,amount_sold FROM sales WHEREcust_id=4117ANDprod_id=20; This query returns too few rows because we are only picking one customer and one product This query returns too few columns because we don’t have the details from the dimension tables. Tony Hasler http://tonyhasler.wordpress.com

  8. Enterprise edition execution plan ------------------------------------------------------------- | Id | Operation | Name | ------------------------------------------------------------- | 0 | SELECT STATEMENT | | | 1 | PARTITION RANGE ALL | | | 2 | TABLE ACCESS BY LOCAL INDEX ROWID| SALES | | 3 | BITMAP CONVERSION TO ROWIDS | | | 4 | BITMAP AND | | |* 5 | BITMAP INDEX SINGLE VALUE | SALES_CUST_BIX | |* 6 | BITMAP INDEX SINGLE VALUE | SALES_PROD_BIX | ------------------------------------------------------------- Here we see selection filters being combined in a straightforward way. Tony Hasler http://tonyhasler.wordpress.com

  9. Rewrite attempt 2: SELECTtime_id,amount_sold FROMsales s WHEREs.cust_idIN(SELECTcust_id FROMcustomers WHEREcust_last_name='Everett') ANDs.prod_idIN(SELECTprod_id FROMproducts WHEREprod_category='Electronics'); This query returns fewercolumnsthanthe original query because the columns from the dimension tables are missing This query returns the same number of rows as the original query providingthatCUST_ID is a unique key in CUSTOMERS and PROD_ID is unique within PRODUCTS. Tony Hasler http://tonyhasler.wordpress.com

  10. Enterprise edition execution plan --------------------------------------------------------------- | Id | Operation | Name | --------------------------------------------------------------- | 0 | SELECT STATEMENT | | | 1 | VIEW | VW_ST_EABF22F5 | | 2 | NESTED LOOPS | | | 3 | PARTITION RANGE ALL | | | 4 | BITMAP CONVERSION TO ROWIDS| | | 5 | BITMAP AND | | | 6 | BITMAP MERGE | | | 7 | BITMAP KEY ITERATION | | | 8 | BUFFER SORT | | |* 9 | TABLE ACCESS FULL | CUSTOMERS | |* 10 | BITMAP INDEX RANGE SCAN| SALES_CUST_BIX | | 11 | BITMAP MERGE | | | 12 | BITMAP KEY ITERATION | | | 13 | BUFFER SORT | | |* 14 | VIEW | index$_join$_051 | |* 15 | HASH JOIN | | |* 16 | INDEX RANGE SCAN | PRODUCTS_PROD_CAT_IX | | 17 | INDEX FAST FULL SCAN| PRODUCTS_PK | |* 18 | BITMAP INDEX RANGE SCAN| SALES_PROD_BIX | | 19 | TABLE ACCESS BY USER ROWID | SALES | --------------------------------------------------------------- Tony Hasler http://tonyhasler.wordpress.com

  11. Star transformations make an appearance Multi-column indexes, and the INDEX_COMBINE (and the deprecated AND_EQUAL) hints can be used to deal with combined selection filters Star transformations are used to solve the distributed filter problem when at least one of the filter predicates is a join condition with another table Requires enterprise edition and the initialisation parameter set to TRUE or TEMP_DISABLE They are frequently used with “star” or “snowflake” schemas, hence the name, but can be used elsewhere BITMAP KEY ITERATION is the signature of a star transformation BITMAP KEY ITERATION runs a loop performing lookups on indexes (usually but not necessarily bitmap indexes) The BITMAP MERGE operation merges the output of the loop In the example, the BITMAP AND operation combines the results of two BITMAP KEY ITERATION operations Tony Hasler http://tonyhasler.wordpress.com

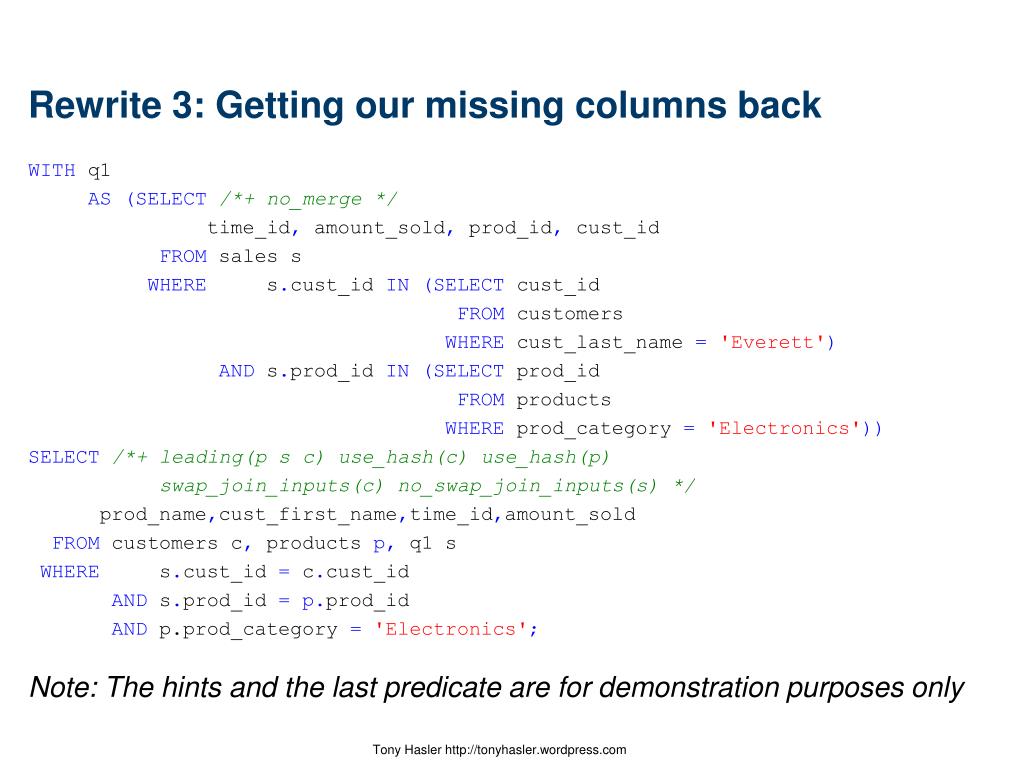

  12. Rewrite 3: Getting our missing columns back WITH q1 AS(SELECT/*+ no_merge */ time_id, amount_sold, prod_id, cust_id FROM sales s WHEREs.cust_idIN(SELECTcust_id FROM customers WHEREcust_last_name='Everett') ANDs.prod_idIN(SELECTprod_id FROM products WHEREprod_category='Electronics')) SELECT/*+ leading(p s c) use_hash(c) use_hash(p) swap_join_inputs(c) no_swap_join_inputs(s) */ prod_name,cust_first_name,time_id,amount_sold FROM customers c, products p, q1 s WHEREs.cust_id=c.cust_id ANDs.prod_id=p.prod_id ANDp.prod_category='Electronics'; Note: The hints and the last predicate are for demonstration purposes only Tony Hasler http://tonyhasler.wordpress.com

  13. Execution plan for rewrite 3: Same as rewrite 2 ------------------------------------------------------------------ | Id | Operation | Name | ------------------------------------------------------------------ | 0 | SELECT STATEMENT | | |* 1 | HASH JOIN | | | 2 | TABLE ACCESS FULL | CUSTOMERS | |* 3 | HASH JOIN | | | 4 | TABLE ACCESS BY INDEX ROWID | PRODUCTS | |* 5 | INDEX RANGE SCAN | PRODUCTS_PROD_CAT_IX | | 6 | VIEW | | | 7 | VIEW | VW_ST_EABF22F5 | | 8 | NESTED LOOPS | | | 9 | PARTITION RANGE ALL | | | 10 | BITMAP CONVERSION TO ROWIDS| | | 11 | BITMAP AND | | | 12 | BITMAP MERGE | | | 13 | BITMAP KEY ITERATION | | | 14 | BUFFER SORT | | |* 15 | TABLE ACCESS FULL | CUSTOMERS | |* 16 | BITMAP INDEX RANGE SCAN| SALES_CUST_BIX | | 17 | BITMAP MERGE | | | 18 | BITMAP KEY ITERATION | | | 19 | BUFFER SORT | | |* 20 | VIEW | index$_join$_060 | |* 21 | HASH JOIN | | |* 22 | INDEX RANGE SCAN | PRODUCTS_PROD_CAT_IX | | 23 | INDEX FAST FULL SCAN| PRODUCTS_PK | |* 24 | BITMAP INDEX RANGE SCAN| SALES_PROD_BIX | | 25 | TABLE ACCESS BY USER ROWID | SALES | ------------------------------------------------------------------ Tony Hasler http://tonyhasler.wordpress.com

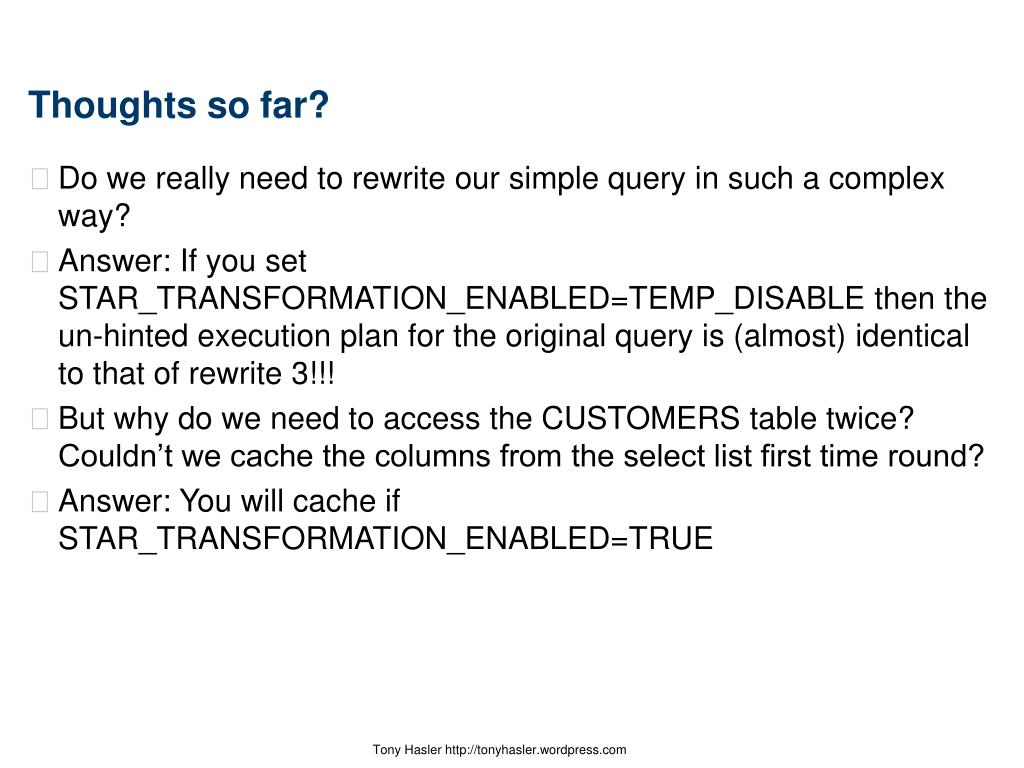

  14. Thoughts so far? Do we really need to rewrite our simple query in such a complex way? Answer: If you set STAR_TRANSFORMATION_ENABLED=TEMP_DISABLE then the un-hinted execution plan for the original query is (almost) identical to that of rewrite 3!!! But why do we need to access the CUSTOMERS table twice? Couldn’t we cache the columns from the select list first time round? Answer: You will cache if STAR_TRANSFORMATION_ENABLED=TRUE Tony Hasler http://tonyhasler.wordpress.com

  15. Execution plan for original query when STAR_TRANSFORMATION =TRUE ----------------------------------------------------------------------- | Id | Operation | Name | ----------------------------------------------------------------------- | 0 | SELECT STATEMENT | | | 1 | TEMP TABLE TRANSFORMATION | | | 2 | LOAD AS SELECT | SYS_TEMP_0FD9D6609_38DC9C | |* 3 | TABLE ACCESS FULL | CUSTOMERS | |* 4 | HASH JOIN | | | 5 | TABLE ACCESS FULL | SYS_TEMP_0FD9D6609_38DC9C | |* 6 | HASH JOIN | | | 7 | TABLE ACCESS BY INDEX ROWID | PRODUCTS | |* 8 | INDEX RANGE SCAN | PRODUCTS_PROD_CAT_IX | | 9 | VIEW | VW_ST_62EEF96F | | 10 | NESTED LOOPS | | | 11 | PARTITION RANGE ALL | | | 12 | BITMAP CONVERSION TO ROWIDS| | | 13 | BITMAP AND | | | 14 | BITMAP MERGE | | | 15 | BITMAP KEY ITERATION | | | 16 | BUFFER SORT | | | 17|TABLE ACCESS FULL | SYS_TEMP_0FD9D6609_38DC9C | |* 18 | BITMAP INDEX RANGE SCAN| SALES_CUST_BIX | | 19 | BITMAP MERGE | | | 20 | BITMAP KEY ITERATION | | | 21 | BUFFER SORT | | |* 22 | VIEW | index$_join$_051 | |* 23 | HASH JOIN | | |* 24 | INDEX RANGE SCAN | PRODUCTS_PROD_CAT_IX | | 25 | INDEX FAST FULL SCAN| PRODUCTS_PK | |* 26 | BITMAP INDEX RANGE SCAN| SALES_PROD_BIX | | 27 | TABLE ACCESS BY USER ROWID | SALES | ----------------------------------------------------------------------- Tony Hasler http://tonyhasler.wordpress.com

  16. So is that it? • Star transformations are only a good idea if the selectivity improvement outweighs the cost of the bitmap operations. • Star transformations may occasionally be used in mixed OLTP environments by converting b-tree indexes to bitmaps • But execution plans using star transformations in a data warehouse can almost always be optimized further: • Denormalize: e.g. adding columns from CUSTOMERS and PRODUCTS to the SALES table. You can then create multi-column indexes or use INDEX_COMBINE operations • Or if you don’t like wasting disk space…. Tony Hasler http://tonyhasler.wordpress.com

  17. Bitmap join indexes ALTERTABLE products MODIFYCONSTRAINTproducts_pkVALIDATE; ALTERTABLE customers MODIFYCONSTRAINTcustomers_pkVALIDATE; CREATEBITMAPINDEXsales_prod_category_bjx ONsales(p.prod_category) FROMproductsp,sales s WHEREs.prod_id=p.prod_id LOCAL; CREATEBITMAPINDEXsales_cust_ln_bjx ONsales(c.cust_last_name) FROMcustomers c,sales s WHEREc.cust_id=s.cust_id LOCAL; Tony Hasler http://tonyhasler.wordpress.com

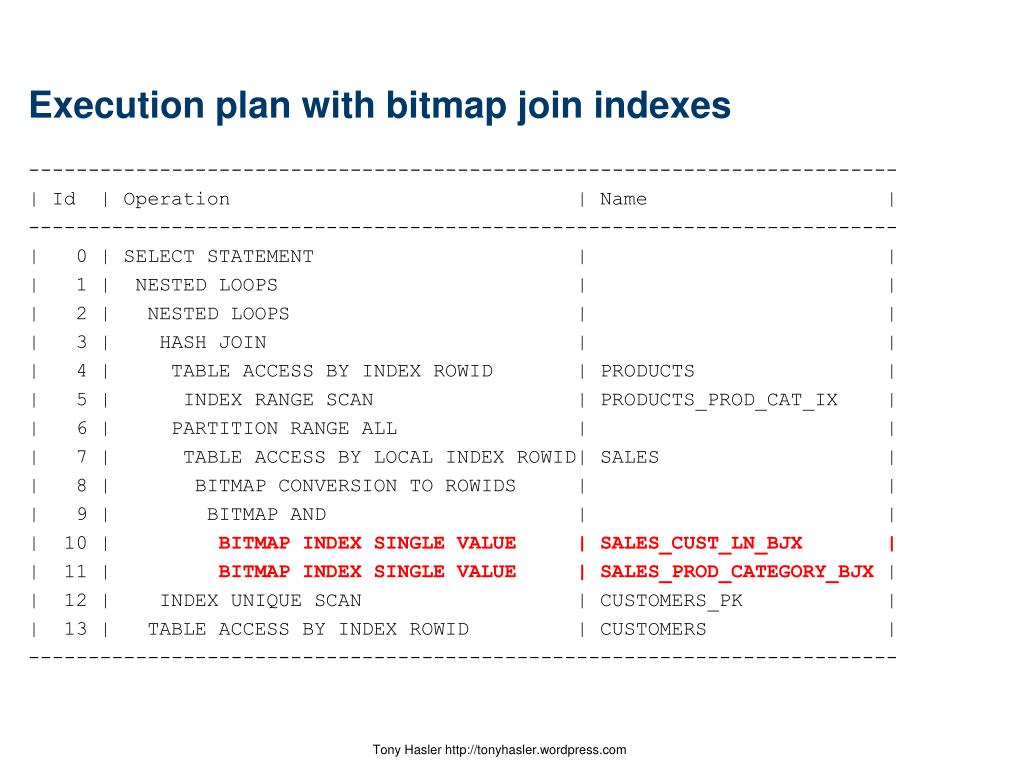

  18. Execution plan with bitmap join indexes ------------------------------------------------------------------------- | Id | Operation | Name | ------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | | 1 | NESTED LOOPS | | | 2 | NESTED LOOPS | | | 3 | HASH JOIN | | | 4 | TABLE ACCESS BY INDEX ROWID | PRODUCTS | | 5 | INDEX RANGE SCAN | PRODUCTS_PROD_CAT_IX | | 6 | PARTITION RANGE ALL | | | 7 | TABLE ACCESS BY LOCAL INDEX ROWID| SALES | | 8 | BITMAP CONVERSION TO ROWIDS | | | 9 | BITMAP AND | | | 10 | BITMAP INDEX SINGLE VALUE | SALES_CUST_LN_BJX | | 11 | BITMAP INDEX SINGLE VALUE | SALES_PROD_CATEGORY_BJX | | 12 | INDEX UNIQUE SCAN | CUSTOMERS_PK | | 13 | TABLE ACCESS BY INDEX ROWID | CUSTOMERS | ------------------------------------------------------------------------- Tony Hasler http://tonyhasler.wordpress.com

  19. What about standard edition users???? CREATETABLE sales2 AS SELECT * FROM sales; CREATEINDEX sales2_cust_id_idx ON sales2 (cust_id); CREATEINDEX sales2_prod_id_idx ON sales2 (prod_id); Tony Hasler http://tonyhasler.wordpress.com

  20. Standard edition alternative WITH q1 AS(SELECT/*+ no_merge */ s.ROWID rid FROM customers c, sales2 s WHEREs.cust_id=c.cust_idANDc.cust_last_name='Everett') ,q2 AS(SELECT/*+ no_merge */ s.ROWID rid FROM products p, sales2 s WHEREs.prod_id=p.prod_idANDprod_category='Electronics') SELECT/*+ no_star_transformation leading(q1 q2 s) use_nl(s) use_nl(p) use_nl(c) */ prod_name,cust_first_name,time_id,amount_sold FROM q1,q2,sales2 s,productsp,customers c WHERE q1.rid = q2.ridAND q1.rid =s.ROWID ANDs.cust_id=c.cust_idANDs.prod_id=p.prod_id; Tony Hasler http://tonyhasler.wordpress.com

  21. Standard edition execution plan (simulated) --------------------------------------------------------------- | Id | Operation | Name | --------------------------------------------------------------- | 0 | SELECT STATEMENT | | | 1 | NESTED LOOPS | | | 2 | NESTED LOOPS | | | 3 | NESTED LOOPS | | | 4 | NESTED LOOPS | | |* 5 | HASH JOIN | | | 6 | VIEW | | | 7 | NESTED LOOPS | | |* 8 | TABLE ACCESS FULL | CUSTOMERS | |* 9 | INDEX RANGE SCAN | SALES2_CUST_ID_IDX | | 10 | VIEW | | | 11 | NESTED LOOPS | | |* 12 | VIEW | index$_join$_003 | |* 13 | HASH JOIN | | |* 14 | INDEX RANGE SCAN | PRODUCTS_PROD_CAT_IX | | 15 | INDEX FAST FULL SCAN | PRODUCTS_PK | |* 16 | INDEX RANGE SCAN | SALES2_PROD_ID_IDX | | 17 | TABLE ACCESS BY USER ROWID| SALES2 | |* 18 | TABLE ACCESS BY INDEX ROWID| PRODUCTS | |* 19 | INDEX UNIQUE SCAN | PRODUCTS_PK | |* 20 | INDEX UNIQUE SCAN | CUSTOMERS_PK | | 21 | TABLE ACCESS BY INDEX ROWID | CUSTOMERS | --------------------------------------------------------------- Tony Hasler http://tonyhasler.wordpress.com

  22. Some final pieces of trivia.. The deprecated STAR hint has nothing to do with star transformations….DON’T USE IT. STAR_TRANSFORMATION and NO_STAR_TRANSFORMATION hints can be used to control star transformations. The FACT hint can be used to specify the table to which the star transformation is applied (although it is usually obvious). The fact table can also be supplied as an argument to the STAR_TRANSFORMATION hint (undocumented, unsupported etc.) Enabled integrity constraints are not strictly required on the dimension table(s). However, if they are absent an extra join may be seen to ensure the row count is accurate. Enabled and validated Integrity constraints are required on dimension tables used in bitmap join indexes. Bitmaps from BITMAP KEY ITERATION operations can be combined with any other bitmaps including those from bitmap join indexes Tony Hasler http://tonyhasler.wordpress.com

  23. Summary Star transformations are used to solve the problem of distributed filterswhen at least one of the filters is a join predicate Star transformations can be recognised by the presence of the BITMAP KEY ITERATION operation in an execution plan. Star transformations are usually found using bitmap indexes in “star” schemas in a data warehouse but can occasionally be useful in mixed OLTP environments with traditional b-tree indexes and in non-star schemas. Star transformations, like all bitmap combination operations, relies on the fact that the cost of the operation is outweighed by increased selectivity. STAR_TRANSFORMATION_ENABLED=TEMP_DISABLE is to avoid bugs but should rarely be needed these days. Performance of queries using star transformations in a data warehouse can almost always be improved by the use of bitmap join indexes. Tony Hasler http://tonyhasler.wordpress.com
