  1. Lecture 13 Flip-Flops Section 5.4

  2. Schedule Please bring a functional random number generator to class on Thursday (3/13).

  3. Outline • Review • D latch • Applications • Flip-flops • D flip-flops • Reset • JK flip-flops • T flip-flop

  4. D Latch

  5. Using a Latch as a Memory Element Caution for a D latch: once a clock enables a D latch, the output changes as soon as the input changes – this is not desirable if you do not want the output to change continuously and all the latches use a common clock.

  6. Uses of Flip-flops

  7. D Flip-Flop

  8. Negative Edge triggered D Flip-FlopClk=1 Y=D hold 1 0

  9. Negative Edge triggered D Flip-FlopClk=0 Q=Y hold 0 1

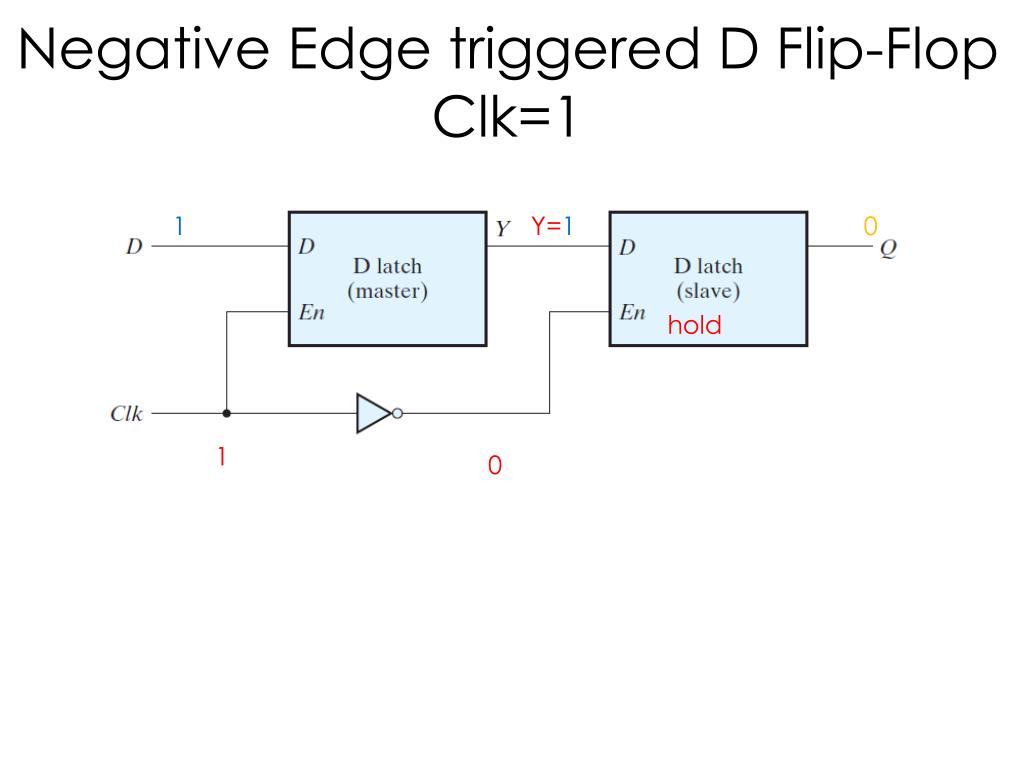

  10. Negative Edge triggered D Flip-FlopClk=1 1 Y=1 0 hold 1 0

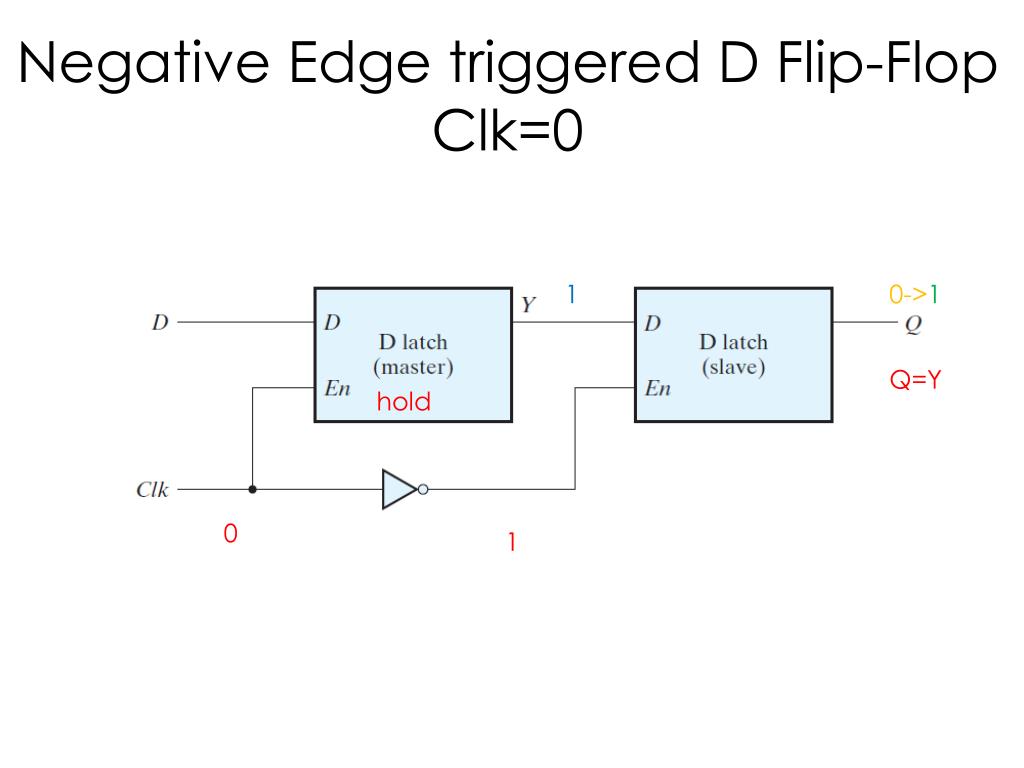

  11. Negative Edge triggered D Flip-FlopClk=0 1 0->1 Q=Y hold 0 1

  12. Verilog Modeling I1 I2

  13. Positive Edge Triggered D Flip-flop I1 I2

  14. D-Type Positive Edge Triggered Flip-Flop (CLK=0) 1 0 1 0 CLK =0, maintain the present state

  15. D-Type Positive Edge Triggered Flip-Flop D=0 as Clk=0→ 1 1 0 1 0→1 1 → 0 0 1 Q changes to 0

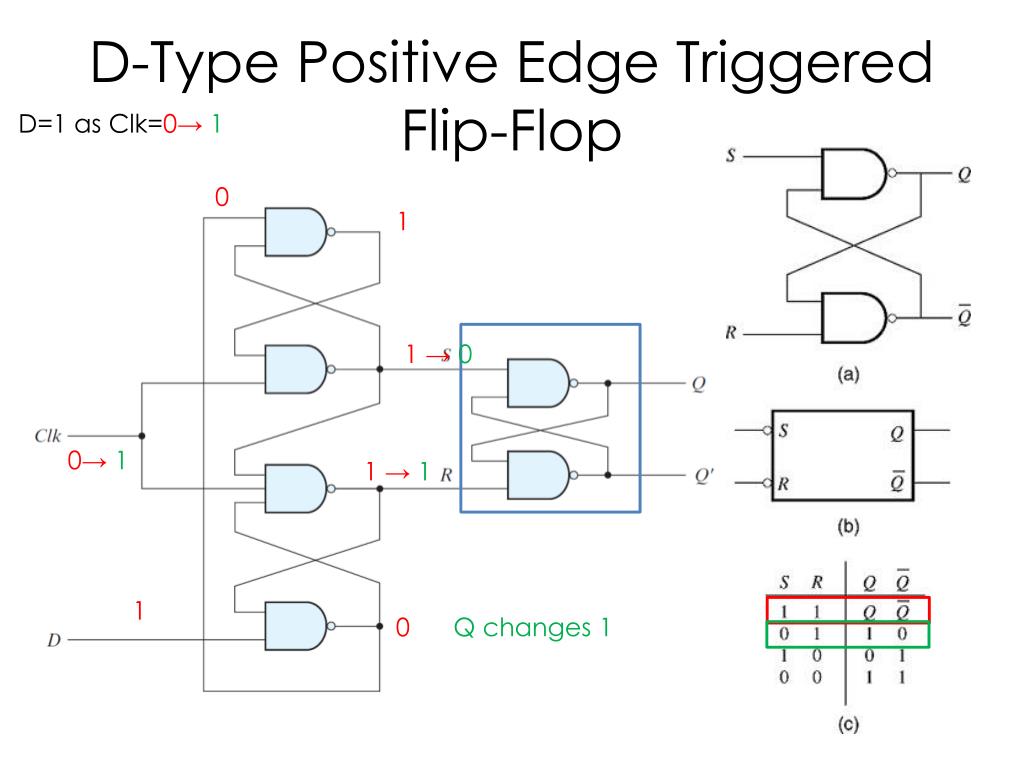

  16. D-Type Positive Edge Triggered Flip-Flop D=1 as Clk=0→ 1 0 1 1 → 0 0→1 1→ 1 1 0 Q changes 1

  17. D-Type Positive Edge Triggered Flip-Flop D=0→ 1 as Clk=1 1 S’ S 1 S’ The flip-flop is unresponsive to changes in D 0 → 1 1 Please explore different possible value of S on your own. This will work even for S=R=1 and S=R=0. revise

  18. Symbol of D Flip-Flops

  19. reset and preset • When power is first turned on, the state of the flip-flops is unknwon. • Reset is used to initialize the output to a 0. • Preset is used to initialize the output to a 1.

  20. Reset Feature 1 0 1 0 0 When Reset is 0, Q is set to 0.

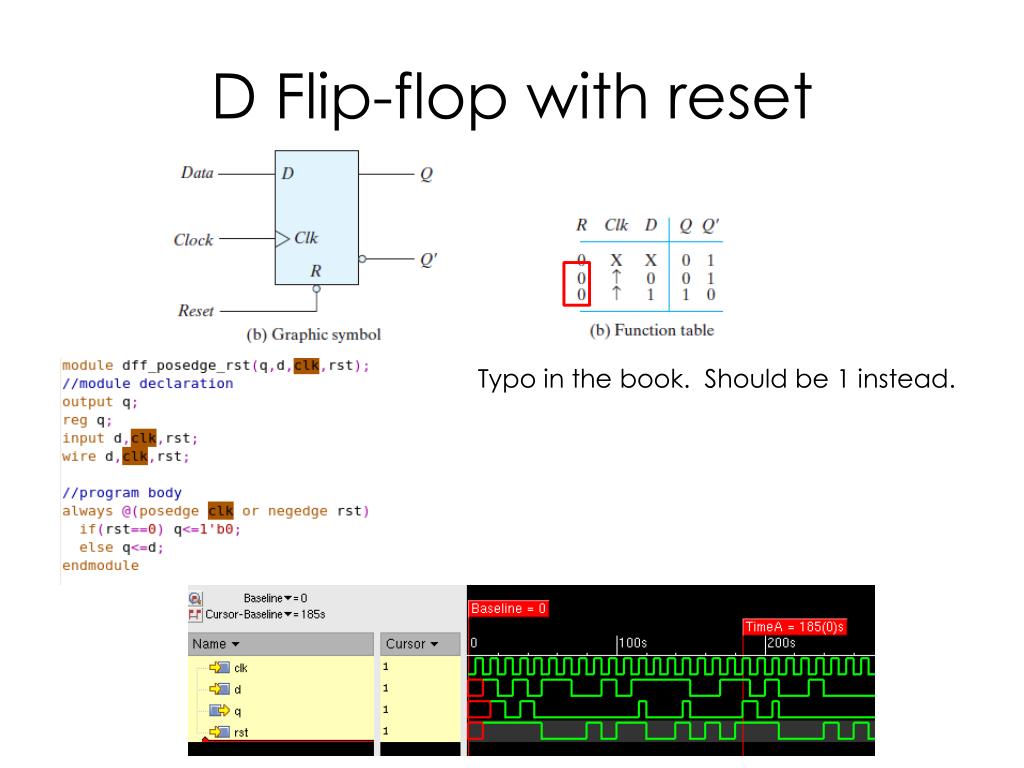

  21. D Flip-flop with reset Typo in the book. Should be 1 instead.

  22. JK Flip-Flops D=JQ’+K’Q Positive edge D flip-flop The next value of D is determined by JQ’+K’Q. At the rising edge of D Flip-flop, Q is updated with the value of D.

  23. D=JQ’+K’Q • J=1,K=1→D=Q’ • J=0, K=0→D=Q • J=0, K=1→D=0 • J=1, K=0→D=Q’+Q=1

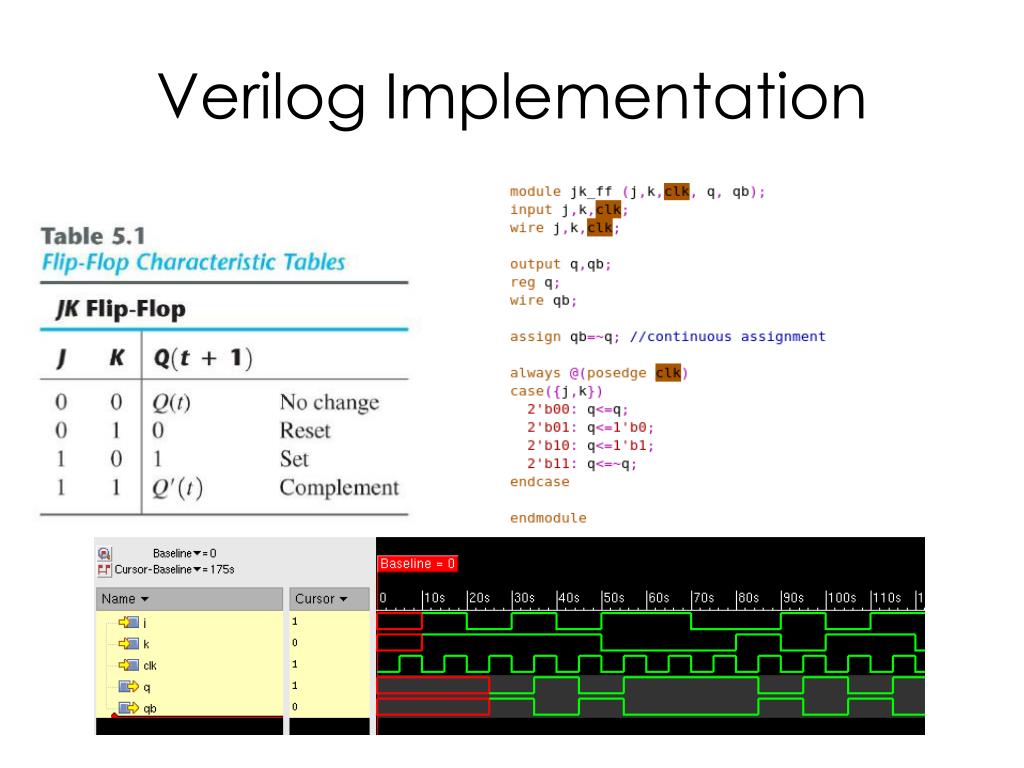

  24. Verilog Implementation

  25. T Flip-Flop

  26. T Flip-Flop from D Flip-Flop DT rst D=TQ’+T’Q If T=1, D=Q’ If T=0, D=Q. Q is updated with D at the next rising edge.

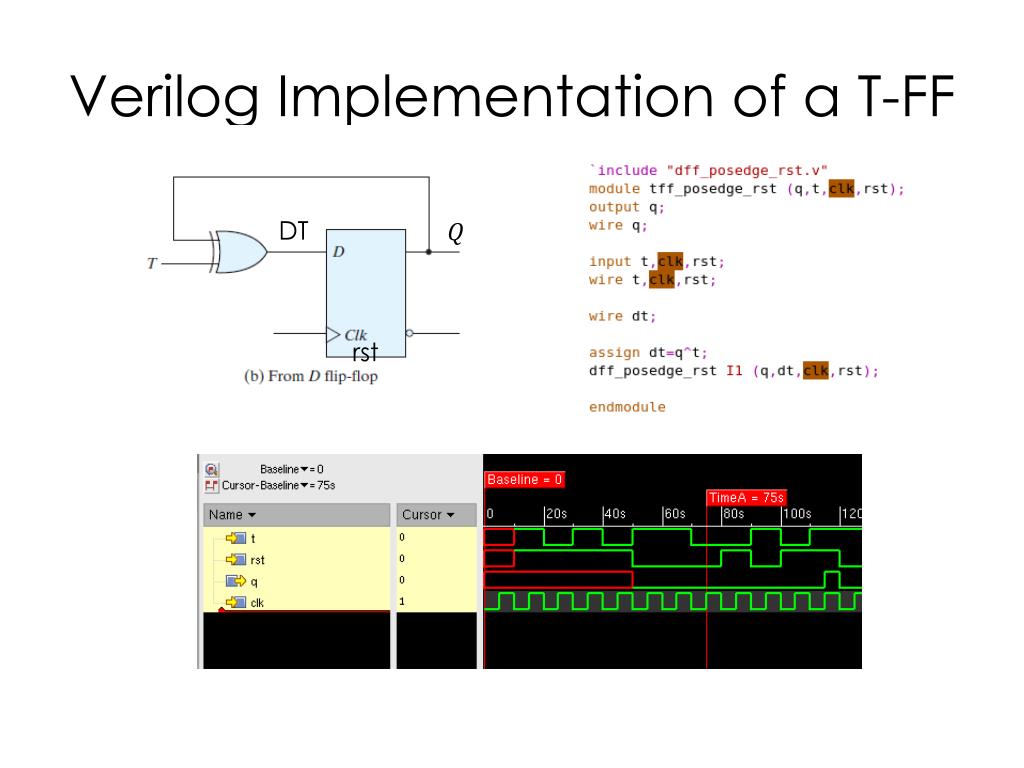

  27. Verilog Implementation of a T-FF DT rst
