Cells organs of immune mechanism

CELLS& ORGANS OF IMMUNE MECHANISM.

Origin & structure.


Immune cells

IMMUNE CELLS.

Fetal liver -------------yolk cells

Blood cell precursors.

Stem cells reside in bone marrow.

Erythroid, myeloid& lymphoid series.


Lymphocyte populations

Lymphocyte populations.

  • T-Lymphocytes (cytotoxic &helper T-cells).

  • Precursors differentiate in the thymus.

  • B –Lymphocytes develop in the bone marrow,gut associated lymphoid tissue,spleen and lymph nodes.

  • The ratio of T to B cells is approximately 3:1.

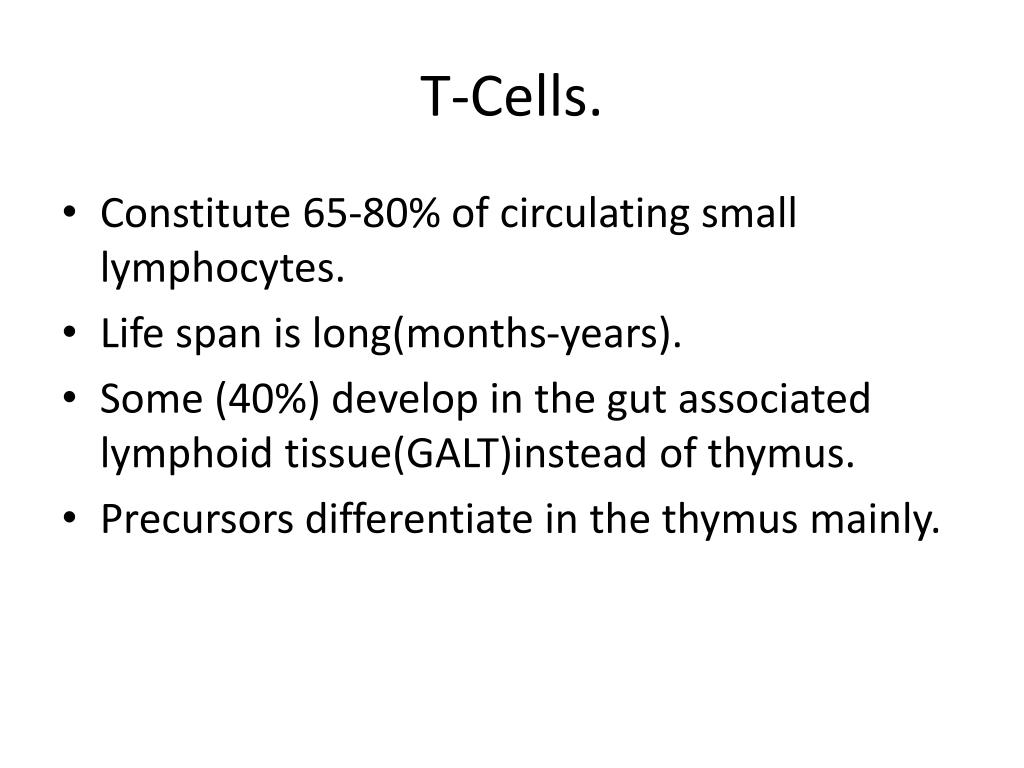

T cells

T-Cells.

  • Constitute 65-80% of circulating small lymphocytes.

  • Life span is long(months-years).

  • Some (40%) develop in the gut associated lymphoid tissue(GALT)instead of thymus.

  • Precursors differentiate in the thymus mainly.


Thymic education

THYMIC EDUCATION.

  • CLONAL DELETION (by apoptosis)

  • Negative selection self tolerance.


Thymic education1

THYMIC EDUCATION.

  • Positive selection for T cells that react well with self reacting antigens.

  • T cells are produced that are selected to react with both foreign Ag and self MHC proteins.


Role of t cell receptors

Role of T-cell receptors.

  • During their passage through the thymus double +ve cells synthesize a highly specific antigen receptor (TCR).

  • The genes that encode the receptor are variable, diversity & joining genes that rearrange and are responsible for the ability of the T-cells to recognize millions of different antigens.


Formation of immunocompetent t cells

Formation of immunocompetent T cells.

  • T-cell precursors differentiate into immunocompetent T-cells within the thymus.

  • In the initial stage they differentiate into Double positive cells(both CD4&CD8proteins).

  • Later they express only one type of antigen receptor&contain either CD4 orCD8 type of receptor,depending on which type of cell they come into contact.


Differentiation of immunocompetent cells

Differentiation of immunocompetent cells.

  • The cells that come into contact with cells bearing class 1MHC protein,differentiate into CD8 +ve,while those that come into contact with class2MHC proteins differentiate into CD4+ cells.

  • The double positive cells are located in the cortex while the single positive cells are located in the medulla.


Mhc proteins

MHC PROTEINS

  • Class 1 MHC PROTEINS

  • These are glycoproteins found on the surface of virtually all nucleated cells.

  • The complete class 1 protein is highly polymorphic.

  • The polymorphism of these molecules is important in the recognition of self and nonself.


Cells organs of immune mechanism

  • If these molecules were more similar, our ability to accept foreign grafts would be correspondingly improved.

  • The molecule also has a constant region where the CD8 protein of the cytotoxic T cells binds.


Cells organs of immune mechanism

  • Class 11 MHC PROTEINS

  • These are glycoproteins found on the surface of certain cells, including macrophages, B cells, dendritic cells of the spleen, and Langerhans cells of the skin.

  • Like class 1 proteins, they have a hypervariable region that provides much of the polymorphism. They also have a constant region where the CD4 proteins of helper T cell binds.

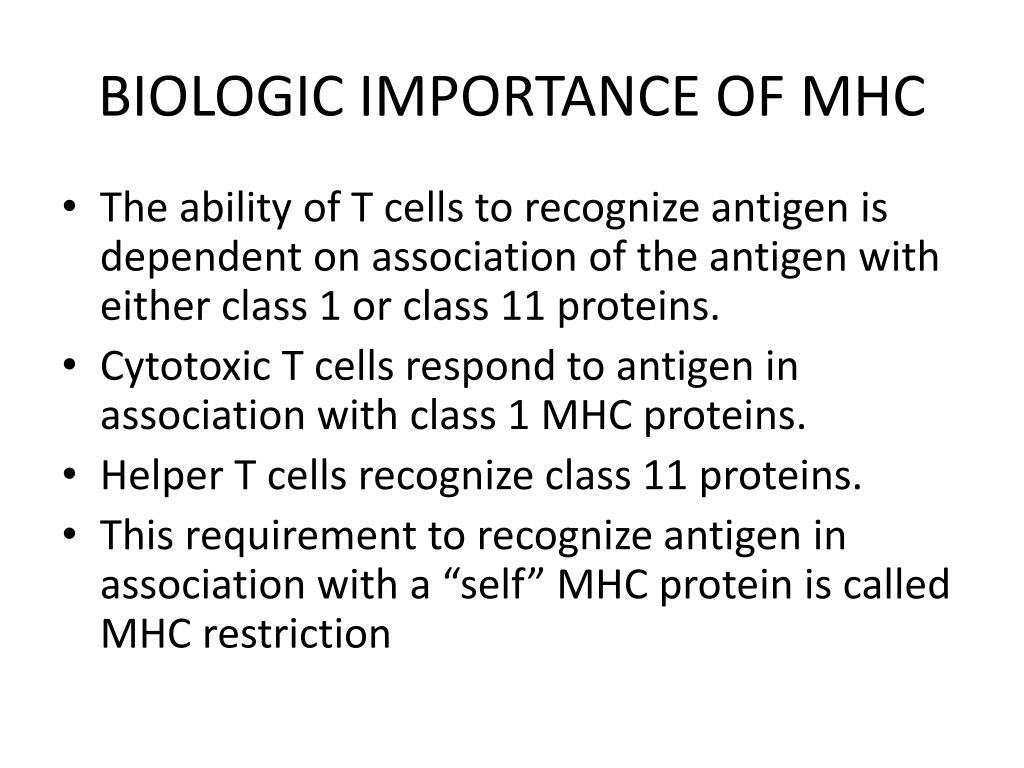

Biologic importance of mhc

BIOLOGIC IMPORTANCE OF MHC

  • The ability of T cells to recognize antigen is dependent on association of the antigen with either class 1 or class 11 proteins.

  • Cytotoxic T cells respond to antigen in association with class 1 MHC proteins.

  • Helper T cells recognize class 11 proteins.

  • This requirement to recognize antigen in association with a “self” MHC protein is called MHC restriction


Cells organs of immune mechanism

  • MHC genes and proteins are also important in two other medical contexts.

  • Many autoimmune disease occur in people who carry certain MHC genes.

  • Success of organ transplant is in large part determined by the compatibility of MHC genes of the donor and recipient.


Antigen antibody reactions

Antigen-Antibody Reactions

  • Reactions of antigens with antibodies are highly specific.

  • Because of the great specificity, reactions between antigens and antibodies are suitable for identifying one by using the other.

  • This is the basis of serologic reactions.


Cells organs of immune mechanism

  • The results of many immunologic tests are expressed as a titer, which is defined as the highest dilution of the specimen e.g. Serum that gives a positive reaction in the test serum.

  • A patients serum with an antibody titer of, for example, 1/64 contains more antibodies, i.e.

  • Is a higher titer than a serum with a titer for example 1/4.


Medical importance of serologic antibody based tests

Medical importance of serologic (antibody-based ) tests

  • Diagnosis of infectious diseases.

  • Diagnosis of autoimmune diseases.

  • Typing of tissue and blood before transplantation.


Types of diagnostic tests

Types Of Diagnostic Tests

  • Agglutination

    In this test the antigen is particulate (eg, bacteria and red blood cells)

    Antibody because it is divalent or multivalent , cross-links the antigenically multivalent particles and forms a lattice work, and clumping (agglutination) can be seen.

    eg. ABO blood group test is agglutination


Cells organs of immune mechanism

  • Precipitation (Precipitin)

  • In this test the antigen is in solution.

  • The antibody cross-links antigen molecules in variable proportions, and aggregates (precipitates) form.

  • In this test the antigen is in solution. The antibody cross-links antigen molecules in variable proportions, and aggregates precipitates form


Cells organs of immune mechanism

  • Radioimmunoassay (RIA)

  • This method is used for quantitation of antigens or haptens that can be radioactively labeled.

  • It is based on the competition for specific antibody between the labeled (known) and the unlabeled (unknown) concentration of material.


Cells organs of immune mechanism

  • Enzyme-Linked Immunosorbent Assay (ELISA)

  • This method can be used for quantization of either antigens or antibodies in patient specimens. It is based on covalently linking an enzyme to a known antigen or antibody, reacting the enzyme linked material with the patients specimen, and then assaying for enzyme activity by adding the substrate of the enzyme.
